Mikoyan MiG-31 FOXHOUND

[Forest Green]

https://twitter.com/x/status/1607050349130715136

View: https://twitter.com/SGNewsAlerts/status/1607050349130715136



[Ronny]

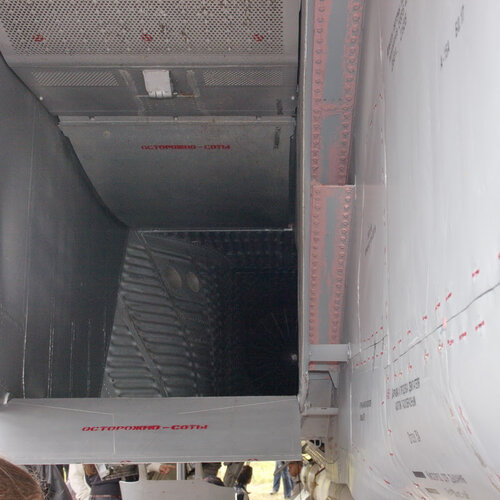

does anyone have photos of Mig-31 inlet internal?



[paralay]

MiG-31



[Ronny]

MiG-31

thank you a lot
what does these Russian words said?



[paralay]

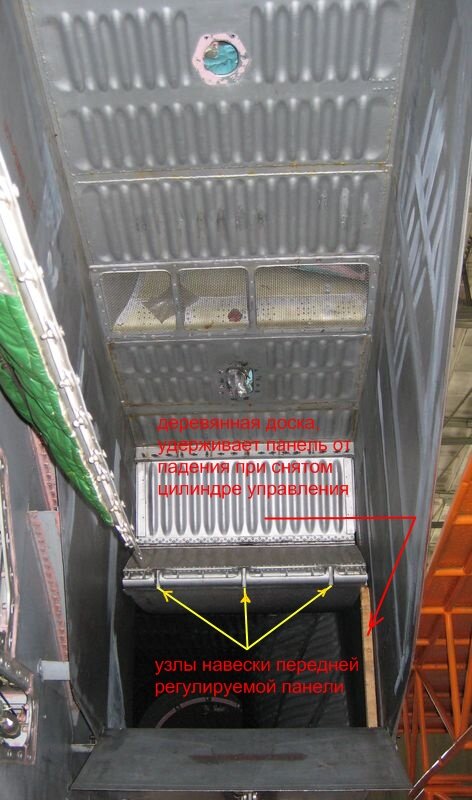

a wooden board keeps the panel from falling when the control cylinder is removed
attachment points of the front adjustable panel

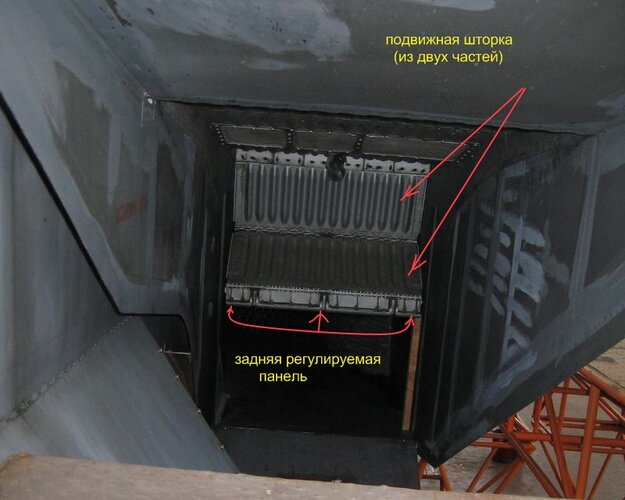

movable curtain (two-piece)
rear adjustable panel



[Ronny]

a wooden board keeps the panel from falling when the control cylinder is removed
attachment points of the front adjustable panel

movable curtain (two-piece)
rear adjustable panel

so the panel falling like that is simply due to the control cylinder were removed rather than the actual position on flight right?



[Ronny]

a wooden board keeps the panel from falling when the control cylinder is removed
attachment points of the front adjustable panel

movable curtain (two-piece)
rear adjustable panel

also, why is the surface of the inlet ramp looks so much different in this photo:



[paralay]

There is no front panel No. 8 in the upper photos https://www.secretprojects.co.uk/attachments/31-jpg.694093/



[Forest Green]

https://mil.in.ua/en/news/explosions-occurred-near-the-machulishchy-air-base/

On the morning and night of February 26, several explosions were heard near the Machulishchy air base.

A MiG-31К with the tail number RF-95194 caught fire on one of its two engines. The fire was accompanied by an explosion-like sound – it was the sound of the engine pumping after the fire.

Militarnyi also reported that on December 25, the engine of a MiG-31K fighter jet caught fire while attempting to take off from the Machulishchy airfield.



[Ronny]

In 1994 there were some exercises with MiG-31. There was a record breaking distance with K-37 missile;
How far was that kill?
I vaguely remember some source stated that the kill taken 304 km aways with the help from a Flanker closer to target
Yet, Mig-31 book by Yefim Gordon and Dmitriy Komissarov said the kill happened at 228 km only. Which one is correct?



[paralay]

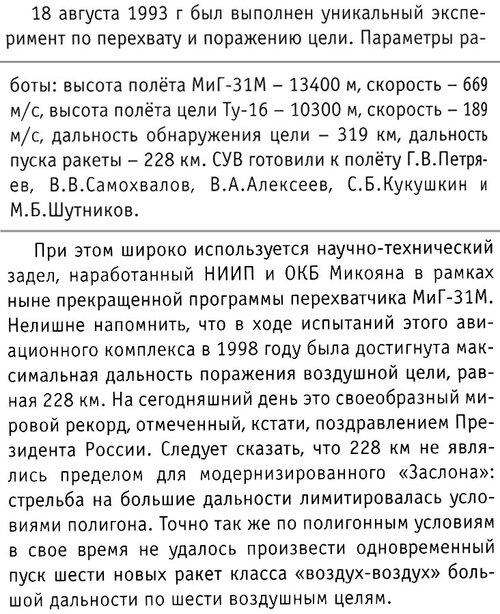

On August 18, 1993, a unique experiment was performed to intercept and defeat a target. Operating parameters: MiG-31M flight altitude - 13400 m, speed - 669 m/s, Tu-16 target flight altitude - 10300 m, speed - 189 m/s, target detection range - 319 km, missile launch range - 228 km. The SUV (Weapons Control System) was prepared for flight by G.V.Petryaev, V.V.Samokhvalov, V.A.Alekseev, S.B.Kukushkin and M.B.Shutnikov. At the same time, the scientific and technical reserve accumulated by the NIIP and the Mikoyan Design Bureau within the framework of the now discontinued MiG-31M interceptor program is widely used. It is worth recalling that during the tests of this aviation complex in 1998, the maximum range of hitting an air target was reached, equal to 228 km. To date, this is a kind of world record, marked, by the way, by the congratulations of the President of Russia. It should be said that 228 km was not the limit for the upgraded "Barrier": long-range shooting was limited by the conditions of the landfill.
Similarly, due to the testing ground conditions, it was not possible at one time to launch six new long-range air-to-air missiles at six air targets simultaneously.



[Ronny]

On August 18, 1993, a unique experiment was performed to intercept and defeat a target. Operating parameters: MiG-31M flight altitude - 13400 m, speed - 669 m/s, Tu-16 target flight altitude - 10300 m, speed - 189 m/s, target detection range - 319 km, missile launch range - 228 km. The SUV (Weapons Control System) was prepared for flight by G.V.Petryaev, V.V.Samokhvalov, V.A.Alekseev, S.B.Kukushkin and M.B.Shutnikov. At the same time, the scientific and technical reserve accumulated by the NIIP and the Mikoyan Design Bureau within the framework of the now discontinued MiG-31M interceptor program is widely used. It is worth recalling that during the tests of this aviation complex in 1998, the maximum range of hitting an air target was reached, equal to 228 km. To date, this is a kind of world record, marked, by the way, by the congratulations of the President of Russia. It should be said that 228 km was not the limit for the upgraded "Barrier": long-range shooting was limited by the conditions of the landfill.
Similarly, due to the testing ground conditions, it was not possible at one time to launch six new long-range air-to-air missiles at six air targets simultaneously.

Thank you a lot, what is that snip from btw?



[paralay]

page 34

NIIP-50.PDF

Посмотреть и скачать с Яндекс.Диска

disk.yandex.ru



[paralay]

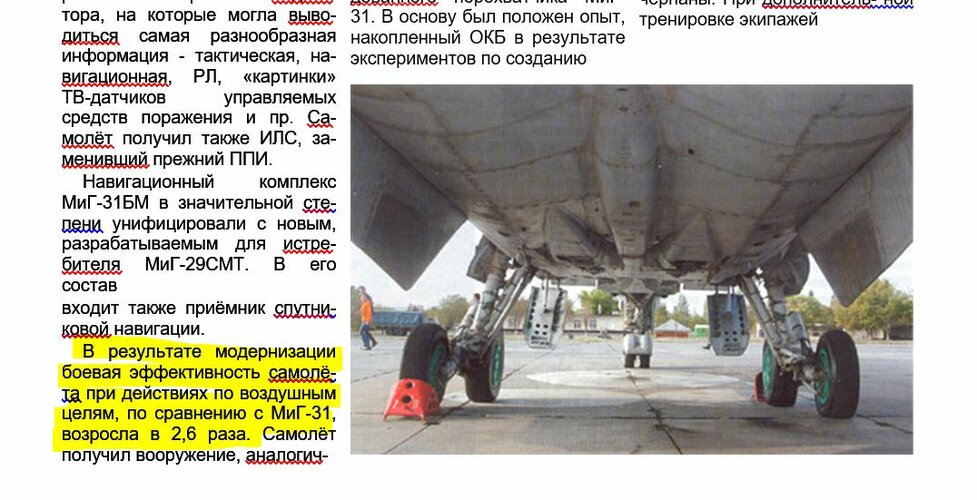

By the way. I found a source where it is said about the 2.6-fold increased combat effectiveness of the MiG-31BM when working on air targets. This applies to the early version, with the ability to work "air - ground"



[Forest Green]

https://eurasiantimes.com/russias-hypersonic-firing-mig-31-fighter-interceptor-crashes-after-catching-fire-pilotssafe/

Russia’s Hypersonic-Firing MiG-31 Fighter-Interceptor Crashes After Catching Fire; Pilots Safe

https://twitter.com/x/status/1651262195148156928



[BBCRF]

https://eurasiantimes.com/russias-hypersonic-firing-mig-31-fighter-interceptor-crashes-after-catching-fire-pilotssafe/

Russia’s Hypersonic-Firing MiG-31 Fighter-Interceptor Crashes After Catching Fire; Pilots Safe

https://twitter.com/x/status/1651262195148156928

hypersonic?



[Dew]

Hypersonic-Firing

hypersonic?



[Forest Green]

hypersonic?

Eurasian Times, what can I say? I think it means, 'hypersonic missile firing MiG-31' maybe.



[Forest Green]

4 MiG-31 write-offs since the February 24th 2022:

Aviation Safety Network > ASN Aviation Safety WikiBase > ASN Aviation Safety Database results

Aviation Safety Network: Aviation Safety Network: Databases containing descriptions of over 11000 airliner write-offs, hijackings and military aircraft accidents.

aviation-safety.net



[Josh_TN]

The fleet must be flying a lot of hours doing top cover. I think there are only a hundred or so fully modernized airframes (not counting the Ks which apparently have no A2A after thatvupdate).



[Forest Green]

The fleet must be flying a lot of hours doing top cover. I think there are only a hundred or so fully modernized airframes (not counting the Ks which apparently have no A2A after thatvupdate).

So K variants can no longer carry A2A armaments after Kinzhal update?



[Anduriel]

The fleet must be flying a lot of hours doing top cover. I think there are only a hundred or so fully modernized airframes (not counting the Ks which apparently have no A2A after thatvupdate).

So K variants can no longer carry A2A armaments after Kinzhal update?

Wll, certainly no Long-range missiles. Probably no R-73s too, as there are not photos of 31K with pylons under wing.



[paralay]

The pylons under the wing can be removed and hung in half an hour. On the MiG-31M, the inner pylon of the wing could carry the R-37, probably the MiG-31BM can also do this



[Anduriel]

The pylons under the wing can be removed and hung in half an hour. On the MiG-31M, the inner pylon of the wing could carry the R-37, probably the MiG-31BM can also do this

I think that Kinzhal eats too much weight and drag so likely 31 going w/o anything to improve flight performance.



[Josh_TN]

The fleet must be flying a lot of hours doing top cover. I think there are only a hundred or so fully modernized airframes (not counting the Ks which apparently have no A2A after thatvupdate).

So K variants can no longer carry A2A armaments after Kinzhal update?

The Ks are old airframes that weren’t fully updated to the new standard. But I think the mod also removes even the previous A2A capability. I’m not sure the radar is even functional.



[paralay]

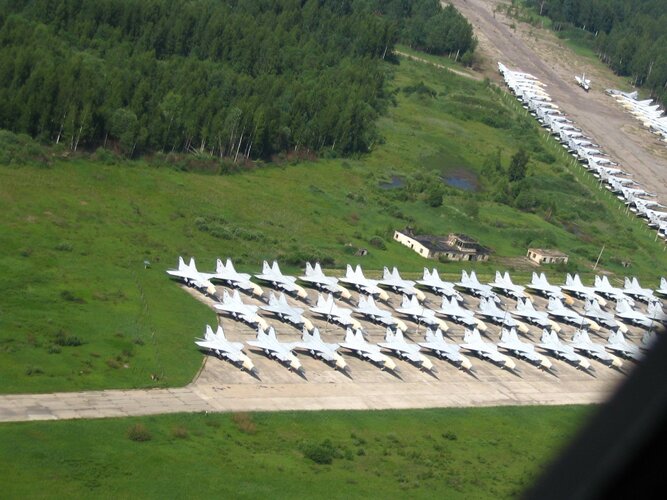

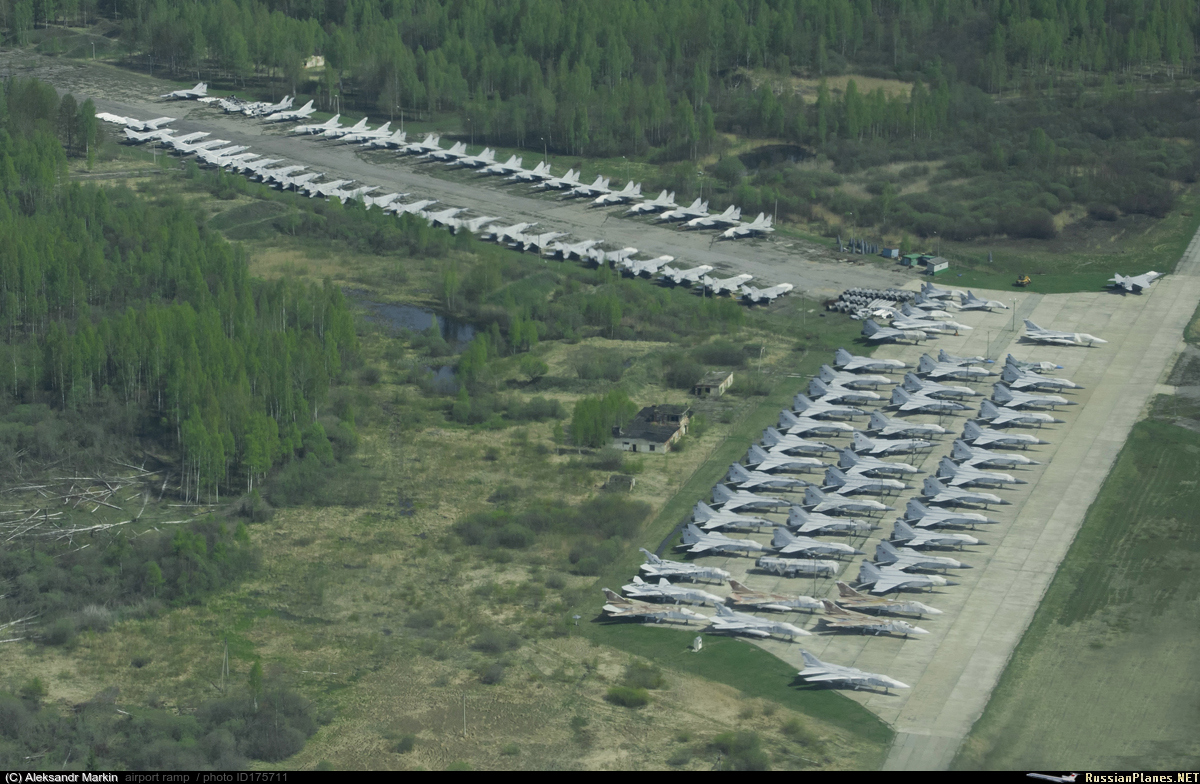

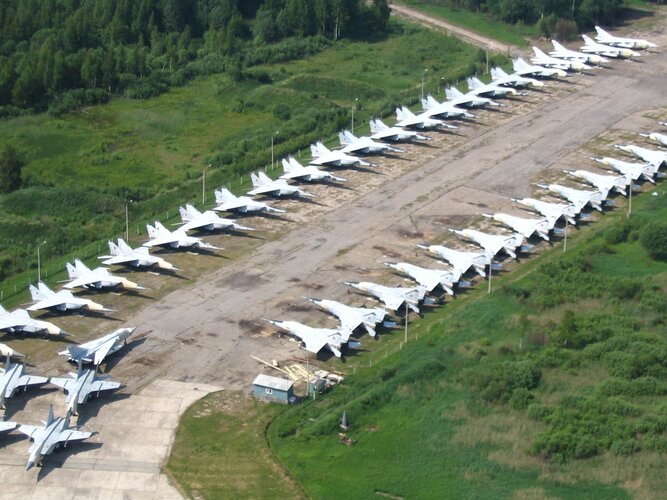

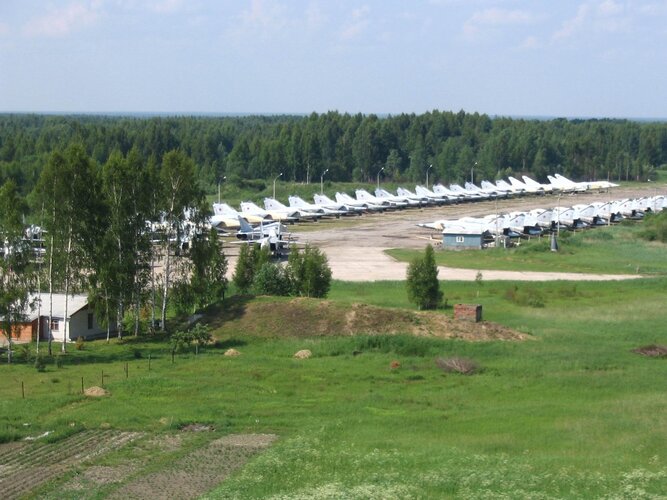

An old photo of the airfield repair plant in the city of Rzhev. Count how many MiG-31s are here

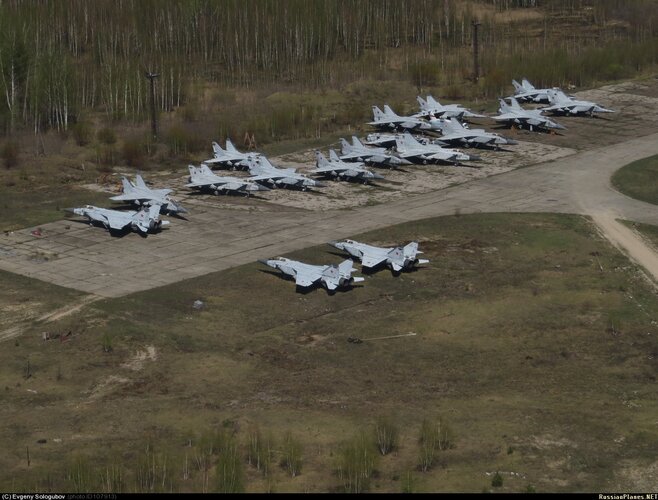

And now look at this place in Google maps...

Ржев



[Dew]

Count how many MiG-31s are here

I can see something like 42 - what's your reckoning?
edit: maybe 43+1?
1517+1 or so remaining? (the +1 being the dismembered fuselage)



[paralay]

The pylons under the wing can be removed and hung in half an hour. On the MiG-31M, the inner pylon of the wing could carry the R-37, probably the MiG-31BM can also do this

I think that Kinzhal eats too much weight and drag so likely 31 going w/o anything to improve flight performance.

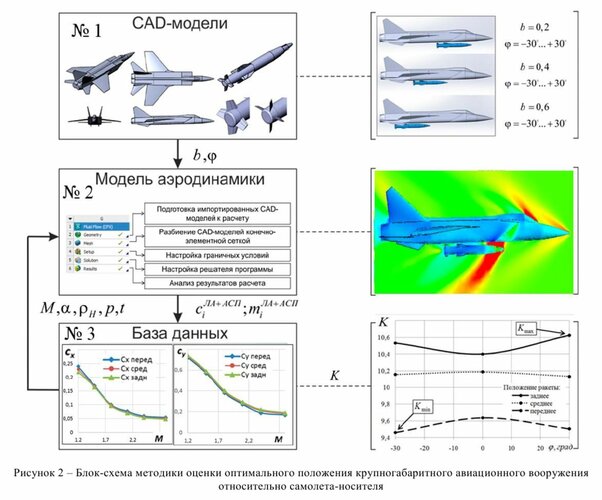

The ratio of L / D MiG-31 without a missele or with the rear position of the missele 10.6 - 10.8, with a missele 10.2. Losses are 4 - 6 %



[paralay]

Count how many MiG-31s are here

I can see something like 42 - what's your reckoning?
edit:maybe 43+1?
15+1 or so remaining? (the +1 being the dismembered fuselage)

Probably all the missing planes have turned into MiG-31K today.



[Dew]

Count how many MiG-31s are here

I can see something like 42 - what's your reckoning?
edit:maybe 43+1?
15+1 or so remaining? (the +1 being the dismembered fuselage)

Probably all the missing planes have turned into MiG-31K today.

ah - I meant your reckoning on numbers (I took the hint of their fate!)



[paralay]

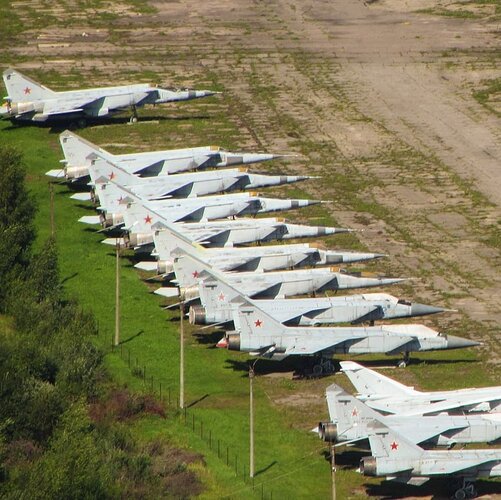

In addition to the MiG-31, there are also MiG-25s in the parking lot, they can be confused



[Dew]

In addition to the MiG-31, there are also MiG-25s in the parking lot, they can be confused

yup - that's why I wanted a double-check!



[paralay]

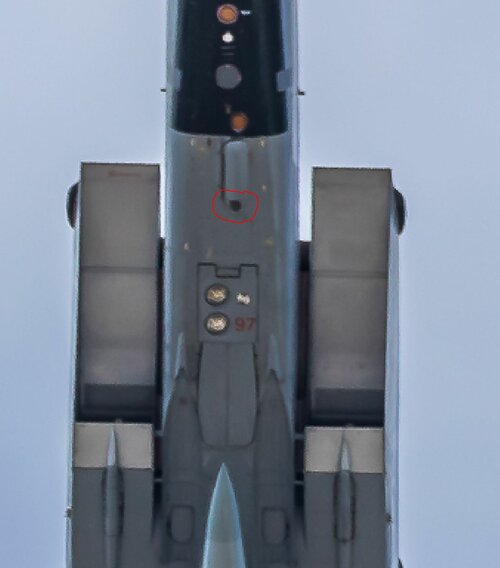

I think there is no radar on the plane. Because the infrared unit 8TK has been replaced with a video camera, this can be seen in the photo. Most likely, instead of a radar, there is a lead ring weighing approximately 150 - 250 kg. The operator in the rear cabin is needed to work with a nuclear warhead.



[BBCRF]

I think there is no radar on the plane. Because the infrared unit 8TK has been replaced with a video camera, this can be seen in the photo. Most likely, instead of a radar, there is a lead ring weighing approximately 150 - 250 kg. The operator in the rear cabin is needed to work with a nuclear warhead.

Radar is present



[paralay]

Radar is present

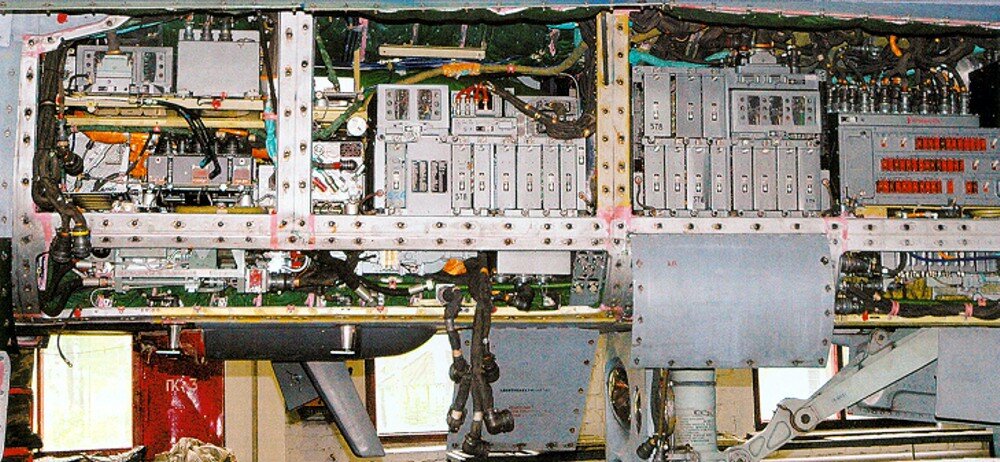

I am confused by the empty compartment under the navigator's cabin



[lancer21]

I think there is no radar on the plane. Because the infrared unit 8TK has been replaced with a video camera, this can be seen in the photo. Most likely, instead of a radar, there is a lead ring weighing approximately 150 - 250 kg. The operator in the rear cabin is needed to work with a nuclear warhead.

Radar is present

If that is the case, do you know if the MiG-31K retains the capability to carry/fire missiles from the wing pylons? Also, was the radar upgraded like on MiG-31BM?



[Ronny]

I think there is no radar on the plane. Because the infrared unit 8TK has been replaced with a video camera, this can be seen in the photo. Most likely, instead of a radar, there is a lead ring weighing approximately 150 - 250 kg. The operator in the rear cabin is needed to work with a nuclear warhead.

Radar is present

How do you know?



[BBCRF]

Radar is present

I am confused by the empty compartment under the navigator's cabin

what kind of car did you put BM as an example?
The manufacturer says that everything is there in place
You a photo from different sides



[BBCRF]

I think there is no radar on the plane. Because the infrared unit 8TK has been replaced with a video camera, this can be seen in the photo. Most likely, instead of a radar, there is a lead ring weighing approximately 150 - 250 kg. The operator in the rear cabin is needed to work with a nuclear warhead.

Radar is present

If that is the case, do you know if the MiG-31K retains the capability to carry/fire missiles from the wing pylons? Also, was the radar upgraded like on MiG-31BM?

Yes
