MBB BBH

Rotor


The design was started in 1968 after a request for proposals for an armed escort helicopter (Bewaffneter Begleithubschrauber, or BBH) was issued by the BMVg (deadline for submission was July 1969).

* requirements:
* Speed: 375 km/h (200 kt)
* Maximum rate of climb: 20 m/s (65.6 ft/s)
* Maximum hover altitude: of 2,500 m (8,200 ft) out of ground effect.
* Capacity: two seats
* Take-off weight: < 6 t (13,230 lb)
* All-weather capable
* Armored around the crew and the most important components

MBB studied two designs, designated BBH 1 and BBH 2.

* BBH 1 with small wing
* Speed: 375 km/h (200 kt)
* Rotor: a six-bladed rotor
* Take-off weight: 5.7 t (12,600 lb)

* BBH 2 with large wing, a fan-in-fin tail rotor, and a pusher propeller on the tail.
* Power: two Daimler-Benz DB 720, GE T58, or Lycoming T53 engines
* Cruise Speed: 385 km/h (208 kt)
* Rotor: four-bladed hingelessrotor
* Take-off weight: 5.9 t (13,000 lb)

The helicopter was designed to escort transport helicopters and attack enemy tanks. Both designs could carry various types of armament: one or two machine gun(s) in a revolving turret, a movable cannon, Home-on-Target (HOT) missiles, and rockets.

Although the original plan expected the prototypes to fly in mid-1972 and series production to begin in 1975, the projects were never funded for development. After additional design studies, a Memorandum of Agreement between Germany and France in 1979 - ten years later - began the development of the PAH 2 (Panzer abwehr Hubschrauber = anti tank helicopter), now known as the Eurocopter Tiger, roll out of the first serial production machine on March 22 2002.

http://www.aiaa.org/tc/vstol/unbuilt/mbb/index_r.html

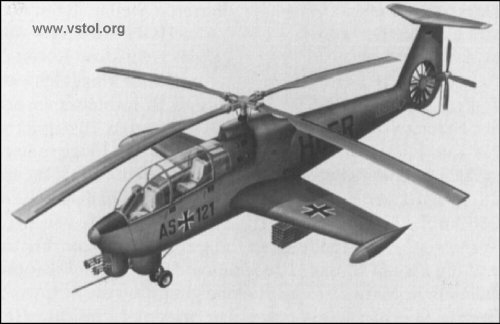

BBH-2 Pic:


Attachments

  • bbh2.jpg
    59.5 KB · Views: 1,399

GTX

All hail the God of Frustration!!!
Staff member
Senior Member
Joined
Apr 15, 2006
Messages
3,589
Reaction score
1,836
Website
beyondthesprues.com
Looks a little like a German AH-56A Cheyenne.

Regards,

Greg


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,546
Reaction score
1,232

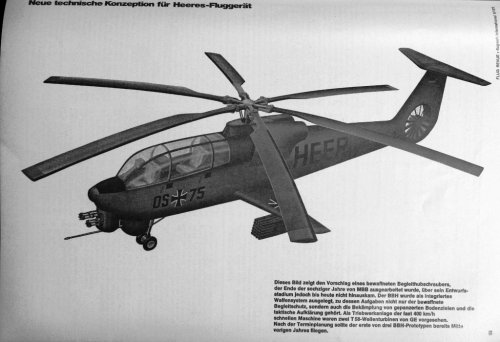

MBB BBH-1 (small wing) armed escort helicopter, from Flug-Revue 8/1973


Attachments

  • MBB BBH-1.jpg
    MBB BBH-1.jpg
    215.6 KB · Views: 1,066

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
55

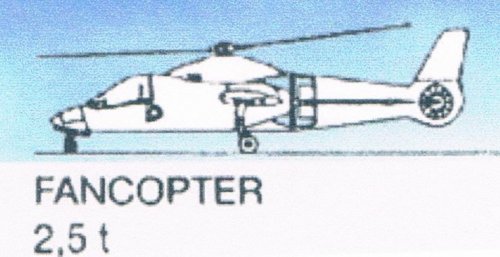

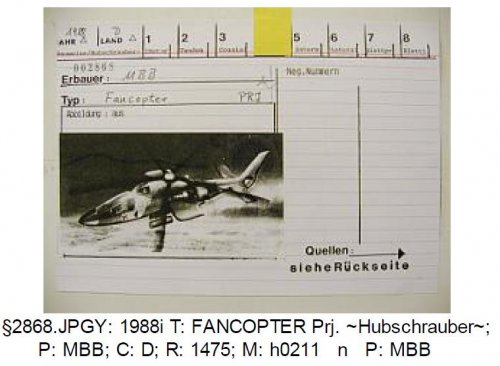

Source unknown : the Fancopter was a GYROcopter development of the Rhein Flugzeugbau Fantrainer


Attachments

  • x.jpg
    49.6 KB · Views: 669

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,433
Reaction score
6,096
Oh what a beauty,thank you my dear Richard.


martinbayer

ACCESS: Top Secret
Joined
Jan 6, 2009
Messages
839
Reaction score
381
richard said:
Source unknown : the Fancopter was a GYROcopter development of the Rhein Flugzeugbau Fantrainer

Why would a gyrocopter need a Fenestron?

Martin


Moose

ACCESS: Top Secret
Senior Member
Joined
Jul 4, 2010
Messages
1,546
Reaction score
661
Good question. Perhaps for low-speed maneuvering


martinbayer

ACCESS: Top Secret
Joined
Jan 6, 2009
Messages
839
Reaction score
381
Looking at the type card, which attributes the concept to MBB rather than RFB, and the overall design, I think it's really a compound helicopter comparable to the AH-56.

Martin


_Del_

I really should change my personal text... Or not.
Joined
Jan 4, 2012
Messages
688
Reaction score
504
That sounds more likely. But the suggestion regarding control authority makes some sense. Conceivably you could have the rotors and fenestron on clutch, used only for take off and landing, but I doubt that's what is going on here.


yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,868
Reaction score
1,587

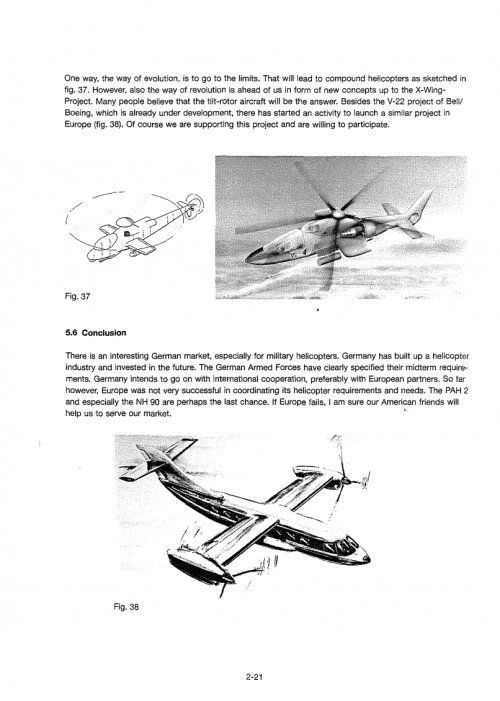

spring cleaning at the office. found this and thought it might be of interest.


Attachments

  • img-430102149-0001.pdf
    776.6 KB · Views: 50

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,059
Reaction score
594
Many thanks for that . . .

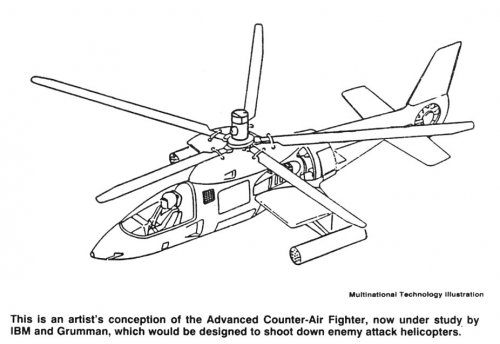

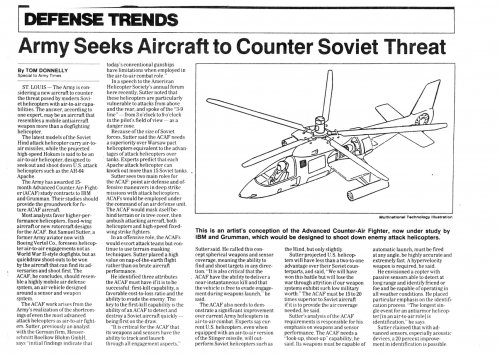

I've taken the liberty of converting your file to an image, cleaning it up a little, then cropping out the illustration, and attaching them both here.

cheers,
Robin.


Attachments

  • Advanced Counter-Air Fighte.jpg
    Advanced Counter-Air Fighte.jpg
    883 KB · Views: 242
  • Advanced Counter-Air Fighter - Cropped.jpg
    Advanced Counter-Air Fighter - Cropped.jpg
    75.1 KB · Views: 128

500 Fan

ACCESS: Confidential
Joined
Jul 16, 2010
Messages
91
Reaction score
18
Very interesting design. What year is that article and drawing from? Thanks.

500 Fan.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,433
Reaction score
6,096
richard said:
Source unknown : the Fancopter was a GYROcopter development of the Rhein Flugzeugbau Fantrainer

Here is the source my dear Richard.

http://www.secretprojects.co.uk/forum/index.php/topic,170.msg267555.html#msg267555
