German WW1 Bomber projects

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,287
Reaction score
4,044
Jemiba said:
In 1917 Dr. Ing. Rudolf Wagner submitted a design for a steam powered "R-Flugzeug" to the "Inspektion
der Fliegertruppen" (Technical Service of the Imperial German Airforce). Wagner was already quite well
known for maritime developments, including light-weight steam turbine plants and proposed to used such
a propulsion for a large aircraft. The intended powerplant with 1000 hp would have been placed in the
fuselage would have powered large diameter contra-props, pilot and part of the crew would have been
placed in the upper cabin, bombload and the rest of the crew in the lower compartment.
No estimated data are known, span seems to have been around 40 m, similar to other then current "R-
Flugzeuge"
The reconstruction, using patent files and mentions in contemporary literature was done by Peter Garnatz and
Günter Kusch and published in Luftfahrt International N°24 1977.


My dear Jemiba,

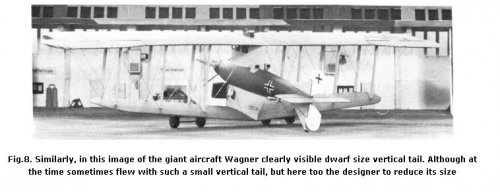

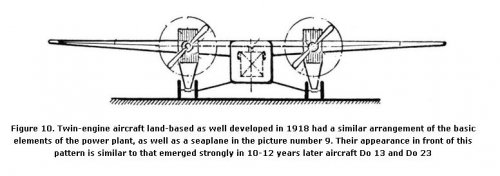

also some info about Wagner bomber,and a drawing to a twin engined Landplane,may be
it was a bomber project;



http://alternathistory.org.ua/proekt-bombardirovshchika-r-klassa-obraztsa-1917-goda-s-paroturbinnoi-silovoi-ustanovkoi-rudolfa-fon
http://translate.google.com/translate?sl=ru&tl=en&js=n&prev=_t&hl=ar&ie=UTF-8&eotf=1&u=http%3A%2F%2Falternathistory.org.ua%2Fproekt-bombardirovshchika-r-klassa-obraztsa-1917-goda-s-paroturbinnoi-silovoi-ustanovkoi-rudolfa-fon


Attachments

  • Wagner_06.jpg
    36.9 KB · Views: 126
  • Wagner Landplane.JPG
    Wagner Landplane.JPG
    35.7 KB · Views: 133

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,287
Reaction score
4,044
My dear Jemiba,


but they said; it looked like Dornier Do.13 and Do.23 in its shape,and
may be it was a bomber like them.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,287
Reaction score
4,044
Hi,


here is two patents,one for AGO and the other for AEG companies,and may be
they were the R-project aircraft designs.


http://alternathistory.org.ua/superbombardirovshchik-kaizera-vilgelma


Attachments

  • AGO R-project.JPG
    AGO R-project.JPG
    29.4 KB · Views: 79
  • AEG R-project.JPG
    AEG R-project.JPG
    26.7 KB · Views: 84

Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,971
Reaction score
89
Are you sure that this is an r-project? It looks a lot like an A.G.O. C.I/C.II pusher development with some form of distributed propellers.

The gun ring looks a bit large. Perhaps the aircraft is just a generic layout being used as part of the patent drawings (rather than an intended configuration)?


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,287
Reaction score
4,044
Hi Avimimus,


I suggested those aircraft were R-projects,of course I am not sure.


Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,971
Reaction score
89
Do you know what patent database those come from? I'd love to read the original patent.
Thanks for all the work - really fascinating stuff!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,287
Reaction score
4,044
Sorry Avimimus,I don't know,


but may be the numbers in the pictures,can help.


Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
593
Reaction score
103
Avimimus said:
Do you know what patent database those come from? I'd love to read the original patent.
Thanks for all the work - really fascinating stuff!

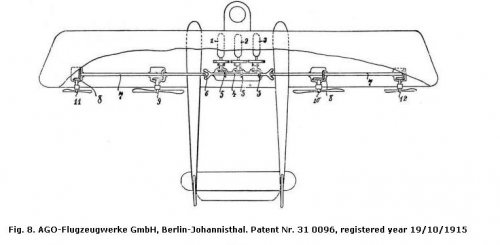

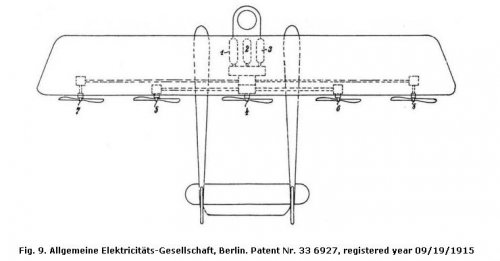

Those two drawings were published in the "Luftfahrt International" n°12 dated Nov-Dec 1975 (Pages 1878 & 1879) in an article concerning the Kaiser Wilhelms Superbomber with the same mentions to the (German) patents numbers, i.e.:
"AGO- Flugzeugewerke GmbH, Berlin-Johannisthal, Patent Nr. 31.0096, 19.10.1915 angemeldet."
"Allgemeine Elektricitäte-Gesellschaft in Berlin, Patent Nr. 33.6927, 19.9.1915 angemeldet".


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,287
Reaction score
4,044
Hi,

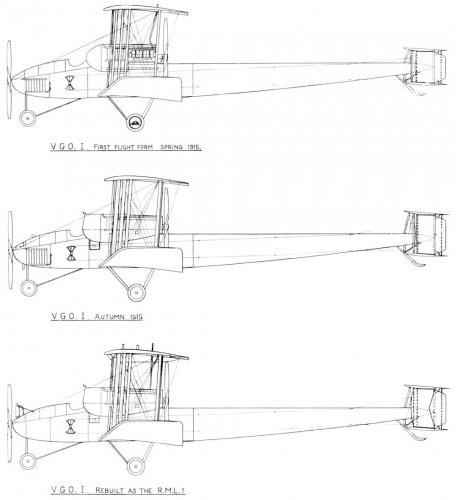

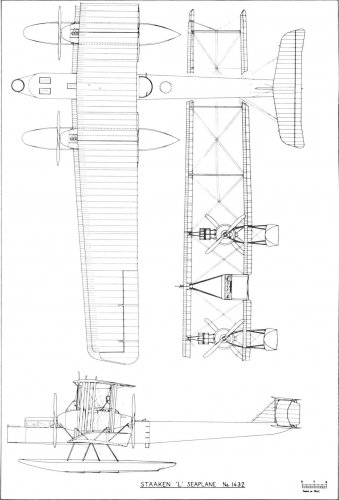

here is the Zeppelin-Staaken L seaplane and V.G.O or R.I bomber aircraft.


http://flyingmachines.ru/Site2/Crafts/Craft25533.htm


Attachments

  • L-seaplane.jpg
    153.4 KB · Views: 816
  • Staaken R.I.jpg
    Staaken R.I.jpg
    83.9 KB · Views: 774

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,287
Reaction score
4,044
Hi,


Zeppelin-Staaken R.VIII and R.IX were a giant heavy bomber projects,has
anyone a drawings to them ?.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,523
Reaction score
274
Zeppelin-Staaken R.VIII and R.IX

Described but not illustrated at "The German Giants" from Haddow and Grosz


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,287
Reaction score
4,044
Thank you my dear Pometablva,


and unfortunately,there was a drawings to them in Internet from while,but I didn't
keep them.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,287
Reaction score
4,044
Hi,


here is the AEG R.I and from the same site a small info about the LFG Roland R.I project,
but no drawing.


http://flyingmachines.ru/Site2/Crafts/Craft30202.htm
http://flyingmachines.ru/Site2/Crafts/Craft31369.htm


Attachments

  • AEG R.I.jpg
    AEG R.I.jpg
    158.3 KB · Views: 693

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,287
Reaction score
4,044

Attachments

  • AGO R-project.JPG
    AGO R-project.JPG
    29.4 KB · Views: 567

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,269
Reaction score
1,107
Those posts regarding Austrian aircraft were moved to an own topic here:
http://www.secretprojects.co.uk/forum/index.php/topic,21084.msg207997.html#new,
reasons see below:

Stargazer2006 said:
.. but didn't all these machines fly in German colors, anyway? (I'm no expert of the First World War, sorry!)

At the beginning of the war, the Austrian flag still was used on Austrian aircraft, still then mostly of Austrian
production. With the arrival of more and more German aircraft, generally marked with the "Iron Cross",
that flag was painted on additionally, but later it vanished and oly the cross remained- A reason seemed to
be its bright colours, which made those aircraft easier recognisable. Above all, there was the danger of mis-
identifying them for Italian aircraft.
I think, it was a similar case, as the coours of the RAAF during WW II, which were identical to those of the RAF.
And who would dare to call the CAC Boomerang a British aircraft ? ;)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,287
Reaction score
4,044
hesham said:
Thank you Richard,

and here is the Schutte-Lanz R.I twin-boom heavy bomber project of 1916;

http://alternathistory.org.ua/tyazhelye-bombardirovshchiki-luftschiffbau-schuette-lanz-proekt-tyazhelogo-bombardirovshchika-schuel

And from anther site.

http://www.iwm.org.uk/collections/item/object/205315249


Attachments

  • R.png
    306 KB · Views: 312

Tuizentfloot

ACCESS: Secret
Joined
May 9, 2010
Messages
254
Reaction score
74
http://www.iwm.org.uk/collections/item/object/205315249 says that this aircraft was not built.
The reality is what is stated in http://alternathistory.org.ua/tyazhelye-bombardirovshchiki-luftschiffbau-schuette-lanz-proekt-tyazhelogo-bombardirovshchika-schuel: R.I был завершен на 80%. It was nearly completed (80%).


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,287
Reaction score
4,044
Hi,

we know for Siemens-Schuckert that,the L.I had alternative designation "G.III",who know G.I and
G.II ?.


Tuizentfloot

ACCESS: Secret
Joined
May 9, 2010
Messages
254
Reaction score
74
G I was the first designation of what became later the R I. At first it was designated simply G 32/15, then G I 32/15, to become R I (R 1/15). Sources: Lange, Herris.

G II was according to Nowarra (Die Entwicklung der Flugzeuge 1914-1918) a 1917 project with 2 x 260 hp Mercedes. But, at the same page he says the G I was also a 1917 project with the same engines. There are some other errors in this 1959 publication, corrected by later authors… So, not 100% sure…


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,287
Reaction score
4,044
Many thanks to you my dear Tuizentfloot,

and in my list,the R.I was developed from G.I,so maybe G.I remained a Project only.


Tuizentfloot

ACCESS: Secret
Joined
May 9, 2010
Messages
254
Reaction score
74
I don't think so. Lange and Herris are clear: it was just a change of designation for the same aircraft. I quote Herris (because it is in English):

"Originaly designated SSW G.31/15 (G for Grossflugzeug [large aircraft]), the designation was changed to SSW G.I 32/15 and finally to SSW R.I 1/15 on November 6, 1915" (Siemens-Schuckert Aircraft of World War I, p. 24).


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,287
Reaction score
4,044
Tuizentfloot said:
G I was the first designation of what became later the R I. At first it was designated simply G 32/15, then G I 32/15, to become R I (R 1/15). Sources: Lange, Herris.

G II was according to Nowarra (Die Entwicklung der Flugzeuge 1914-1918) a 1917 project with 2 x 260 hp Mercedes. But, at the same page he says the G I was also a 1917 project with the same engines. There are some other errors in this 1959 publication, corrected by later authors… So, not 100% sure…

My dear Tuizentfloot,

I think the siemens-Schuckert R.I and G.I was a different airplanes,please see;


Attachments

  • 1.png
    380.9 KB · Views: 65
  • 4.png
    344.7 KB · Views: 74

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,287
Reaction score
4,044
Hi,

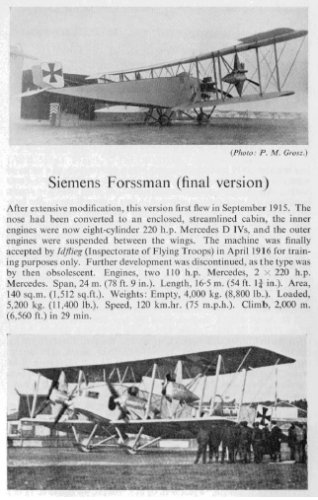

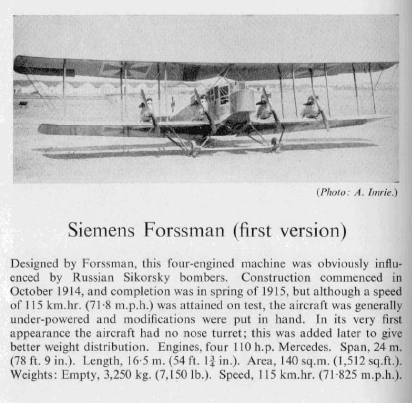

also here is a little known Germany Bomber,the Siemens-Schuckert Forssman,first
and second versions.


Attachments

  • 2.png
    148.6 KB · Views: 608
  • 3.png
    165.1 KB · Views: 588

Tuizentfloot

ACCESS: Secret
Joined
May 9, 2010
Messages
254
Reaction score
74

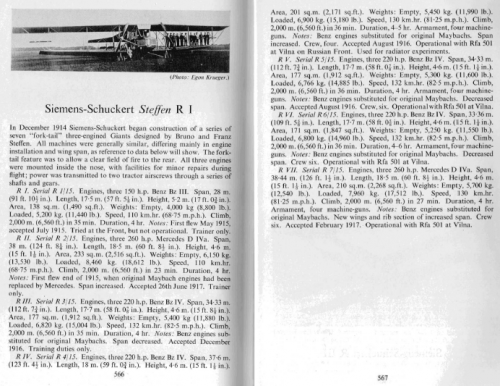

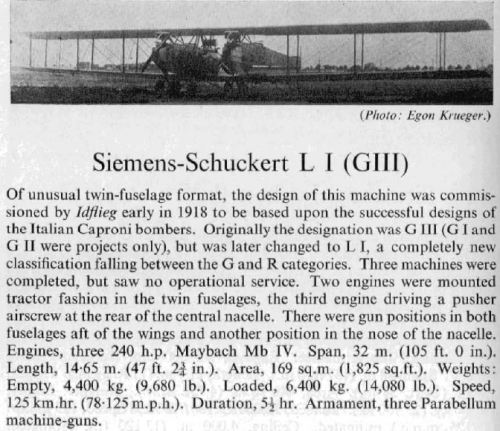

Dear hesham, the scan from Gray & Thetford, p. 570, concerns the L I, originally designated G III, and of which three were built.

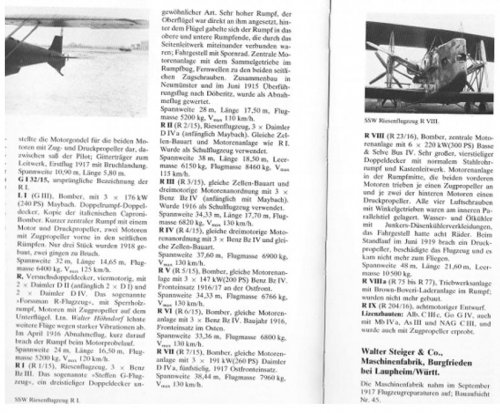

I enclose a scan from Lange, p. 86-87, about the G-, L- and R-types of SSW, including the so-called Forssman R-Flugzeug.


Attachments

  • ssw.JPG
    123 KB · Views: 564

ww1Steve

ACCESS: Restricted
Joined
Apr 11, 2009
Messages
2
Reaction score
1

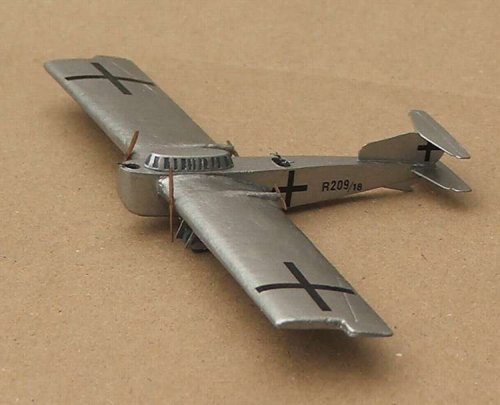

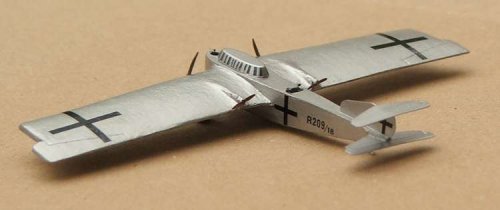

Hi, the model is based on the drawings in the Haddow & Grosz book. I started an even bigger one, but it's not finished yet.
Steve

moin1900 said:
Hi everybody

To McTodd
Thanks for searching in these books. Good to know ! Thanks a lot for it!

Another Adlershof project
http://www.wwi-models.org/Images/Cox/CP/index.html#adlershof72m
It is only a plastic model. I do not have found another one but there were 10 Adlershof projects !

Many greetings


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,287
Reaction score
4,044
Nice find Steve.


Attachments

  • R209b.jpg
    16 KB · Views: 483
  • R209c.jpg
    32.5 KB · Views: 476

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,287
Reaction score
4,044
Alcides said:
Lucas the original source for that drawings is the book:
The German Giants: The German R-Planes 1914-1918 (Putnams German Aircraft)

The old site about asymmetrical aircraft isn't online anymore ( you can get some contents with the wayback machine) so I'm going to repost here the content about the Gotha Go.VI:



"The first to apply his imagination in the asymmetric aircraft design direction, Hans Burkhard did so as a clever means of reducing drag. Born in Switzerland, Burkhard joined the German Gothaer Waggonfabrik as its chief designer on October 1, 1914. One of the firm's early contracts during WWI was to mass-produce Germany's first twin-engine airplane, the Gotha G.I. In Burkhard's opinion the fuselage and two engine nacelles representated three drag-producing bodies. "I began", he later said, "to think about ways in which the air resistance could be reduced. And I came upon the idea of an asymmetric configuration."
After much tinkering around with different arrangements, Burkhard concluded that the most efficient way to get twin-engine power with two bodies was to mount the fuselage with TRACTOR engine and tail surfaces to the left side while the right side would have a small nacelle incorporating a PUSHER engine and an observer/gunner's cockpit, that extended forward of the tractor propeller.

To compensate for the different power-to-drag coefficients, the nacelle was placed somewhat closer to the wing central axis than was the long fuselage. In addition to reducing drag, the pusher-tractor arrangement, with its overlapping propeller arcs, allowed the engines' thrust lines to be closer together, thereby reducing directional-control problems from torque forces in case one engine malfunctioned. On September 22, 1915, Burkhard obtained German Patent number 300 676 for his unusual design, but the German government was not interested in pursuing its development. Instead, Berkhard had to return to more conventional designs: G.II, III, IV and V.

By late 1917, the Gotha bombers were becoming increasingly vulnerable to attack by British fighters, and the German military expressed an interest in a bomber of higher performance. Burkhard was eager to prove that his asymmetric concept could produce the world-beater.

The new aircraft, designated G.VI, was built in the winter of 1917-1918. The construction was almost identical to those of the Go.IV and Go.V. The wing span was slightly reduced, though. Before it crash landed in the summer of 1918, the plane made a few successfull flights, proving the asymmetric conception was vital. Burkhard claimed that the Go.VI flew very well and exceeded in performance its conventional predecessors. The slight buffeting of the rear fuselage was to be neutralized by utilizing the ASYMMETRIC TAILPLANE on the second prototype.

The war ended before the second aircraft was completed. It is believed to have been destroyed in preference to being turned to the Inter-Allied Control Comission."


I'm attaching a couple of drawings. The first is a provisional drawing by I.Shestakov. Anyone has the second one, with the asymmetrical variants in higher resolution or knows about the source?

Regards
Alcides

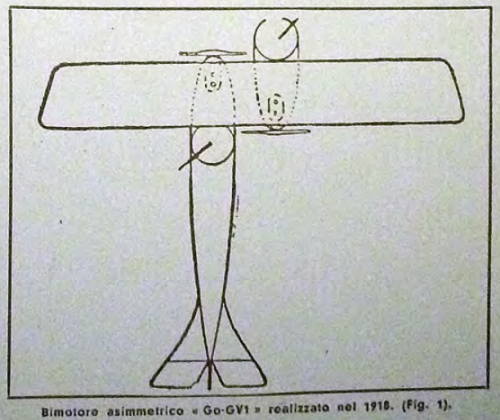

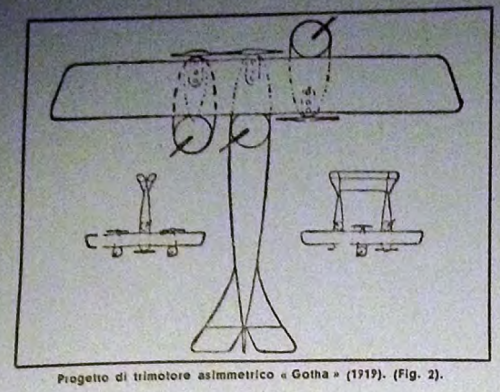

Here is a Gotha asymmetric Projects,one of them had three engines.

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201943%2006.pdf


Attachments

  • 1.png
    616.3 KB · Views: 55
  • 2.png
    612.9 KB · Views: 63

Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
1,971
Reaction score
89
Does anyone know where records could be found regarding the airfoils for some of these aircraft? I've found one drawing showing the inner wing section for the SSW R.VIII but a lot of the others are hard to find. I'm particularly curious about the Zepplin Lindau (Dornier) Rs.III's monoplane wing.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,287
Reaction score
4,044
Hi,

as I know the Daimler G.I and G.II was a redesigned of R.I and R.II,but with different engines,
and maybe they had some improvements in act,can anyone confirm on this ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,287
Reaction score
4,044
hesham said:
hesham said:
Thank you Richard,

and here is the Schutte-Lanz R.I twin-boom heavy bomber project of 1916;

http://alternathistory.org.ua/tyazhelye-bombardirovshchiki-luftschiffbau-schuette-lanz-proekt-tyazhelogo-bombardirovshchika-schuel

And from anther site.

http://www.iwm.org.uk/collections/item/object/205315249

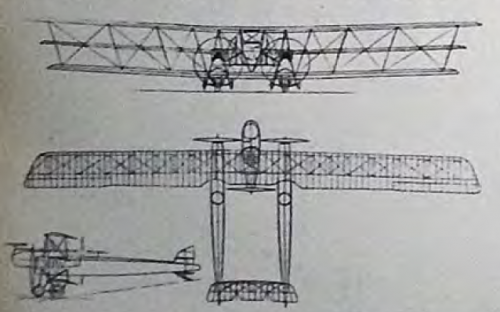

Also from Ali Nuove 2/1962.


Attachments

  • 1.png
    371.7 KB · Views: 70

Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
624
Reaction score
284
Zeppelin-Staaken R.VIII and R.IX

Described but not illustrated at "The German Giants" from Haddow and Grosz
There are specs of the R.VIII and R.IX from the Haddow and Grosz book. Has anyone lately been able to find info regarding the Zeppelin Staaken R.X, R.XI, R.XII, and R.XIII? I'd also like drawings of the R.VIII and R.IX.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,287
Reaction score
4,044
There are specs of the R.VIII and R.IX from the Haddow and Grosz book. Has anyone lately been able to find info regarding the Zeppelin Staaken R.X, R.XI, R.XII, and R.XIII? I'd also like drawings of the R.VIII and R.IX.

Unfortunately no Info or drawings survivor for them.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,287
Reaction score
4,044
Hi,

the Schütte-Lanz G.II was destroyed in its first flight,and G.VI was a tri-fuselage twin-boom bomber,
powered by three engines,two tractor and one pusher,but for the last,I don't know if it was built or
not ?.

Last edited:

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,269
Reaction score
1,107
... G.VI was a three fuselage twin-boom bomber, .... but for the last,I don't know if it was built or not ?.

According to the article in the FR X N°80, no


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,558
Reaction score
2,961

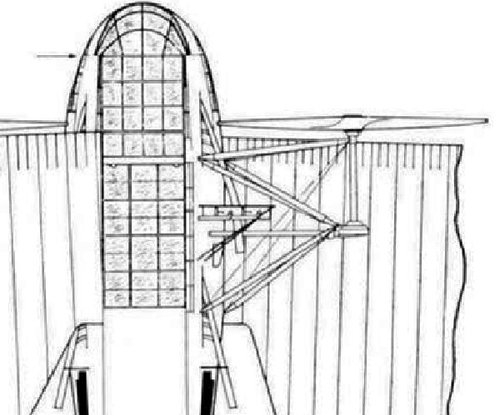

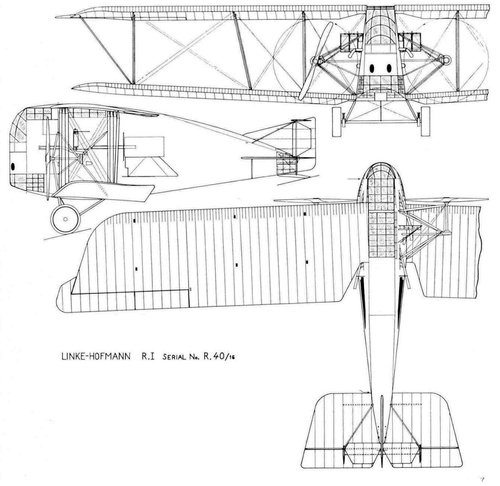

Hi! You can see Linke-Hofmann R.Ⅰbomber four engine exhaust nozzles, radiator located middle of the tandem two engines, propeller drive shaft, propeller and engine airintake opening at the nose in this partial /total three side view drawing.

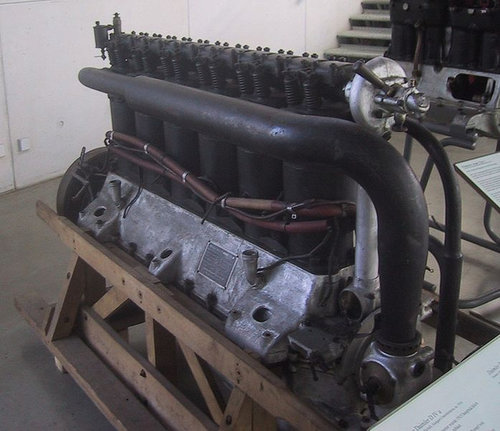

Engine : four Mercedes D.Ⅳa, 260hp each.

linker1-1 - コピー.jpg

Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,558
Reaction score
2,961

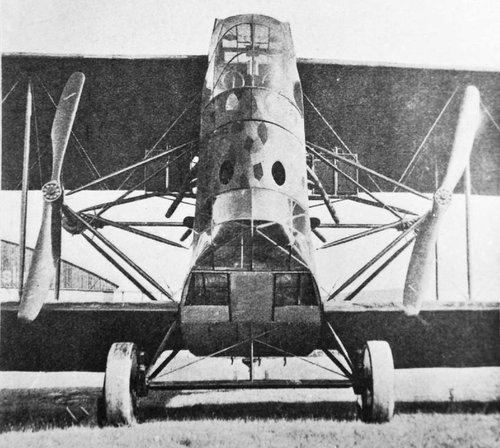

The fuselage is so tall because it is three stories, the upper cockpit across the engine deck, the bottom is a bomb bay.
It seems that the reason for not dividing the engine into the left and right nacelles like zeppelin-Sturken R series at the same time is because it wanted to reduce the weight and air resistance of the nacelle. This arrangement will also reduce the number of engineers.

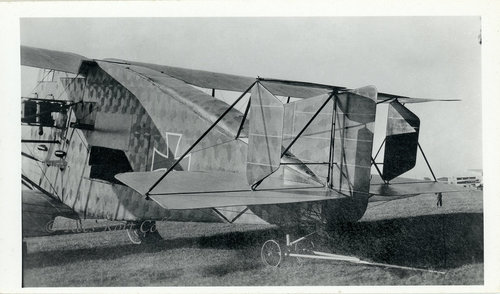

The strange thing about Linke Hoffman R.I is that the second half of the fuselage of No.1 aircraft was covered with a transparent resin film called Cellon (Cellon or Zellon) instead of a feather cloth.
Theron is a resin patented in 1909 by the chemist Arthur Eichengr.n and a compound of cellulose acetate (acetylcellulose) and the cerebellum, and has the advantage of flame retardant.

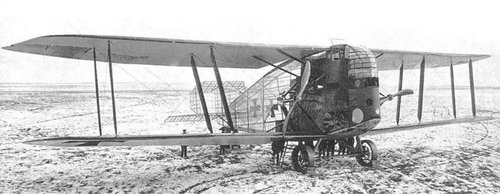

The reason for adopting the Theron is that it aimed at "optical stealth" that lowers the non-discovery rate, but when actually try to adopt it, it seems to have become conspicuous by the reflected light.
No.2 aircraft used a normal cloth, but the height of the center of gravity caused by the height of the fuselage was a disaster, and had an accident that fell to the front at the test stage.
One crew member died and the pilot was unpopular with maneuverability, so it was canceled, including two aircraft that were in the process of manufacturing.
https://www.flickriver.com/photos/tags/linkehofmann/interesting/

Crew: 6+, Length: 15.6 m, Wingspan: 33.2 m, Height: 6.7 m, Wing area: 265 m2
Empty weight: 8,000 kg, Gross weight: 11,200 kg
Powerplant: 4 × Mercedes D.Ⅳa (260 hp) each
Maximum speed: 130 km/h, Endurance: 5 hours, Rate of climb: 0.42 m/s

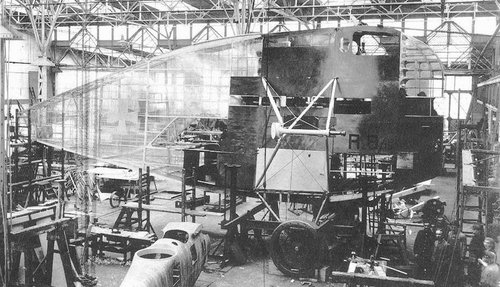

Linke-Hofmann R_1 being covered with Cellon.jpg
linker1-4.jpg linker1-5.jpg 40612984203_b6778b907c_b.jpg

Last edited:
Top
