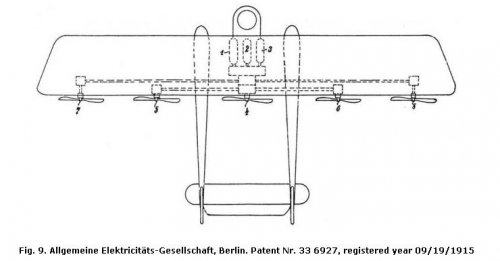

The first one to my opinion doesn't qualify as a project. It's a patent drawing for the patent
N° 33 6927, filed 1915, proposing shaft driven props.

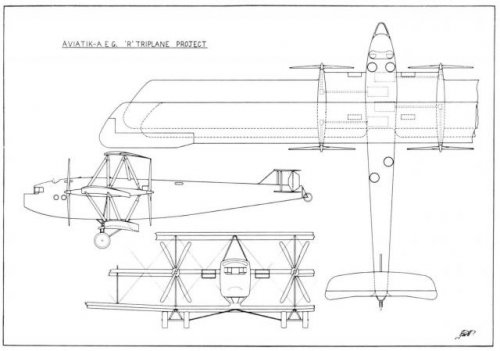

The second one is a joined project ba A.E.G. and Aviatik.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,106
Reaction score
3,017
My dear Jemiba,


I agree with you for the AEG and Aviatik project,but for the R-Project,
may be that Patent was for it.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,106
Reaction score
3,017
Hi,


the AEG had a design,called Muskelkraft,and I think it means; Man-powered
aircraft,does anyone know it ?.


richard

CLEARANCE: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
31

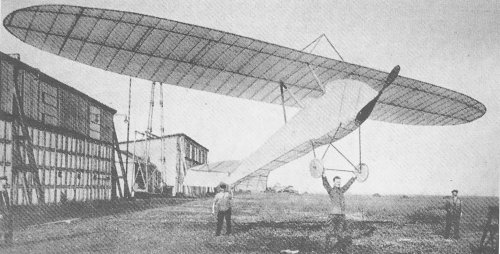

It was the plane designed by Georg König in 1919 . König was chief-designer at A.E.G .


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,106
Reaction score
3,017
Excellent,thank you my dear Richard very much.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,106
Reaction score
3,017
Hi,


unfortunately we know in Z series,only Z-1,2,3,5,9 & 10,does anyone know more ?.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,106
Reaction score
3,017
hesham said:
Hi,


unfortunately we know in Z series,only Z-1,2,3,5,9 & 10,does anyone know more ?.

Z-4 was aircraft design for Schutte Lanz Flugzeugbau,powered by Daimler engine,no
more details are known.


Z-6 was B.I,a two seat unarmed recce biplane,powered by either Benz FX or Mercedes
D I engine.


Tuizentfloot

CLEARANCE: Secret
Joined
May 9, 2010
Messages
240
Reaction score
49
Z 4: span 14,50 m

Z 6: with Benz FX: Z 6, with Benz BZ III: Z-6a
bothe B I

Source of this all: Lange, Typenhandbuch


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,106
Reaction score
3,017
Thank you Tuizentfloot very much.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,106
Reaction score
3,017
hesham said:
But,does anyone hear about AEG G.VI bomber project ?.
We still don't know this Project ?.

Also there is an aircraft project as I know,called F.1,powered by one Benz engine,no more Info ?.


Cy-27

CLEARANCE: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
560
Reaction score
146
Re: AEG F.I

My notes from Die deutschen Militärflugzeuge 1910-1918 (by Kroschel & Stützer - Lohse-Eissing ISBN 3920602188) state this was a 1914 reconnaissance flying boat with Benz engine. No notes as to whether it was built.

Could possibly be the same as the AEG Flugboot 1914 reconnaissance flying boat powered by a Benz Bz.III engine, also from 1914 mentioned in Bruno Lange's Typenhandbuch der deutschen Luftfahrttechnik (Bernard & Graefe ISBN 3763752846). One of these built.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,106
Reaction score
3,017
Thank you my dear Cy-27.


richard

CLEARANCE: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
31
The AEG Flugboot got the Marine Nummer #45 : F 1 for the first (and last) AEG flying boat makes sense ...


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,106
Reaction score
3,017
richard said:
The AEG Flugboot got the Marine Nummer #45 : F 1 for the first (and last) AEG flying boat makes sense ...
My dear Richard,

you meant that's the end of AEG flying boat aircraft.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,106
Reaction score
3,017
I meant this topic,

the AEG C.VIII/D.I was not only AEG built,there was anther aircraft had the same designation,
called C.VIII/Dr.

http://flyingmachines.ru/Site2/Crafts/Craft25469.htm


Tuizentfloot

CLEARANCE: Secret
Joined
May 9, 2010
Messages
240
Reaction score
49
Genealogy of the AEG C VII and C VIII, as far as I know (and with German aircraft of WW1 one never knows…)
AEG C VII – a 1917 C-type “light” (forerunner of the later CL-category). Number built: 3.
Variants:
- Basic variant: straight wings, Daimler D III
- C VII/2: heavily swept-back wings
- C VII/3: still stronger swept-back wings and minimum gap
AEG C VIII – a more aerodynamic development of the C VII. Number built: 1 or 3
Variants:
- Biplane: I struts, Daimler D III. Number built: 2 (Herris, AEG Aircraft of WW1) or just a prototype (Lange, Typenhandbuch)
- Triplane variant. Herris states that it was the third prototype, while Lange says that it was the rebuilt biplane prototype.
Smaller triplane
Herris in AEG Aircraft of WW1 (p. 46): “AEG had proposed a smaller, lighter triplane in November [1917] but the disappointing flight-test results of the C VIII triplane eliminated that idea as well”.
I have no more information, but it seems to me it was rather an idea than a real project.
Any further information or corrections are more than welcome!


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,106
Reaction score
3,017
Thank you my dear Tuizentfloot,

and I remark that,there was anther two series; KZ and GZ to this company.


Tuizentfloot

CLEARANCE: Secret
Joined
May 9, 2010
Messages
240
Reaction score
49
At least until 1915 there were internal AEG designations in the series E (Eindecker), Z (Zweidecker), F (Flugboot), S (Seeflugzeug), and later GZ (probably Großflugzeug Zweidecker).

We already spoke of the Z series.

In the E series there was
  • E 1 – experimental monoplane with Körting engine, 1912/13
    E-2 – the final AEG monoplane. Gnôme engine and two built in 1914.
Of the GZ series I know
  • GZ 1 = K I
    GZ 2 = G II
    GZ 3 = G III
The only KZ designation I know is KZ 9 (C I), which was essentially an armed Z 9 (B II). The K could possibly come from “Kampf” (Kampf-Zweidecker) to simply designate that in this case it was an armed variant of the Z 9. So I wonder if there were other aircraft in the KZ series. My humble opinion…

The F 1 was the sole in the F-series. As stated earlier by Cy-27 the seaplane mentioned by Lange without a designation must be the F 1.
On the other hand I have a problem with Marine Nr. 45. I have both the F 1 flying boat and the S 1 floatplane as candidates for Nr. 45…

S 1 was also the sole in this series. But to complicate the matter Z 5 and S 1 are probably the same… (1914 floatplane with folding wings and Benz Bz III).


richard

CLEARANCE: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
31
Quoting "S 1 was also the sole in this series. But to complicate the matter Z 5 and S 1 are probably the same"

"I have a problem with Marine Nr. 45. I have both the F 1 flying boat and the S 1 floatplane as candidates for Nr. 45…"

I have a problem too ... :)

At first , The AEG Z5 IS the S1 , M.Nr 45 and M.Nr 63 for one recent source .

As I already stated , I had the AEG F1 M.Nr 45 .
And looking for M.Nr 63 on another place , I get the Oertz W4 and M.45 is for the AEG Flugboot . :) :) :)

I believe , my "Marine Nummern" lists are all outdated , at least for the 1914 period : is there one more recent on the net ?


Tuizentfloot

CLEARANCE: Secret
Joined
May 9, 2010
Messages
240
Reaction score
49
Indeed, my dear richard, most authors agree that Marine Nr. 45 is the AEG Flugboot (F 1). Only for Jack Herris in this recent AEG Aircraft of WW1 Marine Nr. 45 is the AEG Seeflugzeug S 1 (as was occasionally mentioned before).

I think the most recent lists on the web are still those from German Military Aircraft Database (http://webnamelist.com/roger/german.htm), apparently updated until 2015, but still with a lot of ???...


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,106
Reaction score
3,017
My dears,

also there is a strange series,L16 which given to C.VI.


Tuizentfloot

CLEARANCE: Secret
Joined
May 9, 2010
Messages
240
Reaction score
49
Sorry, my dear hesham, but I’m afraid something has gone wrong…

The AEG C VI is one of those unknown designations. Lange states it was possibly an improved C IV, and Herris in his AEG Aircraft of WW1 it was apparently an un-build project.

I wonder if you did not mean the Albatros C VI, which had the in house designation L16.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,106
Reaction score
3,017
My dear Tuizentfloot,

I am sure it was in AEG aircraft,and maybe built under licence.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,106
Reaction score
3,017
Tuizentfloot said:
Any sources? I really don't see what it could be...
I will check my dear Tuizentfloot,but the source,now ?.


Cy-27

CLEARANCE: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
560
Reaction score
146

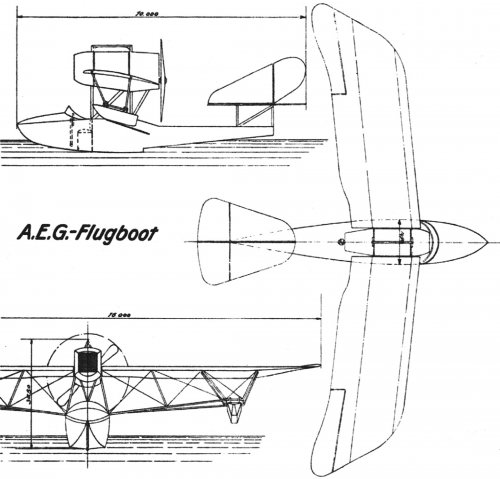

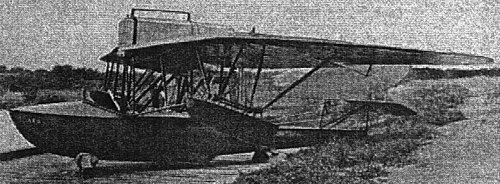

A bit more on the pre-war A.E.G. flying boat.

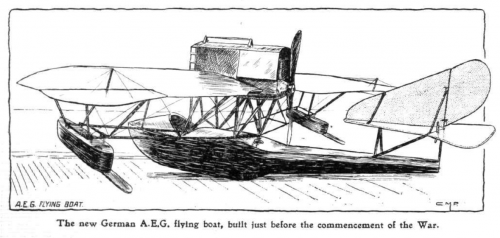

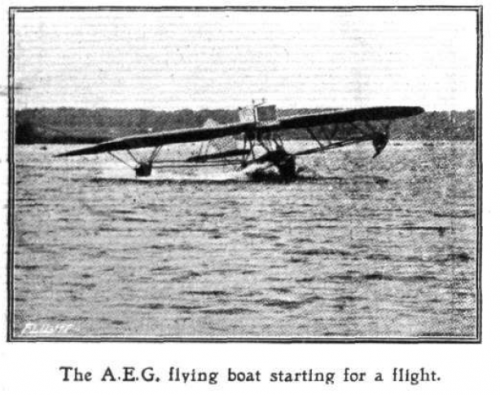

The March 5, 1915 issue of Flight has a two page piece on the A.E.G. Monoplane Flying Boat (F.I ?) which was entered for the 1914 Warnemunde Scanadanavia Air Race. This event never took place due to the advent of hostilities.

Sketch and photo of the machine attached. The article also has drawings of the underside of the hull and wing tip float suspension arrangement.


Attachments

Tuizentfloot

CLEARANCE: Secret
Joined
May 9, 2010
Messages
240
Reaction score
49
Indeed the Flugboot F 1, intended for the cancelled Ostseeflug Warnemünde (cancelled due to the beginning of WW1).

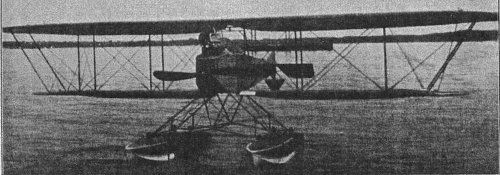

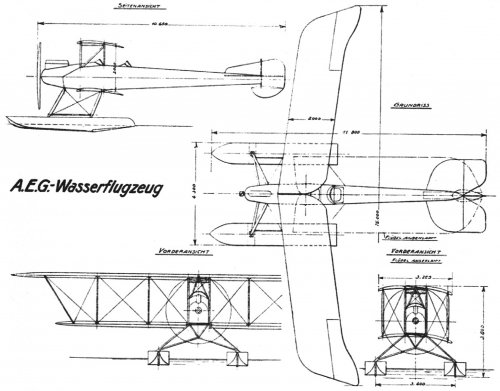

The second example of the Seeflugzeug S 1 was also intended for the same Ostseeflug.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,106
Reaction score
3,017
Hi,

it seemed to be that,AEG had anther series than "Z",the L16 was a C.VI ?.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,106
Reaction score
3,017
Ok my dear Tuizentfloot,

but why they wrote it on AEG C.VI ?,and what was its relationship between Albatros ?.


Attachments

Tuizentfloot

CLEARANCE: Secret
Joined
May 9, 2010
Messages
240
Reaction score
49

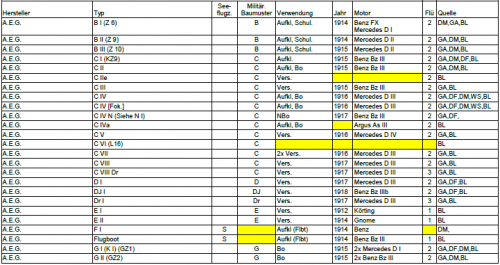

The list gives "BL" as its source for the C.VI, one of those German "mystery" planes of WWI. What means BL? I would like to see this source.


richard

CLEARANCE: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
31
The BL means certainly the Bruno Lange "Typenhandbuch der deutschen Luftfahrttechnik"

But there is here some mess : the C.VI (L 16) is indeed the Albatros C.VI , not the mysterious A.E.G C.VI design ...

Albatros C.VI (L16)
https://commons.wikimedia.org/wiki/File:Albatros_C.VI.jpg


Tuizentfloot

CLEARANCE: Secret
Joined
May 9, 2010
Messages
240
Reaction score
49
I totally agree with richard, as I already said a year ago. And Lange's Typenhandbuch is clear.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,106
Reaction score
3,017
Thank you my dears Richard and Tuizentfloot.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,106
Reaction score
3,017
My dear Tuizentfloot,

can we speak about all AEG seaplanes and flying boats ?,I know they had a four different
designs,F I,flying boat of 1914 and a floatplane,what was the fourth ?.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,106
Reaction score
3,017
My dear Richard,

there was two flying boats in 1914.


richard B

CLEARANCE: Confidential
Joined
Aug 17, 2006
Messages
137
Reaction score
106
I only know that in 1918 the Marine ordered R.Flugboote , M.Nr 9301(ex 2139) ; 9302 ; 9303 , but the order was canceled at the end of the War .
