French ECAT Projects

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
11 March 2006
Messages
8,628
Reaction score
3,193

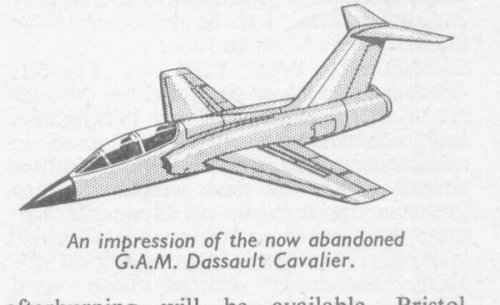

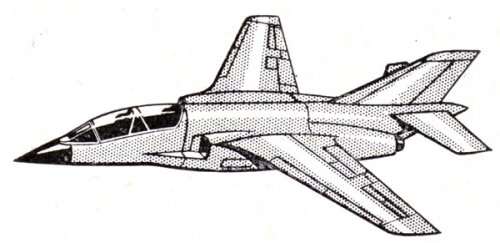

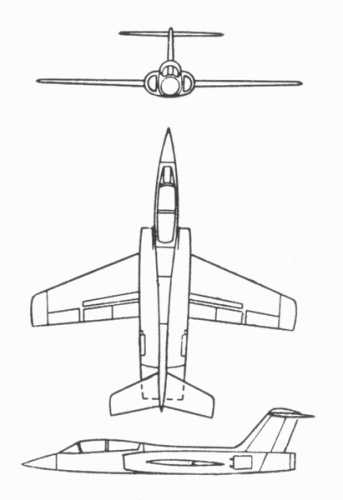

Perhaps someone has more infos about the Dassault proposal for the ECAT
competition, which was known as the Cavalier (not to be mixed up with the
VSTOL design with the same name) and which lost against the Br.121, later
Jaguar. It would have been powered by two GE J85 engines and was intended
to be built in a single seat attack version and as a two seat trainer.

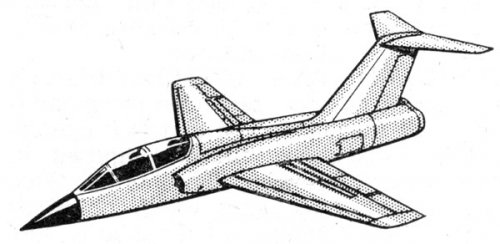

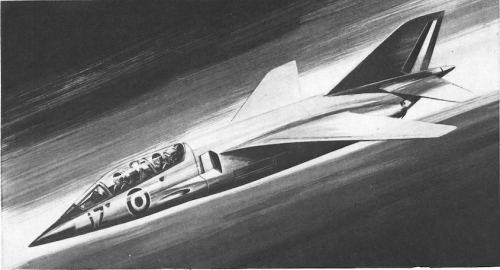

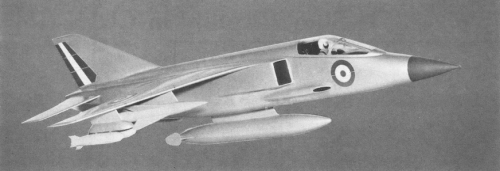

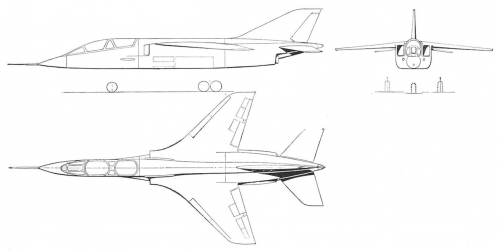

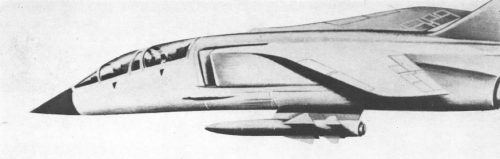

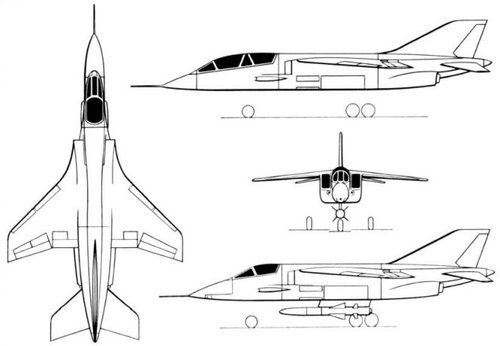

I've attached the pictures I have so far, all showing the trainer version. Of
special interest for me would be a picture showing the undercarriage and the
single seat version. Was the Cavalier derived from another Dassault type, as
the Br.121 was a derivative of the Taon ?
(pictures from "Dassault-56 Years Of Aeronautical Adventure" and from
Flying Review 5/65)


Attachments

  • Dassault Cavalier.jpg
    Dassault Cavalier.jpg
    60.6 KB · Views: 2,133
  • Dassault Cavalier.gif
    Dassault Cavalier.gif
    58.8 KB · Views: 1,424
  • Dassault_Cavalier_01.JPG
    30.3 KB · Views: 1,279
pictures from "Dassault-56 Years Of Aeronautical Adventure"

Jens,

Are you lucky owner of a enlarged and updated edition of the book? I have only
"Dassault - 50 Years of Aeronautical Adventure 1945-1995" in my bookshelf ;D.

Good evening boxkite, do you remember, where I got to know this book ?
It was in Immenstaad, Gästehaus zum Hennenbrunnen ... ;D
I'm not even owner of hte older edition !

Was the Cavalier derived from another Dassault type, as
the Br.121 was a derivative of the Taon ?

I don't think so... The Taon was Breguet LWF in 1956, ok.
At the time, Dassault had no less than three series of LWF (early Mirages, early Etendards, and Mystere development). This thing doesn't look similar to one of the LWF fighters... IMHO, this was build "from scratch".

Knowing how Dassault design bureau is working, be sure that some features of this design went into the Alpha Jet 10 years later ;)

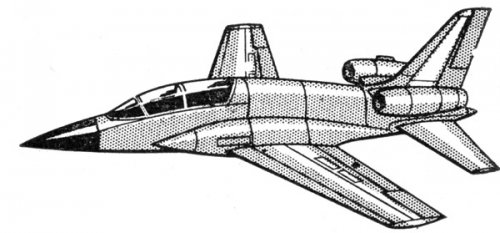

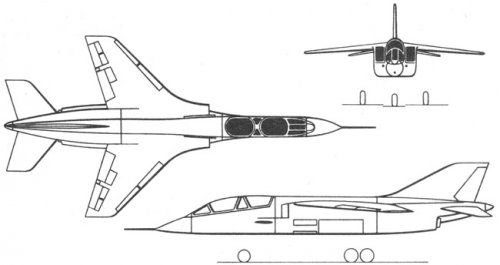

Dassault Cavalier, Breguet 121, Potez P.92

Other projects were Nord 3600 Harpon and Sud-Aviation SA-125.


Attachments

  • ECAT-Potez.jpg
    42.8 KB · Views: 426
  • ECAT-Breguet-121.jpg
    48.3 KB · Views: 1,077
  • ECAT Dassault Cavalier.jpg
    ECAT Dassault Cavalier.jpg
    38.3 KB · Views: 1,124
Sud Aviation proposed the Northrop F-5 (but I never found drawings or photos of this project). The same year, Sud proposed the Cyclone project. In october 1965, The Minister des Armées said Sud aviation will never build fighters.

the SA 125 was the Northrop F-5 proposed by Sud in 1965. In the same year, De Gaulle leaved the NATO, and that's why this project was pushed away by the French Minister. We have no details of this project in the archives .... but if somebody wants to draw the French F-5 ;-)

MIRAGE 4000 said:
the SA 125 was the Northrop F-5 proposed by Sud in 1965. In the same year, De Gaulle leaved the NATO, and that's why this project was pushed away by the French Minister. We have no details of this project in the archives .... but if somebody wants to draw the French F-5 ;-)

Out of curiosity, were there any further ties between Northrop and Sud Aviation? I find it rather fascinating that Northrop seems to have been the most open of any US manufacturer to establishing ties with manufacturers in other countries.

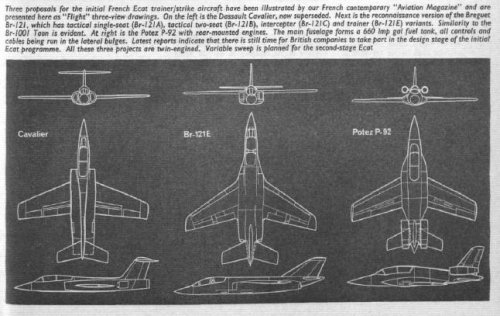

Hi,

a comparison.
http://www.flightglobal.com/PDFArchive/View/1965/1965%20-%200677.html?search=POTEZ%2092%20AIRCRAFT


Attachments

  • untitled.JPG
    55.4 KB · Views: 662
Saw yesteday the SUD AVIATION drawings of the SA-X-125...

It's not the F-5 (but it loock like)

Read archives of Sud Aviation proposed the F-5 for Armée de l'Air.

I think Sud have the F-5 and the SA-X-125

MIRAGE 4000 said:
Saw yesteday the SUD AVIATION drawings of the SA-X-125...

It's not the F-5 (but it loock like)

Read archives of Sud Aviation proposed the F-5 for Armée de l'Air.

I think Sud have the F-5 and the SA-X-125

Did you by chance manage to copy the drawings? I'd be interested in seeing such a beast.

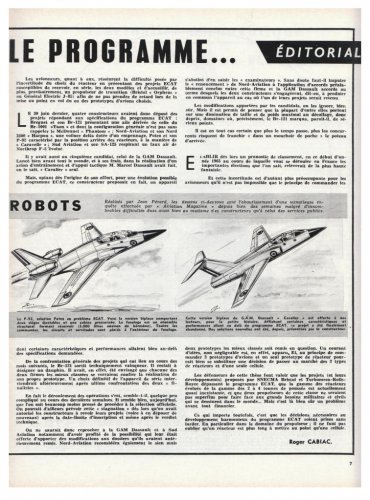

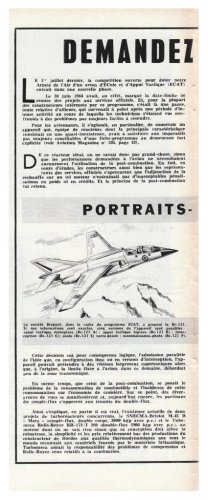

Dear Boys and Girls, here is a contemporary editorial in French on the proposals for the ECAT programme; the Bréguet Br.121, the Potez P-92 and the Dassault Cavalier......

The article comes from the 1st March 1965 issue of Aviation Magazine International......

Terry (Caravellarella)


Attachments

  • ECAT projects - Aviation Magazine International - Numéro 414 - 1 Mars 1965 1.......jpg
    ECAT projects - Aviation Magazine International - Numéro 414 - 1 Mars 1965 1.......jpg
    103.7 KB · Views: 439
  • ECAT projects - Aviation Magazine International - Numéro 414 - 1 Mars 1965 2.......jpg
    ECAT projects - Aviation Magazine International - Numéro 414 - 1 Mars 1965 2.......jpg
    180 KB · Views: 406
Re: French ECAT Project - Dassault Cavalier......

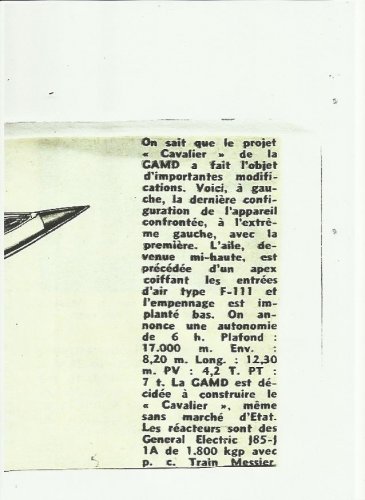

Dear Boys and Girls, here is a article in French describing the change in design for the Dassault Cavalier ECAT candidate from T-tail low/mid wing to a high-wing conventional tail configuration......

The article comes from the 1st April 1965 issue of Aviation Magazine International......

Terry (Caravellarella)


Attachments

  • Dassault Cavalier - Aviation Magazine International - Numéro 416 - 1 Avril 1965.......jpg
    Dassault Cavalier - Aviation Magazine International - Numéro 416 - 1 Avril 1965.......jpg
    52.9 KB · Views: 1,458
Re: French ECAT Project winner - Bréguet Br.121......

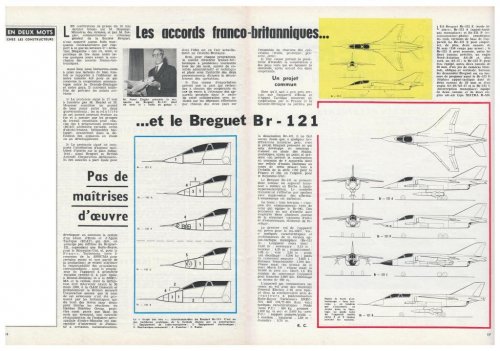

Dear Boys and Girls, here is an article in French about the winning Bréguet Br.121 ECAT "project" which was developed into the SEPECAT Jaguar. I was surprised to see how much of the Jaguar is already there (the Jaguar is the only military fast-jet that I have any interest in; along with the similar Mitsubishi T-2/F-1). I cannot identify any Jaguar version that corresponds with the Bréguet Br.121B tandem 2-seater version illustrated that is not the Bréguet Br.121E; can anyone help please? Should I be posting this article in the Jaguar topic instead?

The article comes from the 15th June 1965 issue of Aviation Magazine International......

Terry (Caravellarella)


Attachments

  • Bréguet Br.121 ECAT designs - Aviation Magazine International - Numéro 421 - 15 Juin 1965.......jpg
    Bréguet Br.121 ECAT designs - Aviation Magazine International - Numéro 421 - 15 Juin 1965.......jpg
    139.6 KB · Views: 1,572

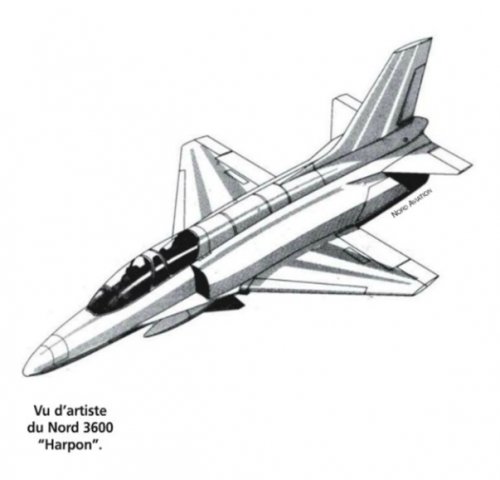

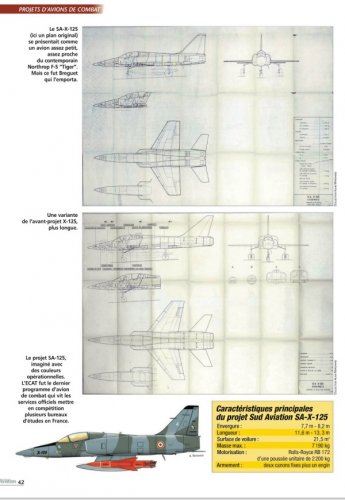

Sud Aviation SA-X-125 (short version & long version) & Nord 3600

The source is the November 2010 issue of the French magazine "Le Fana de l'Aviation".


Attachments

  • SA-X-125.jpg
    128.8 KB · Views: 1,248
  • Nord 3600.jpg
    Nord 3600.jpg
    44.7 KB · Views: 1,156
HI KADIJA MAN
From an old "aviation Magazine"


Attachments

  • Scan.jpg
    73.3 KB · Views: 868
Hi Fightergirish
Yes....but perhaps Kadija man ha not seen them ???
Bye

I didn't see them. I can read them but I don't understand them. Perhaps I'm just too Anglophone. Can someone translate them to English for me?

Hello Gents, First post on this forum (should find the introductions section and tell my life story first really!)
I'm an ex Jag engineer who is researching towards a technical book on the aircraft including its development from AST362 and ECAT specifications. I have already got some info from the national archives on Jag development and will be getting most of what I can on another trip there in two weeks (holiday booked for that one!). I am planning to include the ECAT submissions in the text plus images, so this thread is a goldmine. Can anybody help with hi res images plus info on sources so copyright usage can be sought?
Please PM me. I'll drag out the basic French ECAT specs from the AST362 files I've got and post them.. :D

Breguet Br.121 article

http://archive.aviationweek.com/image/spread/19650419/16/1


Attachments

  • Br.121.png
    430.4 KB · Views: 325
And again;

http://archive.aviationweek.com/image/spread/19650712/33/1


Attachments

  • Br.121-4.png
    201.5 KB · Views: 381
  • Br.121-3.png
    280.9 KB · Views: 339
  • Br.121-2.png
    245.3 KB · Views: 299

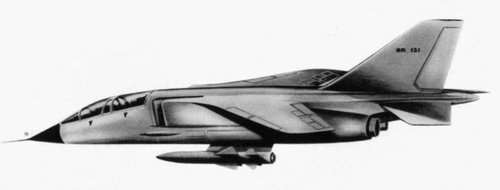

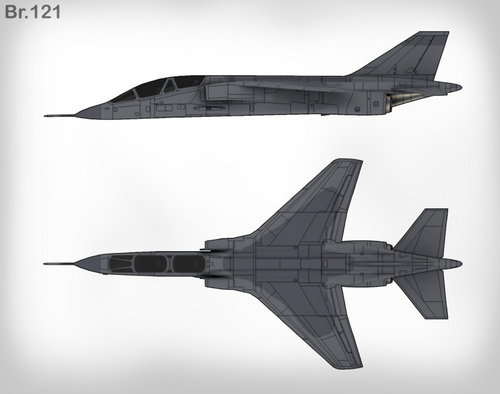

Hi! Breguet 121.


Attachments

  • br121.jpg
    73 KB · Views: 268
  • u5sI3.jpg
    32.4 KB · Views: 287
  • Breguet-Br_121.jpg
    95.5 KB · Views: 330
Last edited:
Dassault proposal for the ECAT
competition, which was known as the Cavalier (not to be mixed up with the
VSTOL design with the same name) and which lost against the Br.121, later
Jaguar.

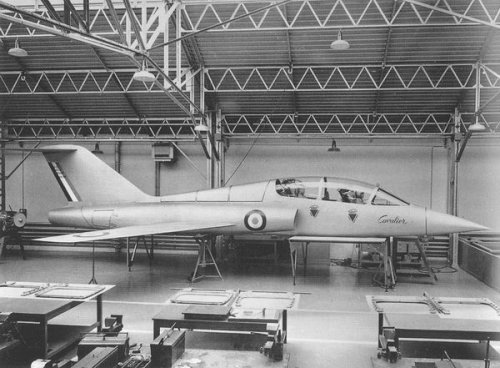

Oh wow, great photo of the mockup Jemiba
Can't say I've ever seen the Dassault Cavalier proposal before.
Thanks for bringing it to my attention.

Regards
Pioneer

Sud Aviation SA-X-125 (short version & long version) & Nord 3600

The source is the November 2010 issue of the French magazine "Le Fana de l'Aviation".

I'm no conspirationist by any mean. Really not my cup of tea. and this is 100% speculation from my little self.

This said,

In 1974-75 General Paul Stehlin was embroiled in a scandal when it was revealed he had been on Northrop payroll since at least 1964.
Before that, Stehlin had dropped the bombshell and made a fuss over the Deal of the Century - basically he said loud and clear that the YF-16 and YF-17 were far ahead of the F1-M53.
whether he said that because he was on northrop payroll, or not, fact is he was right, on technical ground. On June 7, 1975 he was proven right.

Now I'm wondering, Stehlin was enlisted by Northrop in 1964, and the date matches with Aérospatiale SA-X-125 proposal for ECAT.
Once again, fact is that Northrop N-156 somewhat succeeded where ECAT (= Jaguar) partially failed: a supersonic trainer become an excellent low-cost combat aircraft. The Jaguar failed as a trainer (hint, Alphajet, Hawk) it was expensive, and as a combat aircraft was less efficient than a F-5 (less a multirole fighter, more a ground pounder)

Did Stehlin Northrop connection influenced Aerospatiale ECAT bid ?

By 1965, a decade before Stehlin own troubles, a similar case had already happened.

Basically another Armée de l'Air (former) Général dared to suggest that
a) Dassault combat aircraft monopoly was bad
b) a public company / US licence-build aircraft / Breguet / whatever competitor - would help procuring combat aircraft at lower cost than the Mirage monoculture.

Things went quite ugly for that Général (can't remember his name), who was bashed by both Messmer and De Gaulle. Public companies were told to forget it, and churn helicopters, airliners, missiles, trainers, but not combat aircraft. I remember reading this story in Le Fana de l'Aviation pretty recently, but can't remember the Général name.

EDIT: Shazam. Général Puget. He was no longer at the Armée de l'air but the head of Sud Aviation. No surprise he was annoyed at Dassault monopoly on combat aircraft.


Last edited:
I made a quick search, Puget and Stehlin knew each others, by 1962 Stehlin was a little above Puget among the Armee de l'Air highest ranks.

All this is pure speculation of course.

But there was certainly some limited disatisfaction here and there about Dassault domination. Across industry and the military.

I'm late to the party (reviving a 10+y/o thread, but what did ECAT stand for?

Ecole de Combat et d'Appui Tactique

Combat Trainer and Tactical Support

Last edited:
Ecole de Combat et d'Appui Tactique

Combat Trainer and Tactical Support
I wonder, why they decided to put two these different purposes in single aircraft? Of course, there were many single-seat fighters/attack aircraft, with later added two-seat versions. But, as we see on most of ECAT proposals, the demands were to built two-seat version as a primary objective.
P.S. Am I right, that canons location in the bulges on fuselage sides comes a long way, which IMHO started from Bregeut 1001 and 1100 - and eventually Jaguar?

Last edited by a moderator:
Ecole de Combat et d'Appui Tactique

Combat Trainer and Tactical Support

And SEP-ECAT added S.E.P which meant: Société Européenne de Production (European Company for Production of ECAT)

SEPECAT: Société Européenne de Production de l'Ecole de Combat et d'Appui Tactique (European Company to Produce a Trainer-Tactical-Fighter)
