Bréguet Br.765 Super Deux-Ponts project......

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,050
Reaction score
280

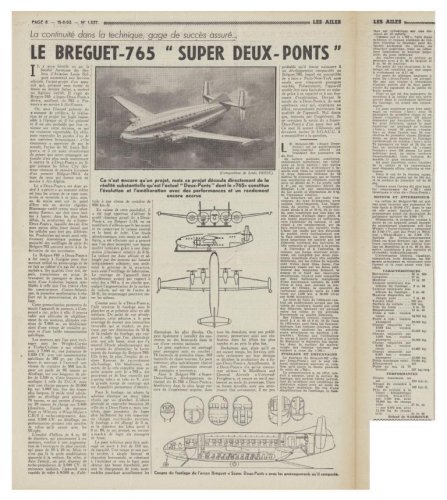

Dear Boys and Girls, here is an article in French announcing the development of the Bréguet Br.765 Super Deux-Ponts which is an enlarged and pressurised derivative of the well-known Bréguet. Br.760/761S/763 Deux-Ponts/Provence series......

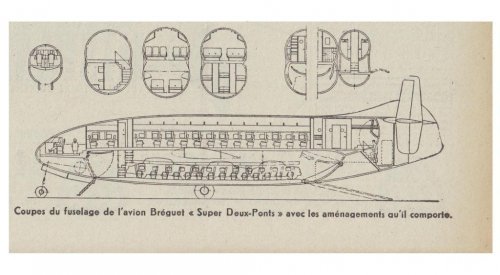

The Bréguet Br.765 Super Deux-Ponts was not built and remained a "project". It would have featured a new double-bubble pressurised fuselage wide enough to take 6 abreast tourist class seating on the upper deck and would have been powered by Pratt & Whitney Wasp Major engines or Curtiss-Wright Turbo-Cyclone turboprops. The side profile drawing shows three ingenious ventral access points to the pressurised cabin......

This "project" should not be confused with the Bréguet Br.765 Deux-Ponts which used the same model number and was the later and standard military airlift version of the Bréguet Br.763 Provence supplied to the Armée de l'Air......

Terry (Caravellarella)


Attachments

  • Bréguet Br.765 Super Deux-Ponts project - Les Ailes - No. 1,337 - 15 Août 1953.......jpg
    Bréguet Br.765 Super Deux-Ponts project - Les Ailes - No. 1,337 - 15 Août 1953.......jpg
    137.3 KB · Views: 160

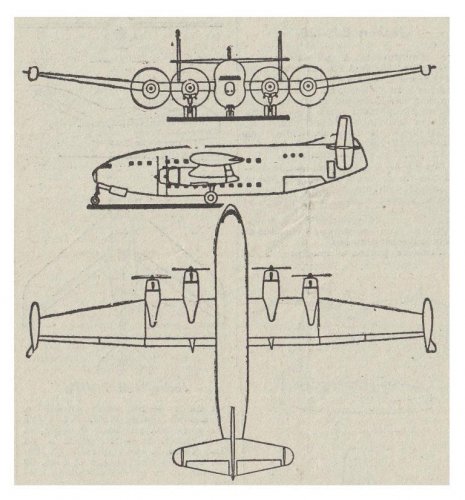

  • Bréguet Br.765 Super Deux-Ponts project 3-view - Les Ailes - No. 1,337 - 15 Août 1953.......jpg
    Bréguet Br.765 Super Deux-Ponts project 3-view - Les Ailes - No. 1,337 - 15 Août 1953.......jpg
    100.1 KB · Views: 139
  • Bréguet Br.765 Super Deux-Ponts project profiles - Les Ailes - No. 1,337 - 15 Août 1953.......jpg
    Bréguet Br.765 Super Deux-Ponts project profiles - Les Ailes - No. 1,337 - 15 Août 1953.......jpg
    90.3 KB · Views: 148

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
2,020
Reaction score
1,318
Caravellarella said:
This "project" should not be confused with the Bréguet Br.765 Deux-Ponts which used the same model number and was the later and standard military airlift version of the Bréguet Br.763 Provence supplied to the Armée de l'Air......

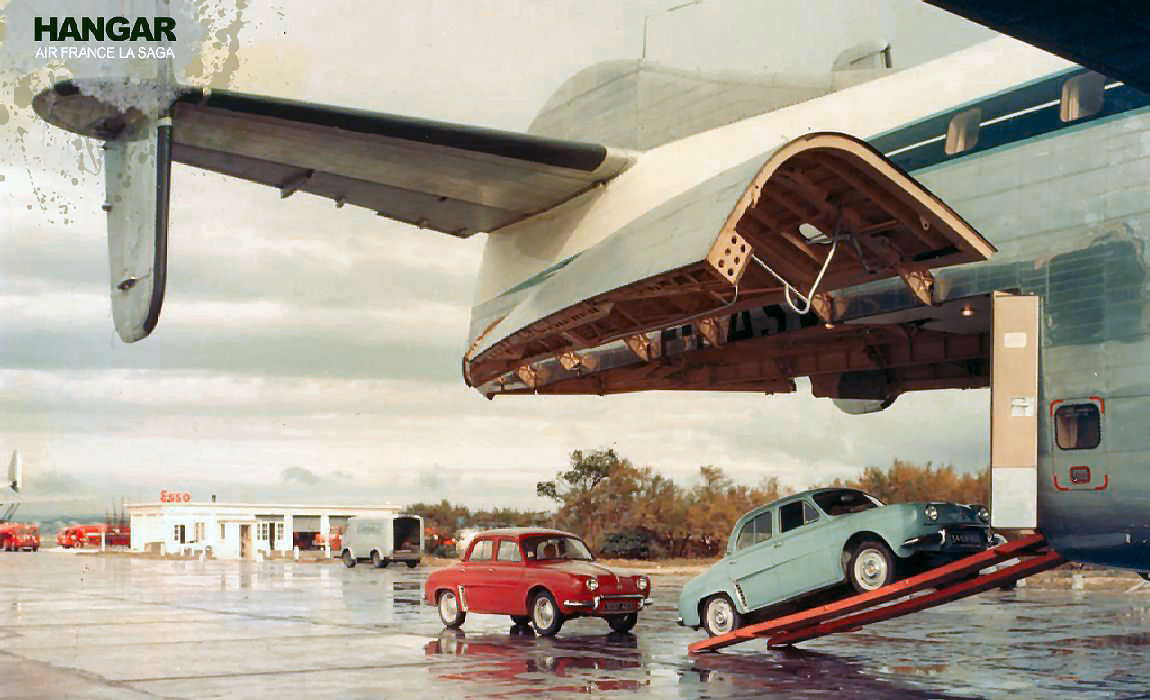

Indeed I always liked the Br.765 (the actual one), it was a kinda of "ante litteram" C-5 Galaxy for militar purposes and A 380 for civil purposes.
Probably its most famous concurrent was the Boeing 377 Stratocruiser.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,209
Reaction score
168
HI cARAVELLARELLA
Very interresting !
I heard also something about a forecast studies (br 766 § br 767)
with English turboprop ??
Who know ?
Bye
