Dear Boys and Girls, here is part of an article in French about the Bréguet Br.945 twin-engine STOL light military transport "project". The two Turboméca Turmo III-D turboprops were linked together through gearboxes and transmission shafts to drive four large diameter propellors; only the inboard engine nacelles contained the engines and the outer nacelles only contained gearboxes and transmission shafts. The Bréguet Br.945 remained a "project"......

This is part of a larger article about the contenders for a 1960 Armée de l'Air competition for an army co-operation light transport and the other contenders were:-

Avions Marcel Dassault MD-415 Communauté (prototype).
Max Holste MH-260 Super Broussard (prototype).
Max Holste MH-261 Super Broussard (project).

The article comes from the 6th January 1961 issue of Les Ailes......

Terry (Caravellarella)


Attachments

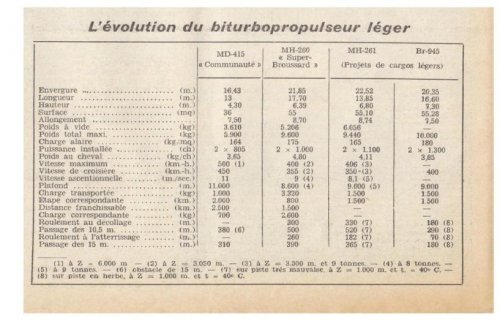

  • Bréguet Br.945 project - Les Ailes - No. 1,807 - 6 Janvier 1961 1.......jpg
    Bréguet Br.945 project - Les Ailes - No. 1,807 - 6 Janvier 1961 1.......jpg
    70.1 KB · Views: 262

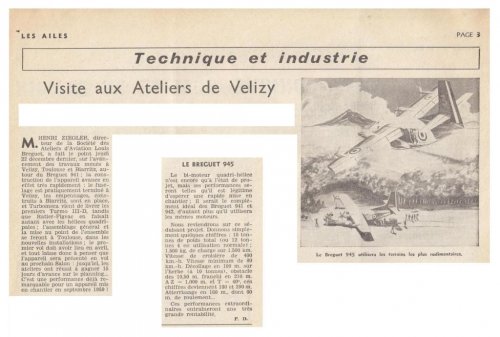

  • Bréguet Br.945 project - Les Ailes - No. 1,807 - 6 Janvier 1961 2.......jpg
    Bréguet Br.945 project - Les Ailes - No. 1,807 - 6 Janvier 1961 2.......jpg
    153.1 KB · Views: 260

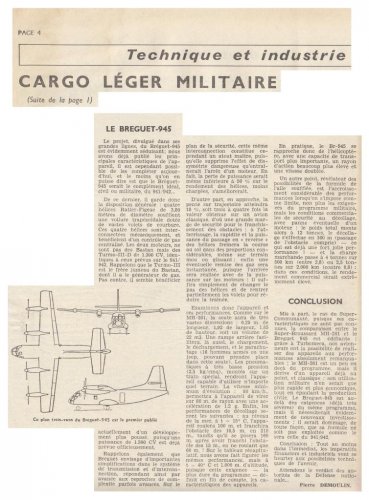

  • Bréguet Br.945 project - Les Ailes - No. 1,807 - 6 Janvier 1961 3.......jpg
    Bréguet Br.945 project - Les Ailes - No. 1,807 - 6 Janvier 1961 3.......jpg
    75 KB · Views: 272

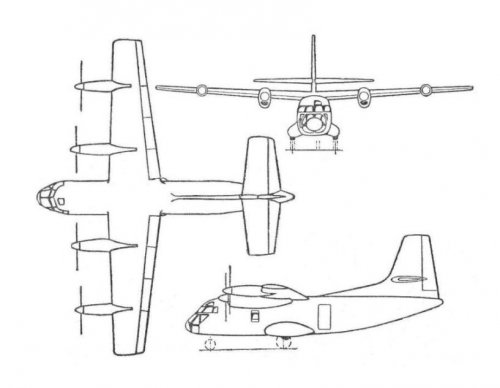

  • Bréguet Br.945 project 3-view drawing - Les Ailes - No. 1,807 - 6 Janvier 1961 1.......jpg
    Bréguet Br.945 project 3-view drawing - Les Ailes - No. 1,807 - 6 Janvier 1961 1.......jpg
    42.1 KB · Views: 238

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,039
Reaction score
234

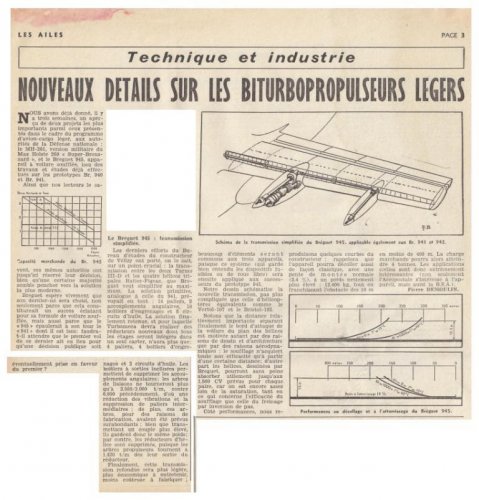

Dear Boys and Girls, here is part of a further article in French about the Bréguet Br.945 twin-engine STOL light military transport "project". The article illustrates the transmission system linking the two Turboméca Turmo III-D turboprops to the four large diameter propellors; only the inboard engine nacelles contained the engines and the outer nacelles only contained gearboxes and transmission shafts. the article states that such a transmission system was no more complicated than a comparable system in a contemporary tandem rotor helicopter......

This is part of a larger article about the contenders for a 1960 Armée de l'Air competition for an army co-operation light transport and the other contenders were:-

The article comes from the 27th January 1961 issue of Les Ailes......

Terry (Caravellarella)


Attachments

  • Bréguet Br.945 project - Les Ailes - No. 1,810 - 27 Janvier 1961.......jpg
    Bréguet Br.945 project - Les Ailes - No. 1,810 - 27 Janvier 1961.......jpg
    107.9 KB · Views: 247

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,039
Reaction score
234
Dear Boys and Girls, here is part of an article in French about the Bréguet Br.945 twin-engine STOL light military transport "project"; part of a larger article about the Bréguet Br.941 prototype and plans for other, further Bréguet types using the same high-lift principle......

The article comes from the 31st December 1960 issue of Les Ailes......

Terry (Caravellarella)


Attachments

  • Bréguet Br.945 project - Les Ailes - No. 1,806 - 31 Décembre 1960.......jpg
    Bréguet Br.945 project - Les Ailes - No. 1,806 - 31 Décembre 1960.......jpg
    104.7 KB · Views: 77

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,314
Reaction score
1,378
From the Aviation Magazine November 1960, an artist's impression of the
armed variant of the Br.945


Attachments

  • Breguet_Br-945_armed.jpg
    284.4 KB · Views: 89
