Potez P.92 strike and close support jet aircraft

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,562
Reaction score
6,305
from my dear Jemiba :

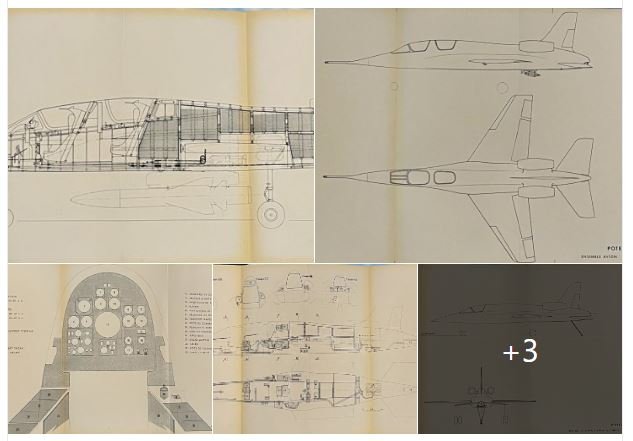

Potez P.92 :single seat twin engined jet strike and close-support project
and the engines was mounted above the rear of the fuselage
in a new shape,it was designed to compete Breguet Br.121.


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,348
Reaction score
6,352
hesham said:
Potez P.92 :single seat twin engined jet strike and close-support project
and the engines was mounted above the rear of the fuselage
in a new shape,it was designed to compete Breguet Br.121.
...which in turn become the Jaguar...


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,364
Reaction score
1,606

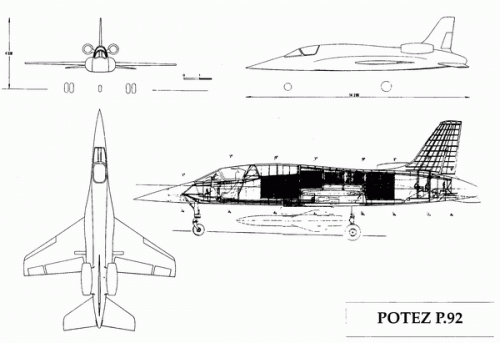

Here's the P.92 (from Planeurs et Avions, Christian Castello, le Lerard).


Attachments

  • Potez_P92-1.gif
    47.2 KB · Views: 778

TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
896
Reaction score
117
Jemiba said:
Here's the P.92 (from Planeurs et Avions, Christian Castello, le Lerard).

That design perplexes me? What the are large bulges at the wing roots? Conformal fuel tanks?

The P.92 almost looks like a design that started out with wing root mounted engines, much like the Fouga Magister?

The aft podded engines remind me of the Spanish HA-500 proposal.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,364
Reaction score
1,606
"The aft podded engines remind me of the Spanish HA-500 proposal."

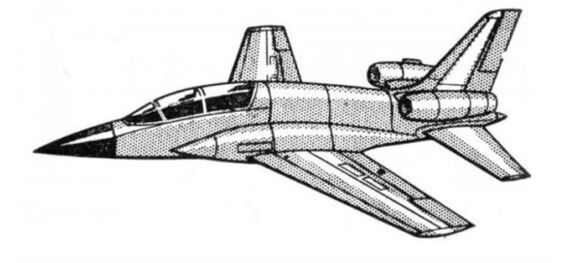

Or to the Dornier jet trainer proposal from 1967
(from AviationWeek 11/67 )


Attachments

  • Dornier_Jet-trainer.JPG
    22.5 KB · Views: 542

Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
624
Reaction score
319
I have a copy of the book French Secret Projects 2 and specifications for the Potez P.92 are listed on page 98 of this book as follows:

Length: 46 ft 7 in (14.20 m)
Powerplant: two Tourmalet, SNECMA M45 or RB.172-45 turbojets
Speed: Mach 0.92 to 0.97
Armament: one AS37 missile
