There was an article in the Spring, 1962 issue of Air Progress by George Gerhardt called "Soldier's in the Sky" and it was through the courtesy of "Douglas Progess". Anyone know where I can find a copy "Douglas Progress"?

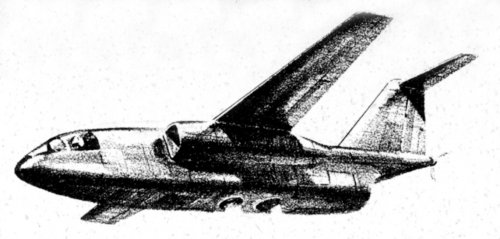

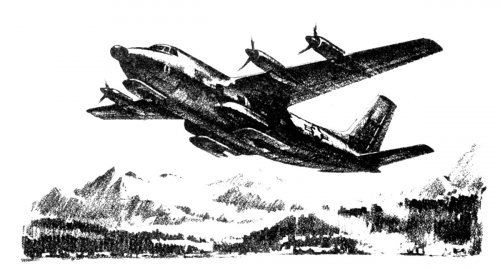

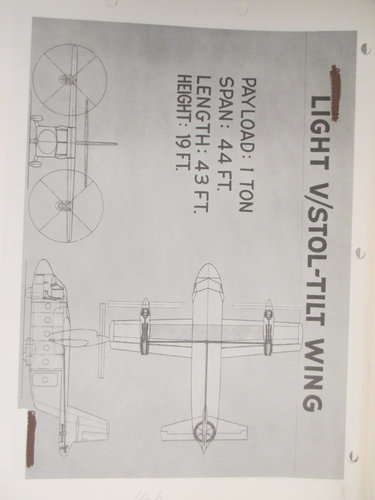

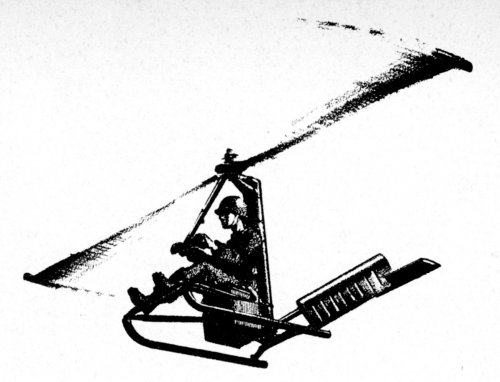

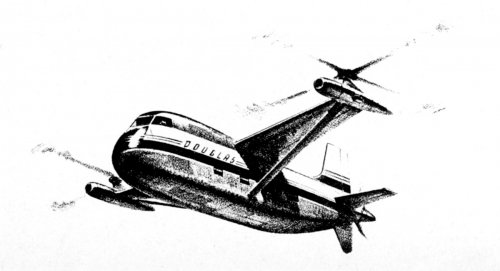

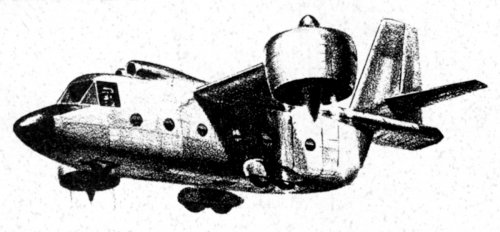

Here are the artist drawings that went with the article. Any ideas if they are tied to specific Douglas model numbers?

The second one may be Douglas 1906 for the C-130 program - see:

http://www.secretprojects.co.uk/forum/index.php/topic,4601.0/highlight,douglas+1906.html

The twin rotor compound design was noted on Oct 13th in Scott's blog.

Enjoy the Day! Mark


Attachments

  • Douglas - single seat Army copter.jpg
    Douglas - single seat Army copter.jpg
    127.1 KB · Views: 864
  • Douglas C-130 type cargo transport.jpg
    Douglas C-130 type cargo transport.jpg
    151.4 KB · Views: 769
  • Douglas ducted fan tilt rotor.jpg
    Douglas ducted fan tilt rotor.jpg
    116.2 KB · Views: 703
  • Douglas twin rotor compound.jpg
    Douglas twin rotor compound.jpg
    137.4 KB · Views: 663
  • Douglas VSTOL.jpg
    Douglas VSTOL.jpg
    107.7 KB · Views: 663

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
599
Second and third picture definitely ring a bell... The former is in one of the threads of this forum, somewhere, even in model form... I think the latter was one of the tilt-duct projects that Douglas studied in collaboration with Doak.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,641
Reaction score
4,602
Mark Nankivil said:
There was an article in the Spring, 1962 issue of Air Progress by George Gerhardt called "Soldier's in the Sky" and it was through the courtesy of "Douglas Progess". Anyone know where I can find a copy "Douglas Progress"?

Here are the artist drawings that went with the article. Any ideas if they are tied to specific Douglas model numbers?

The second one may be Douglas 1906 for the C-130 program - see:

http://www.secretprojects.co.uk/forum/index.php/topic,4601.0/highlight,douglas+1906.html

The twin rotor compound design was noted on Oct 13th in Scott's blog.

Enjoy the Day! Mark


My dear mark,

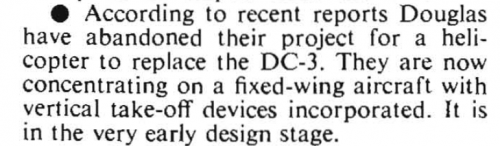

it seemed to be those projects are not a hypothetical aircraft,but a real design according to
Air Pictorial 8/1955.


Attachments

  • 1.png
    127.5 KB · Views: 97

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,641
Reaction score
4,602

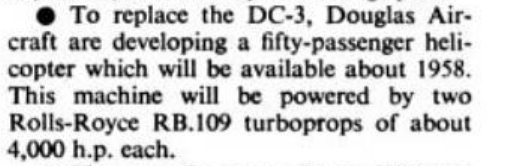

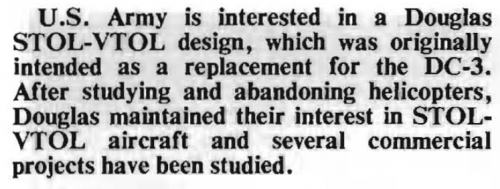

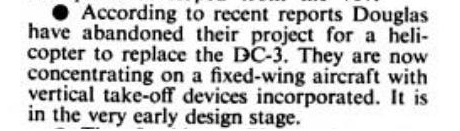

Also from Air Pictorial 12/1956,


there is a reference to Douglas VTOL/STOL many commercial projects.


Attachments

  • Douglas.png
    192.4 KB · Views: 100

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,641
Reaction score
4,602
Hi,

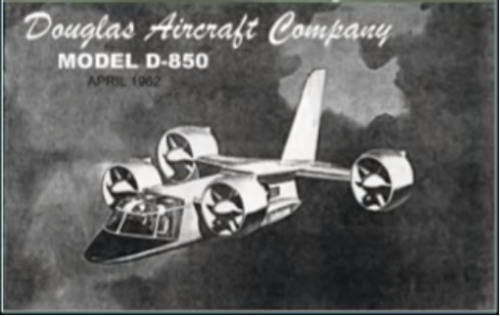

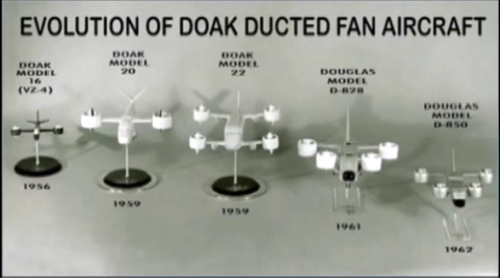

here is a Douglas D-850.



Attachments

  • D-850.png
    241 KB · Views: 115
  • D-8.png
    541.9 KB · Views: 130

masher47

Yesterdays dreams...
Senior Member
Joined
Feb 17, 2013
Messages
131
Reaction score
551

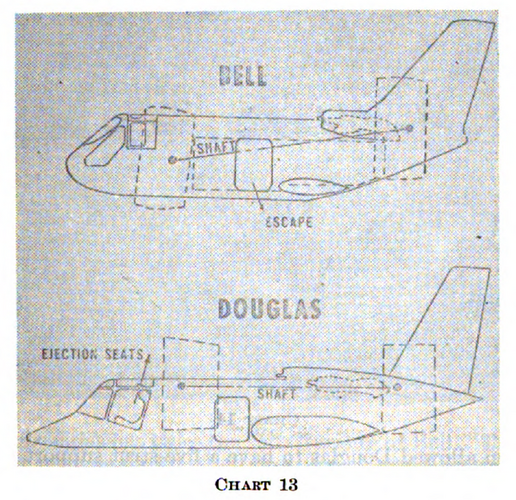

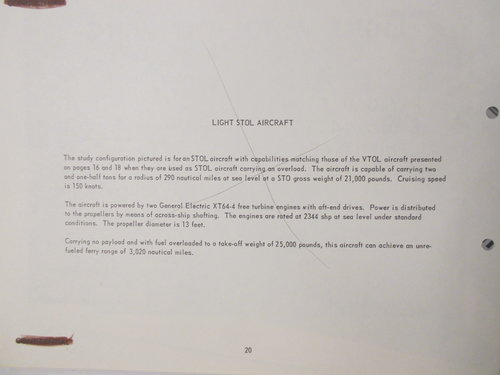

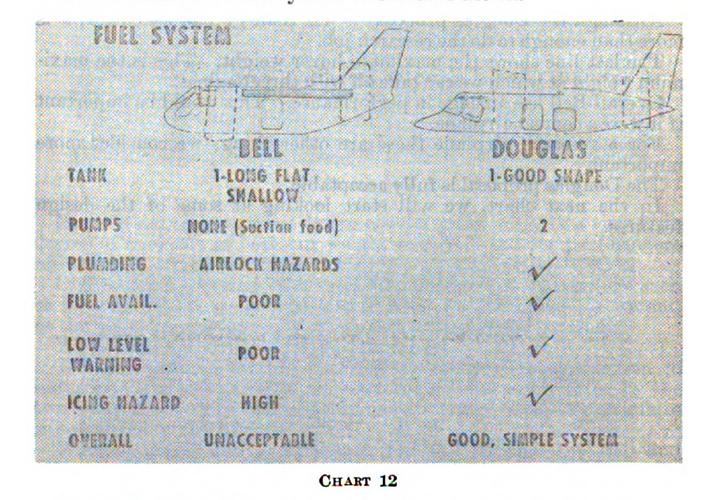

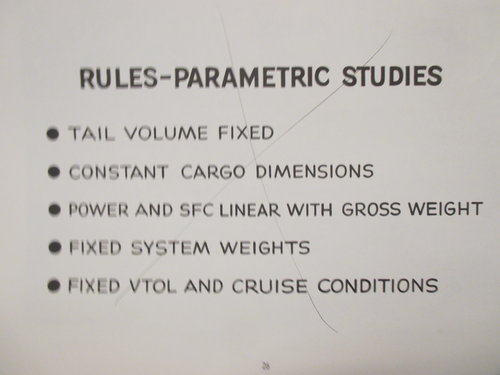

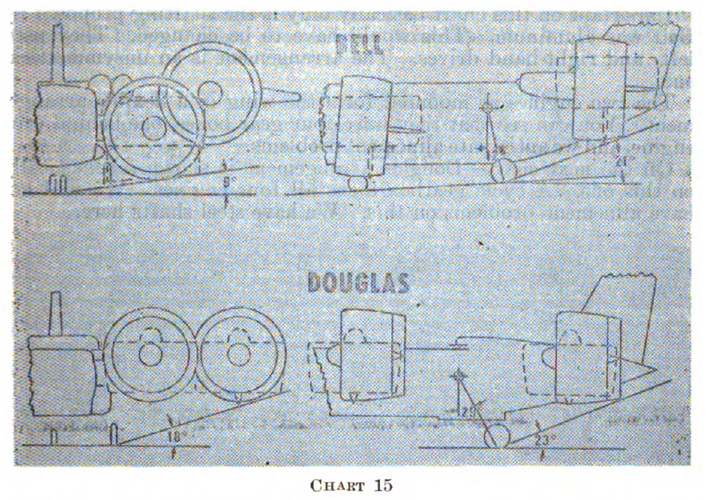

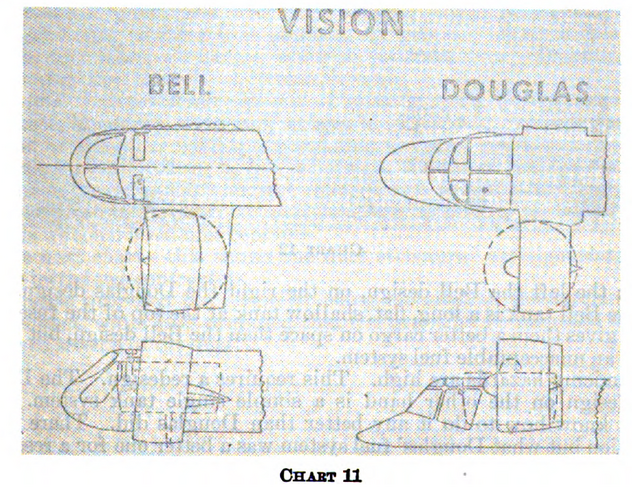

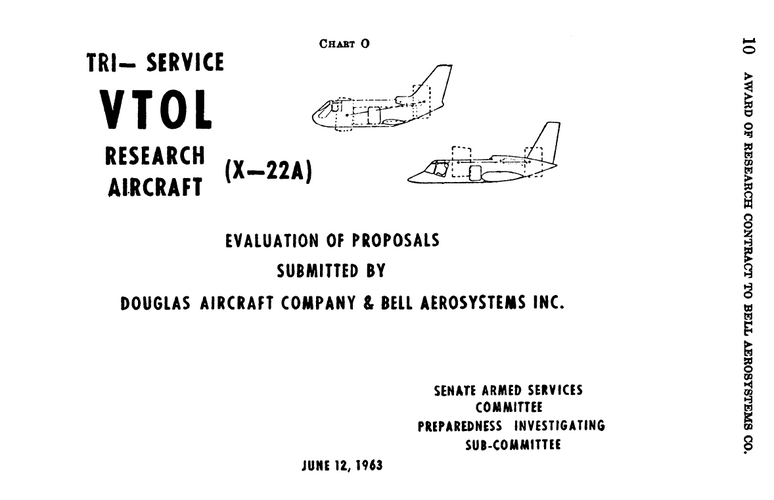

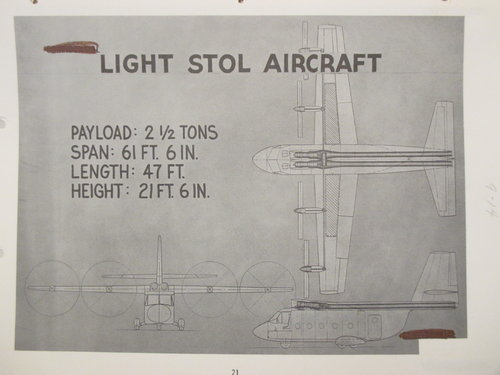

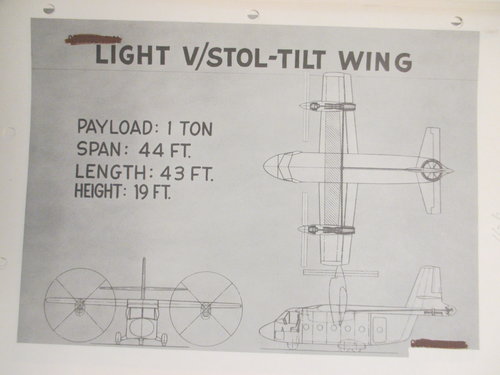

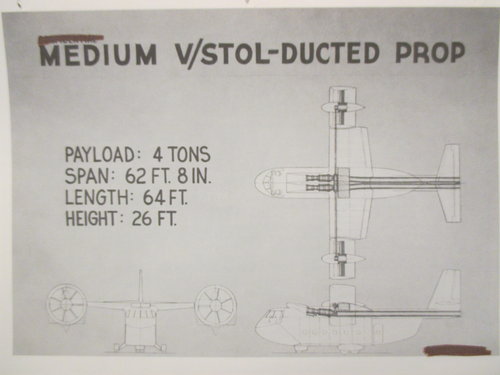

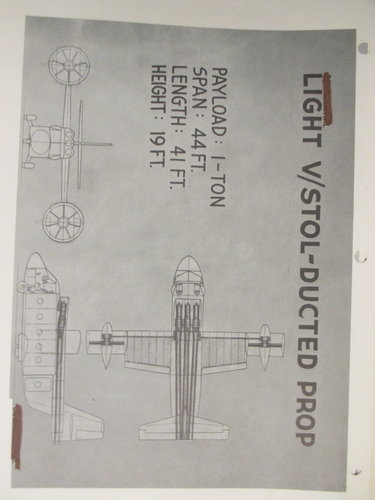

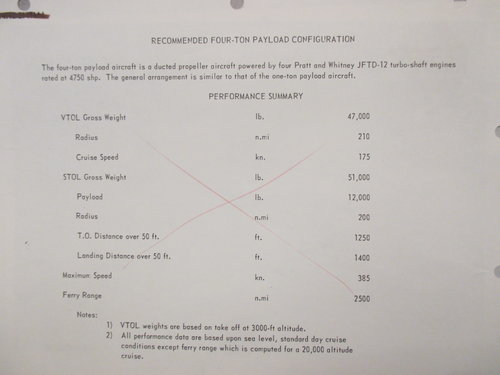

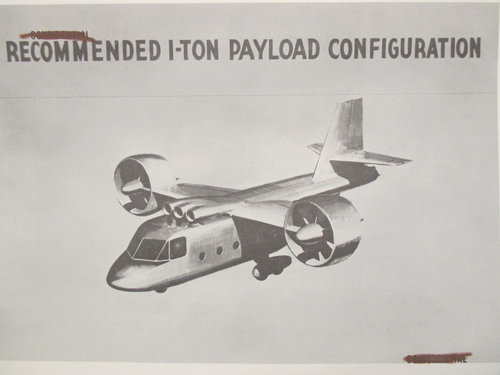

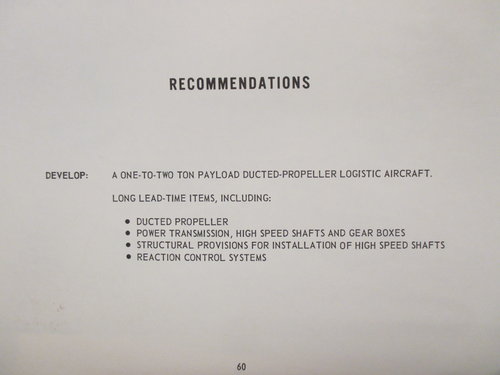

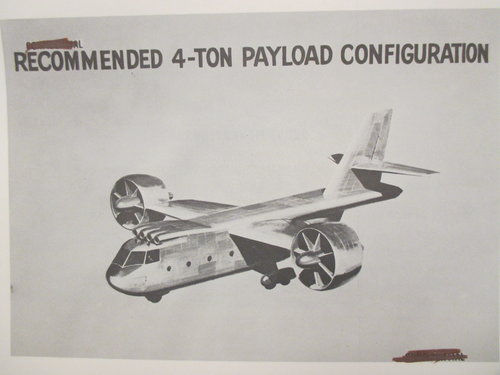

Douglas study for VTOL


Attachments

  • IMG_1917.JPG
    3.8 MB · Views: 60
  • IMG_1916.JPG
    3.1 MB · Views: 42
  • IMG_1915.JPG
    3.1 MB · Views: 41
  • IMG_1914.JPG
    3.2 MB · Views: 40
  • IMG_1913.JPG
    4.2 MB · Views: 39
  • IMG_1912.JPG
    3 MB · Views: 40
  • IMG_1911.JPG
    2.3 MB · Views: 39
  • IMG_1910.JPG
    1.9 MB · Views: 41
  • IMG_1909.JPG
    2.2 MB · Views: 40
  • IMG_1908.JPG
    1.7 MB · Views: 38

masher47

Yesterdays dreams...
Senior Member
Joined
Feb 17, 2013
Messages
131
Reaction score
551

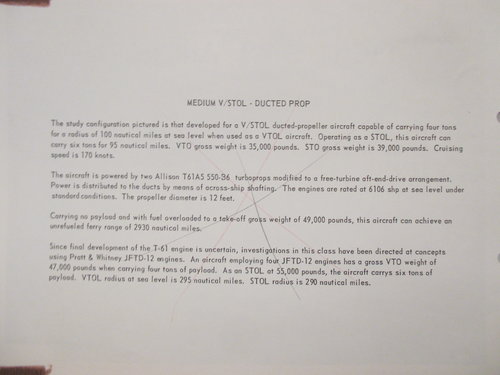

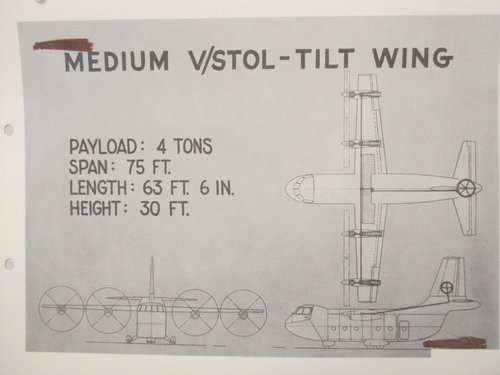

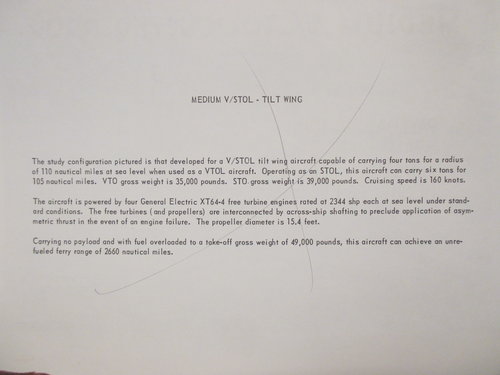

Part 2


Attachments

  • IMG_1922.JPG
    3.1 MB · Views: 53
  • IMG_1921.JPG
    3.9 MB · Views: 60
  • IMG_1920.JPG
    3.1 MB · Views: 60
  • IMG_1919.JPG
    4 MB · Views: 58
  • IMG_1918.JPG
    3 MB · Views: 54
  • IMG_1909.JPG
    3.5 MB · Views: 46
  • IMG_1911.JPG
    3.7 MB · Views: 46

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,641
Reaction score
4,602
That's a wonderful concept,

but why there was no designation number ?,by that time,Douglas reached D-8XX ?.
