Tri-Service VTOL Transport proposals (XC-142 competition)

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
Hi,

was that the Grumman Tri-Service proposal ?.


Attachments

  • TN_tilt-wing_grumman_01.JPG
    8.3 KB · Views: 599

Hood

ACCESS: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
2,065
Reaction score
1,583
hesham, I think it is. I've seen that picture before somewhere but I'll need to do a little digging to confirm.


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
166

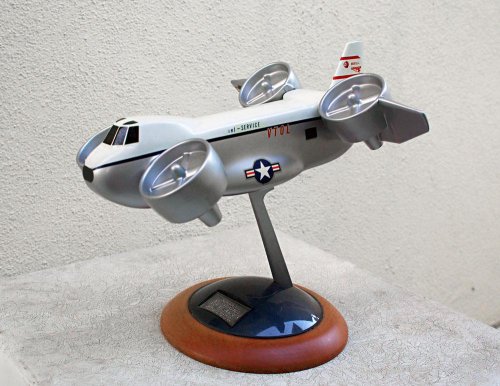

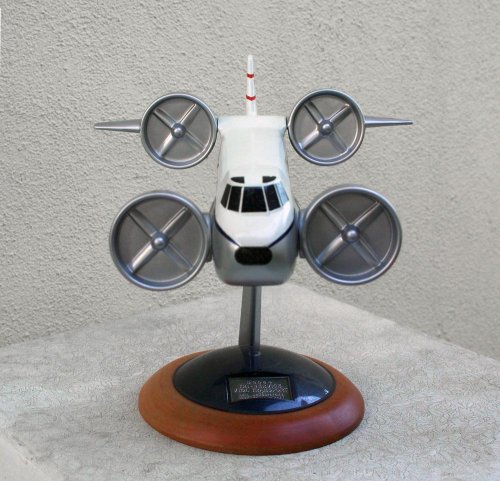

Bell factory model of D-2064 Tri-Service VTOL transport. Note Lockheed logo on vertical. [Tony Chong collection]


Attachments

  • Bell D-2064 01.jpg
    Bell D-2064 01.jpg
    121.2 KB · Views: 224
  • Bell D-2064 02.jpg
    Bell D-2064 02.jpg
    146.3 KB · Views: 202

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,054
Reaction score
1,445
Website
www.aerospaceprojectsreview.com
circle-5 said:
Bell factory model of D-2064 Tri-Service VTOL transport.

They kinda cheaped out on the ducts & props. I can understand that... such things would be a pain to make and fragile. But it does look kinda... off. They at least should have painted the areas between the props black or something.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
boxkite said:
Checking John Paul Campbell's book "Vertical Takeoff and Landing Aircraft" (MacMillan, New York, 1962) again, I believe there were the following Tri-Service competitors:

LTV-Hiller-Ryan (the later winner = XC-142)
Bell (Helicopter Company) D252
Bell (Aerosystems Company with Lockheed) D2064
Grumman (type number unknown)
North American (type number unknown - the topic of this thread)
Boeing Vertol BV (137?)


We can add;


Grummna G-242
Fairchild M-351
Boeing Model-900
Douglas Model-828/A


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
541
The Vought-Hiller-Ryan project was designated VHR-447 (in the Vought numbering system).
The Boeing Vertol project was indeed the Model 137.
I cannot guarantee that M-351 refered to the whole SS-478A proposal or only some systems. What I have found under that number is a 1961 report about a "proposed low speed system investigation for Tri-Service VTOL Assault Transport".


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
541
hesham said:
And may be it was Douglas Model-828/A;

Quite possibly so. This patent drawing shows the 1961 Douglas/Doak tilt-duct project, so it's perfectly consistent with it being either the Douglas D-828 or the D-829.
Alternately, it could also be this one:


Attachments

  • Douglas ducted fan tilt rotor.jpg
    Douglas ducted fan tilt rotor.jpg
    79.1 KB · Views: 173

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
541

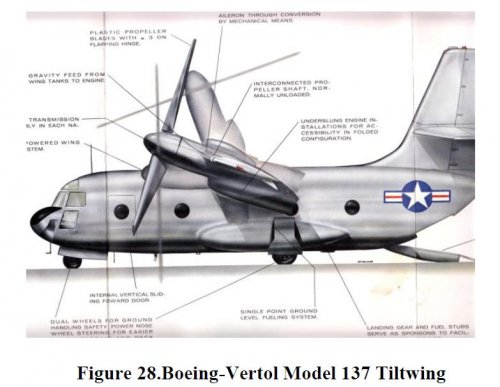

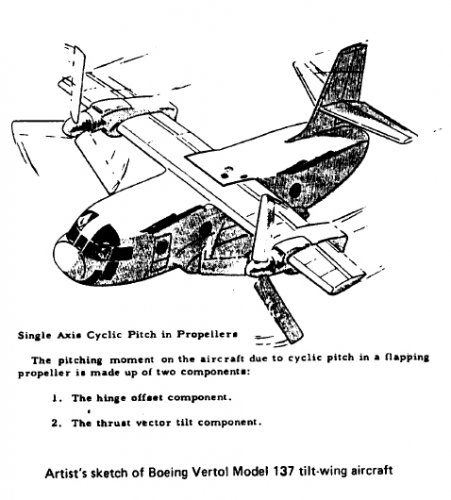

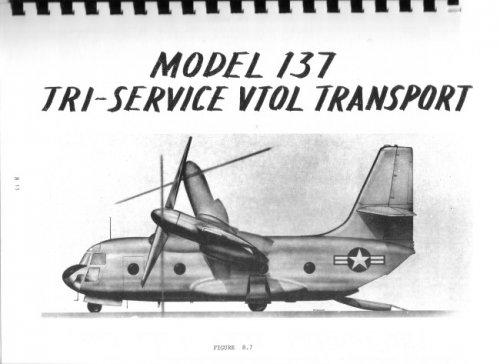

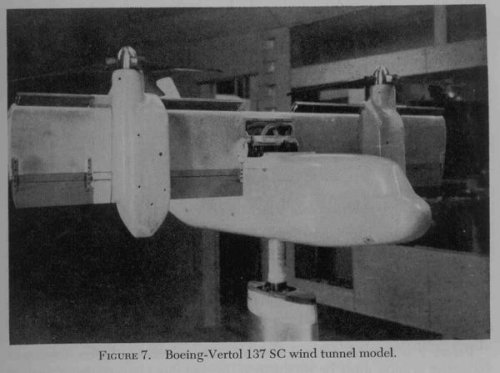

The Boeing Vertol BV-137 was one of the numerous contenders for the Tri-Service VTOL program which was won by the Vought-Hiller-Ryan XC-142A...


Attachments

  • tilt-wing_boeing_01.jpg
    130 KB · Views: 256
  • Boeing-Vertol-137.JPG
    35.7 KB · Views: 327
  • Vertol 137.jpg
    Vertol 137.jpg
    85.4 KB · Views: 349
  • model 137.jpg
    model 137.jpg
    65.9 KB · Views: 378

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,671
Reaction score
4,286
From Mark Nankivil - Vought C-142 artwork.


Attachments

  • zVought Aeronautics C-142 VSTOL Intra-Theater Transport Artwork-a.jpg
    zVought Aeronautics C-142 VSTOL Intra-Theater Transport Artwork-a.jpg
    927.1 KB · Views: 1,382

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
541
hesham said:
Hi,

for the military tri-service transport competition of 1961,Bell joined
with Lockheed and submitted a tilt-wing proposal,does anyone know
this competition for USAF ?,which later led to developed the Bell
X-22 for the Navy.

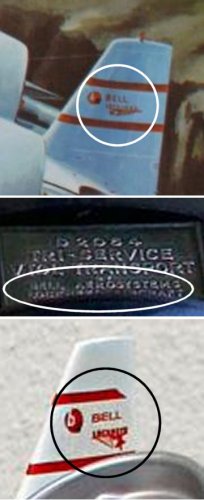

The Bell/Lockheed project was the D2064. This was a tilt-duct, not tilt-wing project (Bell didn't do much tilt-wing research, that was more Boeing's specialty).

Check out the pics below (zoomed in from this topic) and you'll see the Lockheed mention is pretty clear).


Attachments

  • Lockheed mentions.jpg
    Lockheed mentions.jpg
    56.6 KB · Views: 257

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
Hi,


and may be that was Grumman G-242.


http://jpcolliat.free.fr/x18/x18-1.htm


Attachments

  • G-242 may be.jpg
    G-242 may be.jpg
    77.5 KB · Views: 123

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158

Attachments

  • BV.137.JPG
    53.6 KB · Views: 182

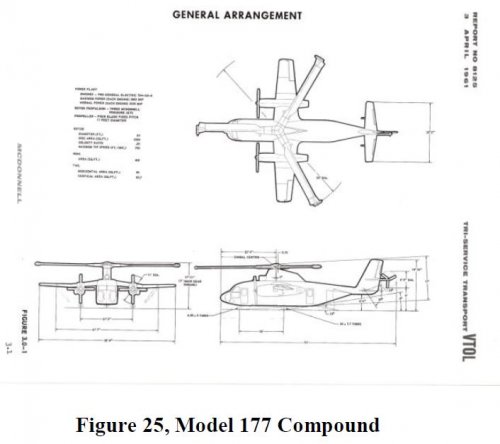

  • M-177.JPG
    35.9 KB · Views: 177
  • M-175.JPG
    25.2 KB · Views: 164
  • D-2064.JPG
    52.8 KB · Views: 131
  • North American.JPG
    North American.JPG
    60.8 KB · Views: 124
  • Sikorsky.JPG
    55.8 KB · Views: 107
  • D-829.JPG
    40.8 KB · Views: 120
  • D-828.JPG
    48.5 KB · Views: 122

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
And;


Attachments

  • Br.941.JPG
    27.4 KB · Views: 177

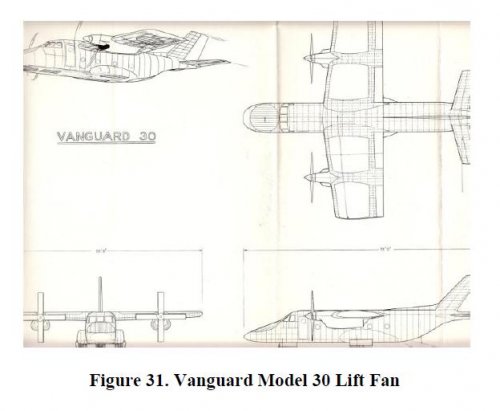

  • Model-30.JPG
    31.5 KB · Views: 204

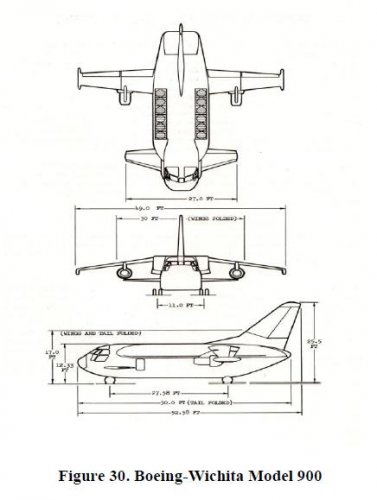

  • Model-900.JPG
    27 KB · Views: 190

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
hesham said:
A big surprise to all members;


I found the Tri-Service competition and its contenders,they are;


Douglas D-828 & D-829
Silkorsky
North American
Bell/Lockheed D-2064
McDonnell M-175 & M-177
Boeing-Vertol BV.137
Boeing-Wichita Model-900
Vanguard Model-30
Breguet Br.941
LTV XC-142

also we can add Bell D-252,Fairchild M-351 and Grumman G-242.


http://halfdome.arc.nasa.gov/Publications/files/AHSDuganFinal_TiltrotorThrustControl_1029_12408.pdf


The Boeing Model-900 looks familiar.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,054
Reaction score
1,445
Website
www.aerospaceprojectsreview.com
I've been trying to convince the author of that paper to share the sources. However, it seems that the sources are a big pallet of reports, and he's understandably less than enthusiastic about shipping off such things to a stranger.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,988
Reaction score
352
Orionblamblam said:
I've been trying to convince the author of that paper to share the sources. However, it seems that the sources are a big pallet of reports, and he's understandably less than enthusiastic about shipping off such things to a stranger.

:)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
hesham said:
A big surprise to all members;


I found the Tri-Service competition and its contenders,they are;


Douglas D-828 & D-829
Silkorsky
North American
Bell/Lockheed D-2064
McDonnell M-175 & M-177
Boeing-Vertol BV.137
Boeing-Wichita Model-900
Vanguard Model-30
Breguet Br.941
LTV XC-142

also we can add Bell D-252,Fairchild M-351 and Grumman G-242.


http://halfdome.arc.nasa.gov/Publications/files/AHSDuganFinal_TiltrotorThrustControl_1029_12408.pdf


They transfer it into a NASA report;


http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/20140008647.pdf


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,393
Reaction score
178
circle-5 said:

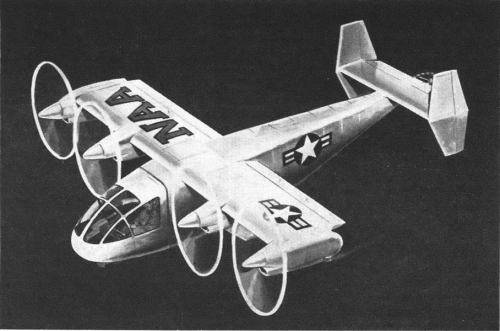

Pictured here is the North American Aviation factory proposal model for the Tri-Service VTOL competition. Note main gear wheels, which stay exposed when retracted. Fenestron-type pitch rotor is also noteworthy.
The exposed main gear reminds me of the exposed main gear of the long-fuselage MU-2 which can do a gear-up landing with comparatively minor damage to the nose only as the exposed retracted main gear can still support it.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158

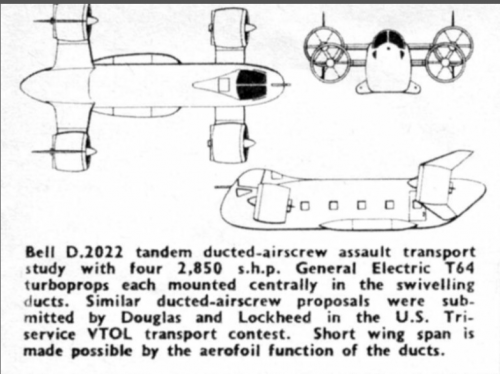

Also from Flying Review 2/1962,


here is a more info about Bell D-2022.


Attachments

  • D-2022.png
    310.3 KB · Views: 653

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
679
Website
deeptowild.blogspot.com

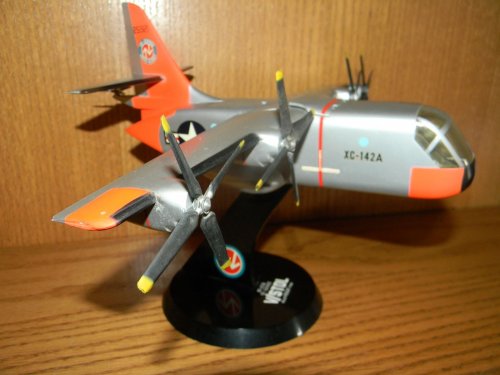

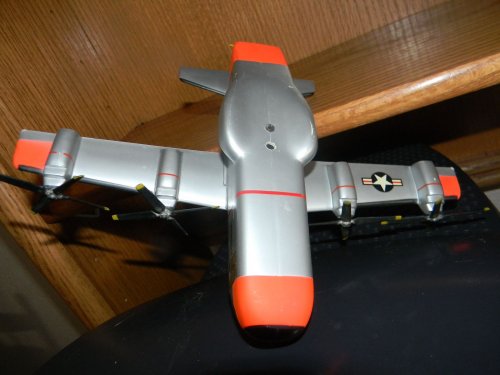

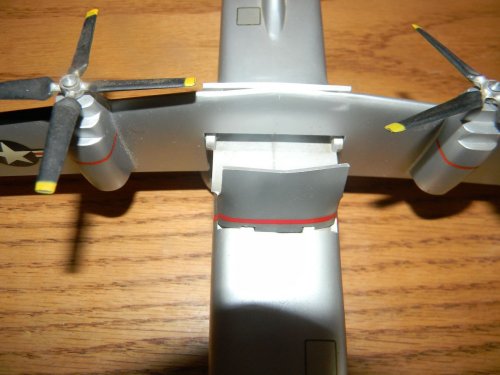

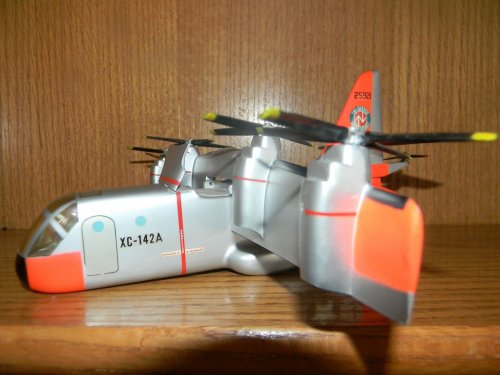

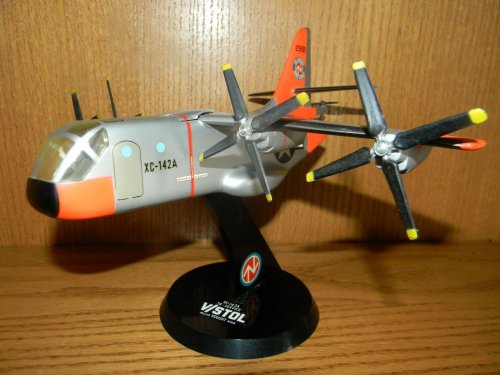

Model of Ling-Temco-Vought (LTV) XC-142 manufactured by Topping found on eBay.

Source:
http://www.ebay.com/itm/Topping-XC-142A-V-STOL-11-wingspan-desktop-display-articulated-model-plane-SALE-/261838032954?pt=LH_DefaultDomain_0&hash=item3cf6c3503a


Attachments

  • XC-142-01.JPG
    159.3 KB · Views: 367
  • XC-142-02.JPG
    226.3 KB · Views: 346
  • XC-142-03.JPG
    181.9 KB · Views: 321
  • XC-142-04.JPG
    203.6 KB · Views: 300
  • XC-142-05.JPG
    172.3 KB · Views: 60

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
541

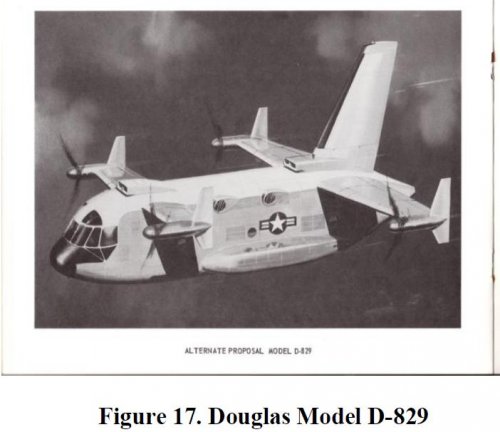

Douglas D-828 and D-829 proposals for the 1961 Tri-Service VTOL Transport competition:

Douglas proposed both a tilting, ducted fan entry and a tilting turboprop.
These two VTOL transport designs had many identical components, including the fuselage and vertical fin.

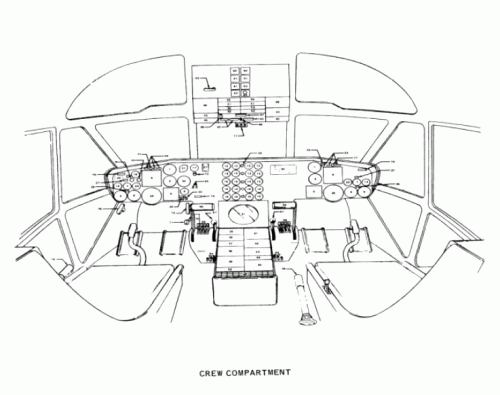

The cockpit design and layouts were the same and both throttles and collective controls were used for thrust control. Four T-64 engines drove the four, ducted fans and the aircraft was predicted to fly at 250 knots.

Source: THRUST CONTROL OF VTOL AIRCRAFT – PART DEUX (DANIEL C. DUGAN)

Amusingly, the D-828 painting shows bits of the -829's wingtip stabilizers that were not properly covered upon...


Attachments

  • Crew compartment.gif
    Crew compartment.gif
    72.3 KB · Views: 216
  • D-829.jpg
    39.9 KB · Views: 224
  • D-828.jpg
    39.1 KB · Views: 231

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
541
Thanks a lot for merging these topics. Now we have a very valuable resource on the subject, all in one place! :)

One final suggestion though: rename the topic as "Tri-Service VTOL Transport proposals (XC-142 competition)", as some of the designs were tilt-duct for instance, not just tilt-wing...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
Hi,

http://archive.aviationweek.com/image/spread/19610612/51/2


Attachments

  • 2.png
    537.9 KB · Views: 79

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158

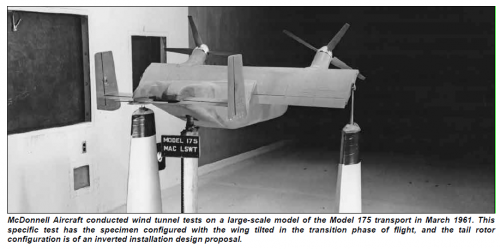

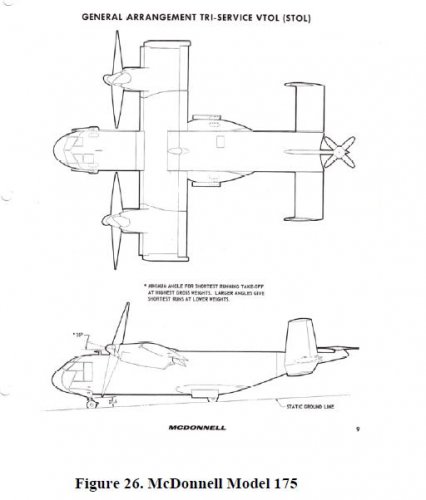

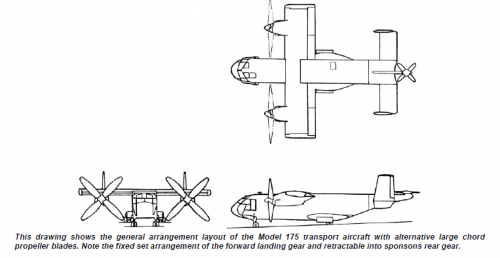

The McDonnell M-175;

http://documents.techno-science.ca/documents/CASM-Aircrafthistories-CanadairCL-84VSTOLhistory.pdf


Attachments

  • M-175.png
    176.6 KB · Views: 101
  • M-175  II.png
    M-175 II.png
    51.3 KB · Views: 113
  • M-175  III.png
    M-175 III.png
    174.1 KB · Views: 126

yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,488
Reaction score
707
What a great find! Another superb program falling victim to politics.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
yasotay said:
What a great find! Another superb program falling victim to politics.

I think it was not failed by politics,the concept need a small development but they
didn't do it,I offer a solution to a company by my own creation design,but they
didn't listen.


Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
570
Reaction score
370

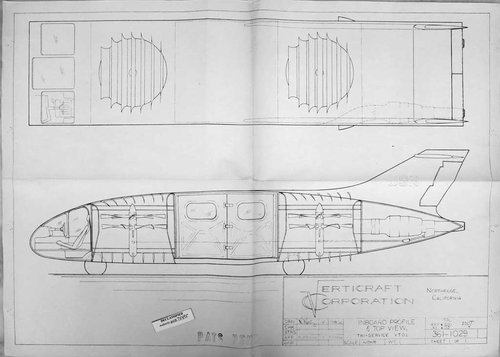

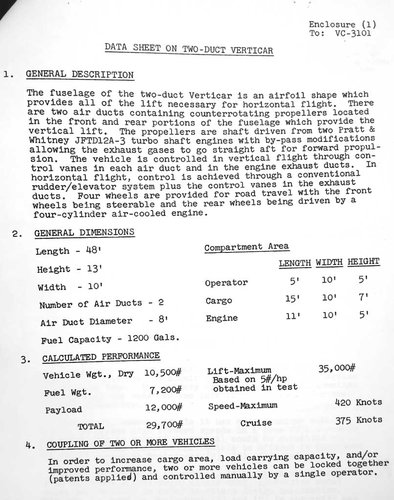

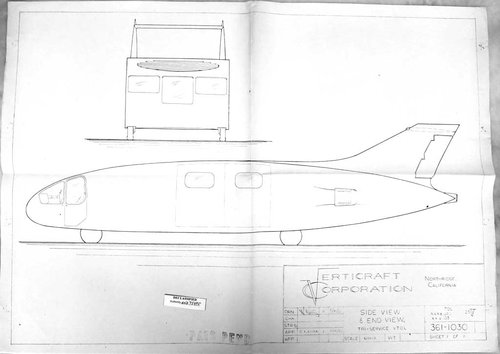

In letter VC-3101 From Verticraft Corporation to the Chief, Bureau of Naval Weapons "Verticraft regrets its inability to submit a proposal on the Tri-Service VTOL as this time. The primary reason being that information was requested and received too late (10 March 1961) for the required preparation." The letter further states "Verticraft, however, feels it has a very unique vehicle in that it offers high forward speeds in a true VTOL aircraft, ..." Source NARA


Attachments

  • 361-1030-Verticraft-Tri-Service-VTOL-Side-View-and-End-View.jpg
    42.7 KB · Views: 68
  • 361-1029-Verticraft-Tri-Service-VTOL-Inboard-Profile-and-Top-View.jpg
    58.2 KB · Views: 67

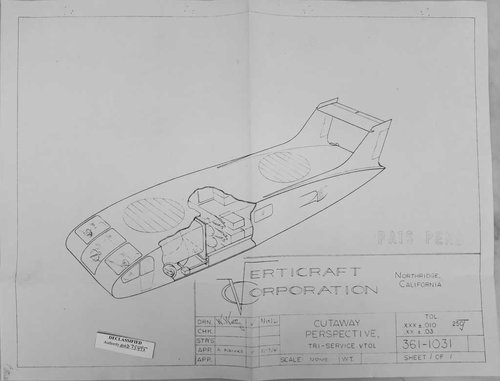

  • 361-1031-Verticraft-Tri-Service-VTOL-Cutaway-Perspective.jpg
    40.7 KB · Views: 69

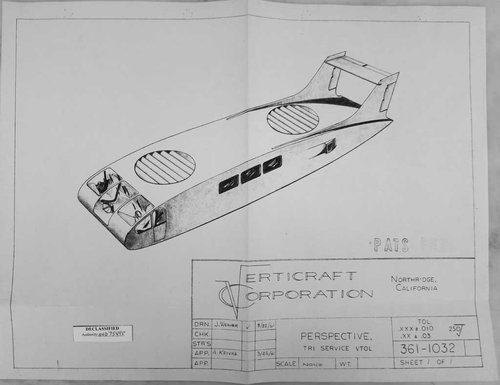

  • 361-1032-Verticraft-Tri-Service-VTOL-Perspective.jpg
    46.6 KB · Views: 65
  • VC-3101-Enclosure.jpg
    113.8 KB · Views: 63

Bill S

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
570
Reaction score
370
Another interesting partnership. Piasecki Aircraft elected to join efforts with Bell-Lockheed groups VTOL proposal providing their ducted propeller and fan systems technical background. (Piasecki Letter No N-382 dated 3 April 1961)


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,054
Reaction score
1,445
Website
www.aerospaceprojectsreview.com

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,958
Reaction score
331
Naah, Dude . . . the crew just lean from side to side, like Kirk and Co. on the bridge of the Enterprise . . .

cheers,
Robin.


yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,488
Reaction score
707
