I have been interested in the ducted fan concept for some years now. As modern warfare becomes more involved with urban terrain, VTOL aircraft will have to contend with the environment. I think at least Bell Helicopter is beginning to see this and has started investigating "Protected Rotor" concepts, witness the "X-Hawk" revealed at Farnbourough this last year.

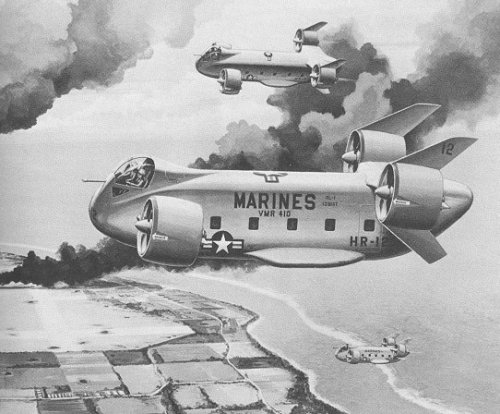

Anyway here is a picture of an operationalized X-22A that I found several years ago.


Attachments

  • D_2022a.jpg
    64.9 KB · Views: 1,548

GTX

All hail the God of Frustration!!!
Staff member
Senior Member
Joined
Apr 15, 2006
Messages
3,624
Reaction score
1,906
Website
beyondthesprues.com
Chubby fella isn't it - I can just imagine the names it would have been given in service :D.

Regards,

Greg


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,811
Reaction score
121
In 1959-60 Bell prepared ducted fan VTOL design studies
for the U.S.Army and Marine Corps.The latter study being the D-2022 powered
by four 20200hp. T55's and being able to carry 30 troops
at VTOL gross weight of 28.500lb.

In 1961 the D-2064 design followed conceived jointly by Bell and Lockheed.

The next stage was the Bell X-22A we all now..


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,811
Reaction score
121
Error : must be - powered by four 2.200 instead...


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,453
Reaction score
6,108
Hi,

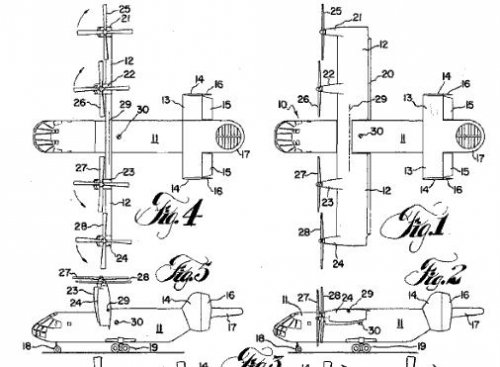

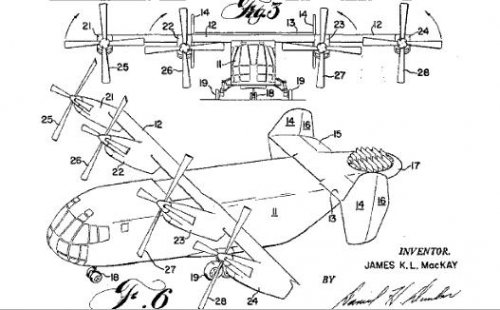

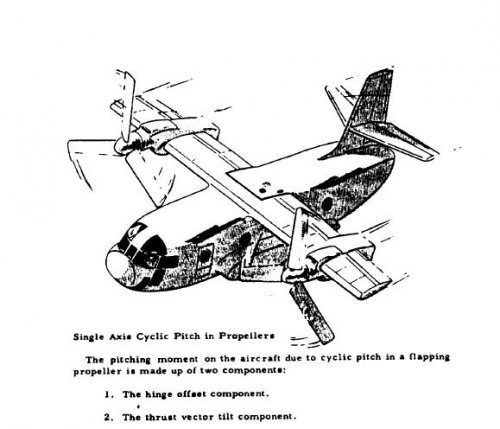

the North American tilt-wing projects was very
interesting.
http://www.google.com/patents?id=KChzAAAAEBAJ&printsec=abstract&zoom=4&dq=fowler+design+of+airplane&num=100#PPP1,M1


Attachments

  • tilt-wing 1.JPG
    tilt-wing 1.JPG
    35.3 KB · Views: 1,148
  • tilt-wing 2.JPG
    tilt-wing 2.JPG
    35.4 KB · Views: 1,151

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,453
Reaction score
6,108
Dear Sentinel,

may be,but I don't know the other contenders in
this competition.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,814
Reaction score
3,219
Website
www.aerospaceprojectsreview.com

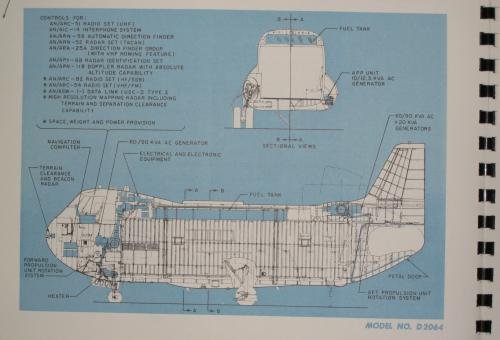

Via Niagara Aerospace Museum (see "trip" thread)


Attachments

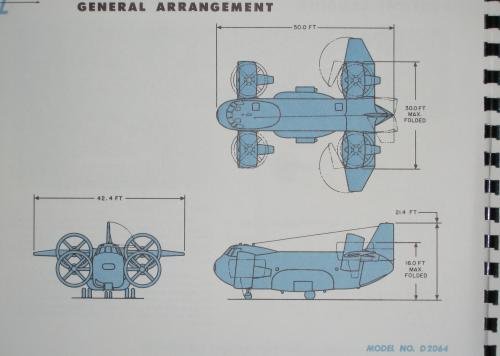

  • D2064 inboardsmall.jpg
    D2064 inboardsmall.jpg
    24.2 KB · Views: 400

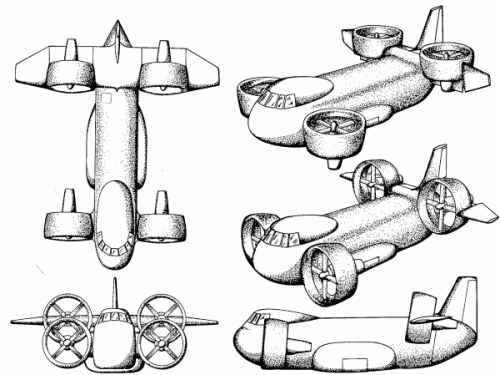

  • D2064 3view.jpg
    D2064 3view.jpg
    18.8 KB · Views: 553

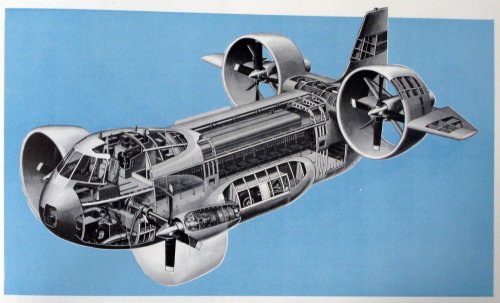

  • D2064 cutaway small.jpg
    D2064 cutaway small.jpg
    104.4 KB · Views: 576
  • D2064 artsmall.jpg
    D2064 artsmall.jpg
    68.2 KB · Views: 821

yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,871
Reaction score
1,603
Really fantastic!

Two new bits of information on ducted fan aircraft in as many days.

It makes me think of a Chinook made to operate in urban environments.


brontolino

ACCESS: Restricted
Joined
Nov 19, 2007
Messages
36
Reaction score
17
I'm a new menber of this forum.

Can anyone send me more information ( performace, technical drawings, photo) about the Bell D-2022 and D-2064 Tri service vtol transport?


thank you


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,453
Reaction score
6,108
Hi,

for the military tri-service transport competition of 1961,Bell joined
with Lockheed and submitted a tilt-wing proposal,does anyone know
this competition for USAF ?,which later led to developed the Bell
X-22 for the Navy.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,453
Reaction score
6,108
Hi,

http://jpcolliat.free.fr/x18/x18-1.htm


Attachments

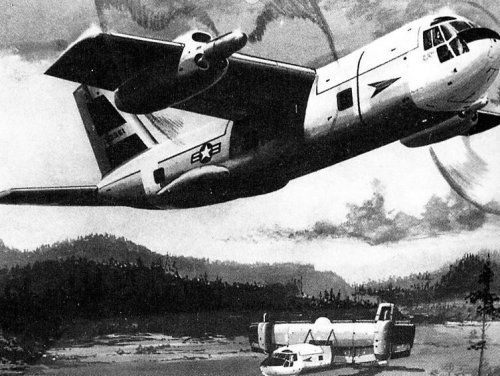

  • tilt-wing_concept.jpg
    100.2 KB · Views: 366
  • tilt-wing_general-dynamics_01.jpg
    133.1 KB · Views: 355
  • TN_tilt-wing_boeing_01.jpg
    10.9 KB · Views: 1,108
  • TN_tilt-wing_grumman_01.jpg
    8.3 KB · Views: 1,096
  • TN_tilt-wing_north-american_01.jpg
    9.6 KB · Views: 1,097

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,348
Reaction score
1,545
North American wasn't a company so much engaged in the design of
rotorcraft, I think, but here's another design for a 4-engined tilt wing :
(From AviationWeek 6/1961)


Attachments

  • NA-VSTOL-concepts.jpg
    33.3 KB · Views: 341

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,064
Reaction score
602
do we have a manufacturer for the first image?

cheers,
Robin.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,811
Reaction score
121
Sikorsky I think.
Saw this illustration in a very old Flying Review.
Have to 'dig' for the correct date...


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
861
Reaction score
210
Piotr,

Can you tell us the source, where you found the drawing?

Thomas


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,811
Reaction score
121
First drawing of the series was indeed Sikorsky.

Source :Flying Review March 1962-page 15.

No further info given.


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,064
Reaction score
602
First drawing of the series was indeed Sikorsky

thanks, looking at the picture, the cockpit glazing looks very like the sea king, gives it away, rather, ;D

cheers,
Robin.


Pyrrhic victory

This is going to hurt
Joined
Jan 31, 2008
Messages
73
Reaction score
31
Here are some comics drawn by NAA about the ludocrous nature of the Tri-Service Transport competition. Their design in the comics still reflects the naval requirement for folding wings.


Attachments

  • a-2toon2.gif
    15 KB · Views: 921
  • A-2toon1.gif
    9.3 KB · Views: 891
  • a-2toon3.gif
    13.2 KB · Views: 862

Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
702
Reaction score
154
Website
www.tommythomason.com
Pyrrhic victory said:
Here are some comics drawn by NAA about the ludicrous nature of the Tri-Service Transport competition. Their design in the comics still reflects the naval requirement for folding wings.

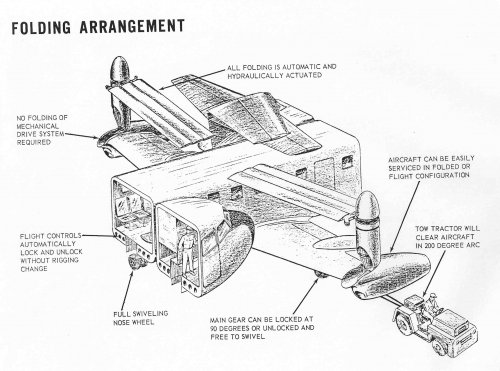

I don't get what they're laughing at. This is the Bell D252 folding arrangement and it seems perfectly reasonable....


Attachments

  • D252 Folding Low Res.jpg
    D252 Folding Low Res.jpg
    373.3 KB · Views: 436

Tailspin Turtle

ACCESS: Top Secret
Senior Member
Joined
Dec 6, 2007
Messages
702
Reaction score
154
Website
www.tommythomason.com

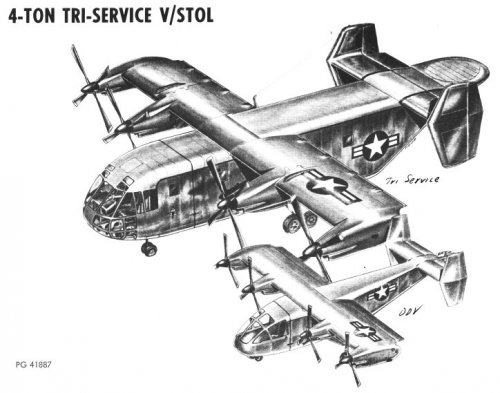

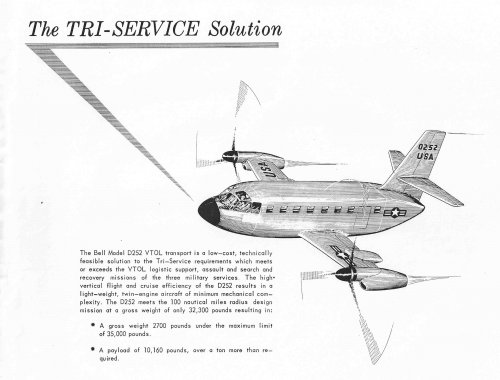

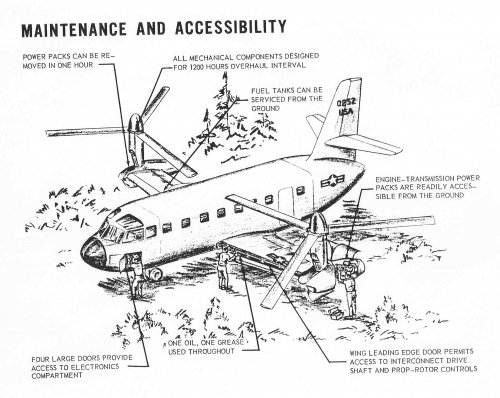

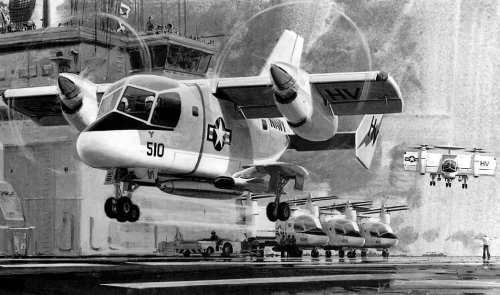

The better hover efficiency of the tiltrotor versus the tiltwing allowed Bell to meet the requirement with two engines.


Attachments

  • D252 Maintenance low res.jpg
    D252 Maintenance low res.jpg
    328.1 KB · Views: 319
  • D252 Proposal low res.jpg
    D252 Proposal low res.jpg
    266.7 KB · Views: 303

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,885
Reaction score
1,554
About Sentinel Chicken's old XC-142A relationship question. The NA tilt-wing concept can't have been in competition. The Ling-Tempco-Vought prototype flew two months before the application date of the patent application.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,814
Reaction score
3,219
Website
www.aerospaceprojectsreview.com
Apophenia said:
About Sentinel Chicken's old XC-142A relationship question. The NA tilt-wing concept can't have been in competition. The Ling-Tempco-Vought prototype flew two months before the application date of the patent application.

Not sure I see the relevance. Patents are often applied for years after the design was created.


boxkite

ACCESS: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
861
Reaction score
210
Checking John Paul Campbell's book "Vertical Takeoff and Landing Aircraft" (MacMillan, New York, 1962) again, I believe there were the following Tri-Service competitors:

LTV-Hiller-Ryan (the later winner = XC-142)
Bell (Helicopter Company) D252
Bell (Aerosystems Company with Lockheed) D2064
Grumman (type number unknown)
North American (type number unknown - the topic of this thread)
Boeing Vertol BV (137?)


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,885
Reaction score
1,554
Orionblamblam said:
Not sure I see the relevance. Patents are often applied for years after the design was created.

I defer to your superior knowledge. Not sure that I see the relevance of applying for a patent long after the design work is done, though.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,814
Reaction score
3,219
Website
www.aerospaceprojectsreview.com
Apophenia said:
Orionblamblam said:
Not sure I see the relevance. Patents are often applied for years after the design was created.

I defer to your superior knowledge. Not sure that I see the relevance of applying for a patent long after the design work is done, though.

1) If you apply for a patent *today,* then *today* someone else is looking at your designs. If you are sufficiently paranoid, this could imply that competition might be looking at your stuff.
2) If the competition is over and you lost (and who can be surprised... it's not paranoia, they really are out to get you!), your design might still have sufficient merit that you'll want to patent it.

And then there are th issues of extremely long periods between application and grant. I can recall off the top of my head at least one aircraft design (Boeing "Quiet Bird") that spent about 30 years between application and publication; an early stealth aircraft from the 1960's that wasn't patented until after the F-117 and B-2 were flying around in broad daylight.


luedo34

The worst is yet to come!
Joined
May 9, 2009
Messages
98
Reaction score
3
So, this the NAA entry fpr the Tri-Service contest, right? What is the smaller aircraft? Do they have any names? Thanks!


luedo34

The worst is yet to come!
Joined
May 9, 2009
Messages
98
Reaction score
3
Thanks a lot! Very interesting stuff. Are there any technical data for the bigger aircraft, the Tri-Service contender?


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
219

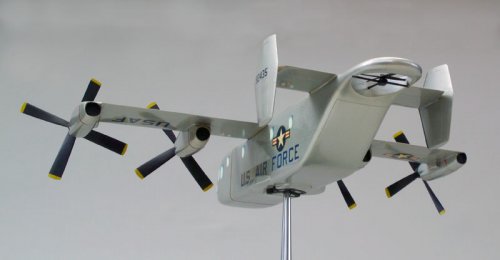

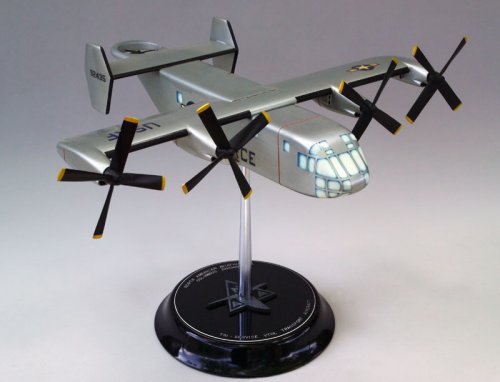

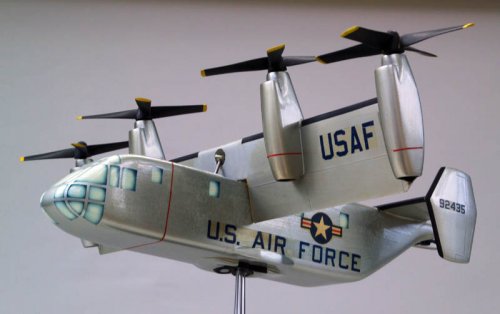

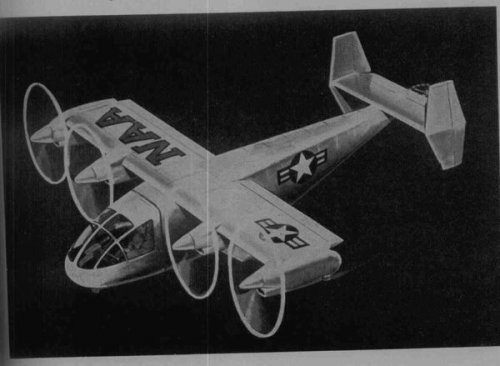

Pictured here is the North American Aviation factory proposal model for the Tri-Service VTOL competition. Note main gear wheels, which stay exposed when retracted. Fenestron-type pitch rotor is also noteworthy.


Attachments

  • NAA Tri-Service VTOL 01.jpg
    NAA Tri-Service VTOL 01.jpg
    85.2 KB · Views: 1,146
  • NAA Tri-Service VTOL 02.jpg
    NAA Tri-Service VTOL 02.jpg
    65.6 KB · Views: 1,135
  • NAA Tri-Service VTOL 03.jpg
    NAA Tri-Service VTOL 03.jpg
    56.5 KB · Views: 1,085

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,158
Reaction score
219
overscan said:
If the patent image is identified as corresponding to an actual unbuilt project, it can be moved into the appropriate part of the forum.

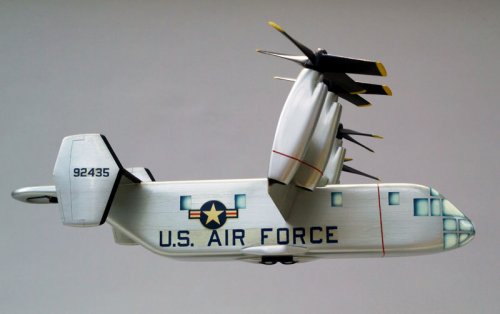

Side view of model. Note how cabin ceiling steps up at rear of wing. This NAA proposal has the closest overall configuration to the winner, the Vought-Hiller-LTV XC-142.


Attachments

  • NAA Tri-Service VTOL 04.jpg
    NAA Tri-Service VTOL 04.jpg
    70.8 KB · Views: 1,075

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,715
Reaction score
1,013
Website
deeptowild.blogspot.com

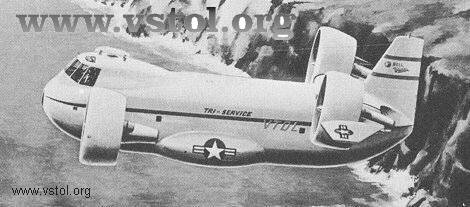

Artist's impression of Bell Lockheed D-2064.

Tandem tilt-duct design proposed by Bell Aerosystems Company and Lockheed. This design entered in the Tri-Service VTOL transport competition.

Sources:
Campbell, John P. Vertical TakeOff & Landing Aircraft. New York: The Macmillan Company, 1962.


Attachments

  • D_2064a.jpg
    23.4 KB · Views: 219
