[Moderator note - added in some older posts of earlier STOVL designs from Northrop, McDonnell-Douglas from the "US VTOL Projects" topic. I think these are interesting to consider in the light of the combined JAST design]



I want to add the Northrop-Grumman ALF. Pictures from Air&Cosmos Nº1482 August 1994. In this article, the aircraft is called X-32 and the program was Affordable Lightweight Fighter. Other X-32 candidates came from McDonnell Douglas, Boeing and Lockheed.

The STOVL version was to be designed around a concept similar to that of the Yak-141. The engine selected was the P&W F119. Empty weight was estimated at 10,9 t. Dimensions similar to F-18. Demonstrator first flight was scheduled for 1996. At that stage, the ALF was to be melted with the JAST (Joint Advanced Strike Technology).


Attachments

  • Northrop ALF-1.jpg
    Northrop ALF-1.jpg
    106.9 KB · Views: 3,549
  • Northrop-Grumman  ALF.jpg
    Northrop-Grumman ALF.jpg
    62.9 KB · Views: 3,288

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,048
Reaction score
877

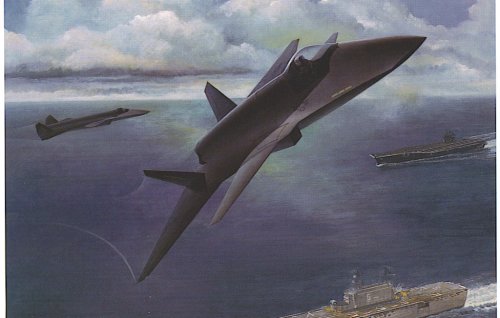

Sundog - perfect posting! Third picture in series is not so generic, and indentified as one of Northrop's 1990 MRF proposal.

[Moderator's note - added Sundog's pic to this post]


Attachments

  • Clipboard02.jpg
    84.4 KB · Views: 3,129
  • Clipboard03.jpg
    63.9 KB · Views: 3,131
  • ATF-1.jpg
    100.6 KB · Views: 2,901

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,048
Reaction score
877

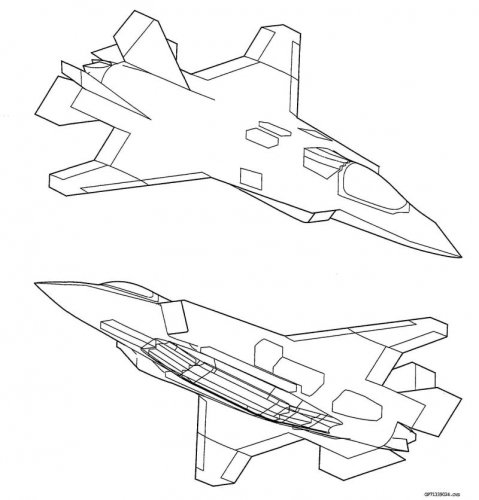

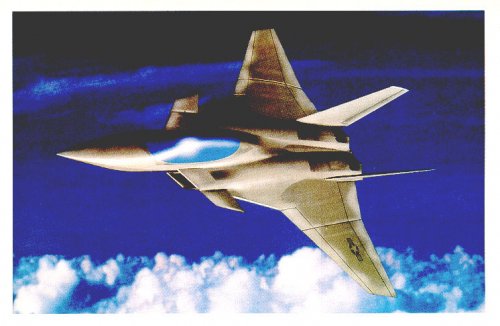

Sixth picture is one of MDC MRF myriad iterations (to be correct, -011) ca 1991 - now with V-tails, but obviously the same planform.

[Sundog's pic added to post - Moderator]


Attachments

  • 04s.jpg
    44 KB · Views: 348
  • 03s.jpg
    24.6 KB · Views: 237
  • 02s.jpg
    17.1 KB · Views: 214
  • 01s.jpg
    22.1 KB · Views: 233

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,048
Reaction score
877

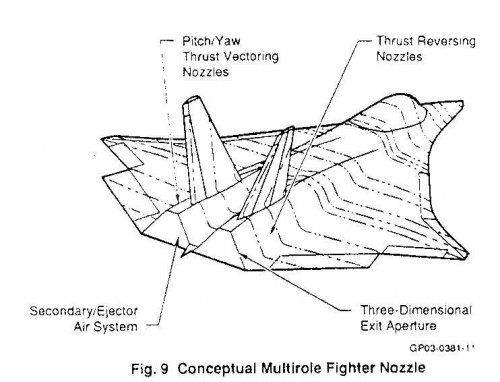

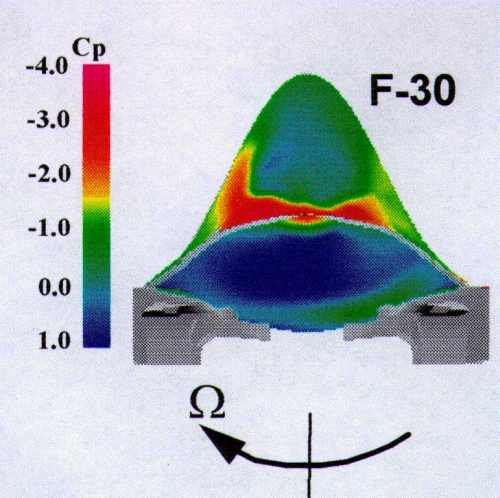

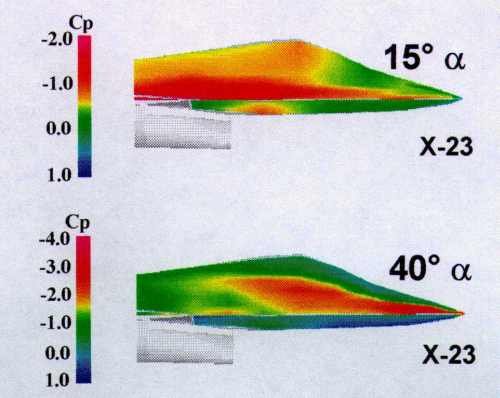

MDC 1992 MRF study


Attachments

  • Clipboard09.jpg
    47 KB · Views: 553
  • Clipboard08.jpg
    28.8 KB · Views: 502
  • Clipboard07.jpg
    35.2 KB · Views: 543

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,048
Reaction score
877
Following charts showing just part of what has been studied during LCAF/MRF/AX/JAST/JSF. All charts courtesy Ian Maddock.


Attachments

  • Northrop timeline.jpg
    Northrop timeline.jpg
    105.8 KB · Views: 804
  • MDC timeline.jpg
    MDC timeline.jpg
    132.1 KB · Views: 913
  • MDA-NGC-BAe timeline.jpg
    MDA-NGC-BAe timeline.jpg
    266.5 KB · Views: 1,017

CammNut

ACCESS: Secret
Joined
Feb 1, 2007
Messages
296
Reaction score
5

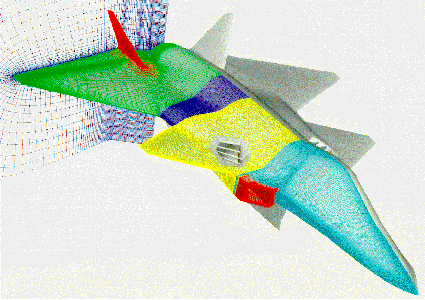

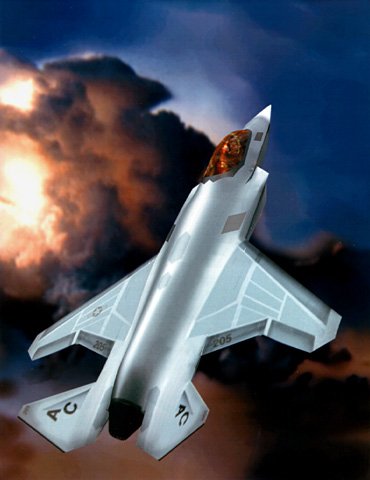

The X-36 was based on an early iteration of McDonnell Douglas's JSF design, produced under its precursor the Joint Advanced Strike Technology (JAST) research programme. While the design continued to evolve, MDC spun off its JAST 1 configuration and built the subscale X-36 as an unmanned tailless-fighter demonstrator.

These diagrams show the early evolution of the eventual MDC/BAe JSF design.


Attachments

  • MD JAST 2.JPG
    MD JAST 2.JPG
    270.5 KB · Views: 766
  • MD JAST 1.JPG
    MD JAST 1.JPG
    323.1 KB · Views: 1,083
  • MD early JAST.JPG
    MD early JAST.JPG
    161.9 KB · Views: 634

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,453
Reaction score
3,476

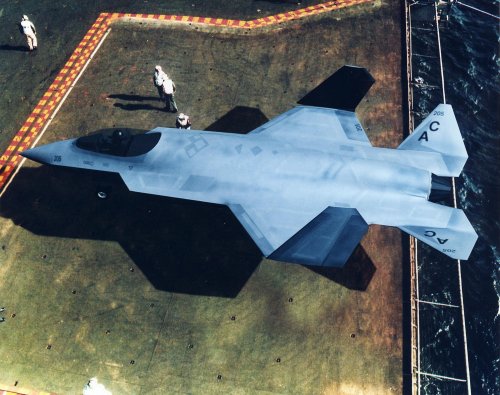

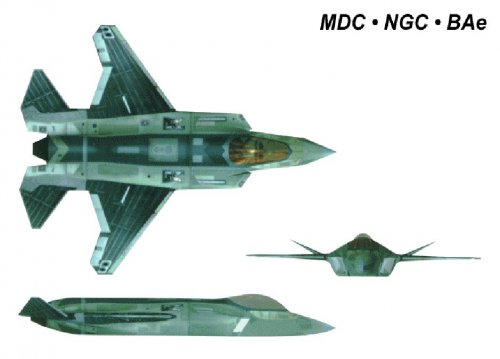

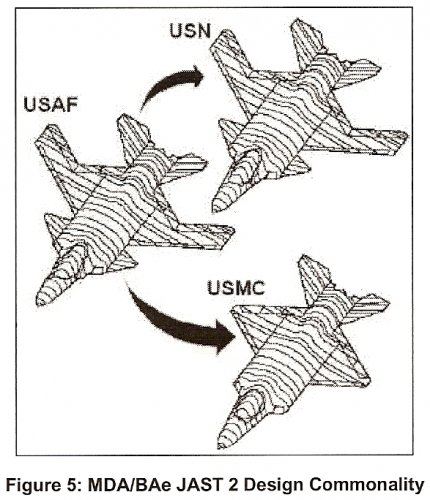

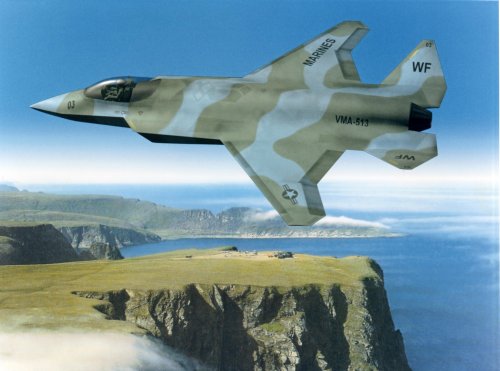

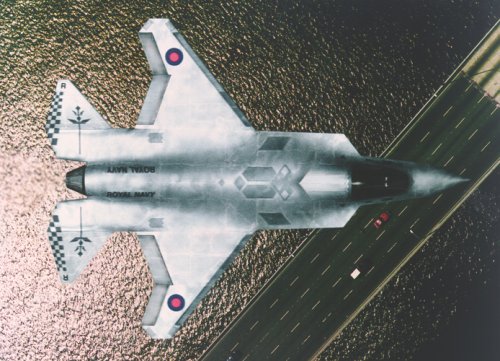

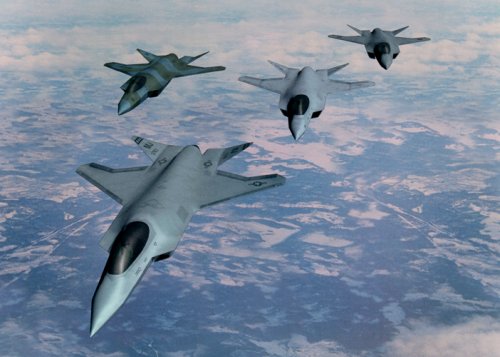

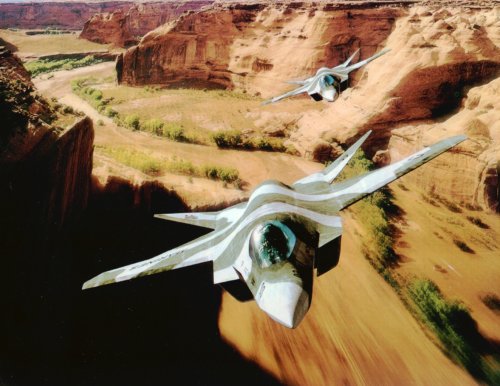

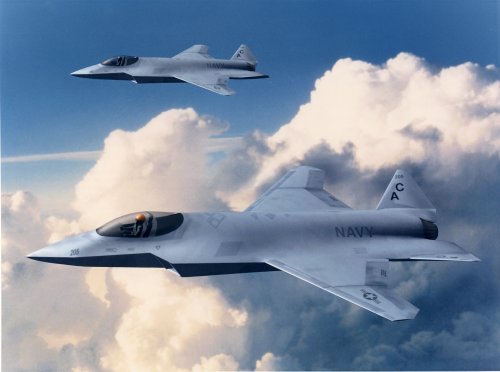

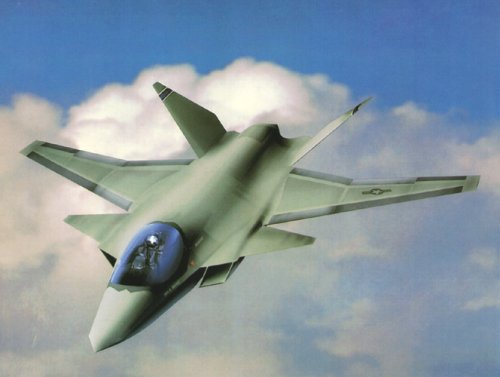

The McDonnell-Douglas/Northrop-Grumman/BAe JAST submission.


Attachments

  • cddr_mda-ngc-bae_008.jpg
    400.1 KB · Views: 602
  • cddr_mda-ngc-bae_007.jpg
    458 KB · Views: 539
  • cddr_mda-ngc-bae_006.jpg
    367.7 KB · Views: 1,103
  • cddr_mda-ngc-bae_005.jpg
    274.8 KB · Views: 2,939
  • cddr_mda-ngc-bae_004.jpg
    152.5 KB · Views: 639
  • cddr_mda-ngc-bae_003.jpg
    459.1 KB · Views: 689
  • cddr_mda-ngc-bae_002.jpg
    288.7 KB · Views: 769
  • cddr_mda-ngc-bae_001.jpg
    171.1 KB · Views: 886

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,453
Reaction score
3,476

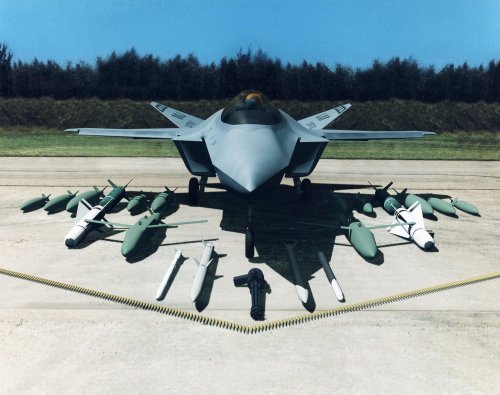

All pics from jsf.mil


Attachments

  • cddr_mda-ngc-bae_009.jpg
    305.1 KB · Views: 752
  • cddr_mda-ngc-bae_010.jpg
    395.7 KB · Views: 555
  • cddr_mda-ngc-bae_011.jpg
    336.8 KB · Views: 793
  • cddr_mda-ngc-bae_012.jpg
    55.6 KB · Views: 568

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,048
Reaction score
877

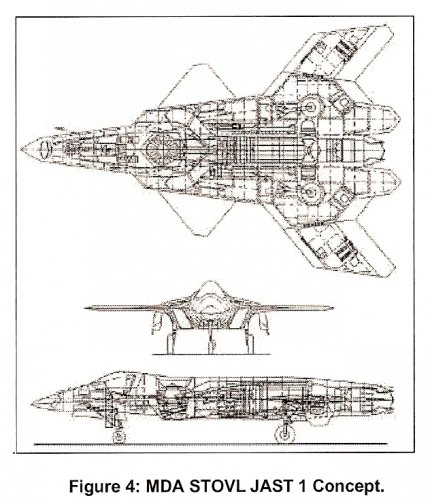

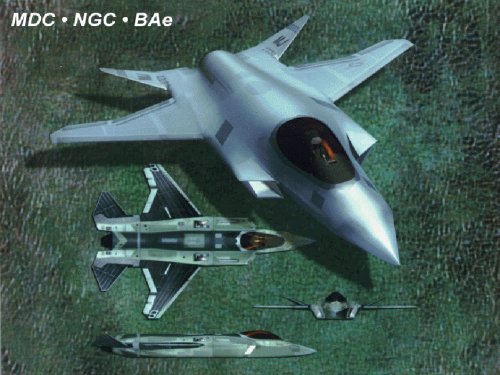

Try these as starting point...Last pic is 9C.2 four post tail configuration very close to final V-tailed one. Note one of unique McDD/Northrop/BAe JAST design know-hows that team so hoped would help them to win - 'variable' internal weapons bay adoptable for carrying various AA/AG load depending on mission.

To my sorrow, I can't post some images from my collection due to promises I've made.


Attachments

  • mdcngbaejsf3_9C2s.jpg
    64.4 KB · Views: 1,217
  • Image5.jpg
    60.9 KB · Views: 1,031
  • mdcbaejsf3view.jpg
    119.7 KB · Views: 805

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,453
Reaction score
3,476
Yes, the idea was to sacrifice a little stealth but get internal carriage of bulkier items. The enlarged bays were interchangable with the standard ones. There were also four external hardpoints under the wings.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,048
Reaction score
877

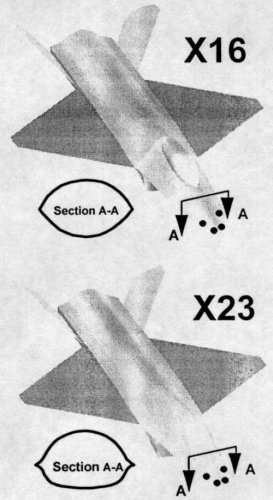

There were a hell lot of tail configuration studied...


Attachments

  • jsf.jpg
    55.1 KB · Views: 453
  • JSF1.jpg
    180.4 KB · Views: 529
  • MDD-NGC-BAE WTM.jpg
    MDD-NGC-BAE WTM.jpg
    41.8 KB · Views: 519

amsci99

ACCESS: Secret
Joined
May 2, 2006
Messages
238
Reaction score
6
What was the proposed VTOL solution for VSTOL version? Boeing was going to use direct lift and of course Lockheed went off with their lift fan and swivelling nozzle.


Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
590
Reaction score
58
Website
theavgeeks.com
I take it that the McDD/Northrop/BAe candidate had the Pelikan tail? What I'm wondering as well is how the Pelikan tail is different from the v-tail like on the F-117.......


Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,267
Reaction score
1,781
Which killed the project, as JAST rule was clearly A SINGLE engine for all flight phases...


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,048
Reaction score
877

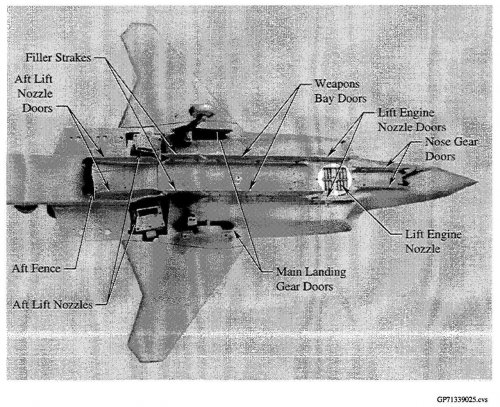

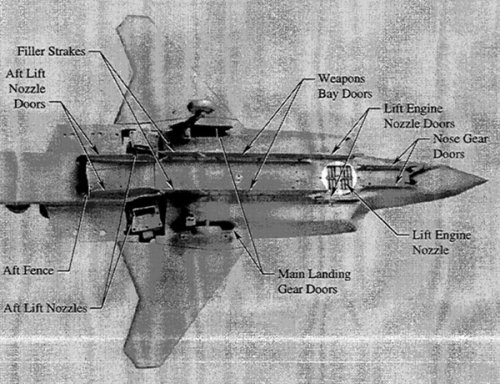

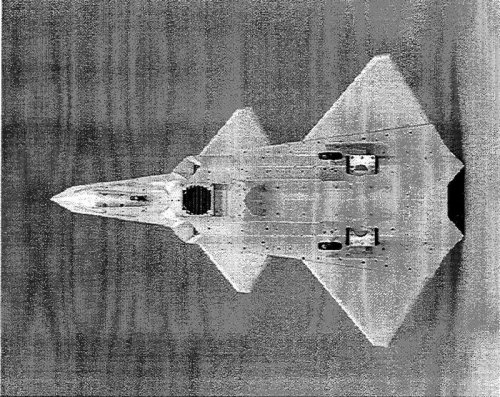

This is bottom views - something rarely seen of McDD/Northrop/BAe JAST concept, that can provide some insights for modelling effort plus side view showing rather complicated open doors pattern orchestra and triple team final VTOL solution.


Attachments

  • mdcbaejssch.jpg
    23.4 KB · Views: 1,167
  • mdcngbaejsf56s.jpg
    14.4 KB · Views: 1,458
  • mdcngbaejsf3_9C2-2s.jpg
    398.2 KB · Views: 1,103
  • mdcngbaejsf3_9C2-1s.jpg
    593.6 KB · Views: 1,479

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,453
Reaction score
3,476
A little easier to see on this edited version


Attachments

  • edited.jpg
    113.9 KB · Views: 927
  • edited2.jpg
    87.3 KB · Views: 327

CFE

ACCESS: Secret
Joined
Sep 1, 2007
Messages
259
Reaction score
3
The McDD design was the most aesthetically-pleasing of all the JAST/JSF designs, IMHO. Was the name "Voodoo II" ever considered? I doubt that the F-101 was inspiration for the lambda wing, but it still conjures up images of that sleek McDonnell jet from days of old.


SteveO

ACCESS: Secret
Joined
Jun 24, 2007
Messages
404
Reaction score
49
Was there any truth to the rumour that it would be able to fly back on it's lift jet if the main engine failed?


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,613
Reaction score
117
Website
www.hitechweb.genezis.eu
I don't think so. If you take a look to the internal arrangement, there is not the connection between the lift engine and the aft nozzle. And inject the hot gases to the main nozzle is in my opinion the only possible way to achieve the controlable (forward) flight. Correct me if I am wrong.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,048
Reaction score
877

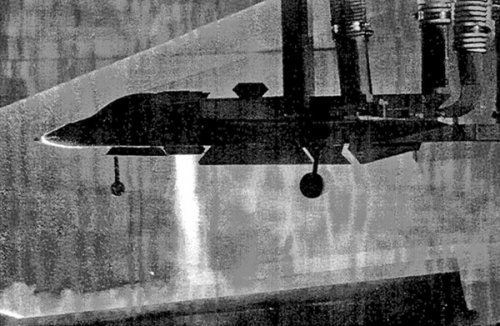

GEA-FXL lift engine nozzle had in fact a special thrust-vectoring grid that allowed fighter to fly with speeds up to 310 km/h back to base (in good hopes of designers) in case of main engine failure. WT tests of this feature were performed AFAIK.


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,351
Reaction score
120
amsci99 said:
What was the proposed VTOL solution for VSTOL version? Boeing was going to use direct lift and of course Lockheed went off with their lift fan and swivelling nozzle.

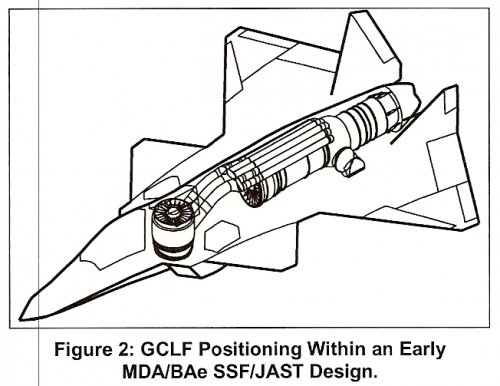

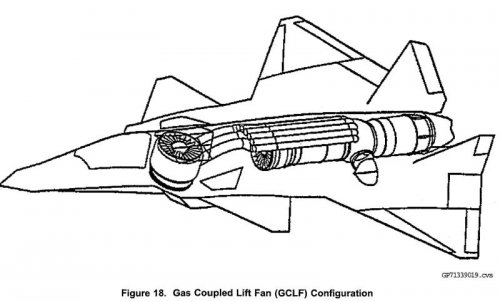

The original concept was to use a gas-driven lift fan instead of the mechanically-driven one that Lockheed-Martin used. When that didn't work out, McDD went with a lift engine and that broke the terms of the competition and they were eliminatated. I'm told that the aero types in Fort Worth considered them a much more worthy and dangerous competitor than Boeing.


elider

ACCESS: Confidential
Joined
Feb 16, 2006
Messages
122
Reaction score
2

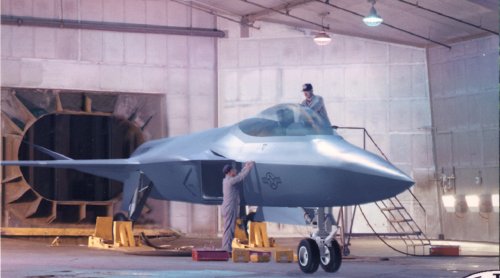

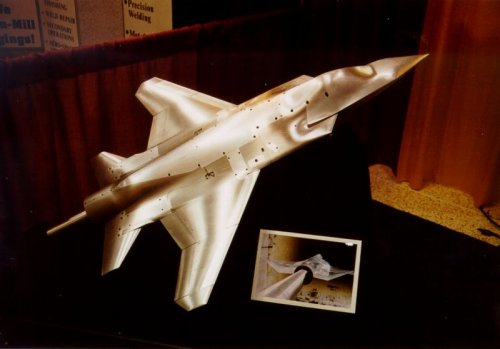

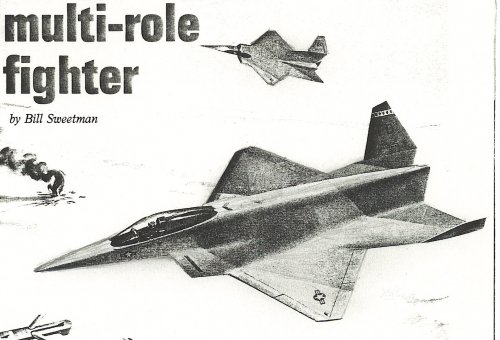

Don't know if this belongs in this thread. It is the MDD MRF model 1006 from Bill Sweetman's article in JDW about 15 years ago. It was a part of the design evolution to JAST, and is one of my favorite design concepts.


Attachments

  • MDD MRF model1006.JPG
    MDD MRF model1006.JPG
    333 KB · Views: 746

CFE

ACCESS: Secret
Joined
Sep 1, 2007
Messages
259
Reaction score
3
elmayerle said:
amsci99 said:
What was the proposed VTOL solution for VSTOL version? Boeing was going to use direct lift and of course Lockheed went off with their lift fan and swivelling nozzle.
The original concept was to use a gas-driven lift fan instead of the mechanically-driven one that Lockheed-Martin used. When that didn't work out, McDD went with a lift engine and that broke the terms of the competition and they were eliminatated. I'm told that the aero types in Fort Worth considered them a much more worthy and dangerous competitor than Boeing.

What specific ground rule of the competition ruled out the use of lift engines? IIRC, the reason why McDD didn't survive the downselect is because Boeing's concept was more conservative and represented a a much different approach from LockMart.

In the end, LockMart's investment in shaft-driven lift fan technology paid off in spades and justified the risk and cost associated with the effort. The Boeing direct lift concept appeared weak, even when the tests were unrealistically stacked to improve the X-32B's performance.


Mike Pryce

BAe P.1216 book: harrier.org.uk/P1216.htm
Senior Member
Joined
Dec 21, 2006
Messages
1,056
Reaction score
135
What specific ground rule of the competition ruled out the use of lift engines?

As I understand it, none formally, but in reality the US Marine Corps did! They did not want to have to support two different types of engine, which would increase the logistic footprint of a deployed squadron etc. In addition, I think there were latent worries about lift jet reliability - requiring a whole other bit of turbomachinery to fire up once or twice on each sortie, in addition to the main engine, multiplied the chances of one engine failing to many people's minds.

Although MDC worked to overcome these fears, I would not be surprised if they were factored into some pretty adverse life cycle costings by DoD - more maintenance plus less reliability = $ (and £), which the lower weight that the lift jet promised (so less manufacturing/fuel costs etc.) and use of standard F119 on the MDC design failed to offset.

Interesting though that it had a very hot front jet - many think it may be possible to live with one, if you know how. But best avoided if possible!


CFE

ACCESS: Secret
Joined
Sep 1, 2007
Messages
259
Reaction score
3
Weren't there problems with runway erosion on the Yak-141 due to the use of lift jets?


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,351
Reaction score
120
CFE said:
Weren't there problems with runway erosion on the Yak-141 due to the use of lift jets?

And, I believe, with the Yak-38 as well as in testing done with the VAK-191B.


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,204
Reaction score
136
The Yak-141 hovered at Farnborough but did not land vertically...

There was no formal rule in JSF against LPLC. Bill Scheuren - who was forcefully opposed to LPLC - was no longer the PM at source selection for the X-plane stage. NorthGrum had decided early that LPLC was actually the best approach, and the gas-driven concept (the basis of Macs' CALF) proved a dud, this was adopted by the MDC team. LPLC did play a part in the selection, but I think it was more a question of evaluating the cheaper and simpler direct-lift solution alongside LMT's fan-boosted concept.

I have never been convinced that a lift jet would be much more complex, more risky or heavier than the shaft-driven setup.


SteveO

ACCESS: Secret
Joined
Jun 24, 2007
Messages
404
Reaction score
49
flateric said:
GEA-FXL lift engine nozzle had in fact a special thrust-vectoring grid that allowed fighter to fly with speeds up to 310 km/h back to base (in good hopes of designers) in case of main engine failure. WT tests of this feature were performed AFAIK.
Thanks flateric, I thought I had read it somewhere and wasn't imagining it ;D

I never understood the 'two types of engine not allowed' argument. The complexity of the F-35B's lift fan is surely going to be as big a burden as a hot front end.

The disadvantages of the lift jet could have been tackled by STOL operations on land and wind over deck at sea.


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,821
Reaction score
270
First, in response to SC
I take it that the McDD/Northrop/BAe candidate had the Pelikan tail? What I'm wondering as well is how the Pelikan tail is different from the v-tail like on the F-117.......

The tail on the F-117 is just a rudder. It's for yaw only. They took a single tail and split it for L.O. performance. Aerodynamically, think of the F-117 as a subsonic delta with an all moving vertical tail and apply first generation stealth technology to it. ;)

The tail on the NG/McD design most likely is a derivative of the tail used on the YF-23, in which case they would be called "tailerons" because they are control surfaces that operate for stability and control in all three axes.

Second, IIRC, originally the two STOVL methods originally studied by L-M and N-G were just as a research program where L-M would study the shaft driven concept and N-G the bleed air equivalent. Then somewhere down the road, it got turned into a demonstrator/production contract, which kind of screwed N-G. If I was them, I would have screamed bloody murder and asked for the data for the drive shaft research performed, since it was government sponsored.

In fact, it was when it went from a demonstration of technologies program to a production contract that N-G scrambled to find a "workable" solution, since they already knew the bleed air design was a dud. That's why they went to the lift engine design.


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,204
Reaction score
136
Not exactly - it was Macs who were doing the gas-driven fan work. They and Lockheed (Skunk Works) were the leaders in the ASTOVL work for the Navy/Marines and US-UK and were most heavily involved in STOVL Strike Fighter and CALF.
Boeing was following its own independent track with a direct-lift design, based on the premise that the next fighter had to be tri-service to be affordable.
Northrop Grumman pitched in as CALF was absorbed into JAST, proposing from the outset an LPLC solution which (at first) had the hammerhead LERX shape.


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,821
Reaction score
270
I forgot about Calf. When you talk about the hammerhead LERX shape, are referring to their plane that I call the American Draken, where it had the small canards on the LERX and the low aspect ratio wing in the back with the lift engine behind the cockpit and the two lift nozzles in the wing roots? BTW, I call it the American Draken due to the shape and location of the vertical tail, mainly, because it reminds me of the Draken in that regard.


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,204
Reaction score
136
Yes, but the CALF submission did not have wing root fans... in fact those may only have appeared in unofficial ;D concepts. NG went LPLC for CALF.
I can't off the top of my head recall why gas-driven was kaput, but it had to have some horrible safety/combat damage issues. The only way you'd know that you had a fragment hole in the duct was when 1000K gas started blowing into the jet's vitals.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,048
Reaction score
877
Yes, battle damage was a main issue as stated in most publications from JPO's 'JSF Clips' that I've read.


CFE

ACCESS: Secret
Joined
Sep 1, 2007
Messages
259
Reaction score
3
Sundog said:
The tail on the NG/McD design most likely is a derivative of the tail used on the YF-23, in which case they would be called "tailerons" because they are control surfaces that operate for stability and control in all three axes.

My understanding of the McDD-NG JAST design is that yaw control was provided by a combination of the "Pelikan Tail" and decelerons on the outboard wings. X-36 was supposed to perform risk reduction for the final JAST, but it was felt the Pelikan Tail was necessary because JAST would need the extra stability of a vertical control surface when the plane went supersonic.

It's funny how the NOVA documentary on the JSF flyoff brought the term "Pelikan Tail" into common usage, replacing terms like "ruddervators." Did Ralph Pelikan play a role in the selection and design of ruddervators on the YF-23? Due to the proprietary nature of that program, we may never know.


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,821
Reaction score
270
You also have to consider that the X-36 had thrust vectoring in yaw, I believe through fluidic controls, which I don't think JAST had, but it's obviously design specific.

I've also heard as well that the YF-23 did use differential drag on the wing trailing edges to aid in yaw. It's like I've said to many people, with the advanced control systems available now, all of the flight control surfaces work together in such a way that to call them ailerons, elevators, stabilators, rudders, or flaps misses the point. You would have to ask the flight control group which surface is performing which role in what part of the envelope to have an idea. ;)

As for the Pelikan tail, though, isn't it different from the YF-23's, which was a butterfly, in that the Pelikan tail has an inboard horizontal component to it?


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,204
Reaction score
136
Right - that was the difference in the Pelikan tail vs the classic V-tail on the YF-23. The result is that the moving surface has a crank in it, but the hinge is also different in that it is where the horizontal section meets the body, at a spanwise line. This eliminates the highly loaded pin and trunnion and makes room for actuators.


CFE

ACCESS: Secret
Joined
Sep 1, 2007
Messages
259
Reaction score
3
Thanks for clearing up the precise definition of a "Pelikan Tail" for me.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,048
Reaction score
877

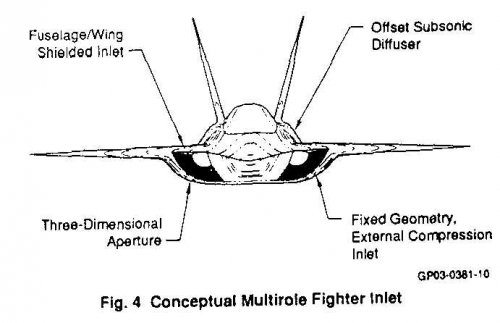

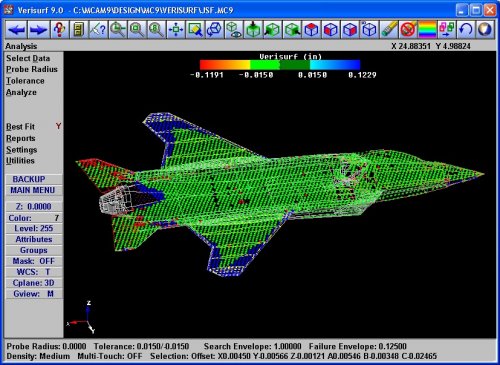

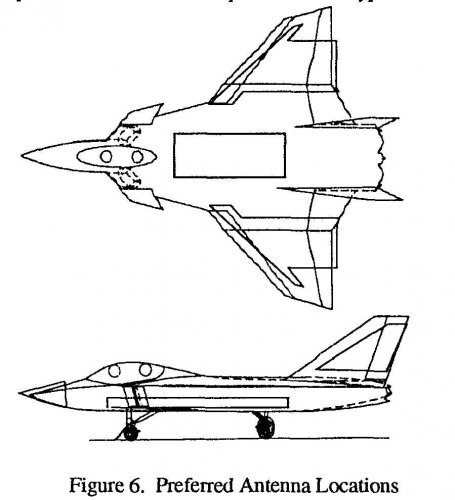

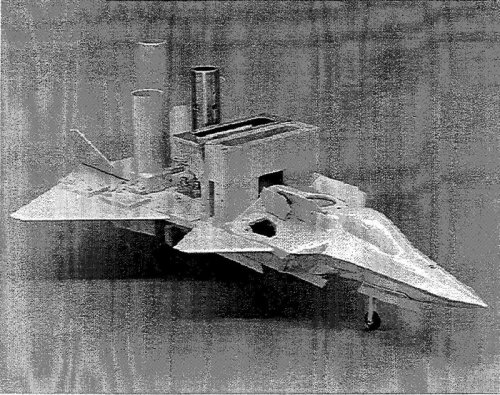

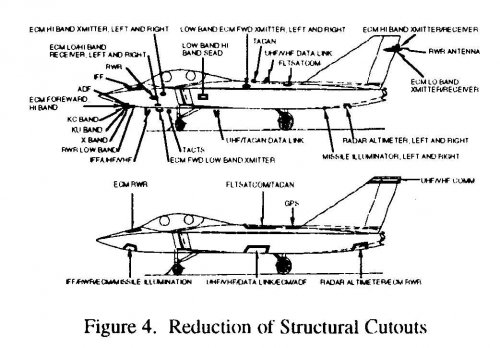

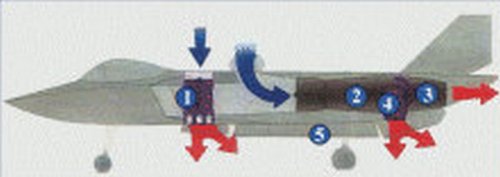

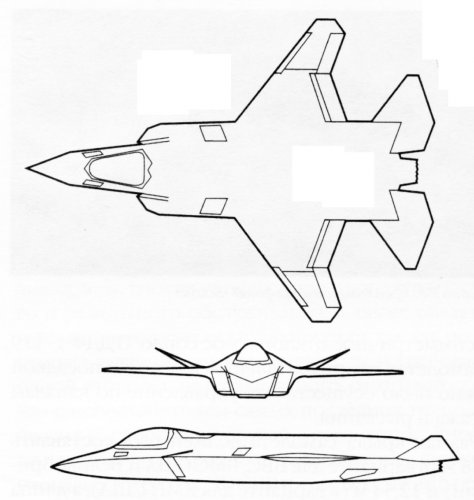

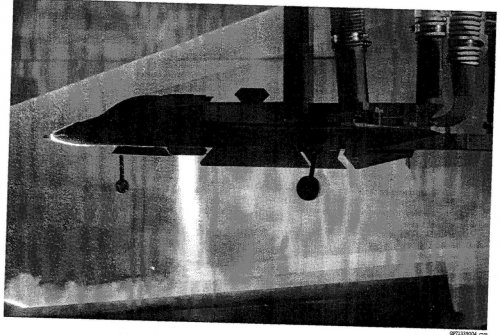

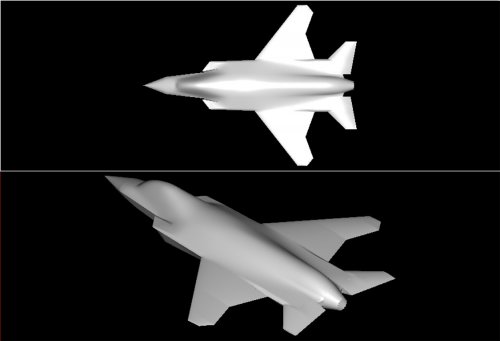

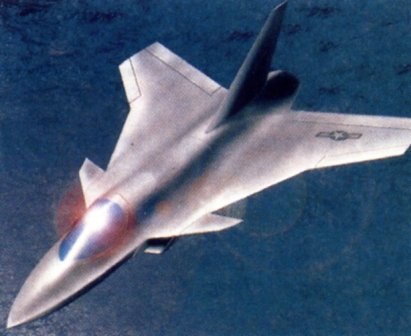

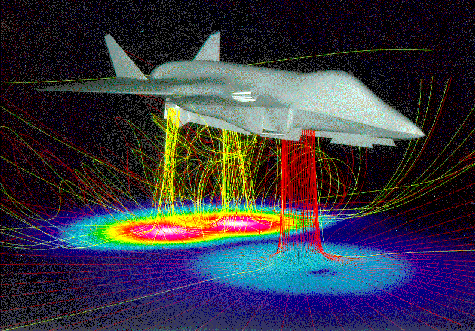

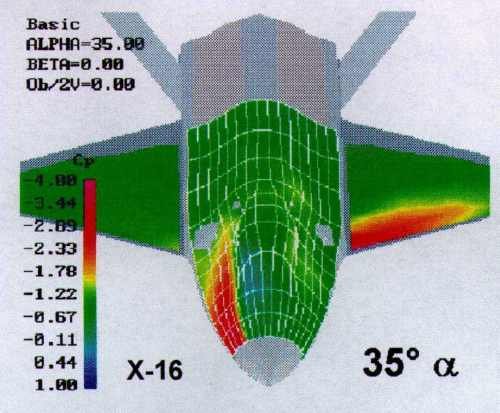

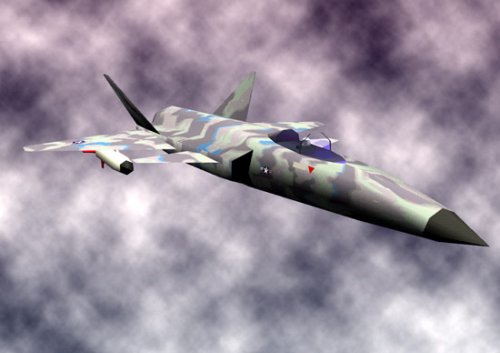

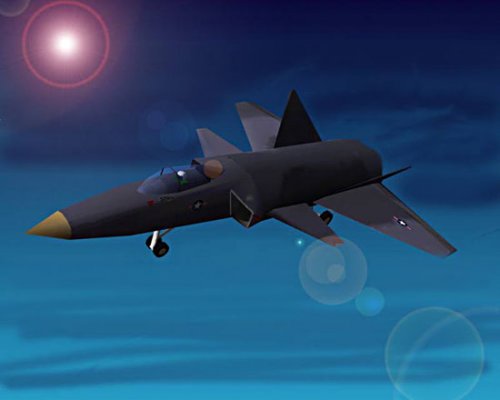

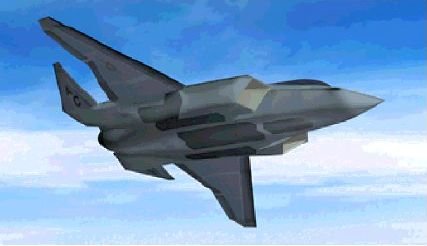

1993 MDC/BAe GCLF (Gas Coupled Lift Fan) configuration of ASTOVL/JAST. Note cool CGI of this era and - at the last pic - Achilles' tubes of this concept.


Attachments

  • jsfcgi.jpg
    28.6 KB · Views: 365
  • astovl.jpg
    39.9 KB · Views: 419
  • Clipboard11s.jpg
    236.6 KB · Views: 945
  • Clipboard02s.jpg
    227 KB · Views: 962
  • b2jsf2.gif
    48.7 KB · Views: 942
  • b2jsf1.gif
    82.2 KB · Views: 1,064
  • MDD CALF-ASTOVL.JPG
    MDD CALF-ASTOVL.JPG
    159.8 KB · Views: 3,835
  • Clipboard12s.jpg
    48.4 KB · Views: 430

Similar threads

Top
