Aero B-34 - attack aircraft proposed in 1958 as Il-10 replacement. It was powered by one RD-9 engine without afterburner rated at 29 kN. Weapons consisted of two 23 mm canons NR-23, unguided bombs or unusual solutions like 80 unguided rockets (55mm LR-55) in two rounded receptacles around engine!

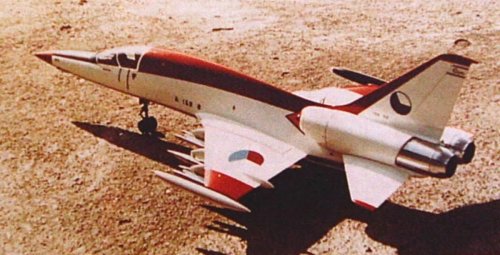

Aero A-159B Sokol - supersonic attack fighter from 1967, powered by two engines rated at 19,6 kN.


Attachments

boxkite

CLEARANCE: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
824
Reaction score
37
Aero L-129/-229/-329/-429 - This line of projects seemed to be planned as successors for the Czech trainer Aero L-29 Delfin. Can anybody confirm my speculation?


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,772
Reaction score
40
Hallo all,

not only projects. I know the L.329 is the L.29version L.29R a reconnaissance aircraft. The L.429 is the L.29A "Akrobat" (the name says: a acrobatic version).

Servus Maveric


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,025
Reaction score
973
Hi,

as I know the L-129 was developed from L-29 with Boeing engine

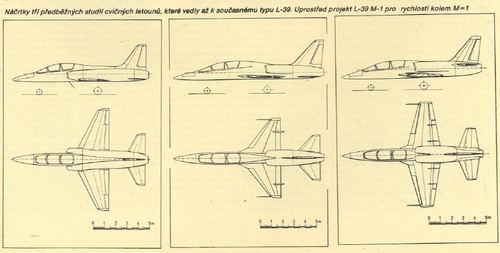

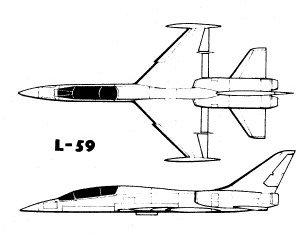

and here some L-39 projects,the last is look like General Dynamics
F-16.


http://l-39.cz/L-39_historie.html


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,025
Reaction score
973
Hi,

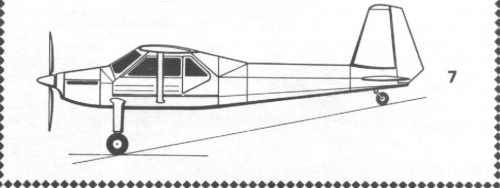

The Aero L-270 was cantilever high wing utility light aircraft,with fixed
tricycle undercarriage and powered by one 750 hp Walter M-601E turbo-
prop,it was rejected in favour of Ae.270 low wing light aircraft.
http://www.flightglobal.com/pdfarchive/view/1990/1990%20-%201187.html


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,025
Reaction score
973
Hi,

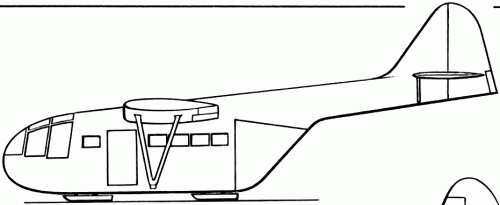

the Aero Ae.53 was a glider transport aircraft,but never completed and
stopped building in 1951.

Source; Air Enthusiast magazine of 1972.


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
89
The name "Aero" being quite a pain to look for in the search engine, I have regrouped in one topic post-war Czech Aero projects.
Of course, if sufficient information pertaining any of these should show up, we'll split again... but for now, they will get more visibility like this.


redstar72

Soviet Aviation enthusiast
Joined
Jun 7, 2009
Messages
515
Reaction score
14
Hi all!
Some more unbuilt Aero postwar projects:

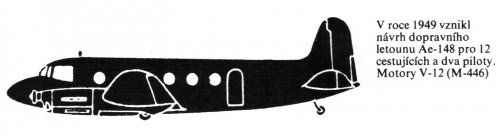

Ae-148 (1949) - passenger aircraft, 2+12 seats, two Walter V-12 (M-446) engines (550/700 hp each).

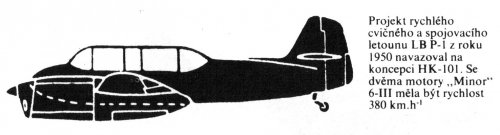

LB P-1 (1950) - 2-seat high-speed trainer and courier aircraft based on Hodek HK-101 prototype. Two Walter Minor 6-III engines (160 hp each). Maximum speed 380 km/h.

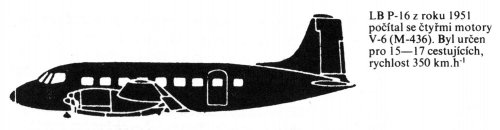

LB P-16 (1951) - passenger aircraft (15 to 17 seats): four 320-hp Walter M-436 (V-6) engines, 350 km/h speed.

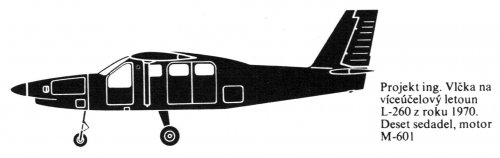

L-260 (1970) - 10-seat multi-purpose aircraft designed by eng. Jan Vlček, with 700-hp Walter M-601 turboprop engine. (This project was the second one under L-260 designation; the first one designed in 1959-60 was upgraded L-60 Brigadýr with Praga M-208D engine).

Source: V.Němeček. Československa letadla (II) 1945-1984. - Praha, Naše vojsko, 1984. - P.75-84.


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
89
Very nice Alexander. Thanks for sharing!


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,025
Reaction score
973
Amazing my dear Redstar72,thank you,


and my dear Matej,do you have a drawing to Aero L-49 ?.


redstar72

Soviet Aviation enthusiast
Joined
Jun 7, 2009
Messages
515
Reaction score
14
Many thanks Stephane and Hesham!

Dear Matej, can you give us the original source of B-34 project info? It's a bit strange that there's no mention about such a project in Němeček's bible. Well, not all the unbuilt projects are mentioned there, but also the designation looks unusual - it seems to be already military designation, not Aero's.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,617
Reaction score
38
Website
www.hitechweb.genezis.eu
redstar72: Němeček did a great work, but he did not have all the info/was not allowed to publish everything. Info and drawings are directly from manufacturer. B-34 was too ambitious project with totally unrealistic time schedule, based on the fight concept from second world war. So it was kind of fiasco, that Communist idiots did not want to see. B-34 was a preliminary manufacturer's designation that should suggest, that this plane was proposed to replace aging B-33 (licence built Il-10).

hesham: Yes, I have.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,617
Reaction score
38
Website
www.hitechweb.genezis.eu

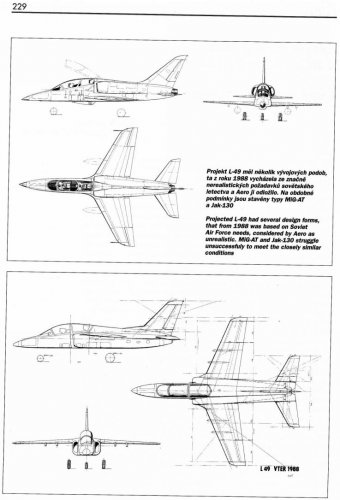

Okay, this is a rare book that you will probably not get in touch with, so one page will be fair enough.

Aero - obrazová historie leteckého výrobce by Pavel Kučera, ISBN 8090251633 9788090251632

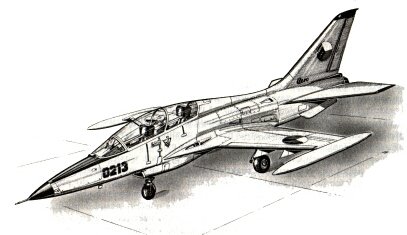

It has also nice cutways of L-39M Mach Trenér, L-159/A-159 Sokol, L-29 with MiG-17 wings and other crazy stuff.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,025
Reaction score
973
Excellent my dear Matej,


can you send some of them ?,not all.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,010
Reaction score
184
In Aero April 1961, a "XL-400 Jet-Sokol" was shown, fitted with two small jet engines M 777
on the fuselage sides. General layout and the designation seem to indicate, that it was a
variant of the Orlican, L40 Meta Sokol. Claimed performances were a max. speed of 450 km/h,
cruising speed of 390 km/h and a ceiling of 6000 m. The aircraft was said to have a pressurized
cabin.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,025
Reaction score
973
Great find my dear Jemiba,


I know the L-40 Meta Sokol and XLD-40 Mir,but that's new for me.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,025
Reaction score
973
Hi,

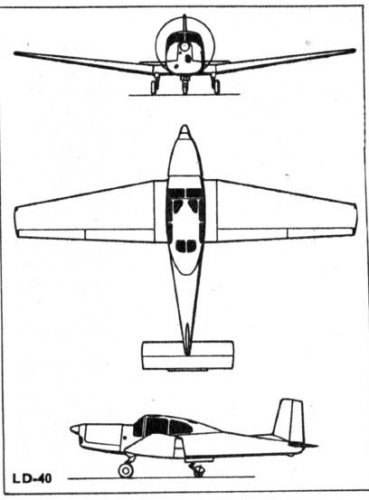

we spoke before about XLD-40 Mir,and here is its drawing.


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,010
Reaction score
184
What I've found about the development of the LD-40, later L-40 Sokol, is,
that the XLD-40 was the prototype with a V-tail. So, as the caption says,
the drawing shows the production LD-40 . ;)


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,025
Reaction score
973
redstar72 said:
L-260 (1970) - 10-seat multi-purpose aircraft designed by eng. Jan Vlček, with 700-hp Walter M-601 turboprop engine. (This project was the second one under L-260 designation; the first one designed in 1959-60 was upgraded L-60 Brigadýr with Praga M-208D engine).

Source: V.Němeček. Československa letadla (II) 1945-1984. - Praha, Naše vojsko, 1984. - P.75-84.

My dear Redstar72,

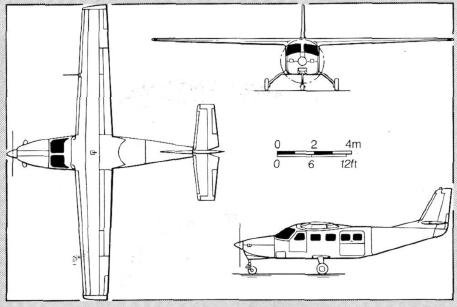

here is a different drawing to Aero L-260 aircraft project,from Flieger Revue 1/1978,I can't judge,where
that contrast came from.


Attachments

redstar72

Soviet Aviation enthusiast
Joined
Jun 7, 2009
Messages
515
Reaction score
14
hesham said:
My dear Redstar72,

here is a different drawing to Aero L-260 aircraft project,from Flieger Revue 1/1978,I can't judge,where
that contrast came from.
Hi Hesham!
Excuse me that I didn't answered before - I saw your message only now.
As I mentioned, the L-260 from 1970 (a picture of which I posted) was the second project under this designation. Probably your picture represents the first one, developed from L-60 Brigadýr.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,025
Reaction score
973
Thank you my dear Redstar.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,025
Reaction score
973
In my files,

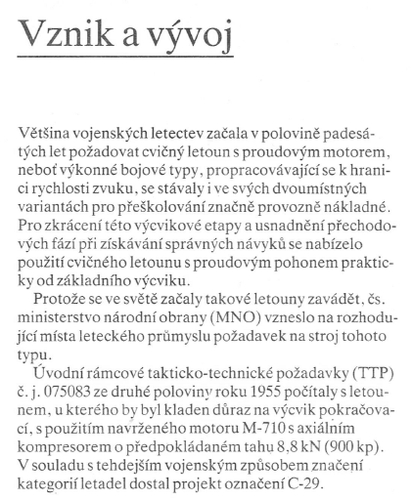

the Aero L-29 was called C-29 at first,but later redesigned and developed into recently
name.


riggerrob

I really should change my personal text
Joined
Mar 11, 2012
Messages
350
Reaction score
22
Amusing how so many of those proposed jets resemble Northrup T-38 trainer and F-5 Freedom Fighter.

Similarly, L-260 looks an awful lot like a Cessna 208 Caravan ..... which dominates its market sector and has only been challenged by Quest Kodiak.
Too bad they did not build that low-wing light transport. It could have filled a gap in the market between the slow (almost STOL) Caravan and Pilatus' much faster APC-12 executive transport.

Ho hum!
If you design two airplanes for the same mission, they are bound to resemble each other.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,025
Reaction score
973
redstar72 said:
LB P-1 (1950) - 2-seat high-speed trainer and courier aircraft based on Hodek HK-101 prototype. Two Walter Minor 6-III engines (160 hp each). Maximum speed 380 km/h.

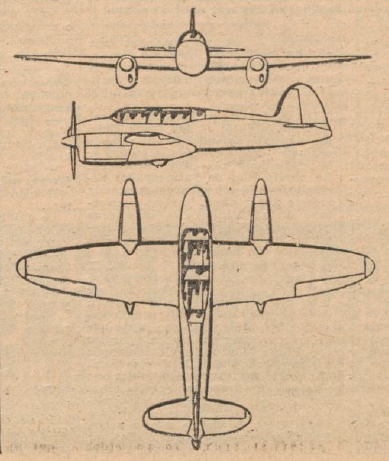

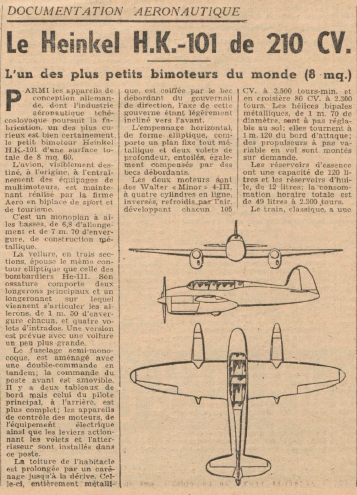

Here is the Hodek HK.101,which became Aero LB P-1.

Ailes 4/1947.


Attachments

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
9,007
Reaction score
198
Ah, Hesham? I think you may have mistyped 'Heinkel' in your last post.


Jjr

I really should change my personal text
Joined
Aug 8, 2011
Messages
54
Reaction score
7
What is known, details drawings etc., concerning the single engined fighter based on the lines of the Messerschmitt Me.262?
End fourties or earley fifties?


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,025
Reaction score
973
Jjr said:
What is known, details drawings etc., concerning the single engined fighter based on the lines of the Messerschmitt Me.262?
End fourties or earley fifties?
I correct it for Grey Havoc,

and for dear Jjr,I never heard about it before,what is your source ?.


Jjr

I really should change my personal text
Joined
Aug 8, 2011
Messages
54
Reaction score
7
Sorry I made a mistake.
What I mentioned was the Chech Avia L-52, aerley 1947 and based on the Avia S-92 (Me-262).
Source Me 262 by Swilly Radinger and Walter Schick


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,025
Reaction score
973
From L + K 1980,

the Aero Ae.51 was alternative design to Czech competition of late 1940s,for Artillery observation and recce
aircraft,which Ae.50 won it,powered by six-cylinder Minor engine,and some improvements,remained a Project
only.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,025
Reaction score
973

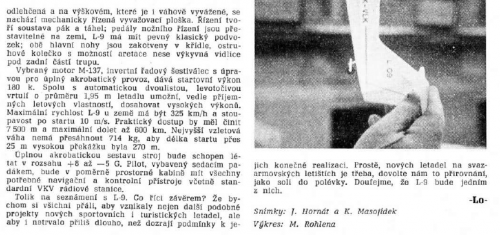

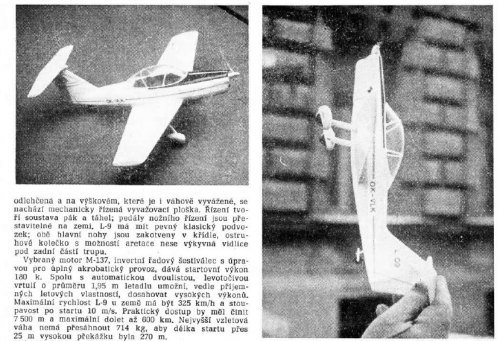

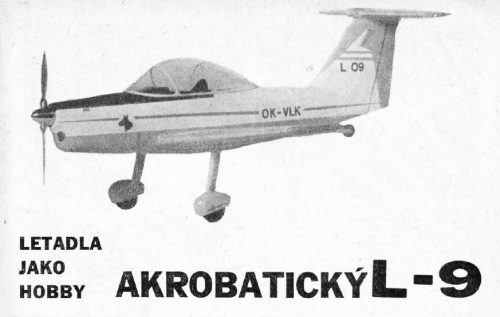

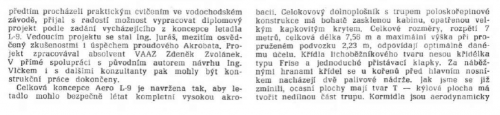

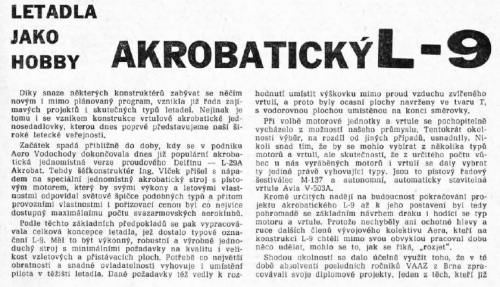

From L + K 6/1970,

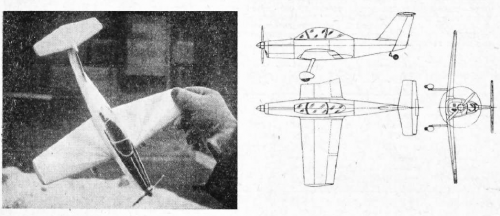

I found this strange Project for Aero,called L-9,as a single seat low-wing cantilever acrobatic monoplane,with
T-tail and powered by one either of M-137 or V-503A,I used google translate,am I right,and was it a real Project ?.


Attachments

Aubi

CLEARANCE: Confidential
Joined
Aug 31, 2009
Messages
53
Reaction score
57
Website
www.valka.cz

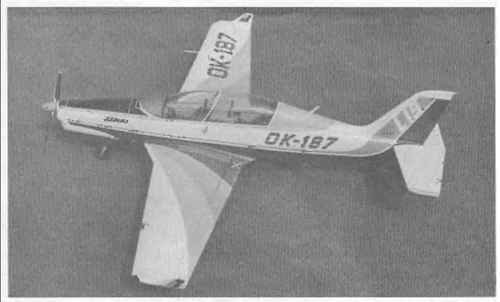

Actually this project was designed for the Zenit 84 contest, organised by the SSM, or Union of Socialist Youth. Design group, probably mostly students or recent graduates, were led by the son the designer of L-39, J. Vlček. They won the gold medal, but went trough some modification (apparently later it had T-tail), it was offered to production to Aero concern, but they preffered to open production of Ae.270 Ibis.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,025
Reaction score
973

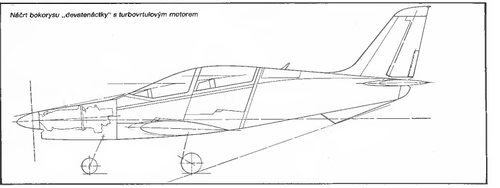

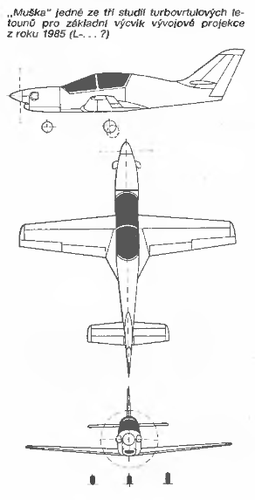

From L+K 13/1985 and L+K 20/1984,

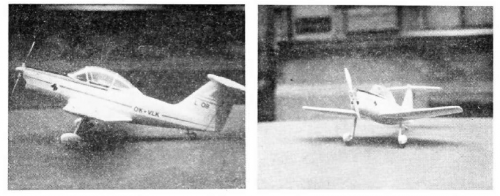

as I spoke before about L-9,there was also L-19,maybe it was from Aero/VZLU ?.

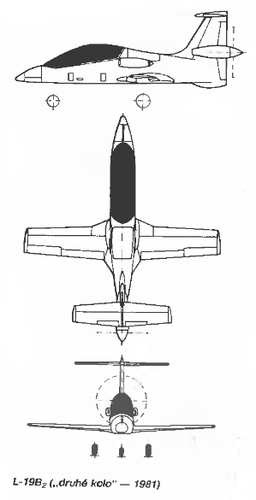

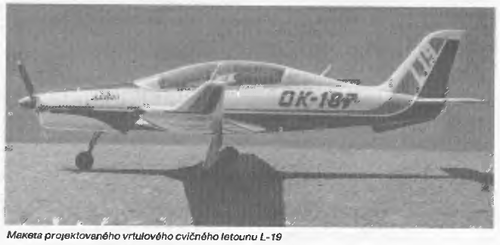

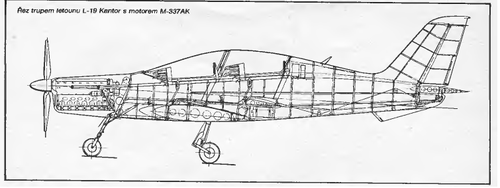

From L+K 12/1988,

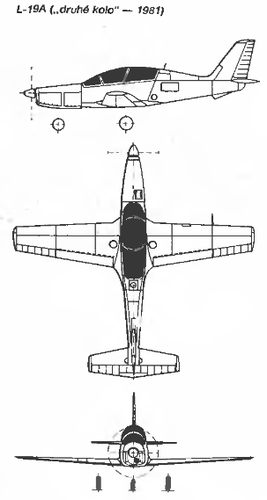

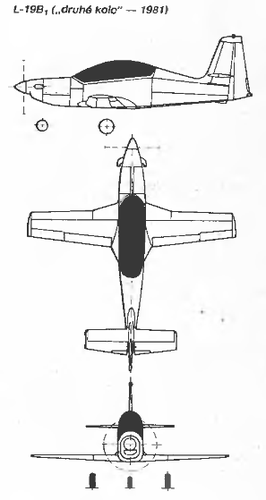

here is a L-19 Project with its variants and developments,please note the pusher engined and jet engined versions..
