After the war, Ikarus, Zmaj and Rogožarski factories were heavily damaged due to the Axis bombardment in 1941 but also after the Allied bombings in 1944. Most of the equipment was also gone and around 1000 of the workers perished in war. Luckily, the designers and technicians managed to keep some of the plans so the Aero 2 and S49 (Ik3) planes could be built.
Ikarus who was merged with Zmaj and Rogožarski continued the production of aircraft untill 1961. You have to understand that because Yugoslavia wasn't in the NATO or Warsaw pact the defense doctrine had to consider both these alliances as potential enemies. The defense was based on massive partisan resistance and the relocation of key defense factories in Bosnia. Thus, after 1961, most military planes were built in Soko (Falcon) factory in Mostar. Some of the biggest construction projects in Yugoslavia were top secret underground air bases and command centers. A few billion dollars was poured into them and the construction took a few decades in some cases. One of the notable projects was Željava underground Air Base near Bihać with several levels and elevators for fighter aircraft (Yugoslav companies built several bunkers for Saddam Husein in later years). The other big project was Atomic War Command, built in mountains near Konjic.It could house several hundred people at one time. Željava was destroyed during Yugoslav civil wars but ARK is in pristine condition and open for tourists (everything is in place,from Tito's war cabinet to Bosna soaps produced in 1970 ;D )
This paragraph tried to explain why there were no projects after 1961. The Ikarus still lives and produces buses. They had to change their name to Ikarbus in 1992 due to the fact that there is a bus manufacturer named Ikarus in Hungaria. I believe that there exists Ikarus aircraft manufacturer in Switzerland or Germany who produces ultralight planes.
Ikarus prewar office building still exists in New Belgrade, now surrounded with apartment blocks (untill early sixties, Ikarus factories and Belgrade airport were situated in New Belgrade - prewar old airport hangars and Airforce command bunkers in nearby Bežanija hills still exist; modern Nikola Tesla airport was built some fifteen kilometers further west, in Surčin municipality)
After this lenghty Introduction, here are the projects:

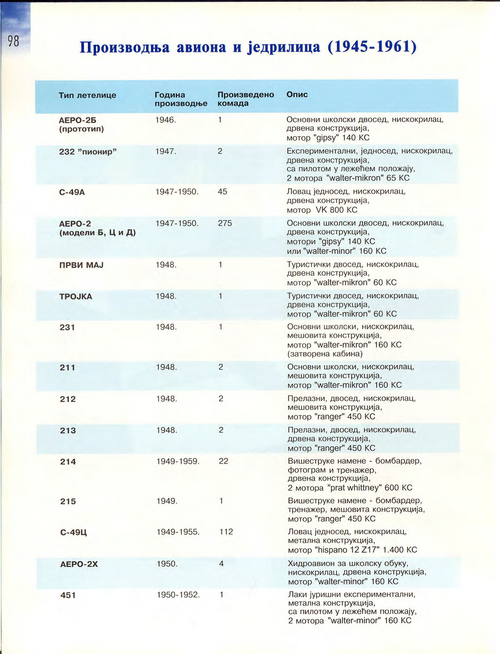

Ikarus Aero-2B - two-seater basic trainer,1 prototype 1946(although the project was designed prior to WW2)
Ikarus AERO-2/B/C/D - two-seater basic trainer, 275 aircraft built from 1947 to 1950.
Ikarus Aero-2H - seaplane version of Aero 2B, four copies were made in 1950
Ikarus 232 "pioneer" - single-seater twin-engine experimental, 1 prototype, 1947.
Ikarus S-49A - fighter,45 units in period between 1947 and 1950.
Ikarus S-49C - fighter,112 units in period between 1949 and 1955.
Ikarus 1.Maj - two-seater tourist plane, 1 prototype, 1948.
Ikarus Trojka - (Trojka - digit three)two-seater tourist plane, 1 prototype, 1948.(Utva built 80 of these planes until 1955)
Ikarus 211 - two-seater basic school aircraft, 2 prototypes, 1948.
Ikarus 212 - two-seater transitional plane, 2 prototypes, 1948.(Utva built 60 of these planes until 1955)
Ikarus 213 - two-seater transitional plane, 2 prototypes, 1948.(Utva built 195 of these planes until 1955)
Ikarus 214 - twin engine multipurpose plane (light bomber, transport, parachute training),post war project of aircraft designer Sima Milutinovic. 22 were built from 1949 to 1959)
Ikarus 215 - twin engine multipurpose plane, 1 prototype built in 1949
Ikarus 451 - light attack aircraft, one prototype,fitted with 2 Walter Minor 6-III piston engines and a prone pilot cockpit.
Ikarus 451M - (Mlazni - Jet) Derived directly from the S-451 airframe, the S-451M substituted Turboméca Palas turbojet engines for the piston engines, in underslung nacelles at the same positions on the wing and conventional cockpit.
Ikarus 451M Zolja - (Zolja - Wasp)light training aircraft; Flown in 1954, the S-451M Zolja featured a stretched fuselage,folding wings, and engine nacelles centred on the wing chordline. Used to set a world speed record in its class in 1960.
Ikarus J451MM Stršljen - (J - Jurišnik - close support) (Stršljen - Hornet)The intended production close support version with tricycle undercarriage, Turboméca Marbore engines and cannon armament.
Ikarus Š-451MM Matica - (Matica - Queen bee, Š - školski - school) Two-seat trainer version, used for a world speed record in 1957.
Ikarus T-451MM Stršljen II - A single seat aerobatic trainer.
Ikarus 452 - light interceptor, 1 prototype, 1952
Ikarus 453 - experimental glider, one prototype, 1950
Ikarus Orao I - (Orao - Eagle)glider, one prototype,1950
Ikarus Orao IIC - glider, one prototype,1951
Ikarus 920 - transport glider,one prototype, 1951
Ikarus Student - tourist plane, one prototype,1952
Ikarus 522 - single engine transitional plane, 2 prototypes, 1952.(Soko Mostar built 112 planes until 1962 (due to similarities, this plane often played FW190 in partisan movies, I'm not certain about Kelly's Heroes appearance because Yugoslavia had P 47D's)
Ikarus Kobac - (Kobac - sparrow hawk)two-seater wooden glider, one prototype,1953
Ikarus Košava - (Košava - name of the wind common to the Balkans, two-seater wooden glider,2 prototypes, 1953.
Ikarus B-12 V - light interceptior with chevron wings, 1 unfinished prototype (1954 - 1958.
Ikarus Kurir - (Kurir - Courier)three-seater liaison plane, 166 copies were built from 1955 to 1962.
Ikarus Hidrokurir - seaplane version of Kurir, one aircraft was built in 1955
Ikarus Meteor - single seat metal glider, 2 prototypes built, 1958
Ikarus Lightning - two-seater wooden glider, 1 prototype, 1958

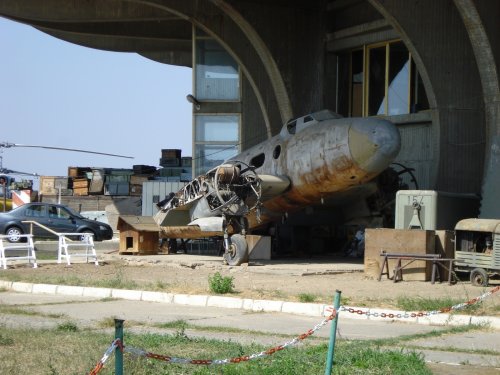

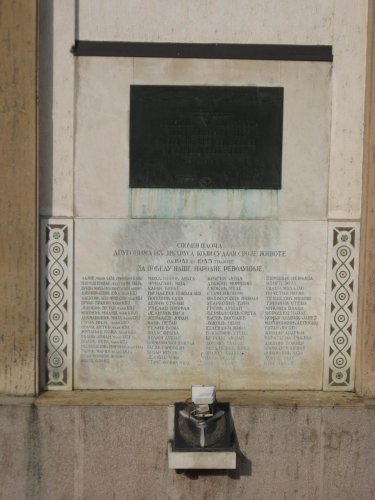

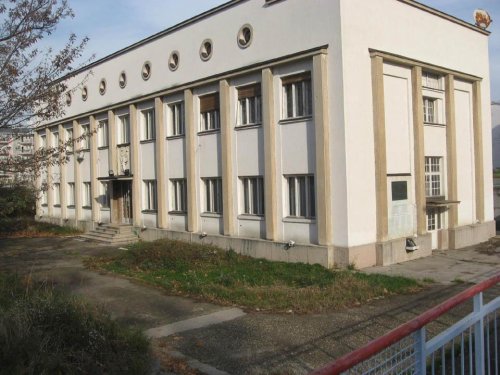

The pictures show the Ikarus office building, plaque on it that commemorates workers who died in WW2, old airport building and MIG 21 in underground base (I'm not sure if it's from Željava or Slatina air base near Priština).


Attachments

  • 114113_61708892_Copy of ikarus 003.jpg
    114113_61708892_Copy of ikarus 003.jpg
    110 KB · Views: 556
  • 114113_431962288_Copy of ikarus 011.jpg
    114113_431962288_Copy of ikarus 011.jpg
    138.1 KB · Views: 538

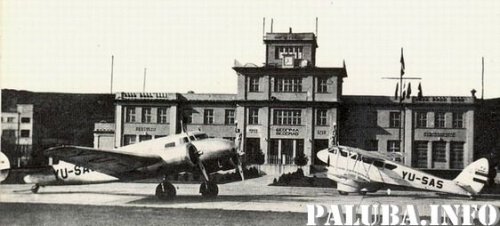

  • Avioni Elektra i Dragon.jpg
    Avioni Elektra i Dragon.jpg
    84 KB · Views: 531

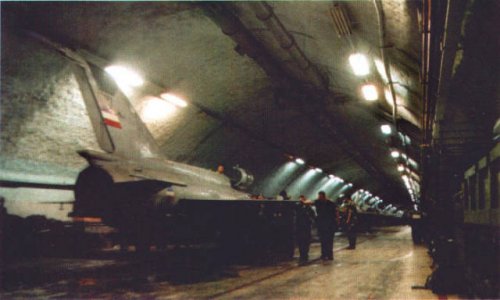

  • tunnelmig21b0lu2slika8jy.jpg
    34.7 KB · Views: 519

walter

ACCESS: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
127
Hi bigvlada :D
Thank you for the detailed information on Ikarus and especially the historical part !!.
Haver you ever heard of a Model 231 which I understand was built as a prototype (1948 or 1951).
I strongly resembled the Model 211, but had an enclosed cockpit.
Best regards, Walter


bigvlada

ACCESS: Secret
Joined
Jun 30, 2008
Messages
369
Reaction score
38

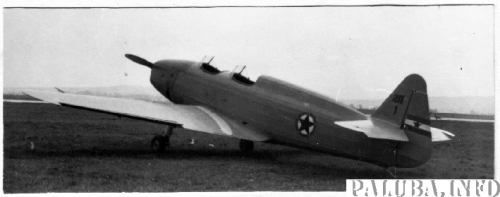

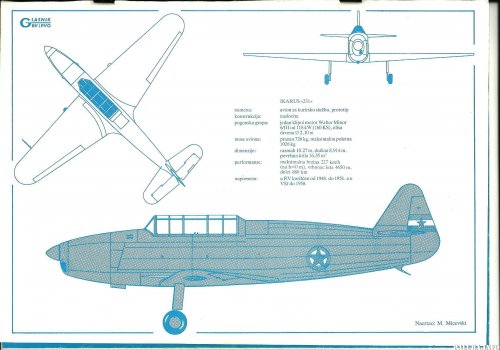

Yes, the 231 was 211 with enclosed cockpit. It's intended role was courier service. Both were prototypes. 212 and 213 were mass produced by Utva.
The reasoning behind the 211/12/13/31 was that Yugoslavia lacked pilots after the ww2 and refused the soviet training methodology with PO-2 and UT-2 planes. Instead, the pre war royal yugoslav aviation methodology was chosen instead. We had Tiger moths and Harvard's which were suitable for this role but only a handful of them were available (20 and 11 planes respectively). Thus, in the following competition (Bulgaria was also allowed to participate, with Zvetan Lazarov's LAZ 7 design) Ikarus designs Aero 2b (a pre war project) was chosen as a basic school aircraft and 212 and 213 as transitional aircrafts.
Because 213 had better results during the tests than 212(although both planes had the same engine, mass and basic dimensions) it was built in larger numbers.
212/213: Intended for intermediate flight school training

Crew: 2
Manufacturer of prototype: Ikarus in Zemun, serial production at Utva aircraft factory in Pančevo
First flight: october 1948

Dimensions

Length: 9.32m
Wingspan: 11.00 m
Height: 3.58 m
Wing area: 21.90 m²

mass
Empty: 1825 kg
Normal takeoff: 2,400 kg

propulsion: Piston-engine propeller 1 x Ranger SVG-770C-B1
Power: 330 kW

performance
Max. speed: 287 km / h
Range: 920 km
Ceiling: 7000 m


Attachments

  • 211.png
    257.3 KB · Views: 41
  • 211.jpg
    220.7 KB · Views: 45
  • 211 (2).png
    211 (2).png
    257.3 KB · Views: 426

bigvlada

ACCESS: Secret
Joined
Jun 30, 2008
Messages
369
Reaction score
38

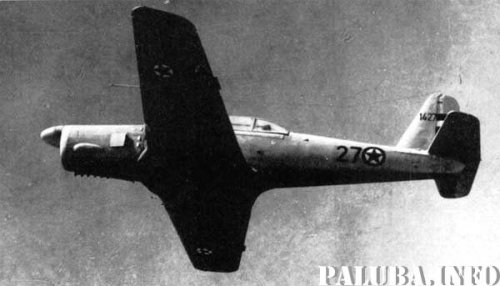

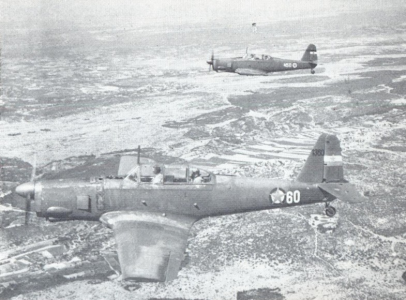

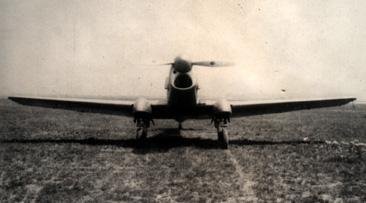

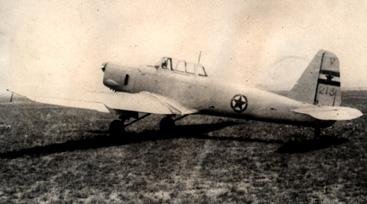

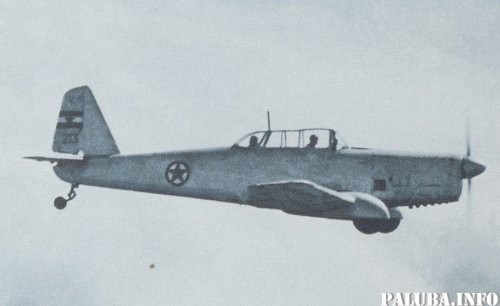

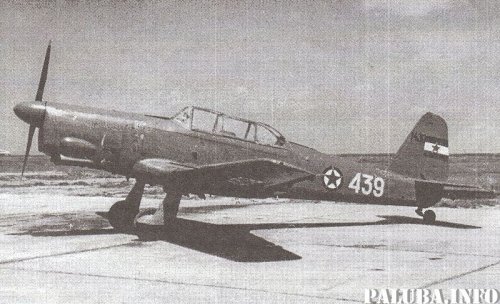

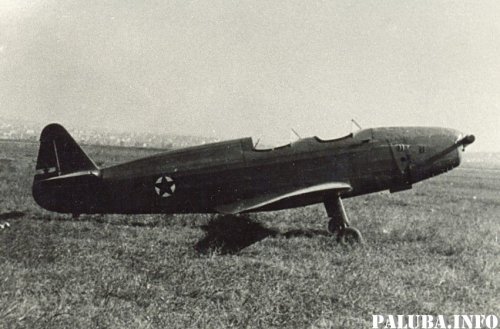

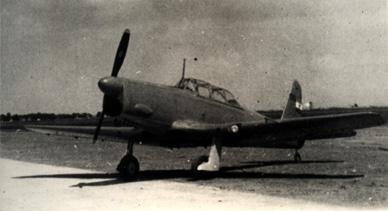

213


Attachments

  • 213. prototip foto 1.jpg
    213. prototip foto 1.jpg
    12 KB · Views: 33
  • 213. čelni avion foto 2.jpg
    213. čelni avion foto 2.jpg
    12.8 KB · Views: 29
  • 213. čelni avion foto 1.jpg
    213. čelni avion foto 1.jpg
    11.4 KB · Views: 26
  • 213 VVA.png
    213 VVA.png
    144.1 KB · Views: 31
  • 213 prototip.jpg
    213 prototip.jpg
    327.5 KB · Views: 35
  • 213 kolor.jpg
    213 kolor.jpg
    11.1 KB · Views: 32

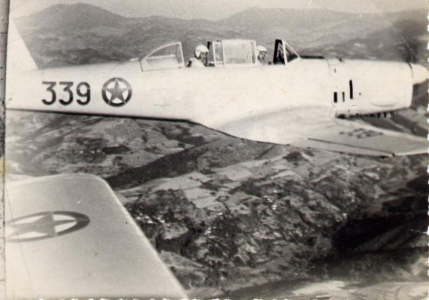

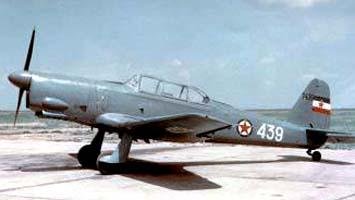

  • 213 339.png
    213 339.png
    191.6 KB · Views: 29
  • 213 ...jpg
    213 ...jpg
    444 KB · Views: 35

bigvlada

ACCESS: Secret
Joined
Jun 30, 2008
Messages
369
Reaction score
38

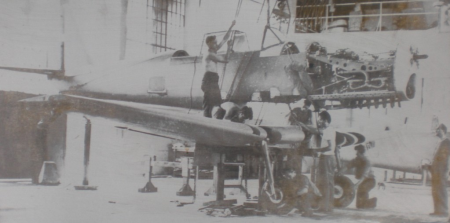

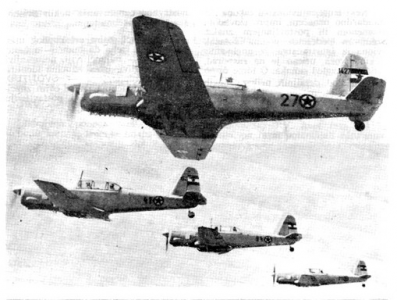

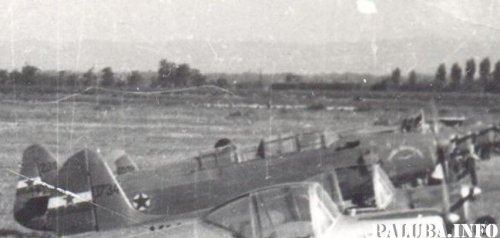

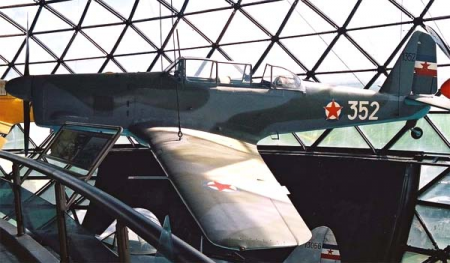

more 213


Attachments

  • ikarus 213_izgradnja.png
    ikarus 213_izgradnja.png
    138.5 KB · Views: 28
  • 213-3.png
    214.9 KB · Views: 28
  • 213.png
    188.8 KB · Views: 25
  • 213.jpg
    63.5 KB · Views: 27
  • 213...png
    117.1 KB · Views: 28
  • 213......png
    140.2 KB · Views: 29
  • 213. prototip foto 2.jpg
    213. prototip foto 2.jpg
    13.3 KB · Views: 29

bigvlada

ACCESS: Secret
Joined
Jun 30, 2008
Messages
369
Reaction score
38

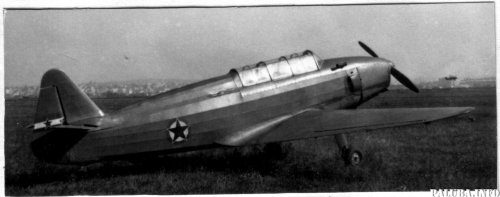

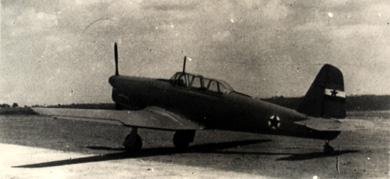

231


Attachments

  • 231jpg.jpg
    305.1 KB · Views: 38
  • 231[3].jpg
    103 KB · Views: 36
  • 231[2].jpg
    228.1 KB · Views: 54
  • 231.jpg
    1.1 MB · Views: 64
  • 231 s boka.jpg
    231 s boka.jpg
    231.3 KB · Views: 48

bigvlada

ACCESS: Secret
Joined
Jun 30, 2008
Messages
369
Reaction score
38

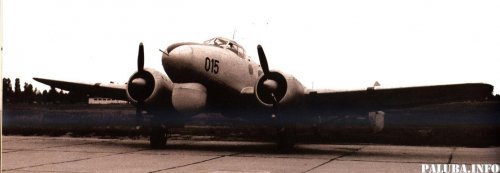

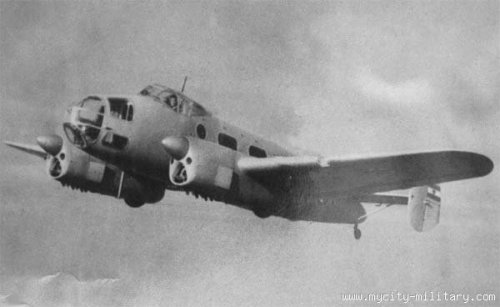

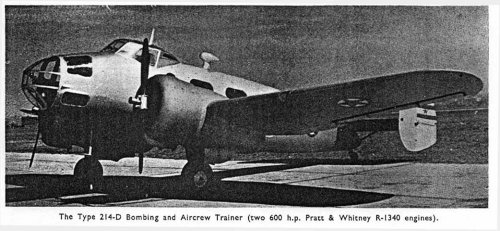

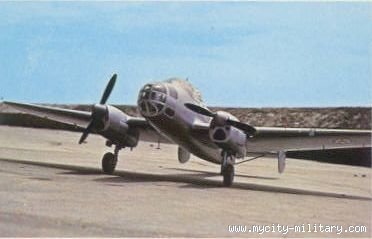

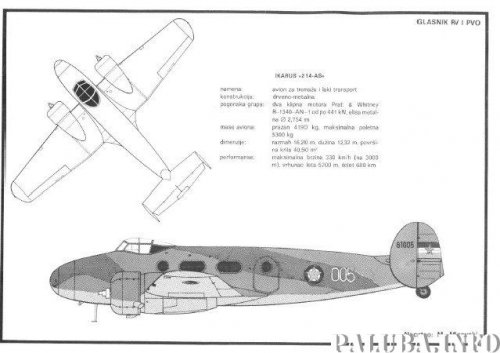

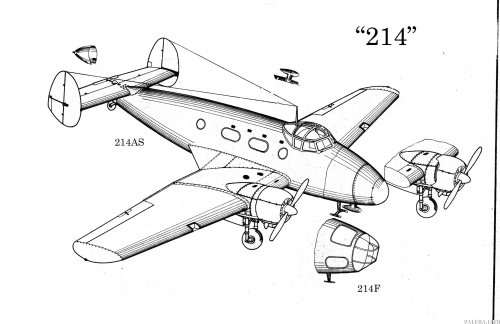

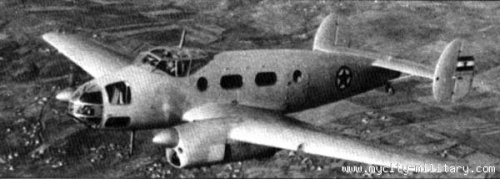

Ikarus 214 was twin engined bombing and aircrew trainer. Paratrooper training and antisubmarine warfare was also on the list of duties for this bird. It's all wooden structure with two P&W 600hp R-1340-AN-1 engines. Last project of aircraft designer Sima Milutinovic.
Span: 16,2m
Length: 11,2m
Weight loaded: 5027kg
Max speed: 365km/h
Service ceiling: 7000m
Range: 1080km
Take off run: 300m
Landing run: 450m

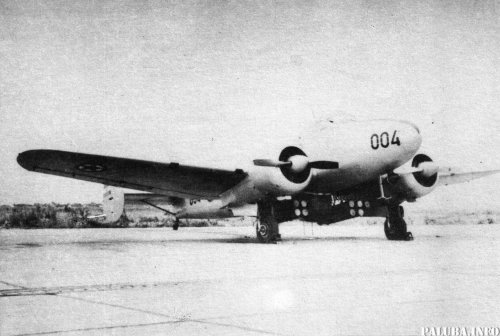

The second picture is antisubmarine version,the third one is AM2 naval version with radar and the fourth one is transport version.


Attachments

  • 214 crtez.jpg
    214 crtez.jpg
    454.3 KB · Views: 42
  • 214 [1].jpg
    214 [1].jpg
    107.8 KB · Views: 40
  • 214_02.jpg
    32.9 KB · Views: 39
  • 214_01.jpg
    31.1 KB · Views: 40

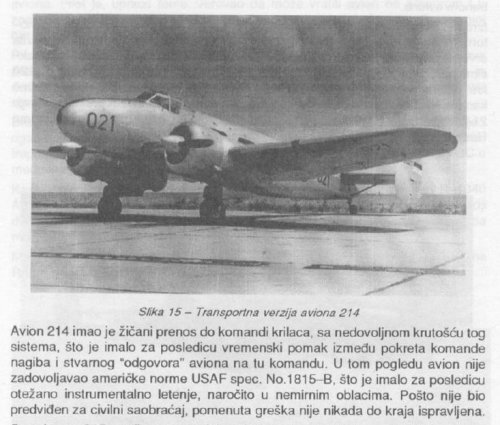

  • 214 transportna verzija.jpg
    214 transportna verzija.jpg
    118.4 KB · Views: 50
  • Ikarus 214AM2 mornaricka varijanta sa radarom.jpg
    Ikarus 214AM2 mornaricka varijanta sa radarom.jpg
    63.2 KB · Views: 48
  • Ikarus 214 osposobljena za PP dejstva copy.jpg
    Ikarus 214 osposobljena za PP dejstva copy.jpg
    342.5 KB · Views: 42

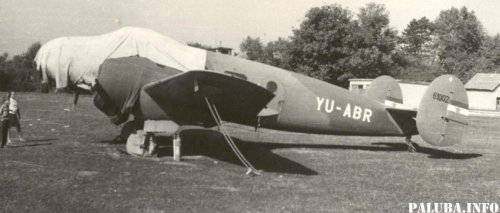

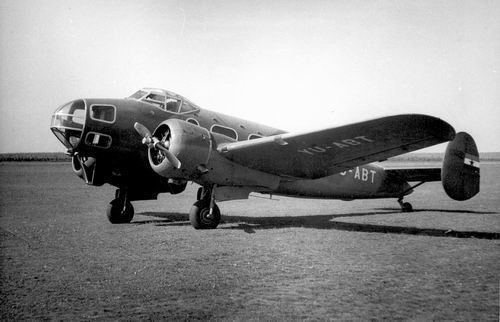

  • Ikarus 214 YU-ABR 01.jpg
    Ikarus 214 YU-ABR 01.jpg
    155.1 KB · Views: 29

bigvlada

ACCESS: Secret
Joined
Jun 30, 2008
Messages
369
Reaction score
38

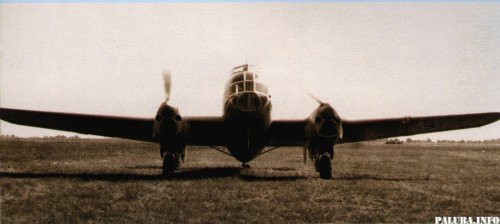

More 214 pics
The fourth one is prototype with ranger engines.


Attachments

  • 214_02.jpg
    32.9 KB · Views: 36
  • 214_05.jpg
    15.7 KB · Views: 46
  • ikarus 214.jpg
    ikarus 214.jpg
    861.5 KB · Views: 29
  • Ikarus 214 YU-ABR 02.jpg
    Ikarus 214 YU-ABR 02.jpg
    426.6 KB · Views: 24
  • 214 prototip sa motorima Rendzer.jpg
    214 prototip sa motorima Rendzer.jpg
    279.9 KB · Views: 26
  • 214_01.jpg
    31.1 KB · Views: 32
  • 214.jpg
    25.9 KB · Views: 45
  • 214[4].jpg
    89.7 KB · Views: 55

bigvlada

ACCESS: Secret
Joined
Jun 30, 2008
Messages
369
Reaction score
38

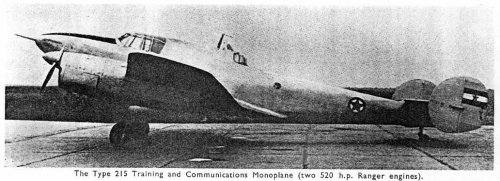

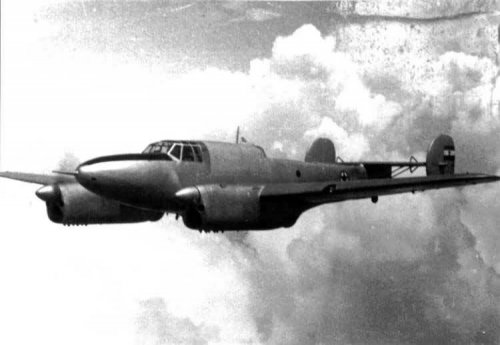

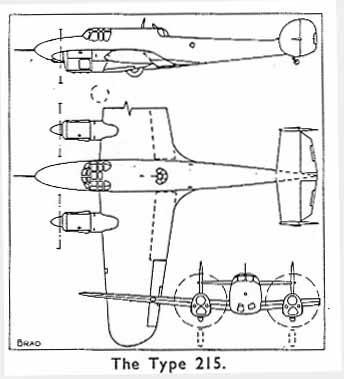

Ikarus 215 was two engined communications and training monoplane. It was made of wood combined with duralumin. It's wings had flaps and landing gear was retractable. The engines were two Ranger SGV - 770 C1B with 520 horse power. The crew was three, including the observer which also had one machine gun installed.
Span: 16,14m
Length: 13,35m
Height: 4,03m
Weighs:
Loaded (trainer, without armament): 4297 kg
Loaded (fully equipped armament and crew of 3): 4571 kg
Loaded (increased armament and crew of 4):4685 kg
Performance:
Max speed: 314 km/h
Min speed: 100 km/h
Service ceiling: 8150m
Range: 1120 km
Take off run: 273m
Landing run: 474m


Attachments

  • Ikarus 215.jpg
    Ikarus 215.jpg
    25.7 KB · Views: 59
  • 215[2].jpg
    19.9 KB · Views: 56
  • 215[1].jpg
    98.3 KB · Views: 54

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
820
I can see a real parallel between the Ikarus 211 and the American NA-16 and NA-35 prototypes. And I'm sure one could identify a dozen similar design all over the world at the same time (including some Miles and Caudron types).


Deltafan

ACCESS: Top Secret
Joined
May 8, 2006
Messages
1,251
Reaction score
920
Sorry, I moved this post about the engine of the S-49 C fighter to a more suitable board of SecretProjects :-[

http://www.secretprojects.co.uk/forum/index.php/topic,28075.0.html


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,441
Reaction score
6,100
Hi,

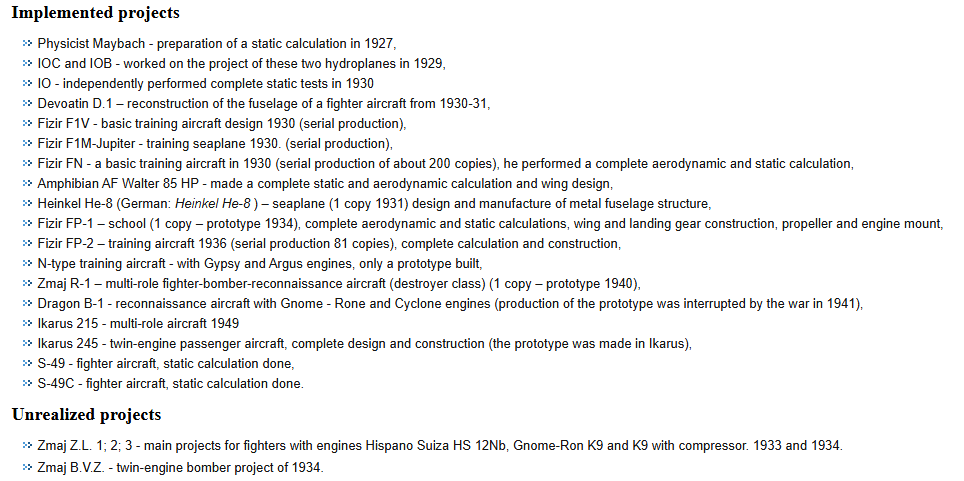

-Ikarus 245 - passenger twin-engine plane, a complete budget and construction (prototype was
developed in Ikarus).

http://www.vazduhoplovnetradicijesrbije.rs/index.php/biografije/56-dusan-stankov


Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
641
Reaction score
396
At http://alternathistory.com/kukhnya-maiora-beshlina-yugoslavskaya-reaktivnaya-programma-1950-kh-godov-chast-1 and http://alternathistory.com/kukhnya-maiora-beshlina-yugoslavskaya-reaktivnaya-programma-1950-kh-godov-chast-2 you may find a two-part article on development of jet aircraft in Yugoslavia in the 1950s by Dragoljub Bešlin.

The article originally was published in the "Aviacya i Kosmonavtika" magazine (issues 9 and 10 of 2013) and obviously is in Russian B)

Piotr


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,441
Reaction score
6,100
Hi Blockhaj,

unfortunately no more Info available about this aircraft,but I will check my files.
