Utva aircraft plant was founded in 1937 in Zemun (a small town in former Austrohungarian empire), now one of Belgrade municipalities. The plant was relocated to Pančevo (a town a few kilometers away from Belgrade, in Vojvodina autonomous province) in 1940. Until the April war, it mainly produced light gliders but it also produced 148 Bucker Jungmann Bu-131D-2 training planes and one acrobatic Bucker Jungmaister Bu-133.

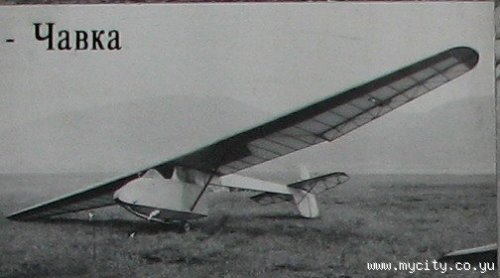

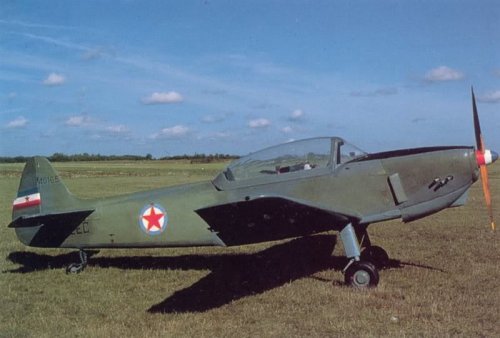

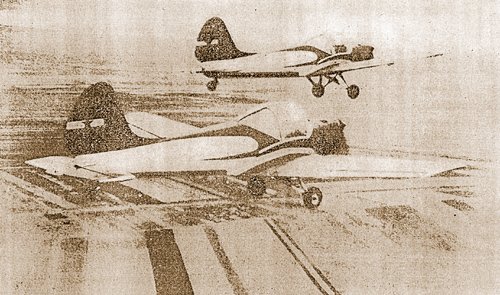

But the real progress was made after the war. The plant escaped the devastation of the other aircraft plants (Ikarus, Rogožarski and Zmaj) and began producing it's prewar gliders Čavka (Daw) and Ždral (Crane – the bird) and school airplanes Trojka (Three) and Aero 3.

Utva also built a lot of Ikarus designs, notably the 212 and 213 models.

The factory was heavily bombarded in 1999 and certain parts of it are still off limits due to the unexploded ordnance. All five original lasta 95 prototypes were destroyed in the factory and the only existing Supergaleb G4MD prototype was lightly damaged. Today, it's back to the basics for Utva. The plant produces Lasta 95 basic trainer and is developing Kobac (sparrow hawk) light COIN aircraft (first flight is expected in 2013).


Attachments

  • Cavka.jpg
    28.8 KB · Views: 421

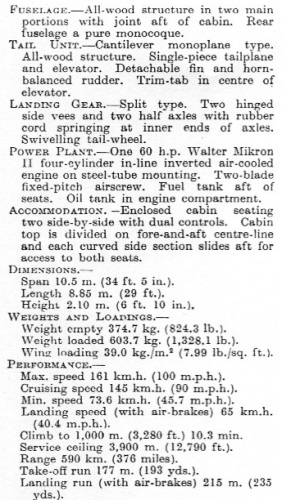

  • trojka specs[2].png
    trojka specs[2].png
    137.6 KB · Views: 30

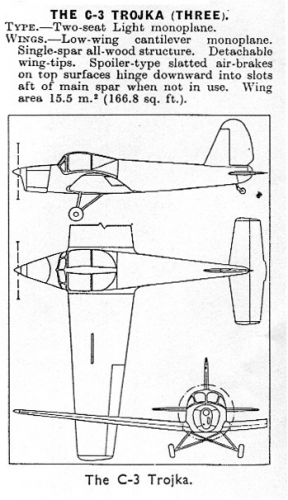

  • trojka specs[1].png
    trojka specs[1].png
    118.5 KB · Views: 33

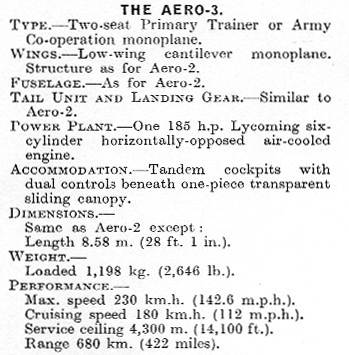

  • aero 3 specs.png
    aero 3 specs.png
    73.7 KB · Views: 25
  • utva_aero_3.jpg
    53.7 KB · Views: 346

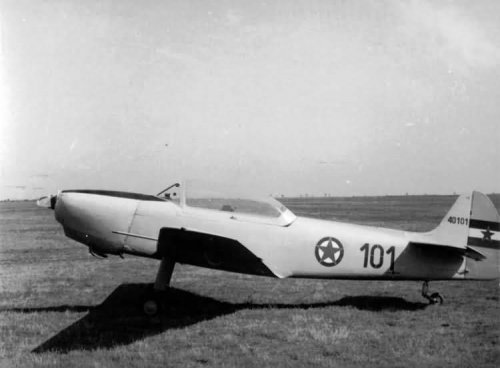

  • UTVA Aero-3.jpg
    UTVA Aero-3.jpg
    23.2 KB · Views: 355
  • utva trojka_pic.jpg
    utva trojka_pic.jpg
    124.1 KB · Views: 381

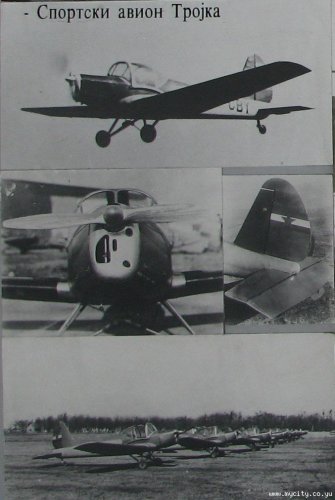

  • utva trojka.jpg
    utva trojka.jpg
    125.5 KB · Views: 423

bigvlada

ACCESS: Secret
Joined
Jun 30, 2008
Messages
369
Reaction score
39
Utva Trojka (Three) 3-view


Attachments

  • utva trojka.jpg
    utva trojka.jpg
    120.9 KB · Views: 81

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,549
Reaction score
6,280
Hi,

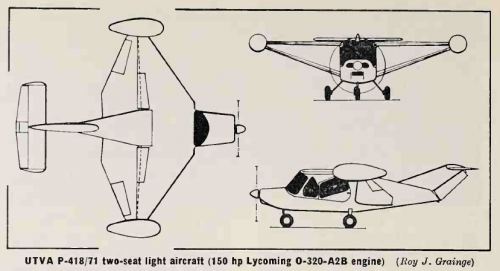

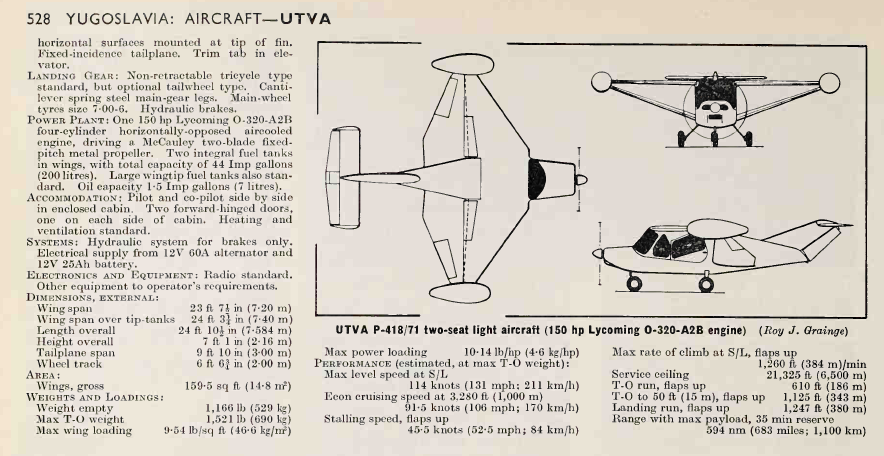

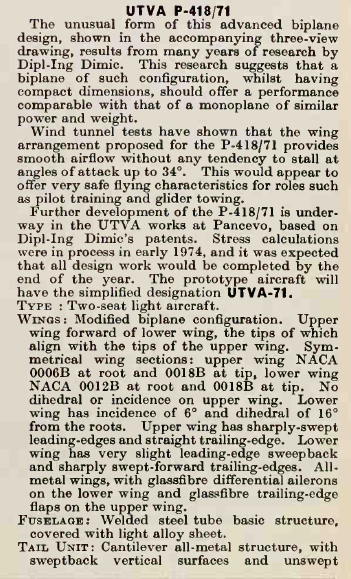

the UTVA-71 (P-418) was a box-wing two seat light aircraft project,powered by
one 150 hp Lycoming O-320-2B engine.


Jane's All the World's Aircraft 1974-1975


Attachments

  • UTVA-71.png
    124.9 KB · Views: 64

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,549
Reaction score
6,280

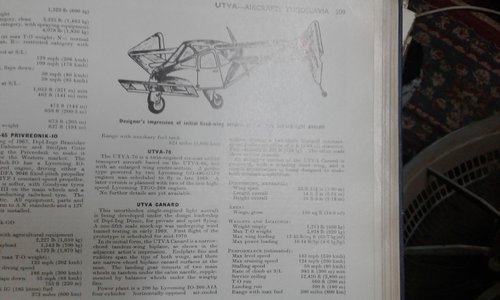

From JAWA 1969,

the UTVA Canard Project.


Attachments

  • ٢٠١٩١١٢٠_٢٣٢٨٤١.jpg
    1.1 MB · Views: 33
  • ٢٠١٩١١٢٠_٢٣٢٩١٧.jpg
    1.2 MB · Views: 49

kaiserbill

ACCESS: Top Secret
Senior Member
Joined
Jun 7, 2006
Messages
1,539
Reaction score
672

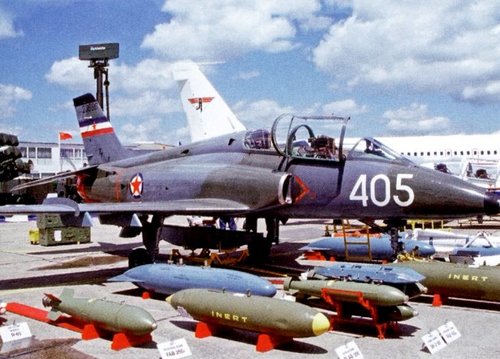

Are there any illustrations of the SuperGaleb G4MD?
As said in the first post of this thread, the prototype was damaged at the factory during the war.
What were the improvements that were made to the SuperGaleb G4MD over the base model?


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,892
Reaction score
1,566
It was actually the G-4M (Modernizacije) prototype tech demo conversion that was damaged at Batajnica (although later repaired by Utva). That programme was later replaced by the 'digitized' G-4MD with modular mission computer as well as updated versions of G-4M's HUD, avionics additions, and weapons load.

Some good G-4MD concept art here: https://tangosix.rs/2016/26/04/istorija-modernizacije-aviona-g-4-super-galeb/
