ICAR Întreprinderea de Constructii Aeronautice Românesti (Romanian Aeronautical Engineering Enterprise), Bucharest, 1932-1951. Below is a rough ICAR production type list.

The ICAR-1 (or ICAR-I) for licence-built Grünau-9 gliders suggests an attempt at a rational designation system by ICAR. Has anyone seen any such unifying system for ICAR aircraft?
_____________________________________________________________

ICAR M23b - licenced BFW M.23b 2-seat light sport monoplane, 11.5m span
- ICAR M23b: 1 x 82hp Siemens Halske Sh.13b 5-cyl radial, 14 built by ICAR

ICAR-Comercial - 1934 Messerschmitt-designed 6-pax high-wing airliner, 1 built
- ICAR-Comercial: aka ICAR 36, IAR 36, Messerschmitt M.36, 15.4m span
- ICAR-Comercial: as designed, 1 x IAR (Gnome & Rhône) 7K 7-cyl radial
- ICAR-Comercial: as built, 380hp AS Serval Mk.I 10-cyl 2-row radial
- ICAR-Comercial: re-engined with 300hp Lorraine-Dietrich Mizar 7-cyl

ICAR-1 - licenced Schneider Grünau-9 training glider, 50 built (last in 1951)
- aka ICAR 1-2 (poss confusion with same German glider built by SET?)

ICAR-Universal - 1934 sport/aerobatic monoplane, ICAR (BFW) M23b deriv., 14 built
- Universal: single-seater (monoloc), 150hp Sh.14a 7-cyl, 12.9m span, 1 built*
-- * NB: this sole Universal (YR-MAI) was later converted into a 2-seat tourer
- Universal Biloc: 2-seater, 130hp IAR 4GI, 11.9m span, 10 built (1935-36)
- Universal Acrobatic: single-seater, 150hp Sh.14a radial, 12.9m span, 3 built

ICAR-Acrobatic - 2-seat biplane fighter trainer, 1 x radial engine,* 8.4m span
- ICAR-Acrobatic: prototype built 1935, 2 more built in 1940 for AAR use
-- * NB: some sources say 225hp AS Lynx MkIV, others 260hp Walter Castor II

[** Can anyone confirm that Acrobatic was a licenced/developed Avia B-122??]

ICAR-Turing - 1937 high-wing monoplane multi-purpose a/c, 1 x 90hp Pobjoy Niagara
- ICAR-Turing: ICAR's last civilian a/c, 10.5m span, 1 built (registered YR-XYZ)

ICAR F-10G - 1938 licenced Fleet 10G trainer, 1 x 130hp IAR 4GI, 90 built*
-- * 1938-39, a second AAR order for 50 additional Fleet biplanes cancelled

ICAR Fi 156 - licenced Fieseler Storch observation aircraft, 94 built
- Fi 156Ca-3: observation a/c, 1 x 240hp Argus AS 10C-3 V-8, 70 built*
- Fi 156D-1: aerial ambulance type, 1 x 270hp Argus AS 10P, 24 built
-- * NB: some sources say that only 69 Fi 156Ca-3 were completed

ICAR Divizionar - [Project] twin-engined army co-operation a/c
____________________________________


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,012
Reaction score
419
I have the ICAR Divizionar as project...


...but no other info. (Source uknown).


Attachments

  • ICAR Divizionar.jpg
    ICAR Divizionar.jpg
    42.2 KB · Views: 239

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,803
Reaction score
1,381
Thank Maveric! I'd completely forgotten about the ICAR Divizionar :-[

Looks a bit like Dragon Rapide meets Potez 63, doesn't it ;D


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
767
Maveric said:
I have the ICAR Divizionar as project...


...but no other info. (Source uknown).

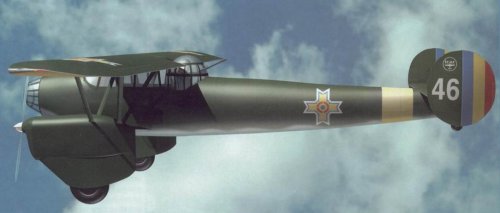

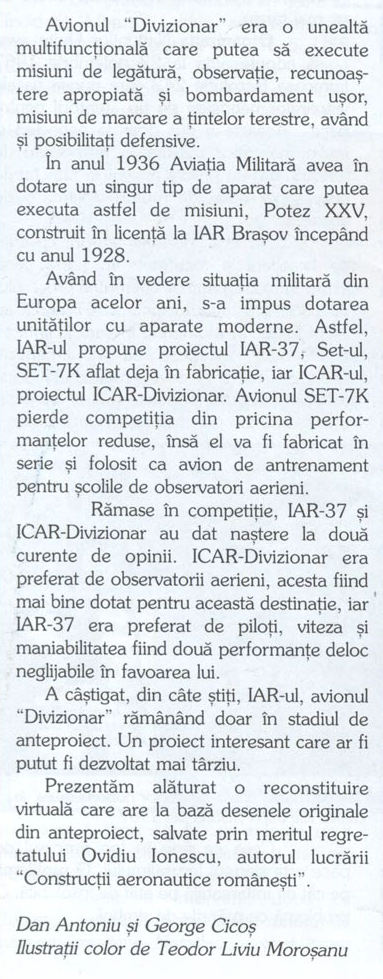

The ICAR Divizionar picture you posted (as well as the two attached below) were published in the Romanian AeroMagazin (5 July 2002).


Attachments

  • ICAR Divizionar.jpg
    ICAR Divizionar.jpg
    306.8 KB · Views: 145

fabulousfour

ACCESS: Restricted
Joined
Oct 20, 2009
Messages
43
Reaction score
40
Gents,

I hope this is the correct thread to ask my question, if not, please accept my excuses.

I have purchased a photo of an aircraft where I hope that the concentrated knowledge of this forum might help to identify it correctly.

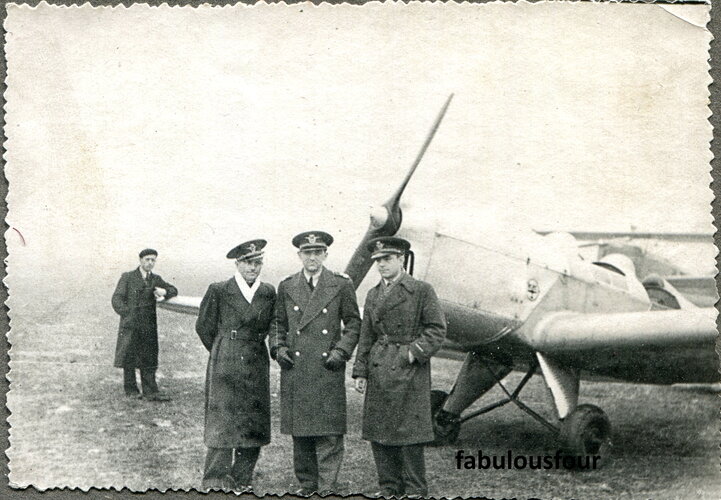

ICAR unknown.jpg

What we have here is an aircraft built by the ICAR company, you can see the logo of the company on the left of the cowling and the uniforms of the officers in the picture are most likely Romanian. The biplane in the background is probably a Fleet 10 that was also flown by the Romanians. Please compare to the logo from the book „Romanian aircraft constructions 1905 – 1974“



icar logo.JPG

The gear of this aircraft is identical to that of the ICAR Universal but the cabin is like that of the Universal Biloc (two-seater) aircraft that made a long-distance flight to Capetown. The entry hatches with windows are clearly visible.

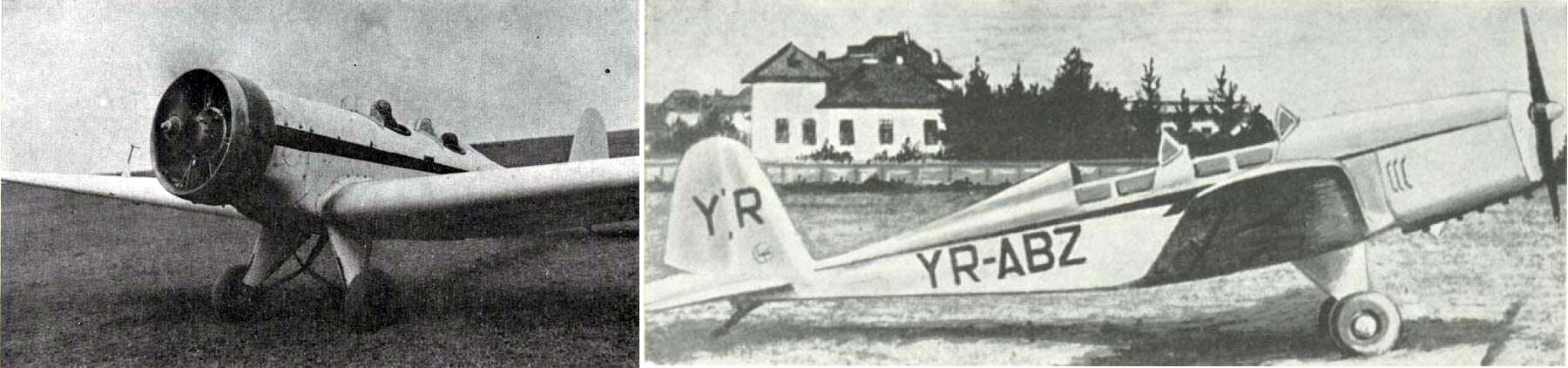

ICAR Universal-2.jpg

Both pictures from the book mentioned above.

But obviously the engine on my photo is different to both aircraft, the photo shows neither a Siemens engine nor the engine of the Biloc.

Now, my problem is that I couldn’t find a single evidence about an ICAR Universal with this type of engine, even the book „Romanian aircraft constructions 1905 – 1974“ doesn’t mention this type.

Is it possible with the help of the forum to find out more about this aircraft?

Last edited:

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,803
Reaction score
1,381
Any reason that you think that this is not a Universal Biloc? The transparencies on the hinged access doors are pretty distinctive.

To me the engine cowling looks like a typical Fleet 10G unit ... which means a de Havilland Gipsy Major or
IAR 4GI powerplant. The latter was the standard inline engine for the Universal Biloc.

Or were you looking for a reg and history for this particular airframe?


fabulousfour

ACCESS: Restricted
Joined
Oct 20, 2009
Messages
43
Reaction score
40
Thanks for your answer.
I don't think that the engine unit on "my" photo show the engine unit of a Fleet 10, at least not of a Romanian one.
There are several pictures of the Fleet 10 in the above mentioned book about Romanian aircraft and they show rather vertical lines on the cowling and not the diagonal lines of the engine on my photo.
Also the photos of Romanian Fleet 10 in the net show these vertical lines.


So the engine on my photo is clearly different to the Romanian Fleet 10 with the license built IAR 4-engine and also to that of the Universal Biloc with the same engine.

Since the aircraft on my photo show the access doors with window panels but a different engine my question is whether there might be a "mixed type" with hinged access doors and an engine different to an IAR-4.
Or were there pre-production (or may be later production) Universal Biloc which had a different engine? The book doesn't mention this.
Or is it possible that the Bilocs after their trip to Capetown were converted?
