British WW2 Turret Fighter Projects

W

Wingknut

Guest
Hello,
Can't find a source for this, but I think I've seen a profile of a proposed Spitfire variant with a second crew-position for a gunner and a remotely-aimed gun turret/barbette. Can anyone direct me to more info.? Likewise, does anyone know of other proposed turret-modifications of existing types (like the Blackburn Skua-to-Roc conversion)?
Just to forestall any misunderstanding: I mean a genuine turret-Spitfire design and not one of (e.g.) the many entertaining but totally hypothetical Spit-variants from 'The Spitfire Project', at http://www.strijdbewijs.nl/birds/spitfire/geheim/spitproject.htm
Thanks in advance for any assistance.
Cheers,

'Wingknut'


red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
704
Reaction score
219
Supermarine Type 305, theres a bit of history in BSP 1935-1950 by Tony Buttler

Stats;
37ft span 30" 6' length 242sq ft wing area 5650lb all up weight 1x 1000hp Merlin Estimated maximum speed 315mph @ 15000ft. Armametn 4x0.303" Lewis guns in rear turret.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,855
Reaction score
1,495

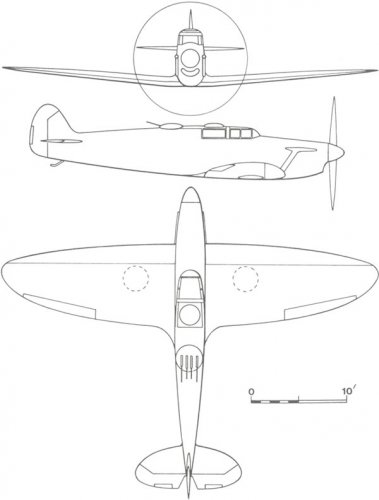

Three-view of Type 305 attached.

The Type 305 isn't quite a Spitfire yet. It was based on the January 1935 F.37/34 submission.

For the Type 305, the empennage and wings remained unchanged (other than removing the four wing guns). The fuselage is similar but the retractible radiator (behind cockpit) was replaced by a fixed chin position radiator.


Attachments

  • type-305.jpg
    39.2 KB · Views: 1,159

waynos

ACCESS: Restricted
Joined
Oct 17, 2006
Messages
11
Reaction score
2
There was a conversion of the Bristol Beaufighter with a power operated 4 gun turret straight behind the cockpit, which actually flew.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
115
Yes indeed Smurf , I saw a drawing (sideview) in a model magazine long time ago.
It seems it was a mock turret but there should also have
been a concept with a highly streamlined turret aimed by
a second crewmenber looking backwards on his seat...

(but this is faraway from the 'Spit turretfighter' idea...)


Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,077
Reaction score
4,196
Website
www.amazon.com
Please see attached

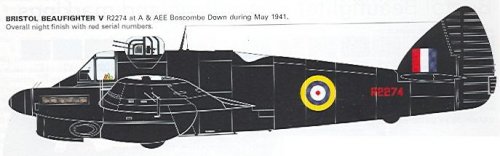

-Bristol Beaufighter V with turret from Warpaint Series No 1 . by Alan W. Hall
-Mosquito W4050 with turret , from Aeroplane , November 2000


Attachments

  • Beau Turret.jpg
    Beau Turret.jpg
    26.2 KB · Views: 953
  • Mossie Turret.jpg
    Mossie Turret.jpg
    46.6 KB · Views: 926

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,855
Reaction score
1,495
Wingknut

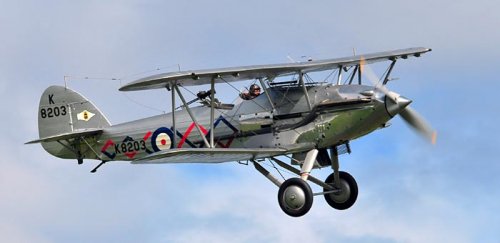

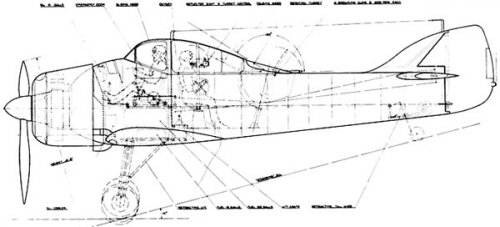

AFAIK, the Hawker Demon was the first true turret fighter -- the Hart prototype J9933 was fitted with a Frazer Nash hydraulic turret (single Lewis gun) in 1934. Boulton Paul built the production turret Demons (which I guess shows the long-term value of direct production experience).

F.5/34 led to the Bristol Type 146 (Mercury IX/Perseus) evolving into a turret fighter (with a Perseus or Hercules) for F.9/35. The Hawker Hurricane led to their turret fighter, the Hotspur.

There is a sort of convergent evolution thing here. Both Hawker and Bristol types had morphed into two-seat army co-operation types (to meet A39/34 for a Audax/Hector replacement). Bristol's Type 146 became the two-seat Type 148. The Hurricane became the two-seat Henley to P.4/34 (for light bomber).

There was also a Fairey submission for F.5/34 based on the Battle. (Considering the timing, Fairey would have been better off basing its F.5/34 submission on their P.4/34 light bomber that eventually became the Fulmar prototype.)

I believe that the rest of the British turret fighter submissions were original designs. But how about turret fighter designs leading to non-turret fighters? Gloster's twin-Aquila F.5/33 turret fighter concept led to the built non-turreted twin-Taurus F.9/37. And then there was Boulton Paul's planned P.94 single-seater derived from the Defiant.

--------------
BTW, images attached came from Air International Vol4` No1 (with a bit of tweaking) and I added the Bristol Type 148 sideview to a re-arranged 3-view.


Attachments

  • bristol-146-turret.jpg
    37 KB · Views: 940
  • bristol-146-turret-section.jpg
    38.4 KB · Views: 927
W

Wingknut

Guest
Hi
I know I said "Thanks in advance" in my original post but further thanks are definitely indicated for such helpful and informative posts - much appreciated.

Peter Allen's splendid 'Flitzerart' site (http://www.flitzerart.com/aircraft.htm) is already well-linked to these pages, but the 'British Secret Projects of WW2' page (http://www.flitzerart.com/bsecret.htm) has colour profiles and plans of original turreted designs like the Boulton Paul P97B and the Bristol F.11/37.
All best and thanks again,

'Wingknut'


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,855
Reaction score
1,495

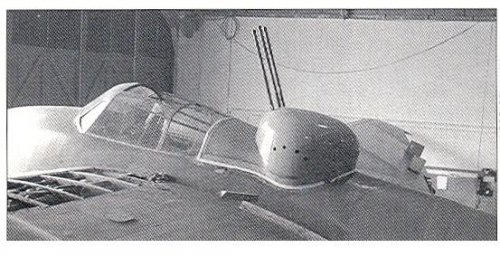

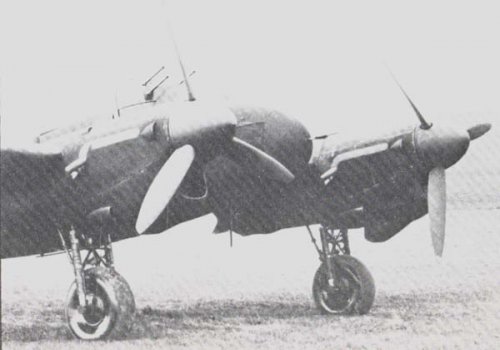

Another turret Mosquito, this one with Bristol B.XI (from Air Int'l Vol 24 No2).

And a photo (from Planes Vol 1 No2) of Justo's turret Beaufighter sideview. The A&AEE test pilot made one of my favourite all-time comments: "entry into this aircraft is difficult; it is recommended that it is made impossible".


Attachments

  • beau-turret.jpg
    30.4 KB · Views: 185
  • moss-turret.jpg
    31.7 KB · Views: 171
W

Wingknut

Guest

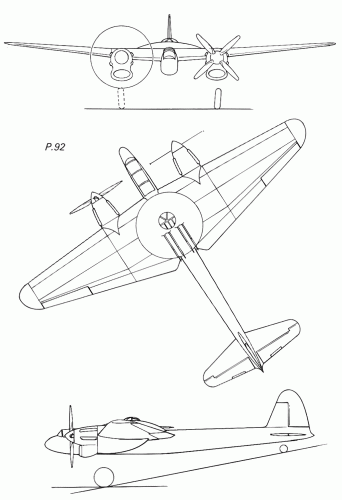

Below, three-view of the Boulton Paul P.92 turret-fighter.
Image comes from the following page on the P.92/2 flying scale model:
http://www.aviastar.org/air/england/boulton_p-92.php


Attachments

  • Boulton Paul P92 (3 view).gif
    Boulton Paul P92 (3 view).gif
    30.4 KB · Views: 259

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,360
Reaction score
6,006
Hi,

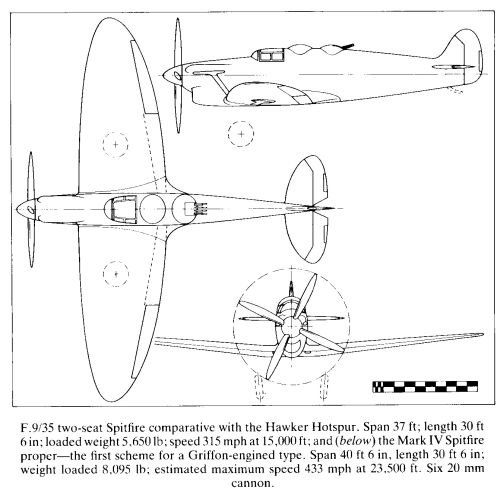

here is the Supermarine Type 305 for Spec. F9/35.


Attachments

  • 305    2.jpg
    305 2.jpg
    41.5 KB · Views: 727

Nik

ACCESS: Top Secret
Joined
Jul 15, 2009
Messages
508
Reaction score
163
Was this targeted on the Boulton-Paul 'Defiant' niche ??


I can't see any forward-facing guns...


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,855
Reaction score
1,495

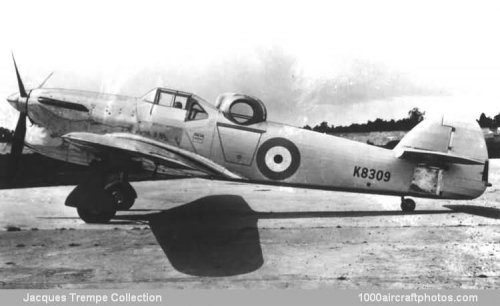

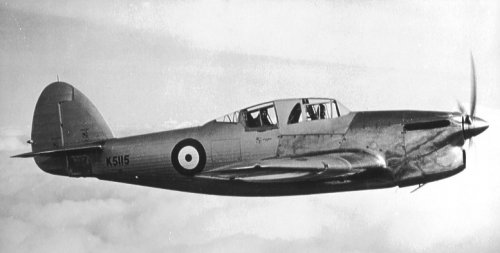

Yes, designed to the Demon replacement spec, F.9/35, for a 2-seat, four-gun turret fighter.

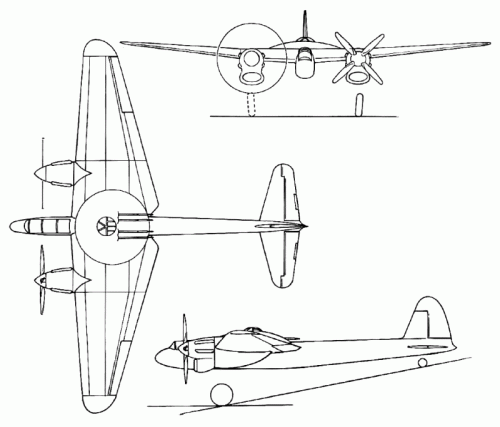

Armstrong Whitworth F.9/35 - 2 x AS Terrier pusher props, 4-gun turret behind and above pilot's cockpit. Prototype K8624 was to be an AW.34 conversion, order cancelled.

Boulton Paul P.82 = Defiant

Bristol Type 147: turret fighter development of single-seat Type 146 (and thus related to Type 148 army co-op for A.39/34). Turret was a well faired, remotely-controlled 4-gun barbette. Type 147 was Perseus powered, Type 147A was to have a Hercules.

http://www.secretprojects.co.uk/forum/index.php/topic,3537.msg28110.html#msg28110

Fairey F.9/35: Hercules-powered engine and its four-gun turret, when facing rearwards, was blended flush with the pilot's cockpit.

Gloster F.9/35: single-engine (Hercules?) turret fighter

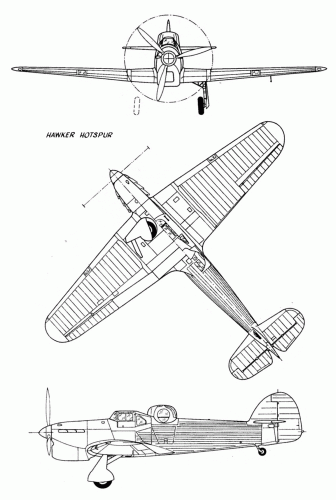

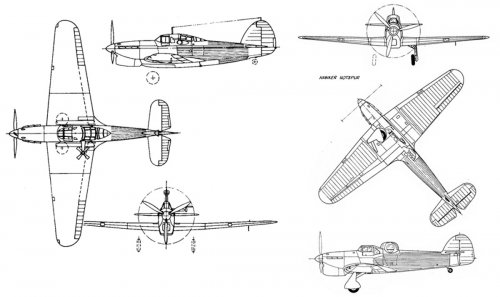

Hawker F.9/35 = Hotspur.

Supermarine 305: remote turret relative of Type 224. Originally planned with 4 x Brownings, Buttler says later plans replaced these guns with 4 x Lewis .303" guns.

http://www.secretprojects.co.uk/forum/index.php/topic,3537.msg28022.html

Vickers F.9/35: Merlin-powered turret fighter


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
Funny how the Model 305 has been labelled as the "Gun Turret Spitfire" in some sources. From the top I understand, but in profile I can't see a hint of a similarity here... ???


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
804
Also you give the Bristol 147 as being Perseus-powered, while I have it with a Pegasus... Which is the correct version? ???


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,855
Reaction score
1,495
Stargazer2006 said:
Also you give the Bristol 147 as being Perseus-powered, while I have it with a Pegasus... Which is the correct version? ???

Stéphane: I believe that Perseus is correct -- being also used in another turret fighter, the Roc, and being intended for the Type 148. [BTW: the Type 148B had a Taurus so that engine might have been intended as an alternative for the Type 147.]

The Pegasus seems mostly to have been used in bomber types.

Stargazer2006 said:
Funny how the Model 305 has been labelled as the "Gun Turret Spitfire" in some sources. From the top I understand, but in profile I can't see a hint of a similarity here... ???

Too true. Some of the minor detail differences in wings and tailplane can be attributed to the relatively early stage of Type 300 development at the time that the Type 305 design was drawn.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
115
In the 'Turret Fighters-Defiant and Roc'- Crowood , Alec Brew
mentions two Bristol 147 entries to Spec.F9/35.
One with Perseus and one with Hercules.

In the Putnam about Bristol Aircraft they a labelled as Bristol 147A and Bristol 147B...


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,072
Reaction score
4,158

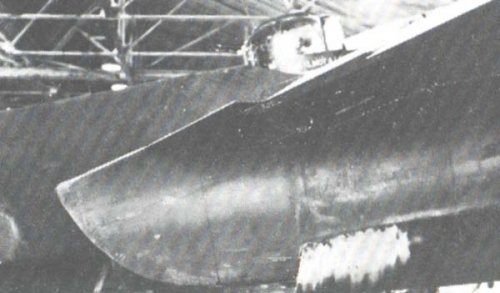

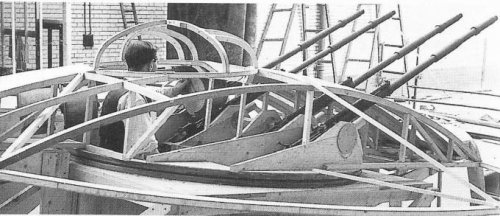

Hi! Boulton Paul P.92 turret mockup.
https://forum.warthunder.com/index.php?/topic/311768-prototype-planes-branch-in-premium-part/

P.92 three side view drawing.
http://www.airwar.ru/enc/xplane/p92.html


Attachments

  • Boulton-Paul_P92-01-680x293.jpg
    58 KB · Views: 435
  • p92-1.gif
    257.3 KB · Views: 391

Avimimus

ACCESS: Top Secret
Joined
Dec 16, 2007
Messages
2,076
Reaction score
235
So I take it that the four Hispano turrets in the mockup didn't have room for a second crew member to help with reloading.

Would this also be true of the turrets in B.1/39 competition? See: https://www.secretprojects.co.uk/forum/index.php/topic,29519.0.html

hesham said:
Hi,

here is the Supermarine Type 305 for Spec. F9/35.

The caption for the pictures says 6x20mm cannon - surely this is inaccurate?


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,592
Reaction score
909
You are correct, I'd never noticed that before. Armament was 4 Brownings


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,072
Reaction score
4,158

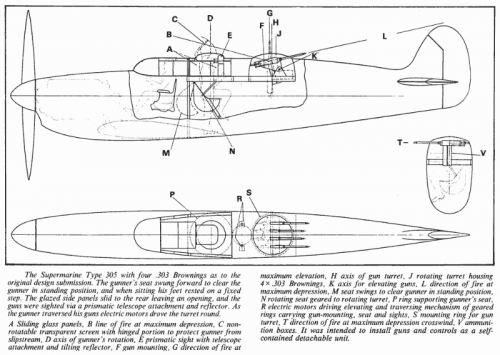

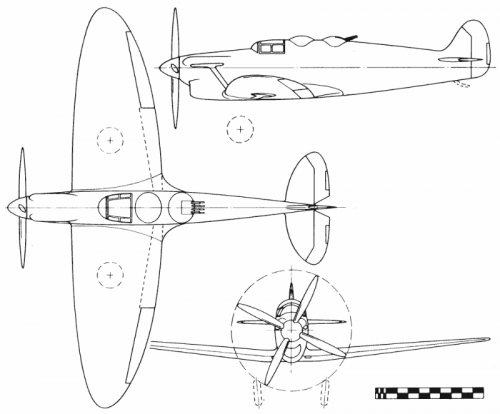

Hi! Larger image.
http://beyondthesprues.com/Forum/index.php?topic=402.0


Attachments

  • TYPE-305_02.png
    127 KB · Views: 362
  • TYPE-305_01.png
    72.5 KB · Views: 346

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,072
Reaction score
4,158

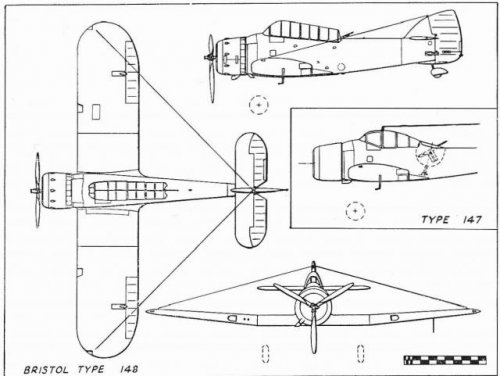

Hi! Bristol 147 and 148.

http://alternathistory.com/semeistvo-opytnykh-istrebitelei-i-udarnykh-samoletov-bristol-146-147-i-148-velikobritaniya

Excellent contribution for Defiant project.(P.85A.P.85B, P.88, P.96, P.103A and B, P.105B and P.107, etc)
https://www.secretprojects.co.uk/forum/index.php/topic,8329.0/all.html


Attachments

  • Bristol-146-147-148-05-640x481.jpg
    41.3 KB · Views: 315

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,072
Reaction score
4,158

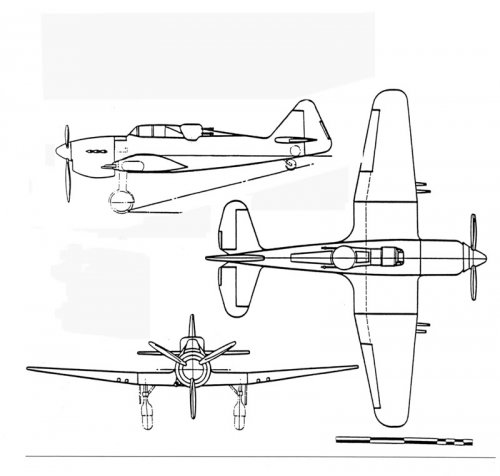

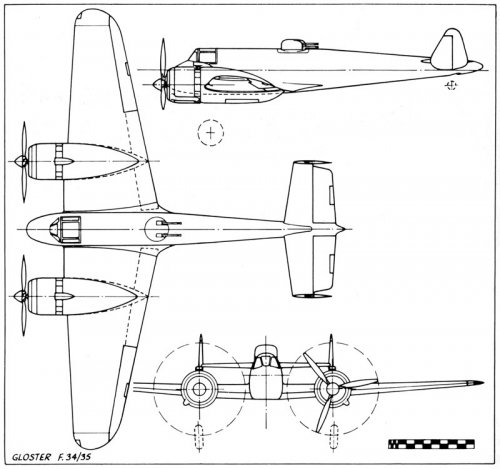

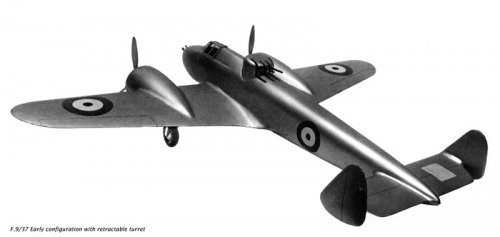

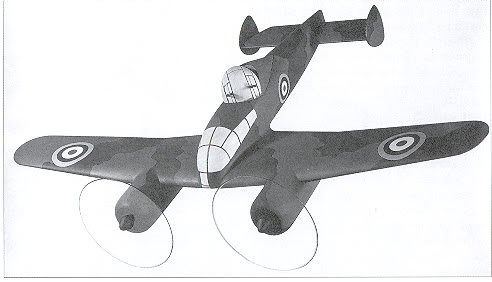

Hi! Gloster F.34/35 and F.9/37 early configulation.
http://www.whatifmodellers.com/index.php?topic=21240.0

Later F.9/37.
https://www.warbirdsforum.com/topic/424-gloster-twin-engined-fighters/

PDF file.
https://www.docdroid.net/VnPdqKb/gloster-f9-37-aeroplane-monthly-magazine-2006-02.pdf#page=3


Attachments

  • F34_35_01.jpg
    73.1 KB · Views: 111
  • F9_37_TURRET_01.jpg
    27.9 KB · Views: 109

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,072
Reaction score
4,158

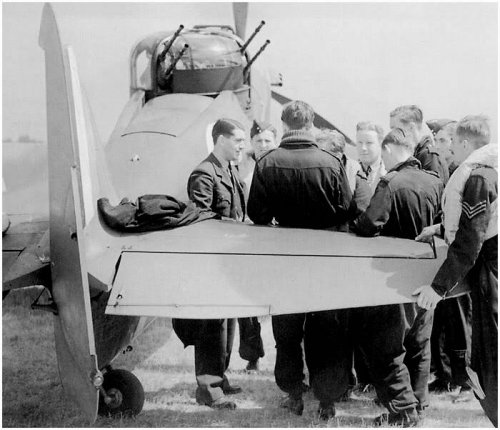

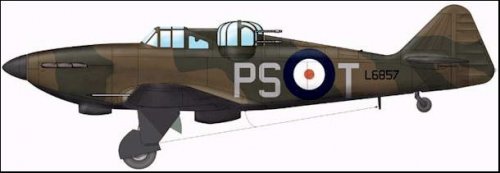

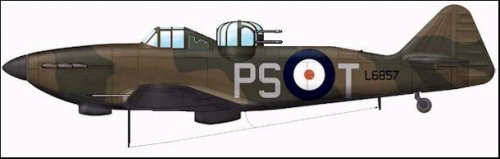

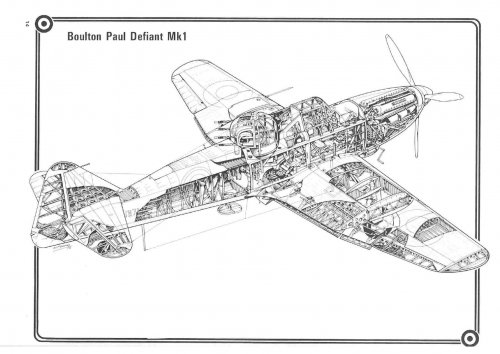

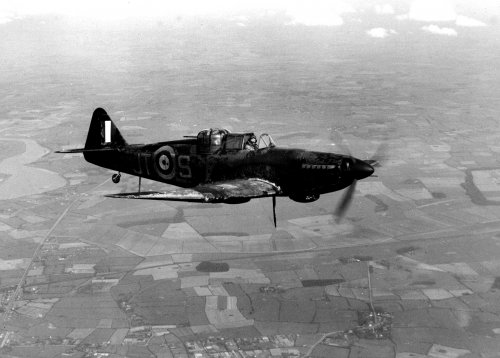

Hi! Defiant.
https://www.youtube.com/watch?v=ce9My4IKydo


Attachments

  • 600px-Defiant_turret_fairings.jpg
    38.6 KB · Views: 91

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,072
Reaction score
4,158

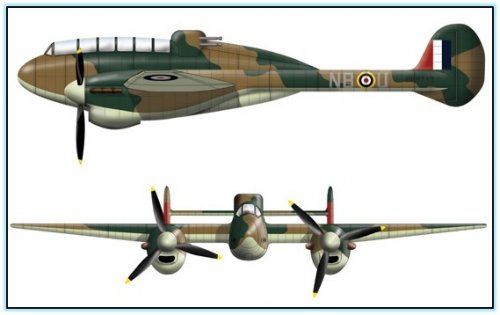

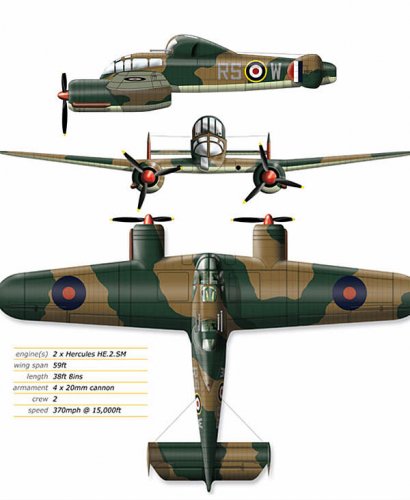

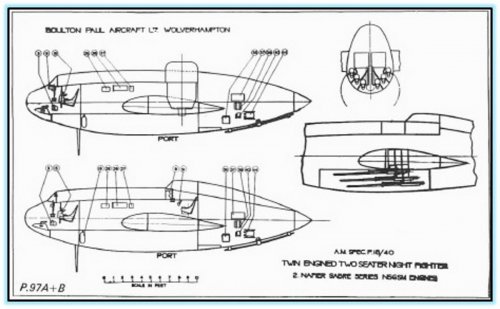

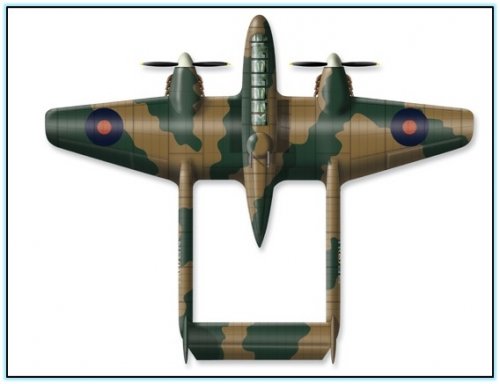

F.18/40 Night fighter with turret.
Boulton Paul P.97B.
Picture source.
http://raigap.livejournal.com/474600.html

Good explanation.
http://www.historyofwar.org/articles/weapons_boulton_paul_P97.html
"The P.97 was designed with several alternative armament layouts. The most conventional had fixed forward firing cannon and the Turret from the Boulton Paul Defiant carried above the wing (P.97B). There was also a version with the standard cannon but without the turret (P.97A). A raised navigator's position replaced the turret. In both cases the six cannon were to be carried in a weapons bay within the central nacelle, below the mid mounted wings.

A more radical version would have been armed with twin 20mm cannon, carried in slots on either side of the nose, and capable of moving up or down. This would have been for ground attack missions, allowing the aircraft to fly level while hitting ground targets. Although the P.97 didn’t get built, the movable cannon concept was used in a modified form on the post-war Avro Shackleton. "


Attachments

  • P.97A and P.97B.jpg
    P.97A and P.97B.jpg
    164.4 KB · Views: 125
  • P.97A.jpg
    58.1 KB · Views: 106
  • 1450005_original.jpg
    45.1 KB · Views: 98
  • 1449906_original.jpg
    44.5 KB · Views: 104
  • P97B.jpg
    28 KB · Views: 109

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,072
Reaction score
4,158

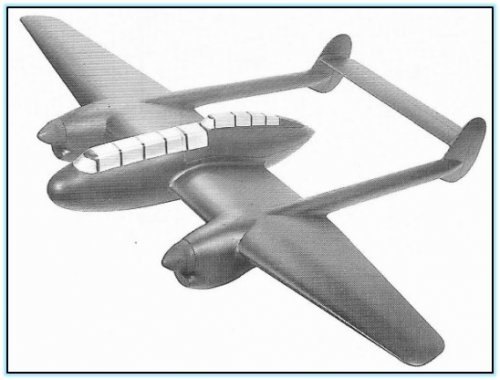

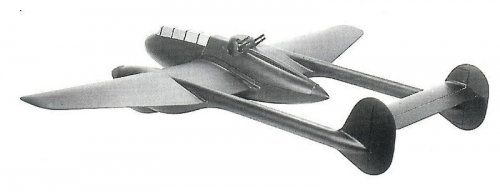

Bouton Paul P.96.

Good explanation.
http://www.historyofwar.org/articles/weapons_boulton_paul_P96.html

Model picture.
http://beyondthesprues.com/Forum/index.php?topic=6259.30

THree side view drawing.
https://www.tapatalk.com/groups/airfixtributeforum/airfix-2011-special-what-if-gb-drtemplar-s-boulton-t29885.html


Attachments

  • P.96 three side view.jpg
    P.96 three side view.jpg
    48.3 KB · Views: 122
  • P96.jpg
    49.7 KB · Views: 121

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,072
Reaction score
4,158

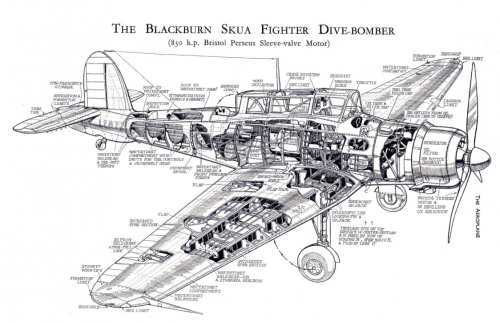

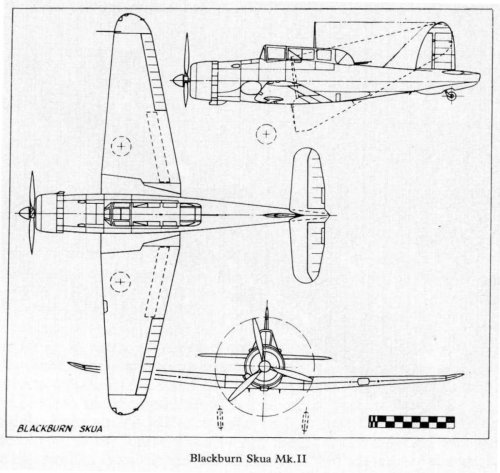

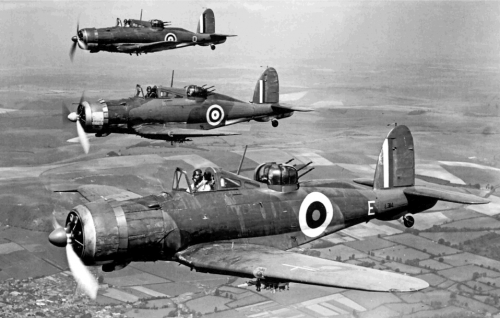

Hi! Blackburn Skua.
Generally Skua is called bomber, but had fighter role.


Attachments

  • Skua.jpg
    213.9 KB · Views: 97
  • Blacburn Skua.png
    Blacburn Skua.png
    929 KB · Views: 84

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,072
Reaction score
4,158

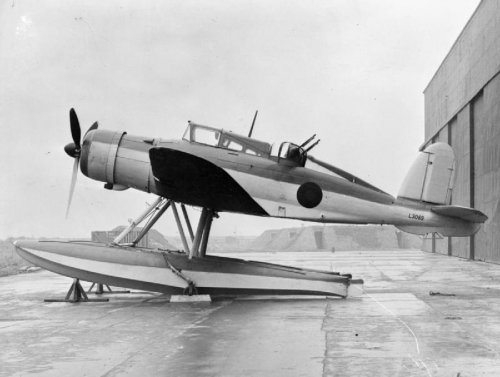

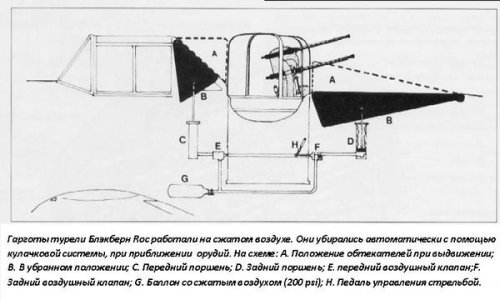

Hi! Blackburn Roc floatplane prototype. And retracted turret fairing.

https://commons.wikimedia.org/wiki/File:Aircraft_of_the_Fleet_Air_Arm,_1939-1945_-_Blackburn_Roc_floatplane.jpg


Attachments

  • Blackburn Roc floatplane prototype.jpg
    Blackburn Roc floatplane prototype.jpg
    52.2 KB · Views: 390
  • Roc.png
    303.5 KB · Views: 390

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,072
Reaction score
4,158
Schneiderman said:
blackkite said:

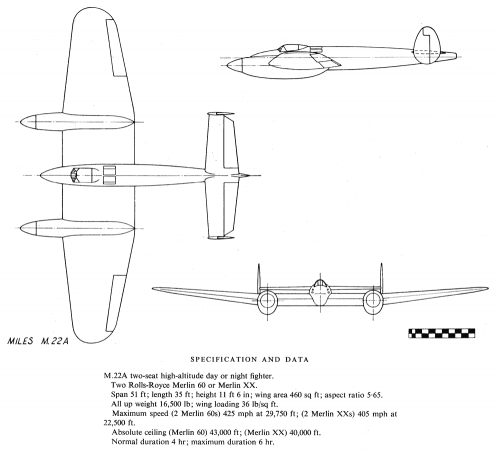

Miles M.22 alternative version had four gun turret.
Four guns, yes. Turret, no.
Ummm.....Which opinion is correct?

I added Skua.
https://www.secretprojects.co.uk/forum/index.php/topic,3537.15.html


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,592
Reaction score
909
blackkite said:
Schneiderman said:
blackkite said:
Miles M.22 alternative version had four gun turret.
Four guns, yes. Turret, no.
Ummm.....Which opinion is correct?

Well since the original post with the M.22 hs been removed I guess you know. The 3-view clearly showed four fixed guns in the nose and no turret.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,072
Reaction score
4,158
Terrible sorry I made a mistake. I deleted M22A three side view drawing contrary to intention.

How do you think about the possibility of Miles M.22A alternative version.


Attachments

  • MILES_M22A_01.png
    40.1 KB · Views: 348

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,072
Reaction score
4,158
Defiant had same retractable turret fairling, too. Sorry for off topic.
The first picture shows Battle of Britain.

https://www.pinterest.jp/pin/561753753502559413/

https://forum.warthunder.com/index.php?/topic/127812-campaign-for-the-39turreted-oddity39-the-p82-boulton-paul-defiant/


Attachments

  • def38.jpg
    55.5 KB · Views: 100
  • def42.jpg
    13.9 KB · Views: 77
  • def41.jpg
    14.6 KB · Views: 86
  • 3OqtyGU.jpg
    235.3 KB · Views: 102
  • Defiant.jpg
    297 KB · Views: 327

Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,592
Reaction score
909
blackkite said:
How do you think about the possibility of Miles M.22 alternative version.

Don Brown says that Miles suggested a version with a Boulton Paul turret but that is not the one in the drawing, which has four fixed cannon in the nose


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,072
Reaction score
4,158
Hi! Bristol F.11/37.

F.11/37 Twin-engine two-seat day & night fighter/ground support

http://fantastic-plastic.com/BristolF11-37.htm

https://notiforo.com/foros/viewtopic.php?t=14475&start=50


Attachments

  • bristol1137-box.jpg
    80.8 KB · Views: 99
  • bristol1137-1.jpg
    47.3 KB · Views: 127
  • aafde9b8.jpg
    25.1 KB · Views: 121

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,072
Reaction score
4,158

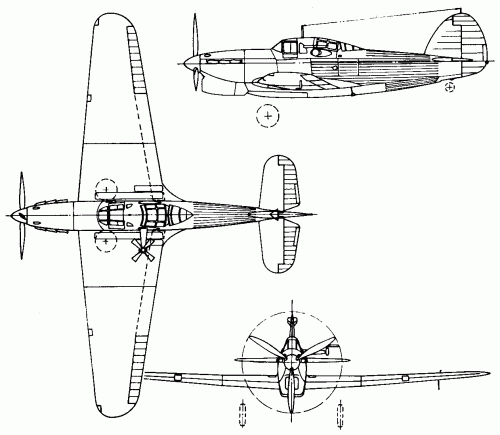

Hi! Hawker Hotspur.
Hotspur's base is Henley.

Hotspur Wikipedia.
https://en.wikipedia.org/wiki/Hawker_Hotspur
"The Hawker Hotspur was a Hawker Henley redesigned to take a Boulton-Paul semi-powered four gun turret. It was designed in response to Air Ministry Specification F.9/35, which required a powered turret as the main armament to replace the Hawker Demon."

"In the same fashion as the Henley, the Hotspur used standard Hurricane outer wing panels. One prototype aircraft, K8309, was built in 1937, fitted with armament of four 0.303 in (7.7 mm) Browning machine guns in a Boulton Paul dorsal turret plus one .303 in (7.7 mm) Vickers machine gun mounted in the front fuselage. The completion of the prototype was delayed until 1938, by which time the rival Boulton Paul Defiant had already flown. The Hotspur first flew on 14 June 1938 with only a wooden mock-up of the turret and with ballast equivalent to the weight of armament."

Henley wikipedia.
https://en.wikipedia.org/wiki/Hawker_Henley

Hotspur picture source.
https://forum.warthunder.com/index.php?/topic/273530-hawker-hotspur/
Henley picture source.
http://www.svida.cz/horrido/index.php?id=209
Hotspur three side view drawing source.
http://www.airwar.ru/enc/fww2/hotspur.html
Henley three side view drawing spurce.
http://www.aviastar.org/air/england/hawker_henley.php


Attachments

  • jsj_hawker_henley_464.jpg
    55.7 KB · Views: 85
  • Hotspur.jpg
    47.2 KB · Views: 97
  • Henley_and_Hotspur.jpg
    108.1 KB · Views: 106
  • hawker_henley.gif
    21.6 KB · Views: 105
  • hotspur-1.gif
    481.8 KB · Views: 107
  • hawker-demon-fighter.jpg
    29.1 KB · Views: 104
Top
