Hi all,

I search for drawing of some Hawker fighter projects. Hope you can help:
1) Hawker Henley Escort fighter conversion
2) Hawker Henley Close Support Bomber
3) Hawker Typhoon with Turbo-Supercharger
4) Hawker Tempest with Bristol Centaurus
5) Hawker Tempest Mk.I with Sabre IV
6) Hawker Tempest development with Sabre (P.1024)
7) Hawker Tempest with R.R.46

Thanks Maveric


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,389
Reaction score
105
Website
cluttonfred.info
Maveric said:
1) Hawker Henley Escort fighter conversion
2) Hawker Henley Close Support Bomber

For the two Henley-related items, I think that the "Hawker Henley Close Support Bomber" was just the original Henley design as embodied by the prototype K5115 with a single gun in the wing, one on a pintle for the gunner/observer, internal bay for 550 lbs of bombs and another 200 lbs (8 x 25 lbs) on the wings.

A developed Henley, say with twin flexible guns, a few more forward-firing guns or a couple of 20mm cannon, a later and more powerful version of the Merlin, added armor, etc. might well have been useful and certainly more effective than the terrible Fairey Battle. That said, the Allied concept of a fighter-bomber seems to have been an even better alternative--there's not a lot that a flight of Henleys could do that couldn't been done as well or better by a flight of Hurribombers, which can also mix it up as fighters once they drop their bombs.

I have never seen anything on the "Hawker Henley Escort fighter conversion" other than a couple of remarks to the effect that it might have made a good one (such as the LIFE magazine caption below). Mason's HAWKER AIRCRAFT SINCE 1920 says, "Hurricane and Henley...outer wing sections and tailplane were built on identical jigs, though of course the eight-gun battery was absent from the Henley." Presumably, then, an escort fighter conversion of the Henley would be as simple as replacing the Henley outer wings with the eight-gun Hurricane ones, deleting the rear gunner's position and fitting the bomb bay with a large fuel tank.

Again, though, the result doesn't really seem worth the trouble vs. just using a Hurricane. Late-model Hurricanes could carry of pair of 44- or even 90-gallon drop tanks and it wouldn't have been hard to come up with slightly modified long-range Hurricane with an extra fuselage bay or larger wing center section to carry that fuel internally and avoid the drag penalty of the drop tanks.


Attachments

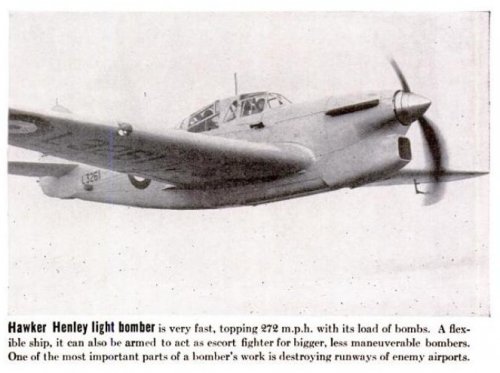

  • Hawker Henley - LIFE - September 11 1939 - p62.jpg
    Hawker Henley - LIFE - September 11 1939 - p62.jpg
    90.5 KB · Views: 1,026

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,978
Reaction score
333

Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,641
Reaction score
960
Might a "Henley Escort fighter conversion" suggest that Hawker was getting cold feet about the RAF's turret fighter fomula? Added fixed guns to the Hotspur would have been the other, heavier option.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
467
A couple of Hawker fighter projects from the Putnam book Hawker Aircraft since 1920:


Attachments

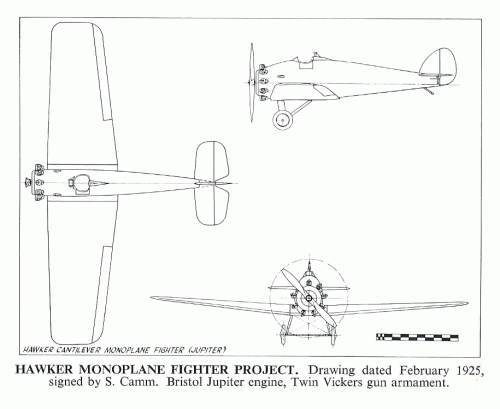

  • Monoplane Fighter (project, February 1925).gif
    Monoplane Fighter (project, February 1925).gif
    79.3 KB · Views: 612

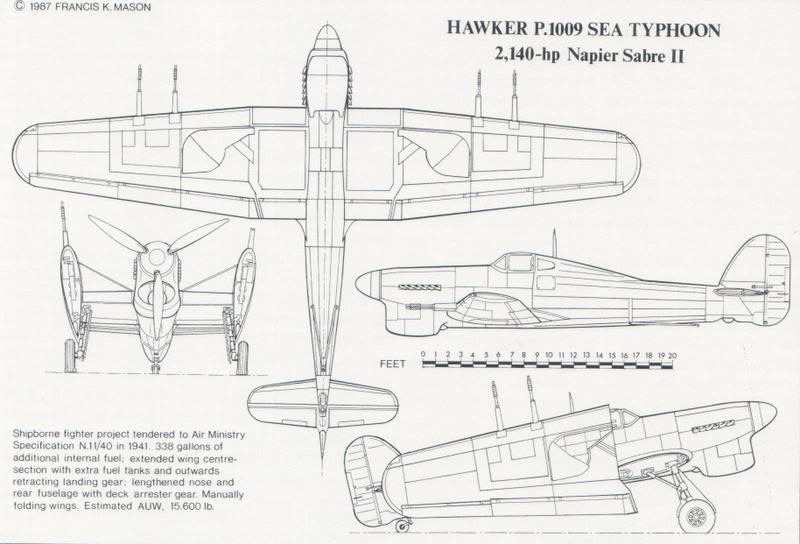

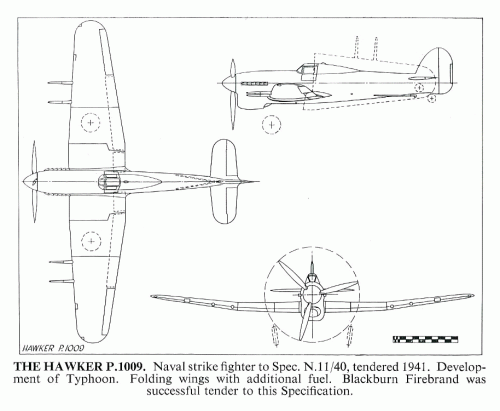

  • P.1009 (project, 1941).gif
    P.1009 (project, 1941).gif
    86.5 KB · Views: 627

dogsbody

ACCESS: Restricted
Joined
Nov 26, 2007
Messages
22
Reaction score
8
Hawker SeaTyphoon.





Chris

Last edited:

J.A.W.

"Keep on Truckin'.."
Joined
Mar 1, 2014
Messages
662
Reaction score
4
That thick Typhoon wing was notorious for having bad (high-G stop) water ditching characteristics,
- often fatal for pilots who were rendered senseless & unable to escape.

How much consideration would the FAA have put on this factor?

Unless Hawker had tested the modified wing to demonstrate a significant improvement?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,484
Reaction score
2,776

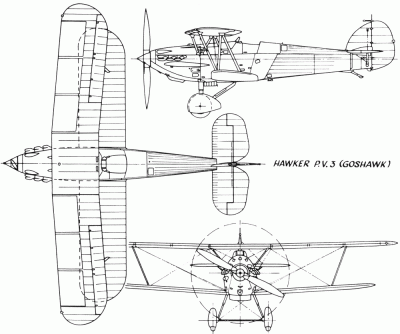

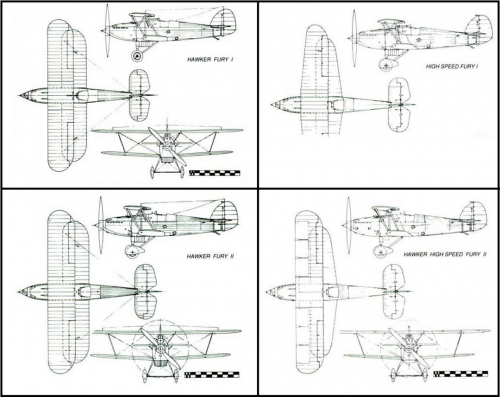

Hi! High speed Fury.

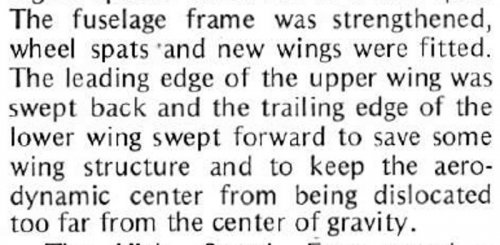

High speed Fury MarkⅡ looks like P.V.3, but P.V.3 had wing with sweep back leading edge.

http://forum.worldofwarplanes.com/index.php?/topic/31516-spoiler-what-the-british-tech-tree-could-look-like/

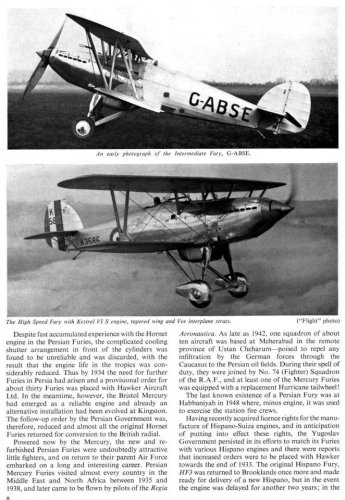

Hawker continued to develop Fury MK. I as the private venture. The first development type was Intermeadiet Fury , which was given the sign of a civilian aircraft called G-ABSE, and was first flown on April 13, 1932. Intermeadiet Fury was used for the development of goshawk engine and its steam coolers and spats wheels. The next development type was high-speed fury , equipped with tapered wings with V-shaped strut for resistance reduction and with Kestrel engine. It was then used for the development of goshawk engine and its steam coolers for the spec F.7/30, which returned to the original shape wing with original shape strut. The steam cooler was equipped to the upper wing front edge. Finally, high-speed fury was equipped with goshawk-b43 engine and a semi-retractable cooler, and recorded the maximum speed of 446km/h in a state equipped with two guns. But the development of goshawk engine by steam cooling ended in failure.

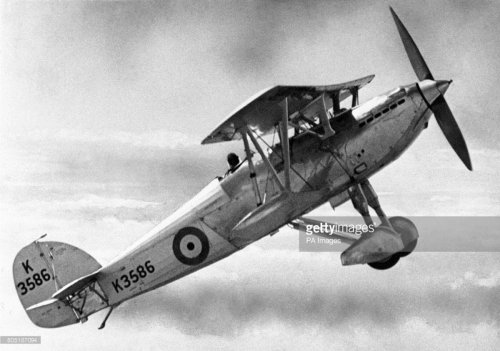

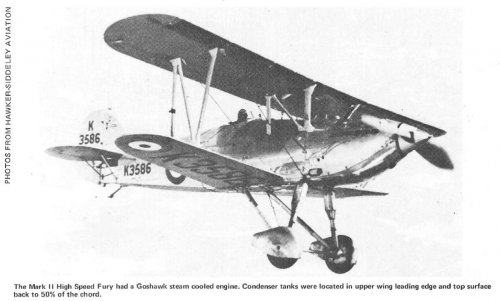

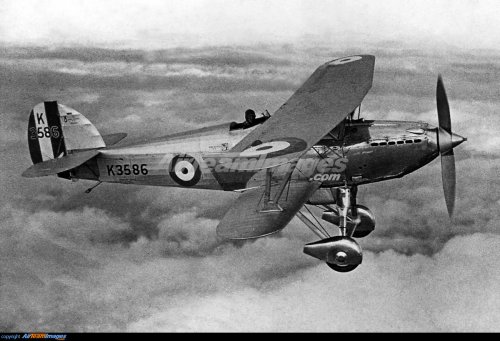

So bottom two picture's aircraft number(K3586) are same.


Attachments

  • High speed Fury Ⅱ jpg.jpg
    High speed Fury Ⅱ jpg.jpg
    260.9 KB · Views: 53
  • High speed Fury Ⅰ.jpg
    High speed Fury Ⅰ.jpg
    252.1 KB · Views: 33
  • Mark_Ⅰ_description.jpg
    76.4 KB · Views: 32
  • hawkerpv3-1.gif
    25.8 KB · Views: 46
  • High_speed_Fury_MkⅡ.jpg
    161.7 KB · Views: 66
  • AIRCRAFT DESCRIBED. HAWKER HIGH SPEED FURY. MODEL BUILDER. NOVEMBER 1976.pdf
    952.4 KB · Views: 14
  • AIrGHAS.png
    727.5 KB · Views: 73
  • Hawker%20Fury%20(18)_Page_08-960.jpg
    103.8 KB · Views: 45
