Avro 730 and other OR.330 Reconnaissance/Bomber designs

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,568
Reaction score
3,855
From "Were the Wrights Right?" by B R A Burns in Air International December 1983

The Avro design is the late 730 design, the other two designs were labelled as Handley Page and Vickers, but transposed (the Handley Page design is known from Secret Projects: Jet Bombers). The third design doesn't match the Vickers design from there however.


Attachments

  • Avro-730.jpg
    37.5 KB · Views: 1,522
  • HP.jpg
    42.1 KB · Views: 1,473
  • Vickers.jpg
    53.5 KB · Views: 2,353

Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,433
Reaction score
1,938
Re: OR.330 Bomber Projects

Hello!

The vickers design you mention is also in B.S.P (bombers) but not in the Avro 730 chapter... it is on the apendix. It seems it was a private venture, and performances are below the specs of the 730...
I have to check
Hmmm I'm fascinated by the English Electric P.10. This "ramjet wing" was very impressive...

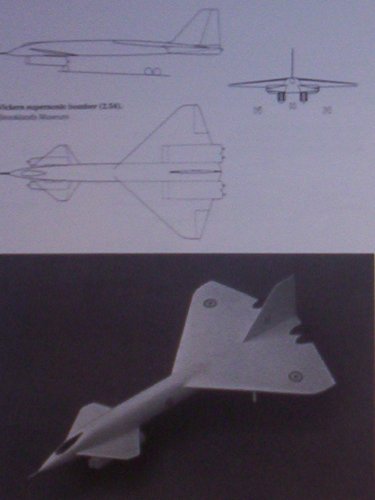

Pics of the vickers project (or it's siblimg, the two are very similar)


Attachments

  • Diapositive1.JPG
    86 KB · Views: 1,412

Akaikaze

The hardest word to define is 'Normal'
Joined
Jan 14, 2007
Messages
66
Reaction score
1
Re: OR.330 Bomber Projects

Does anyone know of any pictures of the Avro 730 bomber? No, I'm not talking about drawings or models. The actual aircraft. Several sources state the construction on the first machine was well underway when the axe fell and the body was cut up and used as scrap bins. But before it was hacked to pieces, did anyone photograph it? I would love to see just how far it was along... :p
It took me ten years to find out just what it looked like and I have a great interest in it's history, but this is one item missing from my research...
Anyone?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,568
Reaction score
3,855
Re: OR.330 Bomber Projects

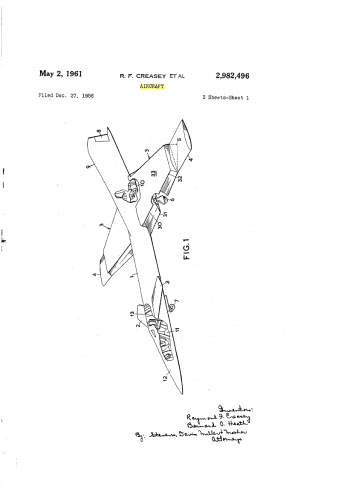

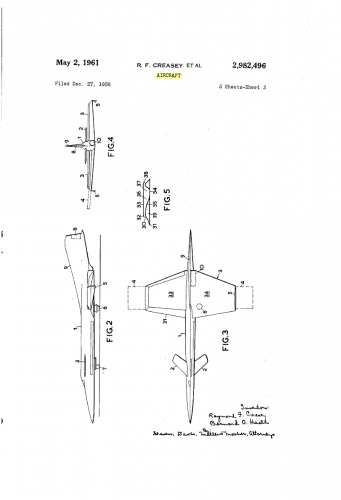

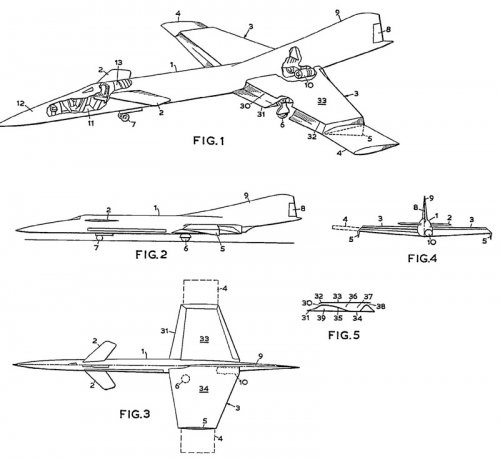

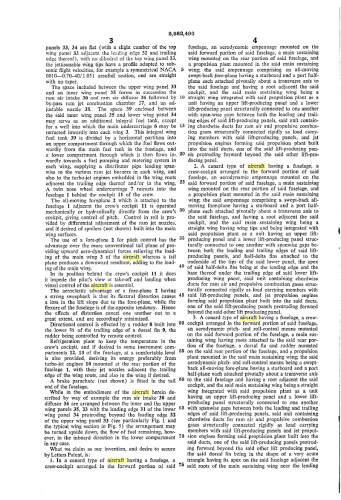

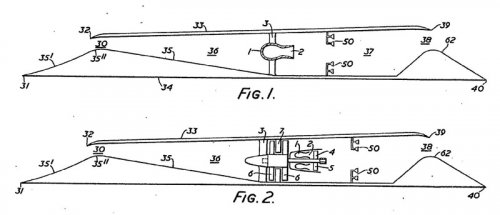

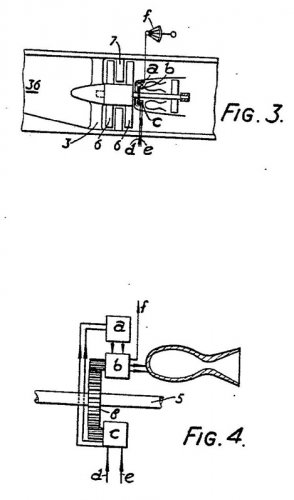

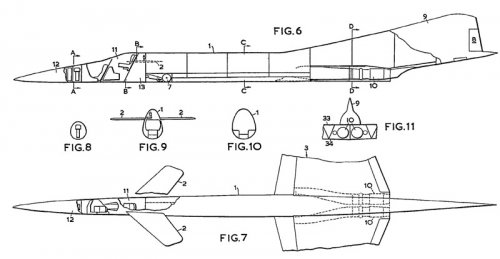

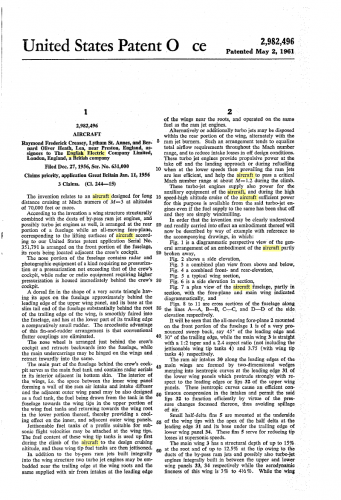

English Electric P.10 patent.


Attachments

  • patents5.png
    103 KB · Views: 199
  • patents4.png
    88.7 KB · Views: 202
  • patents3.png
    18.3 KB · Views: 314
  • patents2.png
    23.6 KB · Views: 379
  • patents1.png
    18.7 KB · Views: 1,182

Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,433
Reaction score
1,938
Re: OR.330 Bomber Projects

Akaikaze said:
Does anyone know of any pictures of the Avro 730 bomber? No, I'm not talking about drawings or models. The actual aircraft. Several sources state the construction on the first machine was well underway when the axe fell and the body was cut up and used as scrap bins. But before it was hacked to pieces, did anyone photograph it? I would love to see just how far it was along... :p
It took me ten years to find out just what it looked like and I have a great interest in it's history, but this is one item missing from my research...
Anyone?

I'm backing your request!

Is there any photos of the sole Avro 730 ever build ? ???

Maybe there's no photos at all because the plane was highly secret, it represented the most advanced technology in GB (and maybe in the world)


Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,433
Reaction score
1,938
Re: OR.330 Bomber Projects

http://images.google.fr/imgres?imgurl=http://www.ingenious.org.uk/media/4.0_SAC/webimages/1023/7/10237469_1.jpg&imgrefurl=http://www.ingenious.org.uk/See/Transport/Aeronautics/%3FpageNo%3D14%26s%3DS1%26viewby%3Dimages%26&h=104&w=128&sz=4&hl=fr&start=24&tbnid=hi9LqBQFhhNckM:&tbnh=74&tbnw=91&prev=/images%3Fq%3DAvro-730%26start%3D20%26ndsp%3D20%26svnum%3D10%26hl%3Dfr%26sa%3DN

Found that on the web...


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
887
Reaction score
56
Re: OR.330 Bomber Projects

Archibald said:
Is there any photos of the sole Avro 730 ever build ? ???

Maybe there's no photos at all because the plane was highly secret, it represented the most advanced technology in GB (and maybe in the world)

It is odd that that no photos of the partially complete Avro 730 have come to light?

I assume that the first Avro 730 prototype was at least partially complete because there is a reference to the stainless steel fuselage being cut into sections, which were turned into large rubbish bins for scrap metal.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,568
Reaction score
3,855
Re: OR.330 Bomber Projects

From Tony Buttler

Someone on the forum was asking about photos of the Avro 730 prototype. I am
pretty sure that photographs would have been taken of the progress being
made for such an important aircraft, but the work would have been very
secret and so prints would probably only have been sent to the Ministry. You
may know that in the late 1950s, after the 730 had been cancelled, the Avro
photographic archive, will all of its negatives, was destroyed in a fire.
That would have included any 730 images, and I am pretty certain after that
only the odd print in the hands of the Air Staff or a designer might have
survived.

British Ministry files, after they are finished with by their creators, are
passed into store. Then, after a certain time period, they a weeded out. The
best are held back to go into the National Archives and the rest are
destroyed. I think I have been through all of the 730 files held at Kew and
I have never come across any photographs of the prototype. It seems to me
that the chance of any original prints now turning up is very very small
indeed. There are prints around of the project model made for the original
proposal, but again no company pictures have been seen for a model of the
730 in the form it was to be built.


Archibald

ACCESS: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
4,433
Reaction score
1,938
Re: OR.330 Bomber Projects

Thank you Overscan (and, tant qu'on y est, thanks Mr Buttler for all the details and its marvellous books. ;) )

I suppose this damned fire also explain why there's no detail on Avro 732 (and Supersonic Vulcan :mad: )
Damned fire!!!


smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
34
Re: OR.330 Bomber Projects

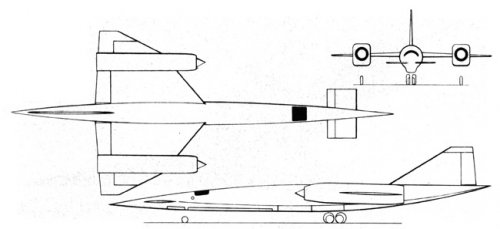

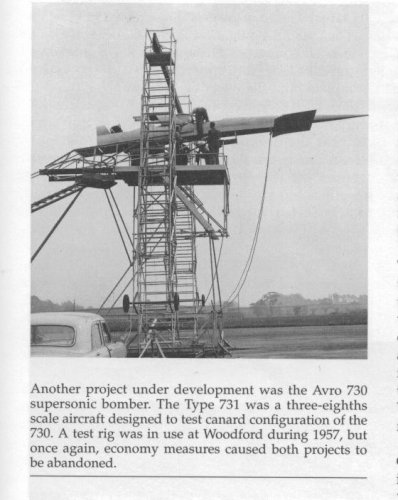

This may be the nearest we shall get (from Avro by Harry Holmes) though IIRC there were some similar ones in colour in Air Enthusiast some years ago.


Attachments

  • avro.jpg
    58.9 KB · Views: 541

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
791
Reaction score
111
Re: OR.330 Bomber Projects

Jan Velek said:

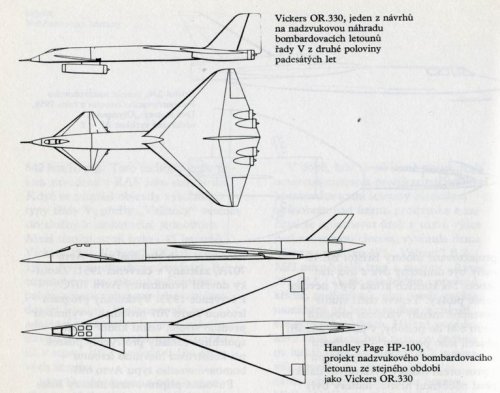

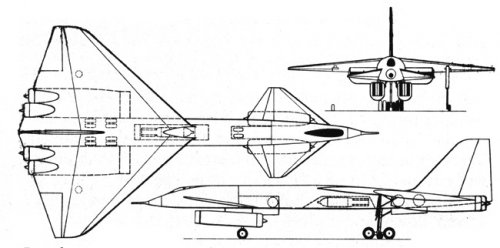

Vickers OR.330.
from: V.Nemecek "Vojenska letadla" Vol.5


Attachments

  • P C318 a.jpg
    P C318 a.jpg
    62.5 KB · Views: 538

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,568
Reaction score
3,855
Re: OR.330 Bomber Projects

Handley-Page HP.100
Vickers R.156T
English Electric P.10
Avro 730 (2 variants)
Short PD.12


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,568
Reaction score
3,855
Re: OR.330 Bomber Projects

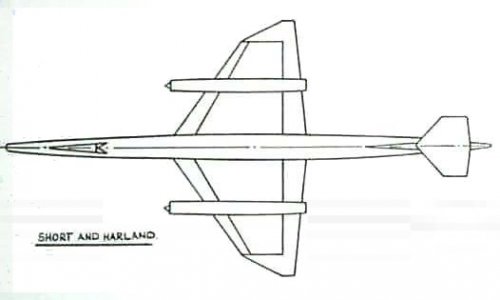

Shorts project, from Chris Gibson's Skomer website


Attachments

  • shorts.jpg
    15.3 KB · Views: 247

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,806
Reaction score
77
Re: OR.330 Bomber Projects

and:

Saro P.188-1
P.188-2

mentioned in Tony Buttler's magnificient article:

AVRO 730 : Britain's still-born spy-plane : Air Pictorial. March 2002


mrdj

ACCESS: Restricted
Joined
Aug 9, 2007
Messages
4
Reaction score
0
Avro 730

I seem to recall reading that the Avro 730 prototype was being built at the time of cancellation. How far along was the construction, and are there any pictures of the airframe? Thank you for any help you can provide.

DJM


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,568
Reaction score
3,855
Re: Avro 730

http://www.secretprojects.co.uk/forum/index.php/topic,905.0.html

See Tony Buttler's reply...


JohnR

ACCESS: Top Secret
Senior Member
Joined
Sep 8, 2006
Messages
702
Reaction score
141
Re: Avro 730

Apparently its fuselage was cut up into sections and used as scrap metal bins!!!!


zebedee

ACCESS: Confidential
Joined
Mar 18, 2007
Messages
191
Reaction score
170
Website
www.flickr.com
Re: Avro 730

Lets look at the problem another way...

Does anyone have pics of the rubbish bins...?

Zeb


mrdj

ACCESS: Restricted
Joined
Aug 9, 2007
Messages
4
Reaction score
0
Re: Avro 730

I missed the earlier reply, thank you for the link.

That answers the pictures portion, are there any indications of how far along the project was? Was the fuselage complete, or wings?

DJM


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,300
Reaction score
130
Re: OR.330 Bomber Projects

Miles! Wasn't Miles already part of Hadley-Page ?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,568
Reaction score
3,855
Re: OR.330 Bomber Projects

According to Project Cancelled, Miles was liquidated in 1947, certain programs and assets were transferred to Handley Page becoming HP Reading, then in 1951 a new company (F.G. Miles) was formed which became Britten Norman in 1964, went into receivership in 1972 and transferred aircraft interest to Fairey Group in 1973.


danielgrimes

ACCESS: Confidential
Joined
Oct 8, 2007
Messages
57
Reaction score
0
Re: OR.330 Bomber Projects

I didn't think that Vicker's Wild Goose/Swallow was refined by then to become a submission - The unmanned wild goose tests were conducted in 1955 ;OR.330 was 1954?

Vickers conducted a lot of investigation into VG around 1956, and considered it for the TSR.2. The design team for Vicker's TSR.2 specification (Type 571) were headed up by Supermarine people, so favored the blown flaps they have developed on the Scimitar to unproven VG. Vicker's first VG design was the Type 581 in about 1959.


I do have real question about the two aircraft banded about for Vicker's OR330 submission.

The slender delta - called the SP4, Type 799, or R.156T in various sources - seems a far more likely contender for the time. It shares the lack of windscreen with the Avro 730 and its design themes can be clearly seen in the later Vickers-Supermarine Type 559 interceptor. The trapezoid winged aircraft looks a lot more modern. It is smaller than OR.330 submissions and does not have any lineage with any other Vickers Aircraft -most of Vicker's aircraft seem to have swept wings? It also appears to have a cockpit for 1 - which still would not be feasible for a bomber?

Any thoughts?


Attachments

  • vickers OR330 1.jpg
    vickers OR330 1.jpg
    7 KB · Views: 563
  • Vickers OR330.jpg
    Vickers OR330.jpg
    61.3 KB · Views: 614

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
929
Reaction score
93
Re: Avro 730

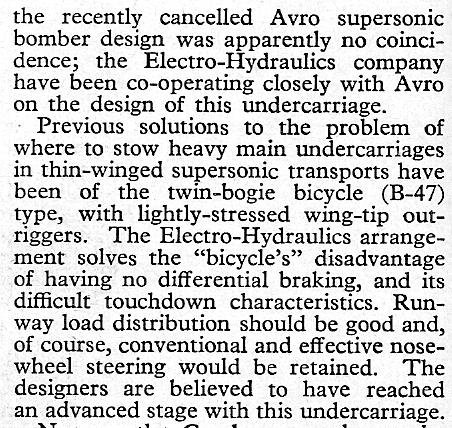

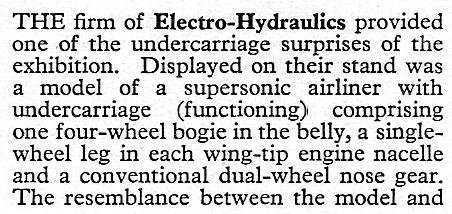

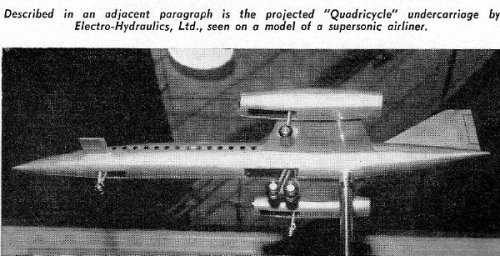

Flight 13 September 1957.


Attachments

  • scan0010 (4).jpg
    scan0010 (4).jpg
    88 KB · Views: 430
  • scan0010 (3).jpg
    scan0010 (3).jpg
    43.3 KB · Views: 472
  • scan0010 (2).jpg
    scan0010 (2).jpg
    65.1 KB · Views: 539

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,568
Reaction score
3,855
Re: OR.330 Bomber Projects

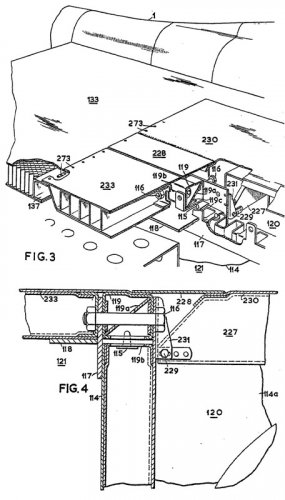

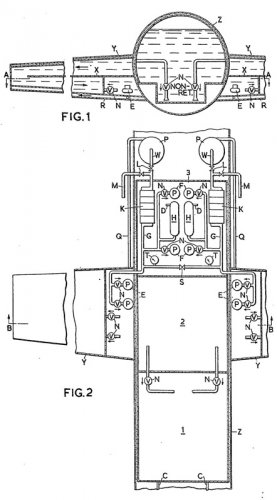

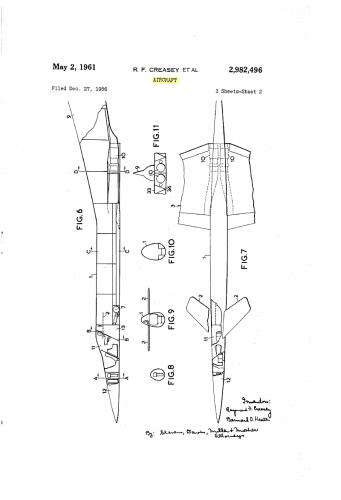

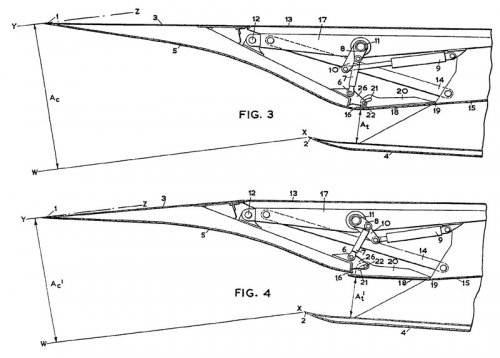

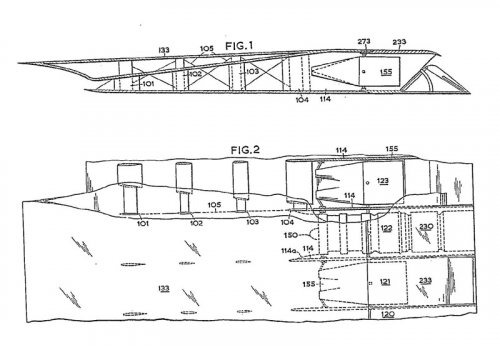

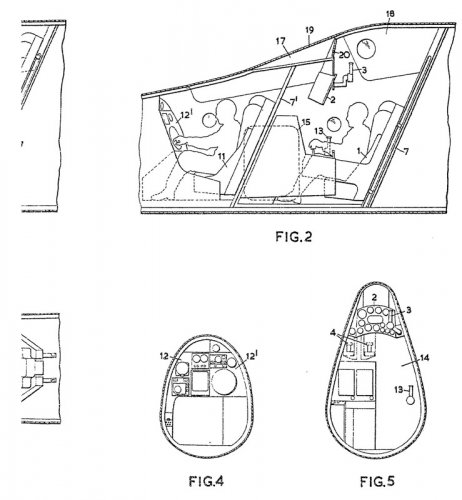

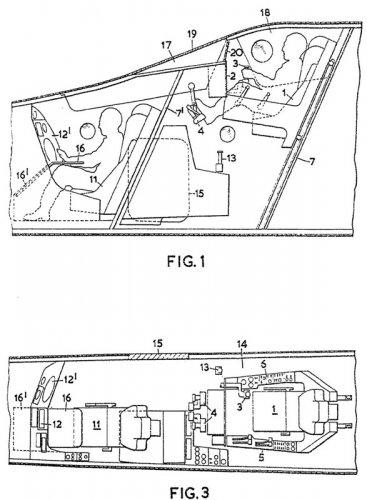

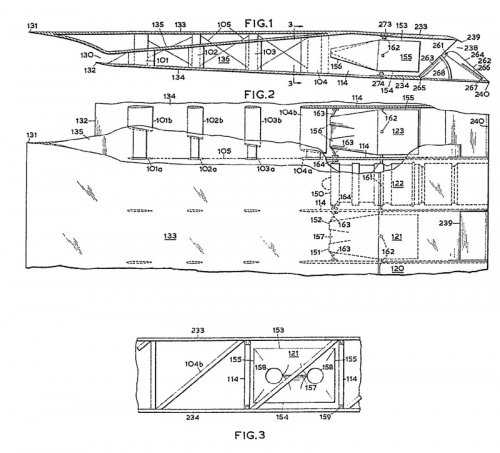

UK P10 patents:

813692, 829873, 844847, 846382, 854859, 899625, 906499, 910350 and 965371.


Attachments

  • P10h.jpg
    125.8 KB · Views: 169
  • P10g.jpg
    55.2 KB · Views: 183
  • P10f.jpg
    77.4 KB · Views: 188
  • P10e.jpg
    80.7 KB · Views: 130
  • P10d.jpg
    84.7 KB · Views: 139
  • P10c.jpg
    96.6 KB · Views: 172
  • P10b.jpg
    105.9 KB · Views: 163
  • P10a.jpg
    115.8 KB · Views: 159

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,568
Reaction score
3,855
Re: OR.330 Bomber Projects

more


Attachments

  • P10n.jpg
    52.8 KB · Views: 118
  • P10m.jpg
    49.2 KB · Views: 116
  • P10l.jpg
    88.9 KB · Views: 114
  • P10k.jpg
    89.7 KB · Views: 115
  • P10j.jpg
    84.9 KB · Views: 114

Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,749
Reaction score
833
Re: OR.330 Bomber Projects

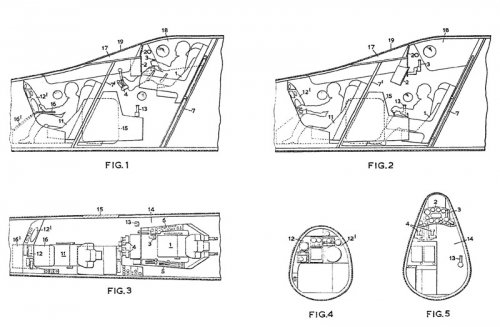

Wat the Pilot move up and Down with seat !? :eek:

up position seem for Take of and Landing
down position for cruse to target, or Wat ?

and Wat happen if seat is stuck in the middle wen hydraulic fail ? ::)

is looks cool idea in first place
but second look only a nuts idea


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,568
Reaction score
3,855
Re: OR.330 Bomber Projects

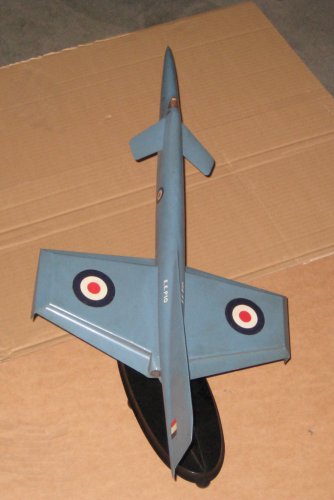

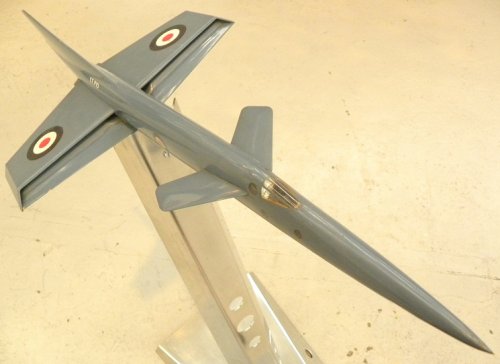

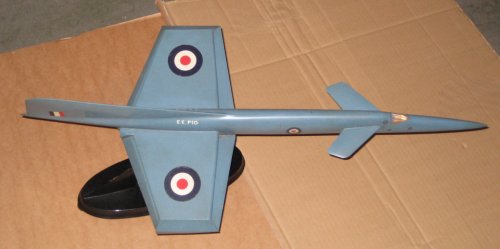

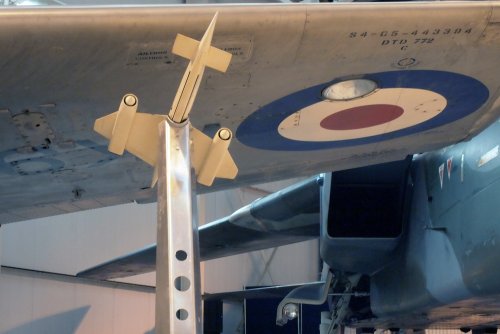

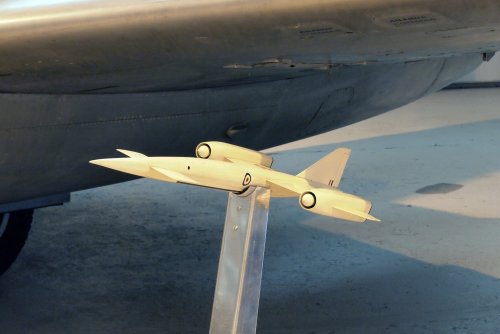

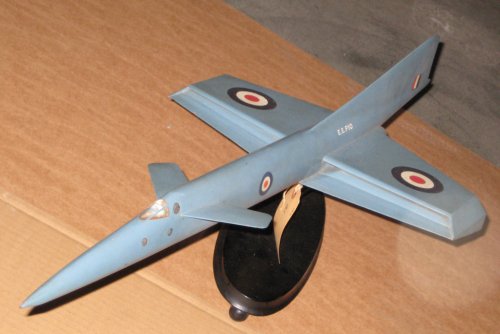

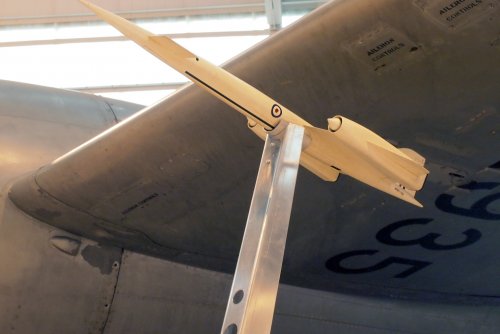

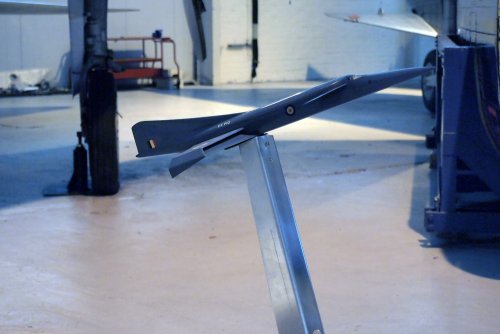

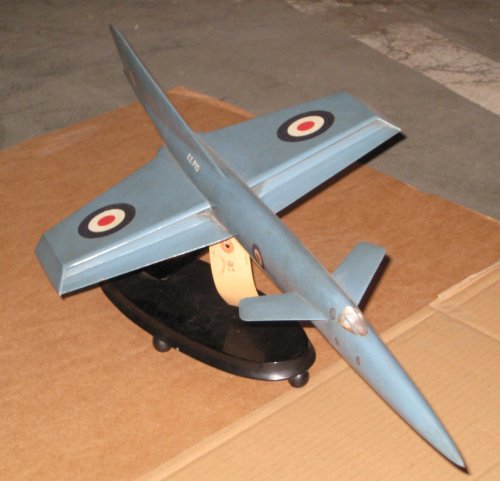

From Stafford


Attachments

  • Stafford2-056.jpg
    165.1 KB · Views: 140
  • Stafford2-051.jpg
    176 KB · Views: 154
  • Stafford2-050.jpg
    149.4 KB · Views: 137
  • Stafford2-049.jpg
    125.6 KB · Views: 140

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
929
Reaction score
93
Re: Avro 730

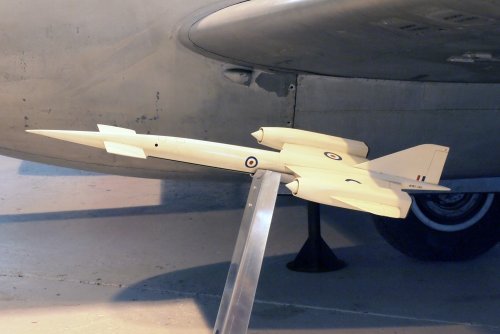

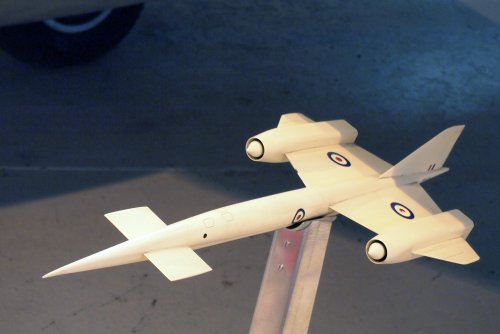

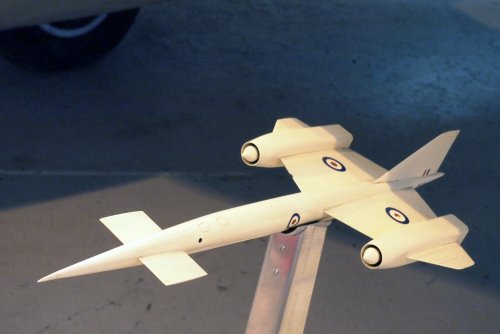

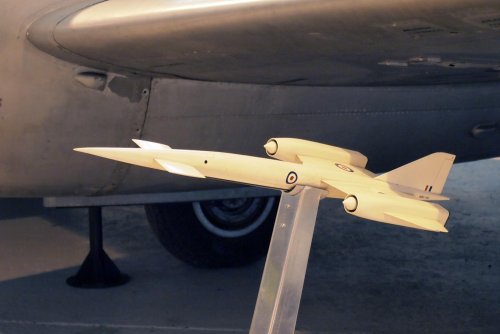

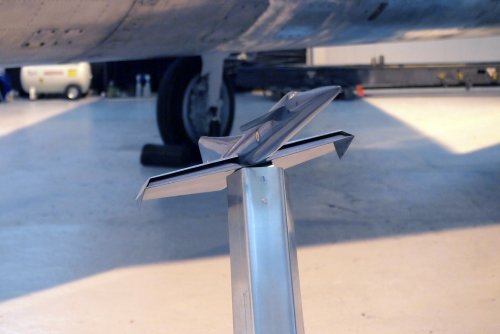

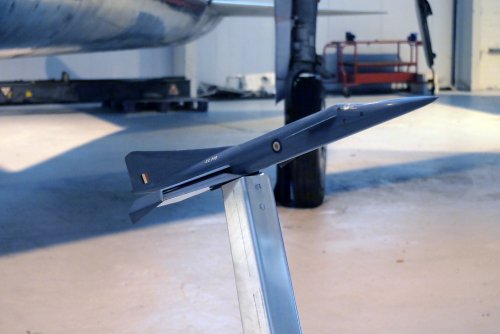

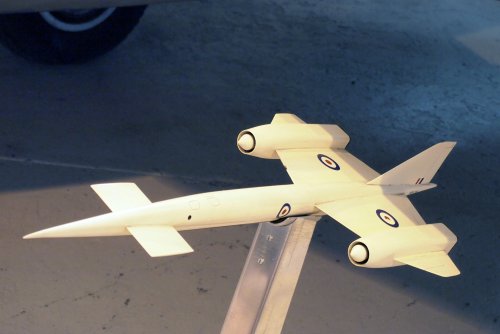

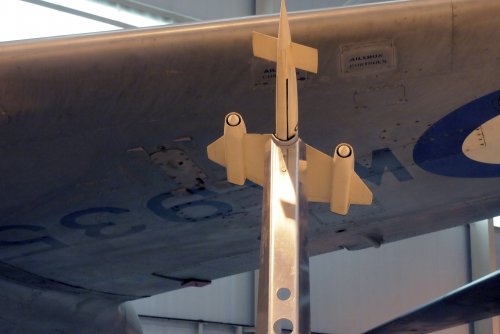

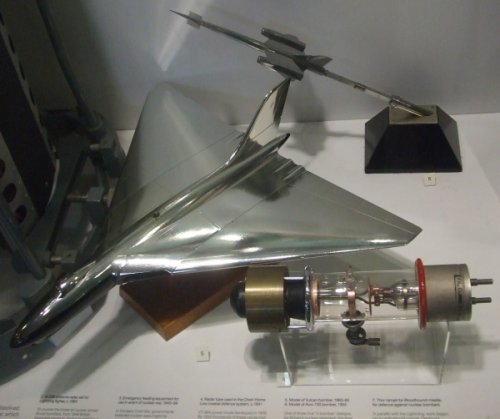

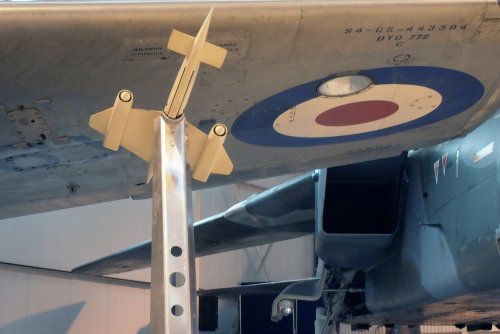

Wind tunnel model in the Science Museum, Kensington, London.


Attachments

  • DSCF3220.jpg
    128 KB · Views: 218

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,568
Reaction score
3,855
Re: OR.330 Bomber Projects

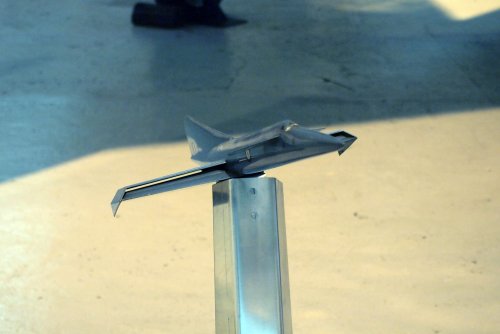

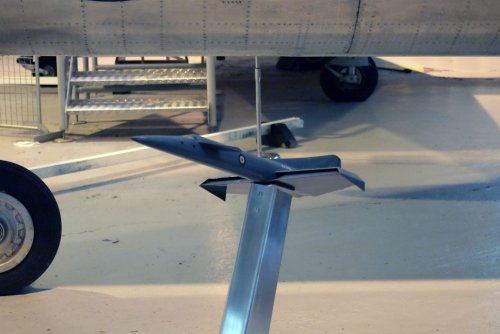

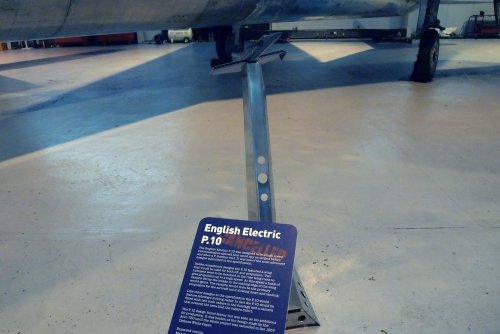

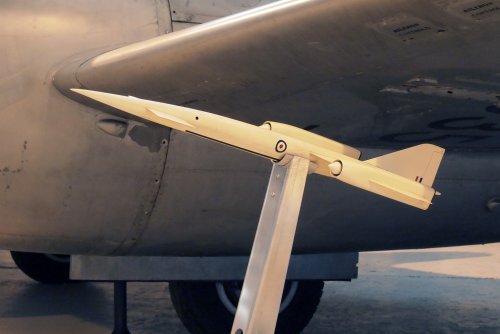

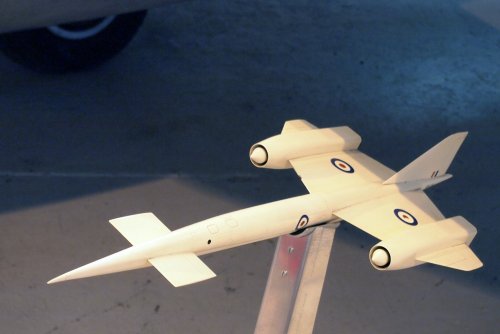

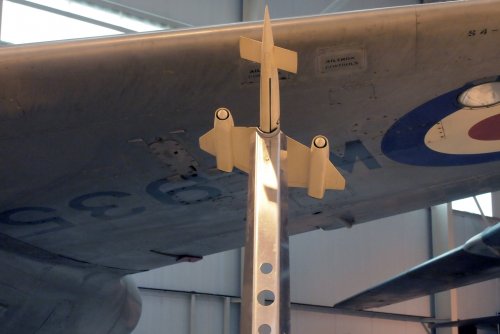

Merged topics - added photos of English Electric P.10 model from Stafford.


Pirate Pete

ACCESS: Confidential
Joined
Jul 25, 2007
Messages
155
Reaction score
113
Avro 730

My apologies if this has been covered already, but.....

Was a name allocated to the Avro 730 "Recon" Bomber????


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
466
Re: Avro 730

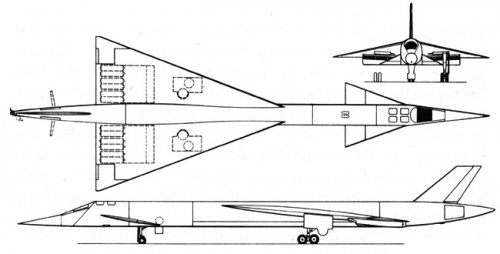

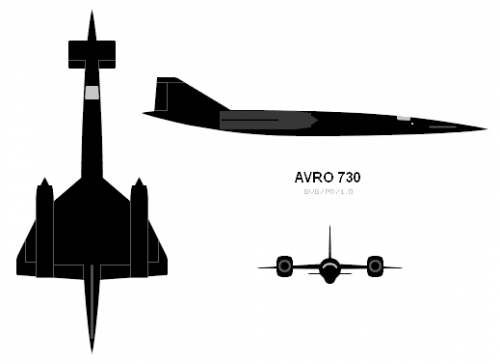

Not that I'm aware of. Just so that everyone knows what we're talking about, the Avro 730 was a supersonic stainless steel high-flying reconnaissance aircraft conceived to specification number R.156T (OR.330). Enclosed is a 3-view from the web (if this topic duplicates some other thread, sorry about that).


Attachments

  • 730_GG.png
    5.1 KB · Views: 1,352

Zoo Tycoon

ACCESS: Secret
Senior Member
Joined
May 27, 2008
Messages
422
Reaction score
458
Re: Avro 730

When I was working with/at Woodford in the late 1990's I was very interested in the question of how far along did the 730 progress. Hence I sought out and talked to a number of employees from the period in the Avro club/Avro heritage, including a former draughtsman who had been drawing the 730 center fuse. The unanimous reply came back that no bits of flying prototype were built or even came close to being built. At the time of cancellation many elements of the basic detail design were still experiencing considerable change as a result of optimisation in line with a significant weight challenges. One estimated that at the time of cancellation approx 150 engineers (Woodford/Chad and London) were full time with quite a considerable ramp up underway.
A full size wooden mock up was reported at Woodford South Site.
Also another recalled seeing large volume vacuum brazing furnaces being installed in Chadderton together with large stainless steel honeycomb compound both curved/barrel generic sections (Chadderton Manf, Woodford South Site AC test)
None could recall actually seeing the "730 scrap bins" but most seem to have heard the story.

I would really like to known more about this project but most of the period detail work seems to have been lost in the late 1970's early 80's due to the Chadderton site archivist attitude towards classified information.


royabulgaf

ACCESS: Secret
Joined
Dec 29, 2008
Messages
491
Reaction score
59
Also another recalled seeing large volume vacuum brazing furnaces being installed in Chadderton together with large stainless steel honeycomb compound both curved/barrel generic sections (Chadderton Manf, Woodford South Site AC test)
None could recall actually seeing the "730 scrap bins" but most seem to have heard the story.

Perhaps those honeycomb sections are where the urban legend started.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,255
Reaction score
1,014
As research aircraft and aerodynamical testbed for the 730 the Type 731
was designed by Avro, powered by Bristol Orpheus or Rolls Royce RB.108 engines


Attachments

  • Avro-731_RB-108.gif
    33.5 KB · Views: 1,295
  • Avro-731_Orpheus.gif
    35.8 KB · Views: 1,300

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
557
Website
deeptowild.blogspot.com
Model of English Electric P.10 on display at RAF Museum Cosford.

Source:
http://www.warbirdsnews.com/avaition-museum-news/raf-museum-cosford-exhibits-models-cancelled-concept-aircraft.html#more-5849


Attachments

  • English_Electric_P.10_sml.jpg
    112 KB · Views: 906

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,568
Reaction score
3,855
English Electric P.10 model at RAF Museum Cosford, 2013. Photos by forum member Hobbes.


Attachments

  • PB116983.jpg
    791.8 KB · Views: 105
  • PB116982.jpg
    844.7 KB · Views: 94
  • PB116981.jpg
    897.6 KB · Views: 96
  • PB116980.jpg
    786.9 KB · Views: 104
  • PB116979.jpg
    738.1 KB · Views: 96
  • PB116978.jpg
    316.1 KB · Views: 668

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,568
Reaction score
3,855
Avro 730 model at RAF Museum Cosford, 2013. Photos by forum member Hobbes.


Attachments

  • PB116952.jpg
    750.1 KB · Views: 78
  • PB116951.jpg
    743.2 KB · Views: 84
  • PB116950.jpg
    712.3 KB · Views: 75
  • PB116949.jpg
    719.3 KB · Views: 73
  • PB116948.jpg
    737.1 KB · Views: 82
  • PB116947.jpg
    796.6 KB · Views: 82
  • PB116946.jpg
    767.1 KB · Views: 76
  • PB116945.jpg
    777.5 KB · Views: 75
  • PB116944.jpg
    748.3 KB · Views: 86
  • PB116943.jpg
    227.9 KB · Views: 91

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,568
Reaction score
3,855
Avro 730 at RAF Museum Cosford, 2013. Photos by forum member Hobbes.


Attachments

  • PB116958.jpg
    815.4 KB · Views: 86
  • PB116957.jpg
    826.4 KB · Views: 97
  • PB116956.jpg
    821.8 KB · Views: 93
  • PB116955.jpg
    764.2 KB · Views: 72
  • PB116954.jpg
    770.6 KB · Views: 64
  • PB116953.jpg
    740.5 KB · Views: 70
  • PB116959.jpg
    775.2 KB · Views: 86

pedrospe

ACCESS: Secret
Joined
Feb 9, 2010
Messages
279
Reaction score
27
Great models,thanks Paul for sharing this beautiful images.


best regards


Pedro


VictorXL188

Former Aviation journalist/writer
Senior Member
Joined
Jul 31, 2013
Messages
337
Reaction score
547
Although we havbe seen a few mentions of the possiblility of completed Avro 730 sections, was there any photographic evidence of the mock up that was reported at Chadderton. Similarly there was either a full or at least partial mock up of the HP.100 completed, dependant on which sources you believe. is there any photos of this around?

Top
