Avro 730 (Early Version) - 1/72 Scratchbuild

O

Overkiller

Guest
Avro Excalibur R.1 "XP730" - 543 Squadron RAF - 1964








Scratchbuilt 1/72 scale Avro 730. This depicts the earlier 4 engine version that was submitted by Avro against Operational Requirement 330. The fuselage was built using a length of 1 inch conduit as a core, fitted with cross sections taken from drawings obtained directly from the Avro Heritage Foundation. The resulting framework was then filled in with a mixture of scrap plastic and sprue offcuts, then covered with milliput and sanded to the final shape.

Wings, canard and fin were created from laminated blocks of evergreen plastic, sanded to the correct aerofoil cross sections. The nacelles are a mix of 1 inch conduit once again, and dremeled laminated plasticard blanks for the 3 dimensionally curved forward portion around the intakes.

The model was finished of with many careful sanding sessions to refine the quality of the surface finish, then sprayed with Halfords White Primer, which then received further sanding with increasingly fine grades of sandpaper to create a mirror like finish for applying the decals. The decals are Freightdog Anti-Flash for the roundels and serials, Airdecal Valiant decals for the 543 sqdn badge and Airfix Vulcan decals for the various stencils. The display stand is from an Airfix TSR-2 kit.

More details on the 730 may be found at http://www.secretprojects.co.uk/forum/index.php/topic,905.msg115114.html#msg115114

The full build may be viewed at http://www.whatifmodelers.com/index.php/topic,32962.0.html

Thanks for looking

Duncan


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,225
Reaction score
803
Impressive build, especially when one looks at how it came into being.

One question though: as a low-viz markings hater, I just wondered whether any kind of low viz scheme actually existed at the time the 730 could have been used operationally. My impression is that there wasn't any, but I could be wrong.


Thorvic

ACCESS: Top Secret
Senior Member
Joined
Jan 2, 2006
Messages
650
Reaction score
161
Those are not low vis but antiflash markings and used from the late 50's to mid to late 60's. As the Avro 730 was intended to fly high and fast it wouldn't have adopted the tactical scheme the V-Force fleet started to switch to in the mid 60's.
Nice model Duncan, will look impressive on the stand


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,919
Reaction score
926

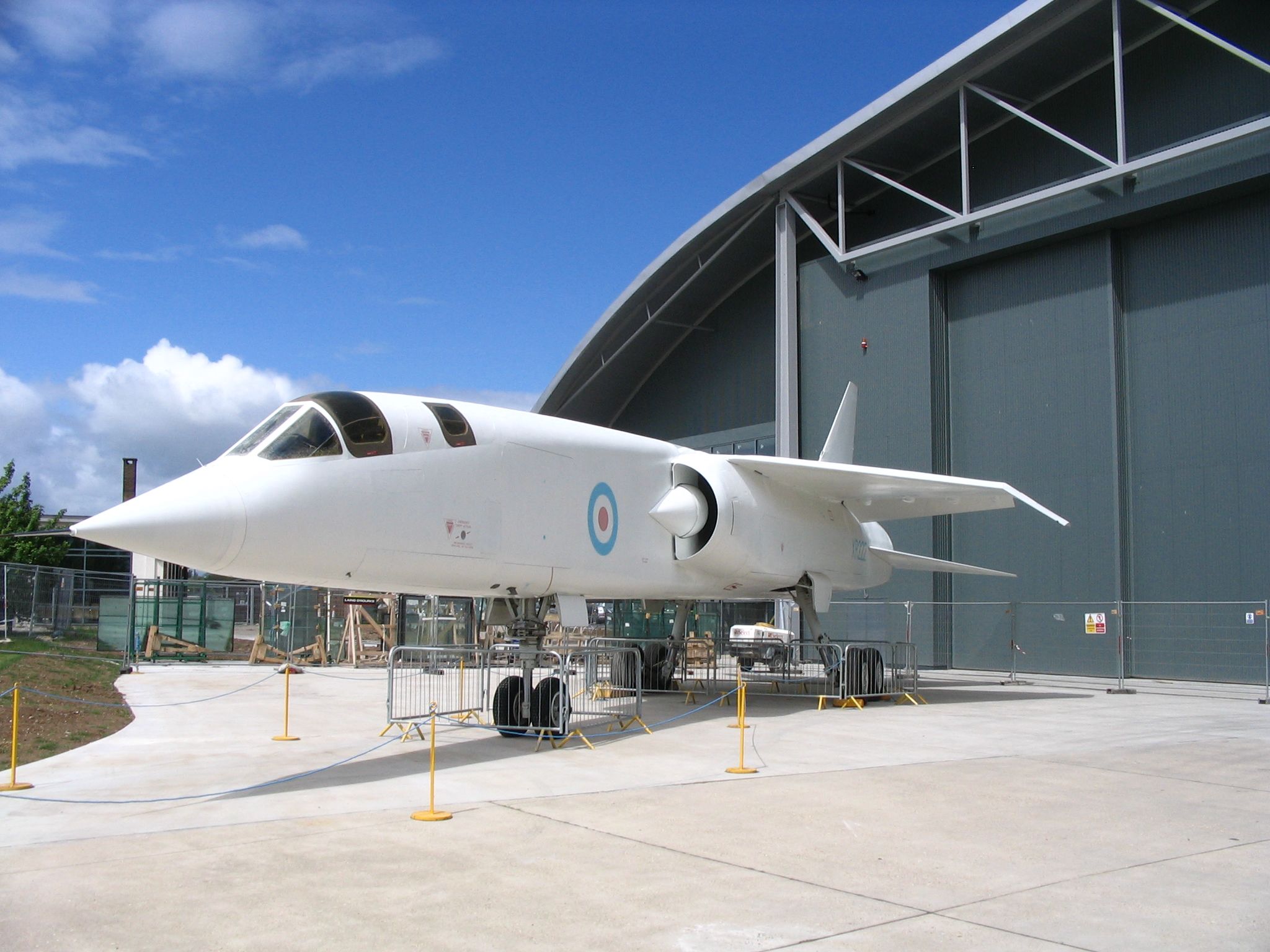

Duncan places the operational 730 in 1964. In the real world 1964, TSR.2 was flying around in 'low viz scheme' (antiflash markings, as Thorvic notes), as were Vulcans, Victors and Valiants. Duncan: nice!



shedofdread

ACCESS: Secret
Joined
Nov 14, 2009
Messages
497
Reaction score
171
Lovely workmanship and a very interesting subject for it.

But for a lack of wingspan, I've often thought the 730 would be interesting as an R/C subject. Hmmmm.....


shockonlip

ACCESS: Top Secret
Joined
Jan 29, 2008
Messages
605
Reaction score
13
Arjen said:
Duncan places the operational 730 in 1964. In the real world 1964, TSR.2 was flying around in 'low viz scheme' (antiflash markings, as Thorvic notes), as were Vulcans, Victors and Valiants. Duncan: nice!

<nice TSR.2 attachment>

This isn't the Duxford TSR.2 photo with the F-111 next to it, is it?

If you have a large version of that photo I'd love to have a copy


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,919
Reaction score
926
If you have a large version of that photo I'd love to have a copy
I didn't upload anything, just linked to a picture from wikimedia: http://upload.wikimedia.org/wikipedia/commons/f/f5/BAC_TSR-2_at_Duxford.jpg
Back in 1992 I visited Duxford and was astonished to see a TSR-2 sitting pretty on the tarmac. Hard to forget, so when Stéphane nudged me into contemplating antiflash markings, the TSR-2 leapt to mind. I think Duncan's choice for the 730's colour scheme is appropriate - and it looks good.


pathology_doc

ACCESS: Top Secret
Joined
Jun 7, 2008
Messages
1,057
Reaction score
417
B) That is outstanding - a true labour of love. B)

How many people need to want one before Airfix will consider doing it? ;)

O

Overkiller

Guest
pathology_doc said:
B) That is outstanding - a true labour of love. B)

Thank you,

yes it has rather been a labour of love, I was first introduced to the Avro 730 in the late eighties, when I was given a book on prototypes for Christmas. Since then it has been one of my favourite unbuilt "might have beens".

This model was displayed at Scale Model World in Telford England over the last weekend, where it received much enthusiastic attention. Particularly gratifying was the reaction of visiting members of the Avro Heritage Foundation, they were simply over the moon when they saw the model on the "Project Cancelled" stand, and even happier when I offered to donate the model to the Foundation, just as soon as the future home for the Foundation has been assured.

pathology_doc said:
How many people need to want one before Airfix will consider doing it? ;)

A number of people made approaches to me over the weekend at SMW, asking if I would consider doing a resin kit of the 730, however I don't think that is a practical idea, the cost of a 1/72 resin kit of this size would be prohibitive.

As for an injection moulded model manufacturer doing a kit of it, I seriously doubt we shall ever see that, there just wouldn't be the market base for it, the TSR-2 was a one off, mainly because the type at least flew a few times...but I suppose we can dream...

cheers

Duncan


pathology_doc

ACCESS: Top Secret
Joined
Jun 7, 2008
Messages
1,057
Reaction score
417
This isn't the Duxford TSR.2 photo with the F-111 next to it, is it?

Because I have small children and must suffer through Disney's Cars (in which the planes are likewise somewhat anthropomorphised), the very idea of the TSR.2 and the F-111 standing next to each other creates images in my head of the TSR.2 being perpetually rather... annoyed at its stablemate. Every scene would start with the TSR.2 saying "If it weren't for you and your low price tag..."


Zeppelin

ACCESS: Confidential
Joined
May 29, 2009
Messages
86
Reaction score
15
There was this link somewhere on the SP site for a 1/144 scale Fantastic Plastic 730 model
http://www.fantastic-plastic.com/Avro730CatalogPage.htm
Regards
