Hi,

I spoke before about ER.134T contenders;

in ER.134T for Mach 2 research aircraft,the contenders were AW.166,
Boulton Paul P.128,Bristol-188,English-Electric P.6 ,Hawker P.1096 and
P.1097,Saro P.163 and Vickers-Supermarine-553.

Please I want informations about AW.166 and Saro P.163.

Last edited:

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,682
Reaction score
7,960
Hesham, could you slow down on the requests please? A lot of the things you are requesting are very badly documented, and its not easy to find information. Noone here is being paid to do your research for you.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,550
Reaction score
6,289

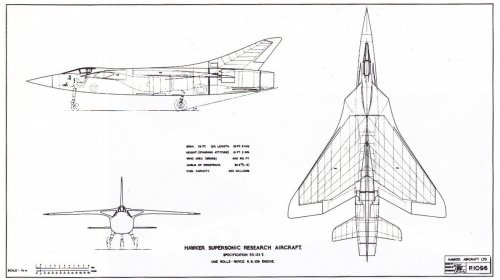

From Le Fana 526,

here is a Hawker P.1096 drawing.


Attachments

  • 1096.png
    208 KB · Views: 744

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272

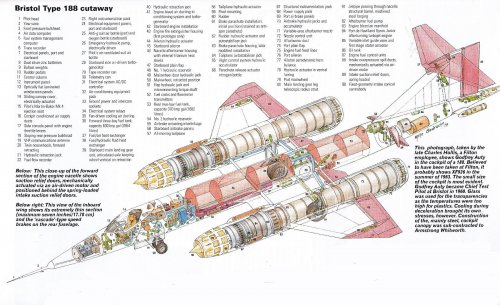

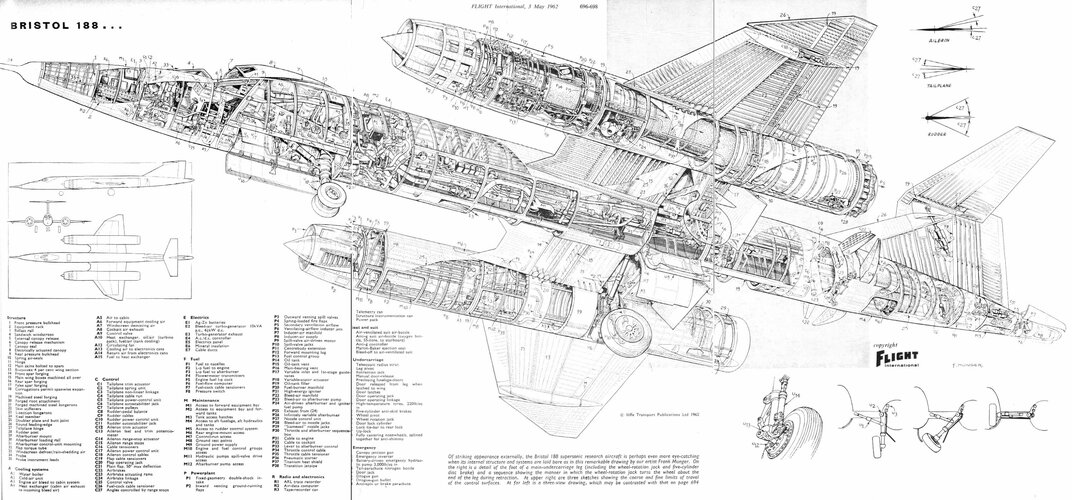

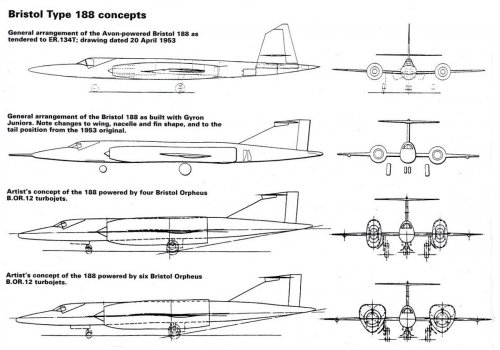

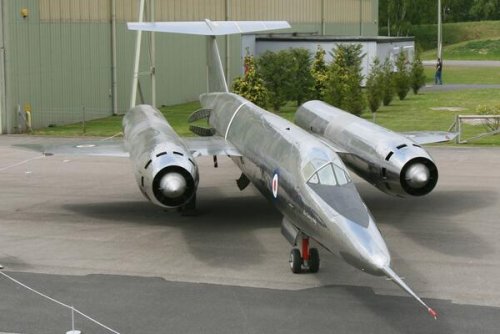

Hi! Bristol type 188.
Source : WINGS OF FAME VOLUME 18.

Wikipedia
https://en.wikipedia.org/wiki/Bristol_188

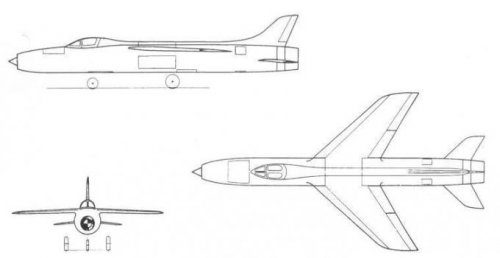

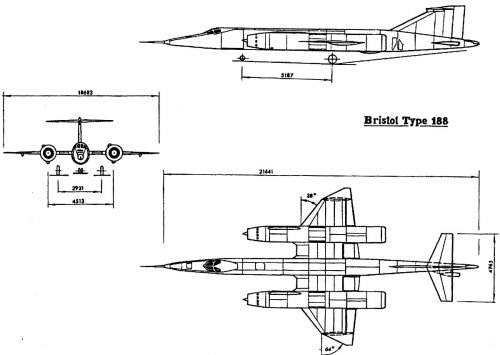

Three side view drawing
http://aviadejavu.ru/Site/Crafts/Craft22286.htm

https://www.youtube.com/watch?v=2FOg3lKuJLM


Attachments

  • Bristol type 188 concept.jpg
    Bristol type 188 concept.jpg
    172 KB · Views: 441

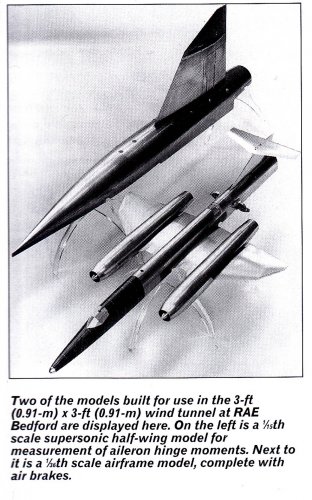

  • Bristol type 188 wind tunnel test model.jpg
    Bristol type 188 wind tunnel test model.jpg
    595.4 KB · Views: 385
  • three side view.jpg
    three side view.jpg
    110.8 KB · Views: 375
  • Bristol type 188 (2).jpg
    Bristol type 188 (2).jpg
    828.1 KB · Views: 424

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272

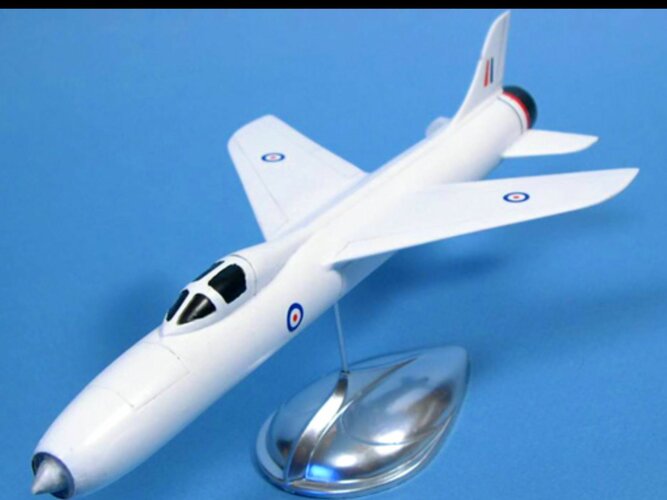

Hi! Supermarine type 553.
https://en.wikipedia.org/wiki/Supermarine_Type_553
Pictures
https://www.aviationsmilitaires.net/v2/base/view/Model/1950.html


Attachments

  • Supermarine_Type_553.jpg
    17.3 KB · Views: 140
  • Vickers-Supermarine_Type_553-02_Alternate_History.jpg
    85.5 KB · Views: 127

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272
Is this English Electric P6?
http://www.whatifmodellers.com/index.php?topic=41783.0


Attachments

  • English_Electric_P_6-02.jpg
    31.1 KB · Views: 122
  • English_Electric_P_6-01-680x663.jpg
    34.9 KB · Views: 136

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272
Hi! Hawker P.1096.
Source : SYDNEY CAMM AND THE HURRICANE


Attachments

  • Hawer P.1096.jpg
    Hawer P.1096.jpg
    161.3 KB · Views: 169

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272

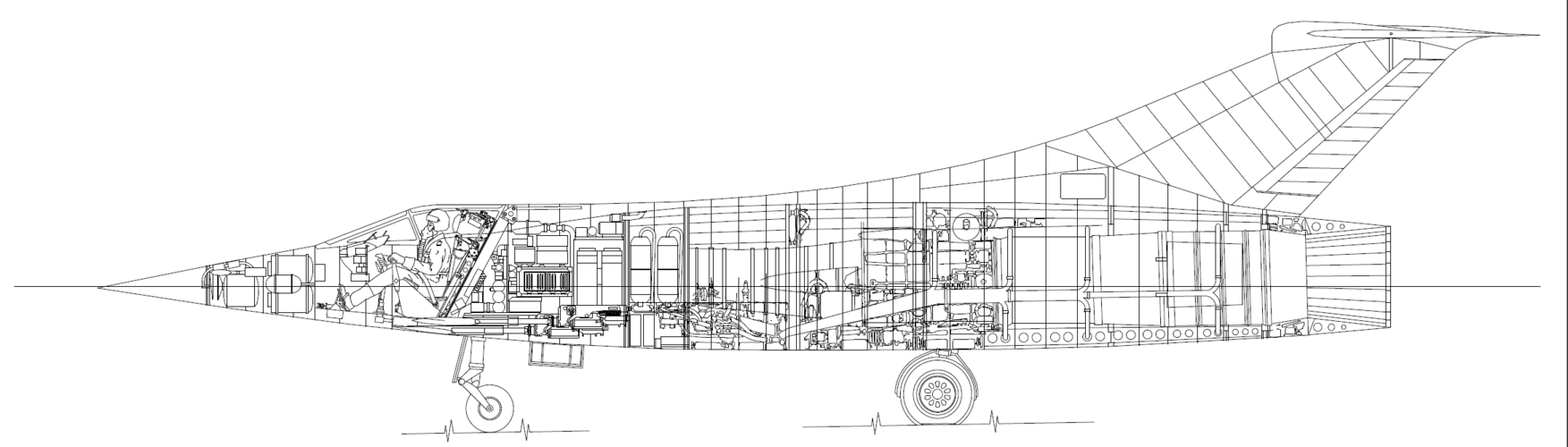

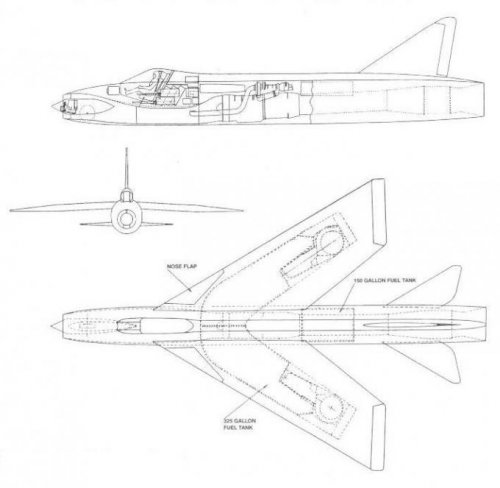

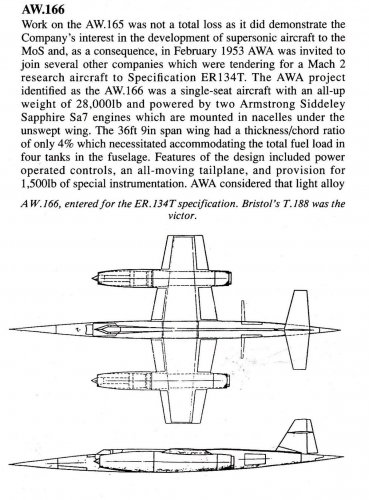

A.W.166 by hesham-san.
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=10400.0;attach=108366;image

http://www.secretprojects.co.uk/forum/index.php?topic=10400.0

And from AIR ENTHUSIAST 43.


Attachments

  • AW.166.jpg
    261.5 KB · Views: 129
  • AW.166 PART2.jpg
    AW.166 PART2.jpg
    329.6 KB · Views: 118

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272
Hi!

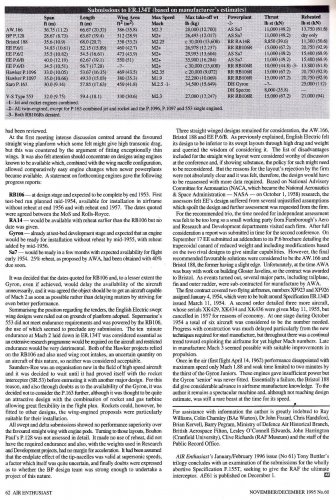

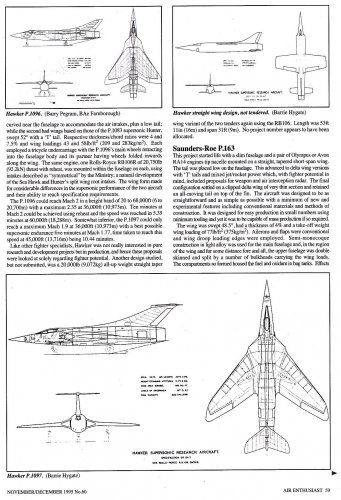

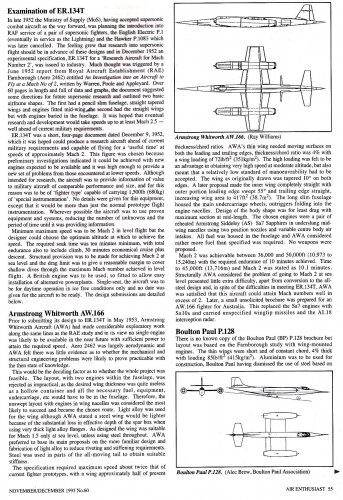

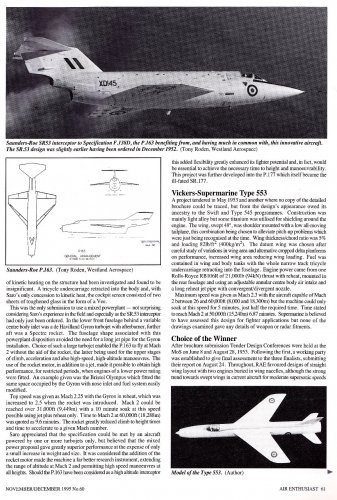

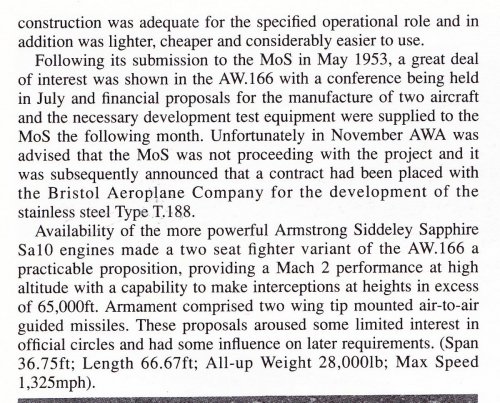

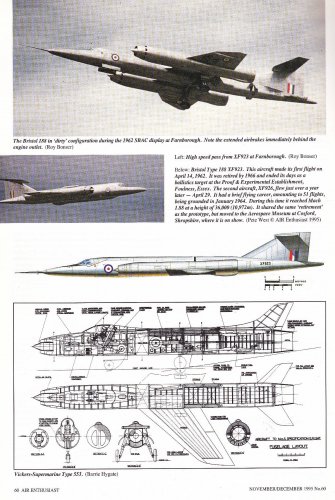

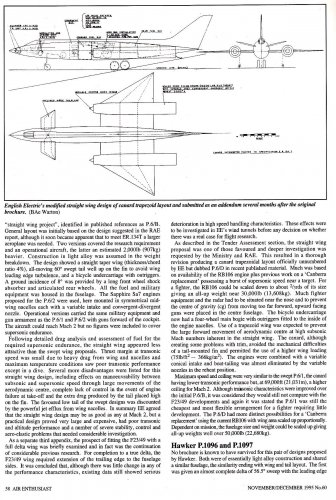

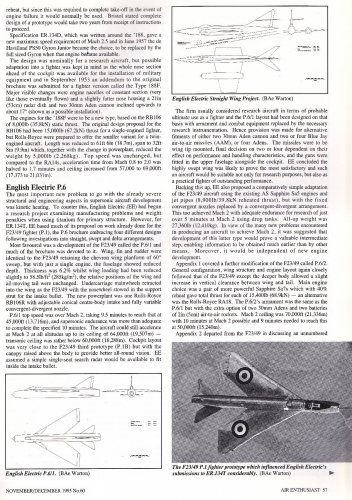

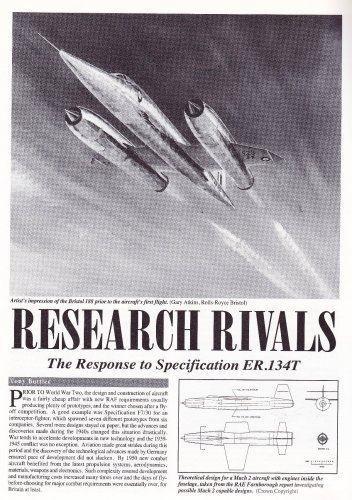

Source ; AIR ENTHUSIAST 60(page 54 to 62) ;D


Attachments

  • PAGE 62.jpg
    PAGE 62.jpg
    774.9 KB · Views: 133
  • PAGE 61.jpg
    PAGE 61.jpg
    633.3 KB · Views: 161
  • PAGE 60.jpg
    PAGE 60.jpg
    605.6 KB · Views: 201
  • PAGE 59.jpg
    PAGE 59.jpg
    396.3 KB · Views: 178
  • PAGE 58.jpg
    PAGE 58.jpg
    501.6 KB · Views: 168
  • PAGE 57.jpg
    PAGE 57.jpg
    579.8 KB · Views: 151
  • PAGE 56.jpg
    PAGE 56.jpg
    491.2 KB · Views: 153
  • PAGE 55.jpg
    PAGE 55.jpg
    686.9 KB · Views: 155
  • PAGE 54.jpg
    PAGE 54.jpg
    668.8 KB · Views: 178

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272

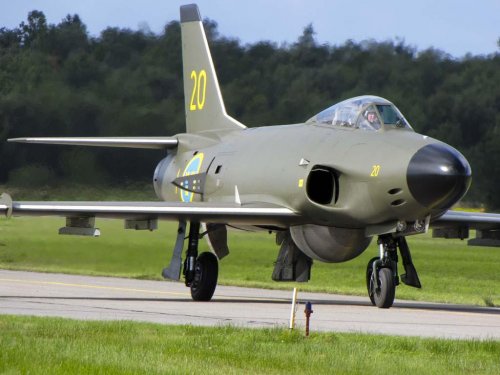

You mean this airbrake?


Attachments

  • Lansen.jpg
    86.6 KB · Views: 153
  • BnD2DXPIAAAOWld.jpg
    33.4 KB · Views: 197

royabulgaf

ACCESS: Top Secret
Joined
Dec 29, 2008
Messages
559
Reaction score
154
Hmm, start with a first generation MiG-21, use some Swift wings from Hawk kits and I'm there. Anyone got pictures of the landing gear?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,081
Reaction score
4,272
Hi!

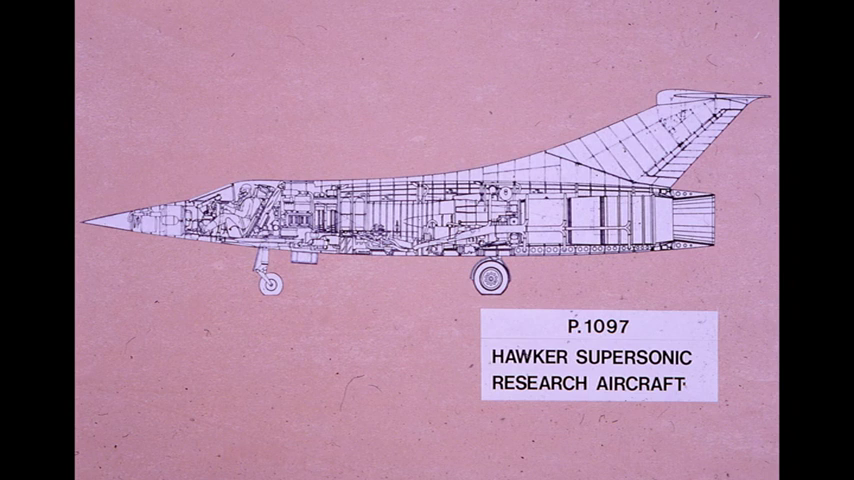

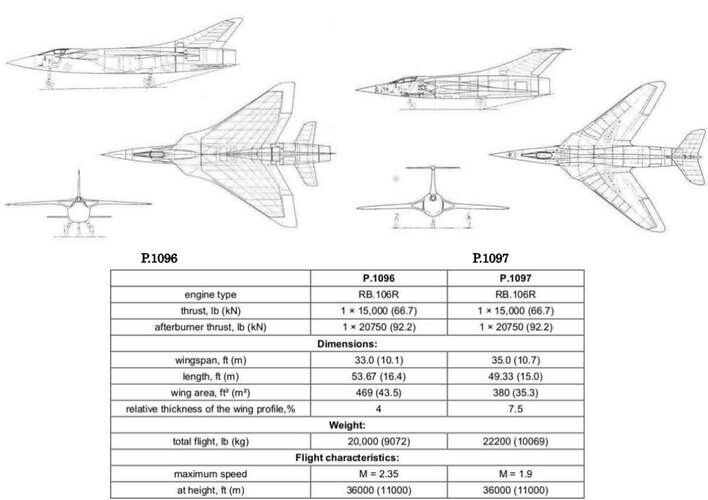

High-speed research aircraft 1952-62. Hawker high-speed experimental aircraft project

"Like other fighter design and manufacturing companies, Hawker was not interested in a clean research aircraft, focusing more on production issues and thus the fighter potential of the proposed projects. To this end, the P.1097 had to carry four Aden cannons under the cockpit."

Source : TONY BUTTLER "BRITISH SECRET PROJECTS JET FIGHTERS SINCE 1950

https://translate.google.com/translate?hl=&sl=auto&tl=en&u=http://alternathistory.com/vysokoskorostnye-issledovatelskie-samolety-1952-62-godov-proekt-vysokoskorostnyh-eksperimentalnyh-samoletov-hawker/&sandbox=1


Attachments

  • P1096 1097.jpg
    P1096 1097.jpg
    120.6 KB · Views: 65
Last edited:

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
7,313
Reaction score
6,305
Hmm, start with a first generation MiG-21, use some Swift wings from Hawk kits and I'm there. Anyone got pictures of the landing gear?

Hell of an idea... so much for a "british mirage" now we have found "a british Mig-21"
