Hi folks,

Does anyone have detailed information on the British contender (and winner I believe) for the NBMR. 4 VTOL tactical transport aircraft requirement - the Armstrong Whitworth Type 681? All I have are these pictures:




Regards,

Greg


Deino

Moderator
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,974
Reaction score
1,131
In the next Air Enthusiast there will be an article on this topic ... to be published on June, 23rd !

Cheers, Deino


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
104

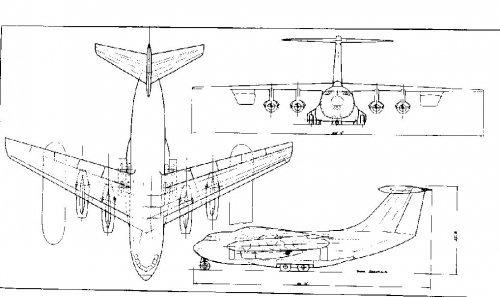

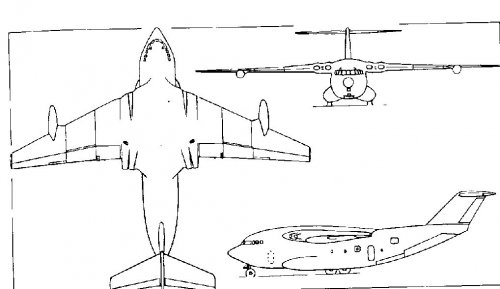

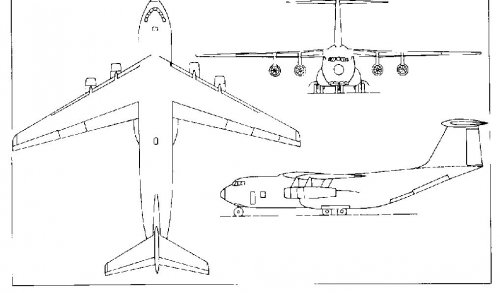

This is the Medway engined proposal.




This is the Pegasus engined proposal. Some variants were depicted with huge pods of lift engines suspended under each wing


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
104
Deino said:
In the next Air Enthusiast there will be an article on this topic ... to be published on June, 23rd !

Cheers, Deino

Another Tony Buttler article?

His article on the military variants of the BAe 146 was the highlight of the November/December 2005 issue. Is Mr. Buttler planning a book on British transport aircraft?


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,608
Reaction score
460
Tinwing,

I think the BAe 146 article was not from Tony Buttler. Tony wrote the FX/VFX one in the same issue.
I found the BAe 146 article a bit poor (information was not well structured) and only a couple of versions were illustrated
Mr Buttler articles and books are always very well exposed and estructured...and you can find drawings for almost every design.

Thanks for the info, Deino...I'm going to order a copy right now


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,252
Reaction score
6,533
Project Cancelled has a good section on AW 681.

The Medway version was STOL only, in its basic form. It had two rear mounted thrust deflectors on each engine pod. In order to offer VTOL, Rolls-Royce suggested R.B.175 lift turbofans carried in two underwing pods with 9 engines in each pod.

Project Cancelled does have a drawing showing the R.B.175 installation, but not the Medway installation.


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
114
A.WW. 681

Long-range Stol military transport aircraft capable of development to
VTOL. Designed to spec. OR.351.
Shoulder wings and hight T tail.Fuselage upswept with loading doors
and ramp.

Four RR Medway RB 142 engines with vectored thrust nozzles.
Boundary- layer control with blown leading edges , flaps and ailerons.
Span: 40.84 m lenght: 31.75m height : 11.53m
max.payload:15.876 kg.Max range 7.725Km
Max cruising speed 0.71 above 7.620m

Cancelled: 2/1965


Several sources : most reliable - Armstrong Whitworth Aircraft
since 1913. Oliver Tapper
Putnam - UK


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,608
Reaction score
460
Is Mr. Buttler planning a book on British transport aircraft?

I don't know if he is going to continue after its fighter and bomber series, but it would be fantastic to see US/Soviet/British/...Transport Secret Projects, and then ....Airliners/Trainers/ ::) ::)


Cheers,
Antonio


Deino

Moderator
Staff member
Top Contributor
Senior Member
Joined
Jan 2, 2006
Messages
2,974
Reaction score
1,131
TinWing said:
Deino said:
In the next Air Enthusiast there will be an article on this topic ... to be published on June, 23rd !

Cheers, Deino

Another Tony Buttler article?

His article on the military variants of the BAe 146 was the highlight of the November/December 2005 issue. Is Mr. Buttler planning a book on British transport aircraft?


Hmm ... I don't think !

He's currently working on the first book of US secret projects to be finalised until mid September ... what's next ... I hope something on "Chinese" ;D

Cheers, Deino


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
104
Sentinel Chicken said:
Does anyone have any schematic illustrations of the Medway engine and how it differed from the Pegasus?

The Medway was a Rolls Royce design, first unsuccessfully promoted in the late 50s and then revived unsuccessfuly before being abandonned in the mid-60s. The Spey was a scaled down Medway. The Medway proposed for the HS681 had a pair of thrust diverters.

The Pegasus was a Bristol-Siddeley design, with design elements based on both the Orpheus and Olympus. Confusingly, both the familar four poster Pegasus and a conventional straight-through Pegasus were proposed for the HS681.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,326
Reaction score
1,425

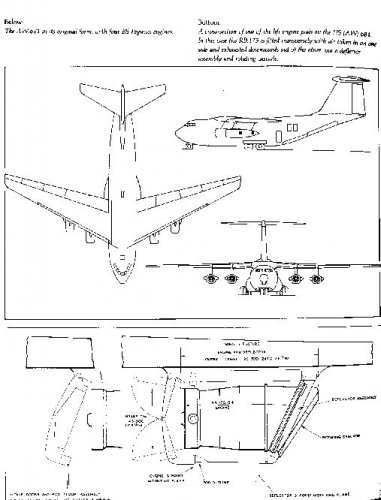

That's what I've found in Derek Wood's "Project Cancelled" :
1 - The HS(AW) 681 with four RB.175, using deflectors and a rotating cascade
2 - The HS(AW) 681 with four Medways and 18 RB.162-64 lift engines
3 - The AW 682, a civil freighter development with four Pegasus without vectoring
4 - The HS.802, the last attempt to safe at leat some of the development work,
by mating the the 681 fuselage to the wing of the Comet 4 .


Attachments

  • HS681-1.jpg
    55.7 KB · Views: 1,618
  • HS681-2.jpg
    84.1 KB · Views: 528
  • 682.jpg
    57 KB · Views: 488
  • HS802.jpg
    57.8 KB · Views: 473

TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
104
Jemiba said:
That's what I've found in Derek Wood's "Project Cancelled" :
1 - The HS(AW) 681 with four RB.175, using deflectors and a rotating cascade
2 - The HS(AW) 681 with four Medways and 18 RB.162-64 lift engines
3 - The AW 682, a civil freighter development with four Pegasus without vectoring
4 - The HS.802, the last attempt to safe at leat some of the development work,
by mating the the 681 fuselage to the wing of the Comet 4 .

From what I've read, HS681-2.jpg would seem to indicate the most definitive configuration. It would seem that a selection between the Medway and Pegasus hadn't been made at the time of cancellation, although the RR engine seems to have been the favorite for commercial reasons.

It is also interesting to note that the earlier AW681 configurations have a broader, more upright tail than later proposals. I do have to wonder why the vertical tail became more swept and perhaps even a bit smaller in area?

The HS.802 was a final, rather sad "hail mary" attempt to salvage the project. The use of the Nimrod (HS.801) wing would seem to make sense from an industrial standpoint, but the reality was that any Comet derived wing was a poor choice for a STOL transport.


Thorvic

ACCESS: Top Secret
Senior Member
Joined
Jan 2, 2006
Messages
649
Reaction score
154
Deino said:
In the next Air Enthusiast there will be an article on this topic ... to be published on June, 23rd !

Cheers, Deino

Deino

Just checked the Air Enthusiast website and its not one of Tonys but rather the VTOL specialist Mike Pryce (aka Harrier on What-if). Had a good look at the display models last Saturday at Midland Air Museum so now looking forward to the article :)

Cheers

Geoff


PMN1

ACCESS: Top Secret
Senior Member
Joined
Jun 4, 2006
Messages
854
Reaction score
361
Are their any specifications for this around?


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
104
PMN1 said:
Are their any specifications for this around?

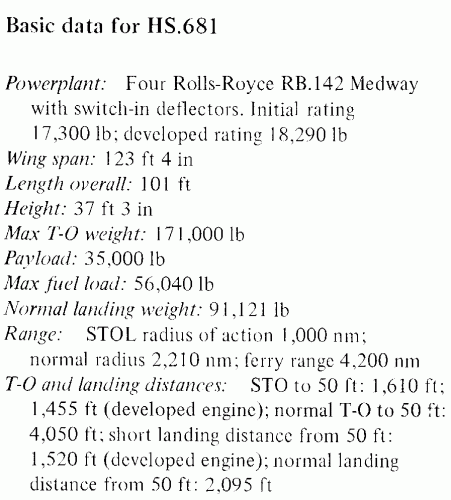

There were some very limited specifications in Derek Wood's "Project Cancelled," Appendix 6, page 250.


Attachments

  • AP6250.gif
    25.3 KB · Views: 473

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
114
All you ever wanted to know about the AW 681
(and much more) is now in

Air Enthusiast No.124 - July/August 2006.


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
104
lark said:
All you ever wanted to know about the AW 681
(and much more) is now in

Air Enthusiast No.124 - July/August 2006.

Will the AS 681 article ever make it to print?

I thumbed through the July/August issue of Air Enthusiast at a newstand, and I didn't see anything about the AW 681?

It isn't in the September/October issue, either?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,252
Reaction score
6,533
I've seen the article in Air Enthusiast. It was a beautiful article!

I can't remember which issue it was, but it was defintiely there!


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
104
overscan said:
I've seen the article in Air Enthusiast. It was a beautiful article!

I can't remember which issue it was, but it was defintiely there!

Let's see, the July/August issue was the one with the Gannet on the cover? That was the issue I quickly thumbed through. I must have just overlooked the AW.681 article because I doubt that a low circulation magazine would have a separate printing for North America.

Did the article actually have any new line drawings or specifications?


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
114
Air Enthusiast July/August 2006 -- No.124

pages 10 to 17. Text by Michael J. Pryce.
Excellently written.Profusely illustrated.
There's even a cutaway drawing of the turboprop AW.680.
Highly recommended.


cxmech

ACCESS: Restricted
Joined
Oct 17, 2007
Messages
5
Reaction score
0
I've recently acquired a brochure
it covers S.T.O.L MILITARY TRANSPORT TO O.R 351 TYPE NO. AW 681,
published for hawker siddley aviation limited may 1961.

not sure what sort of interest this would be to anybody I'm thinking of selling it on.
may be eBay. but i have a few photo's if any body wants to mail me I'll send them on.

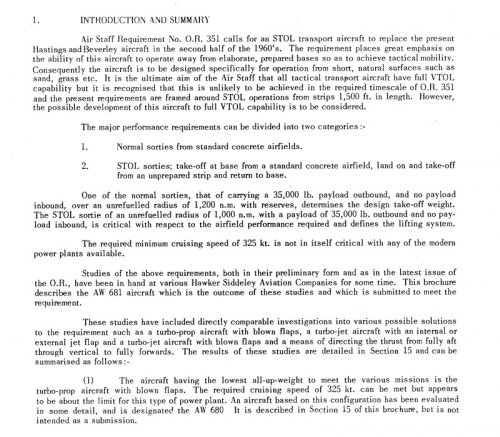

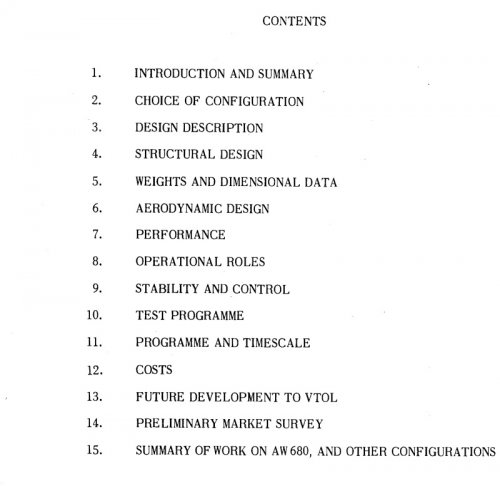

i've added some scanned pages from the brochure.


Thorvic

ACCESS: Top Secret
Senior Member
Joined
Jan 2, 2006
Messages
649
Reaction score
154
Yes Please

I'm currently building one in 1/72 scale so any information is always handy :)

Cheers

Geoff


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,223
Reaction score
1,570

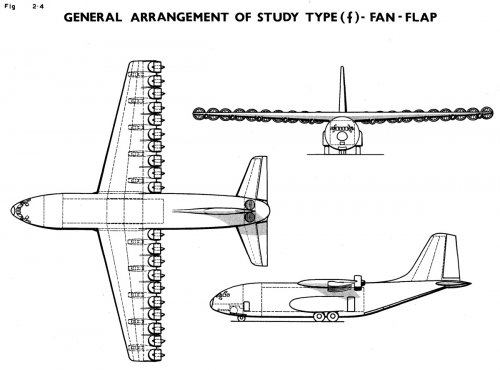

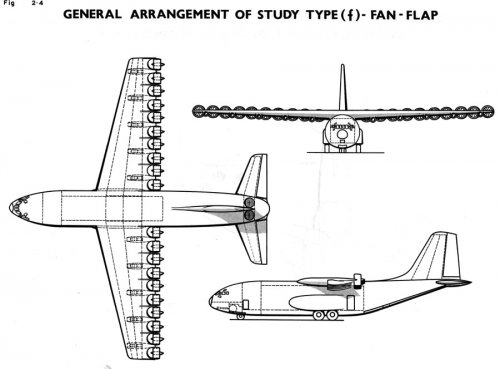

Thank you very much! Fan-flap concept is a real beauty)


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,252
Reaction score
6,533

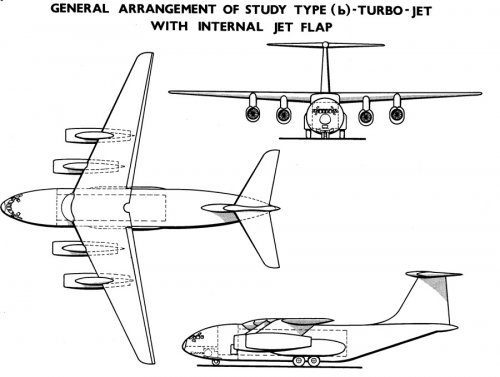

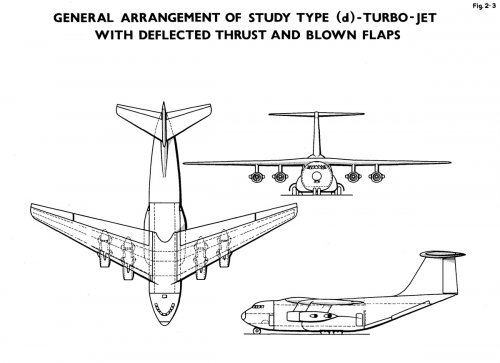

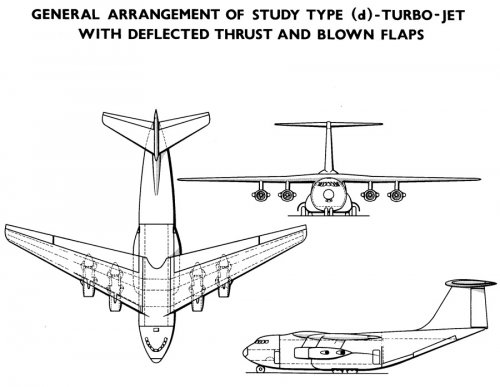

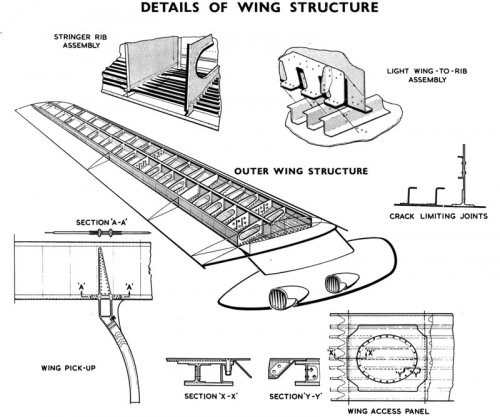

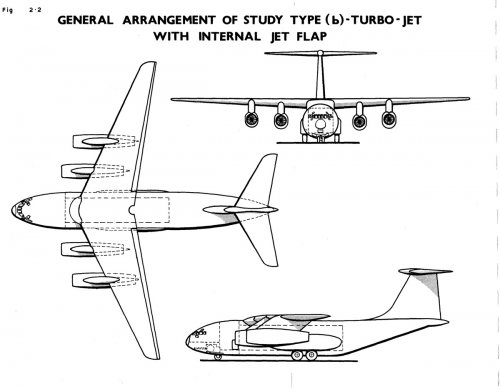

CXMech, I have posted slightly edited versions of your originals. Please see private message for details.


Attachments

  • img014.jpg
    74.1 KB · Views: 259
  • img013.jpg
    89.6 KB · Views: 442
  • img012.jpg
    97.4 KB · Views: 396
  • img011.jpg
    89.2 KB · Views: 492
  • img010.jpg
    64.1 KB · Views: 526
  • img009.jpg
    188 KB · Views: 509
  • img008.jpg
    105.4 KB · Views: 664

TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
104

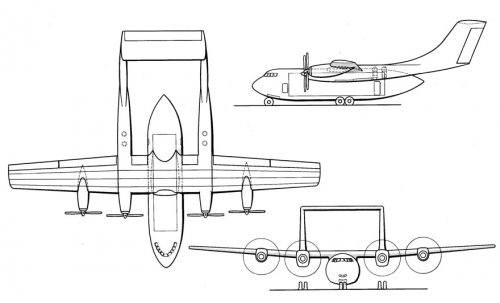

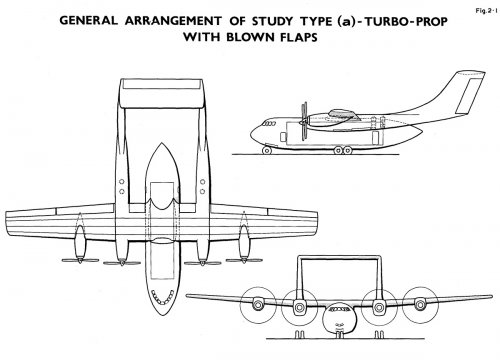

Image img010.jpg would seem to depict a concept that looks very much like a scaled up Argosy.


Thorvic

ACCESS: Top Secret
Senior Member
Joined
Jan 2, 2006
Messages
649
Reaction score
154
That the AW680 a steeping stone project from AW670 Argosey to AW681 Aldershot


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
104
Thorvic said:
That the AW680 a steeping stone project from AW670 Argosey to AW681 Aldershot

I would assume that the AW680 was Tyne powered and had a somewhat earlier timescale. Was it originally conceived as a competitor for the strategic requirement that the Belfast eventually won?

The internal dimensions of the AW.681 have always been a mystery to me? It would seem as if this design had a somewhat larger fuselage diameter than the Transall or Hercules, but how close was it the earlier Belfast?

I have never been entirely clear on the specifications for the 681 project (wing area, etc) and I really do have to wonder how this early (1961!) proposal differed from the definitive design.


cxmech

ACCESS: Restricted
Joined
Oct 17, 2007
Messages
5
Reaction score
0
I've had a quick look through the brochure it states that the lifting engines considered are the Bristol Siddeley BS59/7, at 8,000lbs rating or alternatively Rolls Royce RB175 fan engines.

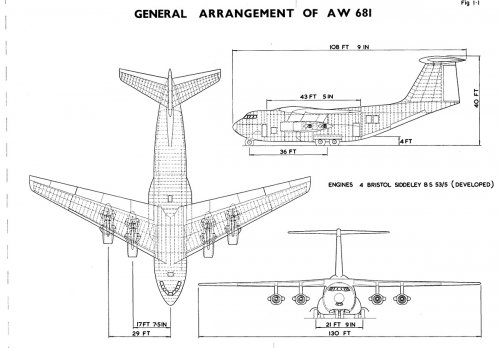

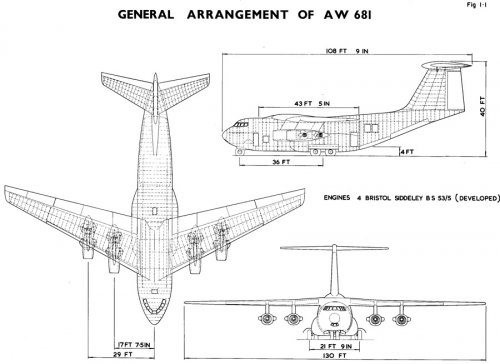

for the overall dimensions for the fuselage are length 105ft, max width 15ft 2".


cxmech

ACCESS: Restricted
Joined
Oct 17, 2007
Messages
5
Reaction score
0
as this brochure refers to 4 different a/c configurations, there are variations on the engines used.
it does refer to using 4 BS 53 engines with hawker P 1127 type nozzles, on the turbo-jet with deflected thrust and blown flaps(ref jpg's).


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,252
Reaction score
6,533
Now on Ebay @ £4.99

http://cgi.ebay.co.uk/ws/eBayISAPI.dll?ViewItem&item=220163991674


alertken

ACCESS: Top Secret
Joined
Jan 20, 2007
Messages
645
Reaction score
289

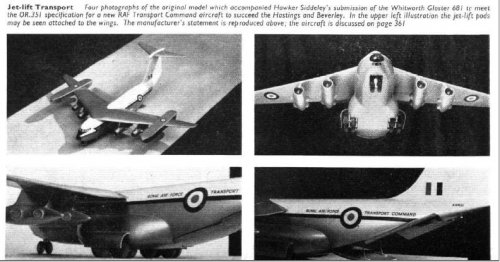

Farnborough, Sept.63, model 681 with Pegasus. Days after, ITP for RB.141. NBMR4, Do.31, was Pegasus on prototypes. MoA view that BSEL would not cope with BOl.593, BOl.22R, BS100, Pegasus for Do.31 and for 681, while RR was, well, empty, bar weird liftjets.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,252
Reaction score
6,533
Have you considered donating the original document to the Midland Aviation Museum at Coventry? They have a number of Armstrong Whitworth exhibits including models of the AW 681, I'm sure this document would be well received there.


cxmech

ACCESS: Restricted
Joined
Oct 17, 2007
Messages
5
Reaction score
0
i'll drop them an email see if they are familiar with the brochure, i'll let u know what they say.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,252
Reaction score
6,533

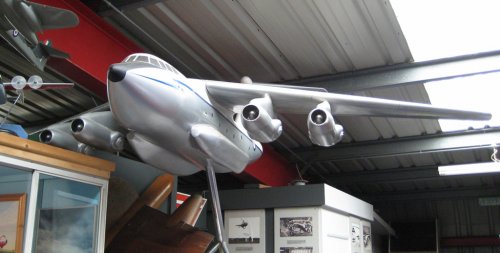

AW.681 models abound at the Midland Air Museum. Highly recommended for anyone with even a passing interest in the AW.681. Will post some details from brochure later.


Attachments

  • AW.681.jpg
    152.7 KB · Views: 508

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,252
Reaction score
6,533
3 view of AW 681 plus some design studies


Attachments

  • AW681-Brochure-23.jpg
    144.1 KB · Views: 249
  • AW681-Brochure-22.jpg
    130.9 KB · Views: 301
  • AW681-Brochure-21.jpg
    135.8 KB · Views: 402
  • AW681-Brochure-20.jpg
    130.5 KB · Views: 431
  • AW681-Brochure-9.jpg
    163.4 KB · Views: 509

SteveO

ACCESS: Secret
Joined
Jun 24, 2007
Messages
432
Reaction score
133
Sentinel Chicken said:
Does anyone have any schematic illustrations of the Medway engine and how it differed from the Pegasus?
The Flight archives have plenty of info on the Medway http://www.flightglobal.com/pdfarchive/view/1963/1963%20-%202233.html


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,177
Reaction score
5,725
Jemiba said:
That's what I've found in Derek Wood's "Project Cancelled" :
1 - The HS(AW) 681 with four RB.175, using deflectors and a rotating cascade
2 - The HS(AW) 681 with four Medways and 18 RB.162-64 lift engines
3 - The AW 682, a civil freighter development with four Pegasus without vectoring
4 - The HS.802, the last attempt to safe at leat some of the development work,
by mating the the 681 fuselage to the wing of the Comet 4 .

Hi,

http://www.flightglobal.com/pdfarchive/view/1963/1963%20-%200370.html


Attachments

  • OR.351.JPG
    63.9 KB · Views: 230

Similar threads

Top
