We may need a thread dedicated to Armstrong Whitworth aircraft. Here is the AW drawing for Armstrong Whitworth B.1/39. Drawing date is 3/6/39. Dwg No. is AW9186? (last number is cut off in this photo)

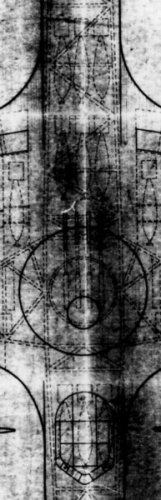

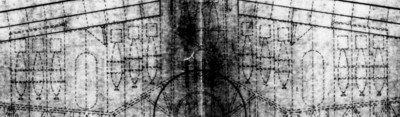

I have also added a favorite detail image, showing the location of twelve large bombs.
* I had to modify this post with an additional detail image. It was such a dark print that I just noticed the Additional 9? large bombs located in the fuselage, for the first time
