Various Ekranoplane and WIG projects

Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
727
Reaction score
344

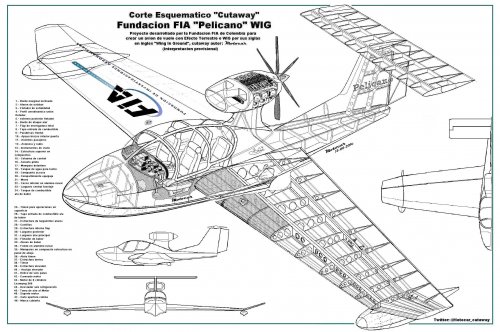

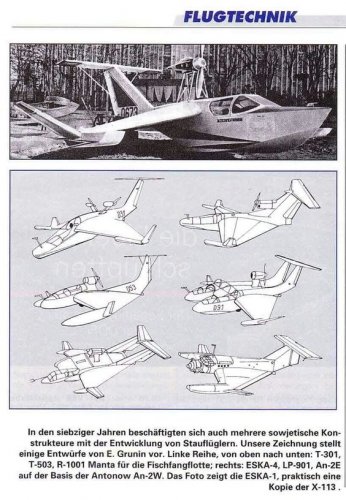

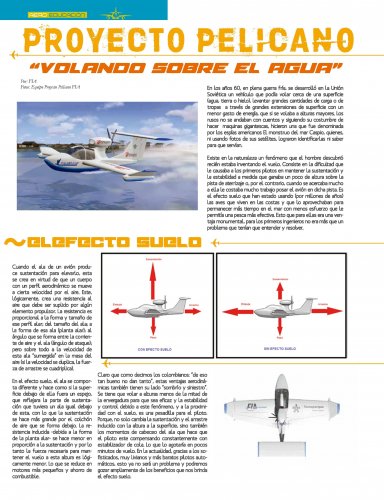

Fundación de Investigación Aeronautica FIA, "Pelicano" WIG Of Colombia designed a project for a WIG plane to operate in the geography of that country, with capacity of four pilot seats and three passengers, engine at the top of the central support, "T" tail surfaces, wings with negative dihedral and Marginal edges inclined upwards with stabilizing floats in the lower part, a small rudder after staggering the bottom of the hull. Here I leave the published article accompanied by a cutaway of it, author Motocar


Attachments

  • file-page1.JPG
    2.6 MB · Views: 713
  • file-page2.JPG
    1.5 MB · Views: 522
  • Copia de Cutaway WIG Pelicano retocado limpio.jpg
    Copia de Cutaway WIG Pelicano retocado limpio.jpg
    811.9 KB · Views: 157

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,112
Reaction score
7,036
hesham said:
who can ID this WIG aircraft (upper) ?.

https://www.slideshare.net/connectica-lab/ss-46474433

Amazing work my dear Motocar.


Motocar

I really should change my personal text
Joined
May 16, 2014
Messages
727
Reaction score
344
hesham said:
hesham said:
who can ID this WIG aircraft (upper) ?.

https://www.slideshare.net/connectica-lab/ss-46474433

Amazing work my dear Motocar.

Thanks hesham continue creating with my modest work


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,112
Reaction score
7,036

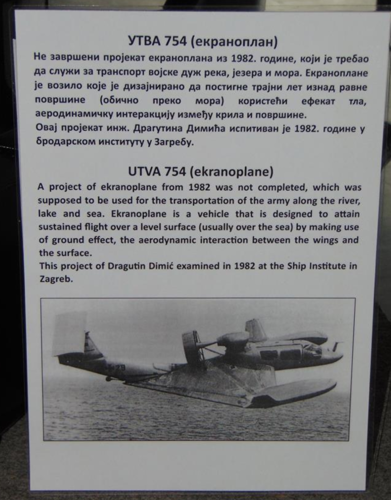

Welcome aboard Robertino,

and that's new for me,what is its name and company ?.


Attachments

  • a.png
    791.9 KB · Views: 157

fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,597
Reaction score
1,414

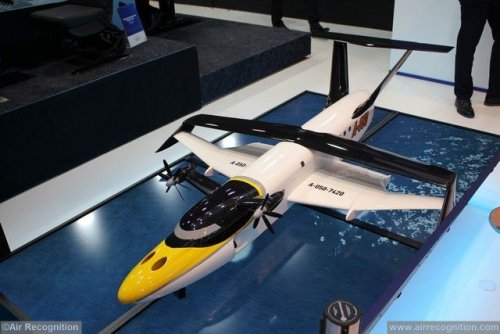

MAKS 2017: New Project A-050-742d ekranoplan emerges
At MAKS 2017, the Russian company JSC Alexeyev’s Hydrofoil Design Bureau is showcasing for the first time a new concept of multipurpose ekranoplan, the Project A-050-742d ground effect vehicle (GEV). A multipurpose platform, this GEV is designed to carry passenger and/or cargo, explained the Design BureauAccording to Alexeyev’s Hydrofoil Design Bureau, the Project A-050-742d is being designed for high-speed passengers and cargo transport in marine littoral areas, solving dedicated purposes of Emergency Control Ministry (EMERCOM).
This concept aircraft is made as amphibian platform which can board or land from unimproved shore with a maximum shore grade of 5 degrees.
Its operation areas and conditions comprise large lakes and water storage basis, marine areas. It can performs its range of missions under a maximum wind speed of 12 m/s. Alexeyev’s Hydrofoil Design Bureau is currently studying the possibility to use it on snow and icy surfaces in cold weather.
The Project A-050-742d has a MTOW of 54 tons with a payload capacity of up to 9 tons or 100 passengers, with a 4-strong crew. It features a cruising speed of 450 km/h and a maximum flight range of 3,000 km.
The aircraft has a length of 34.8 m, a beam of 25.35 m and a depth overall of 7.85 m.
Source: http://www.airrecognition.com/index.php/archive-world-worldwide-news-air-force-aviation-aerospace-air-military-defence-industry/defense-security-exhibitions-news/air-show-2017/maks-2017-news-coverage-report/3630-maks-2017-new-project-a-050-742d-ekranoplan-emerges.html

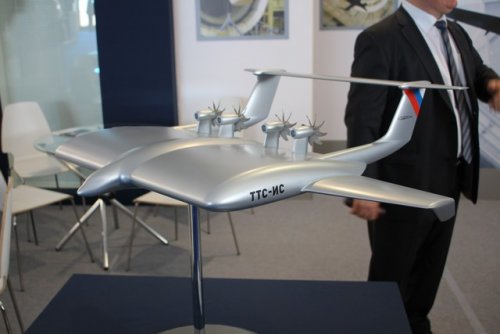

MAKS 2017: TsAGI presents HCA-LB heavy cargo aircraft project
The Zhukovsky Central AeroHydrodynamic Institute (TsAGI, a member of the National Research Center “Institute named after N.E.Zhukovsky”) is demonstrating the results of its scientific and experimental research at the MAKS airshow. Among others concepts is a mock-up of its "Heavy Cargo Aircraft Lifting Body" (HCA-LB) unveiled in January 2017.
The future heavy transport plane is being developed to haul big cargo weighing up to "500 metric tons of containerized freights from with speed of 500 km/h at distance above 6,000 km," declared TsAGI representative. Standard containers can be used. They are supposed to be accommodated by the cargo bays in the wings and boarded through hatches of the forebody slats of the plane’s central part.
The plane is planned to be operated by relevant airfields. The main part of the flight is performed by planes of the type at an altitude of 3-12 meters above water, ice or the ground.
Such surfaces create the ground effect that increases the aerodynamic quality and, as a result, reduces fuel consumption and boosts the range.
A model was made as part of the research work on the concept and tested in the TsAGI wind tunnel. The model was tested in the cruiser, takeoff and landing regimes.
A special screen looking like a round-ended plate was used to simulate the water, ice and ground surfaces.
The trials showed that the model had a high degree of aerodynamic efficiency both near the screen and without it, which will allow performing stable and controllable flights. The future plane is planned to be powered by liquefied natural gas. Unlike aviation kerosene, this cryogenic propellant has high energy efficiency and decreased hazardous emissions.
The natural gas will make flights environmentally friendly and ensure the competitiveness of the Russian-made plane on the global market.
Source: http://www.airrecognition.com/index.php/archive-world-worldwide-news-air-force-aviation-aerospace-air-military-defence-industry/defense-security-exhibitions-news/air-show-2017/maks-2017-news-coverage-report/3633-maks-2017-tsagi-presents-hca-lb-heavy-cargo-aircraft-project.html


Attachments

  • 20170719_TsAGI HCA-LB_ekranoplan_project_MAKS_2017_airrecognition.jpg
    20170719_TsAGI HCA-LB_ekranoplan_project_MAKS_2017_airrecognition.jpg
    67 KB · Views: 199
  • 20170719_Alexeyev_A-050-742d_ekranoplan_project_MAKS_2017_airrecognition.jpg
    63 KB · Views: 185

robertino

I really should change my personal text
Joined
Aug 17, 2016
Messages
103
Reaction score
78
hesham said:
Welcome aboard Robertino,

and that's new for me,what is its name and company ?.

thank you

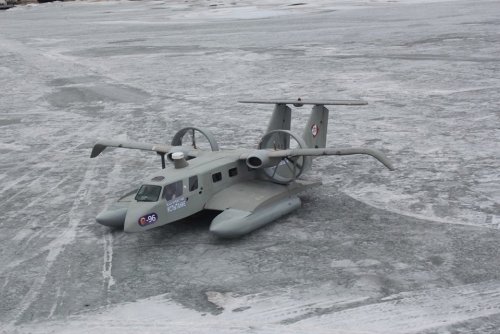

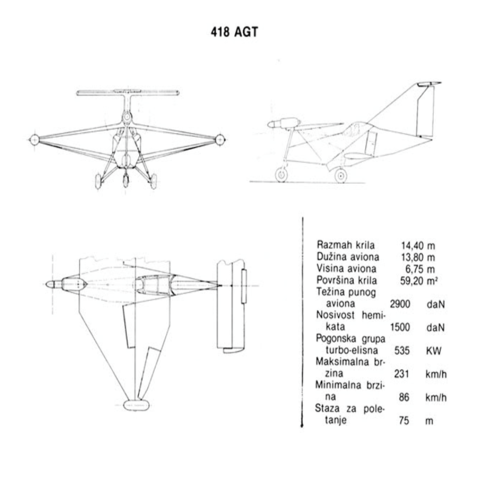

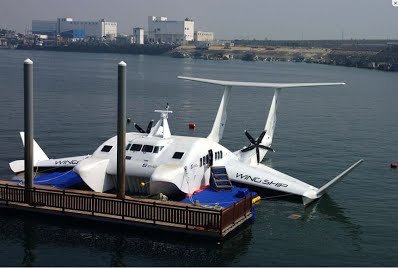

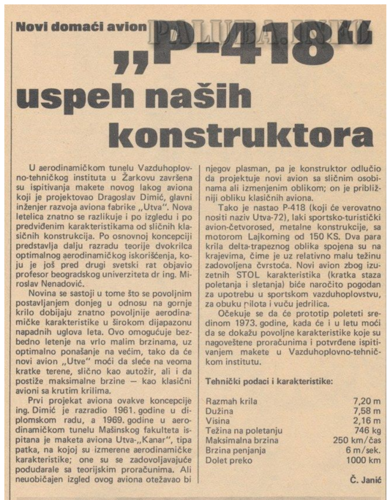

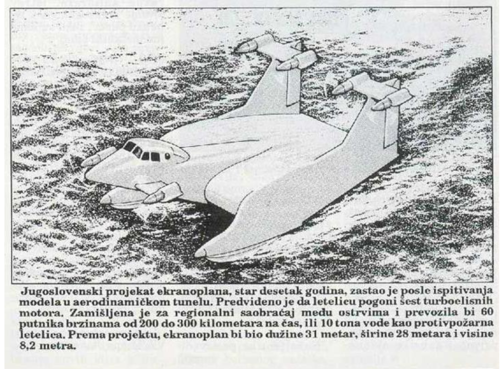

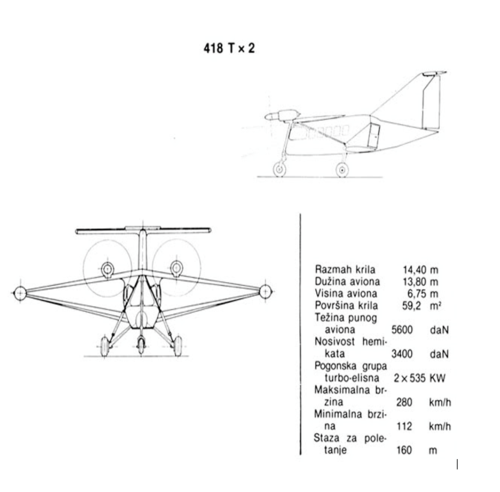

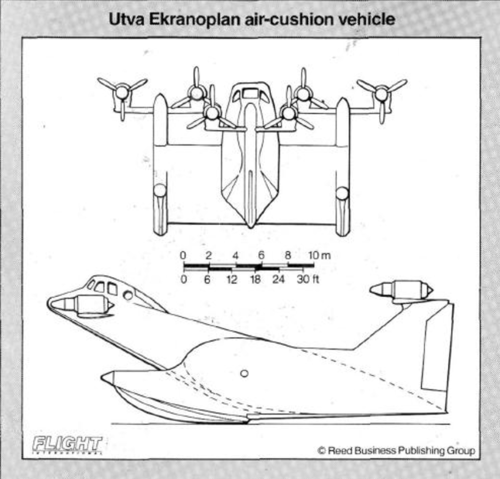

I do not know, it is probably about Dragoljub Bešlin's project, the same one who has other interesting projects
http://www.vazduhoplovnetradicijesrbije.rs/index.php/biografije/65-dragoljub-beslin (serbian)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,112
Reaction score
7,036
robertino said:
thank you

I do not know, it is probably about Dragoljub Bešlin's project, the same one who has other interesting projects
http://www.vazduhoplovnetradicijesrbije.rs/index.php/biografije/65-dragoljub-beslin (serbian)

Amazing Info Robertino,

and we know this designer and his series from B-1 to B-12,if his bureau still produced aircraft,
it's a fantastic and wonderful.


robertino

I really should change my personal text
Joined
Aug 17, 2016
Messages
103
Reaction score
78
hesham said:
robertino said:
thank you

I do not know, it is probably about Dragoljub Bešlin's project, the same one who has other interesting projects
http://www.vazduhoplovnetradicijesrbije.rs/index.php/biografije/65-dragoljub-beslin (serbian)

Amazing Info Robertino,

and we know this designer and his series from B-1 to B-12,if his bureau still produced aircraft,
it's a fantastic and wonderful.

ne, njet, nein, no
The office no longer works because there is no industry in the former Yugoslavia


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,112
Reaction score
7,036
robertino said:
ne, njet, nein, no
The office no longer works because there is no industry in the former Yugoslavia

Yes,I see,you are welcome Robertino,and we would like to see any unknown Projects
from Yugoslavia.


robertino

I really should change my personal text
Joined
Aug 17, 2016
Messages
103
Reaction score
78
hesham said:
robertino said:
ne, njet, nein, no
The office no longer works because there is no industry in the former Yugoslavia

Yes,I see,you are welcome Robertino,and we would like to see any unknown Projects
from Yugoslavia.
ok, I'll open the topic, next week


Rafael

ACCESS: Confidential
Joined
Oct 23, 2006
Messages
128
Reaction score
8

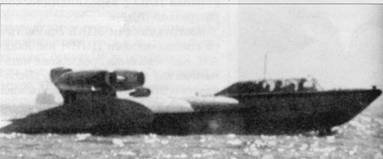

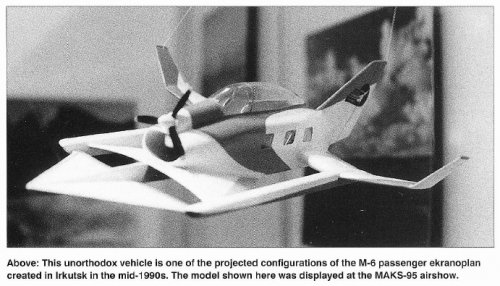

I've been searching for a 3-view of this subject, and so far, no joy. Does any of you gents have any, or can point me in its direction?

Thanks in advance


Attachments

  • Ekranoplan Irkutsk M-6.jpg
    Ekranoplan Irkutsk M-6.jpg
    247.8 KB · Views: 625

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,112
Reaction score
7,036

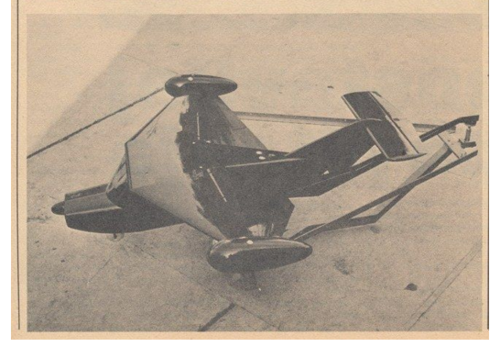

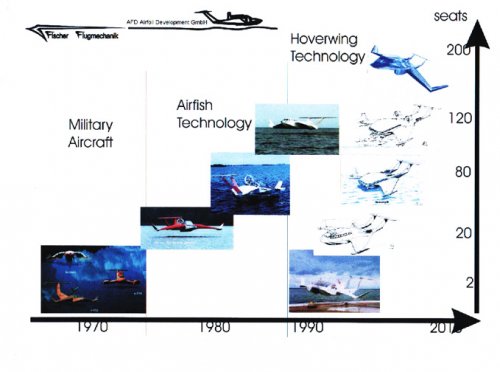

Hi,

https://sites.google.com/site/hoverwingwigcraft/publications


Attachments

  • history2 small.jpg
    history2 small.jpg
    110.6 KB · Views: 213

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,112
Reaction score
7,036

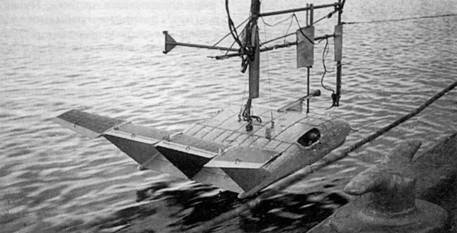

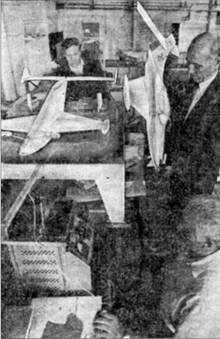

From, Техника и вооружение 2007 11 (fb2) | КулЛиб - Скачать fb2 - Читать онлайн - Отзывы,

here is a wig aircraft from Bartini,Almaz and A. N. Krylov.


Attachments

  • 3.jpg
    9.7 KB · Views: 108
  • 6.jpg
    20.4 KB · Views: 100
  • 7.jpg
    8.2 KB · Views: 90
  • 8.jpg
    16.4 KB · Views: 95
  • 9.jpg
    5.1 KB · Views: 95

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,112
Reaction score
7,036
Also from the same source,

a wig aircraft Project from Mikhail Kuzakov,and SM-17 from CCB-SPK.


Attachments

  • 5.jpg
    5.1 KB · Views: 97
  • 4.jpg
    7.4 KB · Views: 93

John Frazer

I really should change my personal text
Joined
Jan 1, 2018
Messages
22
Reaction score
23

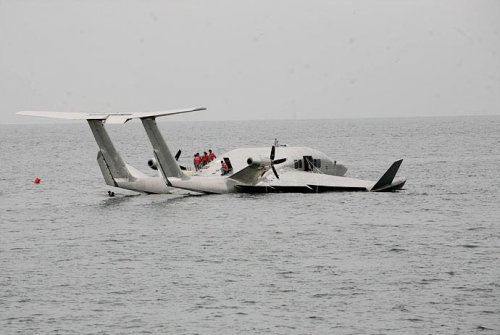

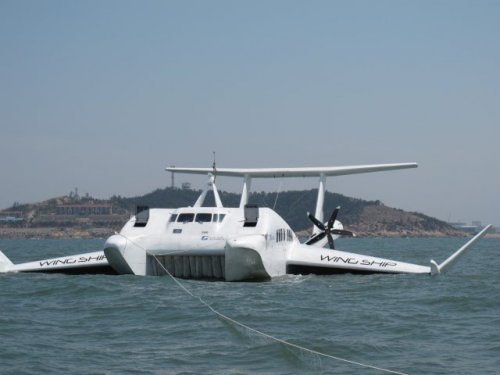

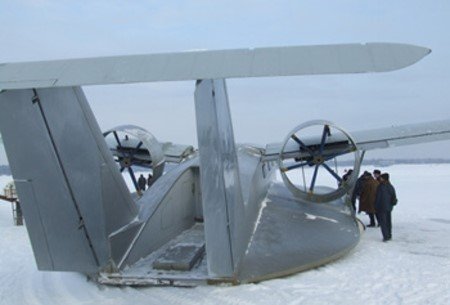

Ekranoplan Burevestnik-24
(planned 24-passenger version was being tested)
two BMW piston engines with a maximum output
of 450 hp
dry empty weight 3,600 kg
gross weight 6,500 kg
https://youtu.be/n0Oh3tD0MxA


Attachments

  • 61996302_10220201814900989_1696484830352506880_n.jpg
    29.3 KB · Views: 87
  • 61459332_10220201816141020_6259901562471055360_n.jpg
    169.1 KB · Views: 75
  • 61314231_10220201818021067_5321869941836611584_n.jpg
    23.4 KB · Views: 79

stimpy75

Happy Happy,Joy Joy
Joined
Aug 23, 2007
Messages
150
Reaction score
139

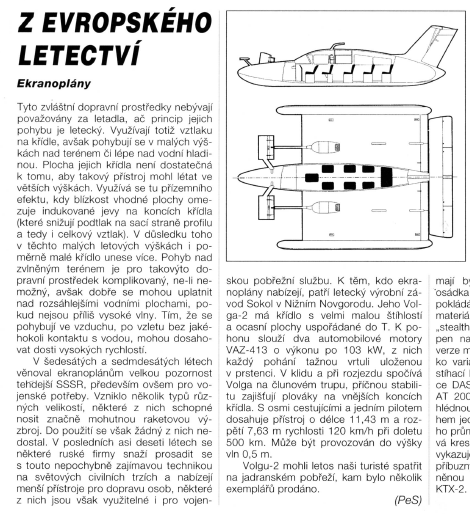

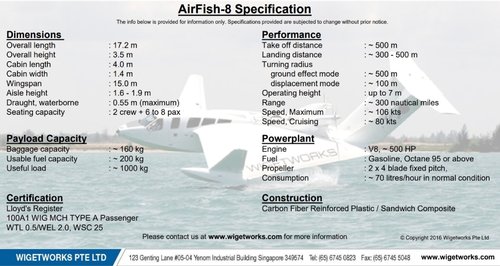

^^nice! 500 hp V8 engine and 344 miles range.
I guess a Diesel would also be possible and i.m.o even better not only from fuel economy/range point of view!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,112
Reaction score
7,036

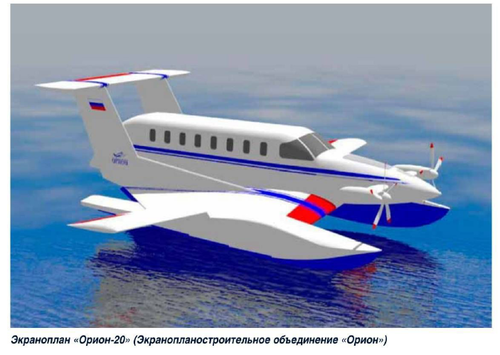

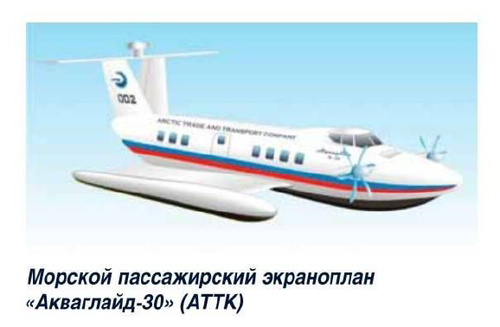

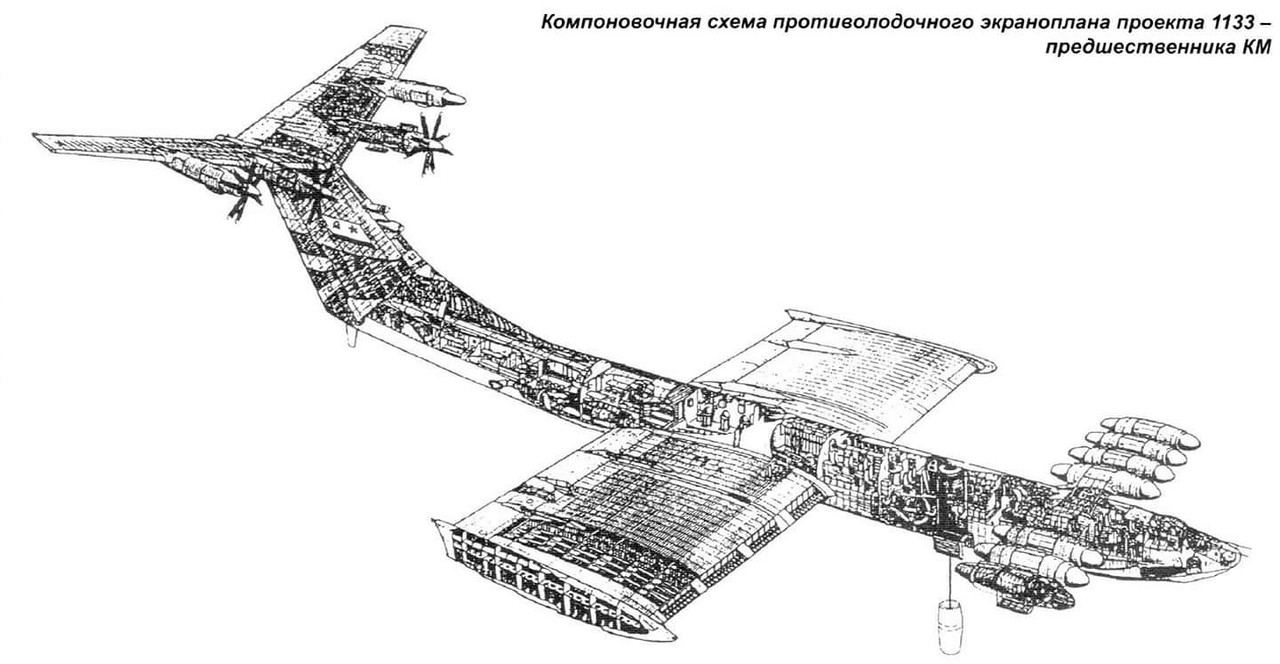

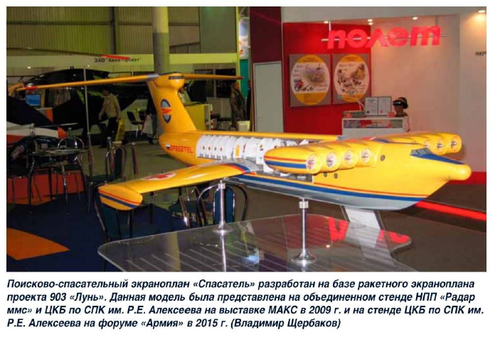

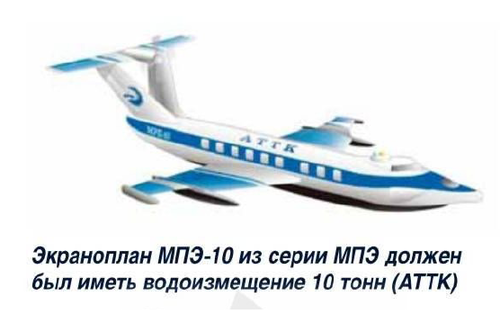

From Аэрокосмическое обозрение 2018-6.


Attachments

  • 7.png
    170.8 KB · Views: 75
  • 8.png
    154.6 KB · Views: 74
  • 9.png
    471.3 KB · Views: 75
  • 10.png
    651.3 KB · Views: 82

Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
17,454
Reaction score
7,261
An interesting report from 1975 on Soviet and Eastern European developments in surface effect vehicles, including hovercraft:

Includes some Soviet WIGs, mostly under the heading 'Aerodynamic Surface Effect Vehicles', with Ekranoplanes being mentioned (though not by that name, the term wasn't widely known in the West at the time) under the heading of 'Large Surface Effect Ships'.

EDIT: It does actually mentions the term 'ekranoplan'.

Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,112
Reaction score
7,036
Hi,

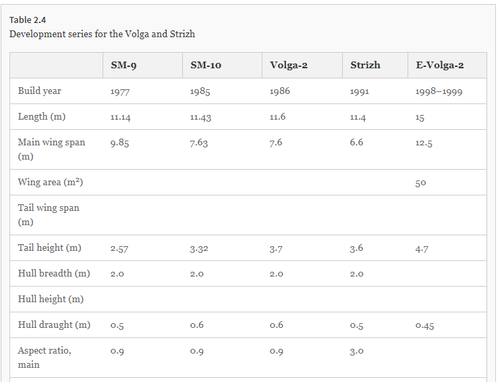

it's first time for me to hear about SM-9 & SM-10.



Attachments

  • 2.png
    19.3 KB · Views: 47

Zeppelin

ACCESS: Confidential
Joined
May 29, 2009
Messages
87
Reaction score
19

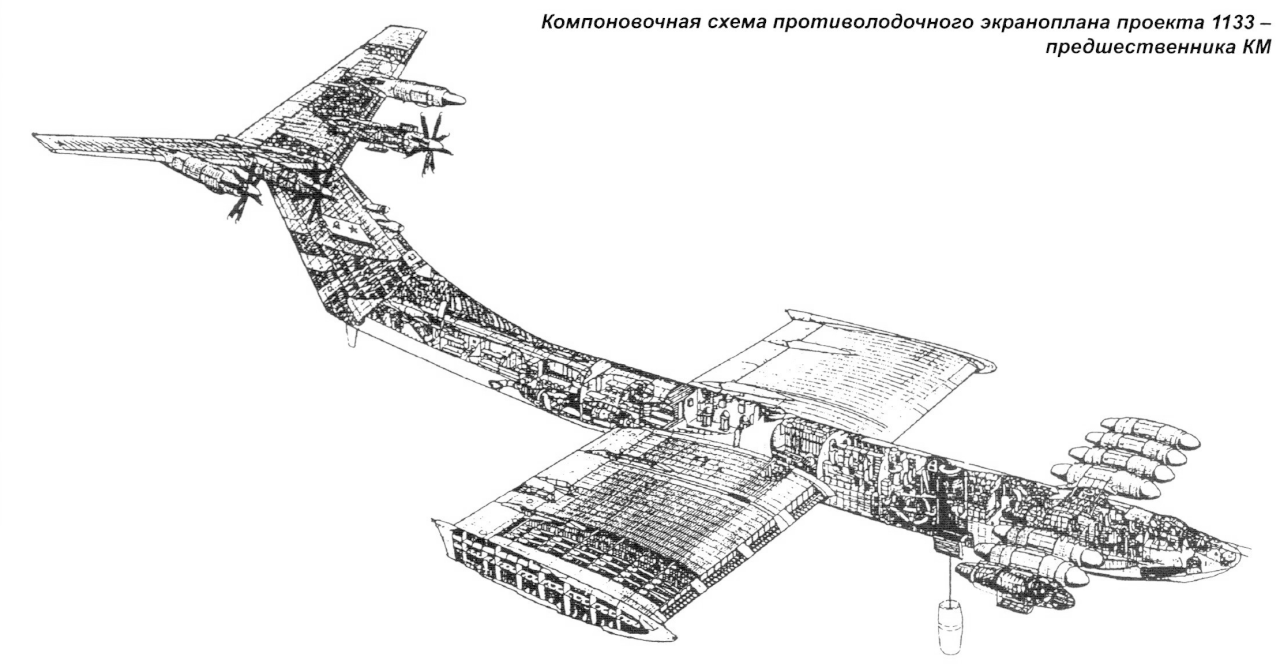

Attachments

  • Ekranoplan.jpg
    474.4 KB · Views: 75
Last edited:

TomcatViP

Hellcat
Joined
Feb 12, 2017
Messages
5,632
Reaction score
5,420
New design from a startup (but I wonder how they would keep those podded electrical engines safe from sea spray and water):

View: https://youtu.be/gS-aQ1kCfV8




shin_getter

ACCESS: Top Secret
Joined
Jun 1, 2019
Messages
710
Reaction score
807

Does anyone where to find (non-paywalled) info on this?

To use the snippet of paywalled info
A ‘genius ahead of his time’ reads the inscription on Robert Bartini’s tombstone at the Vvedenskoye Cemetery just outside of Moscow. Today, the Italian-born Soviet aircraft designer is celebrated for his extensive contribution to the development of numerous successful and experimental aircraft projects.

Many of Bartini’s concepts were truly wondrous. Some were unquestionably bizarre. Perhaps his most ambitious concept was for a 5000 ton flying ground effect aircraft carrier.

Designed to carry a crew of 430 and up to 25 combat aircraft at 600 km/h, Bartini’s ground effect aircraft carrier would have been the largest object to ever fly. Onboard, it’s crew of 430 sailors and 25 combat aircraft would travel at speeds of 600 km/h.

While a ground effect aircraft carrier’s speed and tactical mobility could give the Soviet Union an enormous tactical advantage, it was a concept so fantastical, it could have only ever existed in the eccentric mind of Bartini


shin_getter

ACCESS: Top Secret
Joined
Jun 1, 2019
Messages
710
Reaction score
807
After searching a bit, I found a mention of the Ekranoplane Carrier here:


I suppose more info can be dug out of the references to the paper.


stimpy75

Happy Happy,Joy Joy
Joined
Aug 23, 2007
Messages
150
Reaction score
139

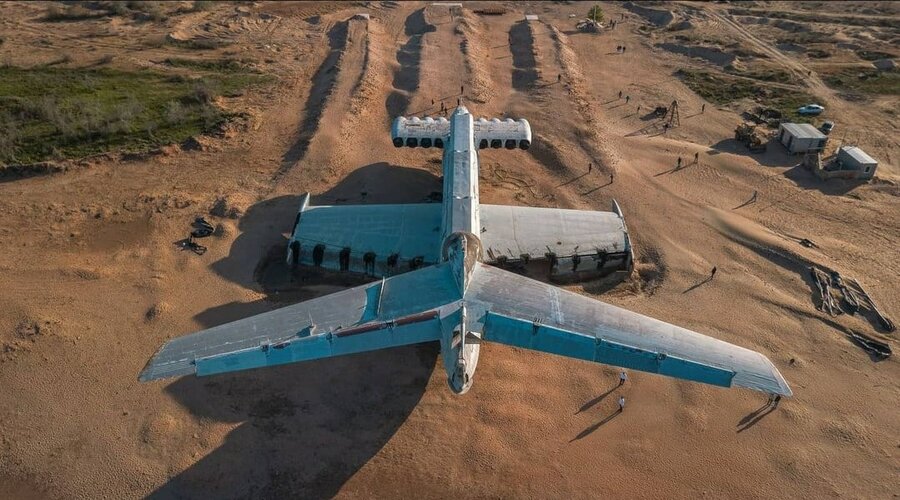

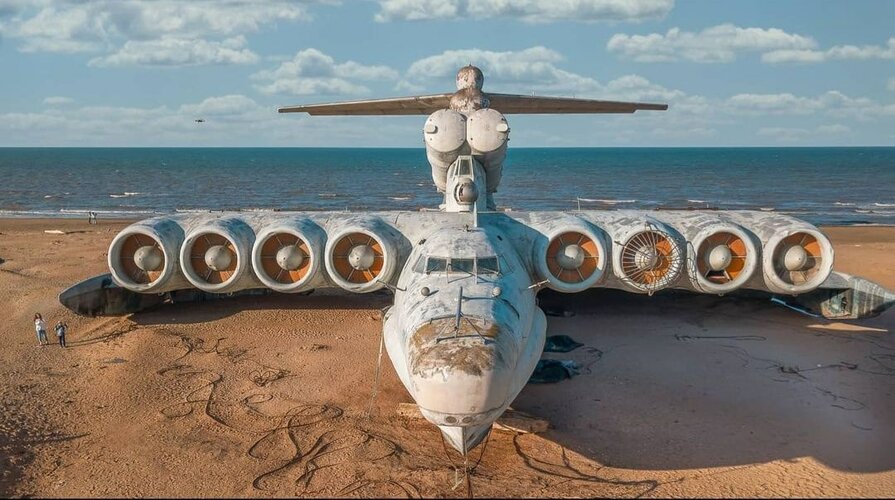

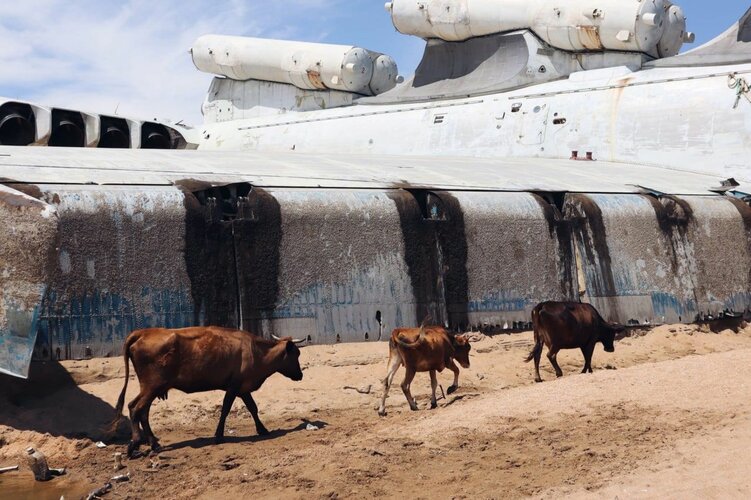

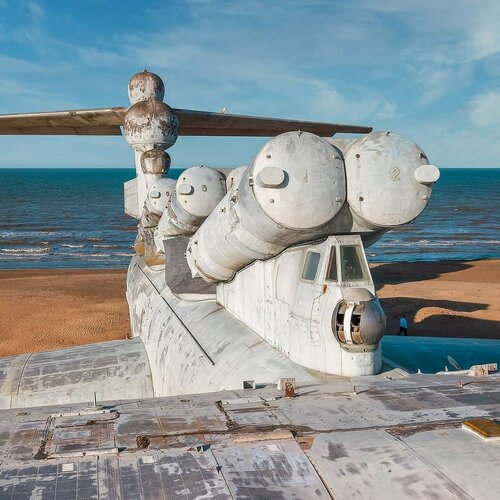

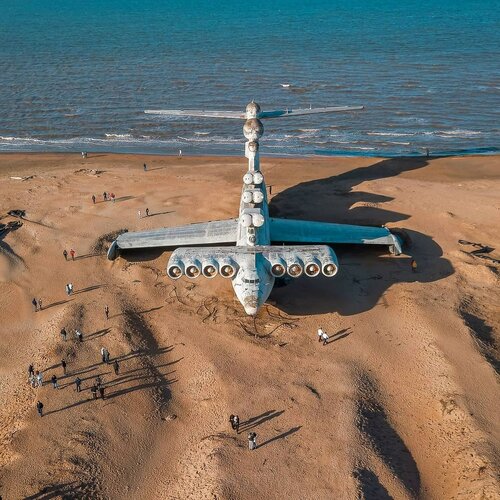

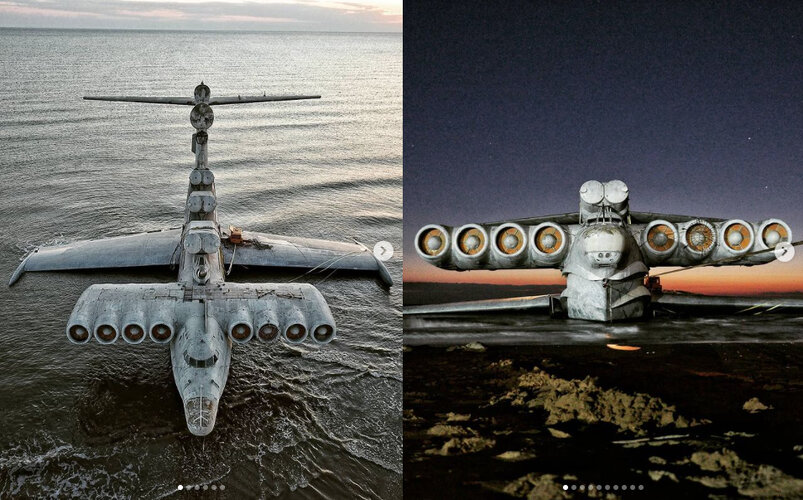

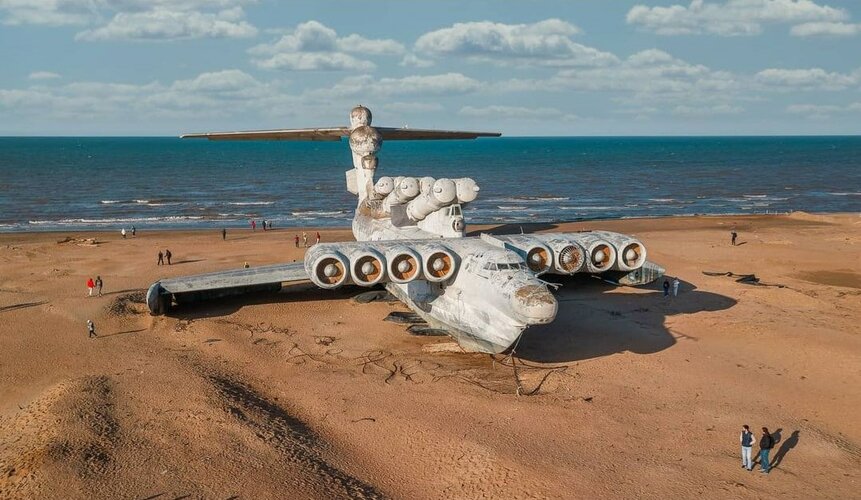

Some more Pics, I hope they do sth and preserve it


Attachments

  • IMG_20210721_130526_870.jpg
    216.9 KB · Views: 37
  • IMG_20210721_130521_691.jpg
    140.4 KB · Views: 33
  • IMG_20210721_130511_167.jpg
    308.7 KB · Views: 34
  • IMG_20210721_130508_600.jpg
    338.7 KB · Views: 32
  • IMG_20210721_130503_093.jpg
    132.5 KB · Views: 33
  • IMG_20210721_130459_024.jpg
    159.6 KB · Views: 32
