U.S. Wing-in-Ground (WIG) studies

AeroFranz

CLEARANCE: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,141
Reaction score
3
That looks way small for a 250,000 lbs payload...
Even with GE-90s, you would still need more than two engines.
From the look of the cockpit window, this is a much smaller vehicle. My two cents. :)


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,301
Reaction score
113
Hi,

the WIG aircraft and air-cushion transport concept.

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19800003826_1980003826.pdf


Attachments

JJC

CLEARANCE: Restricted
Joined
May 2, 2009
Messages
27
Reaction score
0
http://www.aereimilitari.org/forum/index.php?showtopic=9418

there is dimesions for the pelican here


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,703
Reaction score
33
JJC said:
there is dimesions for the pelican here
And here big old thread on Pelican here. Please use search before new post.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,301
Reaction score
113
Hi,

the Bell Air cushion WIG aircraft.

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19790017874_1979017874.pdf


Attachments

circle-5

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,161
Reaction score
11
Artist rendering of a McDonnell-Douglas WIG in USAF colors (note SAC shield) firing a cruise missile from its retractable launch tubes. Probably a good way to upset the Navy.

This WIG looks like it can also fly at altitude, like a Bartini VVA-14. (Original painting by Mike Machat for McDonnell Douglas Corporation. Courtesy Mike Machat)


Attachments

donnage99

"Robert Gates, is that you??" sublight
Joined
Jun 17, 2008
Messages
954
Reaction score
0
Sorry for ignorant question but why does the USAF have not implemented transport WIG as a mean to storm beaches, or cruise missiles arsenal planes? For the limited knowledge I have, I can see these platforms as extremely flexible, so is it because that there are flaws in these concepts that I'm unaware of or is it just because of military branches' traditions that do not want other branches to invade their turf?


RanulfC

CLEARANCE: Secret
Joined
Mar 6, 2009
Messages
427
Reaction score
4
donnage99 said:
Sorry for ignorant question but why does the USAF have not implemented transport WIG as a mean to storm beaches, or cruise missiles arsenal planes? For the limited knowledge I have, I can see these platforms as extremely flexible, so is it because that there are flaws in these concepts that I'm unaware of or is it just because of military branches' traditions that do not want other branches to invade their turf?
Nothing "ignorant" about the question Donnage :)

Of the "listed" tasks the ONLY one that the USAF would be interested in would be the Cruise-Missile Arsenal plane, similar to the one pictured in the post above yours. Of course the "problem" with that idea is the Air Force doesn't have a lot of experiance with sea-based duties and frankly from a purely service orientated view it would make more sense to have something like a 747 based airborne arsenal aircraft rather than a WIG based on simiply due to how much easier that would be to intergrate into the current infrastructure.
The 'rest' of those jobs are Navy duties and would be of much more interest to them than the USAF. Mostly it is because (as you note) branches of the military don't like to have 'over-lap' in duties, partially because of traditional seperations of duties but mostly having to do with funding. If, say, the Air Force got a whole bunch of WIG transports that were capable of going from the East Coast of the United States to a beach landing on the Coast of Africa then there would be a LOT of political pressure on the Navy to have their Marine transport and support infrastructure and equipment cut back or eliminated. There might even be suggestions that the Marines be put under the Air Force control! (The horror! The Marines would of course commit mass suicide at the mere thought of such an event :p )

That's actually one reason why the Pelican transport recieved such a cool welcome and so little support for a larger test program. It wasn't being pitched a capability for the Navy, but as a "Super-Heavy" Air Force transport that could not ONLY land troops and equipment on the beach but could fly out-of-ground-effect to do the same at some in-land point! The Air Force didn't/doesn't want to directly interface with operations like beach landings since that is far out of our expertise range, at the same time the Navy and Marines didn't want to have funding for their landing operations and equipment budget going to the Air Force to support a heavy duty transport they may or may not be able to use as readily as what they were already using. About the ONLY branch that didn't have an 'issue' with the basic idea of the Pelican was the Army which pretty much wanted the Air Force to buy them so they could make plans on being able to move a full company of M-1A-2 heavy tanks anywhere in the world on short notice.

Randy


OM

CLEARANCE: Top Secret
Joined
Jun 22, 2008
Messages
753
Reaction score
0
Website
www.io.com
Sorry for ignorant question but why does the USAF have not implemented transport WIG as a mean to storm beaches,
...Because the Air Farce wouldn't be the branch to develop and implement an aircraft for such a purpose. The Navy and Marine Corps would be the most likely branch to consider using such a vehicle, with the Aaaarmy coming in second and most likely using whatever the Navy put into service. That being said, the closest thing the US armed services came to implementing anything WIG was the Sea Spectre, a remarkable cross-breeding between an F-117 and a large PT Boat whose stealthy nature of mission wound up being its reason for failure, as the Navy had extreme difficulties getting any of its flag officers to assume command voluntarily; for some whackjob reason, they felt using such stealth technology combined with stand-off-and-shoot(*) in high seas combat was "cowardly" and "dishonorable". Personally, I'd have given my remaining good leg for the honor of commanding such a vessel. And my left nut for the privilege to actually use its might in combat against our enemies.

(*) If being able to strike from a distance without detection was a sin, try telling that to battlecruisers with 16" guns, painted in camouflage.


Mike OTDP

CLEARANCE: Restricted
Joined
Dec 4, 2009
Messages
27
Reaction score
0
Well, the Navy has the original stealth platform - submarines.

And we had a WIG test program planned in the early '90s. Ran short of money...


V8Interceptor

CLEARANCE: Restricted
Joined
Mar 3, 2009
Messages
30
Reaction score
0
OM said:
Sorry for ignorant question but why does the USAF have not implemented transport WIG as a mean to storm beaches,
...Because the Air Farce wouldn't be the branch to develop and implement an aircraft for such a purpose. The Navy and Marine Corps would be the most likely branch to consider using such a vehicle, with the Aaaarmy coming in second and most likely using whatever the Navy put into service. That being said, the closest thing the US armed services came to implementing anything WIG was the Sea Spectre, a remarkable cross-breeding between an F-117 and a large PT Boat whose stealthy nature of mission wound up being its reason for failure, as the Navy had extreme difficulties getting any of its flag officers to assume command voluntarily; for some whackjob reason, they felt using such stealth technology combined with stand-off-and-shoot(*) in high seas combat was "cowardly" and "dishonorable". Personally, I'd have given my remaining good leg for the honor of commanding such a vessel. And my left nut for the privilege to actually use its might in combat against our enemies.

(*) If being able to strike from a distance without detection was a sin, try telling that to battlecruisers with 16" guns, painted in camouflage.

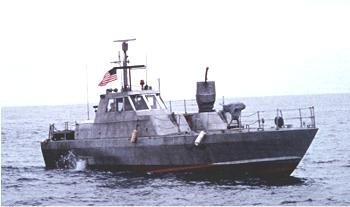

I'm confused? Are you referring to the Navy's MKIII Sea Spectre Patrol Boat? IINM, these had a fairly long service life(mid 70's to late 90's) but were not particularly stealthy so I don't understand the F-117 reference?


Attachments

RanulfC

CLEARANCE: Secret
Joined
Mar 6, 2009
Messages
427
Reaction score
4
V8Interceptor said:
OM said:
Sorry for ignorant question but why does the USAF have not implemented transport WIG as a mean to storm beaches,
...Because the Air Farce wouldn't be the branch to develop and implement an aircraft for such a purpose. The Navy and Marine Corps would be the most likely branch to consider using such a vehicle, with the Aaaarmy coming in second and most likely using whatever the Navy put into service. That being said, the closest thing the US armed services came to implementing anything WIG was the Sea Spectre, a remarkable cross-breeding between an F-117 and a large PT Boat whose stealthy nature of mission wound up being its reason for failure, as the Navy had extreme difficulties getting any of its flag officers to assume command voluntarily; for some whackjob reason, they felt using such stealth technology combined with stand-off-and-shoot(*) in high seas combat was "cowardly" and "dishonorable". Personally, I'd have given my remaining good leg for the honor of commanding such a vessel. And my left nut for the privilege to actually use its might in combat against our enemies.

(*) If being able to strike from a distance without detection was a sin, try telling that to battlecruisers with 16" guns, painted in camouflage.
I'm confused? Are you referring to the Navy's MKIII Sea Spectre Patrol Boat? IINM, these had a fairly long service life(mid 70's to late 90's) but were not particularly stealthy so I don't understand the F-117 reference?
I think he was meaning the "Sea Shadow" no the spectre...

Randy


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
25
Website
deeptowild.blogspot.com
circle-5 said:
Artist rendering of a McDonnell-Douglas WIG in USAF colors (note SAC shield) firing a cruise missile from its retractable launch tubes. Probably a good way to upset the Navy.

This WIG looks like it can also fly at altitude, like a Bartini VVA-14. (Original painting by Mike Machat for McDonnell Douglas Corporation. Courtesy Mike Machat)
Do you have a date for this concept circle-5?


V8Interceptor

CLEARANCE: Restricted
Joined
Mar 3, 2009
Messages
30
Reaction score
0
RanulfC said:
V8Interceptor said:
OM said:
Sorry for ignorant question but why does the USAF have not implemented transport WIG as a mean to storm beaches,
...Because the Air Farce wouldn't be the branch to develop and implement an aircraft for such a purpose. The Navy and Marine Corps would be the most likely branch to consider using such a vehicle, with the Aaaarmy coming in second and most likely using whatever the Navy put into service. That being said, the closest thing the US armed services came to implementing anything WIG was the Sea Spectre, a remarkable cross-breeding between an F-117 and a large PT Boat whose stealthy nature of mission wound up being its reason for failure, as the Navy had extreme difficulties getting any of its flag officers to assume command voluntarily; for some whackjob reason, they felt using such stealth technology combined with stand-off-and-shoot(*) in high seas combat was "cowardly" and "dishonorable". Personally, I'd have given my remaining good leg for the honor of commanding such a vessel. And my left nut for the privilege to actually use its might in combat against our enemies.

(*) If being able to strike from a distance without detection was a sin, try telling that to battlecruisers with 16" guns, painted in camouflage.
I'm confused? Are you referring to the Navy's MKIII Sea Spectre Patrol Boat? IINM, these had a fairly long service life(mid 70's to late 90's) but were not particularly stealthy so I don't understand the F-117 reference?
I think he was meaning the "Sea Shadow" no the spectre...

Randy
Ah, that makes a little more sense, though Sea Shadow is only a technology demonstrator incapable of deploying weapons(and of course, not a WIG)...


RanulfC

CLEARANCE: Secret
Joined
Mar 6, 2009
Messages
427
Reaction score
4
V8Interceptor said:
Ah, that makes a little more sense, though Sea Shadow is only a technology demonstrator incapable of deploying weapons(and of course, not a WIG)...
Well... it IS kind of "WIG-ish" looking I suppose :)

Randy


Retrofit

CLEARANCE: Top Secret
Joined
Feb 21, 2007
Messages
536
Reaction score
2

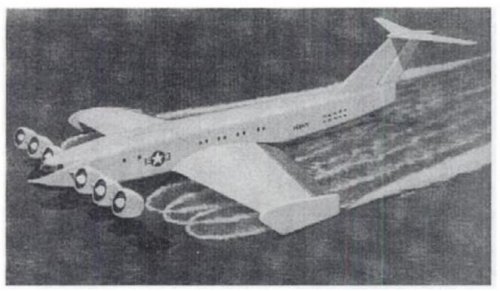

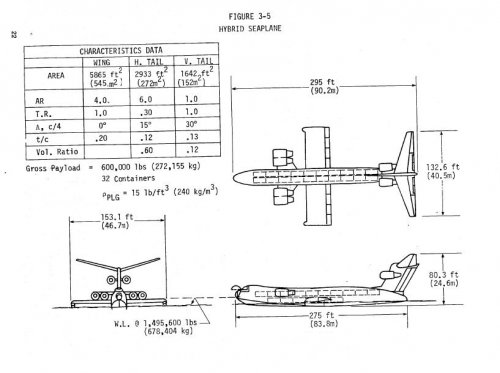

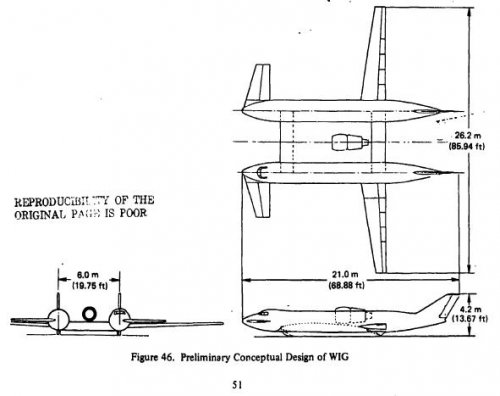

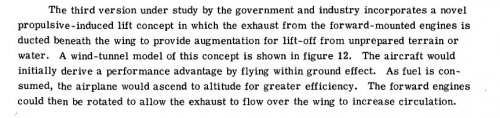

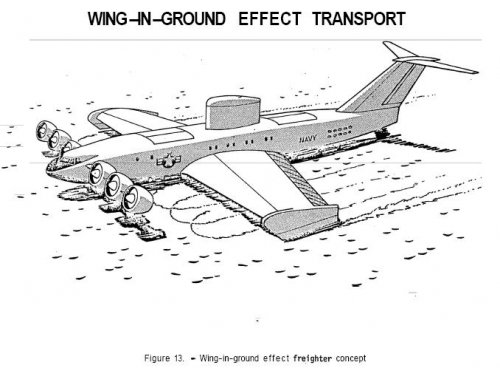

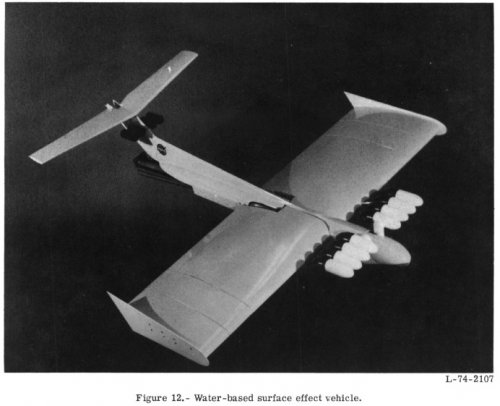

A WIG concept under study by the NASA in 1975

Source: http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19760005976_1976005976.pdf


Attachments

ford_tempo

CLEARANCE: Confidential
Joined
Jan 31, 2011
Messages
74
Reaction score
0
Hi

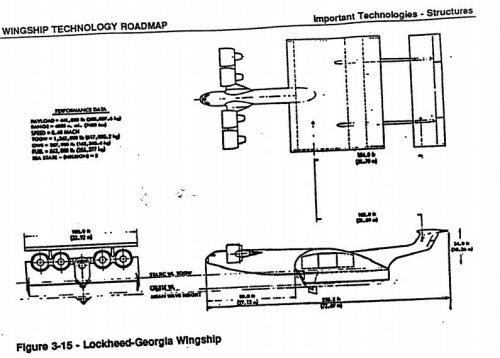

If you follow the link given below you will find a 3 volume report about wingship investigation in the U.S. They are quite large and cover every aspect: missions, aerodynamics, propulsion and so on.

Also they report (in volume 3) short descriptions of proposals for large WIGs by Lockheed, McDonnell Douglas, Northrop and Aerocon (with technical data and line drawings).

http://www.dtic.mil/srch/search?searchview=d4&c=t3&changequery=1&template=%2Fdtic%2Fsearch%2Ftr%2Fresults-template-tr.html&s=1&fql=y&n=30&sort=-RD&xml=1&q=wingship+investigation&Submit=Search&pdfitems=&enableLemmatization=YES

best
F.T.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,301
Reaction score
113
ford_tempo said:
Hi

If you follow the link given below you will find a 3 volume report about wingship investigation in the U.S. They are quite large and cover every aspect: missions, aerodynamics, propulsion and so on.

Also they report (in volume 3) short descriptions of proposals for large WIGs by Lockheed, McDonnell Douglas, Northrop and Aerocon (with technical data and line drawings).

http://www.dtic.mil/srch/search?searchview=d4&c=t3&changequery=1&template=%2Fdtic%2Fsearch%2Ftr%2Fresults-template-tr.html&s=1&fql=y&n=30&sort=-RD&xml=1&q=wingship+investigation&Submit=Search&pdfitems=&enableLemmatization=YES

best
F.T.

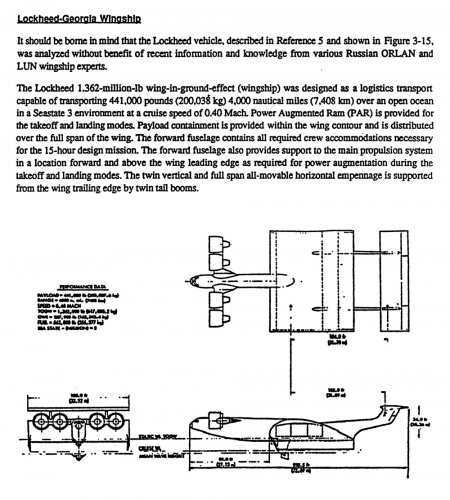

We can display them here.

http://www.dtic.mil/cgi-bin/GetTRDoc?AD=ADA294980&Location=U2&doc=GetTRDoc.pdf


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,244
Reaction score
10
hesham said:
We can display them here.
OR... we can try to clean them up a bit to make them a little more user friendly... Don't you think it's a lot better this way?


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,244
Reaction score
10

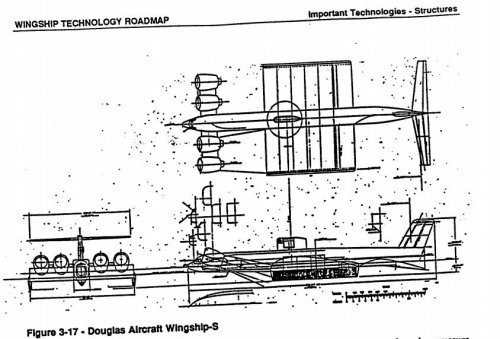

Nice... but if it's the Aerocon design, why does the blueprint say "Northrop"?!?


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,244
Reaction score
10

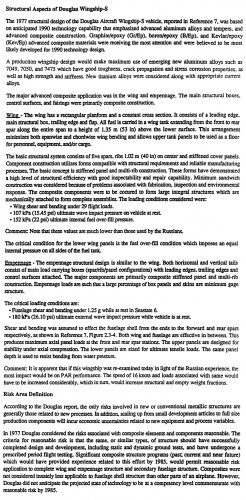

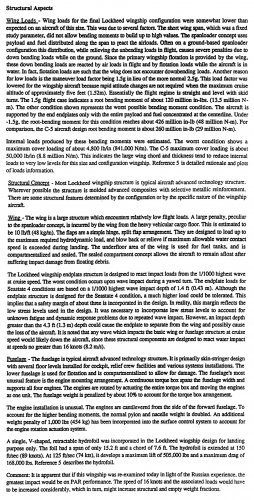

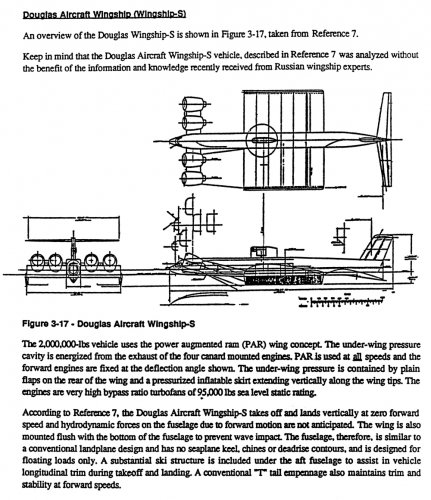

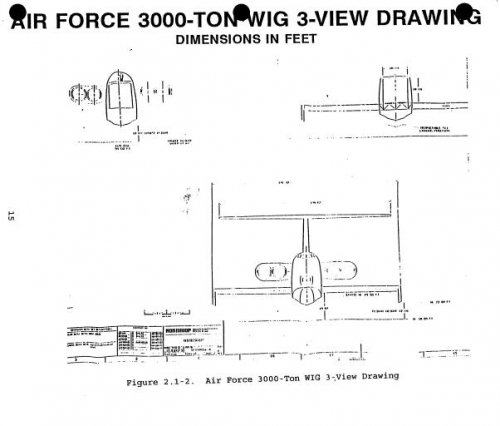

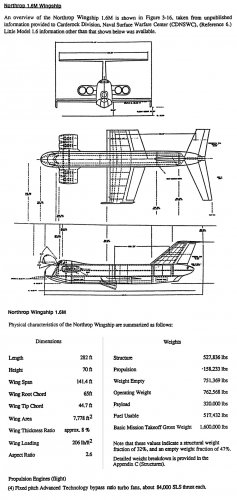

As I suspected, this is not the Aerocon proposal, but a USAF proposal based on a Northrop design (ARPA Wingship Program Parametric Study - Preliminary Results -
Northrop Jul. 1993):

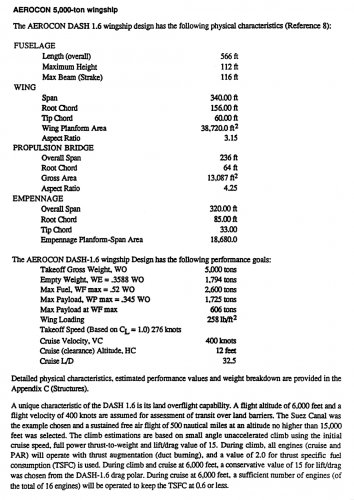

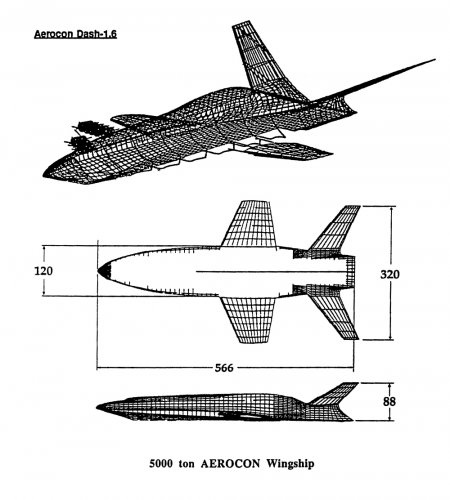

The two WIG concepts evaluated in this study are the DASH-1.6, 5000-ton Wingship created by Aerocon Incorporated, and a 3000-ton variant developed by the Air Force ASC/XREDT of a Northrop 800-ton concept. Details on these two concepts, as provided by their developers (References 2 and 3), are presented below.
The inboard profile drawing, shown earlier in Figure 2.1-4, for the Northrop 800-ton WIG depicts a nose visor door and rear port side doors for loading and unloading. No dimensions are given for these doors. It is assumed that the nose visor door will open completely to provide straight-in loading/unloading access to the full 28.4 ft wide and total 33+ ft high (14 ft upper, 19 ft lower, plus upper floor thickness) cargo compartment. The two rear loading doors appear to give full height access; the total width of the two doors appears to be about 60-percent greater than the height.

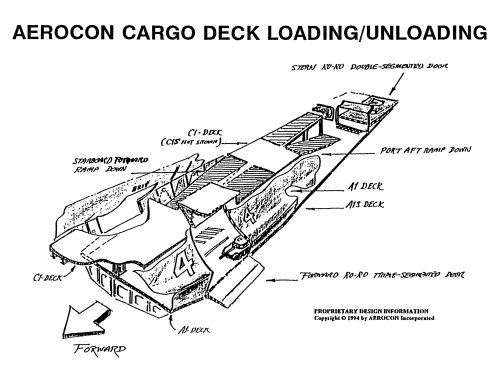

No ramps or other equipment are shown in the drawings for loading and unloading. Integral ramps, similar to those on the Aerocon concept, could be developed as a future design refinement.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,244
Reaction score
10
Old WIG topic split.

Please use this new topic for WIG studies from Lockheed, Northrop, Aerocon, Bell, and so forth (NOT the Boeing Pelican, which already has its own topic).

There will be separate topics for Russian WIGs and small-size, general aviation type WIGs.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,301
Reaction score
113
Hi,

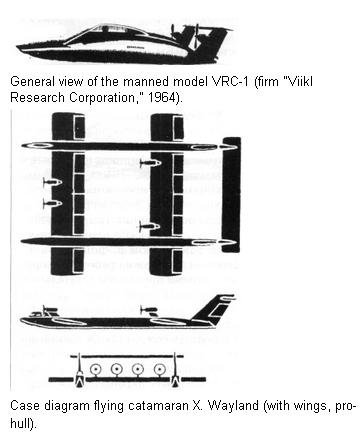

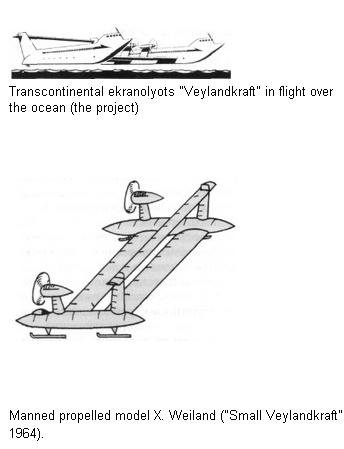

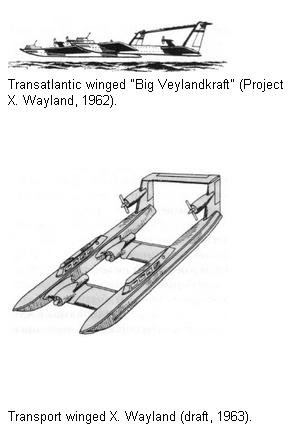

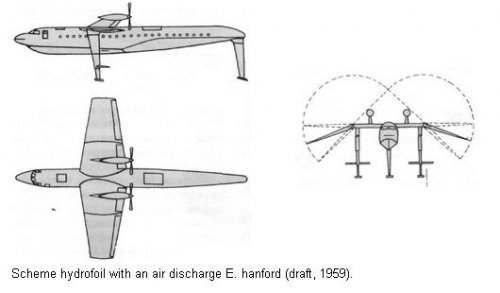

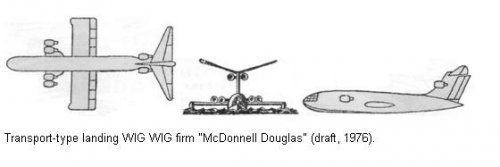

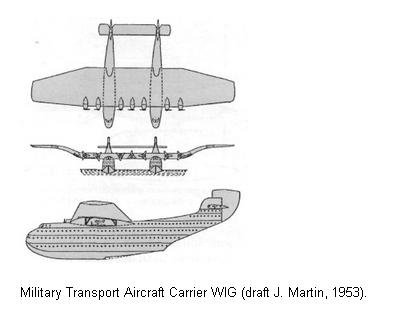

here is many Ekranoplanes designs for small designers;


http://vadimvswar.narod.ru/ALL_OUT/TiVOut0809/EkrplUSA/EkrplUSA001.htm


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,244
Reaction score
10
hesham said:
one of them is the MIT,which its project was based on Boeing Model 747.
In what manner? I can't see an ounce of commonality between this weird design and a 747!


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,301
Reaction score
113
Hi,

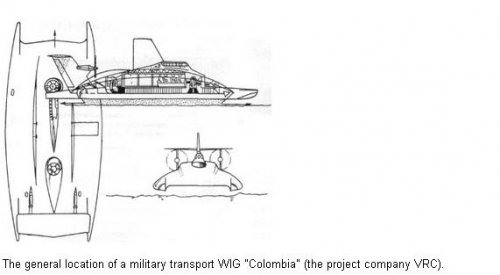

in 1961,the Office of Naval Operations Staff of the US. Navy had decided to make a
competition for design of Large Military Transport Amphibian aircraft,the competition
was attended by several US companies,but the winner was VRC Colombia.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,301
Reaction score
113
Stargazer2006 said:
hesham said:
one of them is the MIT,which its project was based on Boeing Model 747.
In what manner? I can't see an ounce of commonality between this weird design and a 747!

Before objection,please see the Translation;

Specialists MIT long worked to create the winged, which is a hybrid aircraft and ocean-going vessel.Finally, in 1995, they announced their project improved WIG W1GM.WIG, received the name «Fastship» (speed ship), be equipped jet engines on aircraft «Boeing-747".W1GM combined the possibility of obtaining a high flight speed and aerodynamic efficiency when driving in the zone of influence of ground effect, and outside of it.At higher altitudes the winged flight was designed to achieve transonic speeds.Power plant included turbojets general thrust 203 tons.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,244
Reaction score
10
The only thing I learn from this very approximate piece of English is that they used 747 engines.

Hardly makes it a Boeing 747 variant, does it?

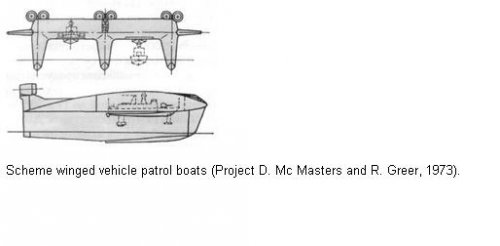

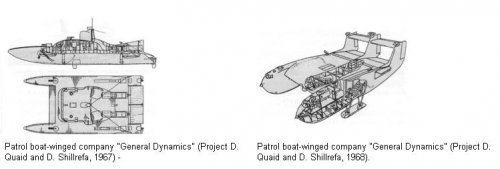

Also you misread the General Dynamics project as having a "Project D" designation... It doesn't. The "D" is the initial of the first designer.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,244
Reaction score
10
Also, we already have a topic on the Boeing project:

http://www.secretprojects.co.uk/forum/index.php/topic,433.0


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,301
Reaction score
113
Hi,

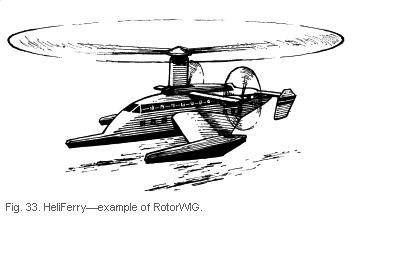

here is the HeliFerry,a WIG helicopter concept.


http://www.sciencedirect.com/science/article/pii/S0376042106000637


Attachments

ford_tempo

CLEARANCE: Confidential
Joined
Jan 31, 2011
Messages
74
Reaction score
0
Hi

A concept for a multi mission par-wig aircraft studied at DTNSRDC. It includes a version for Sea Control with 4 v/stol aircraft as a payload

http://oai.dtic.mil/oai/oai?verb=getRecord&metadataPrefix=html&identifier=ADA051433

best
F_T


Attachments

sferrin

CLEARANCE: Above Top Secret
Senior Member
Joined
Jun 3, 2011
Messages
11,403
Reaction score
20

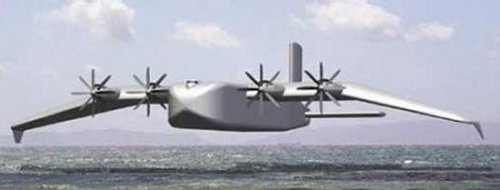

From here:

http://www.militaryphotos.net/forums/showthread.php?220875-Concept-Canceled-Proposed-Rumored-Military-amp-Civilian-Projects&p=7547605&viewfull=1#post7547605

Any further info on this?
