Unbuilt, experimental and unusual Boeing 747s

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
142
Pratt & Whitney Canada's Boeing 747SP engine testbed, spotted yesterday visiting the Southern California Logistics Airport in Victorville (formerly George AFB, until 1992).


Attachments

  • P&W 747SP Testbed.jpg
    P&W 747SP Testbed.jpg
    321.9 KB · Views: 449

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
562
Website
deeptowild.blogspot.com

Attachments

  • Boeing 747 M x Air Mobile System Concept 08.jpg
    Boeing 747 M x Air Mobile System Concept 08.jpg
    78.3 KB · Views: 245
  • Boeing 747 M x Air Mobile System Concept 07.jpg
    Boeing 747 M x Air Mobile System Concept 07.jpg
    75.5 KB · Views: 199
  • Boeing 747 M x Air Mobile System Concept 06.jpg
    Boeing 747 M x Air Mobile System Concept 06.jpg
    45.2 KB · Views: 183
  • Boeing 747 M x Air Mobile System Concept 05.jpg
    Boeing 747 M x Air Mobile System Concept 05.jpg
    159.6 KB · Views: 203
  • Boeing 747 M x Air Mobile System Concept 04.jpg
    Boeing 747 M x Air Mobile System Concept 04.jpg
    83.3 KB · Views: 221
  • Boeing 747 M x Air Mobile System Concept 03.jpg
    Boeing 747 M x Air Mobile System Concept 03.jpg
    87.4 KB · Views: 214
  • Boeing 747 M x Air Mobile System Concept 02.jpg
    Boeing 747 M x Air Mobile System Concept 02.jpg
    68.3 KB · Views: 195
  • Boeing 747 M x Air Mobile System Concept 01.jpg
    Boeing 747 M x Air Mobile System Concept 01.jpg
    122.4 KB · Views: 210

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
686
Reaction score
397
$1,500 starting bid :eek: !!!!!


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,070
Reaction score
3,746
Triton said:

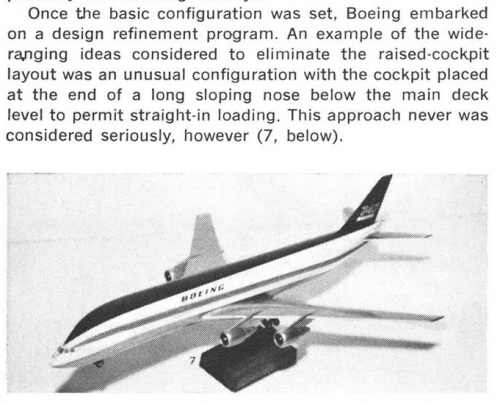

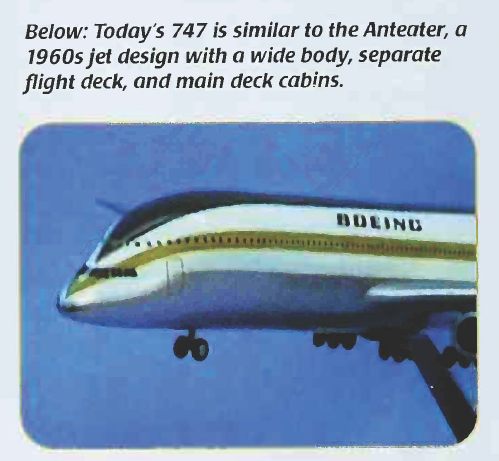

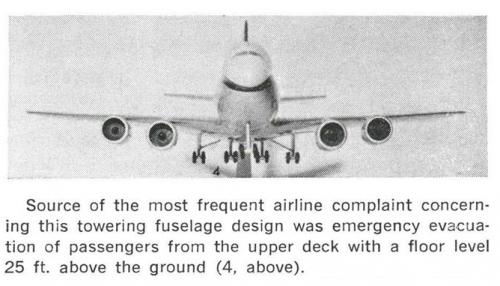

Model of Boeing 747 "ant-eater" or "droop nose" design finalist

Another significant finalist was the "ant-eater." So called because it appeared to have a droop-snout, the ant-eater was important because it promoted the concept of a wide single deck, as well as the idea of placing the flight deck on a different level than the main passenger accommodation The design allowed freight to be loaded directly in the main deck without having to swing the nose out of the way. The same basic concept was used 30 years later by Airbus for the A300-600T Beluga transport.
Source:http://rides.webshots.com/photo/2360418390048918155DrQvBs

And from front.


Attachments

  • a.png
    248.6 KB · Views: 1,221

Graham1973

ACCESS: Top Secret
Senior Member
Joined
Dec 16, 2010
Messages
1,530
Reaction score
264

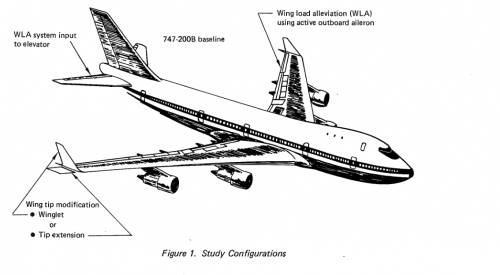

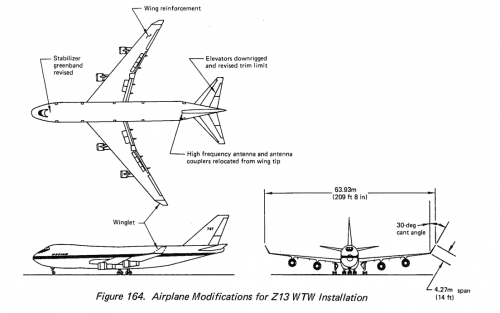

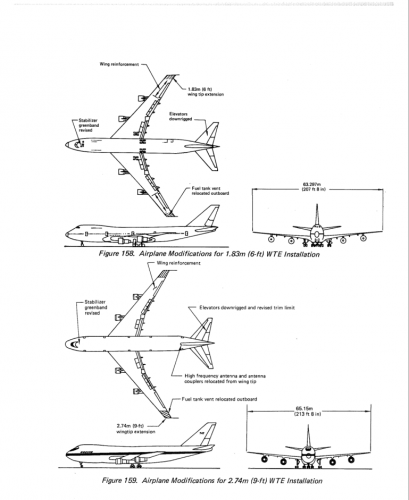

1980 NASA/Boeing studies into fitting winglets and other 'advanced' (for the period) technologies to the Boeing 747-200.


Summary Report - Selective Advanced Aerodynamics and Active Controls Technology Concepts Development on a derivative B-747 aircraft. (1980)

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19830018560.pdf

Selective Advanced Aerodynamics and Active Controls Technology Concepts Development on a derivative B-747 aircraft. (1980)

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19820024470.pdf



Attachments

  • B747-EET_03.png
    111.1 KB · Views: 986
  • B747-EET_02.png
    123.9 KB · Views: 1,001
  • B747-EET_01.png
    132.4 KB · Views: 1,015

Kiltonge

Greetings Earthling
Joined
Jan 24, 2013
Messages
202
Reaction score
14
The clearest shot I've found yet of the 747 tanker's boom-operator window.

http://www.airliners.net/photo/0413291/M/


Graham1973

ACCESS: Top Secret
Senior Member
Joined
Dec 16, 2010
Messages
1,530
Reaction score
264

Attachments

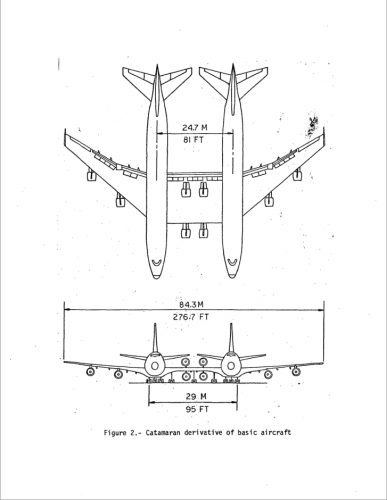

  • B747-Zwilling.png
    96.5 KB · Views: 907

Graham1973

ACCESS: Top Secret
Senior Member
Joined
Dec 16, 2010
Messages
1,530
Reaction score
264
bigvlada said:
Graham1973 said:

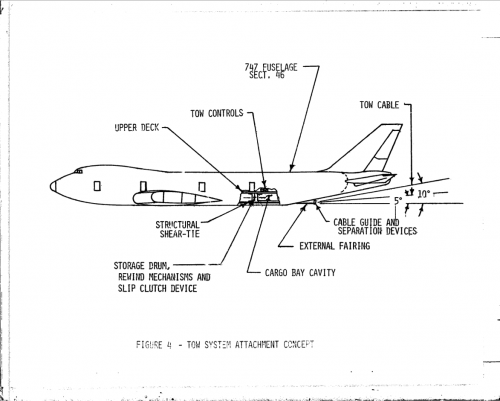

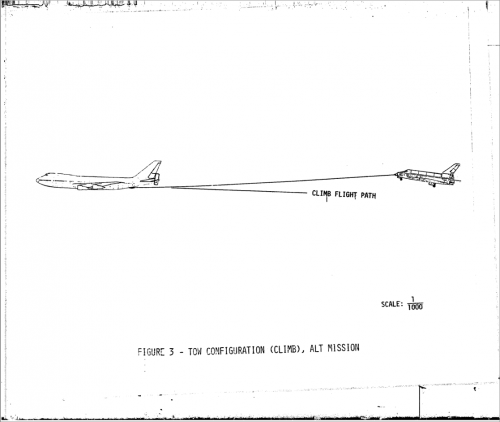

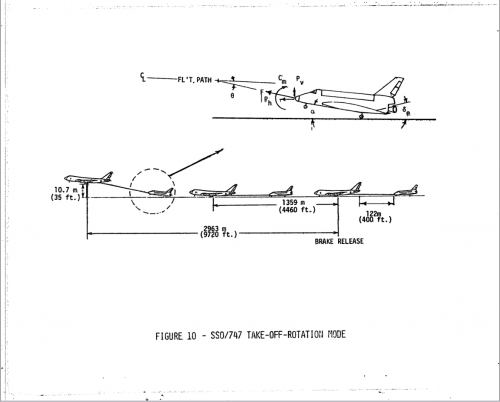

Boeing 747 modified to act as a tow-plane for the space shuttle Approach and Landing Tests.

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19760026053.pdf

Was there any attempt to put jet engines on Enterprise for these tests? Something similar to what was done with the Buran OK-GLI?

This post from the "US Space Shuttle Projects" thread covers the only report on similar ideas that I've been able to find.

http://www.secretprojects.co.uk/forum/index.php/topic,1928.msg122506.html#msg122506


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,070
Reaction score
3,746
Dronte said:
In view of the material already presented in the forum this topic will surely motivate enough crossposting but I believe that the topic deserves to take their own place.

-A 90's proposal of GE for a Super-AWACS. A wind tunnel model existed but I have not gotten pictures of the same one.

Hi,

http://archive.aviationweek.com/image/spread/19901119/20/2
http://archive.aviationweek.com/image/spread/19901119/22/2


Attachments

  • 5.png
    174.5 KB · Views: 169
  • 4.png
    185.4 KB · Views: 172
  • 3.png
    709 KB · Views: 177
  • 2.png
    242.7 KB · Views: 198
  • 1.png
    226.4 KB · Views: 198

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,070
Reaction score
3,746

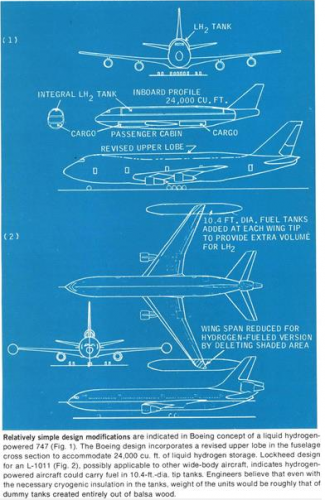

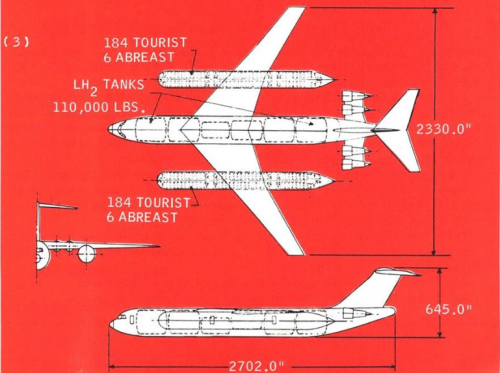

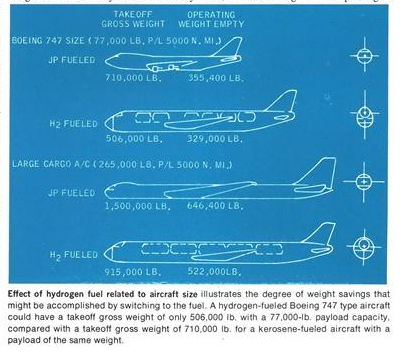

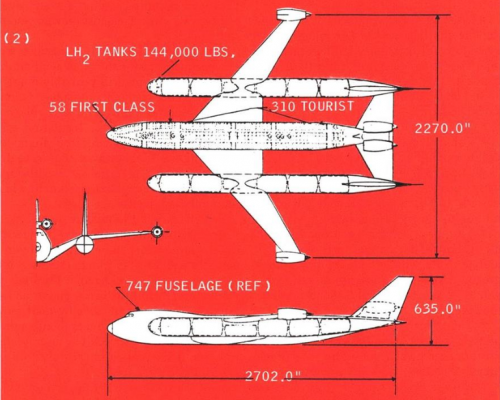

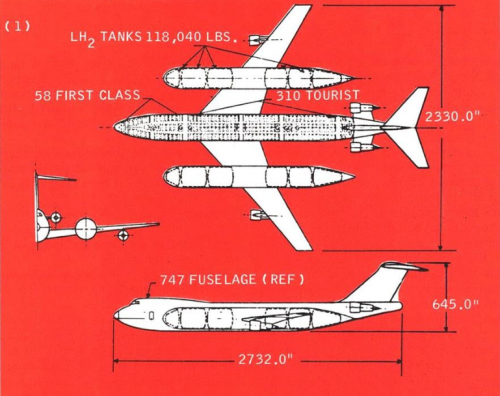

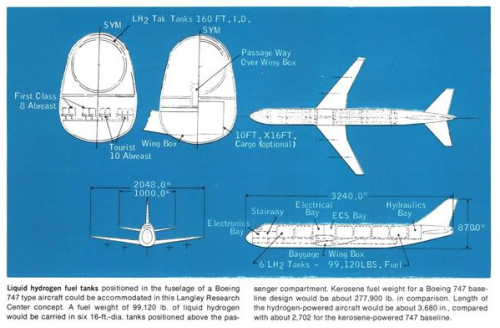

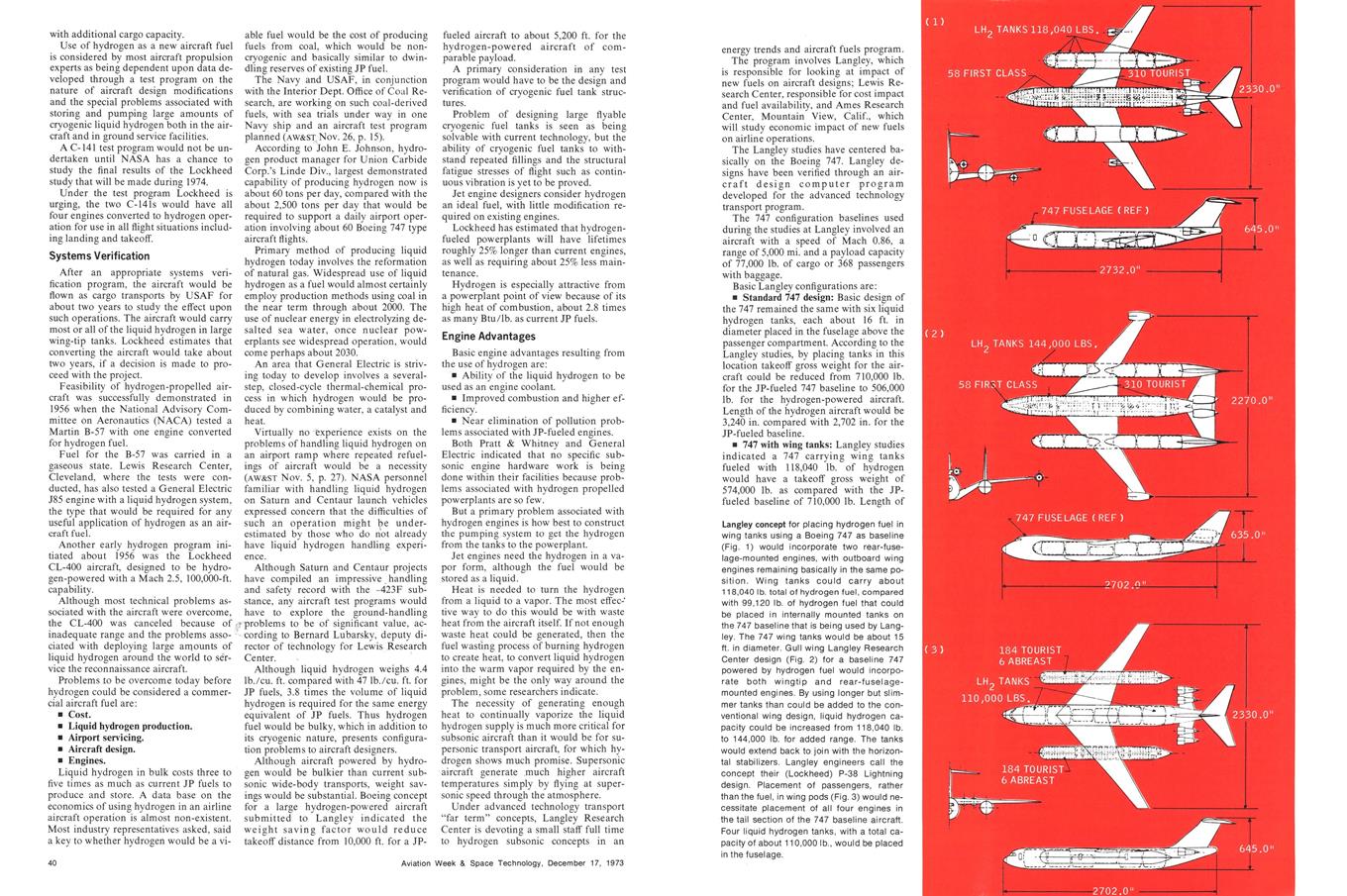

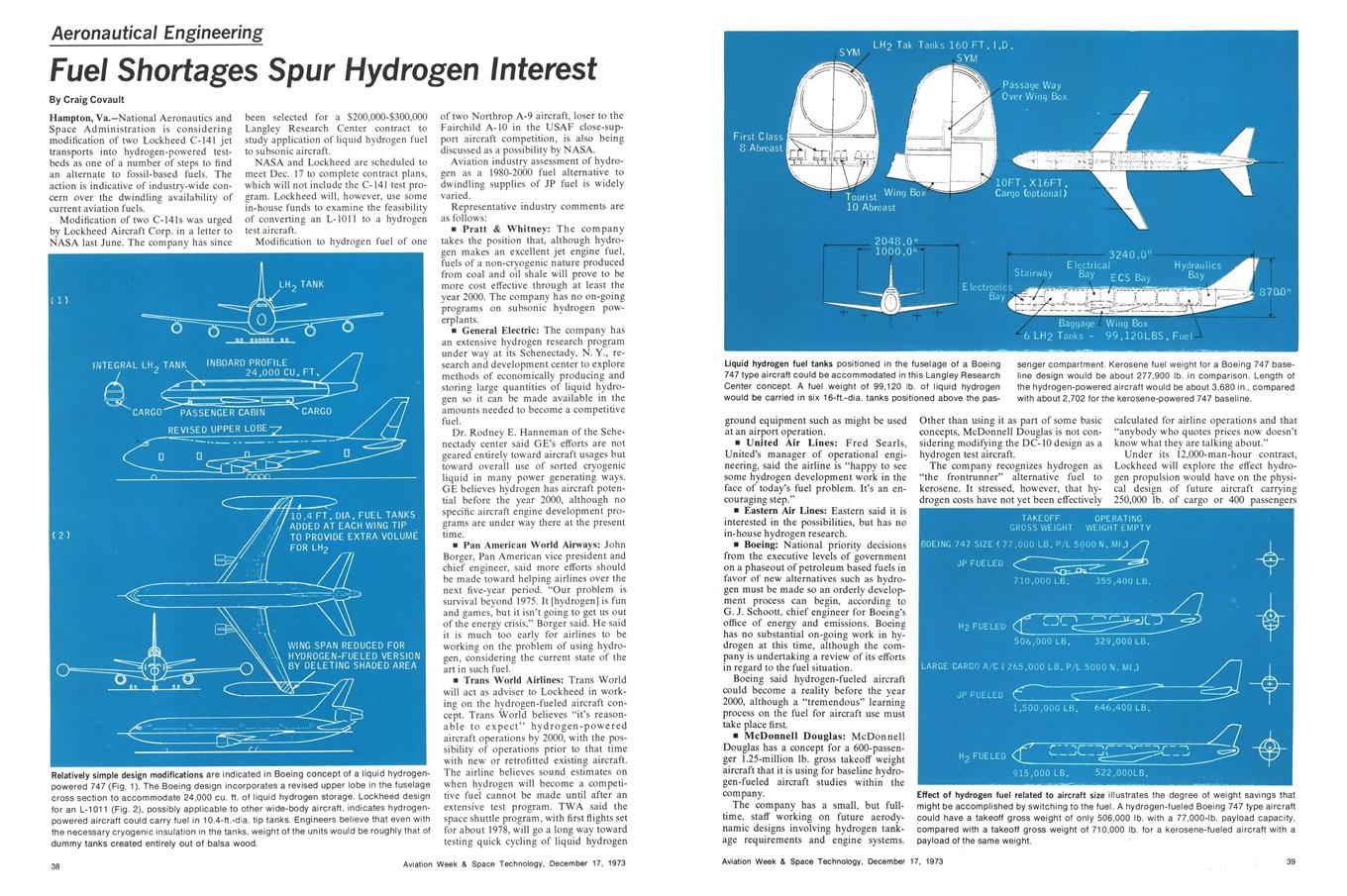

I think many of us don't know those Boeing-747 Hydrogen fuel shapes.

http://archive.aviationweek.com/image/spread/19731217/20/2
http://archive.aviationweek.com/image/spread/19731217/21/2


Attachments

  • 6.png
    654.6 KB · Views: 151
  • 5.png
    677.1 KB · Views: 199
  • 4.png
    691.7 KB · Views: 221
  • 3.png
    197.1 KB · Views: 178
  • 2.png
    294.3 KB · Views: 178
  • 1.png
    359.6 KB · Views: 223

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,924
Reaction score
2,073
http://www.reuters.com/article/us-boeing-air-force-one-idUSKCN0V72P9


carsinamerica

ACCESS: Confidential
Joined
Feb 19, 2010
Messages
113
Reaction score
17
This from Flight International, 4 November 1978, p. 1642: "Welch admits that 747SP sales have been disappointing, but he describes the variant as "a firm member of the family." Six more SPs out of 29
ordered by seven customers remain to be delivered, and TWA has just ordered three. In presenting the 747 Boeing emphasises that the range of the 20OB is almost as good as that of the SP (could it be the stretched SP that SP customers are now asking for?)."


Does anyone know what this author is talking about? I've never heard of a stretched 747SP, and it's very counter-intuitive.


RLBH

ACCESS: Secret
Joined
May 5, 2007
Messages
346
Reaction score
184
It reads like 747SP customers had been asking for a stretched version to carry more passengers; since the 747-200 had almost the same range as the 747SP, it filled that need.


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,648
Reaction score
582
Greetings All -

A recent donation to the Museum included a box full of various commercial aircraft proposal brochures that came from the United Air Lines library. They were being thrown away at the time the donor was there visiting for research and thankfully he was able to save them. I'll start off with material from various Boeing 747 proposals and the first being a March, 1968 "Model 747-3 Three Engine Aircraft for U.S. Domestic Service". Clearly written as a study and reaching out to the airlines for their input, the objectives stated on the first page are:

"We are studying, The Boeing 747-3, a 3 engine companion to the 747

The objective is to determine characteristics of an aircraft having:

- Common JT9D Engines
- Common System
- Common Interiors, Cargo and Baggage
- Common Maintenance, Training and Spares which potentially can provide attendant cost reduction and profit potential"

Enjoy the Day! Mark


Attachments

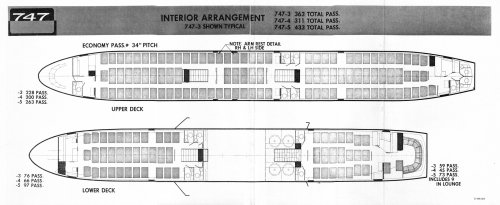

  • Model 747-3 proposal Mar-1968 - interior arrangement.jpg
    Model 747-3 proposal Mar-1968 - interior arrangement.jpg
    321.6 KB · Views: 178

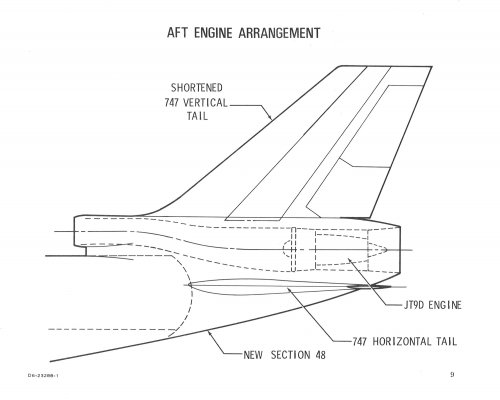

  • Model 747-3 proposal Mar-1968 - aft engine layout.jpg
    Model 747-3 proposal Mar-1968 - aft engine layout.jpg
    218.7 KB · Views: 1,242

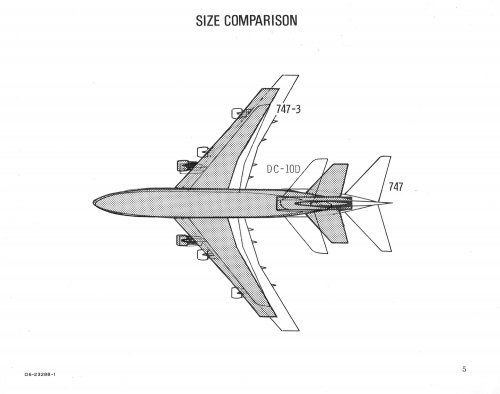

  • Model 747-3 proposal Mar-1968 - 747 747-3 DC-10 size comparison.jpg
    Model 747-3 proposal Mar-1968 - 747 747-3 DC-10 size comparison.jpg
    284.6 KB · Views: 1,285

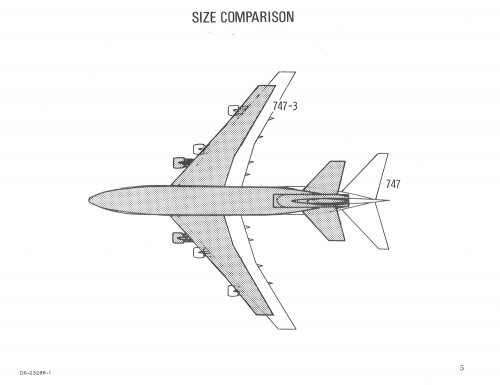

  • Model 747-3 proposal Mar-1968 - 747 vs 747-3 size comparison.jpg
    Model 747-3 proposal Mar-1968 - 747 vs 747-3 size comparison.jpg
    266.8 KB · Views: 1,346

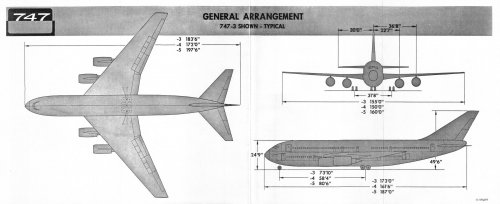

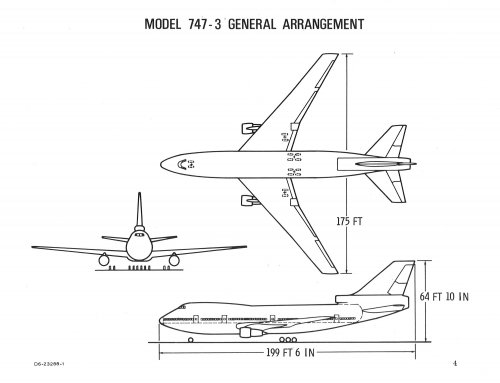

  • Model 747-3 proposal Mar-1968 - 747-3 General Arrangement.jpg
    Model 747-3 proposal Mar-1968 - 747-3 General Arrangement.jpg
    228.7 KB · Views: 1,405
  • Model 747-3 proposal Mar-1968 - 747-3 Preliminary Characteristics.jpg
    Model 747-3 proposal Mar-1968 - 747-3 Preliminary Characteristics.jpg
    211.6 KB · Views: 1,428

carsinamerica

ACCESS: Confidential
Joined
Feb 19, 2010
Messages
113
Reaction score
17
Mark Nankivil said:
Greetings All -

A recent donation to the Museum included a box full of various commercial aircraft proposal brochures that came from the United Air Lines library. They were being thrown away at the time or donor was there visiting for research and thankfully he was able to save them. I'll start off with material from various Boeing 747 proposals and the first being a March, 1968 "Model 747-3 Three Engine Aircraft for U.S. Domestic Service". Clearly written as a study and reaching out to the airlines for their input, the objectives stated on the first page are:

"We are studying, The Boeing 747-3, a 3 engine companion to the 747

The objective is to determine characteristics of an aircraft having:

- Common JT9D Engines
- Common System
- Common Interiors, Cargo and Baggage
- Common Maintenance, Training and Spares which potentially can provide attendant cost reduction and profit potential"

Enjoy the Day! Mark

Very interesting, Mark. I've seen a couple of those pages in other books on the 747, but not with the comparison overlay. It's clear that this was considered at least twice: once as the 747-3, and then again as the 747-300 (a label that was later reused with the SUD). I'll be very interested in seeing what else you find. Thank you!


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,648
Reaction score
582

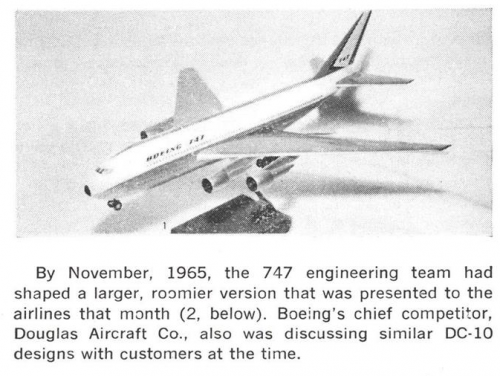

Greetings All -

I probably should have posted this first to stay in chronological order, oh well. Date October 1965, this design iteration has been posted elsewhere in the thread but I'll share some other info to go with it. Note in the wind tunnel images there is a 3 engine version (with an unusual location for the wing mounted engines) along with the 4 engine version noted in the rest of the proposal brochure.

Enjoy the Day! Mark


Attachments

  • zBoeing 747-3 Oct-1965 - Interior Arrangement.jpg
    zBoeing 747-3 Oct-1965 - Interior Arrangement.jpg
    630.4 KB · Views: 217
  • zBoeing 747-3 Oct-1965 - General Arrangement.jpg
    zBoeing 747-3 Oct-1965 - General Arrangement.jpg
    277.3 KB · Views: 237

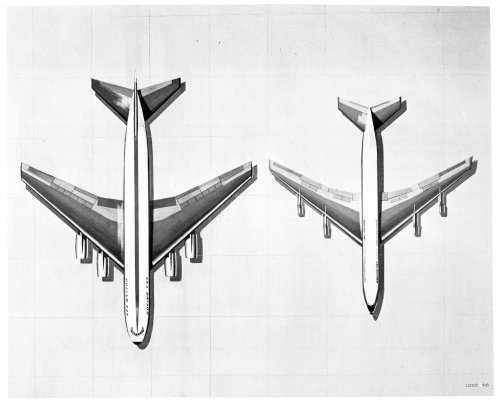

  • Boeing 747-3 Oct-1965 - 747 and 707-320 planform comparison.jpg
    Boeing 747-3 Oct-1965 - 747 and 707-320 planform comparison.jpg
    371.9 KB · Views: 217

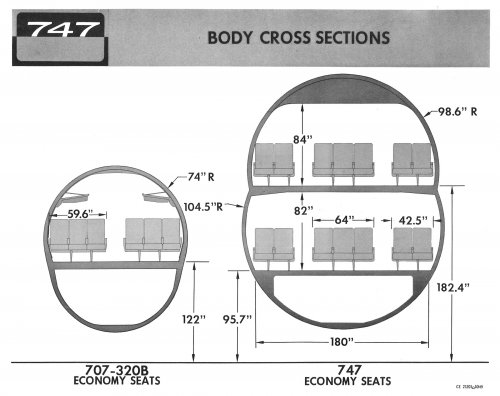

  • Boeing 747-3 Oct-1965 - 747 and 707-320 body cross sections.jpg
    Boeing 747-3 Oct-1965 - 747 and 707-320 body cross sections.jpg
    602.7 KB · Views: 237

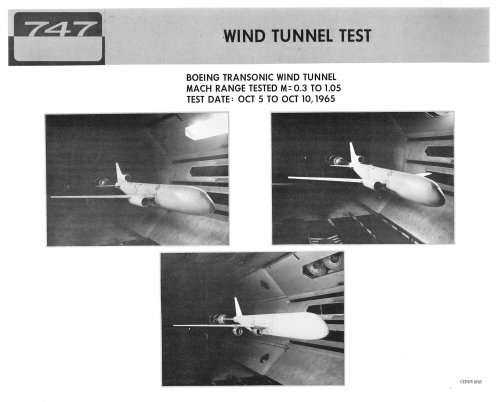

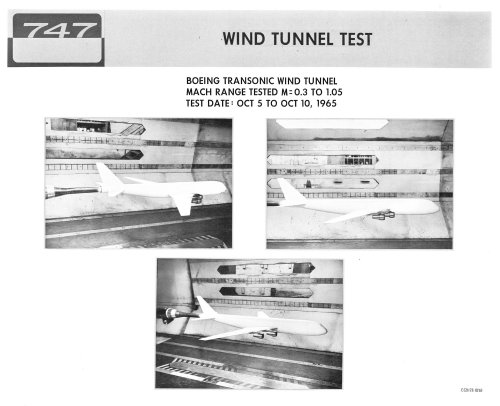

  • Boeing 747-3 Oct-1965 - wind tunnel test2.jpg
    Boeing 747-3 Oct-1965 - wind tunnel test2.jpg
    549.6 KB · Views: 256
  • Boeing 747-3 Oct-1965 - wind tunnel test1.jpg
    Boeing 747-3 Oct-1965 - wind tunnel test1.jpg
    563.7 KB · Views: 300
  • Boeing 747-3 Oct-1965 - artwork.jpg
    Boeing 747-3 Oct-1965 - artwork.jpg
    1,002.9 KB · Views: 277

Graham1973

ACCESS: Top Secret
Senior Member
Joined
Dec 16, 2010
Messages
1,530
Reaction score
264
I'm sorry I missed these when they first came out. They are very interesting, especially the ducting they were going to use on the tail engine.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
562
Website
deeptowild.blogspot.com

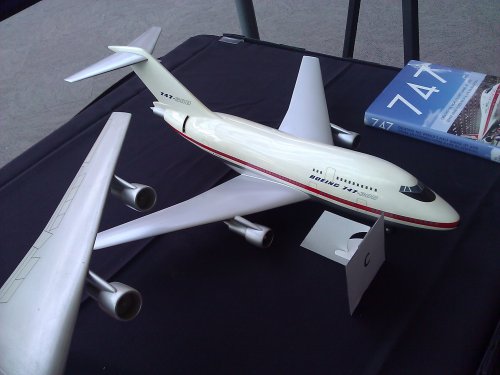

Model of Boeing 747-300 concept with T-tail.

Source:
https://commons.wikimedia.org/wiki/File:Boeing_model_of_the_once_considered_Tri-Motor_747_(7292987352)_(2).jpg


Attachments

  • Boeing_model_of_the_once_considered_Tri-Motor_747_(7292987352)_(2).jpg
    807.8 KB · Views: 268

taildragger

You can count on me - I won a contest
Joined
Nov 2, 2008
Messages
312
Reaction score
181
carsinamerica said:
This from Flight International, 4 November 1978, p. 1642: "Welch admits that 747SP sales have been disappointing, but he describes the variant as "a firm member of the family." Six more SPs out of 29
ordered by seven customers remain to be delivered, and TWA has just ordered three. In presenting the 747 Boeing emphasises that the range of the 20OB is almost as good as that of the SP (could it be the stretched SP that SP customers are now asking for?)."
I'd understood that the 747SP was primarily a strategic move to block DC-10-30 and especially the L1011-500 purchases by 747 operators so it might not have needed to show a respectable ROI to be considered a success. Even if Boeing lost money on it, it probably was a significant factor in Lockheed's exit from the market and dimmed Douglas' prospects.


martinbayer

ACCESS: Top Secret
Joined
Jan 6, 2009
Messages
718
Reaction score
185
The Enterprise TSTO thread at https://www.secretprojects.co.uk/forum/index.php/topic,23384 features a carrier aircraft incorporating the wings and landing gear from a Boeing 747 as outlined in outlined in the AIAA Paper 79-0879 named "Utility of High Bypass Turbofans for a Two-Stage Transport" by Len Cormier.

Martin


bercr

ACCESS: Confidential
Joined
Jan 12, 2011
Messages
176
Reaction score
51
Nice color photo from Boeing images (seen in B&W in a previous post):

http://www.boeingimages.com/archive/Design%20Studies%20for%20the%20747-100-2F3XC5ICBLW.html


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,070
Reaction score
3,746
Hi,

in Le Fana 2/2019,there is an article about Boeing-747 and its development,they
mention that there was a LX-HLS Program,what was it ?.


TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,417
Reaction score
1,390
hesham said:
Hi,

in Le Fana 2/2019,there is an article about Boeing-747 and its development,they
mention that there was a LX-HLS Program,what was it ?.

Sounds like a typo for the CX-HLS program.

https://www.secretprojects.co.uk/forum/index.php/topic,535.0.html


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,070
Reaction score
3,746
TomS said:
hesham said:
in Le Fana 2/2019,there is an article about Boeing-747 and its development,they
mention that there was a LX-HLS Program,what was it ?.

Sounds like a typo for the CX-HLS program.

https://www.secretprojects.co.uk/forum/index.php/topic,535.0.html

It is not a Typo,it mentions in two positions in the article ?.


Hood

ACCESS: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,986
Reaction score
1,389
A typo is still a typo no matter how many times it appears.
A mistake is still a mistake no matter how many times it appears.


Hobbes

ACCESS: Top Secret
Senior Member
Joined
May 9, 2008
Messages
903
Reaction score
265
A quick search for "LX-HLS" yields 0 relevant search results, so a typo is likely.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,070
Reaction score
3,746
Hood said:
A typo is still a typo no matter how many times it appears.
A mistake is still a mistake no matter how many times it appears.

No my dear Hood,

we find them both in the same article,here we go ?!.


Attachments

  • 3.png
    14.4 KB · Views: 447
  • 2.png
    14.3 KB · Views: 420
  • 1.png
    15.7 KB · Views: 446

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,258
Reaction score
1,020
hesham, did you even try to translate those snippets ?
In the last one, it is said, that Boeing under the program, which here is called
(erroneously ?) LX-HLS already had aquired 315 ha of properties for production
facilities. Hardly believable, that they did so for a programme, that isn't even
known today ... ::)


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,070
Reaction score
3,746
Hi,

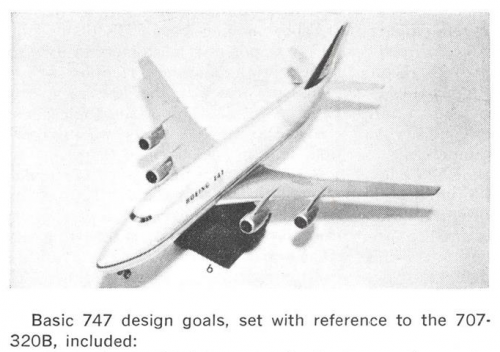

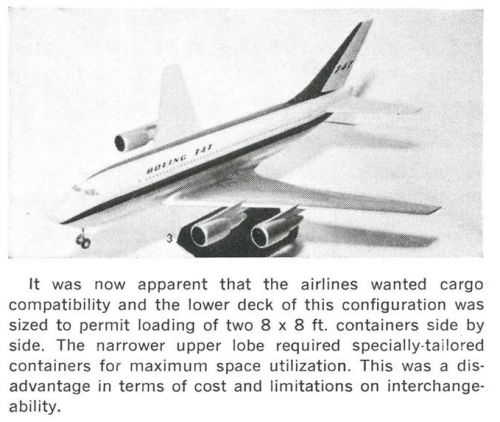

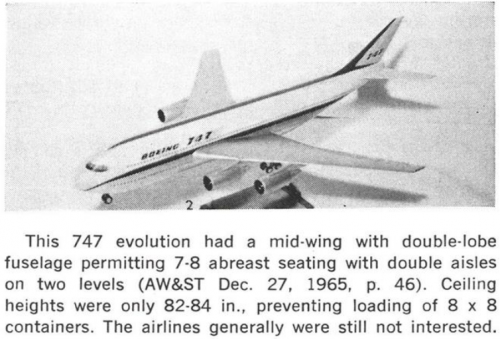

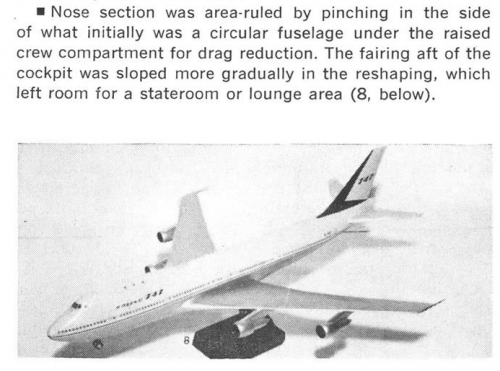

http://archive.aviationweek.com/search?QueryTerm=boeing+wrestled+with+double-deck&DocType=All&sort=


Attachments

  • 7.png
    314.8 KB · Views: 109
  • 6.png
    260.8 KB · Views: 101
  • 5.png
    350.8 KB · Views: 213
  • 4.png
    238.5 KB · Views: 217
  • 3.png
    341.4 KB · Views: 220
  • 2.png
    350.8 KB · Views: 223
  • 1.png
    304.3 KB · Views: 231
  • 8.png
    290.9 KB · Views: 110

trexslee

ACCESS: Restricted
Joined
Apr 23, 2019
Messages
44
Reaction score
40
I really remember seeing that same big plane on the Flightglobal archive before, but I never saw the picture of what the plane looks like on the inside. I think it looks to be at least 16 abreast to as much as 20 abreast. So do you have any idea what that plane is called? If not, maybe you could give it your own name.
(UPDATE) I think that plane could actually be the biggest proposed NLA that was said to be 280 feet long, have a 290 foot wingspan, seating for at least 800 passengers and a MTOW of 1.7 million pounds.
(UPDATE #2) That plane is actually an artist's concept of what British Airways' superjumbo would have looked like, and it also has 3 decks, but might have room for 4 or even 5 decks due to the height of the plane's fuselage compared to the much smaller plane in the foreground

Last edited:

Similar threads

Top
