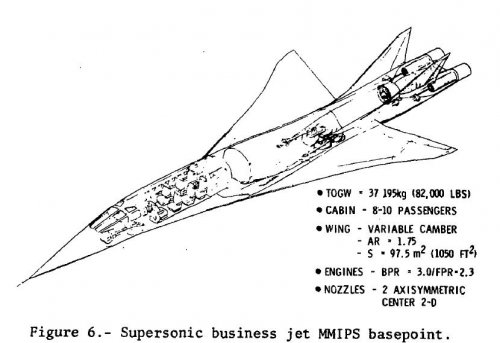

Rockwell SSBJ Aircraft of 1981 (MMIPS)

chuck4

ACCESS: Top Secret
Joined
Jan 17, 2011
Messages
803
Reaction score
9
Afriad to ask how fast is this SSBJ on approach and how long the landing roll.


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,219
Reaction score
223
Wow. I've seen that engine concept. Tartle to the thread STAT.

Looks like a Geoff Wilde (RR Derby) concept from late '70s, with a relatively high-BPR turbofan, and the fan stream running through two small turbojets. With the two TJs running supercharged, you have a supercruise system, but you can then turn them off for loiter.


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
16,047
Reaction score
5,638
Incidentally, an earlier version of the MMIPS was briefly considered for use with Rockwell's late 70's minimum penetration time concept (part of it's Advanced Bomber studies [Linked post has in turn a DTIC link to Technical Report ASD.TR-78-23]). However:

(U) It was originally intended to use an advanced turbojet as the baseline
engine for this concept, with a variable-cycle engine to be used as a trade
study. However, the initial sizing exercise quickly revealed the impracticality
of this approach (Figure 100). The turbojet aircraft weighs almost 9 million
pounds, which is totally unacceptable. Therefore, a variable/multiple-cycle
engine comparable to the engine discussed in the paragraphs on low-cost trades
was employed on the baseline.

(U) Also, the Rockwell multimode integrated propulsion system (MMIPS) was
examined for this aircraft. A MMIPS could provide SFC improvements of
approximately 3 percent at subsonic cruise and at penetration relative to the
VCE baseline. This would be achieved by using a fean engine with a higher bypass
ratio, approximately 2.5, sized for subsonic cruise, and sizing the turbojet
for takeoff and penetration,. The MIPS weight would be approximately the same
as the VCE baseline because the significantly higher takeoff specific thrust
of the MIPS would allow smaller engines. While SFC is extremely important in
the minimum time penetration aircraft, the modest improvement the MIPS offers
tends to be offset by the complexity of the installation. Thus, the MIPS was
not analyzed further.

[A simple diagram of the MIPS concept and it's operation can be found on page 33 of ASD.TR-78-23 (pdf pg 50).]


[Images also from the Rockwell Advanced Bomber Studies thread, in this case courtesy of Pyrrhic victory]
index.php

index.php


Kryptid

ACCESS: Secret
Joined
Mar 13, 2009
Messages
275
Reaction score
7
Website
www.facebook.com
I'm certainly a fan of mixing propulsion systems for a synergistic effect. Has anything of this sort been considered more recently? Maybe even using bypass air from a turbofan to provide compression for (a) ramjet(s)?

The turbojet aircraft weighs almost 9 million pounds, which is totally unacceptable.

Aww, come on! Rockwell could have laid claim to the world's largest aircraft if they had pursued that! Well, unless Lockheed had decided to build the CL-1201-1 as well, that is. ;D


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,152
Reaction score
5,681
My dear Flateric,


please see my special message.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,219
Reaction score
1,550

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,219
Reaction score
1,550
Still looking for that paper. I can't believe that forum members have 500+ times clicked on MMIPS SSBJ image and no one has downloaded actual paper(((


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,909
Reaction score
435
flateric said:
Still looking for that paper. I can't believe that forum members have 500+ times clicked on MMIPS SSBJ image and no one has downloaded actual paper(((

I get a "page not found" message when I clink the link to try and download it.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,219
Reaction score
1,550
that's why I kinda asking who has downloaded it before one Chinese bought one-way ticket to Beijing...


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,219
Reaction score
6,430
I never downloaded it. I have about 250 NASA reports saved on my computer, mostly military aircraft related ones though.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,152
Reaction score
5,681
flateric said:
that's why I kinda asking who has downloaded it before one Chinese bought one-way ticket to Beijing...


;D , I check again from my files,sadly I didn't keep that report,from about 6 months,I deleted
approximately 350 units of this stuff,now I am shame from myself.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,152
Reaction score
5,681
Great find my dear Flateric,


and thanks to the God for give that gift again,now I will keep it like my eyes.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,152
Reaction score
5,681
Hi,


if someone can makes an artist drawing to those projects,by colors,that will be very nice.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,152
Reaction score
5,681
Hi PlanesPictures,

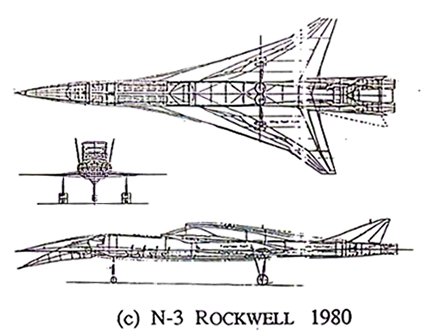

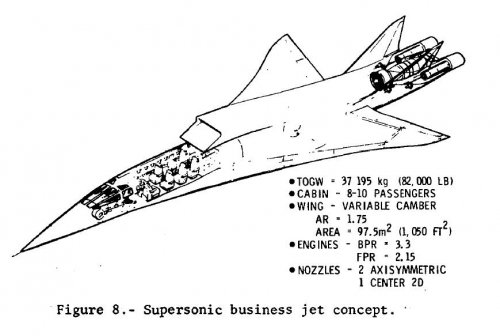

unfortunately we don't have more than those two drawings.


Attachments

  • MMIPS 1.JPG
    MMIPS 1.JPG
    61.2 KB · Views: 230
  • MMIPS 2.JPG
    MMIPS 2.JPG
    61 KB · Views: 214

PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
1,012
Reaction score
763
It is very nice design but these drawings are only for repainting in color. I have tried to do some 3D models from similar drawings of CL-400 Suntan but it was more speculation as reality


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,152
Reaction score
5,681
OK PlanesPictures,


if you will try to drawing them,I don't want to be exactly their appeals,but we can
say,a looks like them,thank you in advanced.
