"Rockwell's Manned strategic system concepts 1990-2000" study
Dan Raymer's fantasy was outstanding...hands off


Attachments

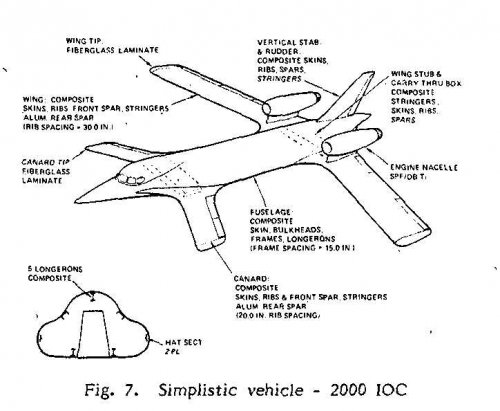

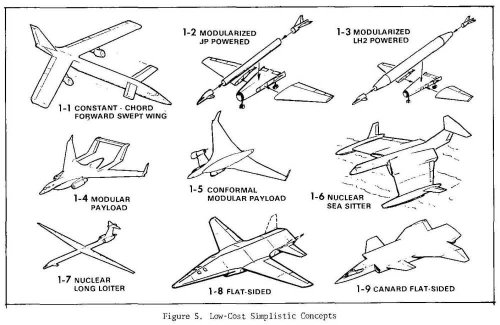

  • RI Raymer 1979 bombers simplistic.jpg
    RI Raymer 1979 bombers simplistic.jpg
    67.5 KB · Views: 1,508

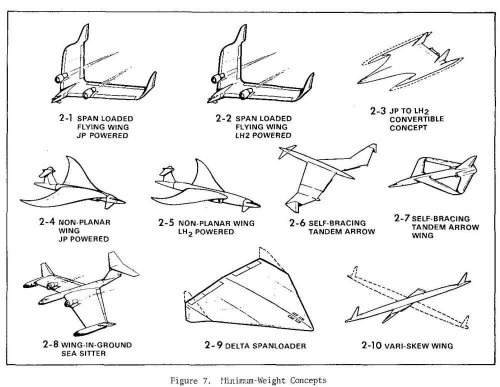

  • RI Raymer 1979 bombers minimumweight.jpg
    RI Raymer 1979 bombers minimumweight.jpg
    70.3 KB · Views: 1,344

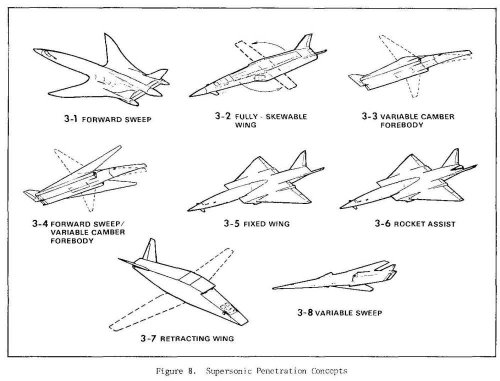

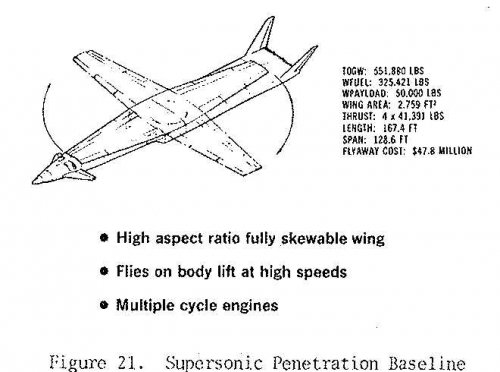

  • RI Raymer 1979 bombers supersonicpenetration.jpg
    RI Raymer 1979 bombers supersonicpenetration.jpg
    59.9 KB · Views: 1,334

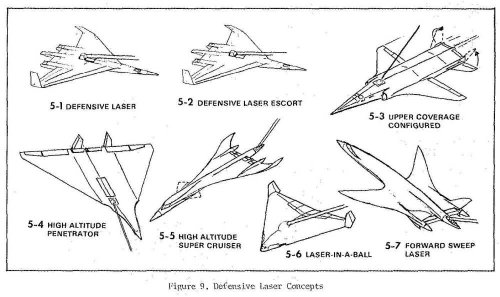

  • RI Raymer 1979 bombers defensivelaser.jpg
    RI Raymer 1979 bombers defensivelaser.jpg
    61.9 KB · Views: 1,305

raravia

ACCESS: Confidential
Joined
Jan 29, 2006
Messages
90
Reaction score
6
Flateric

Those concepts were real studies for aircrafts or just fantasy airships for sci-fi movies?

there some impressive...

raravia


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,216
Reaction score
1,541
I think that Rockwell International paid Daniel Raymer not for sci-fi movie scetches. You probably know that he was Rockwell's ATF entry chief designer.

Source:

Manned strategic system concepts 1990-2000
WILER, C. D. (Rockwell International Corp., North American Aircraft Group, Los Angeles, Calif.) RAYMER, D. P. (Rockwell International Corp., North American Aircraft Group, Los Angeles, Calif.)
AIAA-1979-1793
American Institute of Aeronautics and Astronautics, Aircraft Systems and Technology Meeting, New York, N.Y., Aug. 20-22, 1979, 15 p.F33615-77-C-0115


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,216
Reaction score
1,541

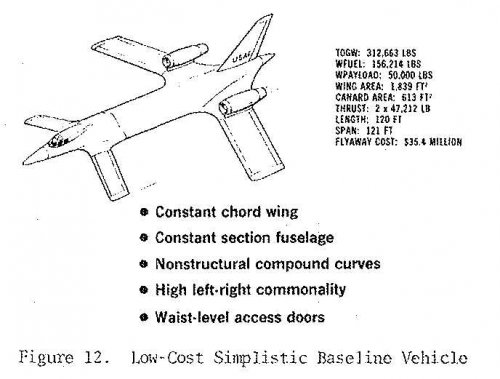

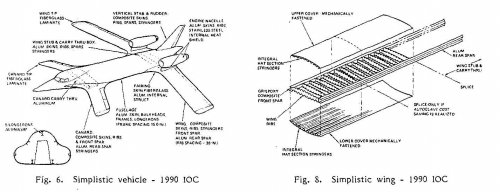

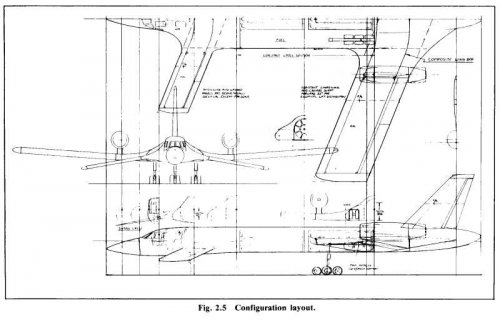

This is Rockwell's genious Dan Raymer design of so-called 'Low-Cost Simplistic Aircraft' bomber aka ISADS, one of more carefully studied during 1979 'Manned strategic system concepts 1990-2000' study.

Look here as well for other concepts studied.
http://www.secretprojects.co.uk/forum/index.php?topic=362.msg2241#msg2241
If you want, I will add more pictoriial info to Rockwell studies thread.

Dan is very interesting person - his wife has russian roots and he even has course of his lectures in Moscow Aviation Institute in post-Perestroika period.


Attachments

  • Clipboard02.jpg
    100.3 KB · Views: 362
  • Clipboard05.jpg
    39.2 KB · Views: 346
  • Clipboard01.jpg
    47.6 KB · Views: 464
  • spanloader-s.jpg
    40.1 KB · Views: 932

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,216
Reaction score
1,541

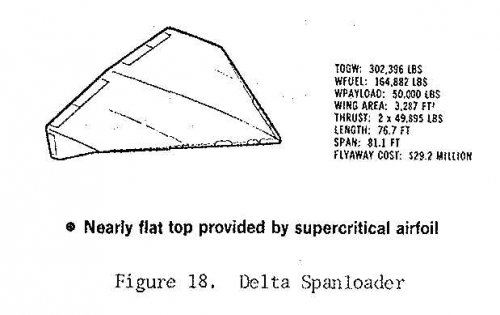

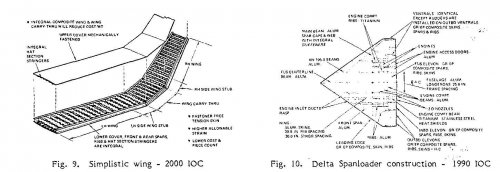

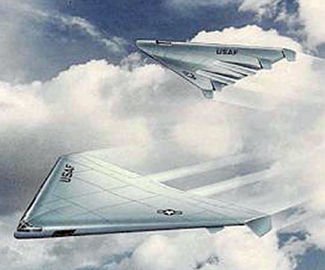

Delta spanloader


Attachments

  • dltspan3.jpg
    38.2 KB · Views: 386
  • dltspan.jpg
    9.6 KB · Views: 546
  • Clipboard04.jpg
    53 KB · Views: 374
  • Clipboard03.jpg
    99.9 KB · Views: 306

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,216
Reaction score
1,541

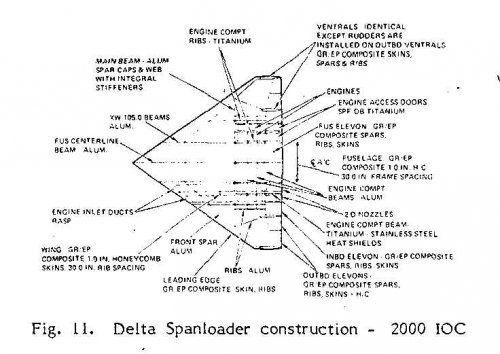

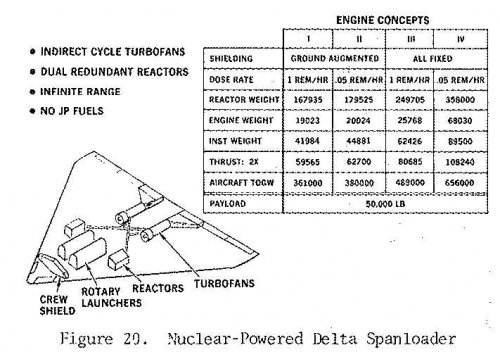

More on delta spanloader concept, including nuclear-powered


Attachments

  • 02a01a2006113617PM.jpg
    130.6 KB · Views: 395
  • Clipboard10.jpg
    22.4 KB · Views: 284
  • Clipboard11.jpg
    58.7 KB · Views: 297

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,216
Reaction score
1,541

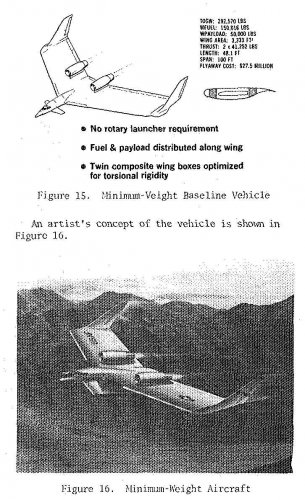

Minimum-weight baseline vehicle


Attachments

  • Clipboard09.jpg
    37.9 KB · Views: 248
  • Clipboard07.jpg
    200.5 KB · Views: 323

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,216
Reaction score
1,541

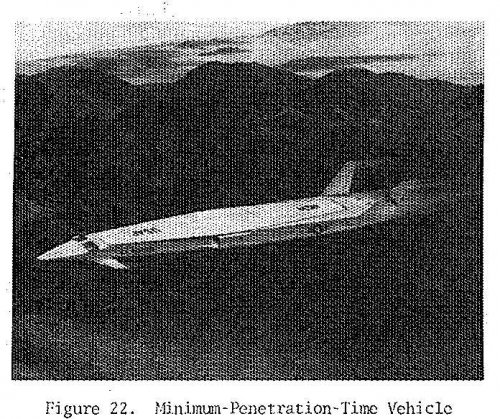

Minimum penetration-time vehicle


Attachments

  • Clipboard12.jpg
    33.9 KB · Views: 360
  • Clipboard13.jpg
    151.2 KB · Views: 322

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,216
Reaction score
1,541

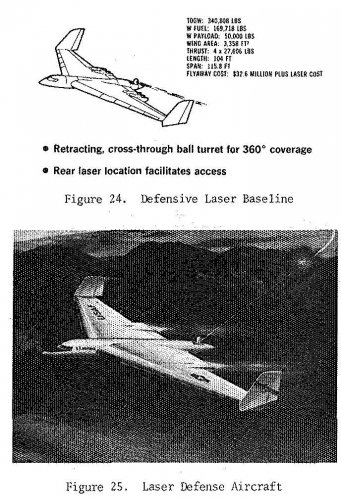

And Defensive laser baseline vehicle...


Attachments

  • Clipboard14.jpg
    169.6 KB · Views: 356

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
195

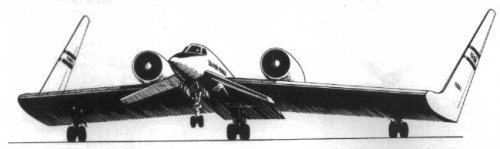

A nice b/w rendering of the Minimum Weight Baseline Vehicle taking off... ;D


Attachments

  • Rockwell_bomber.jpg
    12.3 KB · Views: 418

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,216
Reaction score
1,541

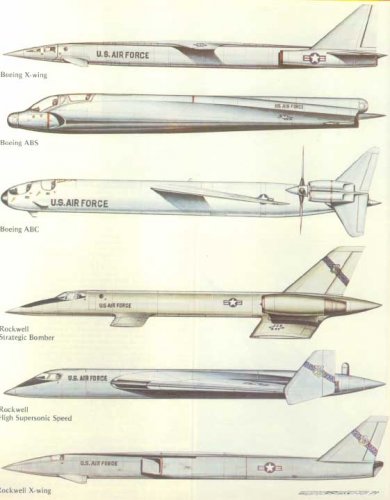

Crossposted from Boeing Advanced Bomber studies


Attachments

  • Bombers_of_the_70s.jpg
    31.7 KB · Views: 814

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,364
Reaction score
2,221
Website
www.aerospaceprojectsreview.com
From the late '70's. Subsonic, minimal stealth, geometrically simple with constant sections. Also included is a hydrogen fueled version. Source grade "5."


Attachments

  • small rockwell lowcost.gif
    small rockwell lowcost.gif
    61.5 KB · Views: 480

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,364
Reaction score
2,221
Website
www.aerospaceprojectsreview.com

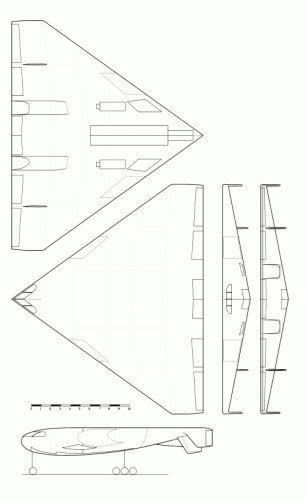

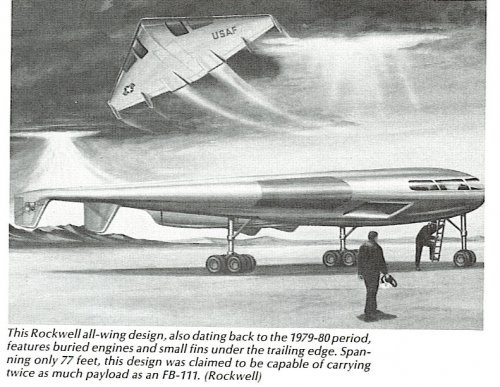

Another late '70's design for a very compact subsonic bomber, capable of twice the payload of an F-111. Source grade 3.


Attachments

  • small spanloader.gif
    small spanloader.gif
    33.5 KB · Views: 344

flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,216
Reaction score
1,541

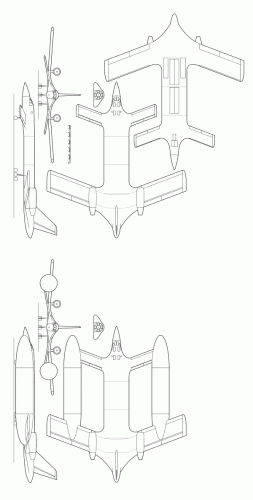

Other info on 1979 Rockwell's study for 1999-2000 Manned Strategic Systems Concepts is here http://www.secretprojects.co.uk/forum/index.php/topic,362.0.html
This is, of course, doesn't match Scott's brilliant final drawings, but makes insight on other aspects of the study.

Scott - is this a spare set or a part of upcoming eAPR article?


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,364
Reaction score
2,221
Website
www.aerospaceprojectsreview.com
flateric said:
This is, of course, doesn't match Scott's brilliant final drawings...

The actual Rockwell design varied somewhat from source to source (span described as 77 feet or 81 feet, and the artists impressions conflict).


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,216
Reaction score
1,541
BTW, Dan Raymer is somewhere here AFAIK...


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
98
This is what Flateric posted about the design in question:

http://www.secretprojects.co.uk/forum/index.php/topic,362.msg4634.html#msg4634



The engines look like medium bypass types, with nacelles similar in general appearance, if not size, to the JT8D - but obviously well over twice the output?

I would think that the only way to build a "low cost" bomber would be to employ an existing turbofan?


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,216
Reaction score
1,541
'Tom, didn't you see these Flankers at 2? - Hmm, all I see is our bloody big H2 tank...Ouch...Eject! Eject!'


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
195
Uh, I was hoping you were working at a recapitulation of spanloader concepts... like the BWBs in eAPR n.3. I'm doing it for myself as far as the 1970's NASA sponsored projects... I'll post something in the near future.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,364
Reaction score
2,221
Website
www.aerospaceprojectsreview.com
DAMN!!!!!!

It seems like the best way to make progress is to simply give up. After years of putting together scraps on things like the delta spanloader, and forging up a reconstruction, *today* I get in the mail a Rockwell document via FOIA that lays out the drawings in nice, neat, clear, unambiguous lines. The delta as well as the other designs that Flateric ppsted back in August '06.

And boy was I wrong about the Minimum Penetration Time design side view.

Back to the freakin' drawing board... :mad:


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,364
Reaction score
2,221
Website
www.aerospaceprojectsreview.com

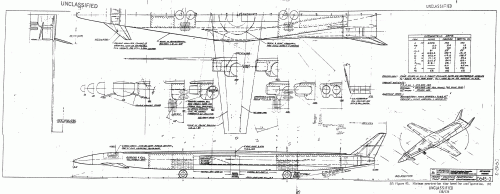

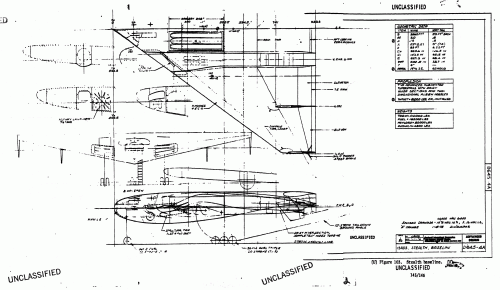

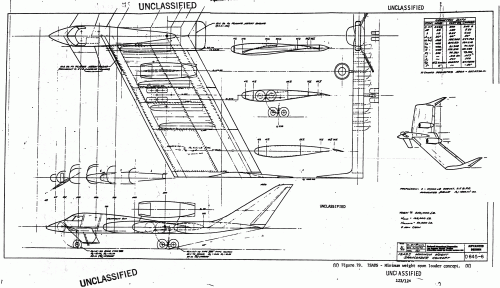

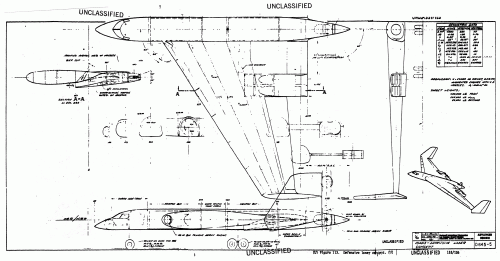

Some layout drawings. Don't worry... "US Bomber Projects" will have full-rez versions...


Attachments

  • smallD645-3.gif
    42 KB · Views: 638
  • smallD645-4A.gif
    49.1 KB · Views: 515
  • smallD645-5.gif
    44.3 KB · Views: 487
  • smallD645-6.gif
    64 KB · Views: 494

Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,909
Reaction score
434

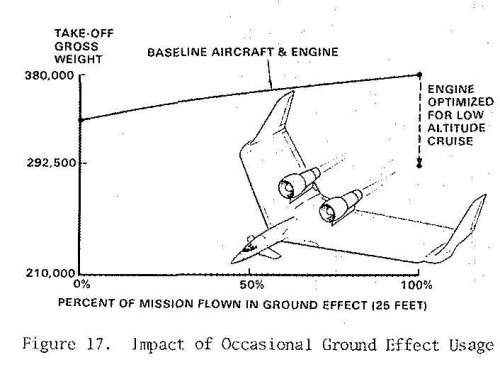

Wow, those are awesome drawings. Where did you locate them, or is that "Proprietary?" You may also have to sell high res versions on CD :) . I had no idea a drawing of the scissor wing bomber that detailed existed. Now if we could only find one for the scissor wing design that is, similar to that Rockwell design, by Boeing.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,364
Reaction score
2,221
Website
www.aerospaceprojectsreview.com
Sundog said:
Wow, those are awesome drawings. Where did you locate them, or is that "Proprietary?"

Those are the end results of several years worth of Freedom of Information Act requests.

You may also have to sell high res versions on CD :) .

I have a *lot* of high-rez bomber stuff that I think would sell on CD. B ut I want to get the book out before I go and dump all the research for it...

Now if we could only find one for the scissor wing design that is, similar to that Rockwell design, by Boeing.

While I know that roughly equivalent work was put into the Boeing concept, I don't think I've seen references to the actual reports.


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,909
Reaction score
434
So, not to get too far off topic, how is the bomber book coming along? Will we see it this year?


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,364
Reaction score
2,221
Website
www.aerospaceprojectsreview.com
Sundog said:
So, not to get too far off topic, how is the bomber book coming along? Will we see it this year?

Depends on how broad-minded you are on how you define a "year."




overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,203
Reaction score
6,385
Full Rockwell study report...

http://stinet.dtic.mil/cgi-bin/GetTRDoc?AD=C016293&Location=U2&doc=GetTRDoc.pdf


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,216
Reaction score
1,541
Great find, Overscan!


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
195
Mmmmm, it seems that when you ask a non-free printed report in NIST or DTIC or CASI-NASA they exploit the search you pay fr to scan it and make it available for free online.... this has already happened to me. Curious policy.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,216
Reaction score
1,541
I guess in my turn that these recent declassified reports online somehow related to Orionblamblam's requests...and efforts


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,216
Reaction score
1,541
http://hdl.handle.net/2060/19860067851

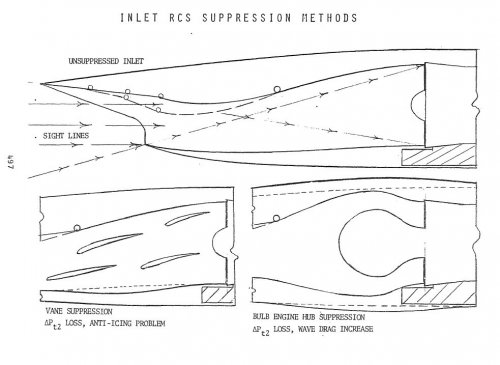

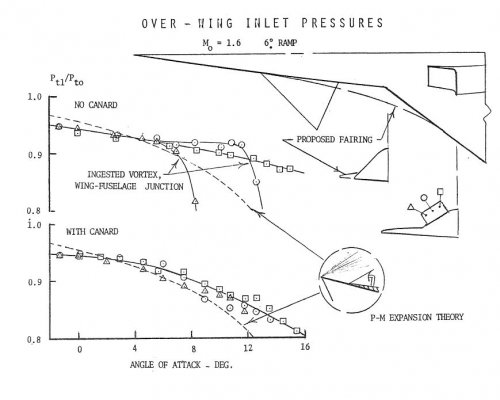

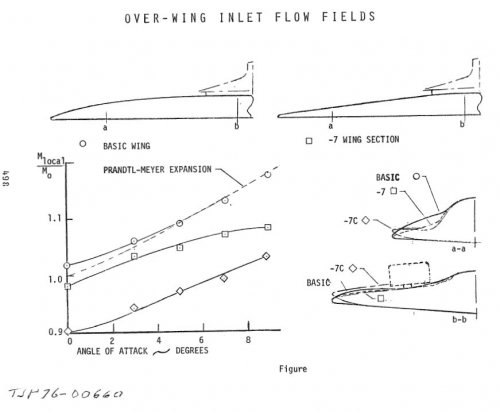

OVER WING INLETS FOR SUPERSONIC PENETRATOR VEHICLES
by Louis C. Young
Rockwell International


Attachments

  • rock_1977_inlets_penetrator_1.jpg
    79.4 KB · Views: 369
  • rock_1977_inlets_penetrator_2.jpg
    44.9 KB · Views: 321
  • rock_1977_inlets_penetrator_3.jpg
    58.9 KB · Views: 312

kian

ACCESS: Restricted
Joined
May 15, 2009
Messages
6
Reaction score
0
where find this?

Manned strategic system concepts 1990-2000
many thanks?


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
195
AIAA site, for a modicous amount of money.
