NA/Rockwell 70's Stealth: Flying Banana, Silent Attack & Surprise Fighter

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,872
A project I've never heard of until today, looking through the Rockwell bomber study PDF here:

http://stinet.dtic.mil/cgi-bin/GetTRDoc?AD=C016293&Location=U2&doc=GetTRDoc.pdf

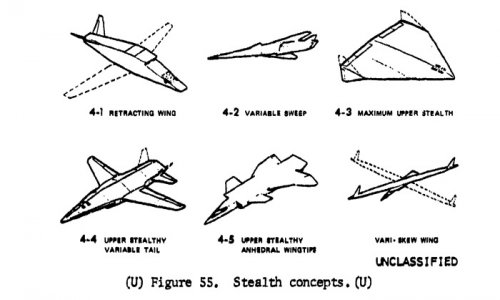

Concept 4-1 uses stealth technologies developed under Rockwell's Surprise Fighter program. Radar tests of a model of this shape showed virtually no radar return from most directions. The aircraft penetrates at high mach number with its wings fully stowed, leaving only a slab-sided shape with minimal intersections.


Attachments

  • rockwellstealth.jpg
    51.9 KB · Views: 1,775

frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
14
Fig. 4-4 makes me think of the Testors fictional MiG-37 Ferret model kit.


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,209
Reaction score
143
Nuclear Powered Stealth Bombers - what a way to start the day.

Something that is interesting about this document is its declassification date - the end of 1992. For some reason there was a decline in the sensitivity of stealth at that time, and a lot more openness than we've seen since then.


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,283
Reaction score
173
I know a guy who worked on the 4-1 concept.
If I remember correctly, the weapons were internal, and fired straight forward akin torpedo tubes!


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,283
Reaction score
173
No, Darold Cummings. He went on to work on the Rockwell Nova trainer ad was chief configuration designer or the *sigh* YF-23. Good guy.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,085
Reaction score
982
So finally discovery of Suirprise Fighter was a hint for finding a name of YF-23 Chief Configuration Designer. Woahoo!

Mr. Darold B. Cummings (info from http://brainernet.com/index.html)

Mr. Cummings has 38 years experience in aircraft design and
development, product design, and education. He retired from Boeing
as a Technical Fellow in 2004, and started The Center for Innovation,
which focuses on presenting Creativity Workshops to the industry,
universities, and government agencies. He holds twenty four patents
in a variety of fields. In addition to his experience in the United States,
Mr. Cummings has worked with Dasa and RFB in Germany, Bae in
England, Aermacchi and General Avia in Italy, and Promavia in
Belgium. He has also worked with both Mikoyan and Yakovlev (in the
U.S.) on the development of requirements for their new jet trainer
aircraft. Mr. Cummings last position at Boeing was manager of the
Exploratory Concepts Group within Advanced Design/Phantom
Works in Huntington Beach, California.

Mr. Cummings was a configuration designer at Boeing (Heritage
Rockwell) from 1967-1982. During that time he worked on the B-1,
early Stealth aircraft, AFTI, and Low-cost Fighter designs. In 1978 he
was appointed Chief Engineer of the Next Generation Trainer (NGT)
program.
In 1988 he joined Northrop Corporation as the Chief
Configuration Designer for the YF-23 Fighter Program. He was also
the Chief Designer for the Northrop Multi-role Fighter and CAS-X
projects. In 1988 he rejoined Boeing (heritage Rockwell) as the Chief
Engineer/Chief Designer of the Ranger 2000 Jet Trainer Program, with
responsibility for designing and building three prototype aircraft for
the USAF/USN fly-off competition. In 1996 he led the team to develop
the Space Maneuver Vehicle (SMV) Flight Demonstration Aircraft,
which flew successfully in August of 1998. From 1998 to 2004, Mr.
Cummings worked on UAV and Deep Strike Aircraft projects. His last
Boeing project was to develop a flying car concept for Dr. Robert
Krieger, president of the Phantom Works. A subscale flying prototype
was developed, and is on display at the Seattle Museum of Flight.


Mr. Cummings has also been a member of the Cal Poly University,
San Luis Obispo, Industry Advisory board for twenty years, and has
assisted the student AIAA design teams for the past ten years.
Professor David Hall at Cal Poly and Mr. Cummings are writing an
aircraft design textbook, which they plan on publishing in 2007. Mr.
Cummings is a current member of AIAA.

Mr. Cummings most interesting hobby is designing, building, and
riding land speed record motorcycles. He currently holds 12 World
Land Speed records, all set at the Bonneville Salt Flats in Utah.

Education:

B.S., Industrial Design, California State University, Long Beach, 1967

Security Clearance:

Secret


Attachments

  • Cummings_head_shot-282x363.jpg
    21.2 KB · Views: 1,108

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,283
Reaction score
173
That's the guy :)
I'll see if I have anything on the surprise fighter.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,085
Reaction score
982
Please don't forget of ITAR meantime...


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,283
Reaction score
173
flateric said:
Please don't forget of ITAR meantime...

how could I? My company makes me attend an ITAR seminar pretty much every other day... :eek:

I don't want to divert the subject of this thread, suffice to say that ITAR is taken VERY seriously by all the aerospace companies. I don't even work in the same building as the other engineers, and my work email address has a (foreign) attached to it. There are a bunch of other examples. Some make sense, but there are others that are borderline ridiculous.

I hope you never have to hear those cursed words! :)


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,283
Reaction score
173
The pictures represent early attempts at designing stealth attack aircraft in the early seventies. The mission was to attack an SA-2 site.

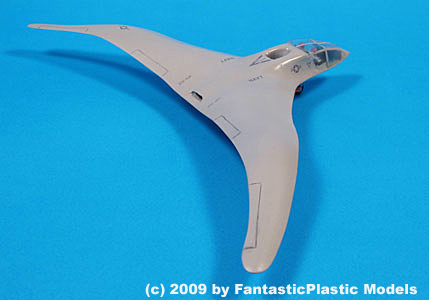

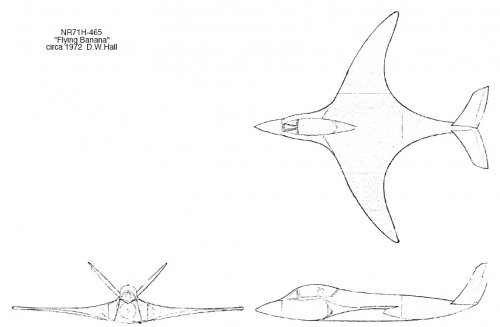

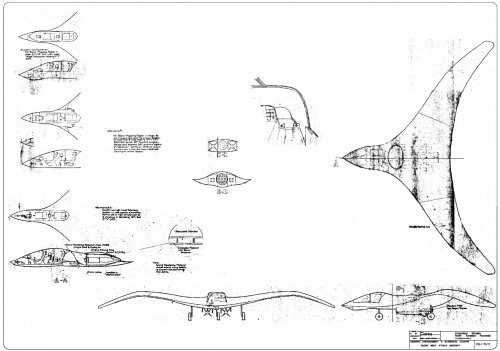

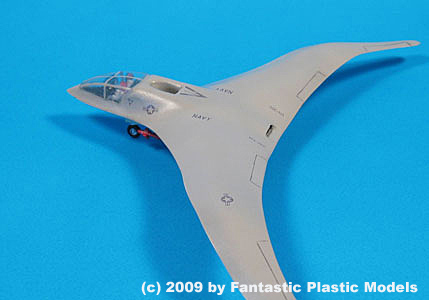

The "Flying banana" and the "silent attack aircraft" are from North american, the surprise fighter is from Rockwell.
All vehicle incorporated FLIR and some sort of plug in the exhaust to prevent line of sight to the hot section. The surprise fighter was interesting in having pivoted wings which disappeared under the fuselage. I can only assume that penetration would occur at low altitude and high speed, and body lift was all that was needed. There is at least another later Rockwell bomber that relied on this concept, although in that case the design had a one piece oblique-wing hinged at the center as opposed to two variable geometry semi-wings. weapon launch in the Rockwell fighter was through a system similar to torpedo tubes. Exhaust doors at the back would open at the time of launch.


Attachments

  • Flying Banana.jpg
    Flying Banana.jpg
    126.3 KB · Views: 1,961
  • Silent night attack aircraft copy.jpg
    Silent night attack aircraft copy.jpg
    222.3 KB · Views: 1,755
  • Surprise fighter.jpg
    Surprise fighter.jpg
    287.1 KB · Views: 1,903

SOC

I look at pictures all day
Senior Member
Joined
Jan 24, 2006
Messages
1,201
Reaction score
39
That Rockwell design is interesting as it would appear to be applying basic faceting similar to what we saw in Northrop's XST design.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,085
Reaction score
982
Francesco, this is just fantastic. Thank you for sharing these discoveries.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,872
If you felt like sharing a higher res scan of any or all of them, I'm sure some of my modeller friends would appreciate it. ;)


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,283
Reaction score
173
The pics I posted are taken from an aircraft design textbook that my old design teacher at CalPoly has been writing for the past eight years. The 'flying banana' and the 'night attack fighter' (I think he called it the 'Seagull') were some of the first things they put him to work on when they hired him at NA, Columbus. The pictures are taken from old low quality scans that were re-traced for clarity in some cases, hence the poor quality.
Same thing pretty much for the Rockwell design. The designer in that case was Darold Cummings (later did Rockwell's NGT, and was chief designer on YF-23)
It is interesting to note the different approaches. Faceting in the Surprise fighter, and continuous blending in the other two. The Seagull's semi-wingspan is exactly a multiple of the wavelength of the SA-2 acquisition radar, IIRC, and care was taken to reduce IR signature.
If someone is interested i can send you the selected pdf pages these were taken from. You might be able to extract something of a little bit better quality.


amsci99

ACCESS: Secret
Joined
May 2, 2006
Messages
238
Reaction score
6
AeroFranz,

Do count me in. The flying banana reminds me of one of Barnes Wallis's later designs. Does the scallop wings reduce RCS?


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,283
Reaction score
173
I got in touch with Dave Hall, the designer of the North American concepts. He gave me some more details on the history of those designs:


"My job as a configurator on that very first of the contractor stealth studies was to let shaping fall out from simultaneously minimizing four signatures and it had absolutely nothing to do with whether anyone could ever build it full size. In fact, the chief engineer asked a year or two after I designed it to put an augmenter in the wing. Would've required curved hinges... In fact, the same is pretty much true of the flying banana. I took a shot at finishing it about five years ago and gave up trying to put structure into it."

unsurprising, given the fact that there are no straight lines anywhere to put decent flat structures. Even these days, with composites, you'd have a hard time. Funny that the Seagull had acceptable aerodynamics and poor structures, while Have Blue had acceptable structural challenges but impossible aerodynamics.
For those who expressed interest in talking to the chap, i will email his personal address.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,017
Reaction score
1,347
Website
www.aerospaceprojectsreview.com

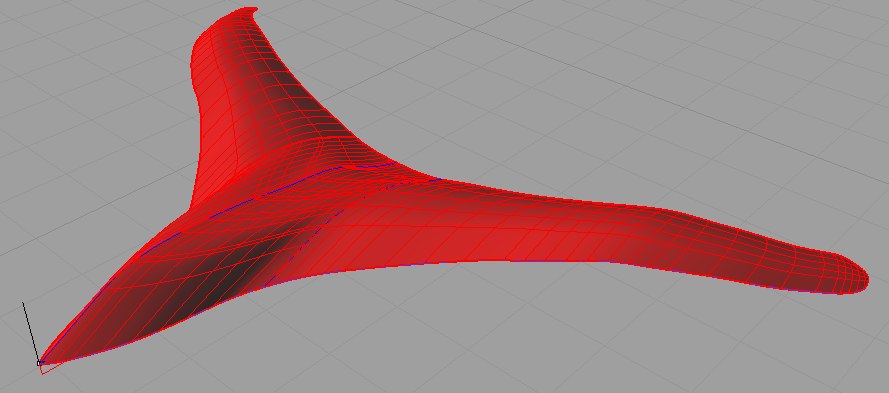

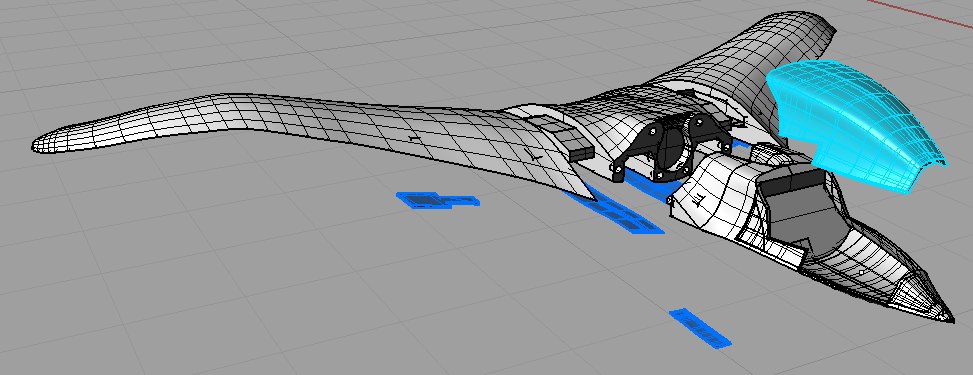

A worthy challenge for a first foray into 3D NURBS modeling via Rhino. If this works out, expect to eventually see it translated into 1/72 scale via stereolithography...



http://up-ship.com/blog/?p=539


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,395
Reaction score
733
Last night I had an idea, that the wings on your 3D-modell would morph during different flight paterns. :)


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,872

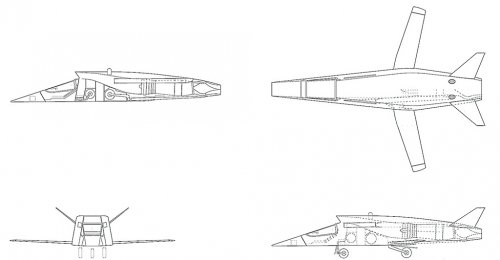

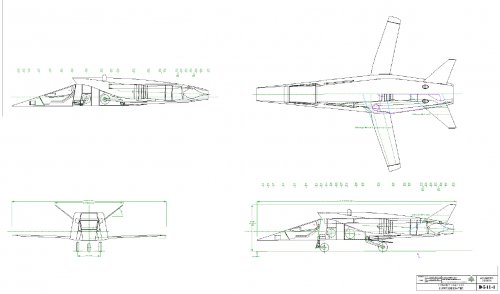

Rockwell Surprise Fighter, thanks to Aerofranz and Dave Hall.


Attachments

  • NAA-Surprise-Fighter.jpg
    57.5 KB · Views: 2,049

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,872
Length: 33.3ft (400in)
Height: 7.75ft (93in)
Span: 25.8ft (310in) wings deployed
TOGW: 13,500lb
Fuel: 3240lb
Engine: 71.5% scaled STF 354A-20 turbofan, nozzle and afterburner removed, fixed convergent nozzle with IR suppressor.
Armament: 2 long range missiles in internal bay.


SteveO

ACCESS: Secret
Joined
Jun 24, 2007
Messages
410
Reaction score
64
Is that a infrared search and track turret on top of the Surprise Fighter? Looks cool anyway :)


SteveO

ACCESS: Secret
Joined
Jun 24, 2007
Messages
410
Reaction score
64
Orionblamblam said:
SteveO said:
Is that a infrared search and track turret on top of the Surprise Fighter?

Naw. That's part of the siren, to tell drunken Soviet Tu-95 pilots to pull over.
:D That would be a surprise!

So, was the Surprise fighter project similar in concept to the German Lampyridae project? A small low observable interceptor to take out high value/highly defended airborne targets like AWACS.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,017
Reaction score
1,347
Website
www.aerospaceprojectsreview.com
SteveO said:
So, was the Surprise fighter project similar in concept to the German Lampyridae project? A small low observable interceptor to take out high value/highly defended airborne targets like AWACS.

Exactly. Wouldn't really work worth a damn in a dogfight, but against an AWACS or some similar lumbering monstrocity, the surprise fighter would be quite effective.


SteveO

ACCESS: Secret
Joined
Jun 24, 2007
Messages
410
Reaction score
64
How fast would the Rockwell ''Surprise Fighter'' have go with it's wings swept all the way back?

I wonder if the NA ''silent night attack fighter'' is in any way related to the Boeing Bird of Prey?


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,283
Reaction score
173
SteveO said:
How fast would the Rockwell ''Surprise Fighter'' have go with it's wings swept all the way back?

I wonder if the NA ''silent night attack fighter'' is in any way related to the Boeing Bird of Prey?

if you are flying fast and low, the dynamic pressure is such that you need very little wing area. I doubt you could pull that stunt at high altitudes.
IMHO, I don't think BOP and the silent attack fighter are related. The wing with dihedral/anhedral is probably just a convenient way to get some projected vertical area for control surfaces without having to use an actual fin or other corner reflectors (very bad for signature).

In both cases the front of the fuselage must provide some lift, which must be a nightmare to design for.


Apteryx

ACCESS: Confidential
Joined
Sep 28, 2007
Messages
151
Reaction score
13
I be impressed. :eek:

Wish the Rhino folks would finish their Mac port...

In the digital realm--have you prototyped anything with other than stereolithography? 3D printer, for example?


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
467
overscan said:
Rockwell Surprise Fighter, thanks to Aerofranz and Dave Hall.

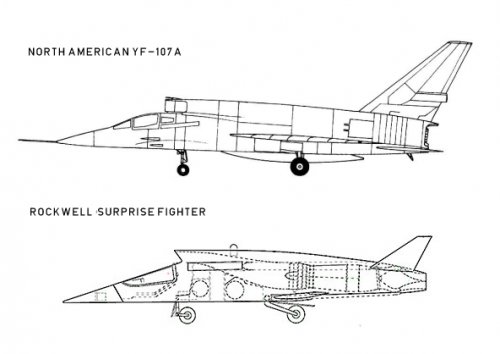

I wasn't aware of these Rockwell designs before, but the thing that struck me right away on seeing this "Surprise Fighter" was the similarity in profile view with an earlier Rockwell-related design, the so-called "Ultra Sabre" or YF-107A...


Attachments

  • F-107 vs Surprise Fighter.jpg
    F-107 vs Surprise Fighter.jpg
    61.9 KB · Views: 1,219

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,283
Reaction score
173
From Darold Cummings:

"I came across a large folder with Surprise Fighter photos! These include black and white shop fabrication shots, and color pole-testing shots. Items of interest:

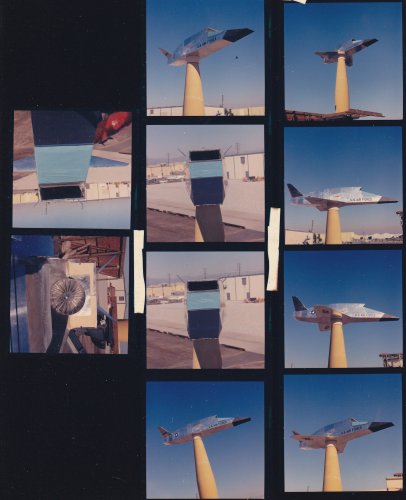

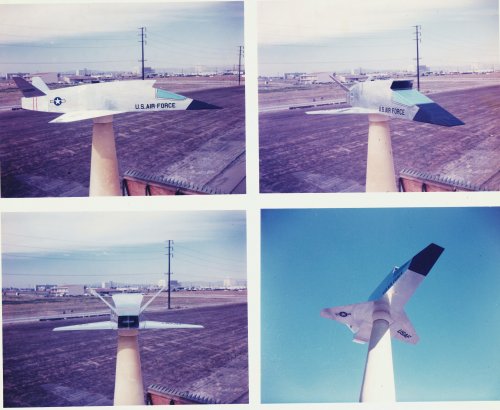

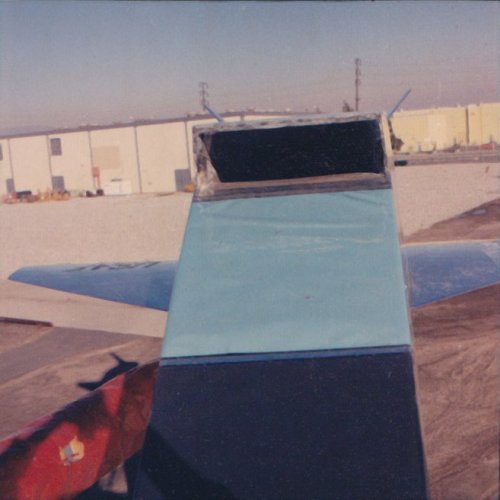

1. On the color proof sheet, note the mock-up of an engine fan face! This was used in the pole-test model.
2. Based on my memory, and the black and white shop photos, I think the pole model was about 12 feet long.

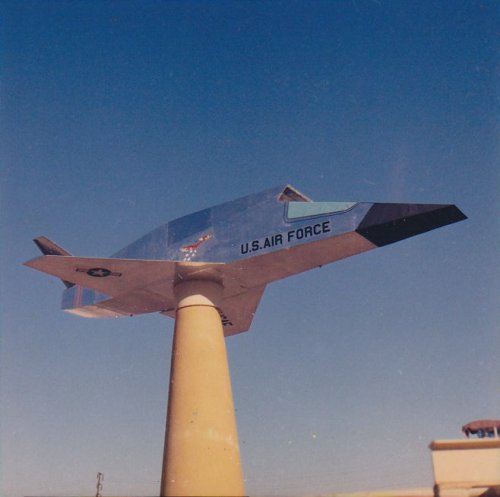

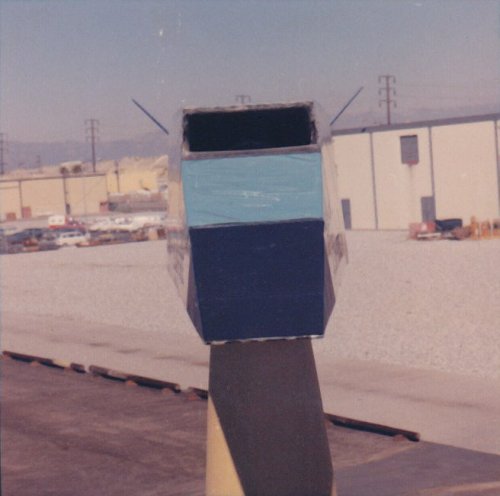

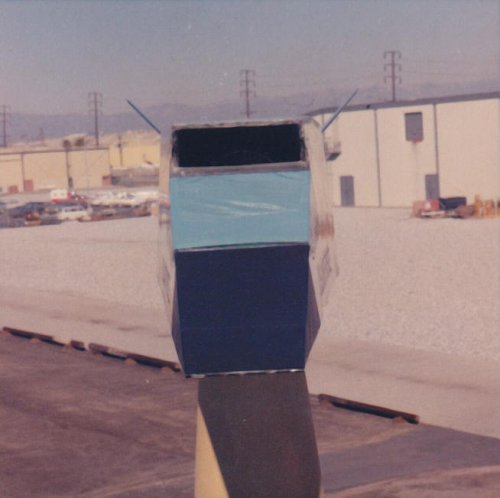

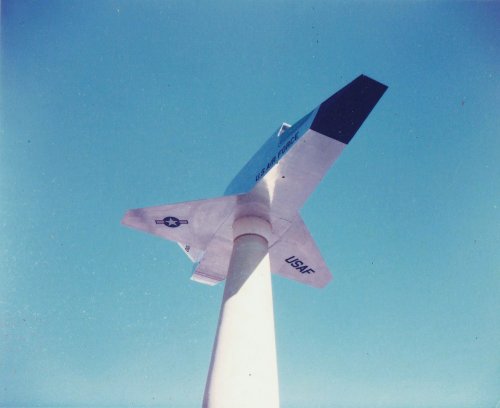

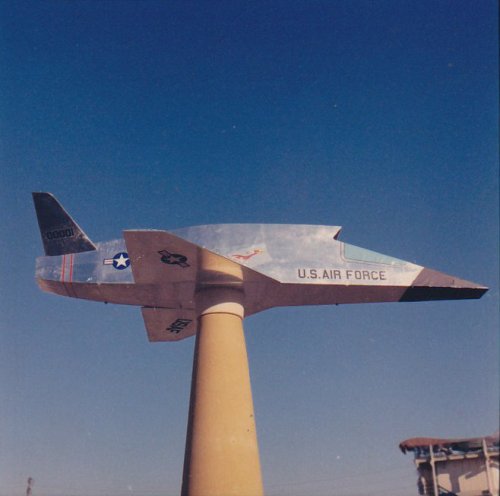

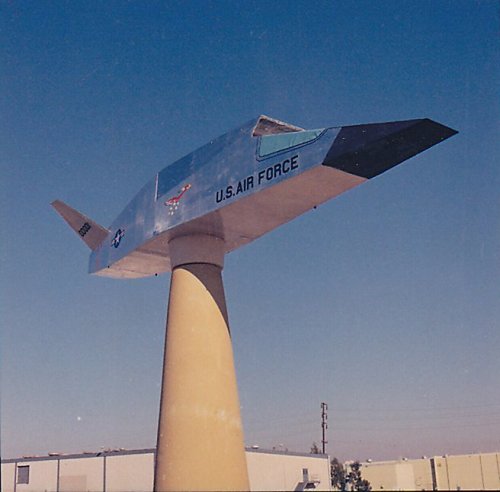

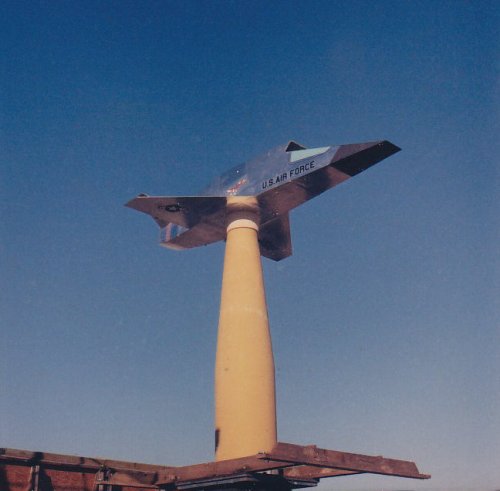

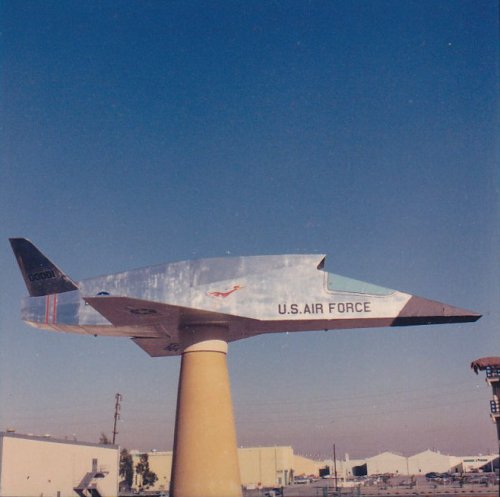

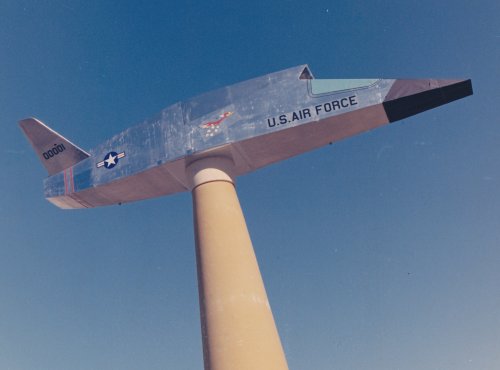

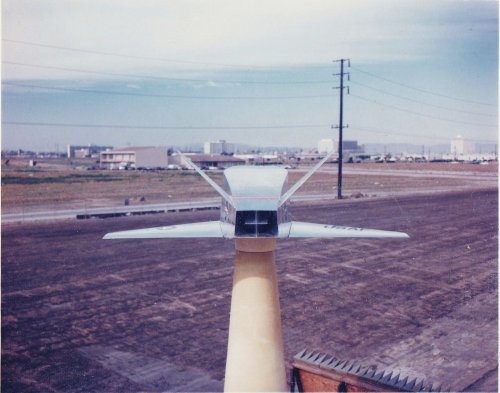

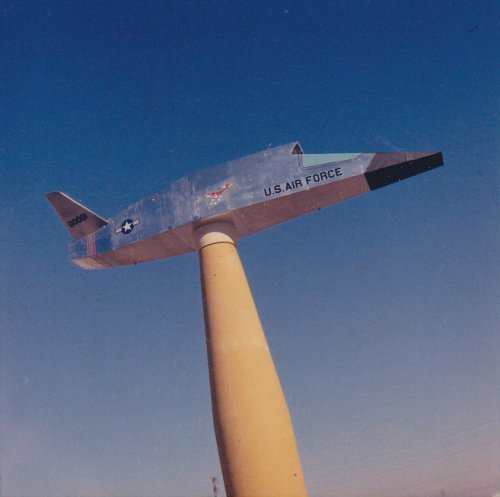

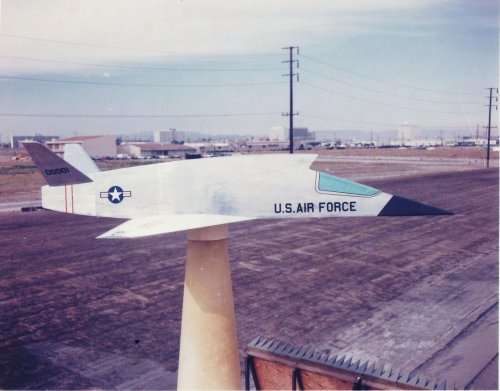

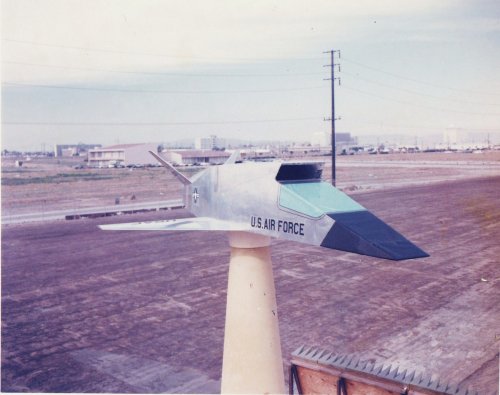

3. Notice the two pole-model versions: The swing wing model (no wing shows!), and the fixed wing version. I also drew the fixed wing version, but these drawings have long gone missing.
4. Notice the test was done in a very public area! Anyone could drive by and take pictures! The test was in a vacant lot on Rockwell Property, south of Imperial Avenue, and west of Aviation Blvd!"


Attachments

  • Surprise Fighter shop fab 1973_0001 resized.jpg
    1.3 MB · Views: 123
  • Surprise Fighter pole shots 1973_0005.jpg
    Surprise Fighter pole shots 1973_0005.jpg
    803.8 KB · Views: 299
  • Surprise Fighter pole shots 1973_0002.jpg
    Surprise Fighter pole shots 1973_0002.jpg
    1.1 MB · Views: 376
  • Surprise Fighter pole shots 1973_0001.jpg
    Surprise Fighter pole shots 1973_0001.jpg
    1 MB · Views: 421

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,872
That is pretty awesome. The fixed wing version really is awfully reminiscent of a stealthified F-107.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,872
Cutting up the contact sheets. Quick edits to remove worst of the dust/scratches. Would be easier with a higher res scan :)


Attachments

  • SurpriseFighter-Pole08.jpg
    62.7 KB · Views: 134
  • SurpriseFighter-Pole07.jpg
    40.1 KB · Views: 119
  • SurpriseFighter-Pole06.jpg
    88.4 KB · Views: 120
  • SurpriseFighter-Pole05.jpg
    68.4 KB · Views: 115
  • SurpriseFighter-Pole04.jpg
    61.1 KB · Views: 100
  • SurpriseFighter-Pole03.jpg
    66.2 KB · Views: 116
  • SurpriseFighter-Pole02.jpg
    59.8 KB · Views: 131
  • SurpriseFighter-Pole01.jpg
    66.3 KB · Views: 120

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,872
More


Attachments

  • SurpriseFighter-Pole13.jpg
    299.9 KB · Views: 141
  • SurpriseFighter-Pole12.jpg
    252.7 KB · Views: 135
  • SurpriseFighter-Pole11.jpg
    190.5 KB · Views: 118
  • SurpriseFighter-Pole10.jpg
    59.8 KB · Views: 101
  • SurpriseFighter-Pole09.jpg
    59.5 KB · Views: 93
  • SurpriseFighter-Pole14.jpg
    211.9 KB · Views: 120

SteveO

ACCESS: Secret
Joined
Jun 24, 2007
Messages
410
Reaction score
64
Nice pics, thanks for sharing!

Anyone know if the Surprise Fighter had over roles envisaged apart from taking out AWACS? Were recon and SEAD considered?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,577
Reaction score
3,872
SteveO said:
Nice pics, thanks for sharing!

Anyone know if the Surprise Fighter had over roles envisaged apart from taking out AWACS? Were recon and SEAD considered?

I think the AWACS role was speculation - Aerofranz's initial post mentioned SEAD (attacking SA-2 sites).


Similar threads

Top
