Poland's Gorilla MBT - 1994

JAZZ

ACCESS: Secret
Joined
Mar 12, 2006
Messages
295
Reaction score
75

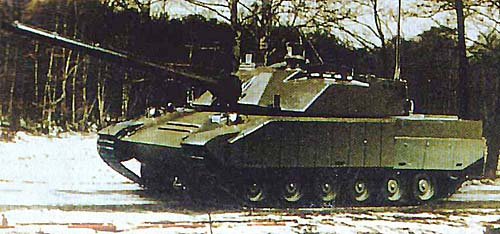

Reported in JDW March 1994 was a concept model of the Gorilla, a prototype which was to be completed by 1998. PZl developed a 1000kW engine and it was armed with a 125mm gun with hull; based on T-72. See attached

Later in 2002 Poland also developed a concept MBT Obrum PT-2001, which sought to upgrade the T-72 series MBT's with a Leopard-2 turret.


Attachments

  • POL- Gorilla MBT_1a copy.jpg
    POL- Gorilla MBT_1a copy.jpg
    27.7 KB · Views: 680

Przezdzieblo

ACCESS: Restricted
Joined
Jul 4, 2007
Messages
28
Reaction score
1

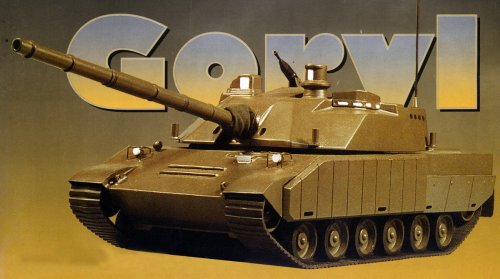

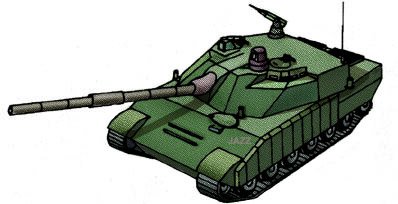

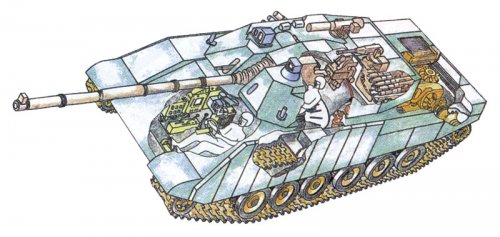

Goryl (Gorilla) AD 1995
weight: 54 t
crew: 3
armament: 120 mm o 125 mm smoothbore (L/48 or L/52), 130-140 mm ATGM launcher, coax 7,62 mm MG, AA 12,7 mm HMG
optoelectronic sights: TC - HL-70 (SFIM) or VIGY-40 (SAGEM); gunner - HL-60 or ST72
powerpack: RR Condor V12-1200 + Renk ESM 500
suspension: torsion bars or hydropneumatic
Also Goryl`s was considered as a base for various vehicles, f.e. tank destroyer, AA Tank, ARV and CEV.

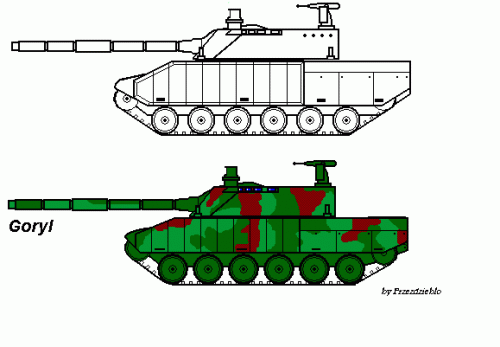

Ad attaches - diagram is simplified (made in Paint) and far from 100% accurate. As you can see proportions are much Leclerc-like - but turret is not low profile (as Leclerc`s is), seems to be pretty big.


Attachments

  • _Goryl_00[1].jpg
    411.7 KB · Views: 529
  • _Goryl_04[1].jpg
    167.6 KB · Views: 519
  • poland_gorylla-big[1].jpg
    35.4 KB · Views: 503
  • gorylschemat.GIF
    9 KB · Views: 446

vajt

ACCESS: Confidential
Joined
May 6, 2007
Messages
74
Reaction score
1
Nice pictures and information. Looked a bit like Italy's Ariete MBT.

-----JT-----
