Non-monohull forms (SWATH, catamarans, tri-marans)

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
500
Website
deeptowild.blogspot.com
Many years ago I read about SWATH being the ideal hull form for future naval ships because of their superior seakeeping ability to monohulls. There stability made them ideal for carriers according to an article I read in Proceedings of the American Naval Institute.

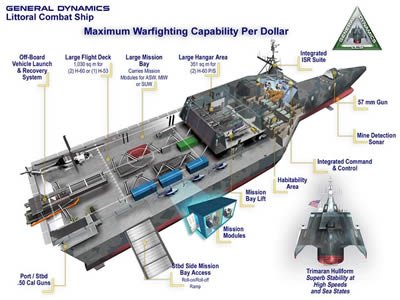

We breifly saw concept art for the future Royal Navy Carrier in SWATH, catamaran, and tri-maran configurations and now the HMS Queen Elizabeth and the HMS Prince of Wales are monohull carriers. The only Naval non-monohulls I can think of are the Lockheed Seashadow , the R/V Triton, and the Independence-class LCS. What happened? Do they not look like proper ships and so the Navies don't like them?


Attachments

  • carrier.jpg
    12.9 KB · Views: 569
  • LCS2head_on.jpg
    9.8 KB · Views: 1,117
  • lcs2-view.jpg
    28.6 KB · Views: 571
  • CVF-trimaran.jpg
    19.1 KB · Views: 983

RP1

I see the truth in it.
Senior Member
Joined
Feb 22, 2006
Messages
447
Reaction score
86
Website
rp-one.net
A simple phrase: "Horses for courses". Advanced Marine Vehicles (i.e. anything other than displacement or semi-displacement monohulls) are, as a general rule, less suitable for "general application" than the monohull. For example:

SWATH: Has superior seakeeping, with higher speeds in a seaway and lower motions, but has a higher structural weight, greater draught and is more resistful at lower speeds. SWATH hullforms are, nonetheless, used by Germany (research vessel), the UK (personnel transfer) and the US (Sonar tug).

Catamaran: Greater deck area and lower draught than an equivalent displacement monohull, but "unusual" motions in a seaway. Used by the Australians for mine countermeasures vessels.

SES / Hovercraft: Very high speeds and resistance to underwater explosion but complex and expensive. Used by UK, US, Russia, Greece, Norway etc etc for landing craft and mine countermeasures.

Hydrofoil: Very high speeds and improved seakeeping, but practical limitations on scale and complexity. Used by Russia, China as fast attack craft.

Trimaran: (Depending on configuration and operating envelope) Reduced resistance, improved sea-keeping, increased upperdeck space and stability. Research on large trimarans only got underway in a serious way in the West in the 1990s. The general draw-down of military forces post Cold War means that the fact that a demonstrator and one experimental warship have been built is actually quite impressive.

Do they not look like proper ships and so the Navies don't like them?

Navies and Defence Ministries can be of two minds on this:

1. Look at the amazing new technology!
2. The risk! The risk! Won't someone please think of the risk!

Somehow out of these two comes a conservative, but quite pragmatic approach to the development of ship designs.

RP1

[Ninja edit]

The trimaran CVF design is, IIRC, actually a product of the AVPRO consultancy, not the MoD. It showcased some of their ideas, such as a screw-jack based lift and highly angled flight deck.


TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,288
Reaction score
1,238
THere was also the USN's Pigeon class submarine rescue ships and Hayes class Oceanographic research ship (catamarans), the Victorious and Impecable class ocean surveillance ships (SWATH), and several high-speed catamaran transports. The Norwegians have their Oksøy/Alta class minesweepers (SES) and there are some others various places. The Chinese wave-piercing catamaran FACs are probably the most interesting recent entrants in the category.

FWIW, SWATH in particular turns out to be really bad for carriers from anything other than a ship motion perspective. They tend to be fairly large (and deep) for their payload and are very weight sensitive. Small changes in payload have surprisingly large impact on draft, because any change in displacement has to be taken up only in foil immersion. They're also quite sensitive about damage and things like asymmetric flooding are really hard to manage. Plus, the configuration makes it hard to locate critical components (like weapon magazines) below the waterline.


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
2,996
Reaction score
491
Website
beyondthesprues.com
Catamaran: Greater deck area and lower draught than an equivalent displacement monohull, but "unusual" motions in a seaway. Used by the Australians for mine countermeasures vessels.

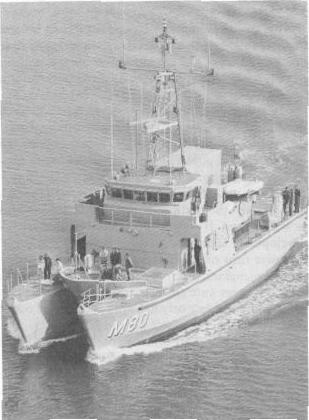

The RAN's Bay Class (HMAS Rushcutter & HMAS Shoalwater) didn't really last too long in service though.

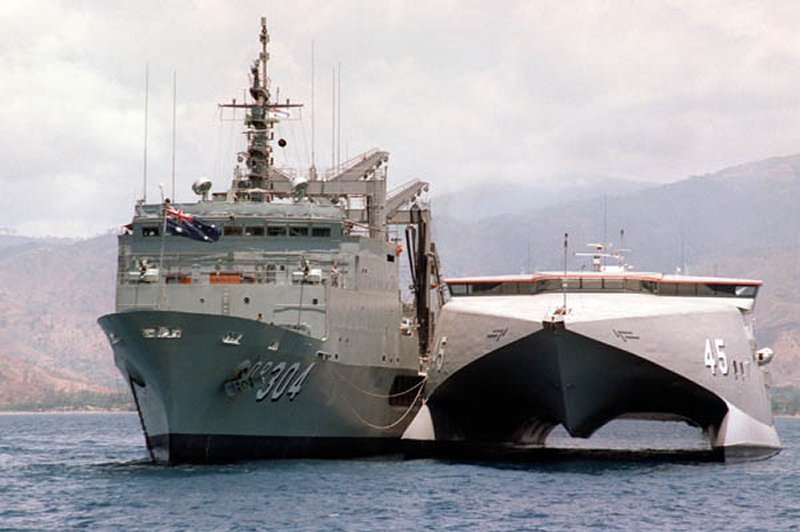

There have also been a few ferry cat conversions/developments used by the RAN (HMAS Jervis Bay) and the USA (High Speed Vessel 2 “Swift” etc):





Regards,

Greg


shaba

ACCESS: Confidential
Joined
Jan 28, 2008
Messages
124
Reaction score
1

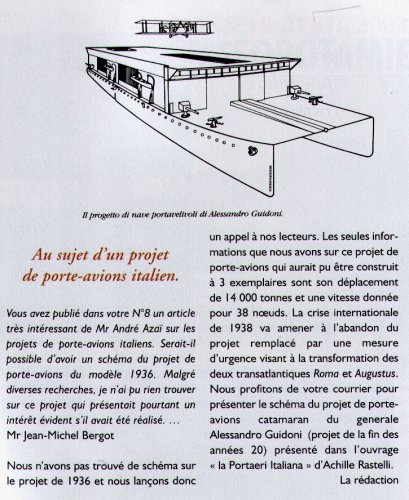

this italian project was originaly post here by red admiral in another thread it is said to show a 3500t catamaran aircraftcarrier but i dought the the 3500t figure


Attachments

  • ITcarrrier.jpg
    726.4 KB · Views: 100

red admiral

ACCESS: Top Secret
Joined
Sep 16, 2006
Messages
616
Reaction score
74
I had a look back and it says 3500tons and 33knts. From La Nave Virtuale in Storia Marina by E Cernushi

Some relevant text below, I couldn't get a great translation but pretty much there was no money for aircraft carriers or heavy cruisers so six light cruisers were built instead. There's a sidenote about an interesting diesel-petrol drive system to be used, though I'm not convinced of how well 96 engines coupled together would work.

...per una portaerei a catamarano di 3500t e 33 nodi lunga 140 metri e redatto nel 1926 propio nel tentativo di ovviare ai dominanti problemi finanziari posti alla base del problema, non ancora dottrinale ma semplicemente confinato nel rango, peraltro ineludibile, delle poste di bilcancio.

La perdurante politica economica del governo, ben deciso a non concedere fondi né per una portaerei né per fli incrociatori pesanti ma orientato unicamente a finanziare, secondo i suggerimenti di Constanzo Ciano - assurto, dalla fine del 1923, al rango di ascoltato consigliere e maestro navale di Mussolini - gli aerosiluranti e i ben piu économici esploratori, dai dodi ci Navigatori ai primi 5000t (peraltro subito ridotti da 12 a quattro salvo risalire, due anni dopo, a sei unità), pose la parola fine, almeno sino al termine del 1927, all'intera questione dell'eventuale aeronavale imbarcata italiana.

[sidenote]
l'apparato motore dell'unita in questione, da suddividere tra i due scafi avrebbe dovuto essere costituito da quattro diesel da 1000cv ciascuno destinati alla navigazione di crociera alla velocita di 14 nodi e da ben 96 motori aeronautici Fiat A25 da 800cv l'uno collegati tra loro e alimentati con la stessa inflammibilissima benzina avio che le navi da guerra italiane e straniere conservavano fuoribordo all'interno di appositi canestri da sganciare prima di accettare combattimento


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,759
Reaction score
1,906
A 1962 NRL Memorandum Report: http://www.dtic.mil/dtic/tr/fulltext/u2/361211.pdf

ABSTRACT
(CONFIDENTIAL)


Some of the ocean-based research being performed by
the U.S. Naval Research Laboratory personnel has resulted
in the need for a research platform that introduces a minimum
amount of disturbance into the ocean surface while
measuring and sampling sea-water. With minor modifications,
a 25-ft sailing catamaran has been made into a suitable
manned research platform. Sampling runs made in the wake
of a 50-ft submarine are described in detail.


PROBLEM STATUS

This is an interim report; work on this problem is
continuing.


AUTHORIZATION
NRL Problem S01-18
ONR Project RF 101-03-44-4065
BUWEPS RUDC-4B-000/652-1/FO01-99-01


RP1

I see the truth in it.
Senior Member
Joined
Feb 22, 2006
Messages
447
Reaction score
86
Website
rp-one.net
To follow-up on the Yarrow SWATH mentioned in the Type 24/25 thread, three twin-hulled vessels were exhibited in model form at RNEE 1989.


• VT presented a 49m, 40 knot craft with a flight deck for Lynx, said to be derived from an Incat design - I think this is the design shown in Rebuilding the Royal Navy.

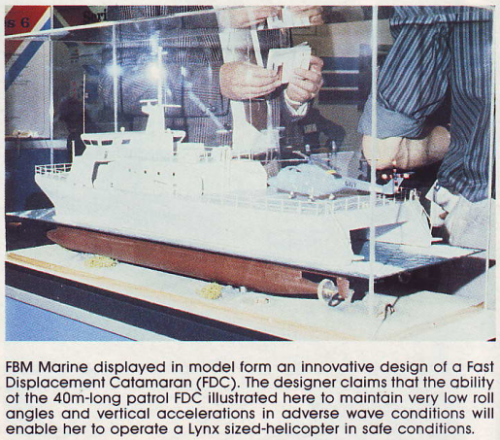

• FBM Marine had a model of their Fast Displacement Catamaran, shown below, intended for an "interceptor" role - presumably a fast OPV. The article notes that a ferry version was in use around the Portuguese Atlantic islands.

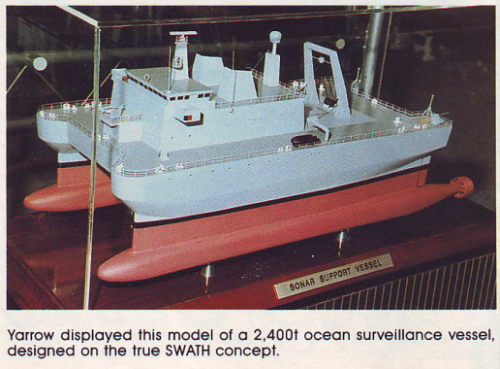

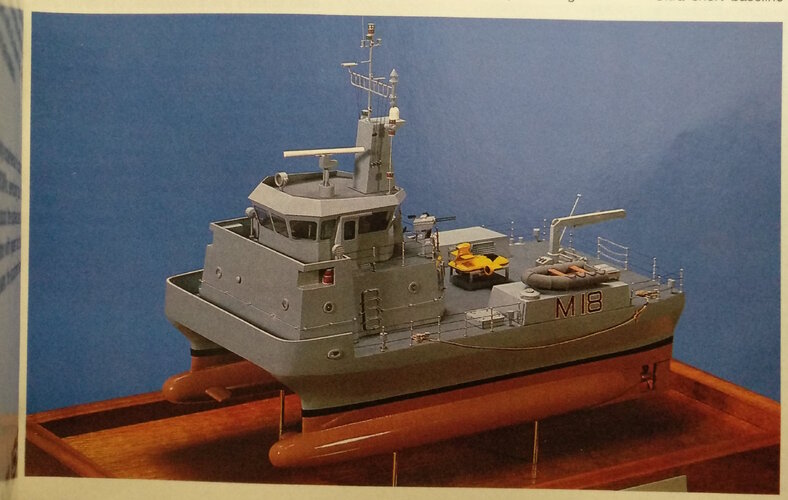

• Yarrow showed their 2400t sonar support vessel, a true SWATH. This is shown below. Each hull had two stabiliser fins on the inboard side, and diesel-electric propulsion gave 14.2knots.


Source: International Defence Review, 11/1989.


RP1


Attachments

  • rnee1989_yarrow_swath_idr_11-1989.png
    426.3 KB · Views: 69
  • rnee1989_fbm_fdc_idr_11-1989.png
    549 KB · Views: 69

XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,160
Reaction score
55
Light UAV Support Ship (ASW): LUSSA

http://www.dtic.mil/dtic/tr/fulltext/u2/a561737.pdf


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
500
Website
deeptowild.blogspot.com
My guess is that this concept is from Canada with the red Maple leaf on the funnel. Anyone recognize it? The next frigate class after the Halifax-class frigate?

Source:
http://www.seafarermedia.com/picture.php?/2279
http://www.ebay.com/itm/SEA-CLASSICS-V27-N4-WW2-USN-NORTHAMPTON-CLASS-CRUISERS-WW2-HALIFAX-EXPLOSION-/400382634189?pt=Magazines&hash=item5d38aa28cd


Attachments

  • 20120925154605-0468b102.jpg
    27.6 KB · Views: 68
  • $(KGrHqF,!qEFC)i4GWcDBQ6lWSi2pQ~~60_57.JPG
    260.5 KB · Views: 59

TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,288
Reaction score
1,238
Drawn by someone with limited understanding of naval architecture. For example, that's a 5-inch gun forward. It needs a full deck below the mount for the ready-use magazine and more below that for the hoists and the main magazine. There just isn't enough height in the hull as drawn.


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,160
Reaction score
55
Other than a Sept 2001 PopSci article, I can't seem to find much else about the Leviathan trimaran batleeship concept.
http://books.google.com/books?id=iQyaw_xlM_UC&pg=PA42&lpg=PA42&dq=us+navy+leviathan+battleship++Popular+Science&source=bl&ots=iTKQ6_xd77&sig=2pbSX1iWRSz4mGkx5BBHZ_sZjvY&hl=en&sa=X&ei=bBA0VMPEIMuhyASzn4GgBw&ved=0CC4Q6AEwAg#v=onepage&q=us%20navy%20leviathan%20battleship%20%20Popular%20Science&f=false


Just found this

From http://everything2.com/title/Trimaran+Warships

"One of the main ships considered by the US Navy, is known as the Leviathan. The ship would have electric motors that could propel all of its 25,745 tons to 32 knots. The ship is armed with twin rail guns, that can accelerate a shell (1 out of a magazine of 12,240) up to mach 10. Despite their smaller calibre size, each shell has the impact velocity of a 16-inch gun from an Iowa Class battleship. The energy necessary to fire only requires a decrease of speed to 30 knots. The Leviathan is also armed with missile systems, as well as unmanned aerial reconaissance/attack underwater vessels and aircraft for self-defense. All this manned by only 88 sailors and officers, with room for up to 142 special operations soldiers. The ship is powered by six gas turbines, each distributed throughout the vessel with flexible power routing, allowing the ship to remain powered after sustaining combat damage. The ship has a satellite linked network, allowing it to direct and control the operations of its entire battle group. It's hull also has an inner liner, providing underwater explosion protection against torpedoes and mines. Another innovative concept introduced in the Leviathan is side thrusters, known as azipods, on the outriggers. With the outboard thrusted pods aimed in opposite directions, the ship could rotate in place. Such manueverability is unavailable in current ships, and is especially useful in anti-submarine warfare. It would also allow the ship to dock in less developed ports, and without the aid of local tugs"


Attachments

  • images.jpg
    5.6 KB · Views: 218

TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,288
Reaction score
1,238
The two smaller designs in that article were done as Spring Style concepts by NAVSEA sometime in the 1990s. I don't think any of the designs were seriously considered; they were just explorations of the state of the possible with multi-hull designs.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
500
Website
deeptowild.blogspot.com
TomS said:
Drawn by someone with limited understanding of naval architecture. For example, that's a 5-inch gun forward. It needs a full deck below the mount for the ready-use magazine and more below that for the hoists and the main magazine. There just isn't enough height in the hull as drawn.

Thanks, it gets difficult to tell the real concepts from the conjectural fantasy when the artwork is separated from any documentation or sources.
