A BELLCOMM, INC. studie from July 23, 1968
by E. D. Marion J. A. Schelke

they proposed an smaller Space Station concept against Skylab (and MOL)!
Modules launch by Titan IIIM, with modified Gemini B capsule
the module are 17 ft long and 15ft ø weight 21,200 to 12,100 lb
Power system a 3 kw or 5 kw Brayton/Isotope system
this system permitted launch diverse Mission
one: Earth Looking
2 modules each 2 men
two: Astronomy
2 modules each 2 men and third module with Astronomical hardware
three: Physical Sciences
2 modules, one with 2 men, second is unmanned
four: Military
1 module with 2 men (contemporary to MOL mission)

first 3 mission types resupply ever 90 day with a unmanned Atlas Agena
the logistic module has a data return capsule
the Military mission stay only 2 to 4 months in orbit, so they need no resupply
intriguing is that Martion and Schelke propose next to USAF mission (analog to MOL) even Hybrid NASA / USAF missions !

total cost for program was estimated for $16 billion in 2011 US dollar

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19790072595_1979072595.pdf


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
498
Website
deeptowild.blogspot.com

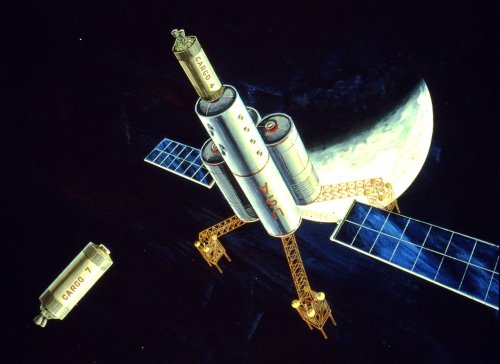

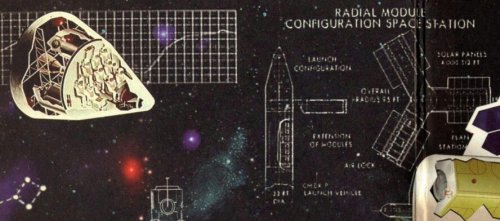

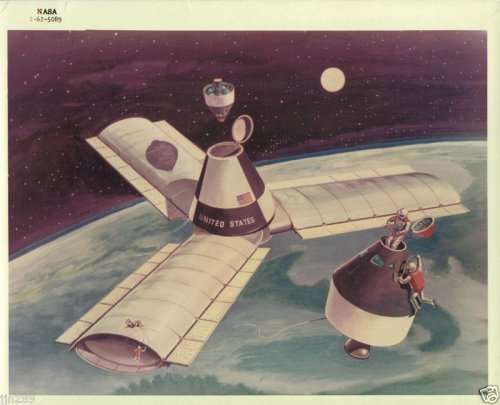

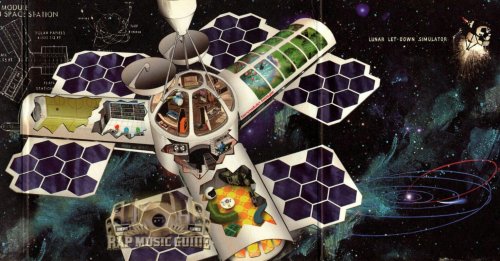

Artist's impression of NASA three radial module space station concept circa 1962 found on eBay.

URL:
http://www.ebay.com/itm/1962-NASA-Color-Photo-Space-Station-Artists-Concept-Kodak-Paper-/120814869603?pt=LH_DefaultDomain_0&hash=item1c21209c63


Attachments

  • $(KGrHqEOKpQE6RgYTowlBOy!J1jSqQ~~60_3.jpg
    84 KB · Views: 431

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,901
Reaction score
1,134
Website
www.aerospaceprojectsreview.com
I'm currently the high bidder. Back off, man!



Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
498
Website
deeptowild.blogspot.com

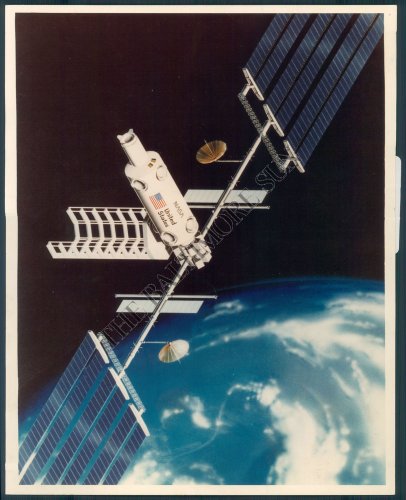

NASA Space Operations Center concept photo circa 1982 found on eBay.
