This is one of the steps on the road to the Hubble Space Telescope. At this point in the process the telescope contains a lot of Apollo legacy hardware and was designed so that the shuttle could be docked with it to allow maintenance and instrument swap-outs to take place in a shirtsleeve environment.

Here is the abstract from the summary report:

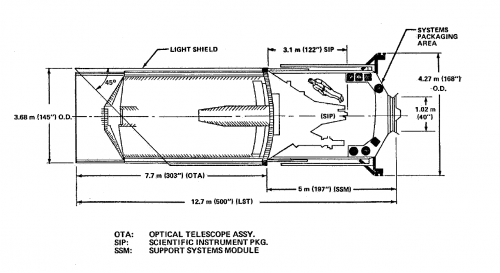

The Phase A study of the Large Space Telescope (LST) is reported. The study defines an LST concept based on the broad mission guidelines provided by the Office of Space Science (OSS), the scientific requirements developed by OSS with the scientific community, and an understanding of long range NASA planning current at the time the study was performed. The LST is an unmanned astronomical observatory facility, consisting of an optical telescope assembly (OTA), scientific instrument package (SIP), and a support systems module (SSM). The report consists of five volumes. The report describes the constraints and trade off analyses that were performed to arrive at a reference design for each system and for the overall LST configuration. A low cost design approach was followed in the Phase A study. This resulted in the use of standard spacecraft hardware, the provision for maintenance at the black box level, growth potential in systems designs, and the sharing of shuttle maintenance flights with other payloads.

This is one early project where the full report is available still via the NTRS, the five volumes are linked below.

Large space telescope, Phase A. Volume 1: Executive summary
https://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19730009722.pdf

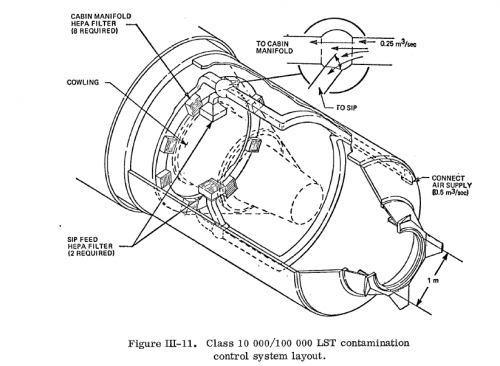

Large space telescope, Phase A. Volume 2: Mission description and system design characteristics
https://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19730009723.pdf

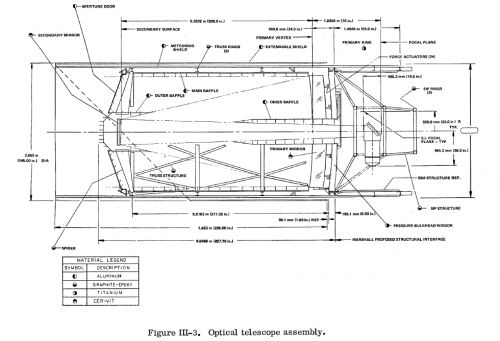

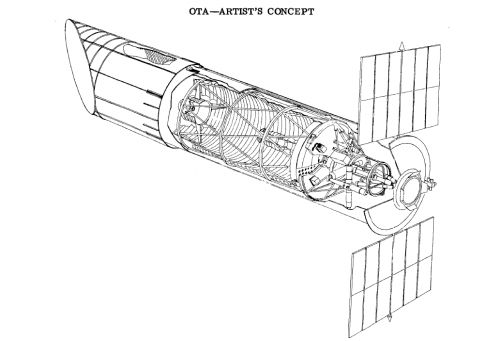

Large space telescope, Phase A. Volume 3: Optical telescope assembly
https://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19730009724.pdf

Large space telescope, Phase A. Volume 4: Scientific instrument package
https://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19730009725.pdf

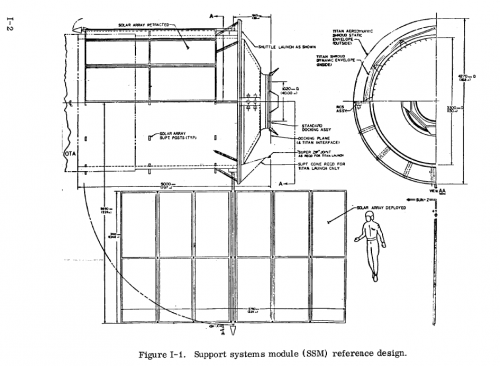

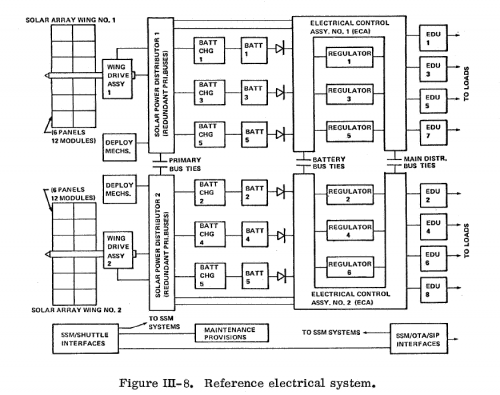

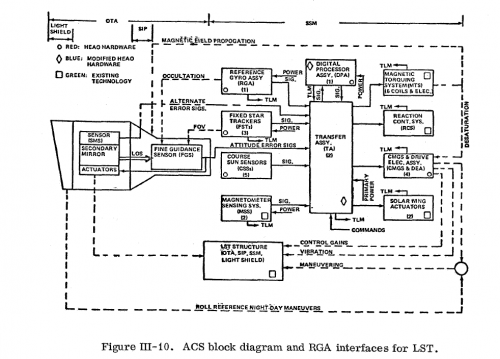

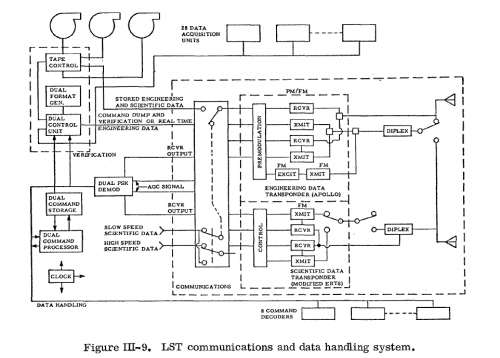

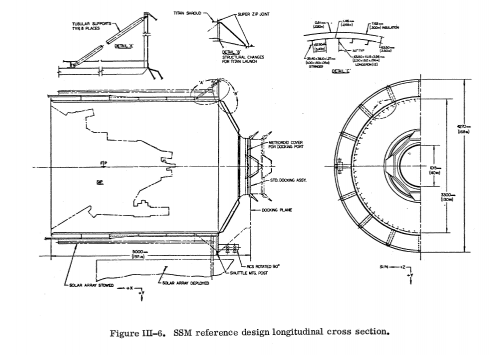

Large space telescope, Phase A. Volume 5: Support systems module
https://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19730009726.pdf


Attachments

  • LST_Orbit_Configuration.png
    83.5 KB · Views: 69
  • LST001.png
    50.2 KB · Views: 66
  • LST002.png
    78.7 KB · Views: 40
  • LST004.png
    74.7 KB · Views: 38
  • LST005.png
    75.7 KB · Views: 33
  • LST006.png
    71.5 KB · Views: 31
  • LST007.png
    76.2 KB · Views: 30
  • LST008.png
    67.7 KB · Views: 38
  • LST009.png
    83.2 KB · Views: 45
