The Mirage III was the result of an evoluting program launched in 1953. At first, it was for lightweight interceptors to reach mach 1.5 with a single AAM.
At the time, only 3 publics firms (SNCA N, SE and SO) and some private (Breguet, Dassault and Morane Saulnier) were able to build this kind of aircrafts.

The Nord-1400 Gerfault was not a contender for this program; the Nord Aviation entry was the Nord 5000 Harpon (I made a thread on it recently)
Others were the MS-1000 and Breguet 1002. These remains paper projects, but three others aircrafts flew (between 1953 and 1956)
- The Mirage 01/ I and then II
- The Durandal
- The SO-9050 Trident
All were powered by small engines such as the Turbomeca Gabizo of 1500 kgp of thrust or the Viper. This program was the high altitude complement of the NATO LWF fighter.

Then , the program evolved to a mach 2 interceptor. The Mirage II was never finished and its wings were used for the very first Mirage III, the -01 (17/11/1956).
The Durandal had flew in April 1956, the Trident had become the Trident II.

Then, in 1956, the program evolved again to a multirole mach 2 fighter, eliminating the rocket-powered Trident.

So the final oposed the Mirage III-01 to the Durandal, both powered by the 4500 kgp Atar-101 completed by a SEPR rocket (1500 kgp).
Operational variants would have had the Atar-9 of 6000 kgp of thrust, these were the Mirage IIIA and Durandal IV.
As the Mirage was clearly superior to the Durandal, it won the competition and the Durandal IV was never build.

Nord 5000 Harpon


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
6,853
Reaction score
5,688
Here we are

Dassault MD-550 'Mirage' 01 (1955 )
Span : 7.30 m
Length :12.80 m
Empty weight :3320 kg
MTOW :5150 kg
Engines : 2 Armstrong Siddeley 'Viper' 744 kgp each.

Dassault MD-550 'Mirage' I (1955)
Span : 7.03 m
Length : 11.50 m
Empty weight : 3330 kg
Maximum weight : 5070 kg
Engines : 2 Bristol Siddeley 'Viper' (980 kgp) 2 SEPR 66 rocket motors of 1500 kgp
top speed :1380 km/h at 11000 m (35000 ft)


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
6,853
Reaction score
5,688
I'll not enter in the field of the Mirage III sub-variants (too many!) just mentioned some interesting one (sometimes well known!)
- Mirage IIIK was a Spey powered variant for GB.
- Mirage IIIT was a flying testbed for the TF-104/106 turbofans (first flight 4/06/1964 with Jean Coureau. The plane, as the F-111 and Tomcat later, was plagued by engines stalls)
- Mirage IIIM was the Aeronavale variant (not very realistic, considering that the landing speed of a Mirage III is around 200kt...)
- Mirage IIIW was to be a licence build Boeing variant to compete with the F-5A/E on export markets.
- Mirage IIIO was the Australian variant, the prototype had the
Avon-300 engine whereas the production aircrafts stayed with the Atar 9.
- Milan was the first atempt to fit canards on a Mirage III. They were fitted on the nose (not on the air intakes a la Kfir) and could retract on the fuselage.
- Mirage V( 1967) 50 (1979) and NG (1982) were improved variants
(with less and less success along the years...)

The Mirage IIIF, IIIG and IIIV designations applied in fact to nearly 100% new aircrafts. The IIIV designation stayed whereas the two others were quickly dropped in favor of the single letter F and G.

Footnote : the Mirage III-01 Balzac (1956-1965)

The name Balzac was applied to the early Mirage III-01 of november 1956. This plane had a long life as testbed for the Mirage IIIA/B/C/E and was still flying in 1961.
It was then changed into a subsonic VTOL demonstrator by replacing its Atar 9 by an Orpheus+ 8 RB-108 lift engine. Know as Balzac V (Vertical) it was only subsonic, with a flight time of 12 minutes.
The plane flew in 1962, crashed for the first time in February 1964 at Melun-Villaroche, killing CEV test pilot Jacques Pinier.
The plane was repared, and crashed again in September 1965 killing Major Neale.


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,648
Reaction score
506
Mirage IIIW was to be a licence build Boeing variant to compete with the F-5A/E on export markets.

I didn't knew about this variant. Boeing first thought to enter USAF's LFW competition (won by the GD F-16) was a Mirage F-1 with US avionics/weapons and J-79 Engine. It seems that Boeing had Dassault's Fighters in good consideration.


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,437
Reaction score
307
Archibald said:
W stands for Wichita. I don't know more about this project :(

According to Jack Gee's book on the Mirage, this was a variant of the Mirage IIIC intended as a competitor for the F-5A/B in the early 1960s. It would indeed have been built by Boeing-Wichita. It definitely could've lead somewhat earlier to a J9-powered version of the Mirage.


Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,346
Reaction score
1,535

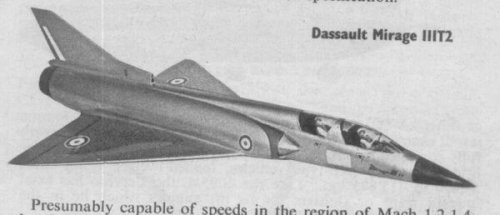

A version still not mentioned here, I think:
Mirage IIIT2, powered by a TF-106, as the IIIV's cruise engine, and intended as a
long range reconnaissnace and strike a/c, but at first just as an developing a/c for
the IIIV.
source:
Flying Review vol.19, 1963. The model was shown on the 25th
Salo International de l'Aéronautique et de #"Espace.


Attachments

  • Mirage_IIIT2.JPG
    21.6 KB · Views: 1,712

Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
6,853
Reaction score
5,688
Hey, this look like an operational variant of the Mirage IIIT! Never heard about this one, Jemiba...
To my mind, this project had two origins :
- Or it was an alternative to the IIIV just in the case of a failure of the VTOL aircraft...
- Or it was a Mirage III variant developed BEFORE the IIIV (1960-1963 ?) abandoned, and then resurected to be use as a testbed...
It is aparently based on a Mirage IIIB, but the canopy look more a Mirage F2/ G... very, very interesting project! Where do you find it ?


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,573
Reaction score
7,522
Interesting account of Mirage design evolution in Salvador Mafe Huertas Dassault-Breguet Mirage III/5 Osprey Air Combat 1990

  • MD.550 - Mach 1.15 in shallow dive. Drag way too high for the limited thrust.
  • Fairey Aviation provided FD2 data to Dassault, as a result MD.550 fin and dorsal spine redesigned, length and wingspan reduced slightly. Renamed Mirage I. Speed increased to Mach 1.3 in level flight with rocket boost
  • Mirage II was a larger development with a larger wing based on Fairey data and two Turbomeca Gabizo turbojets. Not built.
  • Mirage III (01) had almost identical wing to the Mirage II project, but new "area-ruled" fuselage based on US research. SNECMA Atar 101G.2 turbojet. Mach 1.52 in level flight.
  • Refitted with conical "shock cones" similar to the F-104, achieves Mach 1.6 (jet engine) and Mach 1.9 (with rocket boost).
  • Mirage IIIA - increased thrust Atar 9B, wing redesigned to reduce drag and increase lift. Conical leading edge camber adopted [as recommended by NASA Ames research and implemented on F-106 and B-58 - my addition]. Mach 2 reached.


Archibald

ACCESS: Above Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
6,853
Reaction score
5,688
I have to found the source (sorry) but the Mirage-II was partially built. And the wings of this unfisnished aircraft were used for a "speed built" of the Mirage III-01. (why speed built ? because Dassault was late against the Durandal, but also because the program had changed once again).
Thanks for the more detailed story Overscan.

Footnote : Mirage IV and Mirage-2000 tails were changed around their first flight just because old Marcel Dassault found they were ugly... that's not a joke! (Fana de l'aviation August 1998 about first flight of the 2000)


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,573
Reaction score
7,522
  • MD.550 - Mach 1.15 in shallow dive. Drag way too high for the limited thrust.
  • Fairey Aviation provided FD2 data to Dassault, as a result MD.550 fin and dorsal spine redesigned, length and wingspan reduced slightly.
  • Renamed Mirage I. Speed increased to Mach 1.3 in level flight with rocket boost
  • Mirage II was a larger development with a larger wing based on Fairey data and two Turbomeca Gabizo turbojets. Not built.
  • Mirage III (01) had almost identical wing to the Mirage II project, but new "area-ruled" fuselage based on US research. SNECMA Atar 101G.2 turbojet. Mach 1.52 in level flight.
  • Refitted with conical "shock cones" similar to the F-104, achieves Mach 1.6 (jet engine) and Mach 1.9 (with rocket boost).
  • Mirage IIIA - increased thrust Atar 9B, wing redesigned to reduce drag and increase lift. Conical leading edge camber adopted [as recommended by NASA Ames research and implemented on F-106 and B-58]. Mach 2 reached.

As you can see, Fairey research was useful, but not the whole story.


Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,610
Reaction score
205
Website
www.hitechweb.genezis.eu
Mirage III-V


Attachments

  • Mirage_III-V_1.jpg
    190 KB · Views: 672
  • Mirage_III-V_2.jpg
    166.6 KB · Views: 554
  • Mirage_III-V_3.jpg
    262.9 KB · Views: 524
  • Mirage_III-V_4.jpg
    315.6 KB · Views: 343
  • Mirage_III-V_5.jpg
    165.1 KB · Views: 322
  • Mirage_III-V_6.jpg
    193.9 KB · Views: 134

Matej

Multiuniversal creator
Joined
Feb 13, 2006
Messages
2,610
Reaction score
205
Website
www.hitechweb.genezis.eu

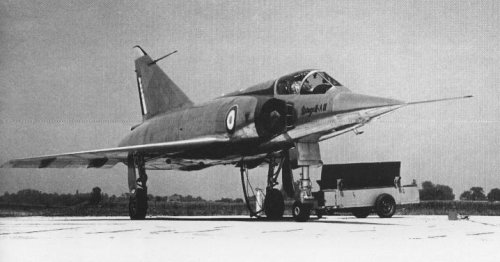

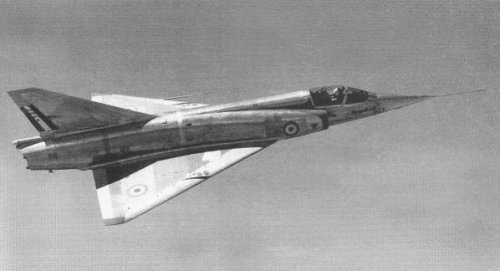

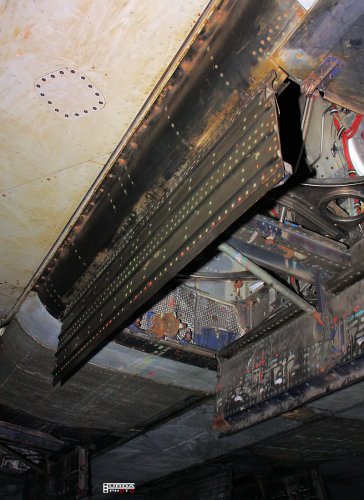

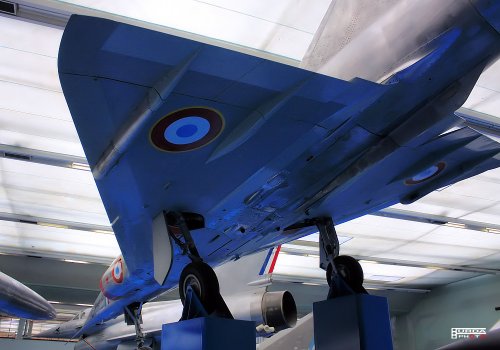

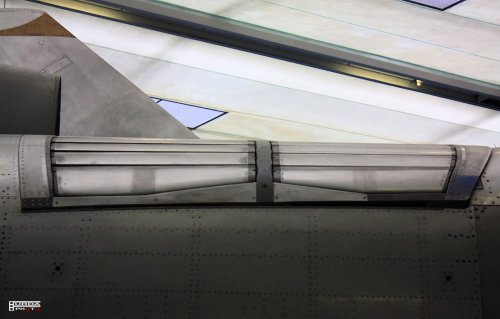

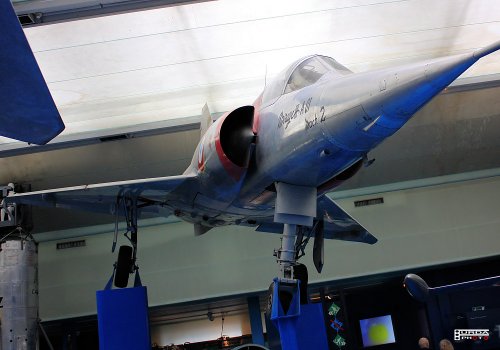

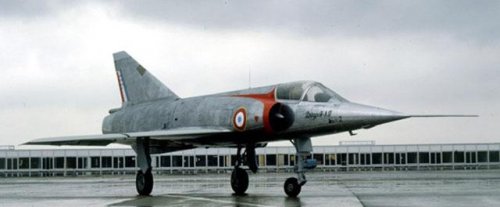

Last one for today: Mirage IIIA n.01


Attachments

  • Mirage_IIIA-01_4.jpg
    172.2 KB · Views: 110
  • Mirage_IIIA-01_3.jpg
    152.9 KB · Views: 96
  • Mirage_IIIA-01_2.jpg
    167.5 KB · Views: 108
  • Mirage_IIIA-01_1.jpg
    167.4 KB · Views: 128

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,346
Reaction score
1,535

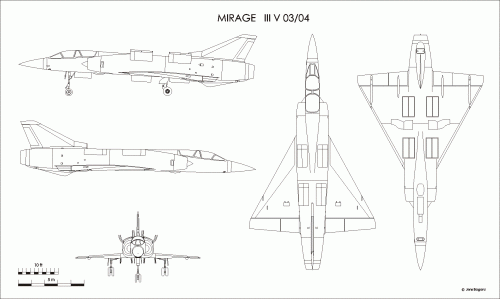

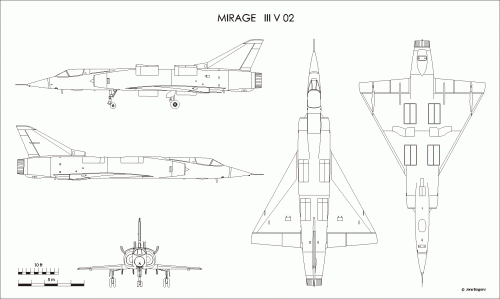

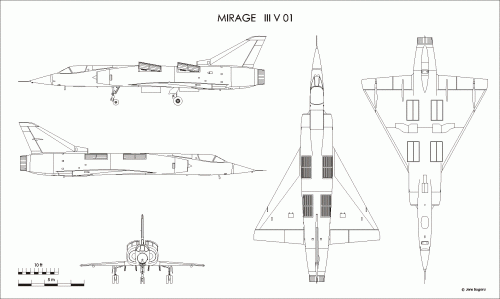

Comparison between the -01, -02 and the two-seat -03/04, as proposed to the USAF


Attachments

  • Mirage_IIIV-01.gif
    42.2 KB · Views: 240
  • Mirage_IIIV-02.gif
    40 KB · Views: 254
  • Mirage_IIIV-03.gif
    41 KB · Views: 295

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
819

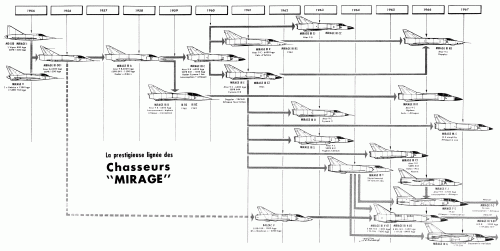

Here is a cleaned-up/enhanced version. I will try and improve it some more tonight.


Attachments

  • Mirage family.gif
    Mirage family.gif
    721.7 KB · Views: 887

ivran

ACCESS: Confidential
Joined
Jan 20, 2008
Messages
147
Reaction score
14

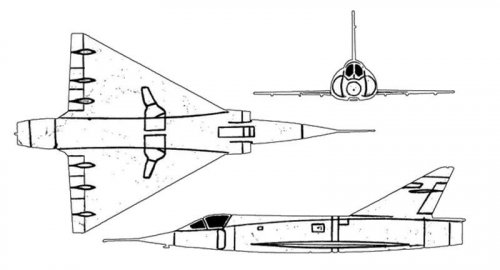

Does somebody have better drawing of this aircraft,This is the best what I have , I like Mirage III variants Thank in advanced,
I have story Saga des Mirages but there have not good drawing, cutaways, and colors


Attachments

  • mirage-iii-a.jpg
    29.9 KB · Views: 1,037
  • 1049341049.jpg
    21 KB · Views: 1,004

ivran

ACCESS: Confidential
Joined
Jan 20, 2008
Messages
147
Reaction score
14
Any color drawing of Mirage III 001,like this


Attachments

  • Milan.JPG
    89.4 KB · Views: 1,042

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
144
Hi Ivran
Mirage III a 01


Attachments

  • Scan.pdf
    386.4 KB · Views: 156

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
144

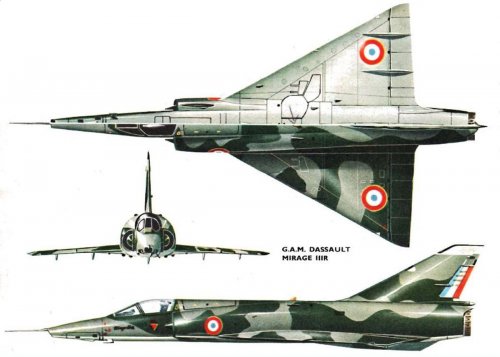

Mirage iii 3 views


Attachments

  • Scan2.pdf
    272.3 KB · Views: 132

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
144
color... but not very good !!!


Attachments

  • das.pdf
    486.8 KB · Views: 116

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
144

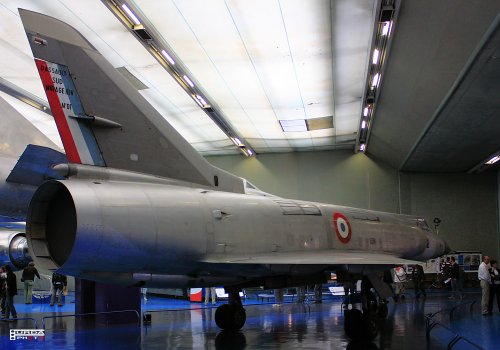

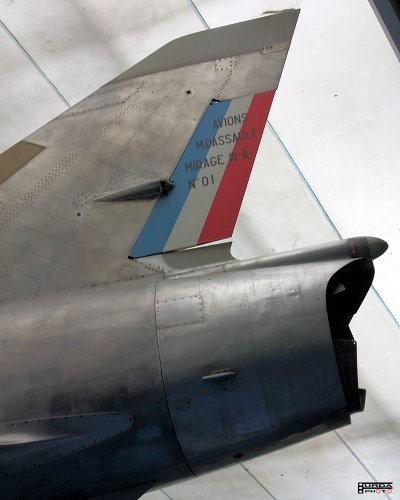

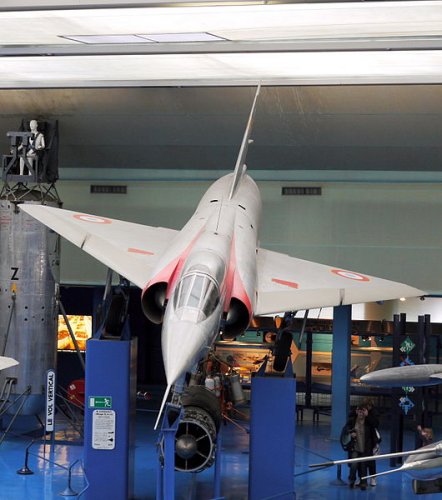

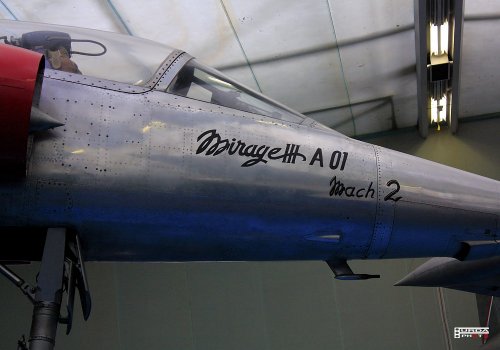

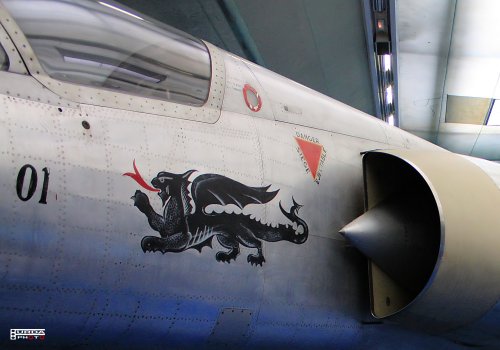

MIRAGE iii as at Le Bourget museum


Attachments

  • 530px-Mirage_III_A_01_Musee_du_Bourget_P1020118.jpg
    59.7 KB · Views: 865

Rickshaw

ACCESS: Top Secret
Senior Member
Joined
Jan 26, 2011
Messages
2,094
Reaction score
225
Out of a matter of interest, are there any three view drawings of the Mirage II ?


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,945
Reaction score
971

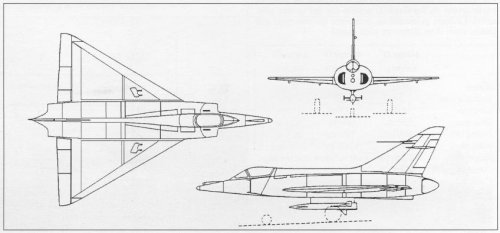

By Jean M Cuny.


Attachments

  • Mirage II.JPG
    Mirage II.JPG
    38.6 KB · Views: 755

toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
144
Hi Kadija_man

Is this of interest for you ?

Dassault studies of delta wing before the MD 550.


Attachments

  • Scan.pdf
    242.8 KB · Views: 132

ivran

ACCESS: Confidential
Joined
Jan 20, 2008
Messages
147
Reaction score
14

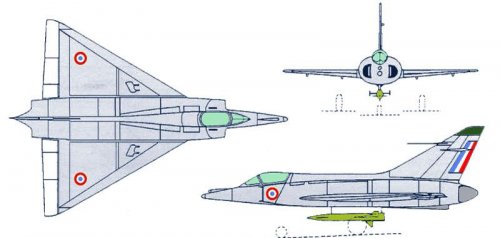

And Mirage II in color


Attachments

  • Mirage IIcoll.jpg
    Mirage IIcoll.jpg
    35.6 KB · Views: 873

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,945
Reaction score
971

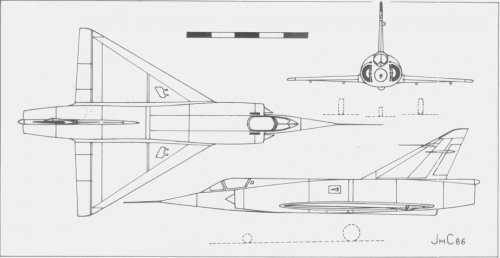

Again, by Jean M Cuny


Attachments

  • Mirage III-001.JPG
    Mirage III-001.JPG
    37.5 KB · Views: 791

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,945
Reaction score
971
toura said:
HI arjen
Yes....after modifications.
Bye

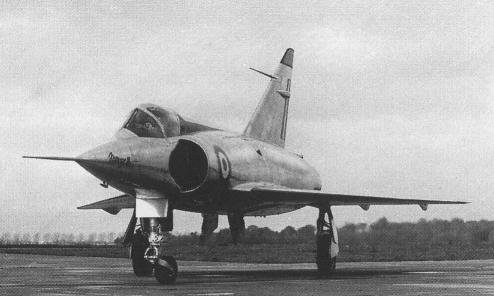

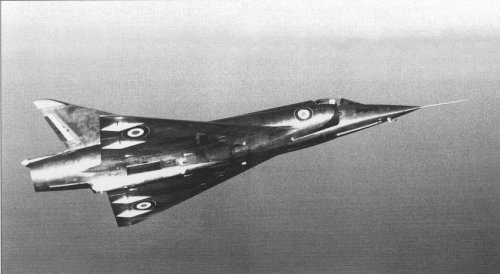

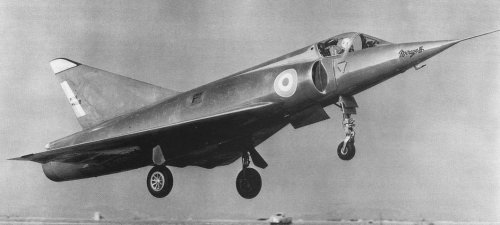

To elaborate on that: the Mirage III-001 prototype started life with short air intakes, as in the first two images. Then it received longer intakes with shock cones, as in the next two images. The last two pictures show the first pre-production aircraft, Mirage IIIA-01. All pictures from the excellent 'Mirage III - les monoréacteurs Dassault à aile delta - Tome 1' by Bernard Chenel, Eric Moreau and Patrick Audouin.


Attachments

  • Mirage IIIA-01 b.JPG
    Mirage IIIA-01 b.JPG
    29.1 KB · Views: 174
  • Mirage IIIA-01 a.JPG
    Mirage IIIA-01 a.JPG
    42.3 KB · Views: 153
  • Mirage III-001 d.jpg
    Mirage III-001 d.jpg
    22.9 KB · Views: 143
  • Mirage III-001 c.JPG
    Mirage III-001 c.JPG
    64.1 KB · Views: 196
  • Mirage III-001 b.JPG
    Mirage III-001 b.JPG
    77.1 KB · Views: 413
  • Mirage III-001 a.JPG
    Mirage III-001 a.JPG
    21.8 KB · Views: 433

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,945
Reaction score
971
Related topic: prototype Mirage III-001 was converted to the Balzac V VTOL testbed.


toura

ACCESS: Top Secret
Joined
Apr 12, 2008
Messages
1,207
Reaction score
144
HI ALL
MIRAGE III T


Attachments

  • Scan.pdf
    529.8 KB · Views: 105

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,346
Reaction score
1,535
GTX said:

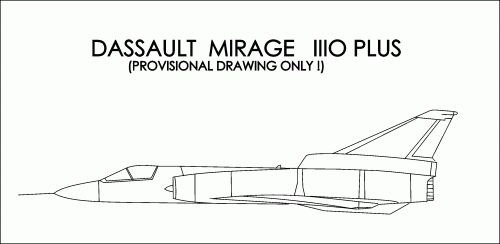

Does anyone have any more information on this Mirage IIIO 'Plus' proposal, especially drawings?

No, but it could have been an interesting bird ! At least a (much smaller) intake is already known from the Kfir.


Attachments

  • Dassault_Mirage-IIIO-PLUS.gif
    26.4 KB · Views: 1,185

topspeed3

ACCESS: Secret
Joined
Jan 31, 2011
Messages
247
Reaction score
36
Website
max3fan.blogspot.com
Arjen said:
. The last two pictures show the first pre-production aircraft, Mirage IIIA-01. All pictures from the excellent 'Mirage III - les monoréacteurs Dassault à aile delta - Tome 1' by Bernard Chenel, Eric Moreau and Patrick Audouin.

Is it possible to get the main dimensions of this Mirage IIIA-01 ?


cafe

Paper modeller
Joined
Aug 28, 2011
Messages
6
Reaction score
1
The current issue of Le Fana de l'Aviation has a 16 page article on the Milan program and the planes modified with the "moustache" on the nose.

- Mirage 5J n° 2 "Astérix" (fixed canards) - september 1968 - june 1969
- Mirage IIIRD n° 363 "Astérix" (fixed canards). It kept its 33-TL markings from ER 3/33 for the trials - october 1968 - january 1969
- Mirage IIIR n° 344 with retractable canards (may 1969 - january 1970)
- Milan S 01, formerly the Mirage IIIE n° 589, re-engined with an Atar 9K31 and later an Atar 9K50 and 2 different noses (with or without an Aida radar). It first flew on may 29 1970. It was returned to the standard Mirage IIIE configuration in 1977 and re-entered Armée de l'Air service.

The cover of this issue shows the Milan S 01 flying in front of an A-7D over the swiss Alps and can be seen on the artist's website, Christophe Gibelin. Click on the Potez 25 and drag it to the left in order to get to the next illustrations.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,426
Reaction score
6,090
That's very nice Cafe,


specially Milan artist drawing.


Attachments

  • Milan.JPG
    68.3 KB · Views: 927

Similar threads

Top
