Unbuilt & Prototype Mirages 1955-1980

Status
Not open for further replies.

Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,629
Reaction score
231
The Mirage III was the result of an evoluting program launched in 1953. At first, it was for lightweight interceptors to reach mach 1.5 with a single AAM.
At the time, only 3 publics firms (SNCA N, SE and SO) and some private (Breguet, Dassault and Morane Saulnier) were able to build this kind of aircrafts.

The Nord-1400 Gerfault was not a contender for this program; the Nord Aviation entry was the Nord 5000 Harpon (I made a thread on it recently)
Others were the MS-1000 and Breguet 1002. These remains paper projects, but three others aircrafts flew (between 1953 and 1956)
- The Mirage 01/ I and then II
- The Durandal
- The SO-9050 Trident
All were powered by small engines such as the Turbomeca Gabizo of 1500 kgp of thrust or the Viper. This program was the high altitude complement of the NATO LWF fighter.

Then , the program evolved to a mach 2 interceptor. The Mirage II was never finished and its wings were used for the very first Mirage III, the -01 (17/11/1956).
The Durandal had flew in April 1956, the Trident had become the Trident II.

Then, in 1956, the program evolved again to a multirole mach 2 fighter, eliminating the rocket-powered Trident.

So the final oposed the Mirage III-01 to the Durandal, both powered by the 4500 kgp Atar-101 completed by a SEPR rocket (1500 kgp).
Operational variants would have had the Atar-9 of 6000 kgp of thrust, these were the Mirage IIIA and Durandal IV.
As the Mirage was clearly superior to the Durandal, it won the competition and the Durandal IV was never build.

Nord 5000 Harpon


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,629
Reaction score
231
Nord 5000 Harpon

Durandal, Durandal IV and Durandal IVM (naval variant)

MS-1000

Breguet 1002


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,629
Reaction score
231
That's clear. i have to try a second time!


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,629
Reaction score
231
Here we are.
First, the sources of the photos (the pictures come from Jean Cuny book, Les avions de combats francais 1945-1960)

Mirage III-01
http://www.dassault-aviation.com/passion/gb/dassault_a_a_z/avions/detail.cfm?id=70

Mirage I
http://www.avions-militaires.net/fiches/mirage-i.php

Trident
http://perso.orange.fr/jets.for.ever/Pages%20du%20Site/protos%20f.htm

Durandal
http://www.aeroweb-fr.net/photos/62,sud-est-se212-durandal/photo,602.php

Now the photos and pictures

From up to down
MS-1000, Br.1002, Nord Harpon

(well I have some difficulties uploading the pictures) ??? :mad:


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,629
Reaction score
231
:mad: :mad: :mad: :mad: :mad: :mad: :mad: :mad: :mad: :'( :'( :'( :'( :( :( :( :(
I'm stubborn... please moderator, delete some of these posts...

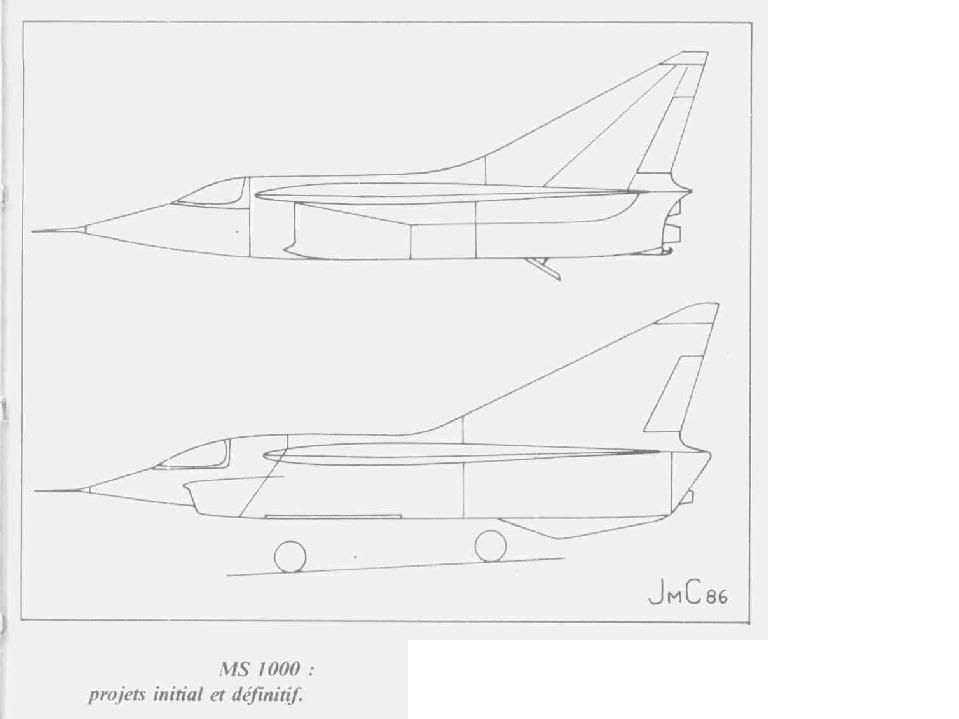

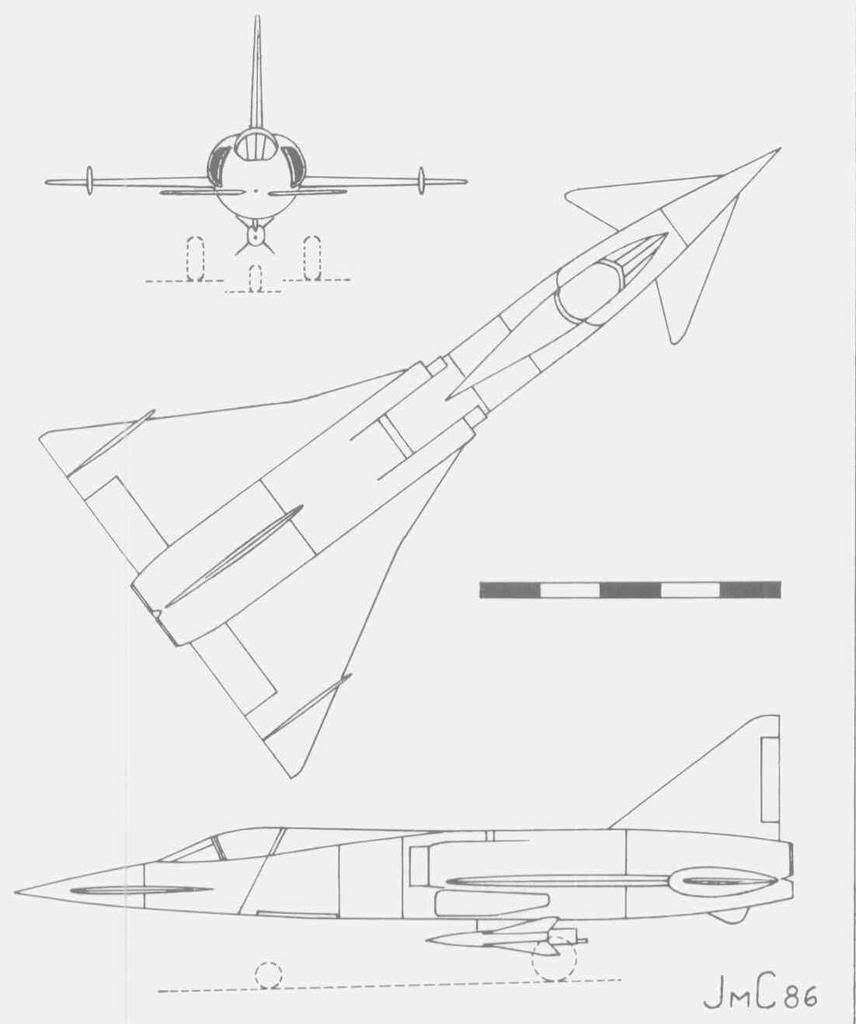

Morane Saulnier MS-1000

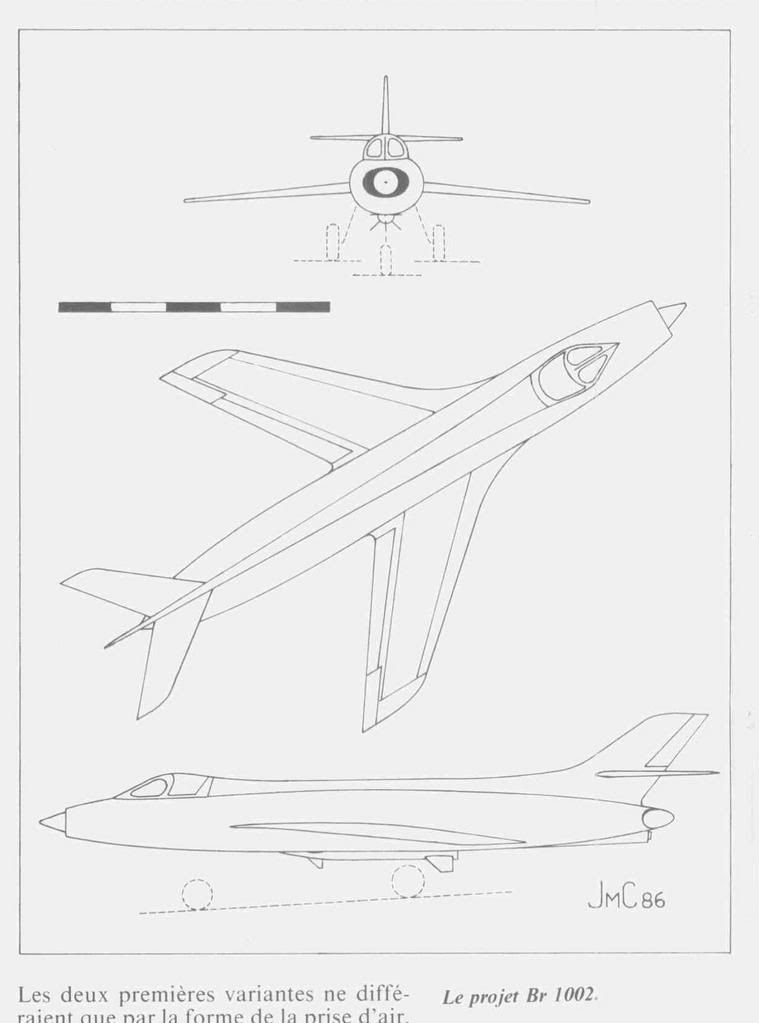

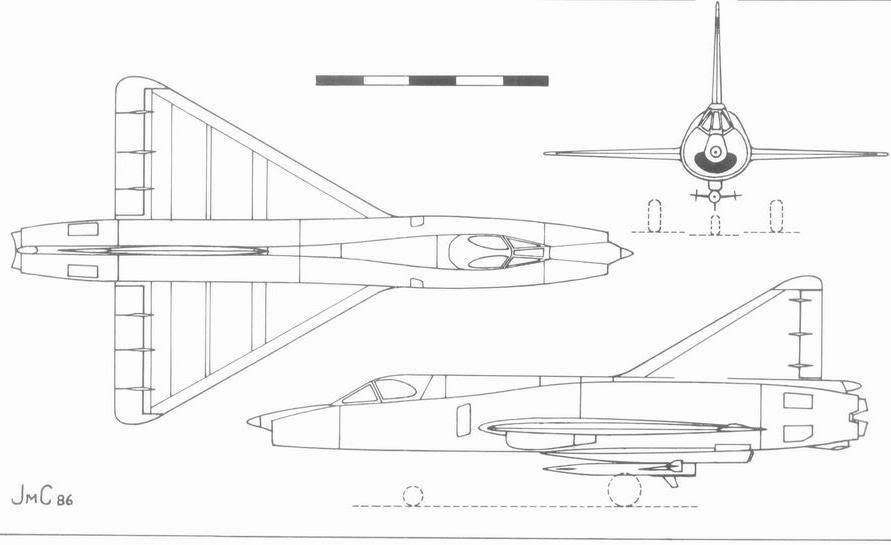

Breguet Br.1002


Nord 5000 Harpon

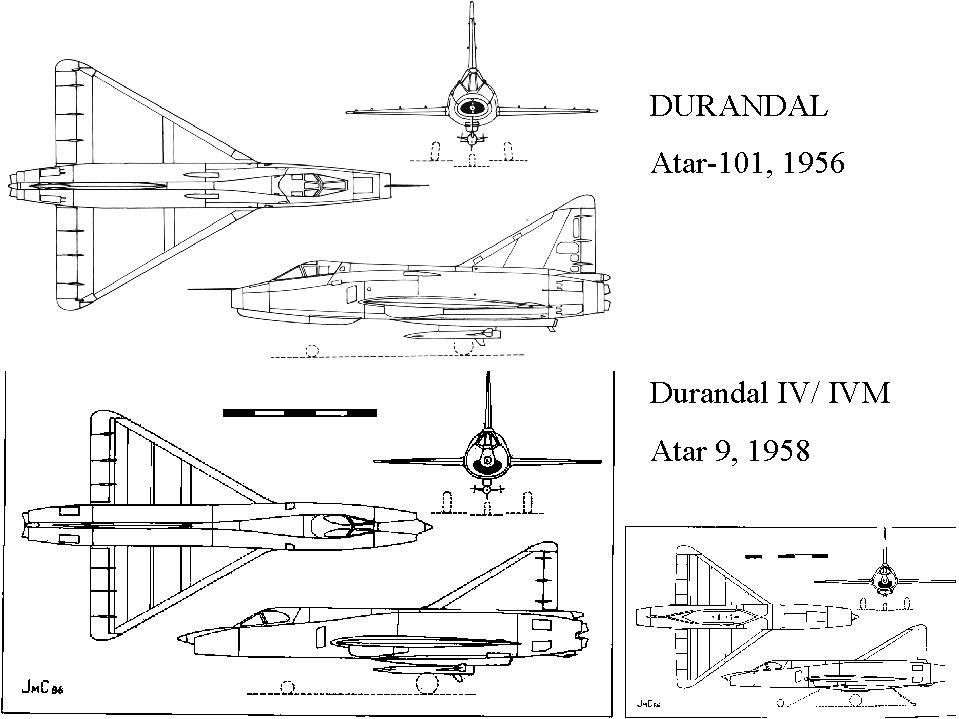

Durandal and derivatives.


SNCASE Durandal (photo)

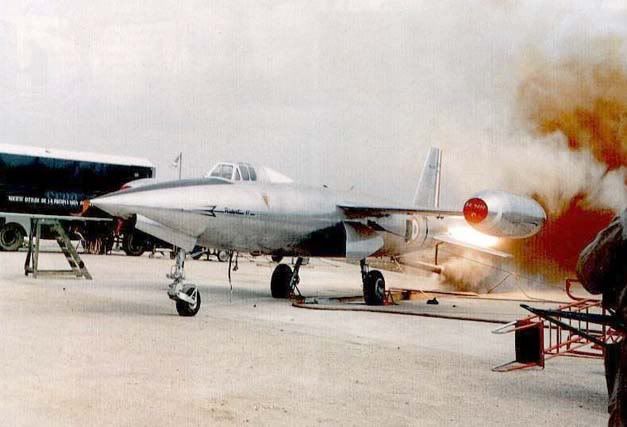

SNCASO Trident-II

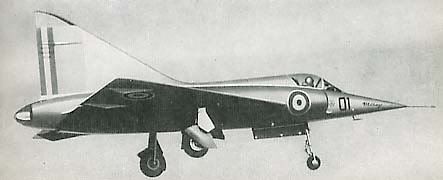

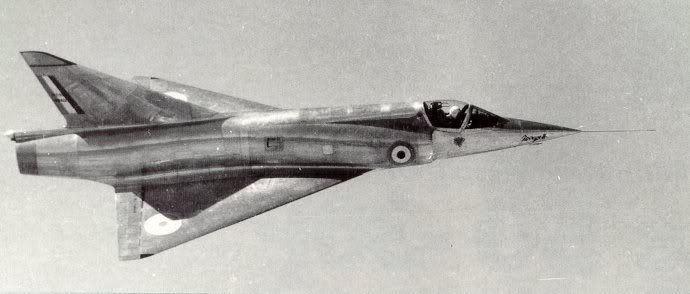

Mirage 01


Mirage III-01 (AkA Balzac I)


Durandal IV

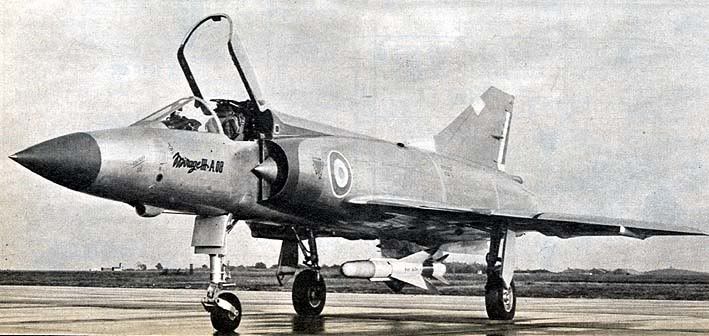

Mirage IIIA


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,629
Reaction score
231
Correction : the Mirage II never flew (not easy to follow this program, and I went nut with this damned file atachment :( )

The Mirage II and III-01 were both evolution of the I, with more power. The failure of the Gabizo engine (two powered the Mirage II) prompted the choice of the single Atar Mirage III-01.
This meant that the prototype of the Mirage II was scrapped, salvo the wings which were used to build the Mirage III-01!

Good article on the Trident here
http://jpcolliat.free.fr/trident/trident-1.htm


Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,367
Reaction score
45
Nice work Archibald

At the end you succeded with the pics ;)

What about starting a new topic on Mirage unbuilt versions?. I have read your contributions at whatifmodelers and keypublishing and I think it could be very interesting to enjoy your knowledge here.

Cheers,
Antonio


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,629
Reaction score
231
Ok, that's a good idea. I have a pile of these projects :) to share with you...(I recntly asked on Dassault website informations on the Mirage F3 :) )


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,629
Reaction score
231
The first Mirage to fly was named the Mirage-01. It took the air for the first time on june 25th 1955. It was powered by two Vipers with 730 kgp each. It also had an oversized tail. Totally underpowered, it nevertheless managed to break the sound barrier in dive, reaching mach 1.3.

The -01 was quickly improved into the Mirage I. It was still powered by Vipers, but they were now boosted at 930 kgp by a simplified reheat. At SEPR rocket also added power. The results were much better, the plane reaching mach 1.3... in horizontal flight.

Caracteristics of this early Mirages can be found at Aviafrance.
More to follow...


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,629
Reaction score
231
Here we are

Dassault MD-550 'Mirage' 01 (1955 )
Span : 7.30 m
Length :12.80 m
Empty weight :3320 kg
MTOW :5150 kg
Engines : 2 Armstrong Siddeley 'Viper' 744 kgp each.

Dassault MD-550 'Mirage' I (1955)
Span : 7.03 m
Length : 11.50 m
Empty weight : 3330 kg
Maximum weight : 5070 kg
Engines : 2 Bristol Siddeley 'Viper' (980 kgp) 2 SEPR 66 rocket motors of 1500 kgp
top speed :1380 km/h at 11000 m (35000 ft)


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,629
Reaction score
231
Next step in the Mirage family was the Mirage IV... well, this family is really a mess!
The Mirage IV is more than a twin-engines Mirage III : it's genesis is much more complex.
The Mirage III-01 which flew in november 1956 lacked the Atar-9, shock cones in the air intakes. As a consequence, its top speed was around mach 1.7.
In the early Mirages, every change in the number (I, II, III meant different engine Ie more power)
The plane needed more power...a new engine. So, once again, the name was changed to Mirage IV. Under this name, various engines configurations were studied
- 1 Atar-9 (Mirage IVA /B)
- 1 Super Atar
- 2 atar 9 (Mirage IVC)
and some variants with rocket engines (Mirage IVF)

The Super Atar was never realised.
By lack of funds, the AdA chose the Mirage IVA. Finding that it was quite similar to the Mirage III-01, they named it Mirage IIIA. This plane flew on 12th May 1958, and was the first "real" Mirage III.

But the Mirage IVC was still alive... the AdA wanted it to replace the Vautours (its main competitor was the SO-4060) but once again budget cuts forced the cancellation of this aircraft.
It was nevertheless bringed back to life when De Gaulle "seized" power in may 1958 and decided to develop the nuclear deterrent.. the heavy fighter evolved into a light bomber. This one inherited of the Mirage IVA designation!! It flew in June 1959.
But the atar-9 limited the MTOW to 33 tons, cutting range to 2500km.
As this was clearly insufficient, a scaled-up variant was envisaged. Range, MTOW, wing area were nearly doubled. Of course, the engine power had to follow... as SNECMA was unable to create a 13000 kgp engine, foreign designs were selected.
those were
- J-75
- Olympus
- PS.13 Iroquois (yes, the Arrow engine...)
- RB-142 Medway (spey ancestor)

The J-75 was declared the winner and the Mirage IVB program started in march 1959. It was abruptly stopped in september because of its foreign engine.
The Mirage IVA was back, the range problem was solved by buying tankers in 1964...
Source http://www.mirage4p.com/slides/Historique/p02.htm
http://www.stratisc.org/partenaires/ihcc/ihcc_nuc1_Cabriere.html


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,629
Reaction score
231
According to Stratis.org,
Par contre, la taille (surface, longueur du fuselage) et la motorisation sont en constante évolution. Devant les possibilités offertes, les exigences opérationnelles grandissent et les ingénieurs de la GAMD y répondent par toute une gamme d'avant-projets monoréacteurs qui portent le nom de Mirage IV. Leurs surfaces varient de 25 à 40 m2, leurs moteurs sont des ATAR de 6 à 7 et même 9 tonnes de poussée mais aucun ne répond entièrement à l'ensemble des souhaits de l'Etat-Major et pour tenir les exigences de montée de plafond à Mach 2, ils ont besoin de la poussée supplémentaire d'un groupe fusée. C'est pourquoi Marcel Dassault a proposé également un biréacteur ATAR 9 qui, avec ses 12 tonnes de poussée installée, est le seul à couvrir toutes les missions proposées sans l'assistance d'un groupe fusée.

"The size and mass of the fighter are not fixed yet in 1956. As a consequence, the requirement of the AdA are growing and Dassault propose various single-engine projects under the name
Mirage-IV. Their wing area is between 25 and 40 m2, their engines are Atar ranging from 6 to 9 tons of thrust (Atar-9 and Super Atar)
But none of them had enough power for the AdA requirement in climb rate and height, so they need rocket-engine.
That's why Dassault also propose a twin atar-9 machine which is the only to fulfill the whole performance requirement without rocket. "

among those single-engine+rocket projects were the Mirage IVA, IVB and IVF.
caracteristics

MIRAGE IV A/B

ATAR 9/6000 kgp
wing area 29 m2
empty weight 6400 kg / 7380 kg
Top speed MACH 2 à 2.5 / mach 2.5
Ceiling ? / 18000
Time to climb to 55000 ft / 15000 m. 3"5 / 6'

MIRAGE-IV F" (IV-A with rocket-motor)

Engine ATAR 9 de 6000 kgp + SEPR rocket, 750 kgp
Span 7.60 m
Length 14.50 m
Wing area : 29 m2
Empty weight : 6790 kg
Top speed :mach 2.5
Ceiling: 24000 m
time to climb to 55 000 ft : 3'20

Mirage IV C

2 ATAR 9/6000 kgp
Wing area 43 m2
Take off weight 11010
Top speed 2.9 à 11000 m
ceiling 20000
Time to climb to 55 000 ft 3'20


Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,367
Reaction score
45
Archibald,

Merci Beaucoup!!!!! ;)


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,629
Reaction score
231
Y a pas de quoi :)
The Mirage IVM was an interim variant, a kind of mix between the IVC heavy fighter and the IVA light bomber, on request of the Aeronavale (which wanted nucelar deterrent a la US Navy from a big carrier, the PA-58 Verdun)

Mirage IVM
Single seater
Engines : 2 ATAR 9 de 6000 kgp
Span : 11.75 m
Length: 19.35 m (16.30 m with the...cockpit folded. That's not a joke)
Height : 5.30 m (5 m folded)
Wing area : 70 m2
Take off weight : 9.5 t
MTOW catapulted : 16.5 t
Landing max. weight : de 9.7 à 10.5 t
Mach max. : 2
Ceiling : 20500 m
Time to climb to 40 000ft/12000 m : 1’57

Mirage IVB
Wing area 130 m2
Length 28 m
span 16m
MTOW 57 tons
range 5000 km
top speed mach 2.2


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,629
Reaction score
231
I'll not enter in the field of the Mirage III sub-variants (too many!) just mentioned some interesting one (sometimes well known!)
- Mirage IIIK was a Spey powered variant for GB.
- Mirage IIIT was a flying testbed for the TF-104/106 turbofans (first flight 4/06/1964 with Jean Coureau. The plane, as the F-111 and Tomcat later, was plagued by engines stalls)
- Mirage IIIM was the Aeronavale variant (not very realistic, considering that the landing speed of a Mirage III is around 200kt...)
- Mirage IIIW was to be a licence build Boeing variant to compete with the F-5A/E on export markets.
- Mirage IIIO was the Australian variant, the prototype had the
Avon-300 engine whereas the production aircrafts stayed with the Atar 9.
- Milan was the first atempt to fit canards on a Mirage III. They were fitted on the nose (not on the air intakes a la Kfir) and could retract on the fuselage.
- Mirage V( 1967) 50 (1979) and NG (1982) were improved variants
(with less and less success along the years...)

The Mirage IIIF, IIIG and IIIV designations applied in fact to nearly 100% new aircrafts. The IIIV designation stayed whereas the two others were quickly dropped in favor of the single letter F and G.

Footnote : the Mirage III-01 Balzac (1956-1965)

The name Balzac was applied to the early Mirage III-01 of november 1956. This plane had a long life as testbed for the Mirage IIIA/B/C/E and was still flying in 1961.
It was then changed into a subsonic VTOL demonstrator by replacing its Atar 9 by an Orpheus+ 8 RB-108 lift engine. Know as Balzac V (Vertical) it was only subsonic, with a flight time of 12 minutes.
The plane flew in 1962, crashed for the first time in February 1964 at Melun-Villaroche, killing CEV test pilot Jacques Pinier.
The plane was repared, and crashed again in September 1965 killing Major Neale.


Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,367
Reaction score
45
Mirage IIIW was to be a licence build Boeing variant to compete with the F-5A/E on export markets.
I didn't knew about this variant. Boeing first thought to enter USAF's LFW competition (won by the GD F-16) was a Mirage F-1 with US avionics/weapons and J-79 Engine. It seems that Boeing had Dassault's Fighters in good consideration.


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,629
Reaction score
231
W stands for Wichita. I don't know more about this project :(


TinWing

CLEARANCE: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
888
Reaction score
10
pometablava said:
Mirage IIIW was to be a licence build Boeing variant to compete with the F-5A/E on export markets.
I didn't knew about this variant. Boeing first thought to enter USAF's LFW competition (won by the GD F-16) was a Mirage F-1 with US avionics/weapons and J-79 Engine. It seems that Boeing had Dassault's Fighters in good consideration.
The Mirage F-1 was a good fighter for its time - although its time ran out when the YF-16 appeared.

A J-79 engined Mirage F-1 would have been aerodynamically superior to the IAI Kfir, not to mention the F-104S - which was still in production in Italy at the time!


elmayerle

CLEARANCE: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,260
Reaction score
14
Archibald said:
W stands for Wichita. I don't know more about this project :(
According to Jack Gee's book on the Mirage, this was a variant of the Mirage IIIC intended as a competitor for the F-5A/B in the early 1960s. It would indeed have been built by Boeing-Wichita. It definitely could've lead somewhat earlier to a J9-powered version of the Mirage.


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,629
Reaction score
231
;D Not totally outdated - see what the Iraqis did with their EQ in the 80's- :)
The Improved F1E would have had FBW and M53 engine -better armed to fight the YF-16 !-
Don't forget that the YF-16 - in 1975- was only a raw prototype. Nevertheless, the announcement of a buying of 650 of them in January 1975 by the USAF pushed the decision of the Belgium governement.
But I agree, a better answer to the F-16 was the Mirage-2000...
I really don't want to start a "deal-of-the-century" polemic here!

PS concerning the Kfir and the F-104S they dated back from the 50's (Mirage III and... F-104). That's why the F1 would have been superior...

More Mirage stuff to follow...

PS you mean a kind of american kfir ? Well the J-79 and Avon were the equivalent of the Atar in time, power, technology, spreading...(albeit a bit more powerful).


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,019
Reaction score
195
A version still not mentioned here, I think:
Mirage IIIT2, powered by a TF-106, as the IIIV's cruise engine, and intended as a
long range reconnaissnace and strike a/c, but at first just as an developing a/c for
the IIIV.
source:
Flying Review vol.19, 1963. The model was shown on the 25th
Salo International de l'Aéronautique et de #"Espace.


Attachments

Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,629
Reaction score
231
Hey, this look like an operational variant of the Mirage IIIT! Never heard about this one, Jemiba...
To my mind, this project had two origins :
- Or it was an alternative to the IIIV just in the case of a failure of the VTOL aircraft...
- Or it was a Mirage III variant developed BEFORE the IIIV (1960-1963 ?) abandoned, and then resurected to be use as a testbed...
It is aparently based on a Mirage IIIB, but the canopy look more a Mirage F2/ G... very, very interesting project! Where do you find it ?


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,629
Reaction score
231
Mirage F and G

I decided to join the two families because all the aircrafts are (more or less) linked together, from the F2 to the ACF.

At the beginning of the 60's, the AdA as many airforces was obsessed by the vulnearbility of its runaways. That's why many programs were setup to shorten or even supress the take off (and landing) run. Of course there was also the problem of the Mirage III succession...
The first and obvious move was in favor of VTOL Mirages. That was before discovering the difficulties of this kind of aircrafts. As an insurance, a STOL swept wing aircraft (full of flaps!) was also required.
At the time, the need was for a long-range, two-seat strike aircraft to complement the Mirage IIIE (as the Argies discovered 25 years later, range was too short, and a two-man crew would have been better...)
The Mirage IIIF2 was born. At the beginning of the 60's, relations between Israel and France reached a peak, and the latter was seeking a replacement for its Vautour (timescale was around 1970).

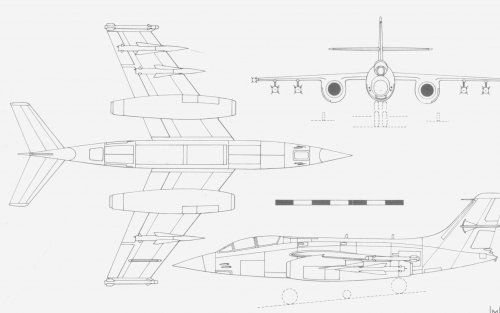

The Vautour constructor, now Sud-aviation (from 1st March 1957 and the merge of SNCASO and SNCASE) proposed a vastly upgraded Vautour. Major Yohash Tsiddon was responsible of the project for the IAF, so the plane was name Tsiklon. (picture from "les avions de combat francais" by Jean Cuny)

More to follow...


Attachments

Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,629
Reaction score
231
This mean June 1963... well, we have a kind of ancestor of the Mirage F2, this time with a delta wing (instead of the swept wing). The canopy looks strikingly similar, the engine is a TF-106...

This plane really look like the missing link between the ultimate Mirage III developments (the V and 50 are straight developments, sub variants of the IIIE) and the first "differents" Mirages (biggers, with differents wings...)

Maybe it was a bigger development of the IIIE, with a TF-106 to boost range. Sadly, with its delta wing, it had bad STOL abilities...we can imagine that Dassault stayed with the fuselage of this aircraft, but replaced the delta wing by a hypersustented, high mounted swept wing to allow STOL. Hence the Mirage F2....

For info, the Mirage IIIT was a single seat testbed based on a Mirage III. It flew on 4th June 1964 with Jean Coureau at the controls (already mentioned it!)
Well, dear Jemiba if you have others projects like that in your hard disk, don't hesitate to post :)


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,603
Reaction score
1,072
Interesting account of Mirage design evolution in Salvador Mafe Huertas Dassault-Breguet Mirage III/5 Osprey Air Combat 1990

  • MD.550 - Mach 1.15 in shallow dive. Drag way too high for the limited thrust.
  • Fairey Aviation provided FD2 data to Dassault, as a result MD.550 fin and dorsal spine redesigned, length and wingspan reduced slightly. Renamed Mirage I. Speed increased to Mach 1.3 in level flight with rocket boost
  • Mirage II was a larger development with a larger wing based on Fairey data and two Turbomeca Gabizo turbojets. Not built.
  • Mirage III (01) had almost identical wing to the Mirage II project, but new "area-ruled" fuselage based on US research. SNECMA Atar 101G.2 turbojet. Mach 1.52 in level flight.
  • Refitted with conical "shock cones" similar to the F-104, achieves Mach 1.6 (jet engine) and Mach 1.9 (with rocket boost).
  • Mirage IIIA - increased thrust Atar 9B, wing redesigned to reduce drag and increase lift. Conical leading edge camber adopted [as recommended by NASA Ames research and implemented on F-106 and B-58 - my addition]. Mach 2 reached.


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,629
Reaction score
231
I have to found the source (sorry) but the Mirage-II was partially built. And the wings of this unfisnished aircraft were used for a "speed built" of the Mirage III-01. (why speed built ? because Dassault was late against the Durandal, but also because the program had changed once again).
Thanks for the more detailed story Overscan.

Footnote : Mirage IV and Mirage-2000 tails were changed around their first flight just because old Marcel Dassault found they were ugly... that's not a joke! (Fana de l'aviation August 1998 about first flight of the 2000)


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,603
Reaction score
1,072
So we can see that both the Fairey FD2 and Convair F-106 connections have some basis in fact. Fairey's contribution however was in the initial stages, and the real advances that made the Mirage III a Mach 2 success were:

Uprated engine (French, based on original German design)
Area-ruled fuselage (US, e.g. F-102B/F-106)
Conical camber wing (US, e.g. F102B/F-106)
Intake shock cones (US, e.g. F-104)


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,629
Reaction score
231
overscan said:
Uprated engine (French, based on original German design)
BMW-003 (900 kgp of thrust).
Atar (first test benched, 26 th march 1948) : 1700 kgp
First production engine : 2200 kgp
Atar 101 family power grew from 2200 kgp to 4400 kgp (Atar 101G)
Then the Atar-9 variants reached 6000 kgp (Mirage IIIC) 6700 kgp for the 9K-31 of the Mirage IV and 7200 kgp for the 9K50.


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,603
Reaction score
1,072
Hermann Östrich (ex BMW) actually worked on ATAR for SNECMA.

ATAR 101 was a straightforward derivative of the BMW 003 (7 stage compressor, 1 stage turbine), while ATAR 8/9 had a revised configuration (9 stage compressor, 2 stage turbine) but remained conceptually similar (single spool design, when most others were moving towards twin spools), and was simple, robust, and cheap, with little use of exotic alloys etc.


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,629
Reaction score
231
And around Oestrich was the "groupe O" . There was a good article in Le Fana de l'Aviation of September 2002. Details about the Groupe O, superb "3D" rending of some flying wing projects they draw (I remeber the man who made it is member of this forum :) ), and photos of Atar-powered prototypes...
The name ATAR means "ATelier Aeronautique de Reichenbach" (my poor german... sorry!).
Thanks for the details again! now I understand better why the available thrust suddendly rose from the Atar-101 to the Atar-9 variants...


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,629
Reaction score
231
In 1959, searching for more powerful engine to power the Mirage IVB, SNECMA bought 10.9% of P&W shares. This gave the french firm a license build on all the engines of the american constructor, including the J-58 (renamed M-35, it was proposed for Concorde in 1963!)
Later, derivatives of the JTF-10 engine were studied on both sides of the atlantic. The JTF-10 power was gradually augmented. Three variants were developed and used in France (Le Fana de l'aviation, october 1997)
- TF-104 (5800 kgp)
- TF-106 (8400 kgp)
- TF-306E (10300 kgp)
First aircraft to use these engines was the Mirage IIIT. Before that, they were test in flight by on an SNCASO Armagnac cargo. Then the VTOL Mirage IIIV used it for horizontal flight (the IIIV-01 had the
TF-106, the IIIV-02 had the TF-306E).

The Mirage F2 was an atempt for a long range strike fighter. Influenced by the TSR-2 but much less ambitious, it flew on 12th June 1966.
At the time, in march of the same year, De Gaulle had taken the controversial decision of bringing out France of OTAN. Among many consequencies was the need for a much more powerfull interceptor than the IIIC.
That's why Dassault proposed two projects
- a scaled-down, single seat F2, the F3
- a private venture, the Mirage F1. (some source says that the F1 was developed using the fuselage of the Mirage V married with a hight swept wing to obtain STOL).

According to Dassault passion, two mockups were build. Quite surprisingly, the AdA chose the F1. Knowing De Gaulle, it was surely because of the american engine in the F3... this was not acceptable!

Mirage F1B Mirage F2
8.44 10.50
15.55 17.60
8T 9.5T
16.2T 18T
Atar 9K50 7000 kgp TF30 9500kgp
25 m2 36 m2


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,629
Reaction score
231
ooops! some problems here...
Same player shoot again...

Mirage F1
Span 8.44 m
Length 15.55 m
Empty weight 8T
Max Weight 16.2T
Powerplant Atar 9K50 7200 kgp
Wing area 25 m2
Top speed mach 2.2

Mirage F2
Span 10.50 m
Length 17.50 m
Empty weight 9.5 T
Max Weight 18T
Powerplant TF-106 8500 kgp
Wing area 36 m2
Top speed mach 2.1

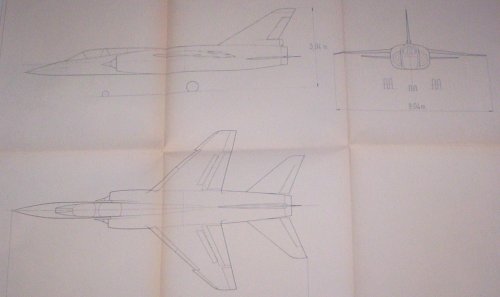

Mirage F3

Span 9.04 m
Length 16 m
Empty weight 9.3T
Max weight ?
Powerplant TF306E 10300kgp
Wing area ?
Top speed mach 2.2


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,629
Reaction score
231
Variable geometry Mirages (G, G4 and G8)

First VG program in France was the TALP of the aeronavale. This was a requirement similar to the Tomcat Ie using VG wings to have a long loiter time over the sea.
Dassault proposal was the MD-800 (may 1964). breguet launched a vast VG program various studies under the name Br.122 (1220) 122A, 122B plus a bigger project similar to the
F-111.
Pics of these projects to follow...


boxkite

CLEARANCE: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
825
Reaction score
38
Der Flieger 8/1965“ described this model as a Sud Aviation fighter with VG wings. Archibald or Jemiba (or anybody else), can you confirm the manufacturer? If yes, any idea of a type designation?


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,629
Reaction score
231
This look like an AFVG... the program was lauched on 17th May 1965. Maybe a Sud Aviation proposal for it ?


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,629
Reaction score
231
Footnote about the french firms : in 1966, they was still four firms, two public (Nord and Sud aviation) and two private (Breguet and Dassault)
Dassault absorbed Breguet in 1967, Nord and Sud merged to create the SNIAS (Société Nationale des Industries Aerospatiales, later Aerospatiale.)
So I suppose that the four tendered for the TALP and VG program.
it's not easy knowing the ultimate project of the public firms : Cuny's books on French aircraft stop in 1960. Breguet is covered until 1970 (when it disapeared into Dassault). This mean that Mirage projects are not well covered, as Nord and Sud last studies...
Aparently even Tony Buttler has difficulties finding info on the
Mega Mirage mach3 project of 1969 (aviation magazine of Le Bourget 1969)...


Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,367
Reaction score
45

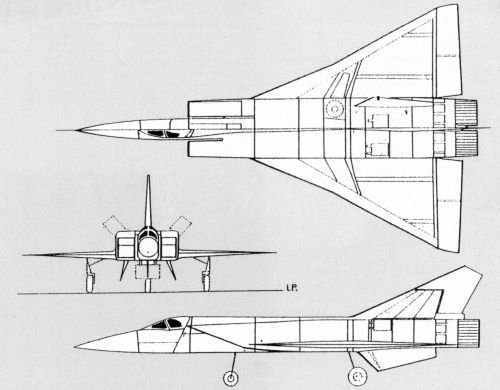

Mega Mirage mach3 project of 1969
I'm fascinated about this project, Archibald. I have this issue from Aviation Magazine before Tony published the pic in Air Enthusiast and no there no clue in the original magazine to track more info about this design. I can't belive that nobody in France could give more info about it. Some engineers implied in this project from 37 years ago should be alive (probably retired) anywhere for sure so nobody from a pro aviation mag can find them?. But if a first rank aerospace researcher can't find the info, what happends? ???

Maybe one day Tony can give us an answer to that mistery...


Archibald

CLEARANCE: Top Secret
Senior Member
Joined
Jun 6, 2006
Messages
2,629
Reaction score
231
Ok, I have a simple idea. Some days ago I searched datas about the Mirage F3. I wrote to Dassault passion, and a guy name Luc Berger send me the plans of the plane today.
So, why not asking him if he knows about this damned MegaMirage ?

I know this project from Deino and Key Publishing...
And I plan to do a model of the beast, kitbashing a MiG-25 and a Mirage IV. I have to buy the Mirage IV!!


Antonio

CLEARANCE: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,367
Reaction score
45
So, why not asking him if he knows about this damned MegaMirage ?
Great idea!!..keep us informed. Could you please show us the Mirage F3 drawings too?

I plan to do a model of the beast
..don't forget to show us the pics (not only at whatifmodelers.com). I think I already sent you the Mega article but if you need hi-rez scans please let me know ;)

BTW, I saw your F.1E model at whatifmodelers. Your model has enlarged intakes from a Mirage 2000. Do you have dawings from the real F.1E M53 project?

Cheers
Antonio

Status
Not open for further replies.
Top
