Meteor Predecessors - S225X and others

[Mike Pryce]

Anyone have any info on the BAe S225X/XR Metoer predecessors from the early /mid 1990s. All I have found is :

http://www.skomer.u-net.com/projects/s225x.htm

and:

S225XR - Wikipedia

en.wikipedia.org

Pics/data would be most welcome (aren't they always?)!



[overscan (PaulMM)]

The S225X/XR programme was unveiled at the 1992 Farnborough Air Show

I'll check my Air Internationals, but post 1990 is boxed currently.



[overscan (PaulMM)]

Small pic from Skomer website



[overscan (PaulMM)]

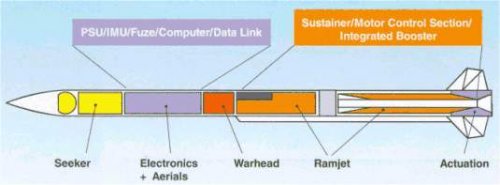

Drawing, from http://sistemadearmas.sites.uol.com.br/aam/meteor.html

This has FMRAAM and A3M pics & info too.



[Mike Pryce]

Thanks Paul!



[overscan (PaulMM)]

S-225X

Length: 3.45m
Weight: 165kg
Range:100km

Stealth measures include the use of radar-absorbing paint coating, and infra-red attenuation.

The earlier winged RB73D/DL joint project used inertial guidance and either the Active Skyflash seeker or a new millimetric radar seeker from Marconi. Range was about 100km.

Source:

Zhang Yang "Rich, but better than blue- British Sky Flash air-to-air missiles" Ordnance Technology, 2004 No. 1 (Chinese)
Online at http://www.afwing.com/intro/skyflash/1.htm

Not found anything in Air International.



[TinWing]

S-225X

Length: 3.45m

I have always wondered why this proposal ended up being somewhat shorter than the original ~3.7 meter Skyflash/Sparrow?

The earlier winged RB73D/DL joint project used inertial guidance and either the Active Skyflash seeker or a new millimetric radar seeker from Marconi.

I wonder what the relationship was between the "new millimetric radar seeker from Marconi" and the seeker that found its way into AAAW/Brimstone?



[overscan (PaulMM)]

Because it was lighter? Seems to have been same diameter as Sparrow, but not as long.



[shkval]

Hello!
I'm looking for the photo and data on German A3M AAM,if you have please provide it here,thanks.
I also want to know that what is its present status?



[red admiral]

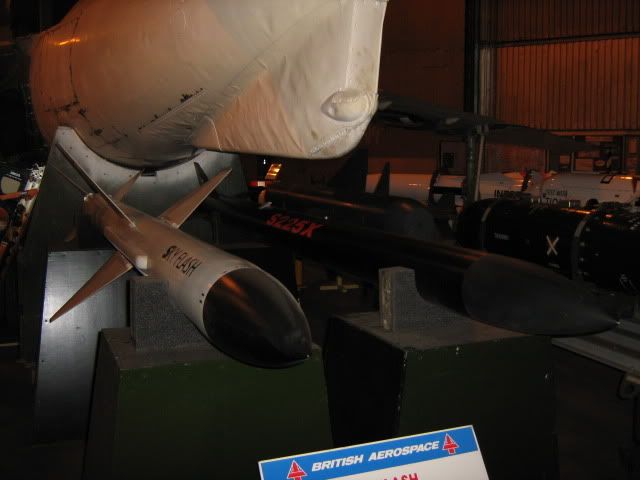

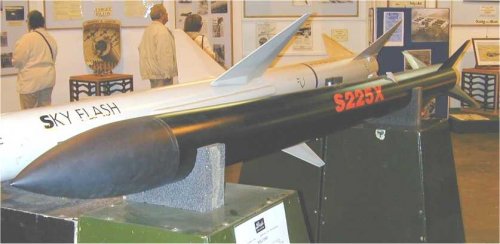

S225X and Skyflash currently on display in the Bristol Aero Collection's new site, which unfortunately isn't lit very well.



[blockhaj]

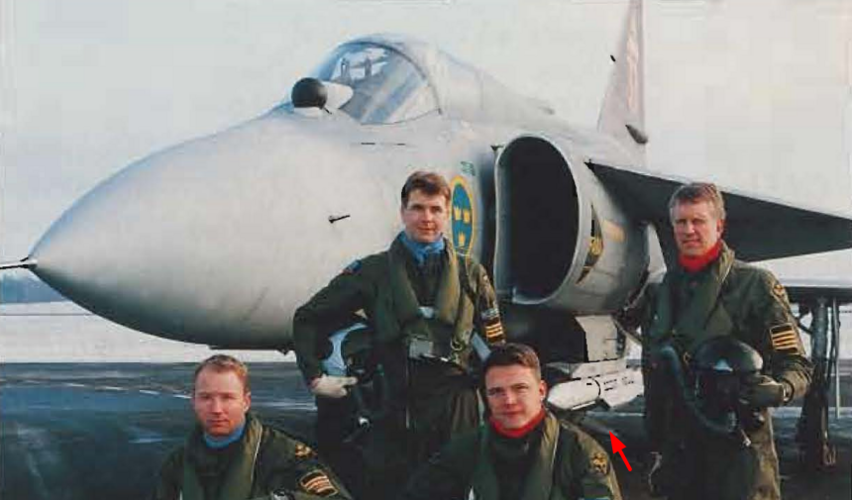

Here is what i believe is a prototype/mockup, fitted to a Swedish JA 37D with IR-OTIS (Infrarött optroniskt inmätningssystem, English: infra red optronic measurement system, essentially IRST + FLIR) in 1997.



[JAZZ]

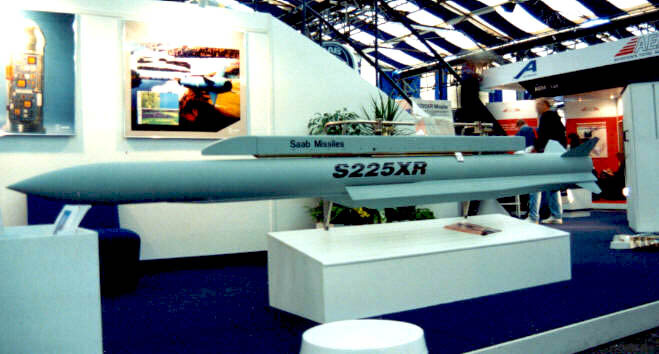

Photo S225X I took at Farnborough Airshow 1994.



[overscan (PaulMM)]

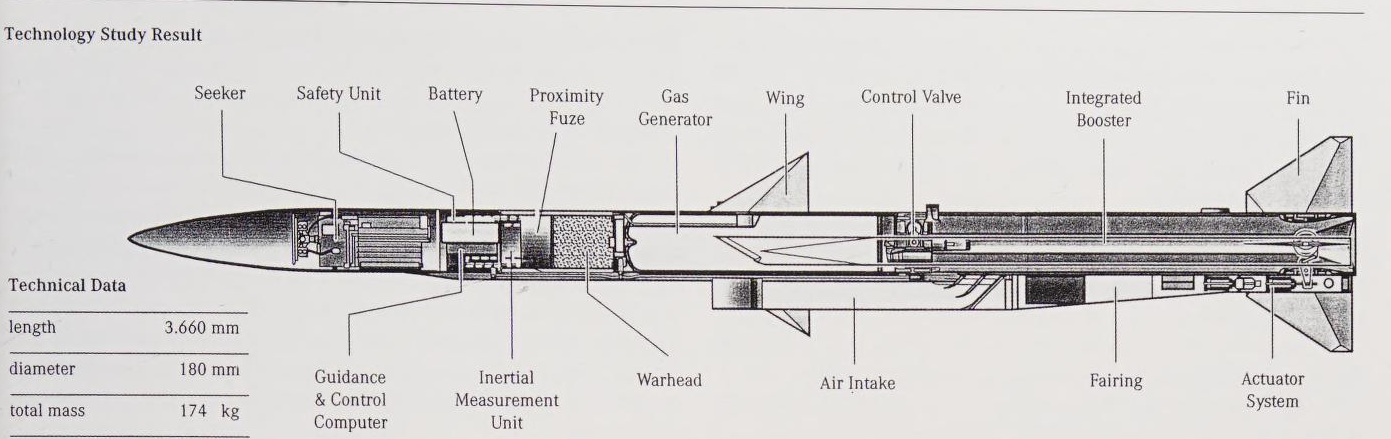

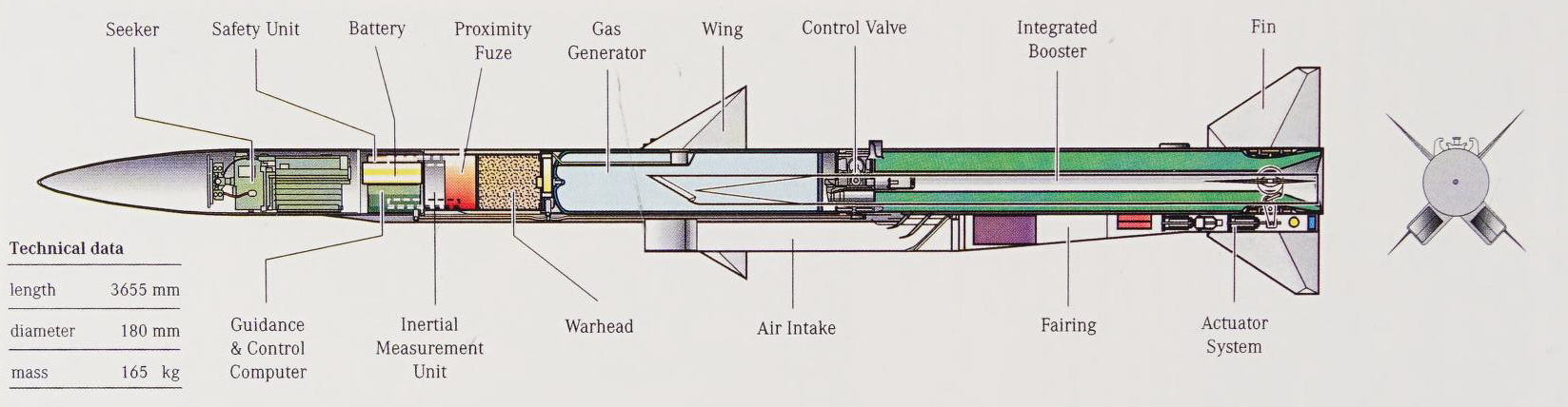

German Meteor predecessor design (MRAAM, EURAAM) from Daimler-Benz. Slight differences in dimensions and weight.

Source: Air_launch! A Pictorial History of Airborne Weapons (Bill Holder & Scott Vadnais)



[fightingirish]

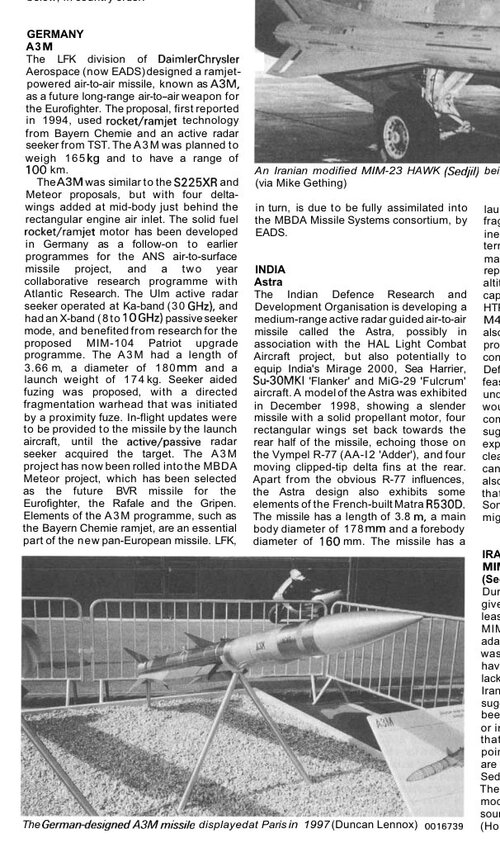

Hi folks, I found this picture at Telegram.
I don't have the original source, but I presume it might be from Jane's.



[zjz]

"Duncan Lennox" is an editor from Janes .....
