Messerschmitt Me-P-308 "Jet Taifun"

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,348
Reaction score
118
Okay, does anyone have three-views of post-war business jets developed on paper by Messerschmitt? I'm referring to the HA230/Me230 and Me308 projects.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
932
"HA230/Me230 and Me308 projects."
No, not exactly, but in the 2/05 issue of FLUGZEUG Classics, therewas an article about
spanish businessjets. The HA-230 is mentioned, as externally only slightly different to
the HA-200 . This concept didn't find interest, due to its low capacity and so it was

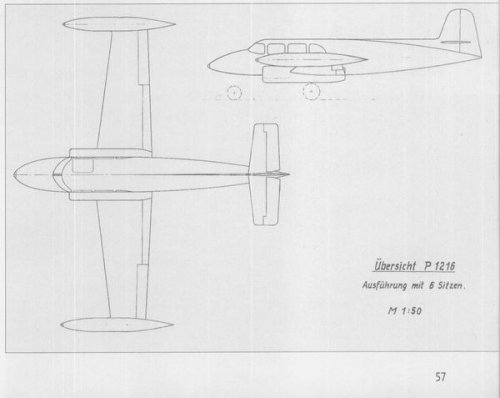

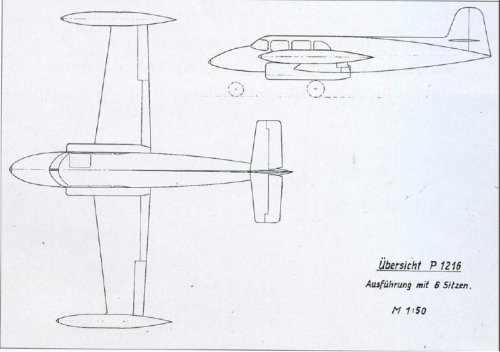

developed into a new line of projects. The P 1216 was one of those concepts, which

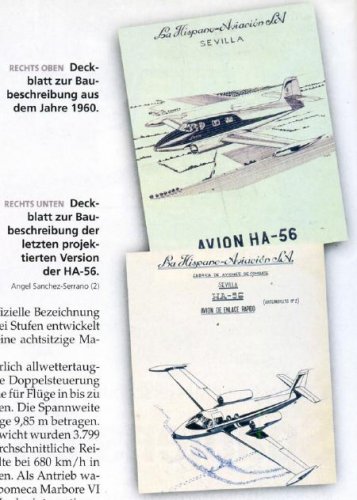

was given the official designation HA-56. As can be seen by the title pages of two
brochures, the engine arrangement of the HA-56 design was changed at least twice.


Attachments

  • P-1216.JPG
    23.5 KB · Views: 2,164
  • HA-56,.JPG
    21.4 KB · Views: 1,972

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,348
Reaction score
118
Interesting; both of these appear to be steps toward what little of the Me308 is shown in the book Schiffler publishes on Willy Messerschmitt (the one translated from the German).


Nordman

ACCESS: Restricted
Joined
Oct 8, 2006
Messages
3
Reaction score
1
I am looking for pictures linedrawings, anything you can find!

Have searched everywhere. I am hoping one of you can help me :)

P1213-1214-1286-1225-1226

SP100-101-110-130-132

Thank you guys!


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,230
Reaction score
1,879

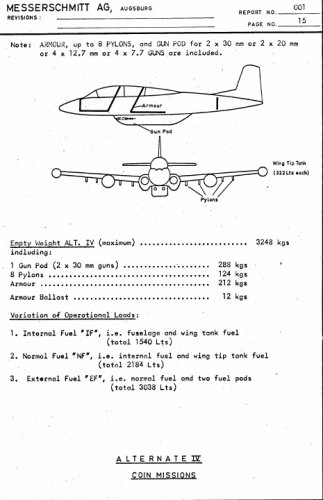

Deusches Museum, via Santiago Sanchez Renedo


Attachments

  • Escanear.jpg
    74.5 KB · Views: 1,205

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
932
Looks like a military derivative of the Me 230 .
An a spanish connection would make sense, too .. ;)

(from Ebert/Kaiser/Peters "Willy Messerschmitt. Pionier der Luftfahrt und des Leichtbaues")


Attachments

  • Me230.jpg
    55.5 KB · Views: 1,084

Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
602
Reaction score
235
I wouldn't be sure whether the projects' designation was indeed the Me-400 (albeit, if I am not mistaken it should be noted that the Spanish projects of the Messerschmitt team had been designated twofold: they carried the Messerschmitt's designation as well as that of the Hispano Aviacion).
This particular project was contemplated as one of possible alternatives of the HA-200/220 Saeta replacement ('Super Saeta'), perhaps under the HA-60 designation. In the drawing you may see below there is not very much readable "Me P 60" visible. These project led eventually to the HA-500 Alacran design.

And for the Me-230, it was knows to the Hispano Aviacion as the HA-56, but perhaps a projects designated the HA-230 had existed as well.

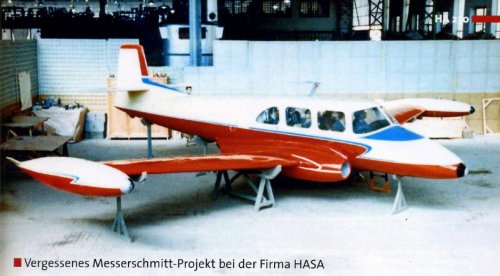

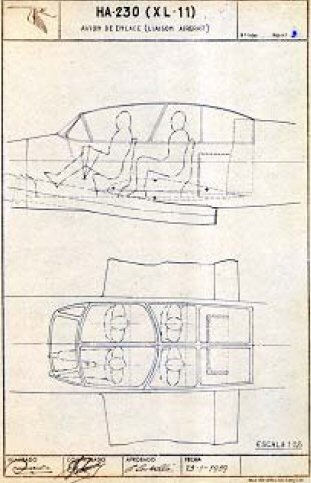

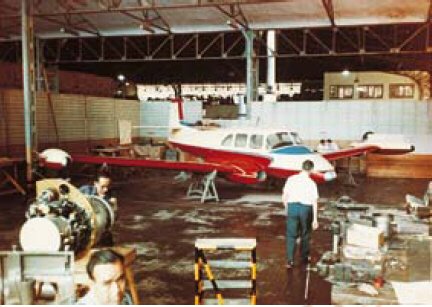

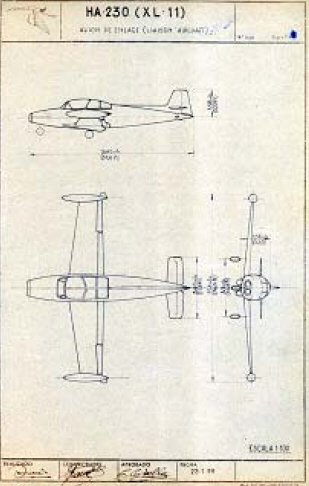

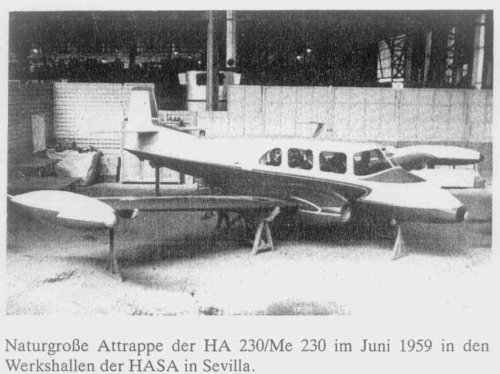

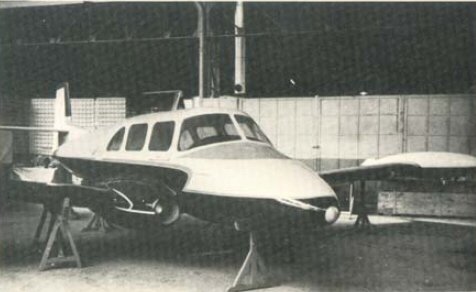

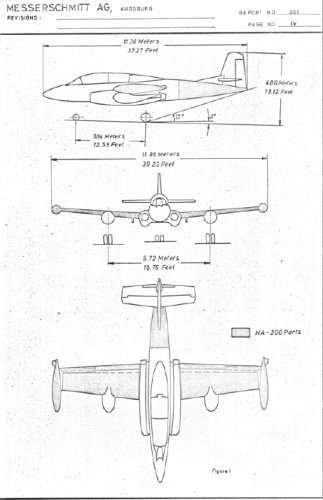

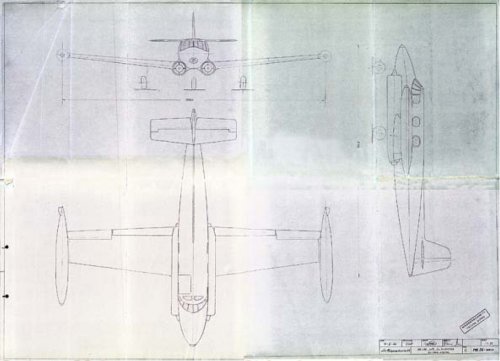

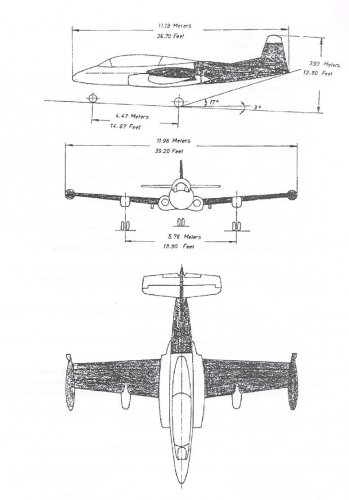

Below you may see drawings of the advanced trainer/ground-attack airplane (the shaded areas in the first of them depict components of the HA-200 that were to be used in this new design) and a handful of pictures of the executive-jet that was based on the military aircraft.

Best regards,
Piotr


Attachments

  • HA-56_03.JPG
    100.6 KB · Views: 136
  • HA-56_02.JPG
    56.8 KB · Views: 113
  • HA-56_01.JPG
    54.8 KB · Views: 121
  • HA-230_02.JPG
    78.1 KB · Views: 125
  • HA-230_01.JPG
    68.3 KB · Views: 192
  • Hispano_3v.JPG
    196.4 KB · Views: 373
  • Hispano_02.JPG
    111.7 KB · Views: 346
  • Hispano_01.JPG
    145.8 KB · Views: 1,092

Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
602
Reaction score
235
As there are only eight attachments allowed per post this one must be posted separately.

Piotr


Attachments

  • HA-56_3v.JPG
    171.6 KB · Views: 134

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
932
".. but perhaps a projects designated the HA-230 had existed as well"

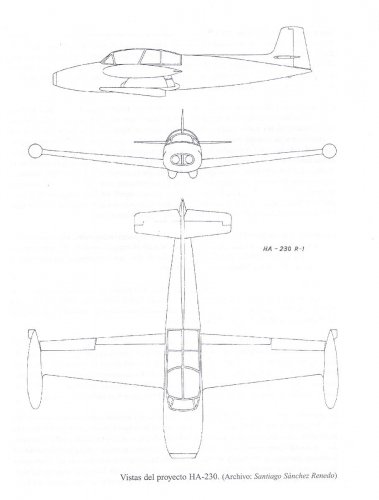

in the book by Ebert/Kaiser/Peters , the HA 230 is mentioned as a version of the Me 230
with 2 Turboméca Aubisque engines, instead of the Marborés.


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,230
Reaction score
1,879

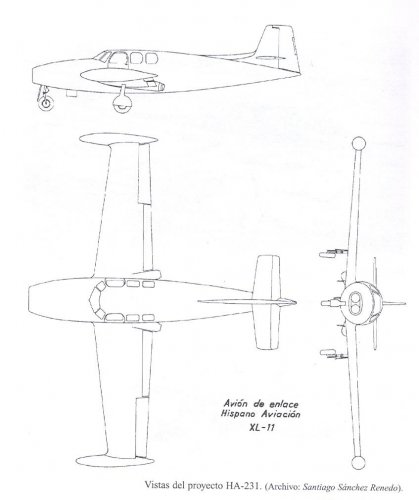

via Santiago Sanchez Renedo


Attachments

  • Escanear0001.jpg
    59.1 KB · Views: 134
  • Escanear0002.jpg
    53.6 KB · Views: 146

Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
602
Reaction score
235
Justo Miranda said:
2nd version

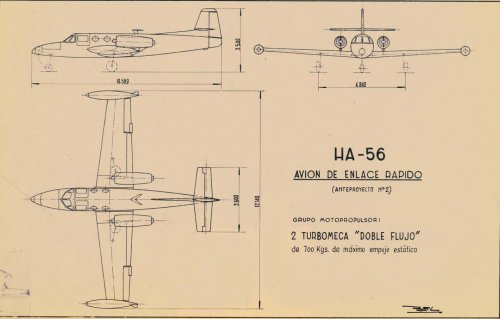

Here is a 3-view drawing of the HA-56's 2nd version.

Piotr


Attachments

  • HA-56_anteproyecto_no2.JPG
    307.1 KB · Views: 181

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
Here's the Messerschmitt Me P 308 Jet Taifun:


Attachments

  • Me P 308.jpg
    Me P 308.jpg
    54.3 KB · Views: 794

Cy-27

ACCESS: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
563
Reaction score
164
There is an old Messerschmitt Me P308 Jet Taifun brochure on EBay (UK) at the moment (I would bid for it but I am out the country when it finishes).


Attachments

  • Messerschmitt_P308_Project_Artwork.png
    415.8 KB · Views: 604

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
932

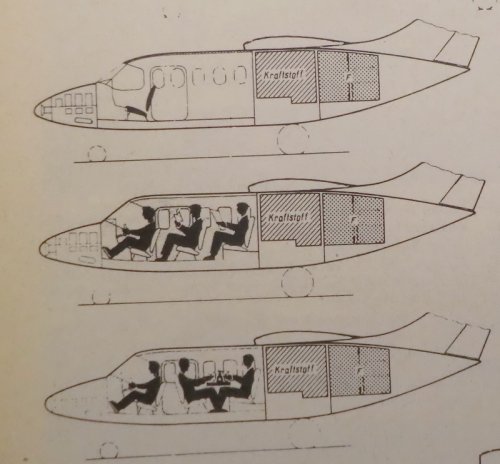

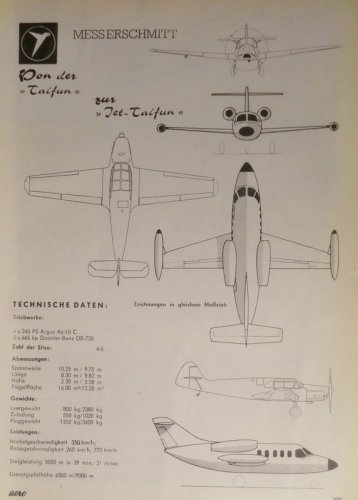

From Aero May and September 1964, internal layout, artist impression and a
3-view, comparing it to the Bf 108 Taifun.
Obviously there were considerable changes in this design.


Attachments

  • Messerschmitt_Me-308_01.jpg
    136.9 KB · Views: 1,295
  • Messerschmitt_Me-308_02.jpg
    96.8 KB · Views: 994
  • Messerschmitt_Me-308_03.jpg
    84.7 KB · Views: 928

richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
34
Bonjour

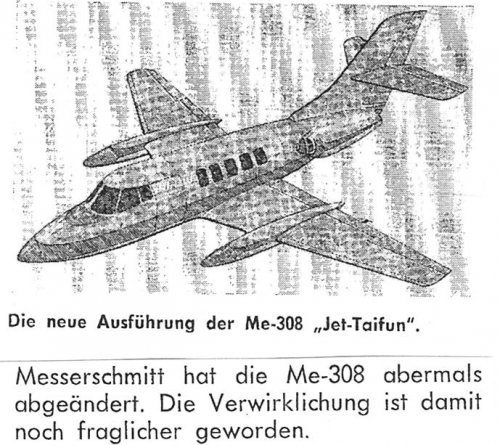

Here the (probably) last proposal for the Me 308 :


I have only this (bad) copy from "Der Flieger" 8/1965 , about the "Salon du Bourget 1965 .


Attachments

  • Numériser 3.jpg
    Numériser 3.jpg
    115.5 KB · Views: 825

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454

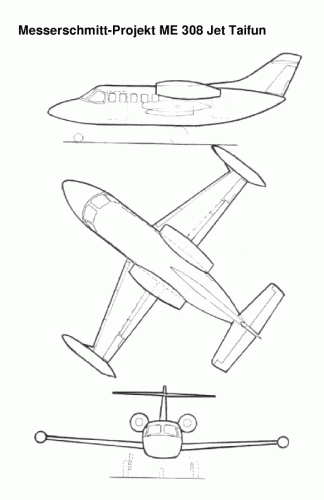

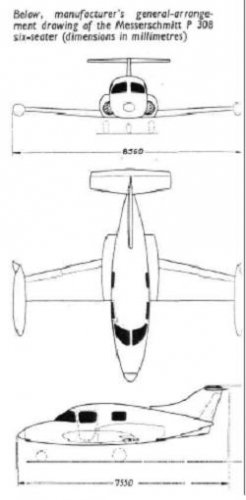

Another three-view of the "Me 308" Jet Taifun:


Attachments

  • Me 308.gif
    Me 308.gif
    23.3 KB · Views: 94

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,225
Reaction score
932

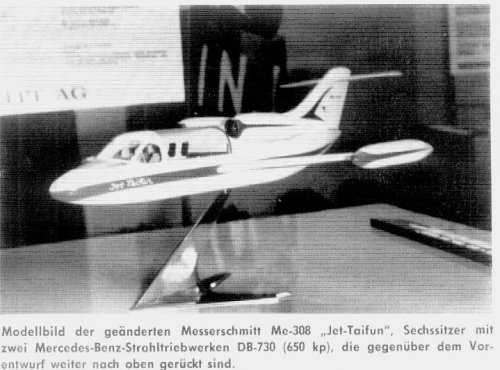

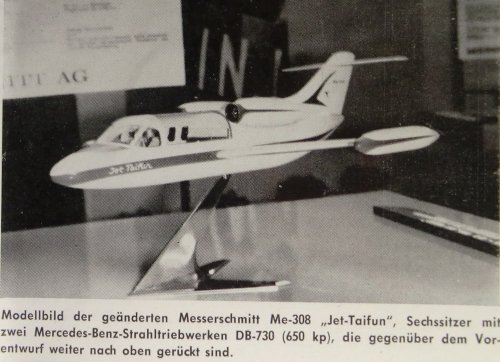

Photo of a model of the Me 308, shown in "Der Flieger", June 1964. Mentioned is, that the
engines were moved further forward, than in the earlier design.

Edit: New scan/photo from same source added


Attachments

  • Me_P-308_01.jpg
    153.6 KB · Views: 79
  • Me-308_10.jpg
    254.6 KB · Views: 72

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,695
Reaction score
3,480
Jemiba said:
"HA230/Me230 and Me308 projects."
No, not exactly, but in the 2/05 issue of FLUGZEUG Classics, therewas an article about
spanish businessjets. The HA-230 is mentioned, as externally only slightly different to
the HA-200 . This concept didn't find interest, due to its low capacity and so it was
developed into a new line of projects. The P 1216 was one of those concepts, which
was given the official designation HA-56. As can be seen by the title pages of two
brochures, the engine arrangement of the HA-56 design was changed at least twice.


My dear Jemiba,


here is again your drawings,but with some colors.


Flugzeug Classic 2/2005


Attachments

  • HA-230.JPG
    71.4 KB · Views: 82
  • HA-56.JPG
    50.8 KB · Views: 87
  • P.1216.JPG
    43.1 KB · Views: 87

Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,441
Reaction score
479

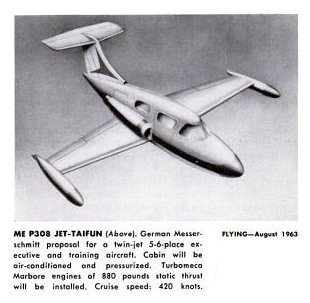

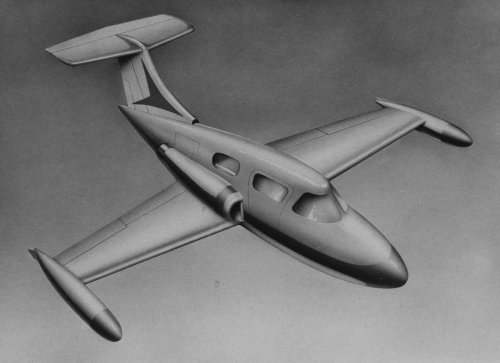

Another artist's view of the P308


Attachments

  • P308 Jet-Taifun.jpg
    P308 Jet-Taifun.jpg
    89.3 KB · Views: 449

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com

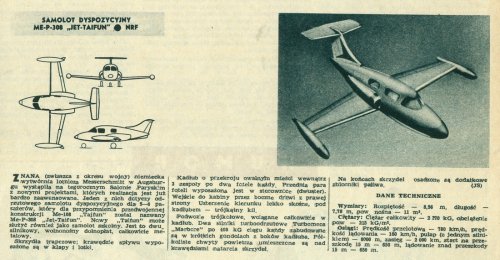

Messerschmitt - Me P-308 "Jet Taifun" from Skrzydlata Polska nr 27/1963.

Source:
http://lotnictwo.net.pl/3-tematy_ogolne/13-lotnictwo_cywilne/67925-futurystyczne_projekty_samolotow_pasazerskich-5.html


Attachments

  • Messerschmitt Me P-308 Jet Taifun.jpg
    Messerschmitt Me P-308 Jet Taifun.jpg
    627.8 KB · Views: 49
