Can someone provide me with some facts on the Leo 1A6 program. I know that it entailed fitting a 120mm gun and somekind of armour upgrade but what else?


smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
52
Try these links from a Google Image search
http://images.google.co.uk/images?as_q=&hl=en&output=images&svnum=10&btnG=Google+Search&as_epq=Leopard+1A6&as_oq=&as_eq=&imgsz=&as_filetype=&imgc=&as_sitesearch=&safe=off


smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
52
My pleasure. I'm out of touch on landbased stuff, and didn't know the 1A6


Abraham Gubler

ACCESS: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,549
Reaction score
316

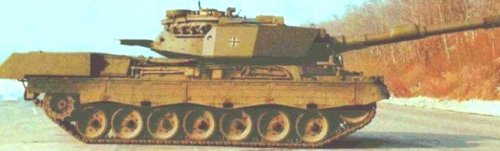

Here are some prototypes and concepts for Leopard 1 medium tanks.

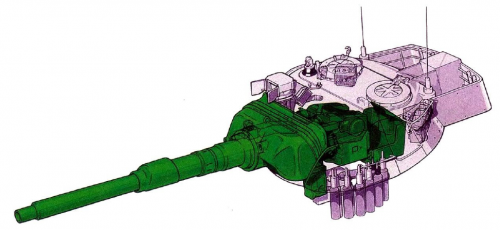

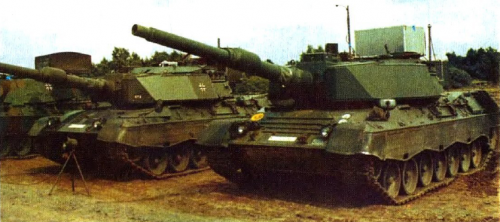

To start the Leopard 1A6 prototypes with 120mm Rheinmetall gun. The prototypes included the new gun, the EMES 18 fire control system (Leopard 1A5), appliqué turret front and side armour, appliqué turret roof armour, PERI commander’s sight and IR suppression for the exhaust system.


Attachments

  • leo1_120_01.png
    384 KB · Views: 1,403
  • leo1_120_02.png
    451.2 KB · Views: 1,318
  • leo1_120_03.png
    1.2 MB · Views: 1,237
  • leo2_120_04.png
    666.1 KB · Views: 1,123

xiaofan

ACCESS: Confidential
Joined
Jun 25, 2010
Messages
109
Reaction score
38

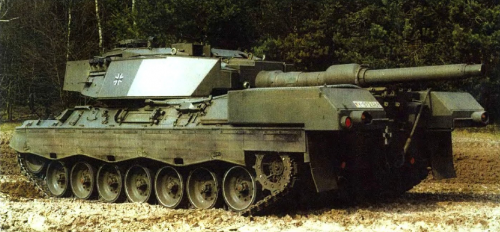

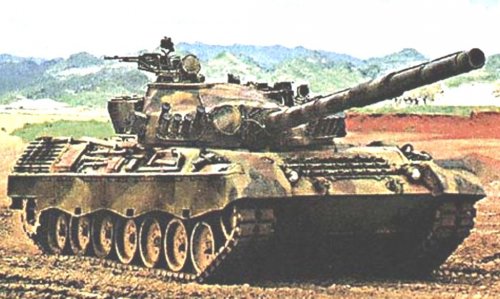

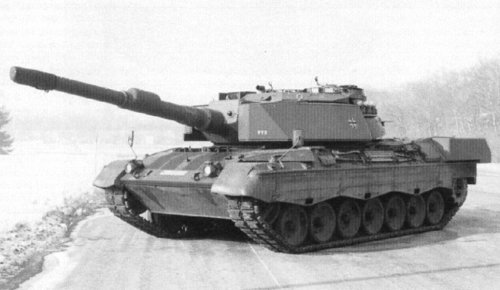

Leopard 1A6 prototypes with 120mm Rheinmetall gun.


Attachments

  • 1.jpg
    89.3 KB · Views: 981
  • 2.jpg
    42.4 KB · Views: 343

GTX

All hail the God of Frustration!!!
Staff member
Senior Member
Joined
Apr 15, 2006
Messages
3,655
Reaction score
1,973
Website
beyondthesprues.com

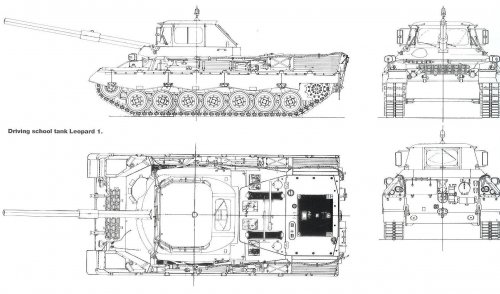

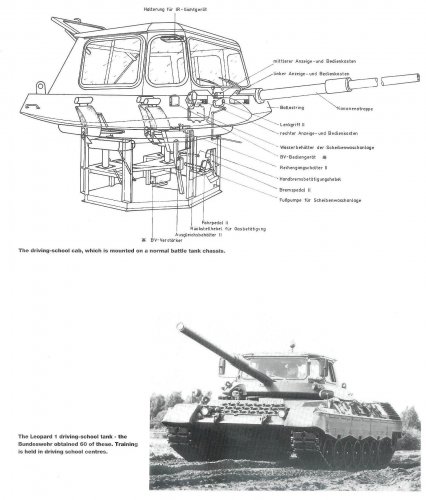

Leopard 1 Tank Driver Trainer


Attachments

  • Leoptrain.jpg
    255.6 KB · Views: 272
  • Leoptrain2.jpg
    617.8 KB · Views: 295

GTX

All hail the God of Frustration!!!
Staff member
Senior Member
Joined
Apr 15, 2006
Messages
3,655
Reaction score
1,973
Website
beyondthesprues.com

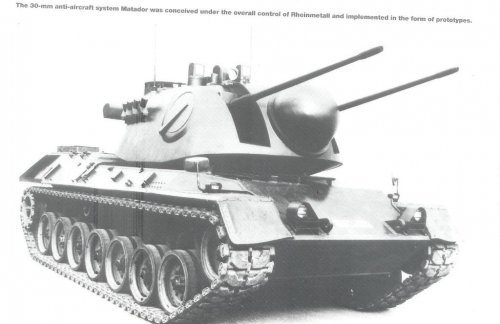

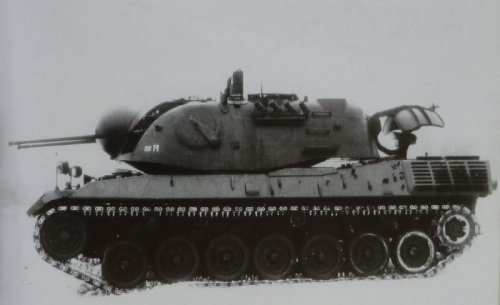

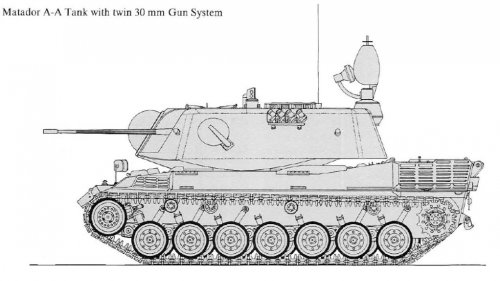

Leopard 1 based Matador SPAAG with twin 30mm cannon


Attachments

  • MatadorSPAAG.jpg
    109.2 KB · Views: 303
  • leomat2001.jpg
    72.6 KB · Views: 281
  • leomat1001.jpg
    62.8 KB · Views: 271

GTX

All hail the God of Frustration!!!
Staff member
Senior Member
Joined
Apr 15, 2006
Messages
3,655
Reaction score
1,973
Website
beyondthesprues.com

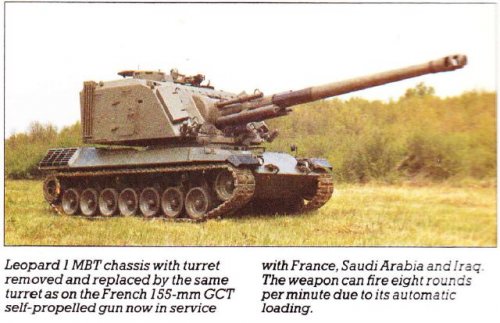

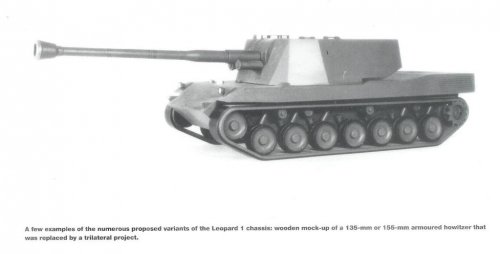

Self Propelled gun with either 135mm or 155mm howitzer


Attachments

  • leohow1001.jpg
    29.3 KB · Views: 315

GTX

All hail the God of Frustration!!!
Staff member
Senior Member
Joined
Apr 15, 2006
Messages
3,655
Reaction score
1,973
Website
beyondthesprues.com

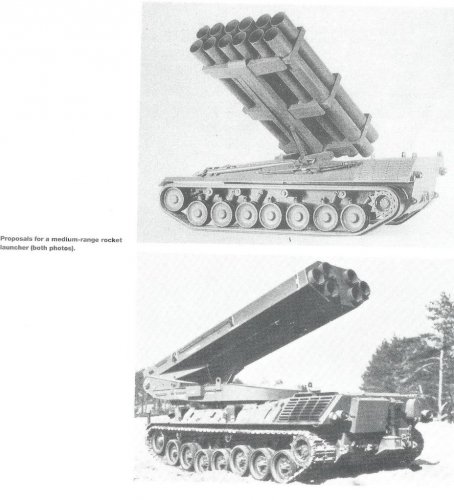

Leopard 1 based Artillery Rocket Launchers


Attachments

  • leomrls001.jpg
    125.8 KB · Views: 367

GTX

All hail the God of Frustration!!!
Staff member
Senior Member
Joined
Apr 15, 2006
Messages
3,655
Reaction score
1,973
Website
beyondthesprues.com
Some SAM equipped 'Gepard' proposals


Attachments

  • GepardRoland.jpg
    115.4 KB · Views: 351
  • GepardRapier.jpg
    117.6 KB · Views: 339
  • GepardChaparral.jpg
    93.3 KB · Views: 358

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,349
Reaction score
1,552

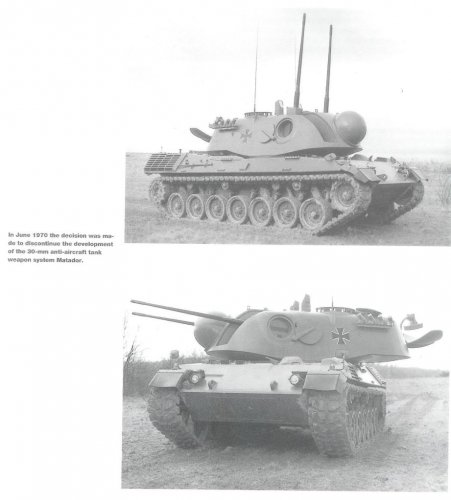

In „Typenkompass Artillerie-, Panzer- und Luftabwehrsysteme der Bundeswehr“, by K.Anweiler and
Manfred Pahlkötter, I found a photo of the Matador SPAAG. The turret front seems to have a different
shape compared to the drawing in GTX post.


Attachments

  • Matador.jpg
    82.4 KB · Views: 311

jsport

what do you know about surfing Major? you're from-
Joined
Jul 27, 2011
Messages
3,484
Reaction score
1,295
Jemiba said:
In „Typenkompass Artillerie-, Panzer- und Luftabwehrsysteme der Bundeswehr“, by K.Anweiler and
Manfred Pahlkötter, I found a photo of the Matador SPAAG. The turret front seems to have a different
shape compared to the drawing in GTX post.
That is an amazing find and post Jemiba. Thank you.


Abraham Gubler

ACCESS: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,549
Reaction score
316
Jemiba said:
The turret front seems to have a different
shape compared to the drawing in GTX post.

It looks the same to me just a different photo angle. One big difference is the big circular hatch for the shell ejection/reload thingy is closed in this case when most of the time they are opened in the other photos.


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,547
Reaction score
1,237
Re: Leopard 1 Variants: VTGS (Versuchsträger Gesamtschutz)

DasPanzermuseum said:
Armoured History: The Stealth Leopard (E01)
The German Tank Museum recently added a experimental version of the Leopard 1 to its collection. Director Ralf Raths explains the vehicle.
https://youtu.be/9r0Ssd2jR2U
Code:
https://youtu.be/9r0Ssd2jR2U

This video is also available in the German language.


JohnR

ACCESS: Top Secret
Senior Member
Joined
Sep 8, 2006
Messages
790
Reaction score
261
Some SAM equipped 'Gepard' proposals
Never noticed these AA missile proposal before; has anyone got any more detail about them, particularly the Rapier one.


GTX

All hail the God of Frustration!!!
Staff member
Senior Member
Joined
Apr 15, 2006
Messages
3,655
Reaction score
1,973
Website
beyondthesprues.com
The SAM variants shown were covered in "Gepard: The history of German anti-aircraft tanks" by Walter J Spielberger. Frustratingly, I cannot find my copy at the moment.



JohnR

ACCESS: Top Secret
Senior Member
Joined
Sep 8, 2006
Messages
790
Reaction score
261
Christmas is coming!!! I'll have to make sure my sister gives me an Amazon voucher.


JohnR

ACCESS: Top Secret
Senior Member
Joined
Sep 8, 2006
Messages
790
Reaction score
261
Then again; shouldn't have spoke so soon. Has a look on Amazon it's running at £70+ a copy.


DiePanzerKanone

ACCESS: Restricted
Joined
Aug 31, 2019
Messages
49
Reaction score
52

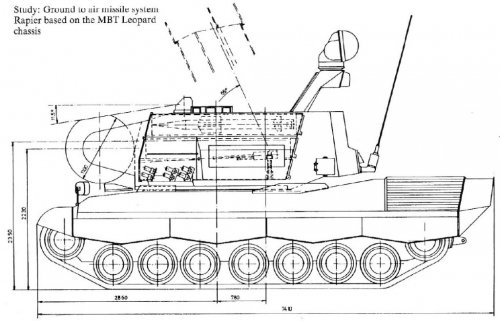

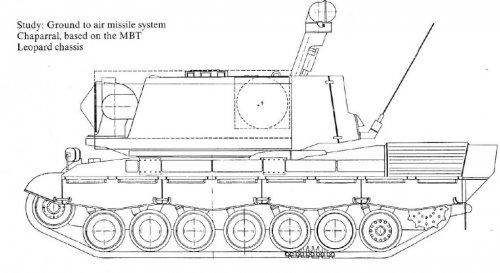

6.1 Air Defense Missile Systems based upon the Leopard Main Battle Tank (Studies)
In 1978, under contract by the Dutch Company, Hollandse Signaalapparaten BV., Krauss-Maffei completed a feasibility design study. The objective of the study was to investigate mounting a surface-to-air Missile Tank Turret on a modified Leopard MBT chassis. Three different types of missiles were considered:

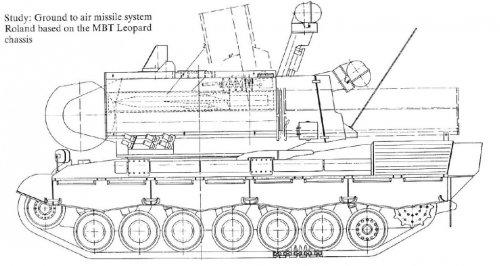

6.1.1. "Roland" Surface-to-Air Missile Turret
By considerable retention of most of the standard CA 1 turret, a fully autonomous, air defense missile system was created. In all it was planned that the complete system would carry ten, ready-to-fire "Roland" Anti-Aircraft Missiles. Besides which, for self-defense purposes two 7.62 mm FN Machine Guns and two "Swingfire" Anti-Tank Missiles were proposed. The three man crew concept of the CA 1 was retained. In the roof of the turret the standard Gunner's periscope was replaced by an optronic missile Tracking Unit.
6.1.2. "Rapier" Surface-to-Air Missile Turret
Also with this concept the CA 1 turret remained practically unchanged, two laterally mounted missile launchers replacing the 35 mm cannon. Each launcher containing five of these British developed surface-to-air missiles ready to fire. The means of self-defense which were provided being identical which were proposed for the "Roland" concept. Again the standard Gunner's periscope was replaced by an Optronic Tracking Unit.
6.1.3. "Chaparral" Surface-to-Air Missile Turret
The "Chaparral" lightweight, supersonic, surface-to-air missile requires no guidance after launching, an infrared target seeker head serves this purpose. "Chaparral" is a derivative of the "Sidewinder" AIM-9D air-to-air missile. Eight "Chaparral" missiles (4 on each side) could be stowed in armored launchers on the almost standard CA 1 turret (Guns removed as in both other concepts). Once again, for self-defense purposes two "Swingfire" Anti-Tank Missiles were included in the concept. As target tracking was unnecessary due to the missile infrared seeker, the Gunner periscope remained standard, only an additional "black-box" adaptor was necessary for providing guidance for the "Swingfire" missiles.
found what you were looking for in the Gepard book

Last edited:

Hood

ACCESS: Top Secret
Staff member
Senior Member
Joined
Sep 6, 2006
Messages
2,609
Reaction score
3,078
Interesting, I never knew that the Germans had considered using Swingfire.


hannesjo

ACCESS: Restricted
Joined
Dec 3, 2020
Messages
32
Reaction score
144

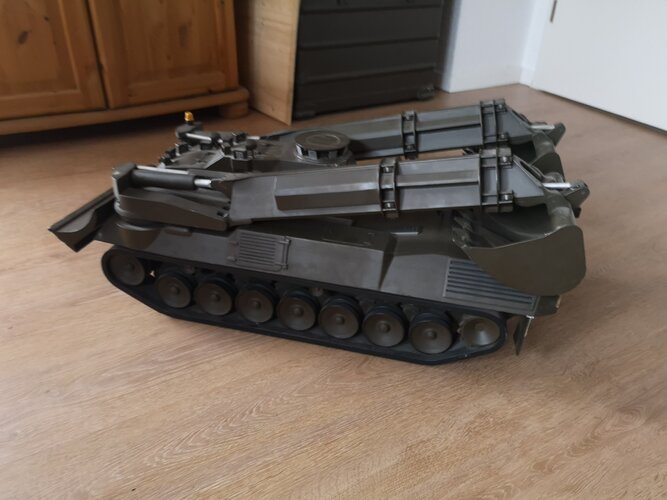

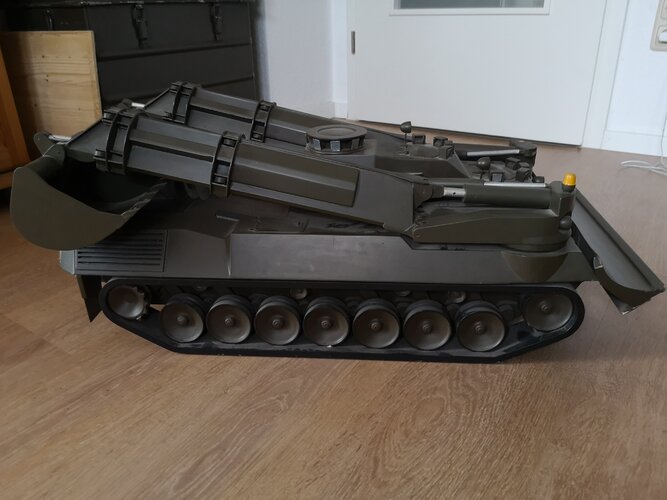

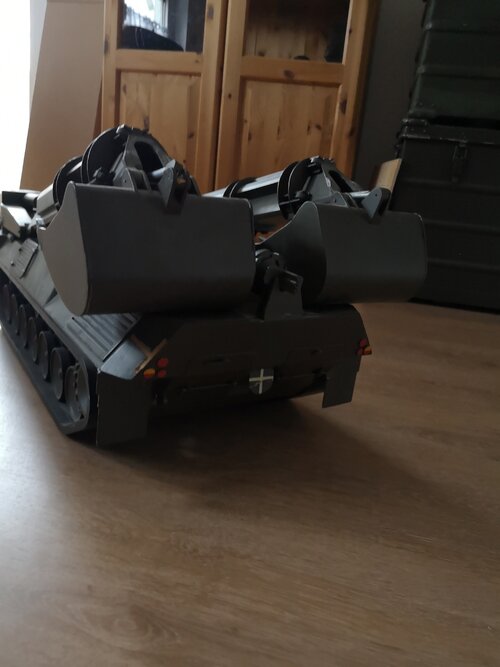

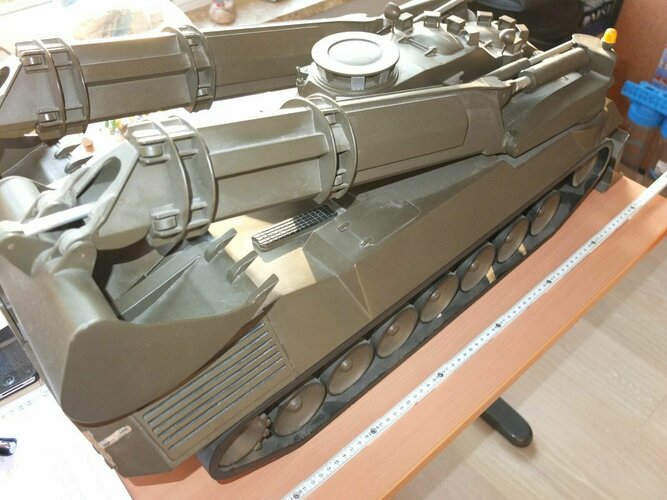

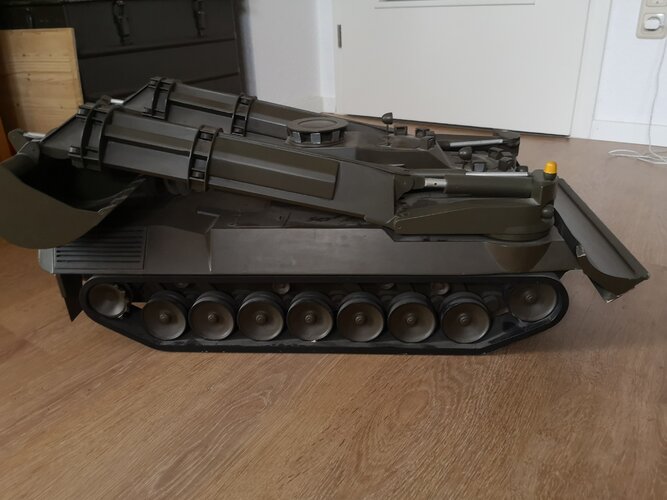

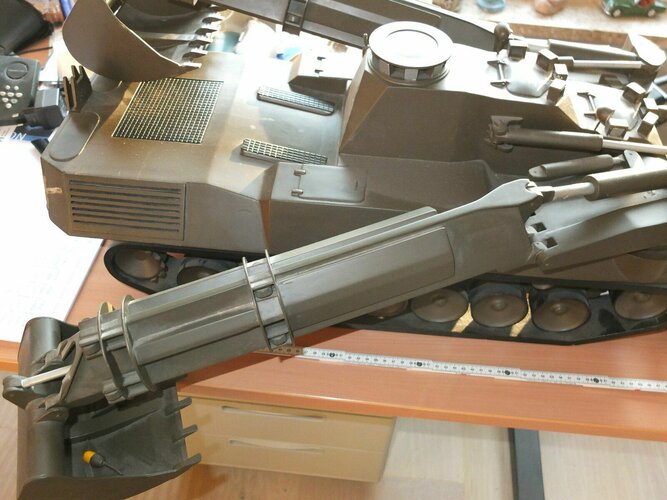

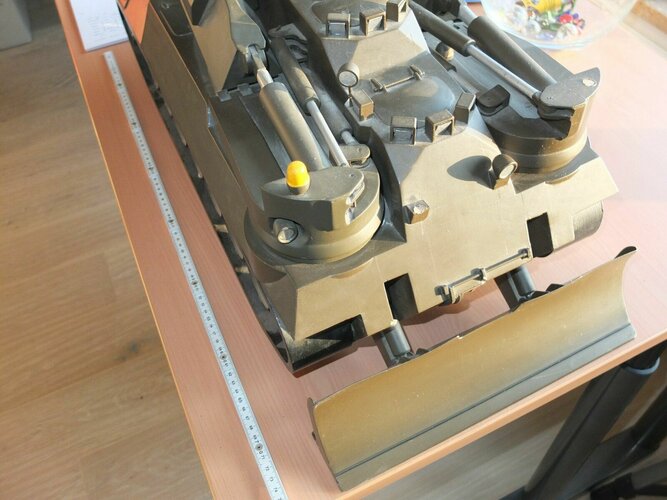

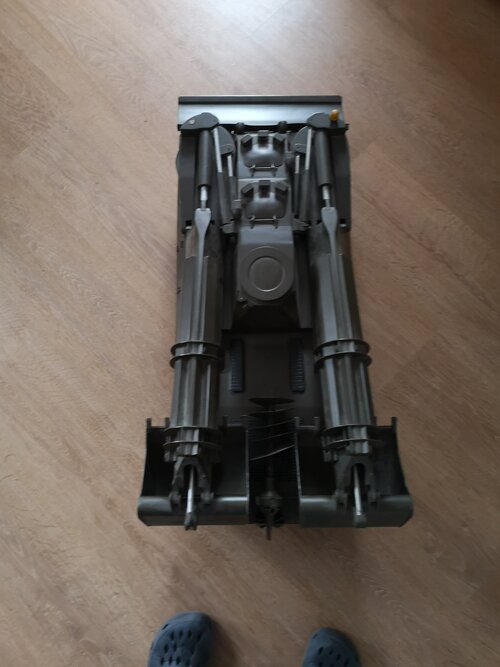

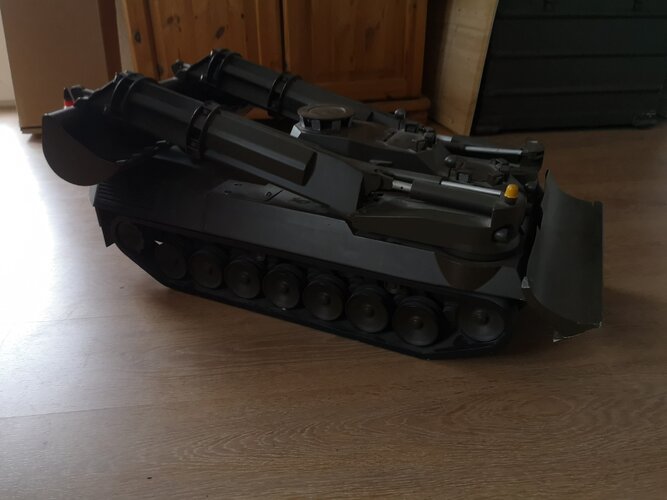

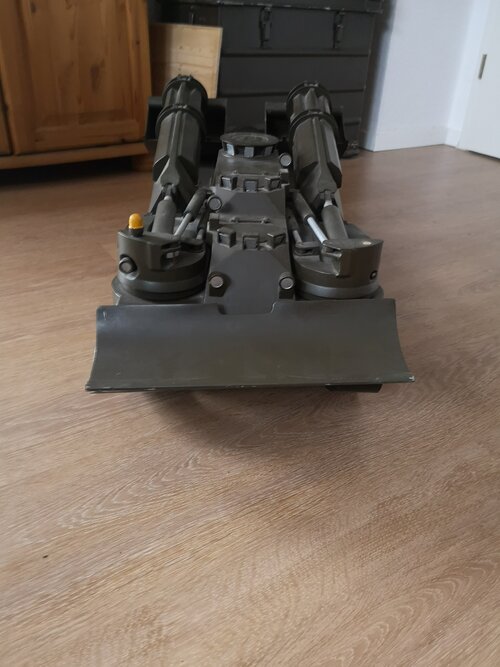

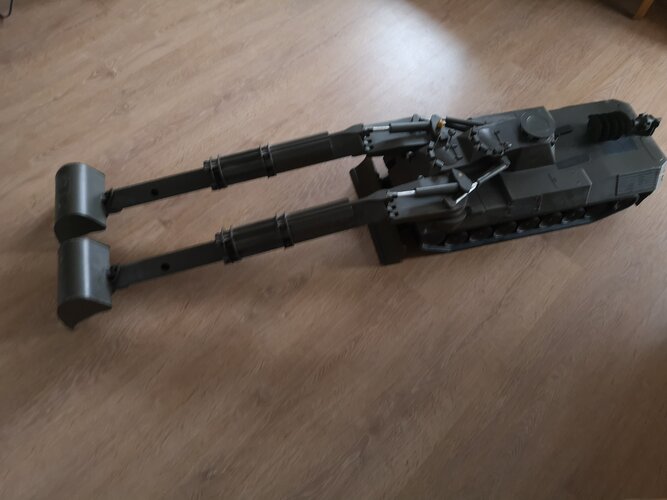

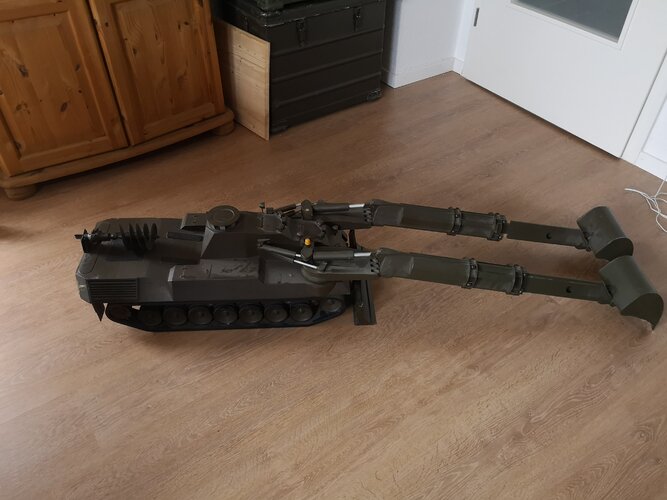

Hello :) My armored engineer machine has arrived :D


Attachments

  • IMG_20210119_151832.jpg
    2.6 MB · Views: 37
  • IMG_20210119_152002.jpg
    2.4 MB · Views: 33
  • IMG_20210119_152013.jpg
    2.8 MB · Views: 29
  • IMG_20210119_152015.jpg
    2.8 MB · Views: 28
  • IMG_20210119_152022.jpg
    3.1 MB · Views: 31
  • IMG_20210119_152035.jpg
    2.7 MB · Views: 29
  • IMG_20210119_152041.jpg
    2.5 MB · Views: 30
  • IMG_20210119_152046.jpg
    2.6 MB · Views: 60

Wyvern

ACCESS: Top Secret
Senior Member
Joined
Jan 25, 2020
Messages
910
Reaction score
1,186
Seeing it already gives me the urge to want to go back and play with my diggers :):D


hannesjo

ACCESS: Restricted
Joined
Dec 3, 2020
Messages
32
Reaction score
144

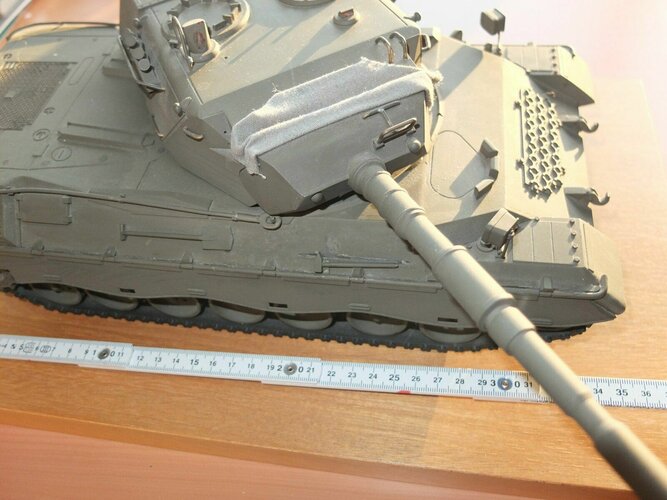

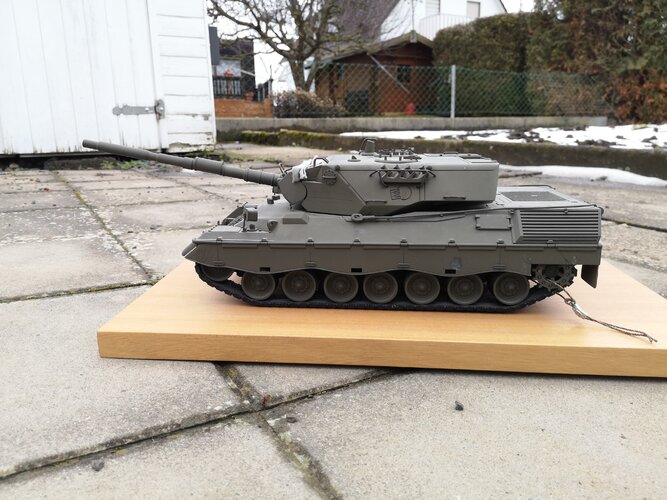

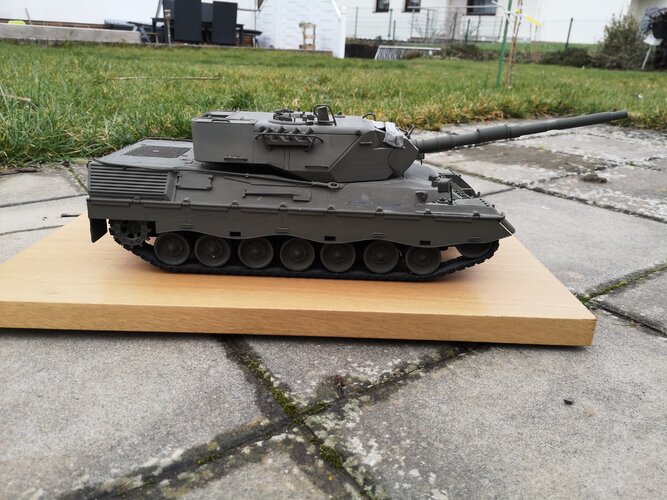

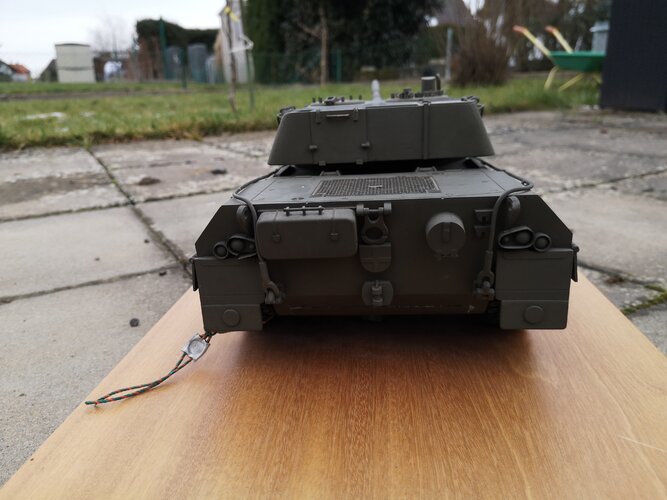

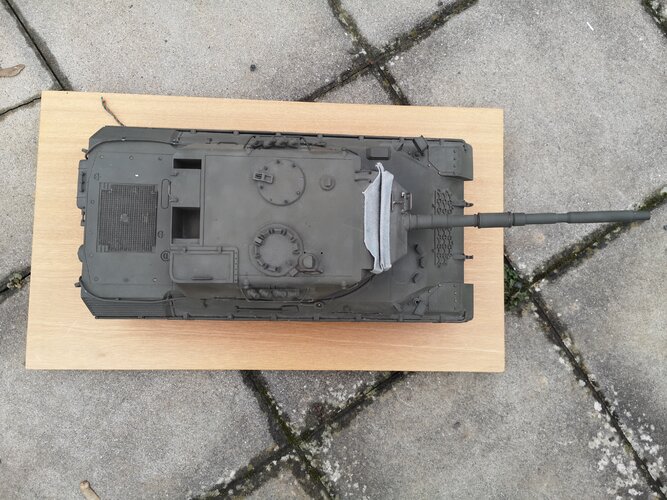

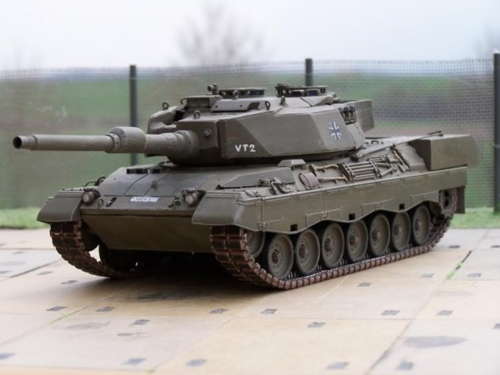

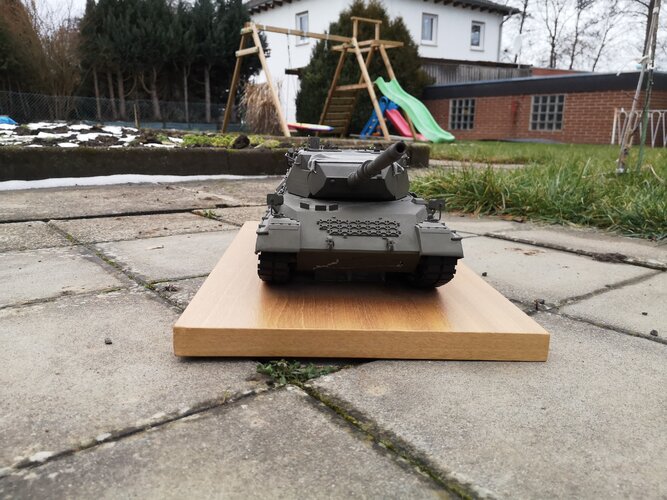

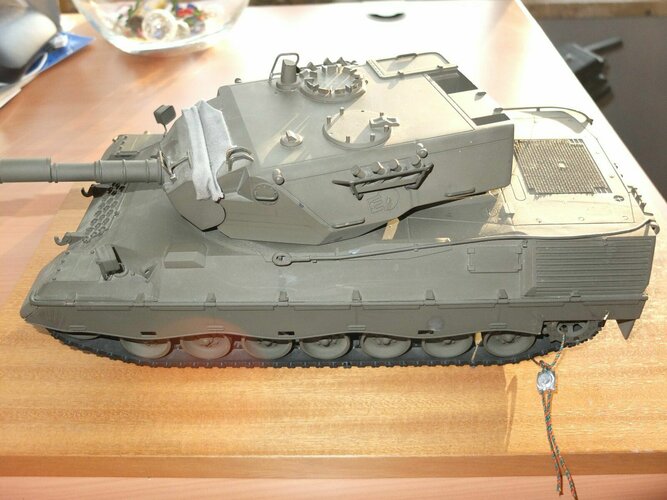

Hello dear tank friends! Today I got a new prototype model again, the Leopard 1A4 in 1:15 scale! I hope you like him!

Greetings from Frielendorf - Germany - Johannes :)


Attachments

  • IMG_20210218_160011.jpg
    3.9 MB · Views: 48
  • IMG_20210218_160016.jpg
    4.9 MB · Views: 48
  • IMG_20210218_160022.jpg
    4.4 MB · Views: 41
  • IMG_20210218_160029.jpg
    2.8 MB · Views: 37
  • IMG_20210218_160040.jpg
    3.5 MB · Views: 30
  • IMG_20210218_160105.jpg
    3 MB · Views: 42

JohnR

ACCESS: Top Secret
Senior Member
Joined
Sep 8, 2006
Messages
790
Reaction score
261
Just a small question that has intrigued me for years, what is the purpose of the white crosses on the rear of German AFV, I assume it was something to assist driving at night, am I right or wrong?
