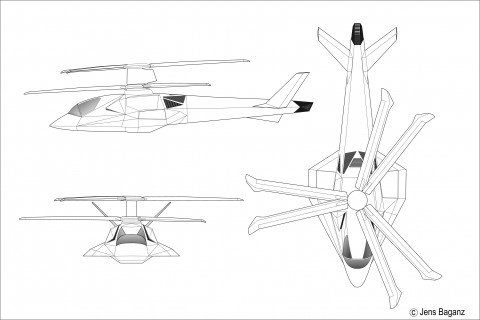

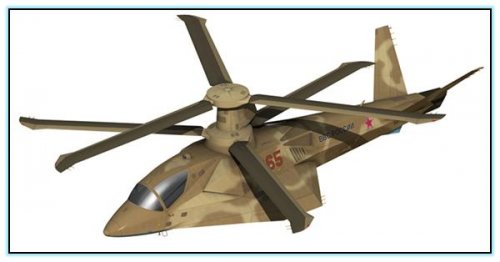

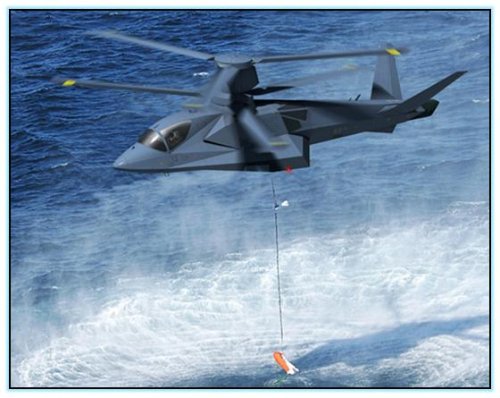

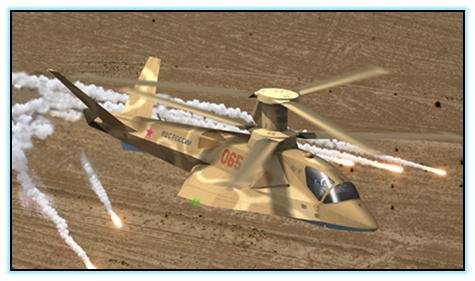

found these,dont know where could be from here


Attachments

  • KA-65-1.jpg
    26 KB · Views: 269
  • KA-65-2.jpg
    21.5 KB · Views: 295
  • KA-65-3.jpg
    42.3 KB · Views: 308

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,271
Reaction score
1,121
PlanesPictures said:
... or fake

Then at least an officially launched one ! Would be called "disinformation" then, I think. ;)

BTW, I noticed, that we had this thread an another, titlrd "New Kamov Projects", already
duplicating quite a lot of posts. So I merged them, hopefully making finding things somewhat
easier.


Attachments

  • Kamov_UVK.jpg
    24.6 KB · Views: 329

pedrospe

ACCESS: Secret
Joined
Feb 9, 2010
Messages
280
Reaction score
28
Very cool drawings,thanks a lot everyone for sharing,the kamov 10,kind reminds me of a mix between the ah-64 and the ov-10.




best regards


Pedro


PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
1,004
Reaction score
693

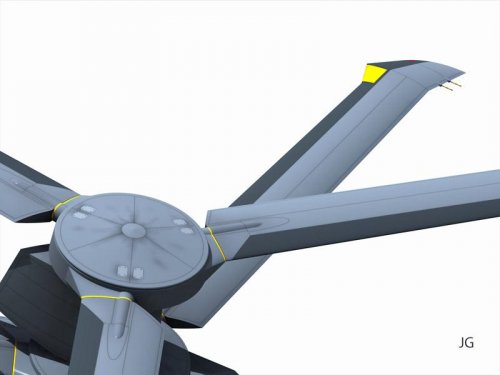

to stimpy75: I have done these pictures for Avicopress as Ka-65 but I wasn't sure if it is correct


stimpy75

Happy Happy,Joy Joy
Joined
Aug 23, 2007
Messages
127
Reaction score
72
PlanesPictures said:
to stimpy75: I have done these pictures for Avicopress as Ka-65 but I wasn't sure if it is correct
very nice work,could be that i found these pictures on Avicopress while google searching for pictures of the KA-65,


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
679
Website
deeptowild.blogspot.com
stimpy75 said:
very nice work,could be that i found these pictures on Avicopress while google searching for pictures of the KA-65,

We have seen the Ka-65 designation used for the UVK (Udarny Vertolyotny Kompleks "Strike Helicopter System") and for a rigid coaxial-rotor utility compound helicopter with pusher prop similar to the Sikorsky/Boeing SB-1 Defiant from graphics we believe originated within Kamov. So there is confusion over which design has been given the designation Ka-65.


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
679
Website
deeptowild.blogspot.com

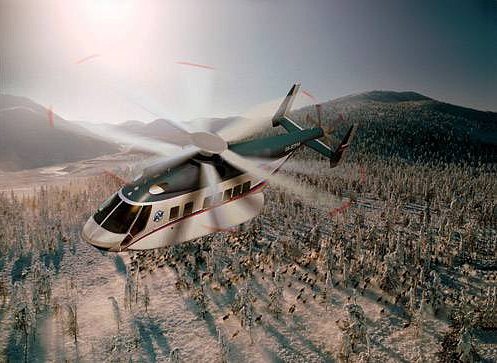

Speculative illustration of Kamov Ka-92.

Source:
http://www.popmech.ru/technologies/7859-v-pogone-za-skorostyu-vertolet-s-tolkayushchim-vintom/


Attachments

  • 11282_1234963867_full.jpg
    85.8 KB · Views: 894

yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,488
Reaction score
707
I assume that Ka-92 remains "speculative" at best.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,271
Reaction score
1,121

yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,488
Reaction score
707
Jemiba said:
yasotay said:
I assume that Ka-92 remains "speculative" at best.

It has shown considerable evolution and the shown layout wasn't the last iteration, but
IIRC the one here http://www.secretprojects.co.uk/forum/index.php/topic,2766.msg78028.html#msg78028
But especially helicopters have a long "gestation period"! today, no matter, where they are designed ! ::)
Fair point. I have not seen any mention of Russia moving forward with high speed efforts beyond the high speed conventional helicopter that was first mentioned last year.


mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
134
Reaction score
42

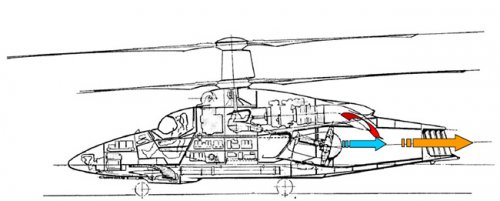

deep modernization of the V-80 helicopter in the high-speed helicopter attack plane of new generation.The high-speed helicopter attack plane according to ABC scheme
with an operated jet nozzle (the project of 1989)


Attachments

  • d2118-p9.jpg
    44.3 KB · Views: 647

mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
134
Reaction score
42

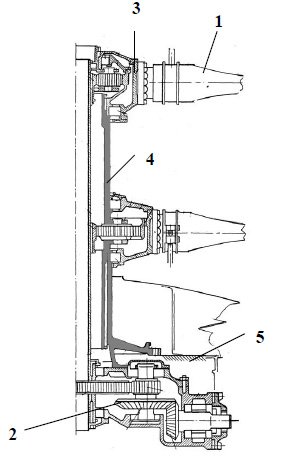

Transmission of coaxial bearing screws under ABC concept


Attachments

  • d2118-p8.jpg
    31.2 KB · Views: 537

mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
134
Reaction score
42

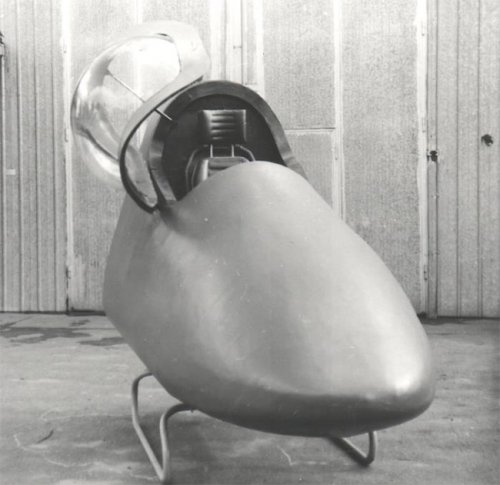

Cabin with the open
spherical lamp


Attachments

  • d2118-p11.jpg
    91.3 KB · Views: 496

mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
134
Reaction score
42

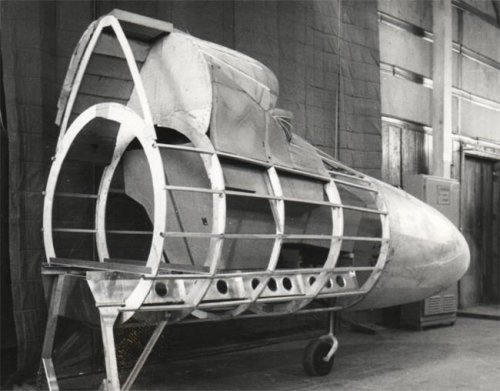

Framework of the model of a cabin


Attachments

  • d2118-p10.jpg
    87.6 KB · Views: 102

mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
134
Reaction score
42

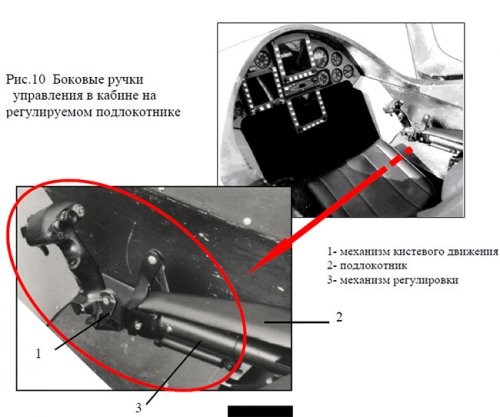

Control run from lateral handles mechanical, without EDSU application. http://www.aex.ru/docs/1/2014/9/16/2118/print/


Attachments

  • d2118-p12.jpg
    96.1 KB · Views: 174

mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
134
Reaction score
42
article address http://www.aex.ru/docs/1/2014/9/16/2118/


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
borovik said:
Hmmmm... about 10 t HAL I have nothing.

And yet I forgot to post this - early Kamov Ka-12, 3 views. Taken from "Samolyoty mira" (World Aircraft) magazine some 10 years ago :)


My dear borovik,


I heard that,there is anther Kamov Ka-12 project,it was single seat helicopter and powered
by one 600 hp engine,it was designed in 1945.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
791
Reaction score
125
In Reply # 25 is a picture of the preliminary design of single screw
passenger helicopter Ka-12 with the motor M-21
capacity of 600 hp. Other projects with a designation of Ka-12, dated 1945, I do not know. (At the moment))
[/size]/Via Google translate/


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
Many thanks to you my dear Borovik,


and Ka-12 of 1945 also was powered by one M-21.


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,426
Reaction score
839

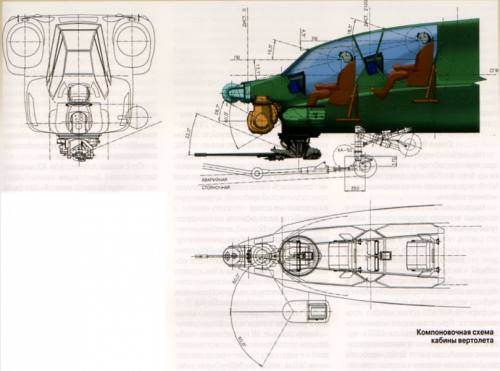

A new tandem version of the Ka-50/Ka-52 family for an Asian country (South Korea?)
It is based on the Ka-50-2 „Erdogan“.


Source: Авиация и Космонавтика 2015-04, pages 13-20


Maybe our Russian members can translate the article and give us so more information. ;) :)


Attachments

  • Ka-50-2_tandam_??????? ? ???????????? 2015-04_page17_810x600.png
    Ka-50-2_tandam_??????? ? ???????????? 2015-04_page17_810x600.png
    705 KB · Views: 1,378
  • Ka-50-2_tandam_??????? ? ???????????? 2015-04_page20_810x592.png
    Ka-50-2_tandam_??????? ? ???????????? 2015-04_page20_810x592.png
    735 KB · Views: 1,343

yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,488
Reaction score
707
That is one loong helicopter!
Flying Wiener Dog ;D
Indeed a great find. I have to wonder about the CG range. Greater or lesser given how far out in front the gun and gunner are?


fightingirish

ACCESS: Top Secret
Senior Member
Joined
Jun 3, 2006
Messages
2,426
Reaction score
839

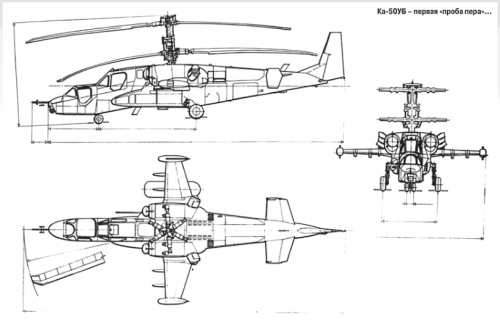

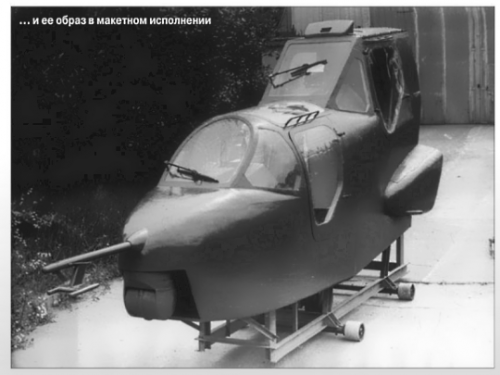

Here the Ka-50УБ / Ka-50UB trainer project.
This project led later into the Ka-52.



Source: Авиация и Космонавтика 2015-02, pages 3-10


Attachments

  • Ka-50UB_trainer_front_section_mockup_??????? ? ???????????? 2015-02_page4_540x405png.png
    Ka-50UB_trainer_front_section_mockup_??????? ? ???????????? 2015-02_page4_540x405png.png
    141.7 KB · Views: 1,127
  • Ka-50UB_trainer_project_??????? ? ???????????? 2015-02_page4_810x520.png
    Ka-50UB_trainer_project_??????? ? ???????????? 2015-02_page4_810x520.png
    77.2 KB · Views: 1,151

stimpy75

Happy Happy,Joy Joy
Joined
Aug 23, 2007
Messages
127
Reaction score
72
thank you so much my dear fightingirish for sharing these awesome illustrations of the Erdogan!!!
in years i tried to figure out how you could fit a front mounted cannon and sensor at the front of the Erdogan!!!!you really made my day :)
the Erdogan was of special interest for me(not only carries my first name!)
if you were here i would hug you
thank you so much!!!!!!!!!!!!


p.s. that radome?mmw radar or guidance radar or collision warning radar?


mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
134
Reaction score
42

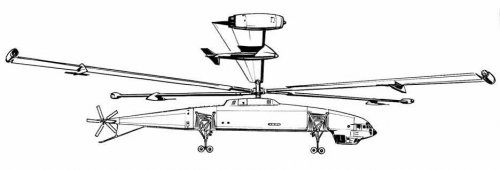

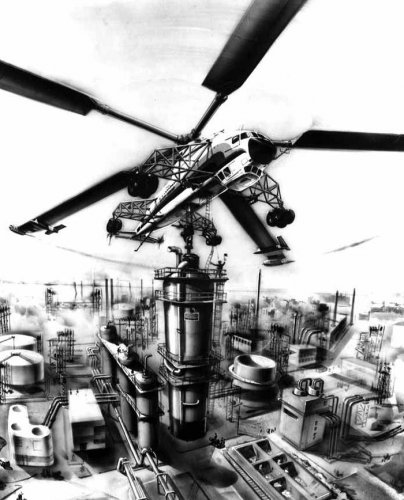

Another project "heavyweight" was
OKB proposed NI Kamov-based
a five-blade main rotor diameter of 125
meters with jet drive from turboreak?
tive engine. According to calculations, a similar
superheavy helicopter? valve could create
lift 600 tons, which allowed
transported on external sling cereals?
nogabaritnoe and heavy industrial
equipment weighing up to 250 tons!


Attachments

  • 125.jpg
    27.7 KB · Views: 868
  • 125-.jpg
    92.9 KB · Views: 298

mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
134
Reaction score
42

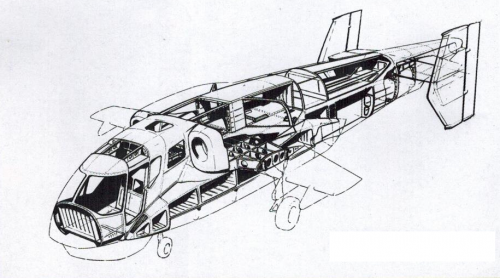

projects Kamov


Attachments

  • 40.jpg
    35.1 KB · Views: 350
  • 40-.jpg
    144.5 KB · Views: 398

mil

ACCESS: Confidential
Joined
Feb 6, 2008
Messages
134
Reaction score
42

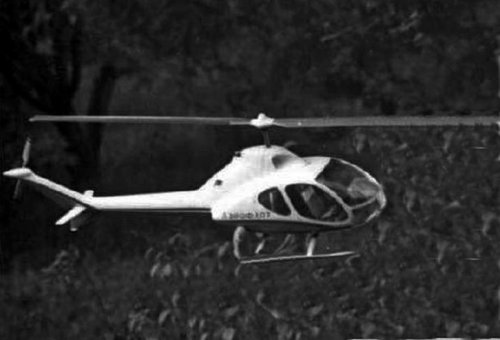

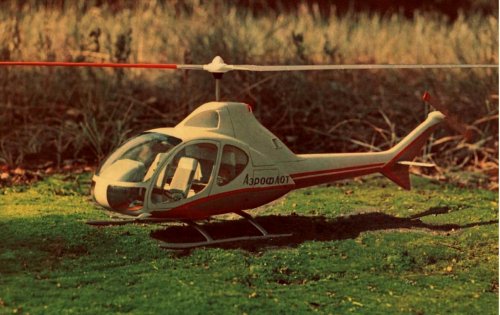

Ka-29 "Sunrise" Helicopter single-rotor design 1963


Attachments

  • ??-29.jpg
    31 KB · Views: 166
  • ????? 16.jpg
    ????? 16.jpg
    133.8 KB · Views: 174

youROKer

ACCESS: Confidential
Joined
May 15, 2013
Messages
54
Reaction score
75

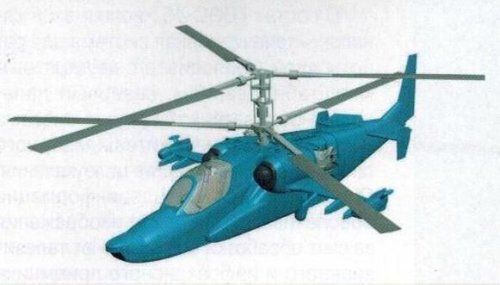

1. Ka-50 - interceptor project. 2006.
2. Ka-50 - first option for placement on ships. 1991.


Attachments

  • Ug0wzbU.jpg
    23.7 KB · Views: 257
  • Рисунок (52).png
    Рисунок (52).png
    654.9 KB · Views: 309

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,988
Reaction score
352
horrido mil,
do you have some technical data for the Ka.29 project?
thanks


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,354
Reaction score
4,158
youROKer said:
1. Ka-50 - interceptor project. 2006.
2. Ka-50 - first option for placement on ships. 1991.

Nice find YouROKer.


stashandr

ACCESS: Confidential
Joined
Jul 9, 2007
Messages
55
Reaction score
13

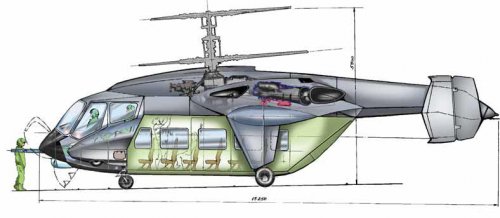

Kamov Minoga (sea-based).
http://www.janes.com/article/56397/kamov-developing-new-minoga-maritime-helicopter


Attachments

  • kamov minoga.jpg
    kamov minoga.jpg
    55.4 KB · Views: 184

kaiserbill

ACCESS: Top Secret
Joined
Jun 7, 2006
Messages
1,385
Reaction score
296
stashandr said:
Kamov Minoga (sea-based).
http://www.janes.com/article/56397/kamov-developing-new-minoga-maritime-helicopter

Hmmm...I thought that was an illustration of the recently announced naval helicopter called "Lamprey"?

So is it Minoga or Lamprey?


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
541
kaiserbill said:
So is it Minoga or Lamprey?

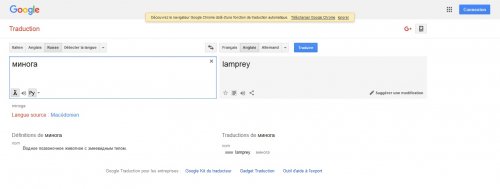

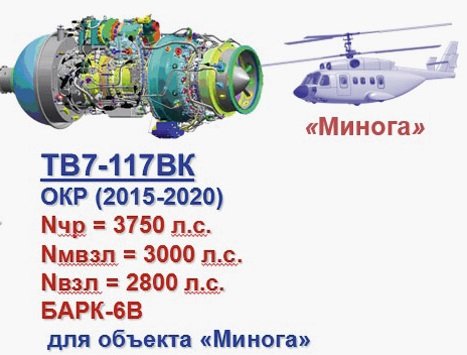

Ahem... As you might infer from the spelling, "lamprey" is not and cannot be a Russian word. See below:


Attachments

  • minoga.jpg
    75.3 KB · Views: 1,574

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
791
Reaction score
125

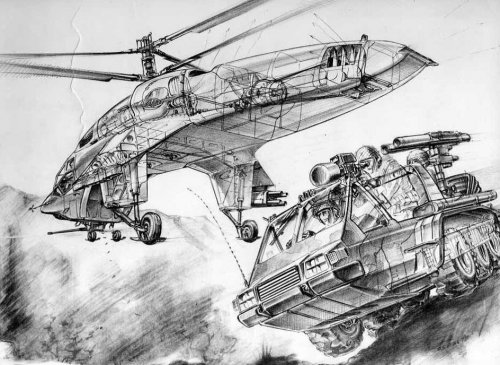

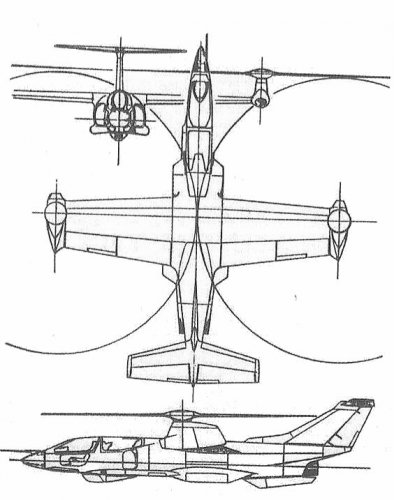

Preliminary design of an embodiment of attack helicopter, transverse rotor system (V-80, V-100 concepts) Development and drawing head of the department of technical design S. Fomin. |source Наука и техника, 12. 2015|


Attachments

  • Clip_4.jpg
    58.9 KB · Views: 1,407
