Kamov Projects

youROKer said:
1. Ka-50 - interceptor project. 2006.
2. Ka-50 - first option for placement on ships. 1991.
Click to expand...

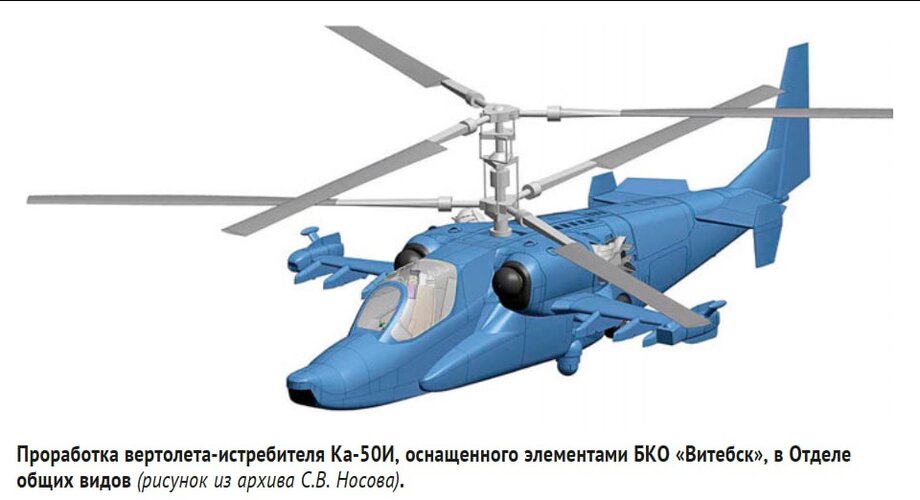

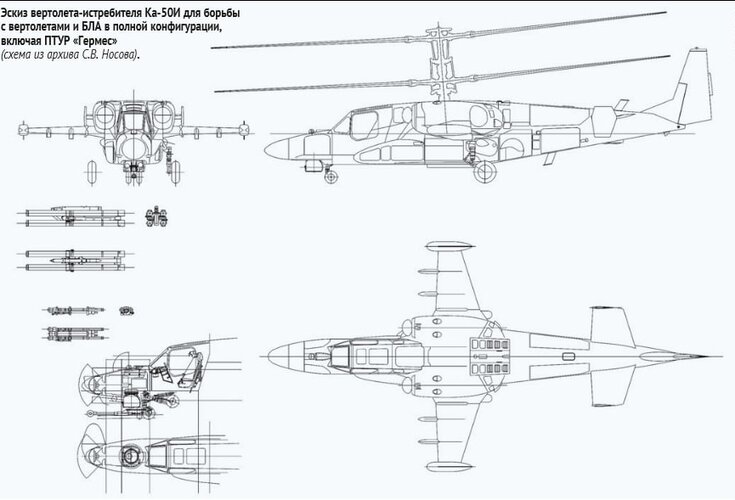

Additional images Ka-50I - the Ka-50 anti-UAV and anti-helicopter version.


Attachments

  • DDzEtCYeNTAU-B0CtVjGmH7k_3qSAM0lFysRXZlSrbFrKB2h-njuAyqh9l_aGJ6foLFkem456t1npbz025OcO0eE.jpg
    DDzEtCYeNTAU-B0CtVjGmH7k_3qSAM0lFysRXZlSrbFrKB2h-njuAyqh9l_aGJ6foLFkem456t1npbz025OcO0eE.jpg
    103.3 KB · Views: 526
  • KXxR53TGpr_g0_RvuCLDU9CRMmBO07Ug2VOC2PljFo8JWcsyOkkzBaGHO1jQEM0Fda89ZwiiYevUpjXbb4TCzeET.jpg
    KXxR53TGpr_g0_RvuCLDU9CRMmBO07Ug2VOC2PljFo8JWcsyOkkzBaGHO1jQEM0Fda89ZwiiYevUpjXbb4TCzeET.jpg
    113.7 KB · Views: 458
Anduriel said:
Avimimus said:
Probably not? They did try mounting R-77 on the Su-25 - but it would have carried a large external radar pod to do so!
Click to expand...
Technically, one could use R-77 not unlike R-73 because it does have it's own active seeker. R-27 could also be launched, but only an IR variant ( if guys in Yemen could launch it from a truck an d actually shoot down an UAV, why couldn't an helo with proper wiring from manufacturer?).
R-27R shown on picture is out of question, though, not w/o proper radar. Unless there is a pod verison of Kopyo in the other side that was proposed for Su-25TM.
Click to expand...

If I recall correctly, the R-27T/R-27ET requires external cooling for the seeker - so that might require more extensive modifications.

The use of an active radar missile is actually something of an interesting idea - as the low launch speed of a helicopter would mean that the kinetic likely range wouldn't be meaningfully greater than the acquisition range of the missile's own radar.

P.S. I find the asymmetric load of the kopyo an amusing image. Not likely obviously, but still definitely worthy of imagination.

hesham said:
What was this ?,

alternathistory.ru

Неизвестные модели Камова - Альтернативная История

Неизвестные модели Камова - Альтернативная История
alternathistory.ru alternathistory.ru
Click to expand...

Oh, even my text from the site alternative history ended up here))

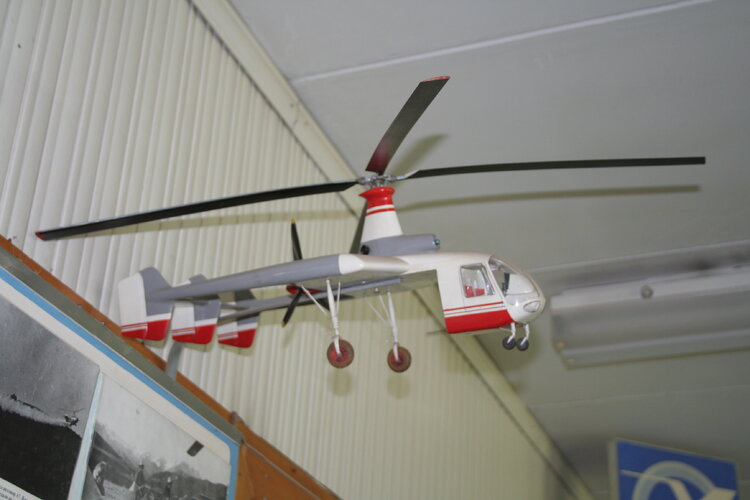

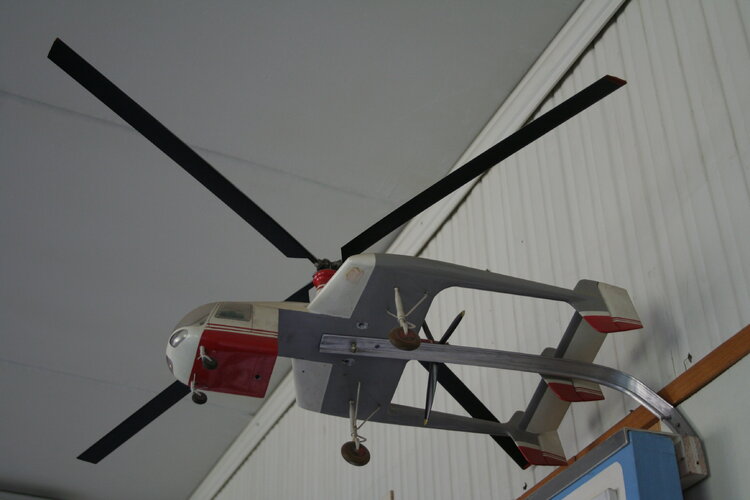

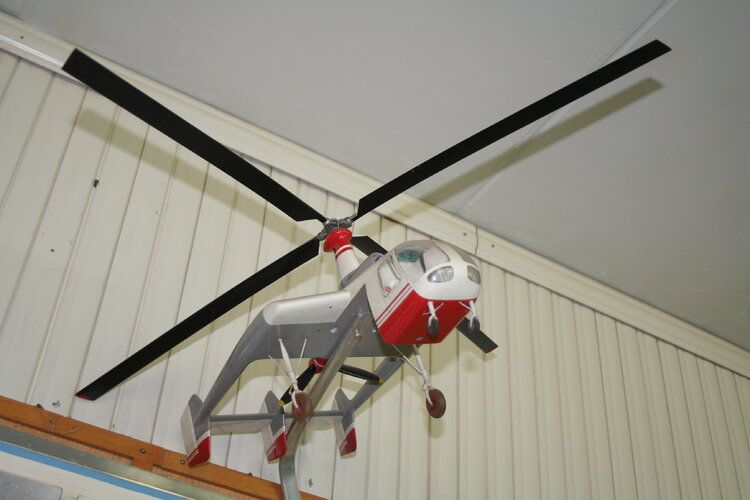

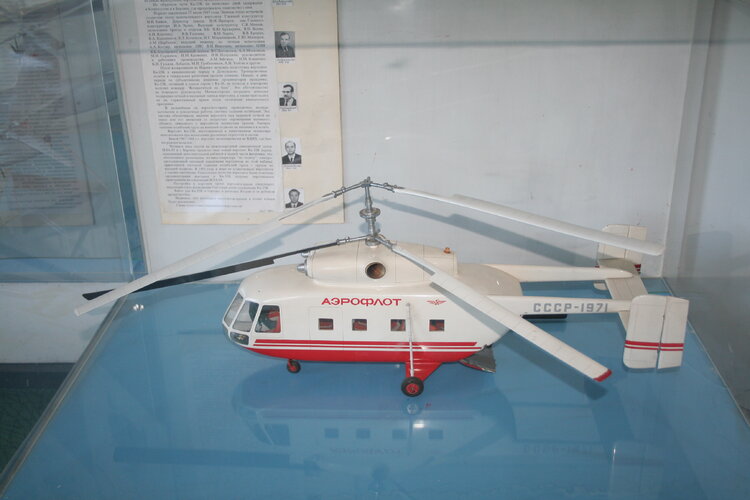

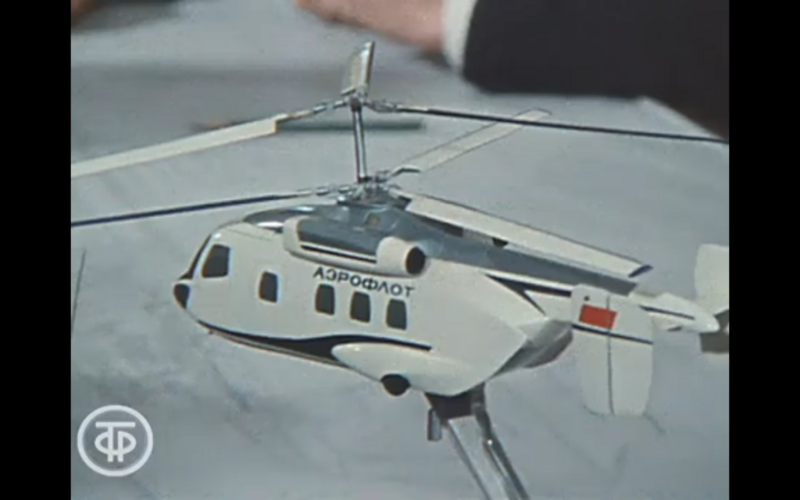

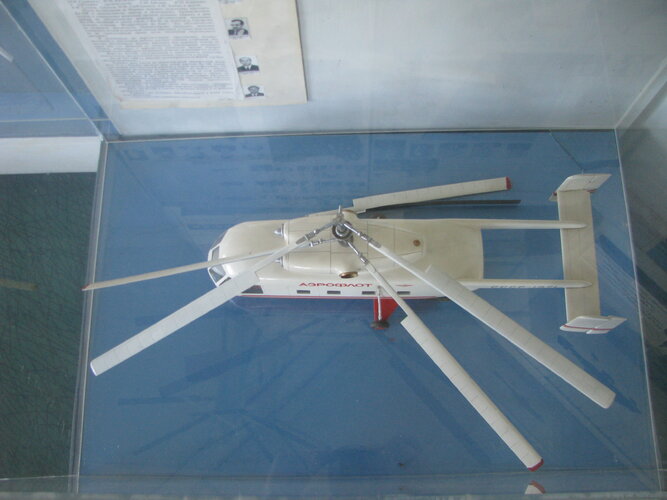

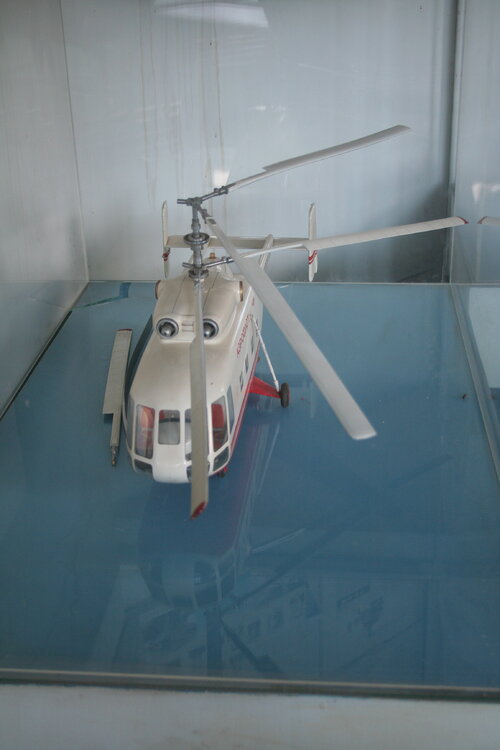

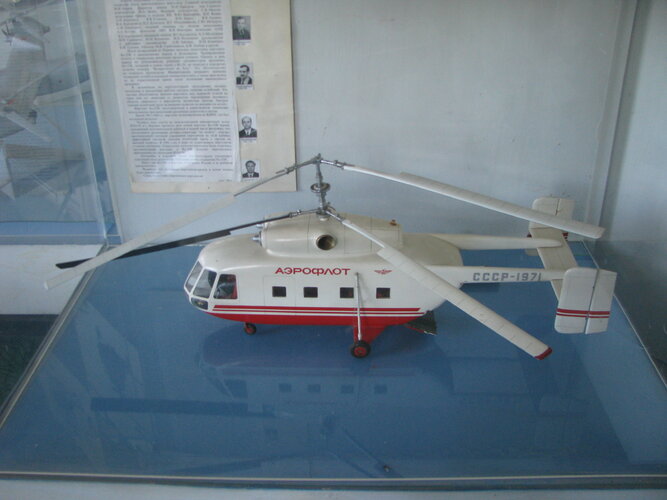

Yes, this is a development of the Ka-26 and Ka-27 line
Quite logical, but it did not make sense due to competition with the Mi-8.
In the Soviet Union everything was interconnected. Consider the country a big corporation.
And the dispersal of production forces was not allowed. Airplanes and helicopters were built in each segment exclusively one type for one task.

Last edited by a moderator:
overscan (PaulMM) said:
Мама!
View attachment 706565
Click to expand...

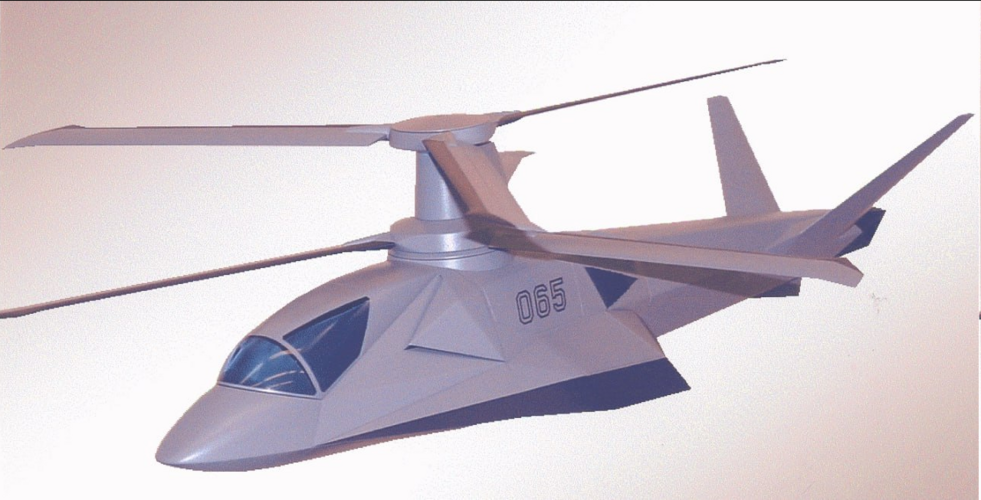

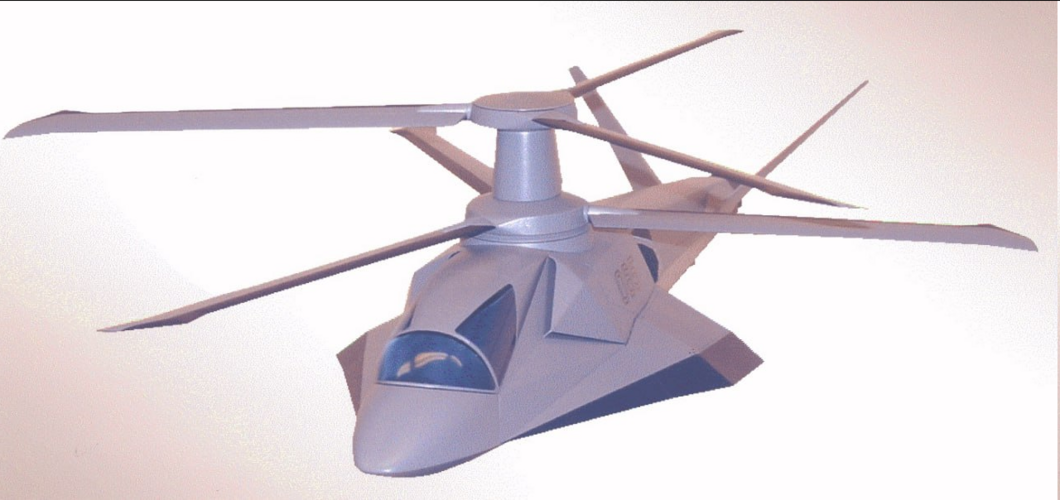

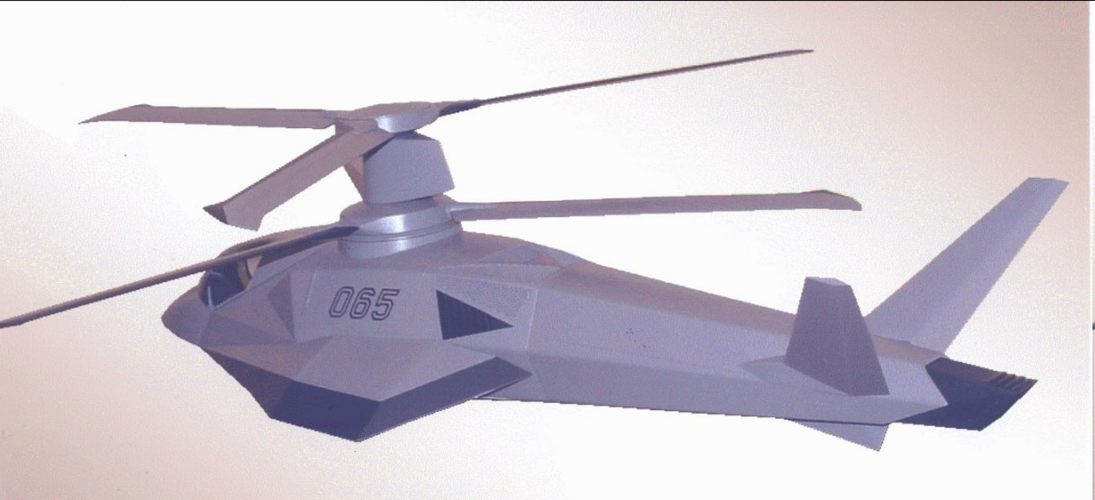

This is a fictional helicopter. Kamov Design Bureau never seriously designed a stealth helicopter. But in the 90s, a company producing model vehicles (Zvezda Company, the main such manufacturer in Russia) decided to release a fictional stealth helicopter, an analogue of the Comanche. But this is fiction.

Last edited by a moderator:
Grizli-666 said:
This is a fictional helicopter. Kamov Design Bureau never seriously designed a stealth helicopter. But in the 90s, a company producing model vehicles (Zvezda Company, the main such manufacturer in Russia) decided to release a fictional stealth helicopter, an analogue of the Comanche. But this is fiction.
Click to expand...

Quite aware of that, merely noting a vague resemblance.

overscan (PaulMM) said:
Я это прекрасно осознаю, просто замечаю смутное сходство.
Click to expand...
Понято дело сходство есть, каманч был довольно известен и разрекламирован уже)

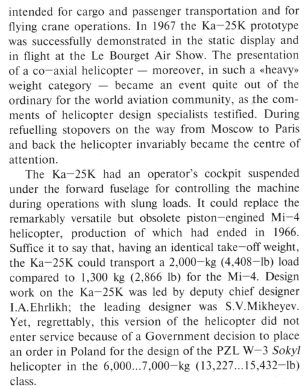

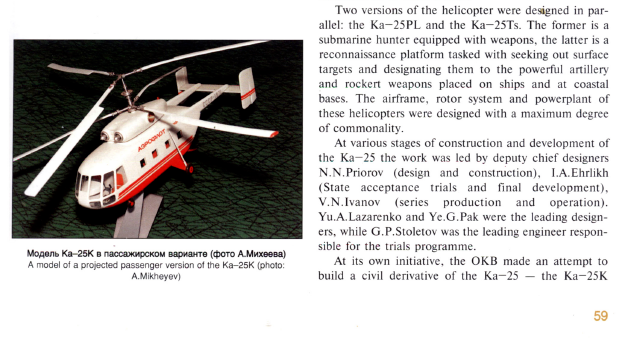

50 years of N.I. Kamov Design Bureau - Vol. 1. / Aviation and Cosmonautics Center LLC, - Moscow 1999.


Attachments

  • 1720967262916.png
    258.6 KB · Views: 23
  • 1720967301388.png
    121.2 KB · Views: 30
