USAF Century Series of Fighters: F-100 to F-106

Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
35
I'm working on a history of the USAF Century Series of Fighters: F-100 to F-106. Here's an appendix showing contract dates and numbers related to these aircraft. I realize some others were built but they went to foreign air forces and they are not included within this list. Any additions/corrections will be most appreciated. -SP

Chronological Order of USAF Contract and Production Data: U.S. Air Force Aerospace Defense Command and Tactical Air Command F-100 to F-106 Aircraft

05/06/53, YF-100-NA, 2, AF6545, 52-5754 and 52-5755
05/06/53, F-100A-1-NA, 10, AF6545, 52-5756 to 52-5765
05/06/53, F-100A-5-NA, 13, AF6545, 52-5766 to 52-5778
05/06/53, F-100A-10-NA, 40, AF6545, 53-1529 to 53-1568
05/06/53, F-100A-15-NA, 40, AF6545, 53-1569 to 53-1608
05/06/53, F-100A-20-NA, 100, AF6545, 53-1609 to 53-1708

05/28/53, F-101A-17-MC, 29, AF8743, 53-2418 to 53-2446

06/12/53, YF-102-CO, 2, AF5942, 52-7794 and 52-7795
06/12/53, YF-102-CO, 8, AF5942, 53-1779 to 53-1786
06/12/53, YF-102A-17-CO, 4, AF5942, 53-1787 to 53-1790
06/12/53, F-102A-5-CO, 4, AF5942, 53-1791 to 53-1794
06/12/53, F-102A-10-CO, 3, AF5942, 53-1795 to 53-1797
06/12/53, F-102A-15-CO, 5, AF5942, 53-1798 to 53-1802
06/12/53, F-102A-20-CO, 9, AF5942, 53-1803 to 53-1811
06/12/53, F-102A-25-CO, 7, AF5942, 53-1812 to 53-1818

06/04/54, YRF-101A, 2, AF8743, 54-149 and 54-150

06/30/54, F-100C-1-NA, 70, AF26962, 53-1709 to 53-1778
06/30/54, F-100C-1-NA, 30, AF26962, 54-1740 to 54-1769
06/30/54, F-100C-5-NA, 45, AF26962, 54-1770 to 54-1814
06/30/54, F-100C-15-NA, 45, AF26962, 54-1815 to 54-1859
06/30/54, F-100C-20-NA, 111, AF26962, 54-1860 to 54-1970
06/30/54, F-100C-25-NA, 150, AF26962, 54-1971 to 54-2120

07/19/54, TF-102A-CO, 20, AF23903, 54-1351 to 54-1370
07/19/54, F-102A-30-CO, 13, AF23903, 54-1371 to 54-1383
07/19/54, F-102A-35-CO, 17, AF23903, 54-1384 to 54-1400
07/19/54, F-102A-40-CO, 7, AF23903, 54-1401 to 54-1407

08/03/54, XF-104-LO, 2, AF23362, 53-7786 and 53-7787

03/30/55, F-104A-LO, 17, AF27378, 55-2955 to 55-2971

05/31/55, F-100D-1-NA, 12, AF29150, 54-2121 to 54-2132
05/31/55, F-100D-5-NA, 19, AF29150, 54-2133 to 54-2151
05/31/55, F-100D-10-NA, 70, AF29150, 54-2152 to 54-2221
05/31/55, F-100D-15-NA, 82, AF29150, 54-2222 to 54-2303
05/31/55, F-100D-20-NA, 100, AF29150, 55-3502 to 55-3601
05/31/55, F-100D-25-NA, 100, AF29150, 55-3602 to 55-3701
05/31/55, F-100D-30-NA, 113, AF29150, 55-3702 to 55-3814

06/27/55, YF-105A-1-RE, 2, AF22512, 54-098 and 54-099
06/27/55, F-105B-1-RE, 4, AF22512, 54-100 to 54-103
06/27/55, F-105B-5-RE, 1, AF22512, 54-104
06/27/55, JF-105B-1-RE, 1, AF22512, 54-105
06/27/55, F-105B-5-RE, 2, AF22512, 54-106 and 54-107
06/27/55, JF-105B-1-RE, 1, AF22512, 54-108
06/27/55, F-105B-5-RE, 2, AF22512, 54-109 and 54-110
06/27/55, F-105B-6-RE, 1, AF22512, 54-111
06/27/55, JF-105B-2-RE, 1, AF22512, 54-112

06/30/55, F-100C-10-NH, 25, AF28736, 55-2709 to 55-2733
06/30/55, F-100D-35-NH, 10, AF28736, 55-2734 to 55-2743
06/30/55, F-100D-40-NH, 40, AF28736, 55-2744 to 55-2783
06/30/55, F-100D-45-NH, 80, AF28736, 55-2784 to 55-2863
06/30/55, F-100D-50-NH, 45, AF28736, 55-2864 to 55-2908
06/30/55, F-100D-55-NH, 46, AF28736, 55-2909 to 55-2954

06/30/55, F-102A-41-CO, 23, AF29264, 55-3357 to 55-3379
06/30/55, F-102A-CO, 10, AF29264, 55-3380 to 55-3389
06/30/55, F-102A-45-CO, 37, AF29264, 55-3390 to 55-3426
06/30/55, F-102A-5-CO, 38, AF29264, 55-3427 to 55-3464
06/30/55, TF-102A-CO, 28, AF29264, 55-4032 to 55-4059

09/29/55, F-101A-20-MC, 6, AF23393, 54-1438 to 54-1443
09/29/55, F-101A-25-MC, 9, AF23393, 54-1444 to 54-1452
09/29/55, F-101A-30-MC, 13, AF23393, 54-1453 to 54-1465
09/29/55, F-101A-35-MC, 20, AF23393, 54-1466 to 54-1485
09/29/55, F-101C-40-MC, 8, AF23393, 54-1486 to 54-1493
09/29/55, RF-101A-20-MC, 3, AF23393, 54-1494 to 54-1496
09/29/55, RF-101A-25-MC, 11, AF23393, 54-1497 to 54-1507
09/29/55, RF-101A-30-MC, 11, AF23393, 54-1508 to 54-1518
09/29/55, RF-101A-35-MC, 3, AF23393, 54-1519 to 54-1521

03/02/56, F-104A-1-LO, 7, AF30756, 56-730 to 56-736 (used for test purposes)
03/02/56, F-104A-5-LO, 11, AF30756, 56-737 to 56-747
03/02/56, F-104A-10-LO, 16, AF30756, 56-748 to 56-763
03/02/56, F-104A-15-LO, 25, AF30756, 56-764 to 56-788
03/02/56, F-104A-20-LO, 37, AF30756, 56-789 to 56-825
03/02/56, F-104A-25-LO, 52, AF30756, 56-826 to 56-877
03/02/56, F-104A-30-LO, 5, AF30756, 56-878 to 56-882
03/02/56, F-104C-5-LO, 56, AF30756, 56-883 to 56-938
56-939 to 56-956 cancelled (RF-104A)
03/02/56, F-104B-1-LO, 6, AF30756, 56-3719 to 56-3724

03/15/56, F-102A-51-CO, 16, AF31174, 56-957 to 56-972
03/15/56, F-102A-55-CO, 72, AF31174, 56-973 to 56-1044
03/15/56, F-102A-60-CO, 92, AF31174, 56-1045 to 56-1136
03/15/56, F-102A-65-CO, 97, AF31174, 56-1137 to 56-1233
03/15/56, F-102A-70-CO, 41, AF31174, 56-1234 to 56-1274
03/15/56, F-102A-CO, 57, AF31174, 56-1275 to 56-1331
03/15/56, F-102A-75-CO, 98, AF31174, 56-1332 to 56-1429
03/15/56, F-102A-80-CO, 89, AF31174, 56-1430 to 56-1518
03/15/56, TF-102A, 63, AF31174, 56-2317 to 56-2379

03/29/56, F-100D-60-NA, 60, AF31311, 56-2903 to 56-2962
03/29/56, F-100D-65-NA, 60, AF31311, 56-2963 to 56-3022
03/29/56, F-100D-70-NA, 120, AF31311, 56-3023 to 56-3142
03/29/56, F-100D-75-NA, 124, AF31311, 56-3143 to 56-3266

03/30/56, F-100D-80-NH, 56, AF31388, 56-3351 to 56-3406
03/30/56, F-100D-85-NH, 57, AF31388, 56-3407 to 56-3463

04/16/56, F-106A-CO, 17, AF30169, 56-451 to 56-467

05/24/56, F-100D-90-NH, 80, AF31311, 56-3267 to 56-3346

05/29/56, F-100F-1-NA, 5, AF31863, 56-3725 to 56-3729
05/29/56, F-100F-5-NA, 40, AF31863, 56-3730 to 56-3769
05/29/56, F-100F-10-NA, 105, AF31863, 56-3770 to 56-3874
05/29/56, F-100F-15-NA, 145, AF31863, 56-3875 to 56-4019

06/30/56, F-101B-30-MC, 1, AF29841, 56-232
06/30/56, F-101B-40-MC, 5, AF29841, 56-233 to 56-237
06/30/56, F-101B-45-MC, 3, AF29841, 56-238 to 56-240
06/30/56, F-101B-50-MC, 5, AF29841, 56-241 to 56-245
06/30/56, F-101B-55-MC, 5, AF29841, 56-246 to 56-250
06/30/56, F-101B-60-MC, 7, AF29841, 56-251 to 56-257
06/30/56, F-101B-65,-MC, 11, AF29841, 56-258 to 56-268
06/30/56, F-101B-70-MC, 12, AF29841, 56-269 to 56-280
06/30/56, F-101B-75-MC, 19, AF29841, 56-281 to 56-299
06/30/56, F-101B-80-MC, 29, AF29841, 56-300 to 56-328

12/04/56, F-104B-5-LO, 9, AF33701, 57-1294 to 57-1302
12/04/56, F-104B-10-LO, 9, AF33701, 57-1303 to 57-1311
12/04/56, F-104B-15-LO, 2, AF33701, 57-1312 and 57-1313
12/04/56, F-104D-5-LO, 7, AF33701, 57-1314 to 57-1320
12/04/56, F-104D-10-LO, 8, AF33701, 57-1321 to 57-1328
12/04/56, F-104D-15-LO, 6, AF33701, 57-1329 to 57-1334

12/14/56, F-102A-90-CO, 86, AF33695, 57-770 to 57-855
12/14/56, F-102A-95-CO, 54, AF33695, 57-856 to 57-909

12/26/56, F-106A-CO, 18, AF30169, 56-229 to 56-246

12/26/56, F-104C-10-LO, 21, AF33700, 57-910 to 57-930

12/31/56, F-106A-CO, 54, AF33808, 57-2453 to 57-2506

03/25/57, F-101C-40-MC, 5, AF29841, 56-001 to 56-005
03/25/57, F-101C-45-MC, 14, AF29841, 56-006 to 56-019
03/25/57, F-101C-50-MC, 13, AF29841, 56-020 to 56-032
03/25/57, F-101C-55-MC, 7, AF29841, 56-033 to 56-039
03/25/57, RF-101C-60-MC, 18, AF29841, 56-040 to 56-057
03/25/57, RF-101C-65-MC, 29, AF29841, 56-058 to 56-086
03/25/57, RF-101C-70-MC, 28, AF29841, 56-087 to 56-114
03/25/57, RF-101C-75-MC, 21, AF29841, 56-115 to 56-135
56-136 to 56-154 cancelled; reason and variant unknown
03/25/57, RF-101A-35-MC, 7, AF29841, 56-155 to 56-161
03/25/57, RF-101C-40-MC, 12, AF29841, 56-162 to 56-173
03/25/57, RF-101C-45-MC, 13, AF29841, 56-174 to 56-186
03/25/57, RF-101C-50-MC, 12, AF29841, 56-187 to 56-198
03/25/57, RF-101C-55-MC, 23, AF29841, 56-199 to 56-221
03/25/57, RF-101C-60-MC, 10, AF29842, 56-222 to 56-231

06/03/57, F-106B-CO, 34, AF33808, 57-2514 to 57-2547

06/04/57, F-101B-80-MC, 16, AF33708, 56-247 to 56-262
06/04/57, F-101B-85-MC, 45, AF33708, 56-263 to 56-307
06/04/57, F-101B-90-MC, 50, AF33708, 56-308 to 56-357
06/04/57, F-101B-95-MC, 50, AF33708, 56-358 to 56-407
06/04/57, F-101B-100-MC, 45, AF33708, 56-408 to 56-452

06/25/57, F-106B-CO, 7, AF30169, 57-2507 to 57-2513

06/28/57, F-105B-10-RE, 9, AF32216, 57-5776 to 57-5784
06/28/57, F-105B-15-RE, 18, AF32216, 57-5785 to 57-5802
06/28/57, F-105B-20-RE, 38, AF32216, 57-5803 to 57-5840

03/28/58, F-101B-105-MC, 45, AF34918, 58-259 to 58-303
03/28/58, F-101B-110-MC, 39, AF34918, 58-304 to 58-342

04/30/58, F-106A-CO, 40, AF34814, 58-759 to 58-798
04/30/58, F-106B-CO, 5, AF34814, 58-900 to 58-904

06/27/58, F-100F-20-NA, 29, AF35160, 58-1205 to 58-1233

12/08/58, F-105D-1-RE, 3, AF34752, 58-1146 to 58-1148
12/08/58, F-105D-5-RE, 25, AF34752, 58-1149 to 58-1173

03/03/59, F-100F-15-NA, 9, AF35160, 58- 6975 to 58-6983

Following Aircraft Listed by Fiscal Year (FY) - Unknown Dates and Contract Numbers

FY59, F-106A-105-CO, 29, 59-001 to 59-030
FY59, F-106A-110-CO, 28, 59-031 to 59-059
FY59, F-106A-120-CO, 26, 59-060 to 59-086
FY59, F-106A-125-CO, 24, 59-087 to 59-111
FY59, F-106A-130-CO, 23, 59-112 to 59-135
FY59, F-106A-135-CO, 12, 59-136 to 59-148
FY59, F-106B-75-CO, 11, 59-149 to 59-159
FY59, F-106B-80-CO, 6, 59-160 to 59-165
FY59, F-106A-CO, 59-166 to 59-204 (cancelled)
FY59, F-106B-CO, 59-205 to 59-240 (cancelled)
FY59, F-105D-5-RE, 40, 59-1717 to 59-1757
FY59, F-105D-6-RE, 116, 59-1758 to 59-1774
FY59, F-105D-RE, 59-1775 to 59-1816 (cancelled)
FY59, F-105D-6-RE, 10, 59-1817 to 59-1826
FY59, F-105E-RE, 26, 59-1817 to 59-1842 (cancelled)

FY60, F-105D-6-RE, 13, 60-409 to 60-426
FY60, F-105D-10-RE, 108, 60-427 to 60-535
FY60, F-105D-RE, 60-536 to 60-546 (cancelled)
FY60, F-105D-10-RE, 12, 60-5374 to 60-5385

FY61, F-105D-15-RE, 65, 61-041 to 61-106
FY61, F-105D-20-RE, 54, 61-107 to 61-161
FY61, F-105D-25-RE, 58, 61-162 to 61-220
FY61, F-105D, 61-221 to 61-260 (cancelled)

FY62, F-105D-25-RE, 20, 62-4217 to 62-4237
FY62, F-105D-30-RE, 38, 62-4238 to 62-4276
FY62, F-105D-31-RE, 134, 62-4277 to 62- 4411
FY62, F-105F-1-RE, 35, 62-4412 to 62-4447

FY63, F-105F-1-RE, 106, 63-8260 to 63-8366


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
35
I forgot to mention that an appendix will cover the non-production Century Series aircraft: XF-103, F-107A, F-108A, XF-109, and F-110A. -SP


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
Steve Pace said:
I forgot to mention that an appendix will cover the non-production Century Series aircraft: XF-103, F-107A, F-108A, XF-109, and F-110A. -SP

That was one of my concerns... ;)

But F-110A... non-production? What about the F-4C? ;D


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
35
You're right about the F-4C going into production and it will be touched upon but if I do a chapter on the the F-4C - formerly F-110, it'll fall out of the realm of the Century numbered types. -SP


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,345
Reaction score
117
I remember, years ago, seeing mention of a ground attack F-102 variant after it had "passed its prime". The designation given was "F-102X" but that could've been disinformation. Do you have anything about such a study?


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
elmayerle said:
I remember, years ago, seeing mention of a ground attack F-102 variant after it had "passed its prime". The designation given was "F-102X" but that could've been disinformation. Do you have anything about such a study?

If it's the same F-102X, it is mentioned in the chart attached. It was redesignated as F-102C before being cancelled.


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
35

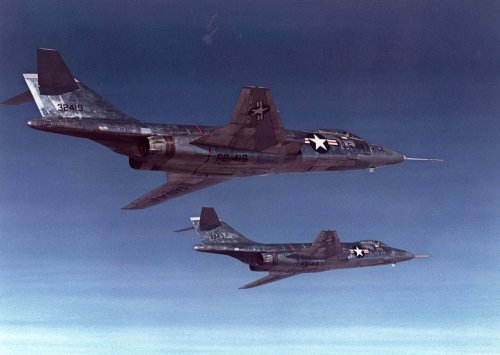

Here's a rare photo of F-101A numbers one (background) and two. -SP


Attachments

  • 04-F101-11.jpg
    612.4 KB · Views: 556

tigercat2

ACCESS: Restricted
Joined
May 29, 2008
Messages
43
Reaction score
0
Sounds like a great book; your other books that I have are excellent.


How are you going to handle the F-111; it is certainly in the Century Series and the designation did not change like the F-110.






Wes W.


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
35
Hi Wes - Thanks for your kind words and of course the F-111 and FB-111 are included. -SP


tigercat2

ACCESS: Restricted
Joined
May 29, 2008
Messages
43
Reaction score
0
Steve,


I have read and totally enjoyed these books by you: X Fighters, Lockheed F-104 Starfighter, XB-70, Edwards AFB Flight Test Center, SR-71, Lockheed Skunk Works, and X Planes at Edwards. I am sure this new book will be equal or surpass the others.


When will it be out? Do you consider the F-117 as part of the Century Series, since it came out of the non-standard designation area?




Wes W.


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
35
Thanks so much, Wes.
In no way is the F-117 part of the Century Series. In my eyes (and many other eyes) the Century Series include the F-100 through F-106 only. In my forthcoming book, however, I've included the F-107 since it was in direct competition with the F-105; it didn't go into production however. The F-103 is part of the Century Series too but as you know it didn't go into production either.
It should be published by Father's Day.
Happy Holidays!
-SP


tigercat2

ACCESS: Restricted
Joined
May 29, 2008
Messages
43
Reaction score
0
Your comment about the Century Series ending at F-106 is interesting. Setting aside the F-110/F-4 issue, I would think that the F-111 is a legitimate member of the Century Series "club": The designation follows the F-110, over 500 were built and it was in service for about 30 years.




Wes W.


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
35
Thanks for your continued interest, Wes. In my book the F-110/F-4 and F/FB-111 will be covered in Chapter 6: Supersonic Wonders and Doublesonic Sensations. -SP


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
tigercat2 said:
Do you consider the F-117 as part of the Century Series, since it came out of the non-standard designation area?

That would be very surprising I think, because then you'd have to cover ALL the non-official, non-standard YF-11* designations: the MiGs, Sukhois, secret prototypes, etc. and that would reach well beyond the scope of the book's subject, don't you think? Especially since the F-117A never was a fighter nor meant to be one (they kept the designation from the YF-117A prototypes and dropped the "Y" because it was convenient; don't forget either that the YF-117D was Tacit Blue, not sequential and not a fighter either...


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
13,386
Reaction score
1,427
tigercat2 said:
Your comment about the Century Series ending at F-106 is interesting. Setting aside the F-110/F-4 issue, I would think that the F-111 is a legitimate member of the Century Series "club": The designation follows the F-110, over 500 were built and it was in service for about 30 years.




Wes W.

F-111 has never been considered part of the Century series AFAIK. F-100 - XF-108 (or XF-109 if one wants to reach).


tacitblue

ACCESS: Confidential
Joined
Dec 8, 2008
Messages
92
Reaction score
0
One plane that belongs there is the YF-12 interceptor, imho. At least it's got to be borderline.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
tacitblue said:
One plane that belongs there is the YF-12 interceptor, imho. At least it's got to be borderline.

The "Century" fighter designations were all allocated during the 1950s, except for the F-111.

The F- designations of the tri-service system, allocated in 1962, were for all existing fighters of the Air Force and Navy.
Only two previously undesignated types were made part of that sequence, the F-5 and F-12.

This being said, I think that if one type could be made an honorary member of the Century club, it should be the F-5.
It co-existed with the Century series for nearly 8 years, from 1955 to 1962, without any other designation than "N-156F".
As evidence of this I refer you to the excellent book United States Army & Air Force Fighters 1916-1961 published by Harleyford in 1961 (see attachment).

Although ordered in 1960, however, he F-12 didn't fly until 1963 so it can hardly be made part of the Century series.


Attachments

  • F-5.gif
    761.1 KB · Views: 163

tigercat2

ACCESS: Restricted
Joined
May 29, 2008
Messages
43
Reaction score
0
I know this has been covered before, but if the Tri-Service scheme had not been forced upon the services (apparently because McNamara got hopelessly confused over the F4H-1 and the F-110A being the same aircraft), any idea on what the Freedom Fighter would have been called had the "old" scheme continued, or if the Freedom Fighter had received a designation in the late 50's early 60's before Sep 62?
Perhaps it would have been the F-112.




Wes W.


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
35
Chronologically the YF-5A flew before the F-111A (1963 vs. 1964) and the N-156F (YF-5A prototype) flew some four years earlier. My story - sticking to it! -SP


Similar threads

Top
