gerhard said:
Skyblazer, do you have a picture of the K-15?
I don't, unfortunately. Even my various Japanese resources do not have it, even in sketch form... :-\


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
100
blackkite said:
Hi! MXJ1.
Very interesting!! And so there seems to have been a confusion between "7-Shi" and 17-Shi" here.
If Wakakusa was indeed a 7-Shi proposal, then the 17-Shi Nihon Kogata project was something else completely, and not called Wakakusa.
Of course, it could all be a mistake and there never was a 17-Shi Special Trainer Glider. The plot thickens... :-[


gerhard

CLEARANCE: Confidential
Joined
Oct 6, 2008
Messages
76
Reaction score
0
Thanks for the picture Skyblaser and clearing the confusion. There is a huge difference between the two gliders.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
100
gerhard said:
Thanks for the picture Skyblaser and clearing the confusion. There is a huge difference between the two gliders.
Actually it's blackkite who posted the picture, but thanks anyway! ;D

I'm beginning to wonder if the mistake did not stem from the Japanese Wikipedia. ???

They list the MXJ1 as 十七試初歩滑空練習機「若草」 . This translates roughly as "17-Shi Wakakusa (Tender Grass) training glider."

Unless there were two different Wakakusa gliders and/or two distinct MXJ1 designations (unlikely) the photo shown by blackkite clearly does NOT show a "17-Shi" (1942) glider, but definitely a "7-Shi" (1932) one!


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,047
Reaction score
405
Of course it's a 17-shi glider. Please anyone show us Mizuno MXZ1 glider picture. ;)


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
100
blackkite said:
Of course it's a 17-shi glider.
But your picture says "7-Shi", doesn't it?!? So is this to say that Wikipedia is right and that your book made a mistake??
I have rarely seen a Japanese publication make a mistake about a national aircraft.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
100
blackkite said:
Please anyone show us Mizuno MXZ1 glider picture. ;)
Sure. Here it is. And it does look like it could be a competitor to the MXJ1, indeed.


Attachments

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,047
Reaction score
405
Oh thanks. Jinryu is MXZ1!!


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
100
blackkite said:
Oh thanks. Jinryu is MXZ1!!
Actually MXZ1 was only the first type bearing the name Shinryu/Jinryu.

Mizuno later had this very different Shinryu (only a project) which is already discussed elsewhere on this forum (with great profile art by Justo Miranda):


Attachments

Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,022
Reaction score
212

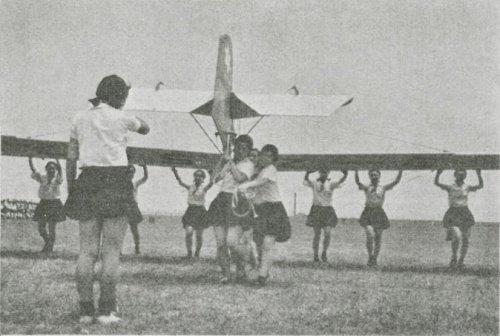

Interesting snippet ! It looks, as if more woman were active in aviation in Japan,
than in the contemorary Germany ! Judging the dresses and look of those scenes,
it probably was a kind of flying club or official organisation ?


Winston

CLEARANCE: Confidential
Joined
Dec 30, 2010
Messages
126
Reaction score
1
The tail reads 大阪 which means Osaka, I can't make out the last character since my Japanese is very poor, but I think it reads something like university. Here is what I found:


‘Japan Student Aviation League’ was established in 1930 fully sponsored by Asahi Newspaper Company. Members at that time were 8 colleges as Hosei, Waseda, Senshu, Keio, Jikei Medical, Meiji, kanto Gakuin, Yokohama. In 1935, glider training was included. After that, Added to the original members, Kansai, Tokai, Tohoku, Kyushu, and Hokkaido Branches are formed and became one of major nationwide students sporting organization. First ‘Student Gliding Competition’ was held at Kirigamine Highland in 1938.


All the activities were suspended due to WWII, and still wait for the restart until 1952 after 7 years of flight prohibition. 20 colleges gathered and organized in 1952 right after the prohibition the became Non-Profit Foundation for glider sports under Ministry of Education in order to promote aviation culture.

http://www.jsal.or.jp/?wpfb_dl=277


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,250
Reaction score
1,049
Hi,

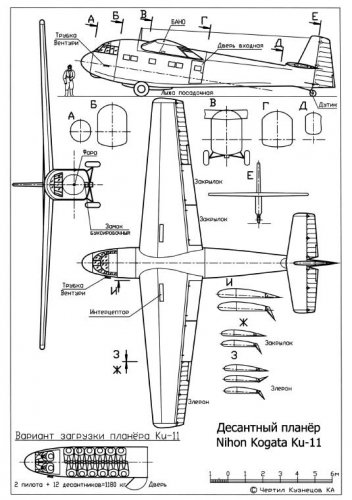

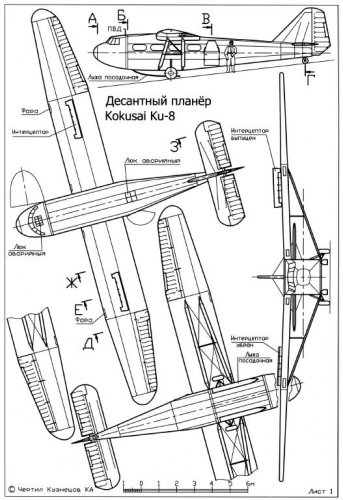

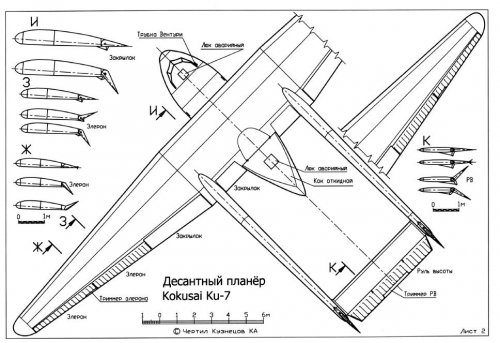

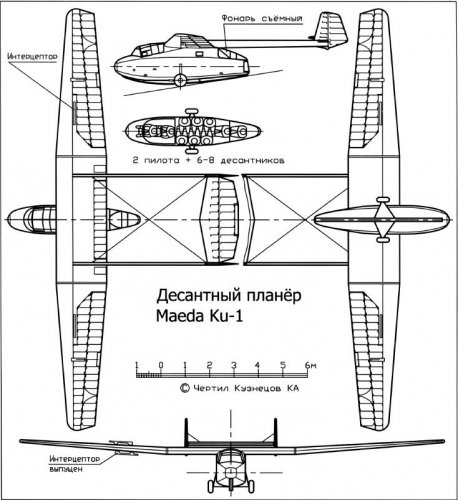

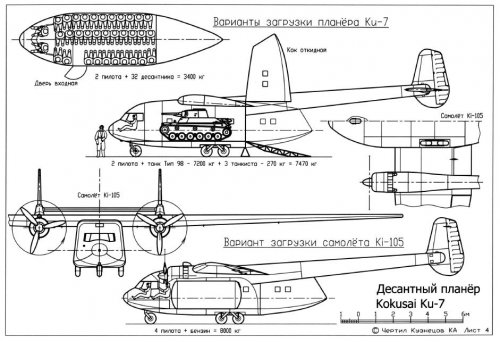

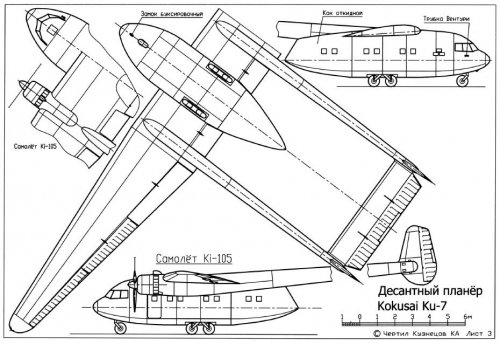

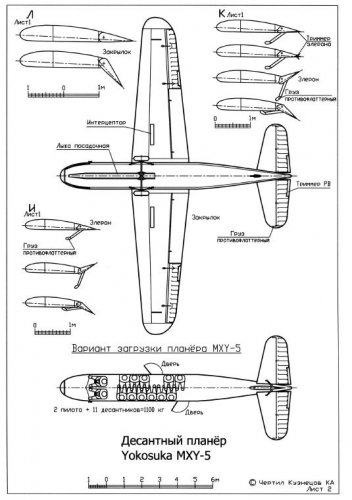

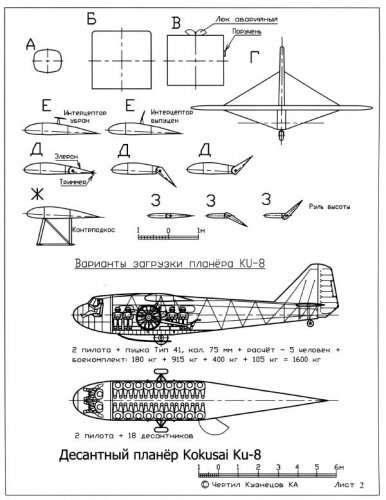

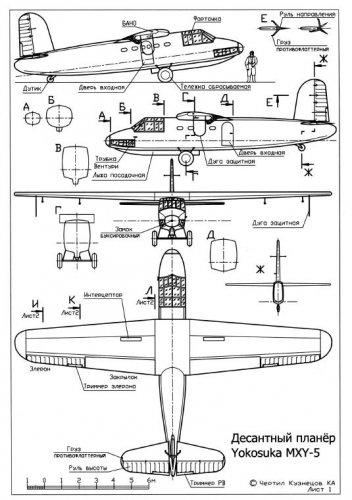

a good drawings to Ku-1,Ku-7,Ku-8 and Ku-11.

Воздушно-десантные операции Люфтваффе. Все боевые планеры III Рейха, Италии и Японии


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
100
Absolutely SPLENDID images !!!

Thanks a lot for this TREASURE.


windswords

CLEARANCE: Secret
Joined
May 20, 2009
Messages
311
Reaction score
15
I second Skyblazer's comment. Great stuff! Do you have a link for these images?

Thanks


windswords

CLEARANCE: Secret
Joined
May 20, 2009
Messages
311
Reaction score
15
Looks like a great book. Too bad there is not an English version.


Winston

CLEARANCE: Confidential
Joined
Dec 30, 2010
Messages
126
Reaction score
1
I will post some information from the book mentioned above.

Ku-11

The Ku-11 was designed by Nihon to compete with Kokusai for a glider capable of carrying 12-18 paratroopers. The project was prepared in 1943 and submitted to the command of the Air Force. In 1944 test flights were conducted on the Ku-11 which demonstrated good performance. However, it was realized that the Ku-11 did not have any real advantage over the Ku-8 by Nihon. This was also combined with the fact Japan was not conducting any landing operations during that time. Nonetheless, 11 units were ordered, perhaps in case the Ku-8 failed. It was never used in combat and only stayed within Japan.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,047
Reaction score
405

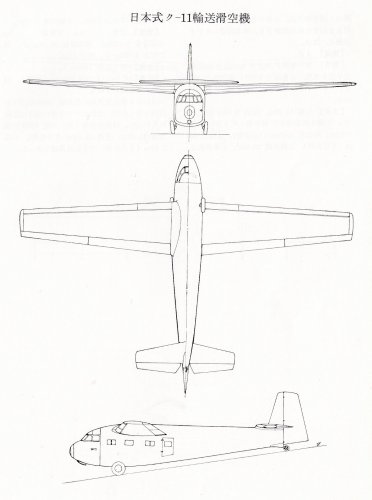

Hi! Ku-11.
Source : ENCYCLOPEDIA OF JAPANESE AIRCRAFT VOL.8 KYUSHU CONTENTS


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,250
Reaction score
1,049
Hi,

what was this ?.

The Xplanes of Imperial Japanese Army & Navy 1924-1945


Attachments

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,047
Reaction score
405

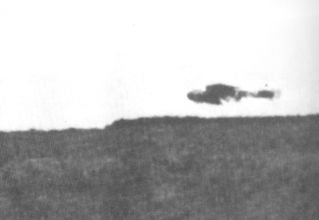

Hi my dear hesham! It's a Mizuno Shinryu(神龍、しんりゅう)special attack glider.

http://www.secretprojects.co.uk/forum/index.php/topic,19085.0/all.html


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,250
Reaction score
1,049
Thank you my dear Blackkite.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,250
Reaction score
1,049

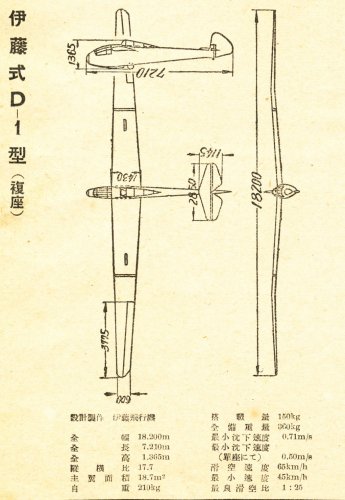

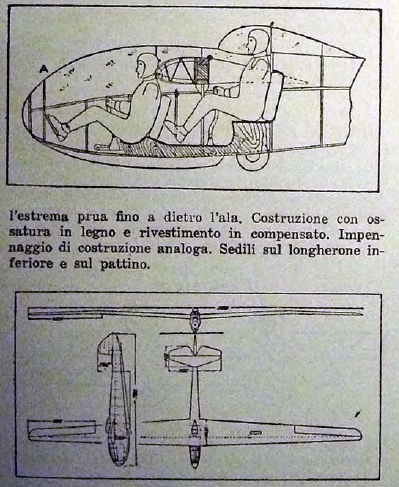

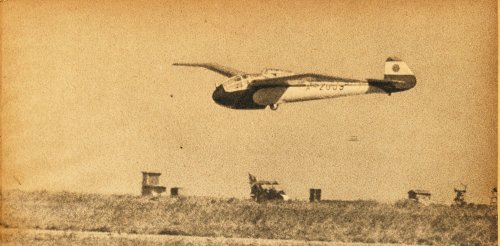

First time to hear about Yamazaki D-1 glider;

http://www.avia-it.com/act/biblioteca/periodici/PDF%20Riviste/Ala%20d'Italia/L'ALA%20D'ITALIA%201940%2001.pdf


Attachments

Apophenia

CLEARANCE: Top Secret
Joined
Jul 25, 2007
Messages
2,159
Reaction score
79

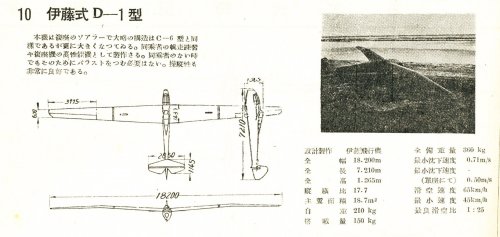

Thanks Hesham. The D-1 was designed by Yoshio Yamazaki, as you say, but the sole D-1 sailplane was built by Itoh Hikoki. So, it is usually referred to as the Itoh D-1:
https://www.j2mcl-planeurs.net/dbj2mcl/planeurs-machines/planeur-fiche_0int.php?code=3454

Wikipedia also assigned the Itoh C-6 to 'Yamasaki Yoshio' (sic). I'm not sure about all the other Itoh glider designs:
http://www.secretprojects.co.uk/forum/index.php/topic,27551.msg285649.html#msg285649

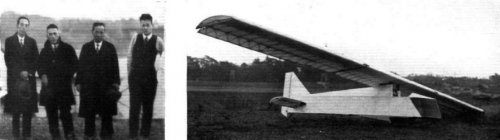

Yoshio Yamazaki is a tough guy to track (in English, anyway). Flight has a 1931 photo of Yamazaki and one of his built sailplane designs:
https://www.flightglobal.com/FlightPDFArchive/1932/1932%20-%200053.PDF

That first Yamazaki glider was later registered J-BESD. There is a poor-quality image in Flugsport 1933:
http://www.atc-ansa.org/aviation-library/database/aviation-military-civil-and-sport-magazine/aviation-1933/index.htm

Yamazaki was also involved in some way with the Japanese version of the German DFS Olympia Meise meant for the 1940 XII Olympiad scheduled for Tokyo:
https://www.questia.com/newspaper/1P3-3077958811/1940-tokyo-olympics-glider-blueprints-found
http://arawasi-wildeagles.blogspot.ca/2015/04/gliders-japanese-olympia-meise.html


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,250
Reaction score
1,049
Amazing Info my dear Apophenia,many thanks.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,781
Reaction score
51
Horrido blackkite-san,
do you know an english Version of the vsha-site?

Thanks


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,047
Reaction score
405
Maveric said:
Horrido blackkite-san,
do you know an english Version of the vsha-site?

Thanks
Hi Maveric-san! Unfortunately I don't know vsha-site English version. How about to use contact us.
Please try auto translator. If you have any question, please let me know.Iwill try to answer. ;)

http://www.vsha.jp/page1.html

Mail address
vintage@vsha.jp

To Vintage Sailplane Historical Ass.
PO.box №11
Sawara Post Office
1-1-1 Fukuoka city
Sawara-ku
Japan
〒814-0799


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
24,250
Reaction score
1,049

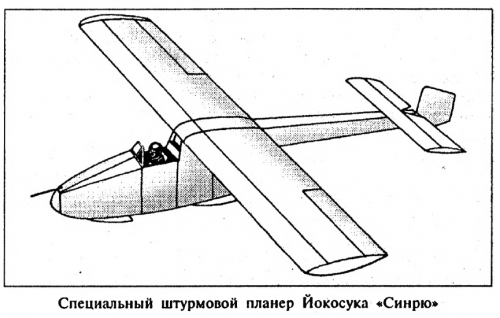

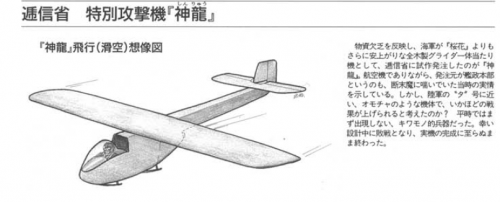

From; Иванов Ю.Г. - Камикадзе. Пилоты-смертники (Мир в войнах) - 2001

the Yokosuka Sinryu.


Attachments

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,047
Reaction score
405
Correct information. :D


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,047
Reaction score
405
Hi!
http://www.secretprojects.co.uk/forum/index.php/topic,19085.0/all.html


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,047
Reaction score
405
Ummm.....twin vertical tail stabilizer!! :eek:
According to Ryusuke's Great book"Special attack aircraft and flying bomb of the IJA and the IJN(日本陸海軍の特殊攻撃機と飛行爆弾), ISBN978-4-499-23048-3", Modified Jinryu had twin vertical tail stabilizer.
There is a correct three side view drawing and real side view photo(only No.1 prototype glider) of Jinryu No.1/2 prototype glider with no dihedral angle wing, single vertical tail stabilizer and three rocket boosters based on actual design drawing in Ryusuke's book.
Modified Jinryu's drawing in his book is only side view with no dihedral angle wing, twin vertical tail stabilizer and three rocket booster.


Jinryu replica video. Enjoy.
https://www.youtube.com/watch/?v=h_0AatGg5B4

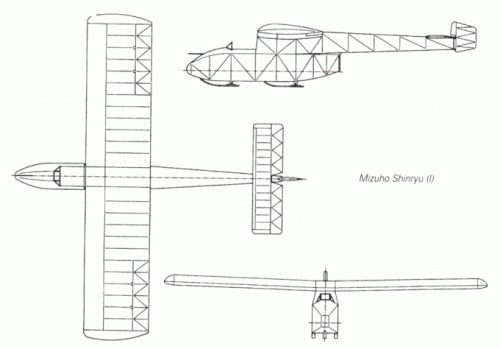

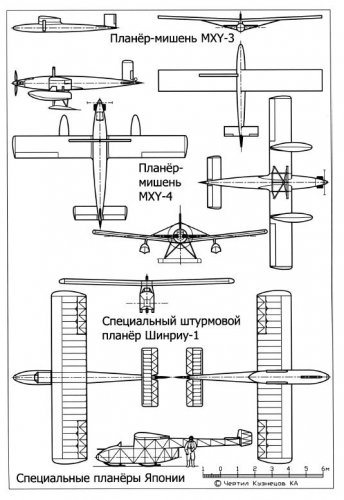

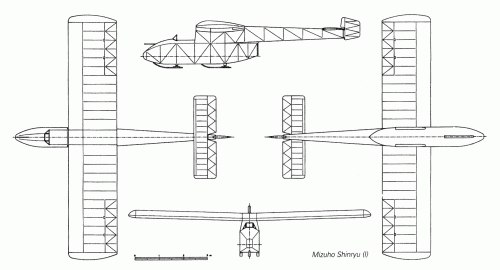

Attached Jinryu three side view is almost same as actual design drawing, but wing aspect ratio is too large.

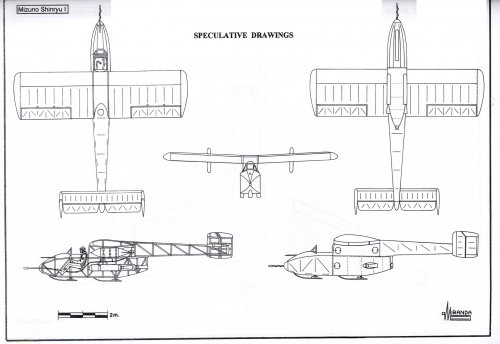

Justo-san's wing aspect ratio seems to be good. ;) But wing with dihedral angle is.......I think that high wing does not need dihedral.
http://alternathistory.com/proekt-perekhvatchika-mizuno-shinryu-ii-yaponiya


Attachments
