Hi everyone ,

Looking out for more information and a drawing , of the ( Two-seat ) version of the
Nakajima Navy Exp.18-Shi " Tenrai " ( J5N1 ) otsu ( B ) type interceptor fighter.

Source : Japanese Aircraft of the Pacific War ( R.J.Francillon )

Thank's in advance

Swallow.


Justo Miranda

ACCESS: Above Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
5,077
Reaction score
4,195
Website
www.amazon.com
From
http://uk.geocities.com/sadakichi09/navy/IJN17.htm#J5N1-3

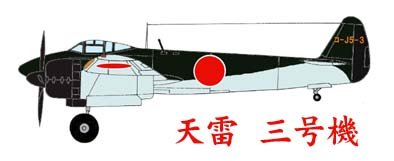

Nakajima J5N1 "Tenrai" Prototype #3 Night Fighter
Length : 11.46m
Wing Span : 14.40m
Hight : 3.55m
Wing Area : 32.00 Square Meter
All-Up Weight : 7,300Kg
Empty Weight : 5,390Kg
Engine : Nakajima Homare21 (1,990hp) X 2
Max Speed : 597Km/h
Cruse Speed : 370Km/h
Max Range : 1,482Km
Service Ceiling : 9,000m
Crew : 2
Armament : 30mm Machine Gun X 2, 20mm Machine Gun X 2,
20mm Machine Gun X 4 (Sloped Machine Guns)
Bomb : 60Kg X 2


Attachments

  • j5n1-3.jpg
    15.5 KB · Views: 293

SlickDriver

ACCESS: Confidential
Joined
Jun 20, 2006
Messages
162
Reaction score
12

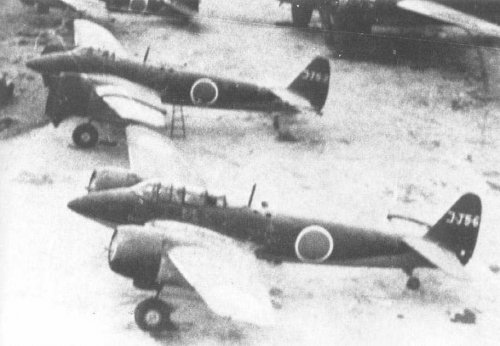

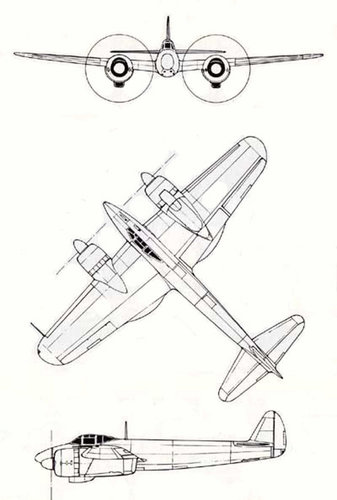

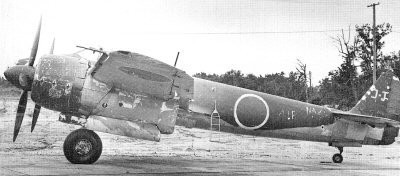

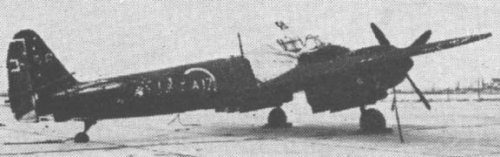

I found these in about 30 seconds with a google search


Attachments

  • J5N1_.jpg
    24.3 KB · Views: 240
  • nakajima-j5n1-tenrai.gif
    44.7 KB · Views: 267
  • tenrai-2.jpg
    23.2 KB · Views: 235

swallow

ACCESS: Confidential
Joined
Jan 20, 2008
Messages
61
Reaction score
7
Thank you gentlemen for your respons.
Mabe i'm wrong , but are you sure these is the twoseater ?
I have seen some time ago in a Japanese book ( I can't remember the name of the book ),
a little drawing of a " Tenrai " with a longer cockpit !
Can it be that this was the two-seater in place of the one you are showing.
There were 6 aircraft build. 4 one-seaters and 2 two-seaters.

Source : Japanese Aircraft of the Pacific War / R.J.Francillon.

Swallow.


swallow

ACCESS: Confidential
Joined
Jan 20, 2008
Messages
61
Reaction score
7

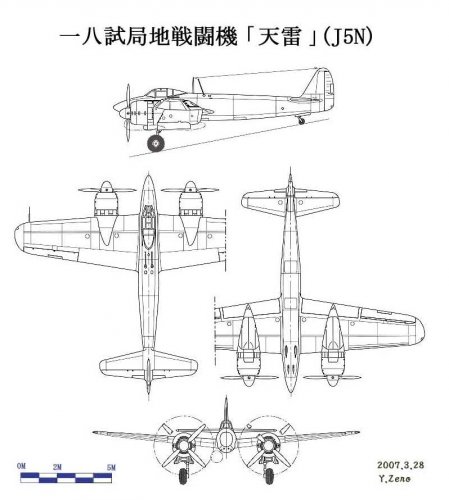

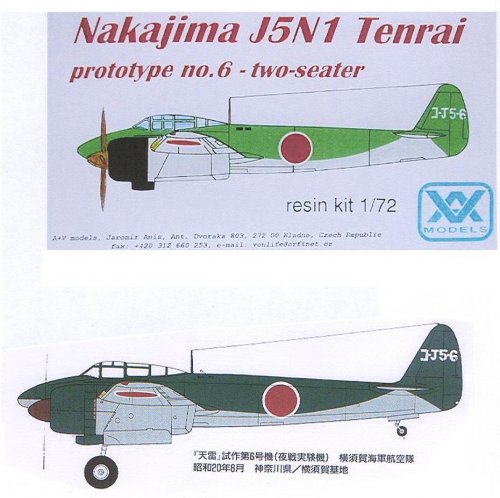

Thank you Miranda ,


That's the aircraft I was looking for.

Swallow.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,072
Reaction score
4,158

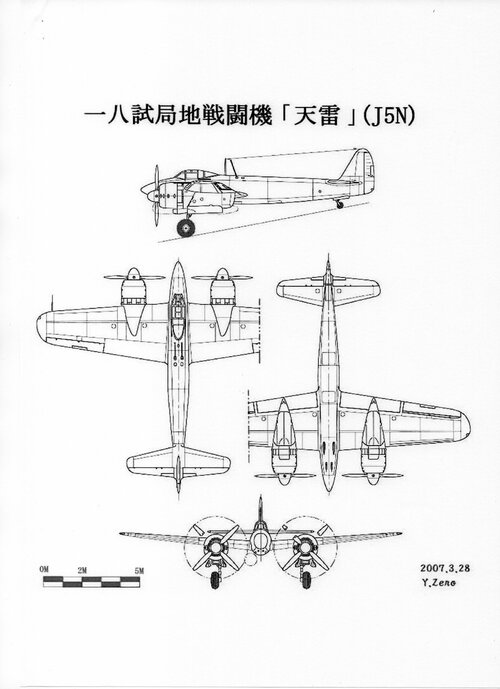

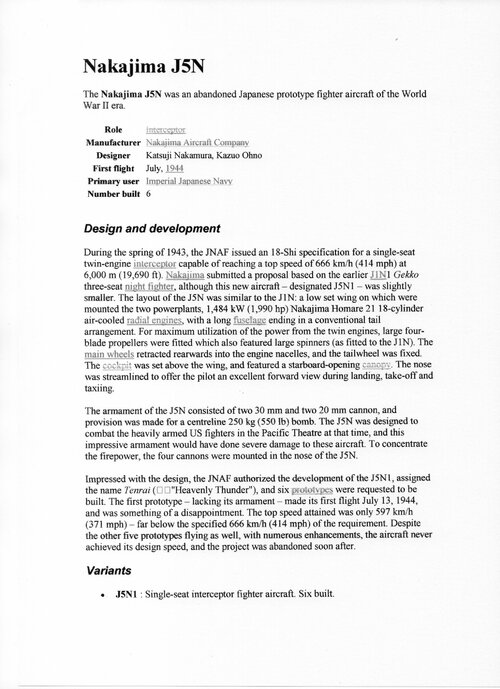

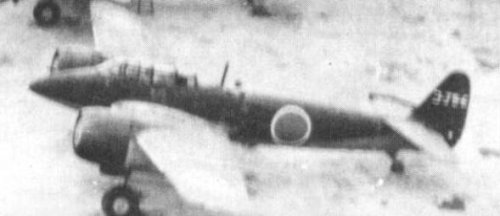

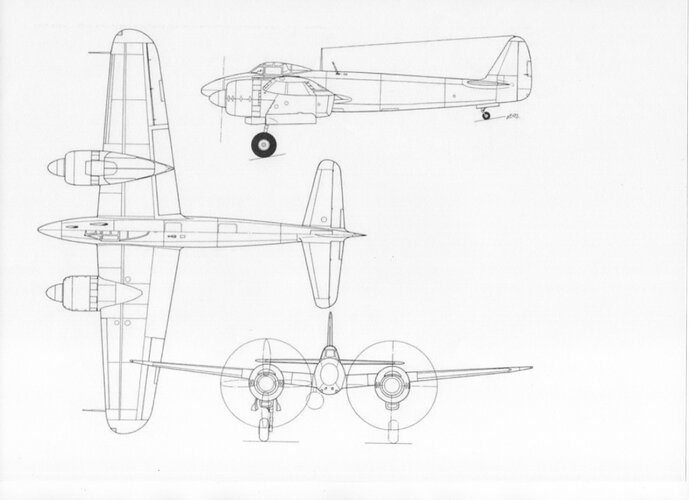

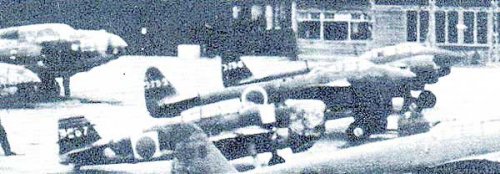

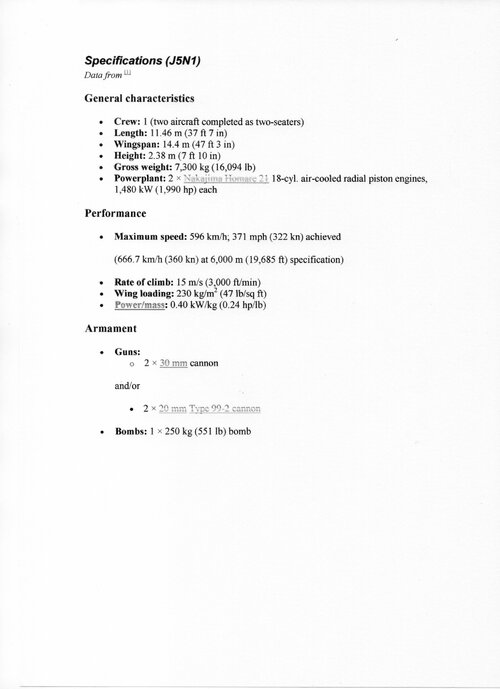

Hi!


Attachments

  • jnrsC235jC.jpg
    59.2 KB · Views: 97
  • jnrsC235j.jpg
    31.3 KB · Views: 72
  • tenrai.jpg
    15.9 KB · Views: 64
  • japanese_navy_xnf-nakajima_tenrai_002.jpg
    53.1 KB · Views: 82
