Japanese Gliders and Assault Gliders

borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
103

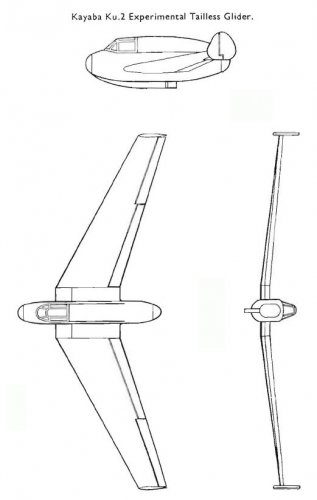

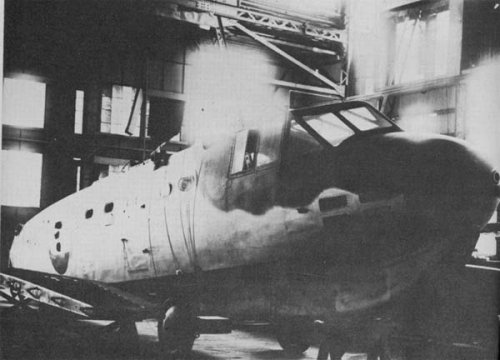

1) -Kayaba Ku. 2

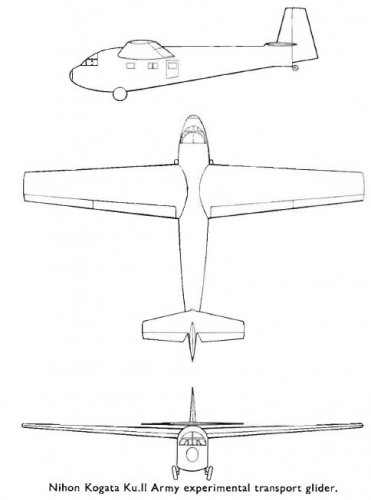

2) -Nihon Kagata Ku.II
from "Air pictorial"

Can someone help me, the question as follows:
known whether the experience of combat application (designing) Japanese WW2 gliders as (dive bomber / attack, fighter).? For example: BV-40-Germania.
I do not mean rocket / ram-jet powered Ohka, Baika.


Attachments

  • Kayaba Ku2.jpg
    Kayaba Ku2.jpg
    59.7 KB · Views: 492
  • Ku.II.jpg
    22.3 KB · Views: 444

gerhard

ACCESS: Confidential
Joined
Oct 6, 2008
Messages
76
Reaction score
1
Hi Guys

Great, thanks for the assistance. What were the Japanese designations for these German gliders?

Cheers
Gerhard


Pelzig

ACCESS: Secret
Joined
Oct 24, 2008
Messages
446
Reaction score
21
So far as my information goes, the Japanese did not make efforts to create a purpose built, unpowered glider along the lines of the German BV-40 or the late war German modifications of gliders to house MP-40 submachineguns for attack purposes.

borovik said:
1) -Kayaba Ku. 2
2) -Nihon Kagata Ku.II
from "Air pictorial"

Can someone help me, the question as follows:
known whether the experience of combat application (designing) Japanese WW2 gliders as (dive bomber / attack, fighter).? For example: BV-40-Germania.
I do not mean rocket / ram-jet powered Ohka, Baika.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
790
Reaction score
103
Thank you Ed, for a qualified answer.
Of the projects, like the use of gliders I know:
-four projects in the Soviet Union, some in Germany, at least one in Italy, even one in the U.S. (designed by Lester P. Barlow)
A negative result in Japan, too, result))


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70

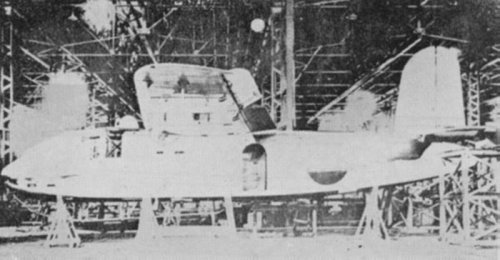

In 'Japanese Special Attack Aircraft & Flying bombs' by Ryusuke Ishiguro
and Tadeus Januszewski ,mention is made of the Kokuyoku Jinryu.

It was a suicide glider with a 100kg charge located in the fuselage.
The plane should be launched with rocket assisted take off from tunnels
in mountain sides and used against ships and tanks attempting to land on
the beaches of the Japanese islands.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,582
Reaction score
884
Hi Lark. That should be Kokukyoku Jinryu -- Kokukyoku being a family name. The same source also mentions a Kokukyoku Shusui-shiki Kayaku rocket for the IJN.

I think 'kokuyoku' means 'ruby'. Anyone know what 'jinryu' meant to a contemporary (it seems to mean 'people mover' in a light rail sense now).


Pelzig

ACCESS: Secret
Joined
Oct 24, 2008
Messages
446
Reaction score
21
To be technical, the Jinryu was a motor glider, not a true, unpowered glider. The use of rockets which were built into the glider to allow it to take off, by definition, removes it from being a pure sailplane. borovik's question was whether or not the Japanese had a purpose built attack glider like the German BV 40 which had no propulsion, which they did not. They also did not, so far as I know, adapt the sailplanes they had for attack purposes, such as the Germans did with the test arming of DFS Habicht sailplanes with 9mm MP40 submachineguns (which would have been of highly dubious value).

;D

lark said:
In 'Japanese Special Attack Aircraft & Flying bombs' by Ryusuke Ishiguro
and Tadeus Januszewski ,mention is made of the Kokuyoku Jinryu.

It was a suicide glider with a 100kg charge located in the fuselage.
The plane should be launched with rocket assisted take off from tunnels
in mountain sides and used against ships and tanks attempting to land on
the beaches of the Japanese islands.


Pelzig

ACCESS: Secret
Joined
Oct 24, 2008
Messages
446
Reaction score
21
In Ishiguro and Januszewski's book, "Jinryu" is defined as "Divine Dragon". There is also the Mizuno "Shinryu II", Shinryu also meaning "Divine Dragon". This may be the rocket glider/interceptor the authors reference as the MX75 in their Japanese Special Attack Aircraft & Flying Bombs book.

Apophenia said:
Hi Lark. That should be Kokukyoku Jinryu -- Kokukyoku being a family name. The same source also mentions a Kokukyoku Shusui-shiki Kayaku rocket for the IJN.

I think 'kokuyoku' means 'ruby'. Anyone know what 'jinryu' meant to a contemporary (it seems to mean 'people mover' in a light rail sense now).


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70
You are correct Apophenia,I indeed forgot a 'k' in the Kokukyoku..

Since the rockets of this design were only used for take off with
10sec. firing time , it was not a true powered glider I think.
During it's development,it was suggested that the plane should be
armed with rocketprojectiles for attacks against B-29's , which
should have made it an unpowered interceptor as the BV 40...


Pelzig

ACCESS: Secret
Joined
Oct 24, 2008
Messages
446
Reaction score
21
I'd imagine it may boil down to ones definition of a glider or what the intent of borovik's question was. A true glider has no means of propulsion at all. That is, it cannot take off on its own and requires some external means to get it off the ground, usually by being towed aloft. A motor glider has a means to take off on its own or sustain itself in flight if required.

True, the Jinryu was considered as a means to attack B-29s but I think the idea of the Jinryu being anti-bomber was passed along to the Mizuno Shinryu which was dedicated to the task rather than the Jinryu being adapted to such a task. The Shinryu was far more an aircraft like the Me 163 in mission profile which had a glider form given the short endurance of the rocket engines that required superior gliding capability in order to return to earth in one piece. The open cockpit Jinryu, if it was left as it was or modified to just include the added rocket motors and rocket armament, would have been hard pressed to take on B-29s at 30,000+ feet.

lark said:
You are correct Apophenia,I indeed forgot a 'k' in the Kokukyoku..

Since the rockets of this design were only used for take off with
10sec. firing time , it was not a true powered glider I think.
During it's development,it was suggested that the plane should be
armed with rocketprojectiles for attacks against B-29's , which
should have made it an unpowered interceptor as the BV 40...


gerhard

ACCESS: Confidential
Joined
Oct 6, 2008
Messages
76
Reaction score
1
Hi Guys

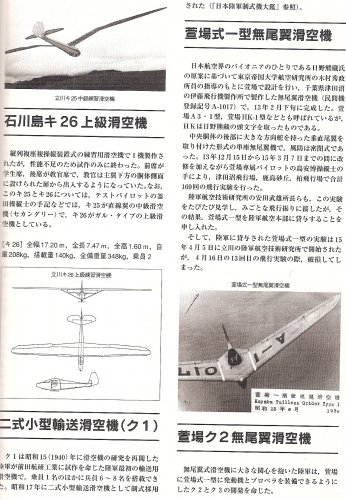

I have found a new glider page. Could someone identify these?

http://www.geocities.jp/wjp_glider/study/study1.htm

Regards
Gerhard


Attachments

  • 1.gif
    18 KB · Views: 167
  • 2.gif
    18.8 KB · Views: 145
  • 3.gif
    19.6 KB · Views: 140
  • 4.gif
    21.8 KB · Views: 145

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,895
Reaction score
233

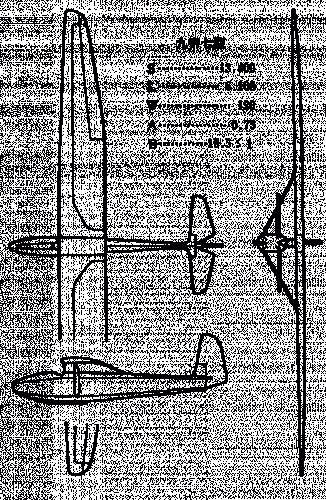

1 appears to be an original design, developed/inspired by the Lippisch designed 'Pruefling' secondary glider, a following to the 'Zogling' primary.

2 appears similar to the Edmund Schnieder (Grunau) designed ESG 31 series, but differs somewhat from the drawing that I have.

3 looks very familiar, but I'm damned if I can remember what it is. The lobate ailerons are very distinctive, and the faired fuselage, along with the '22:1' data entry,
which is almost certainly the glide ratio, suggest the immediate post-war period.

4 is a Goppingen 1 'Wolf' from 1935. According to 'Sailplanes 1920-1945', Martin Simons, page 99, three were exported to Japan.

Sorry, that's the best I can do, perhaps one of our Japanese speaking colleagues can translate the page for us?


cheers,
Robin.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541

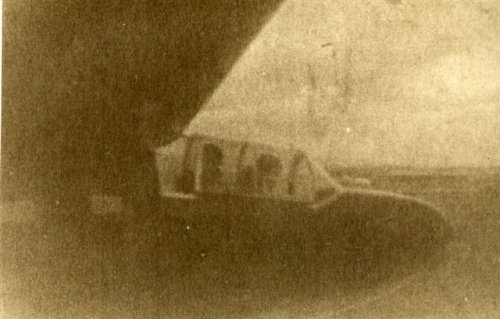

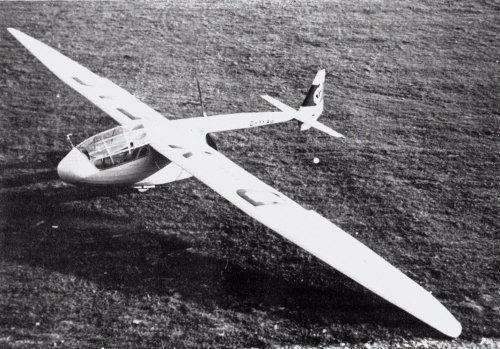

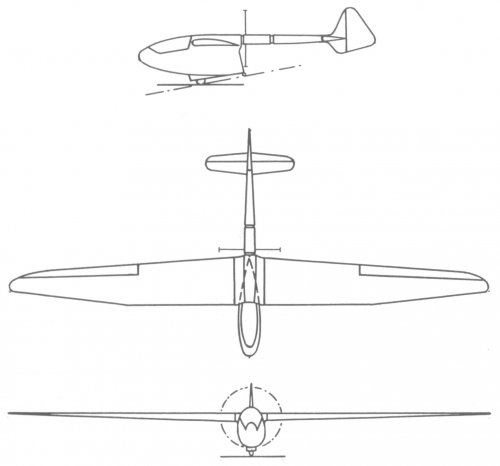

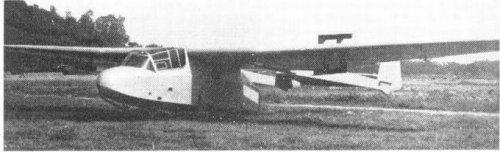

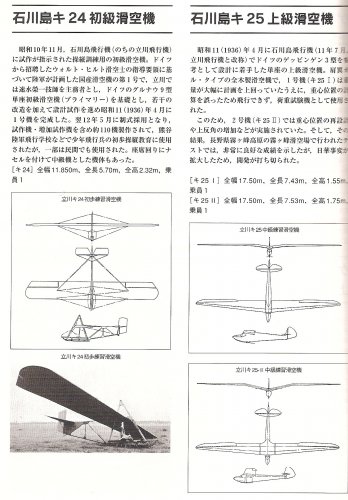

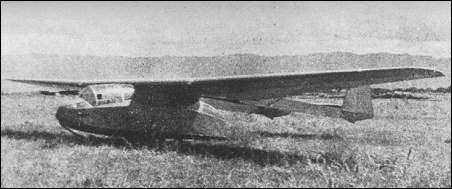

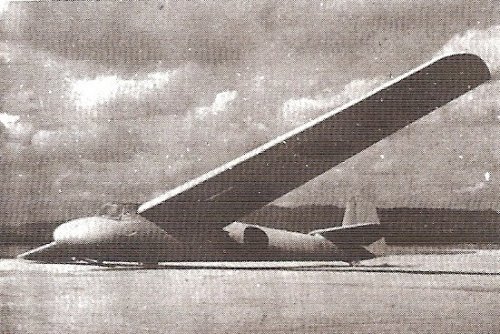

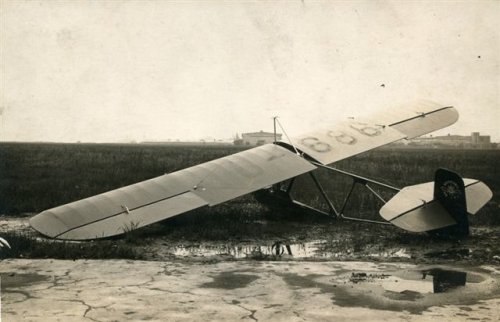

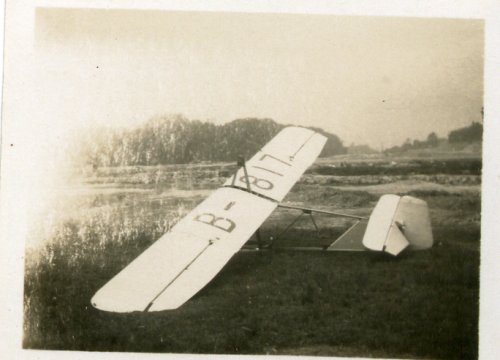

Hi! No.2 and No.3 were Tachikawa Ki24.

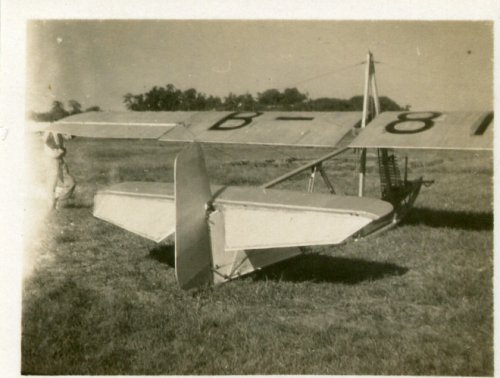

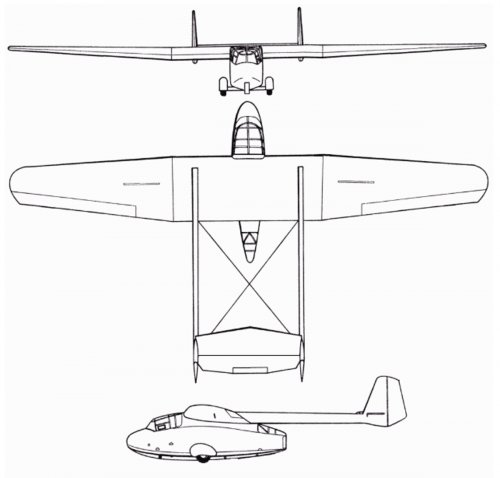

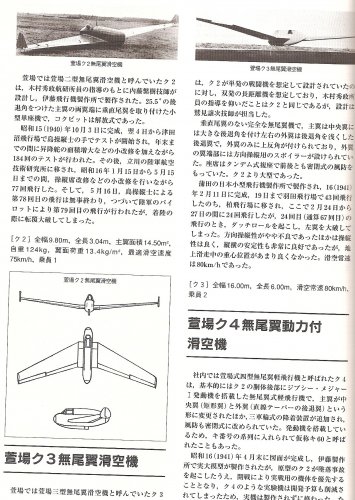

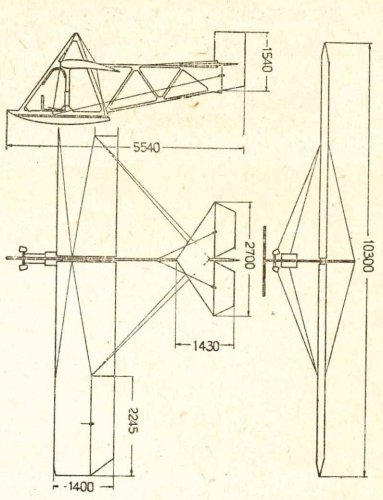

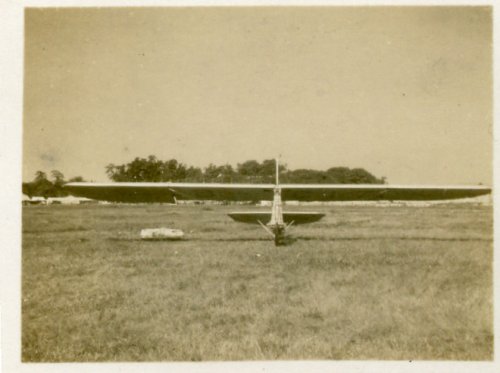

No.4 picture shows rear view and front view of KAYABA Ku3(HK3).

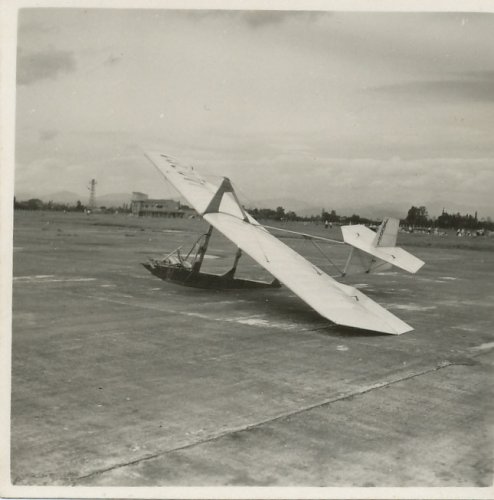

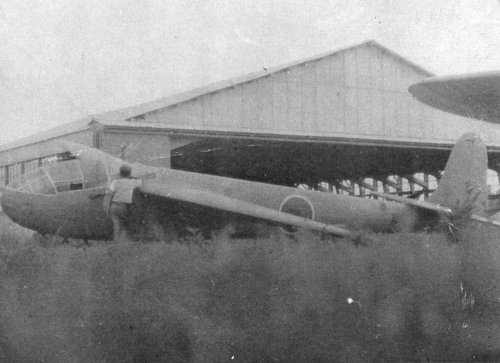

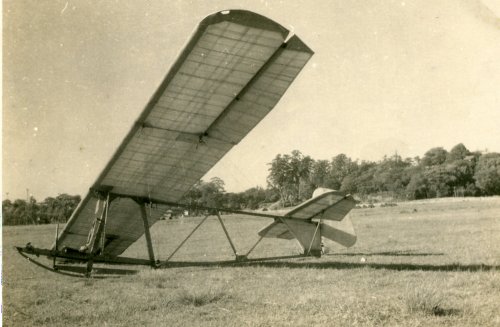

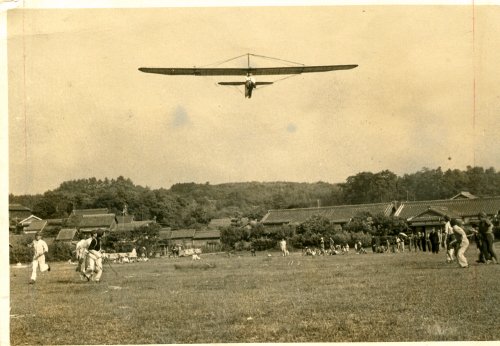

No.5 and No.7 were Fukuda Ki23.(Hikari-shiki 6.2)
No.9 was Kyushu imperial university Type5 "Mt.Aso".
No.10 was Kyushu imperial university Type7.
No.12 was Goeppingen 1.
http://blogs.yahoo.co.jp/kami9454/52776301.html
These links are for Kayaba 1 and 2 and3.
http://www2s.biglobe.ne.jp/~FlyWing/JapaneseTaillessPlane/Kayaba-1.html
http://www2s.biglobe.ne.jp/~FlyWing/JapaneseTaillessPlane/Kayaba-2.html
http://www2s.biglobe.ne.jp/~FlyWing/JapaneseTaillessPlane/Kayaba-3.html
And the list of Japanese military gliders.
http://ksa.axisz.jp/G-12HikoDaiichisentai-2.htm
And some pictures. Source:All the Experimental Aircraft in Japanese Army, KANTOSHA TOKYO ISBN978-4-87357-233-8 C9476 February 2008


Attachments

  • Kayaka Ku2 and Ku3.jpg
    Kayaka Ku2 and Ku3.jpg
    679.1 KB · Views: 96
  • Tachikawa Ki-25 and Kayaba HK-1.jpg
    Tachikawa Ki-25 and Kayaba HK-1.jpg
    678.4 KB · Views: 96
  • Tachikawa Ki-24 and 25.jpg
    Tachikawa Ki-24 and 25.jpg
    499.8 KB · Views: 91
  • FUKUDA Ki-23('Hikari-shiki 6.2).jpg
    FUKUDA Ki-23('Hikari-shiki 6.2).jpg
    116.9 KB · Views: 150

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541

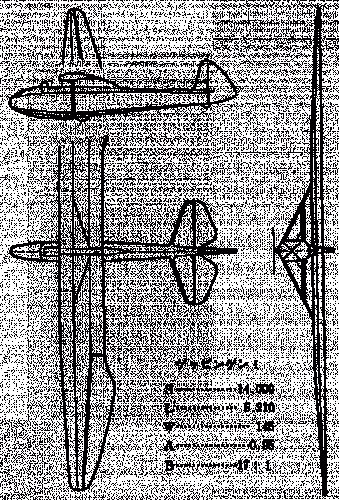

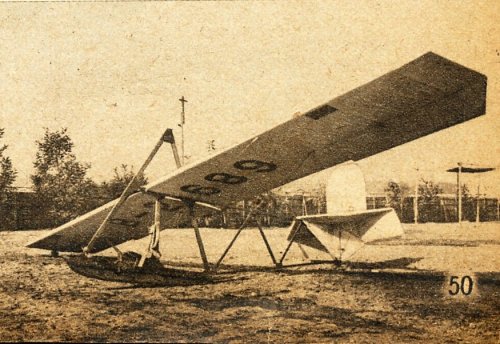

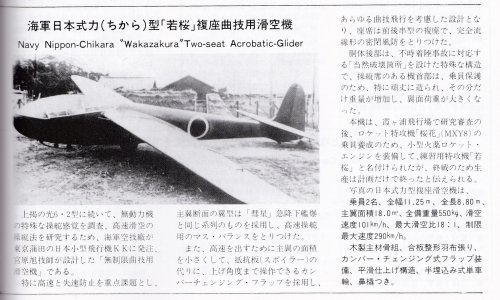

No.1 was perhaps Nippon small aircraft "蝶 Chou:butterfly".

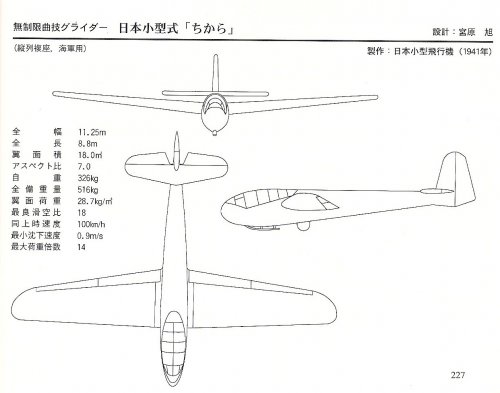

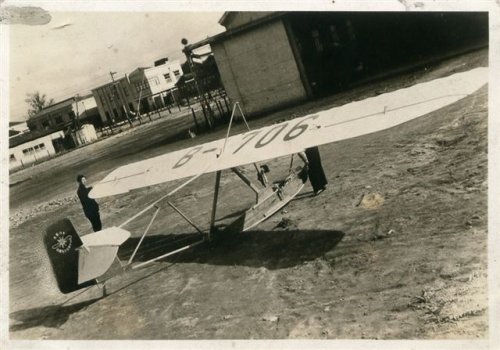

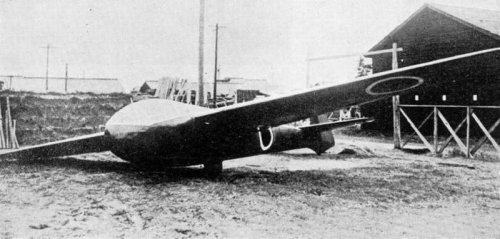

No.6 was Nippon small aircraft "Chikara(ちから:power)" nonlimited acrobatic glider for the IJN.
No.11 was Maeda type 6.
Now we can identify all of the gliders here.
Unknown source


Attachments

  • Nippon small aircraft Chikara.jpg
    Nippon small aircraft Chikara.jpg
    141.6 KB · Views: 87

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
1,895
Reaction score
233
...as the Germans did with the test arming of DFS Habicht sailplanes with 9mm MP40 submachineguns (which would have been of highly dubious value).


Drifting OT briefly, but IIRC, the MG armed Habichts had clipped wings (Stummel Habicht), and weren't intended for operational use, but for gunnery training by trainee Me163 pilots.


cheers,
Robin.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541
Hi! I found this great website for Japanese gliders.
unfortunately it's written only in Japanese, I will try to explain you one by one.
If you click left side of this website,you can see many Japanese glider pictures and 3-side views.

http://www.vsha.jp/page219.php


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541
Hi!

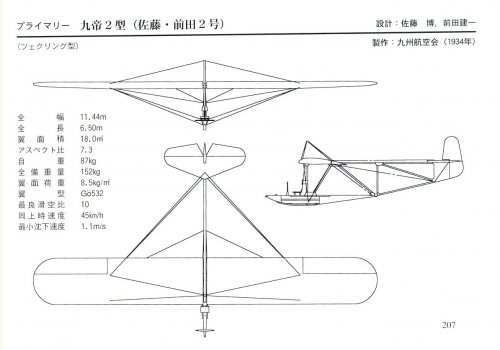

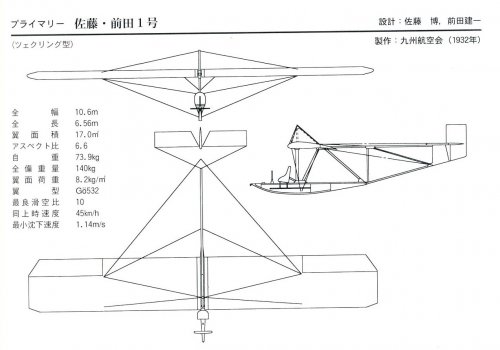

Kyutei 1 gata.(Sato Maeda 1-go)
Kyutei 2 gata.(Sato Maeda 2-go)

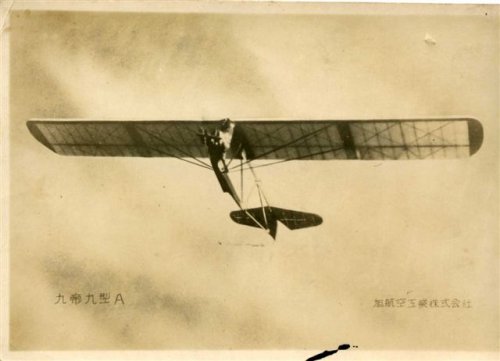

Kyutei 9 gata-A.

Kyutei means Kyushu teikoku daigaku(九州帝国大学)(the Kyushu imperial university,now Kyushu university.)

http://www.kyushu-u.ac.jp/english/university/history/index.php

Gata(型) means "type".
Go(号) means "number".(1-go means No.1)
Sato(佐藤) and Maeda(前田) are designer's name.


Attachments

  • kyutei 9 gata-A.jpg
    kyutei 9 gata-A.jpg
    38.7 KB · Views: 362
  • kyutei 2 gata,satoumaeta-2gata.jpg
    kyutei 2 gata,satoumaeta-2gata.jpg
    133 KB · Views: 364
  • kyutei 1 gata,satoumaeta-1gata.jpg
    kyutei 1 gata,satoumaeta-1gata.jpg
    134.6 KB · Views: 367

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
Brilliant! Now it may be easier to distinguish between the various gliders we find on old Japanese photographs. These two models also remind me of the Tachikawa Ki-24, don't you think so?


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541
Yes I think so.

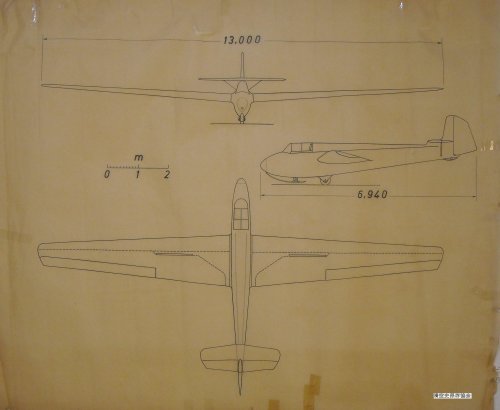

Next one is Mizuno(美津濃) shiki 102 gata.
Shiki(式) means "type",too
Mizuno is the maker of this glider.

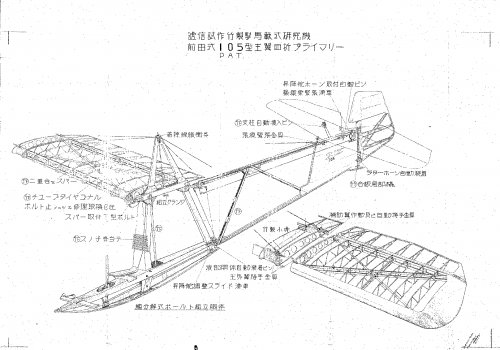

And Maeda shiki 105 gata.


Attachments

  • maeda105-5.jpg
    303.4 KB · Views: 37
  • maeda105-3.jpg
    157.1 KB · Views: 38
  • maeda105-4.jpg
    114.8 KB · Views: 34
  • maeda105-2.jpg
    134.3 KB · Views: 36
  • maeda105-1.jpg
    240.2 KB · Views: 54
  • maeda105-zumen.jpg
    577.1 KB · Views: 54
  • mizunosiki-102-3.jpg
    72 KB · Views: 318
  • mizunosiki-102-2.jpg
    55.7 KB · Views: 318

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541

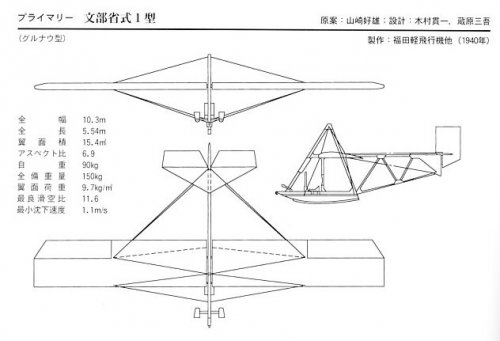

Hi!

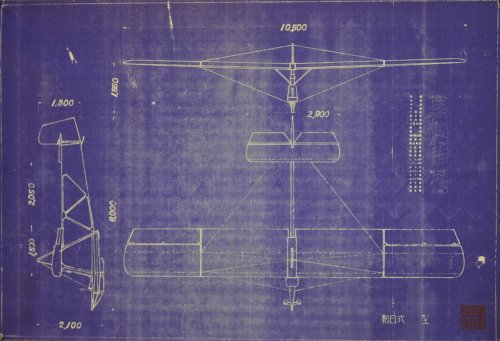

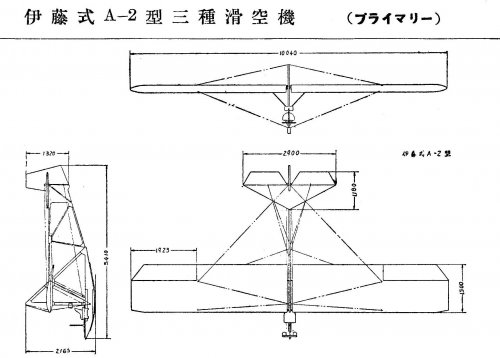

Ito(伊藤式) shiki A-2 gata.
Monbusho(文部省) 1 go.
Monbusho means Ministry of education.
Hikari(光) shiki 1.3 gata.
Hikari means light.
Asahi(朝日) shiki Komadiri(駒鳥) go.
Asahi means morning sunshine. Komadori means a robin.


Attachments

  • komadori3menzuaozu.jpg
    502.9 KB · Views: 41
  • hikarisiki1_3koukuuasahikiji.jpg
    142.5 KB · Views: 43
  • monbusyou-1-1.jpg
    200 KB · Views: 42
  • monbusyou1-sanmenzu.jpg
    51.6 KB · Views: 44
  • itou-A2-1.jpg
    82.1 KB · Views: 38
  • itou-A2.jpg
    304.9 KB · Views: 44

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541
Hi! It's no use to post all pictures and drawings of these gliders.
I will make Japanese-English tables or you can easily identify all of the gliders of this site. Please wait.

Another site.
http://ksa.axisz.jp/0005-Gindex.htm

http://park12.wakwak.com/~dikiya/solid/farc-works/glider-series/glider-series.html

http://www2s.biglobe.ne.jp/~FlyWing/JapaneseTaillessPlane/JapaneseTaillessPlane.html

http://www.syoyuroku.sakura.ne.jp/13gousi/13-04.pdf

Sorry.Off topic.
http://www.vsha.jp/a/sageyoku-matsumoto.pdf


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541

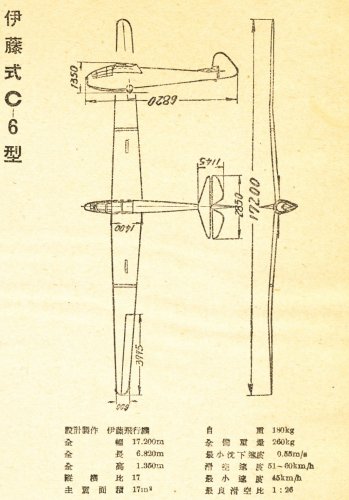

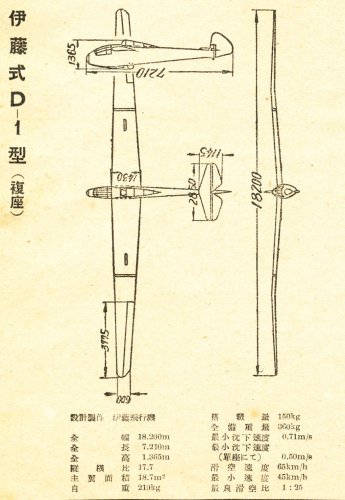

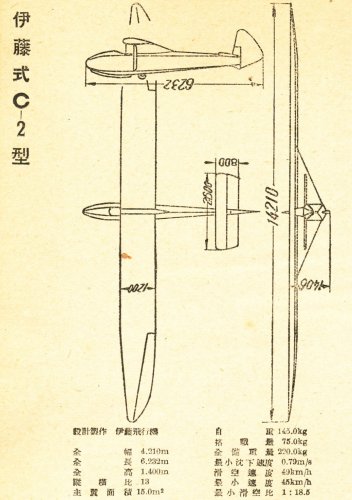

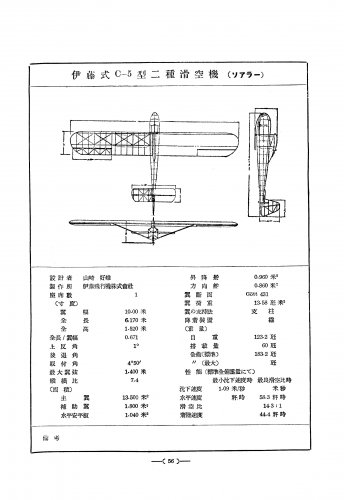

Hi My dear hesham!
Itoh is 伊藤. ;)


Attachments

  • itou-d-1-sanmenzu.jpg
    282.7 KB · Views: 213
  • itousiki-c-6-sanmenzu.jpg
    281.9 KB · Views: 211
  • itousiki-C-5.jpg
    543.2 KB · Views: 230
  • itouc-2sannmenzu.jpg
    291.2 KB · Views: 226

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541
Hi!


Attachments

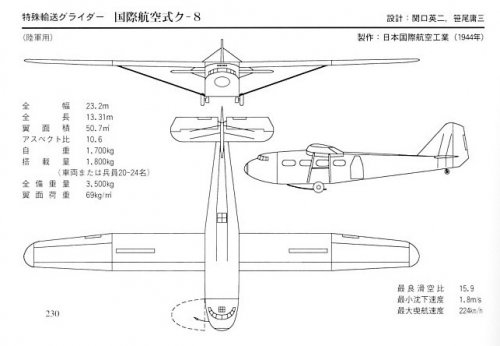

  • Japanese_Ku_series_gliders_list.jpg
    648.1 KB · Views: 235

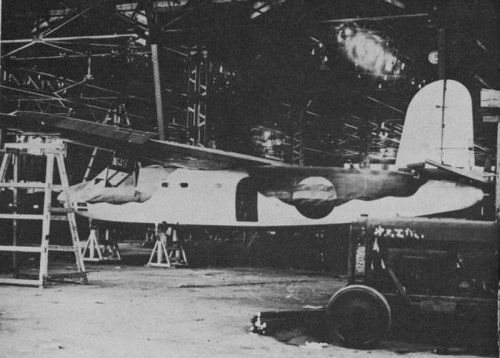

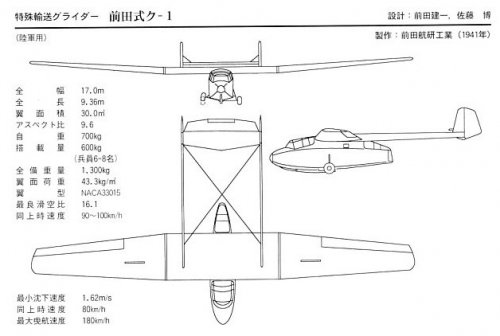

  • Ku-1 maeda.jpg
    Ku-1 maeda.jpg
    52.4 KB · Views: 113

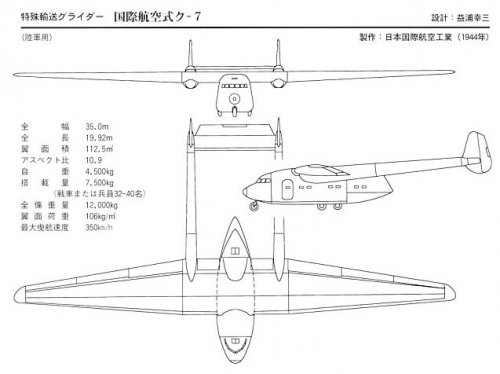

  • ku-7 kokusai.jpg
    ku-7 kokusai.jpg
    54.5 KB · Views: 88
  • ku-8  kokusaikoku.jpg
    ku-8 kokusaikoku.jpg
    55.6 KB · Views: 93
  • ku-10 maeda.JPG
    ku-10 maeda.JPG
    515.7 KB · Views: 115

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,679
Reaction score
3,466
Hi,

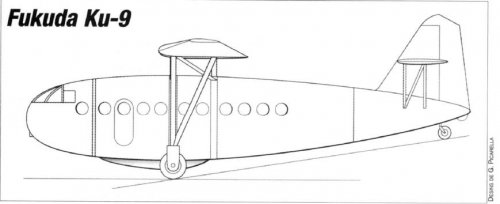

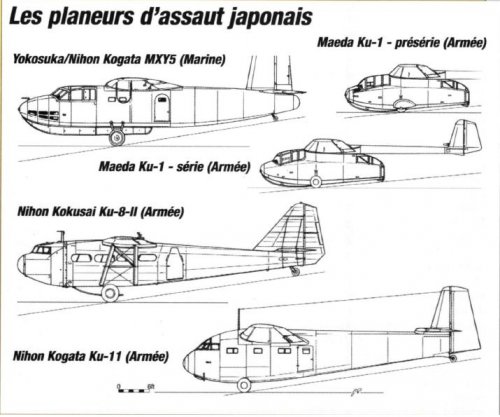

from Le FANA 427,here is the Fukuda Ku-9 drawing,also the Nihon Ku-8-II and
Ku-11,also the Yokosuka/Nihon MXY5 and Maeda Ku-1 drawings.


Attachments

  • Ku-1 - MXY5 - Ku-8-II & Ku-11.JPG
    Ku-1 - MXY5 - Ku-8-II & Ku-11.JPG
    62.1 KB · Views: 262
  • Ku-9.JPG
    29.3 KB · Views: 242

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,679
Reaction score
3,466
Hi,

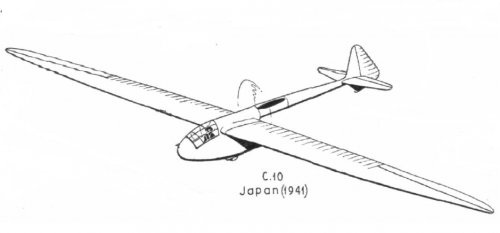

does anyone know if that C.10 glider was built or not ?.


http://www.flightglobal.com/pdfarchive/view/1954/1954%20-%201382.html


Attachments

  • C.10.png
    89.3 KB · Views: 116

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,961
Reaction score
324
Looks like the german FAG Chemnitz C.10...!!!


Attachments

  • FAG Chemnitz C-10.jpg
    FAG Chemnitz C-10.jpg
    711.6 KB · Views: 70
  • FAG Chemnitz C-10-.jpg
    FAG Chemnitz C-10-.jpg
    222.9 KB · Views: 82

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,961
Reaction score
324
I think so. All of these models (Flight article) are from Germany, only the Fauvel was french.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541
Hi! Nippi MXY5 glider and Chikara type training glider for MXY5.


Attachments

  • soa-tikara.jpg
    141.4 KB · Views: 98
  • Nihon Kogata Hikoki Training Glider-ww2shots-air force.jpg
    Nihon Kogata Hikoki Training Glider-ww2shots-air force.jpg
    51.2 KB · Views: 91
  • mxy5-picture3-ww2shots-air force.jpg
    mxy5-picture3-ww2shots-air force.jpg
    42.9 KB · Views: 70
  • mxy5-2.jpg
    57 KB · Views: 60
  • mxy5-1.jpg
    74.5 KB · Views: 78
  • kaigun-MXY5.jpg
    127 KB · Views: 101

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
This plan for the MXY5 is absolutely splendid, thanks.

Can you tell me why the L7P1 prototype seems to have two fuselages glued together? Doesn't make sense to me.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541
Skyblazer said:
This plan for the MXY5 is absolutely splendid, thanks.

Can you tell me why the L7P1 prototype seems to have two fuselages glued together? Doesn't make sense to me.
Hmm...I don't know.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541
練習滑空機「若桜」
 特攻攻撃機「桜花」の練習用として計画された動力付き滑空機であ
る。昭和16年、空技廠の計画で、日本小型飛行機が設計試作を行って
いた高速度曳航操縦訓練用滑空練習機「力」に「桜花」と同じロケット
・エンジンを装備した縦列2座の滑空練習機であったが、計画のみで
実現せずに終わった。
         滑空練習機「力」主要目
寸 度  全幅 11.250m    全長 8.800m
   主翼弦長 2.000m(付け根)~1.000m(翼端)
  水平尾翼幅 3.600m 垂直尾翼高 1.800m)
   主翼面積 18.000㎡ 自重  324㎏  総重量 550㎏
性 能  許容曳航速度 160.0kt(296km/h)
      最良滑空比 18.1/55kt(102km/h)
     最小沈下速度  1.5m/s/50kt(93km/h)
       着陸速度 23.0kt(61km/h)(フラップ35°)
乗員 2名

Exercise glider early cherry blossoms
Powered gliders was planned as practice for OHKA kamikaze attack bomber.
In 1941, Kugisho planned to use high speed towing pilot training exercise gliders 'Chikara' for Ohka exercise glider.
This glider had Ohka rocket engine.
Planned only.
main specifications
Span 11.250 m, Length 8.800 m
Wing chord length 2.000 m (groin)~1.000m(wing tip)
Horizontal stabilizer wingspan 3.600 m
Vertical stabilizer height 1.800 m)
Wing area 18.000 m²
324 kg dead weight
total weight 550 kg
Performance towing speed 160.0 kt (296 km/h)
Best glide ratio 18.1 / 55 kt (102 km/h)
The minimum sink speed 1.5 m / s and 50 kt (93 km/h)
Landing speed 23.0 kt (61 km/h) (flap 35 degrees)
The two pilots


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541
Hi! Chikara glider.


Attachments

  • Chikara Wakazakura.jpg
    Chikara Wakazakura.jpg
    700.5 KB · Views: 118

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541
Hi! Maeda Ku-1.


Attachments

  • Ku-1.jpg
    87.7 KB · Views: 86
  • maeda_ku-1.jpg
    27.5 KB · Views: 55
  • Ku-1-I.jpg
    35.7 KB · Views: 315
  • maeda-ku-1.jpg
    51.2 KB · Views: 325
  • maeda-ku-1-sanmenzu.jpg
    52.4 KB · Views: 351
  • e-q1-3-14-3.jpg
    365.9 KB · Views: 388
  • The_Japanese_military_large-scale_glider_ku-1.jpg
    101.4 KB · Views: 399

gerhard

ACCESS: Confidential
Joined
Oct 6, 2008
Messages
76
Reaction score
1
Hi guys

I have always been under the impression that Chikara was also known as the MXJ-1.
Is this correct?

Cheers


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
gerhard said:
Hi guys

I have always been under the impression that Chikara was also known as the MXJ-1.
Is this correct?

Cheers

I don't think so. According to my research, MXJ1 was Nihon Kogata's Model K-15, submitted to the 17-Shi Experimental Research Plane specification. This Special Trainer Glider was known as the Wakakusa. Its competitor in the same 1942 competition was Mizuno's MXZ1.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,374
Reaction score
2,541

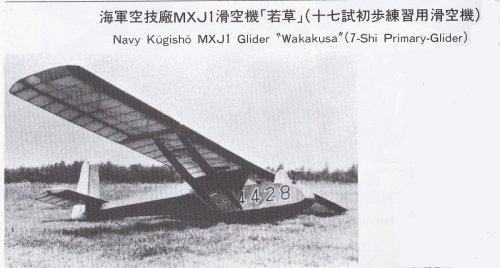

Hi! MXJ1. 十七試 means 17-shi.


Attachments

  • MXJ1 WAKAKUSA.jpg
    MXJ1 WAKAKUSA.jpg
    290.5 KB · Views: 72

Similar threads

Top
