I-400 sized German U-boat projects from WW2?

Vahe Demirjian

I really should change my personal text
Joined
Mar 1, 2013
Messages
440
Reaction score
141
The I-400 was the biggest ever submarine built in WW2 and the largest until the advent of the nuclear powered ballistic missile subs, but the Regia Marina is not known to have built any gigantic submarines because it was pounded big time in the November 1940 Battle of Taranto. However I wanted to ask if the Kriegsmarine had plans for U-boat designs rivaling or approaching the size of the I-400 because one of the schemes for Hitler's plans to attack Manhattan included launching V-2s from U-boats.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,027
Reaction score
223

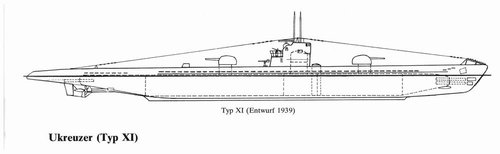

To my knowledge (and to that of Erich Gröner), the biggest submarine designed for the Kriegsmarine was the "U-Kreuzer" Typ XI, which
nevertheless wasn't much bigger, than about half size of the I-400. For the kind of missions and the areas, German Uboats were designed
for, very big probably wouldn't have been an advantage.

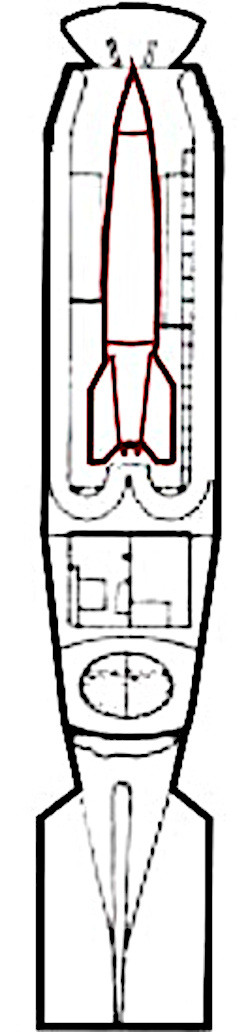

And the plans for attacking the USA with V2 rockets, were made around towed launch containers.
https://www.secretprojects.co.uk/threads/prüfstand-xii-submarine-launched-v-2-rockets.9651/

(drawing from Erich Gröner "Die deutschen Kriegsschiffe 1815-1945", volume 3)


Attachments

Last edited:

ceccherini

In war there is no substitute for victory
Joined
Feb 26, 2015
Messages
33
Reaction score
9

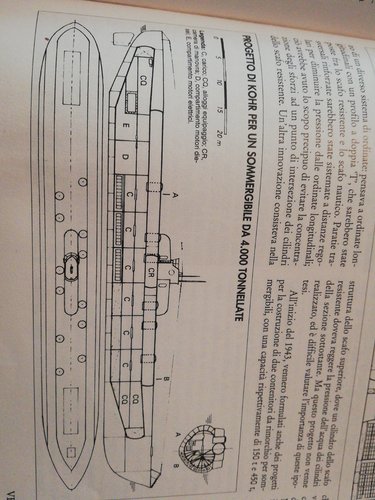

Largest sub designed by Germans in WW2 was a 4000 ton cargo submarine, a 1943 project by eng. Kohr with multiple pressure hull a length of 93 meters and a width of 11 meters. Still considerably smaller than I-400 class. Something larger was studied during WW1 in the context of cruiser-submarine experimentation. However Regia Marina had actually a mid '30 plan for a much larger submarine, a 10000 ton submarine oil tanker to evade naval blockade15622260149613431595259235424215.jpg

Last edited:

Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
710
Reaction score
188
Actually there were two for the German Navy:
From 1929 a 3.000ton cruiser submarine, no dimensions given but a 10.000shp engine would drive it 41km/h on surface, armament would be 2 single 15cm and 2 single 8,8cm guns
2 twin and two single 533mm torpedo tubes and a light armour of 30mm.
The other was a slightly earlier project from 1928 by the engineer Oswald Flamm:
25.000shp 3 shaft Diesel-Electric engines, 7.067tons displacement, again no dimensions, armament were: 2x1 21cm guns, 4x1 8,8cm guns and 2x2 53cm torpedo tubes with a 45mm armour.
