German WW2 “SEEDRACHE“ Torpedoboat Project

moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
20
Hello everybody

I'm searching for a 3view or drawing of the German “SEEDRACHE“ Torpedoboat Project
It should be a catamaran like torpedoboat with two or four torpedoes and it is powered by a turbine or Pulsejet something like the Jumo004 or Argus As014! ((UP to 50 kts Speed!!!))

Thanks in advance


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,457
Reaction score
2,405
Website
www.amazon.com

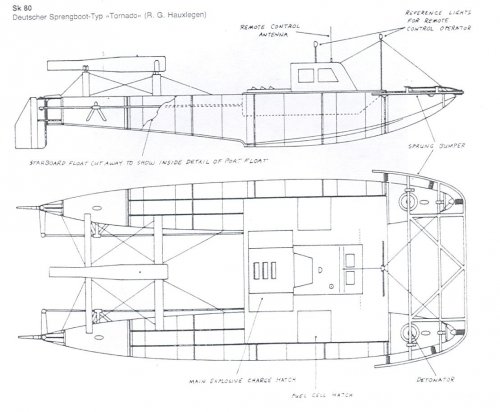

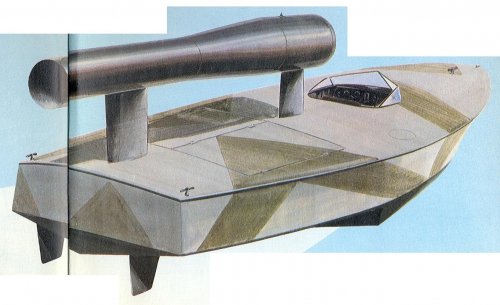

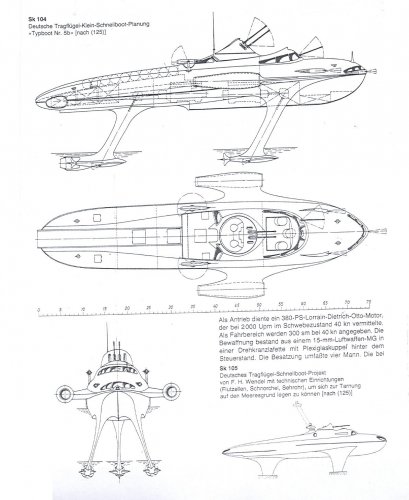

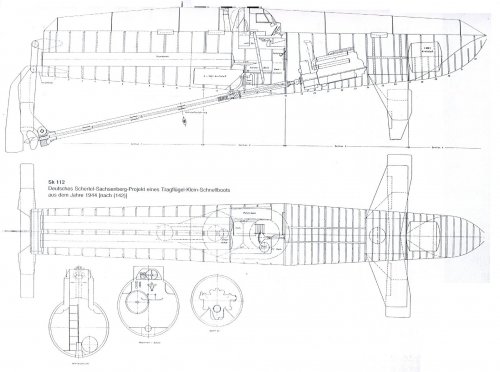

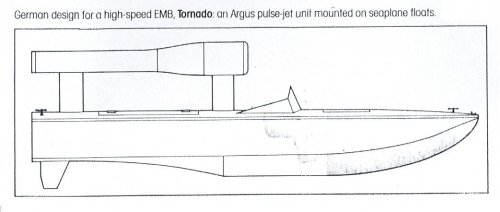

Please see attached some drawings of German jet propelled fast boat


Turbojet Tragflügelboot Projekt

The Project 5b was the final evolution step of the K-Verband developments for a small hydrofoil attack boat. The design was almost identical to the Hydrofoil Project, but two turbojets were added to increase the speed of the final attack and disengaging phase.
Although tests with a jet powered boat ("Tornado", 1944) showed several problems with this kind of propulsion - only usable at calm sea and serious control problems - the addition of turbojets was seen as a possible solution to increase the chance to survive an attack against allied ships.
None of these futuristic boats was ever build


Attachments

  • Projekt 5b hydrofoil.gif
    Projekt 5b hydrofoil.gif
    7.1 KB · Views: 344
  • tornado-1.jpg
    181.8 KB · Views: 307
  • Tornado-2.jpg
    48.5 KB · Views: 313
  • Escanear0002.jpg
    99.4 KB · Views: 368

airman

ACCESS: Top Secret
Joined
Oct 14, 2007
Messages
1,230
Reaction score
87
Website
zeef.com

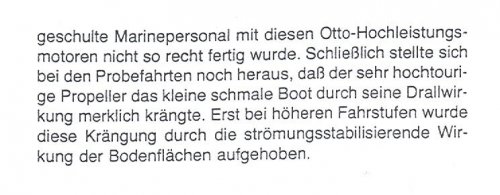

i know last project, i had seen on "Eserciti nella Storia" (a magazine of Delta Editrice), well last Tornado was tryed on Peenemünde with a speed of 48 knots with calm sea , the boat was radio guided by a mother boat , was armed with 700 kg of explosive and this prototype was destroyed until invasion of russian troops !
reference : Eserciti nella Storia - Luglio/Agosto 2002 (printed by Delta Editrice) ::)
i am forgetting :eek: :eek: this catamaran had an engine Argus and was based on two floats of a Junkers 52 (version idro is obvious ! ;) )
All version of Tornado were tryed but only version with two floats had good performance !


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
20
Hi everybody

I'm searching for a 3view of the KS HYDRA !
Is there anybody who can help me?

Many greetings and thanks in advance


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
20
Re: German WW2 "HYDRA" Torpedoboat Project

Hi everybody

Some more information about the "Hydra"
Please look here
http://www.feldgrau.net/forum/viewtopic.php?f=41&t=20137&hilit=Hydra


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
20
Hi everybody

I have found something new about the “Seedrache” / “Sea-Kite”
The “Sea-Kite” (Driesen-System) consisted of two “Hydra” hulls, coupled together by
Wing-surfaces.


RP1

I see the truth in it.
Senior Member
Joined
Feb 22, 2006
Messages
453
Reaction score
130
Website
rp-one.net
Hmmm. I think some artistic license has been taken with the size of the foils for the 5b.

moin1900 - the Sea-Kite was either a catamaran with hydrofoils between the hulls - which is used in a couple of modern designs - or alternatively a catamaran with an aerofoil surface between the hulls. The latter rings a (quiet) bell, in that I seem to recall some German work on this.

RP1


moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
20
Hi everybody

To RP1 Thanks for your reply .
Maybe like this ?
Boeing Fresh-1
http://www.foils.org/gallery/large.htm


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,457
Reaction score
2,405
Website
www.amazon.com

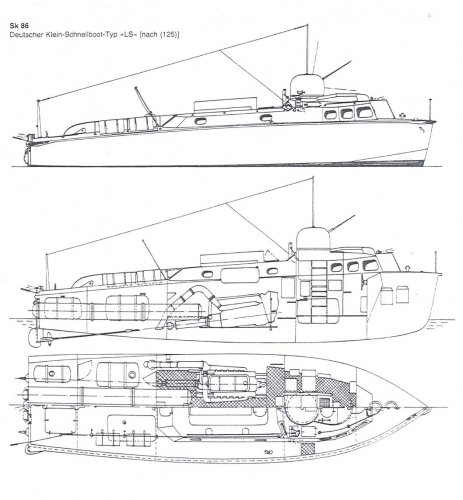

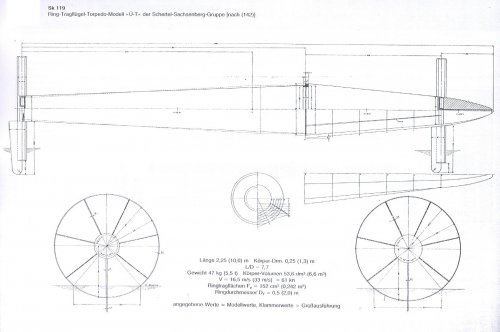

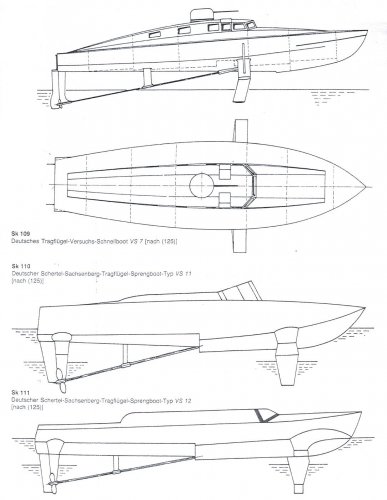

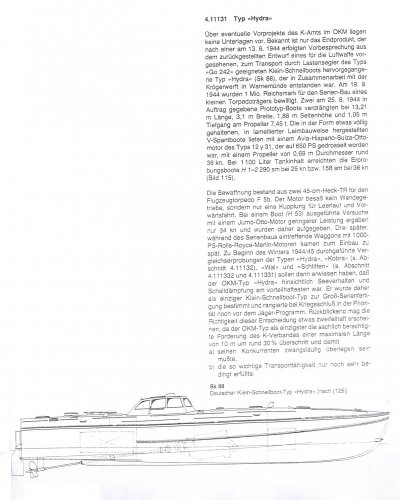

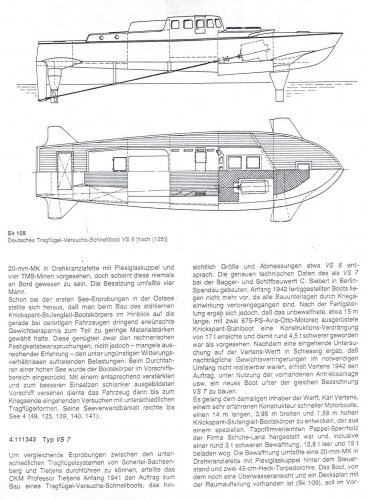

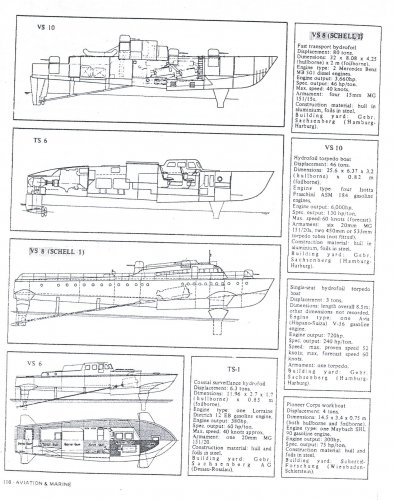

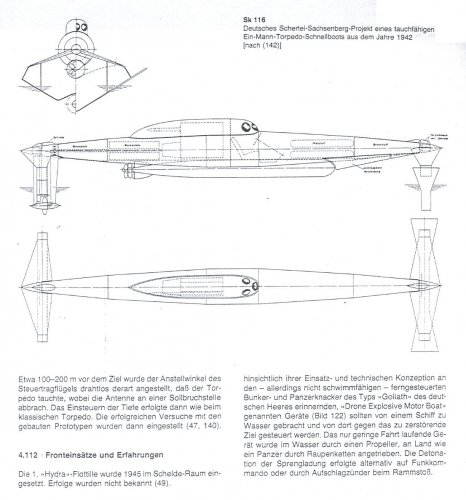

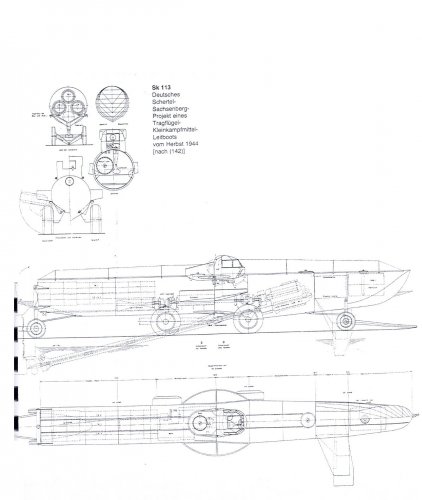

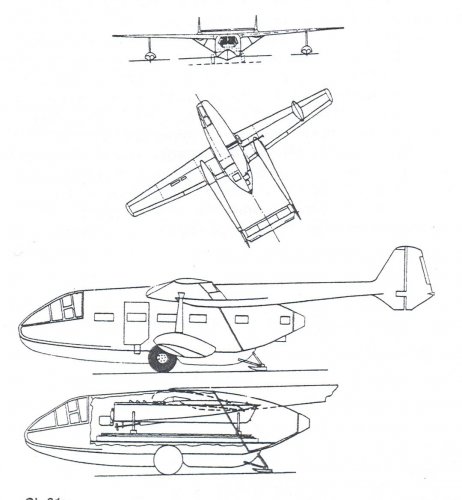

Here some tragflügel torpedo projects


Attachments

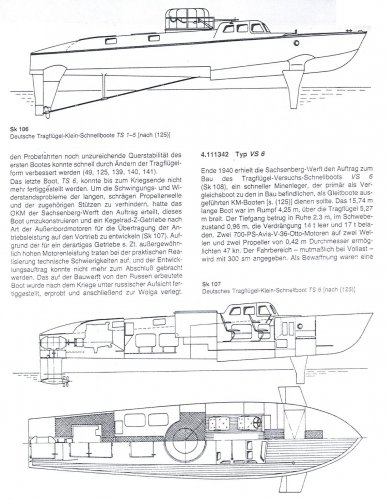

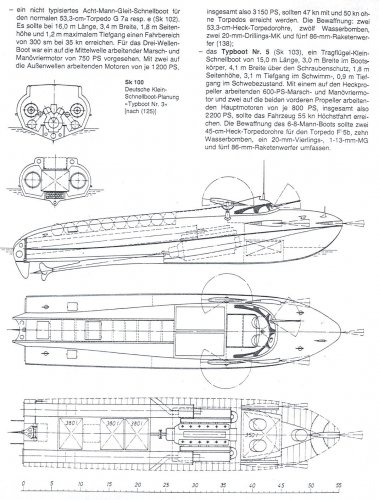

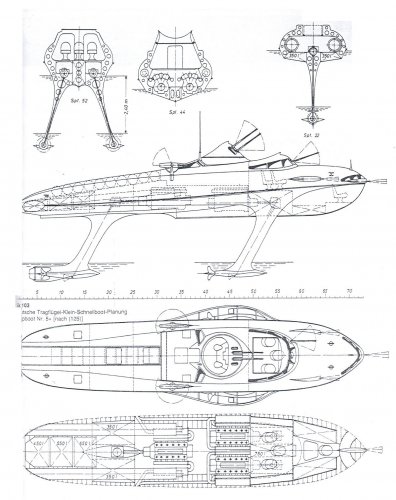

  • Escanear0003.jpg
    158.4 KB · Views: 187
  • Escanear0002.jpg
    136.9 KB · Views: 142
  • Escanear0001.jpg
    115.8 KB · Views: 149

moin1900

ACCESS: Secret
Joined
Jan 28, 2008
Messages
456
Reaction score
20
Hi everybody

Thank you so much ! JUSTO ! You are GREAT !

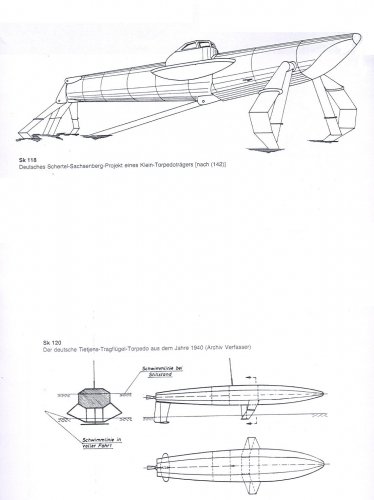

There was also another "Klein-Torpedoträger" The "Zisch" torpedo boat
Another rocket powered boat was the Schertel-Sachsenberg VS-13 demolition boat !

THANKS A LOT and Many greetings


huckebein

ACCESS: Restricted
Joined
Feb 5, 2008
Messages
20
Reaction score
2
Justo, what book are these scans taken from?
I must obtain a copy.


Thanks,

Guenter


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,457
Reaction score
2,405
Website
www.amazon.com
Hi Guenter
Unfortunately I will not be able to help you.
The source is also unknown for me.
I have a file full of photocopies coming from a record bought to someone else.
I will patiently post the information I have,hoping that someone may be able to help us idnetify the book.


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,457
Reaction score
2,405
Website
www.amazon.com

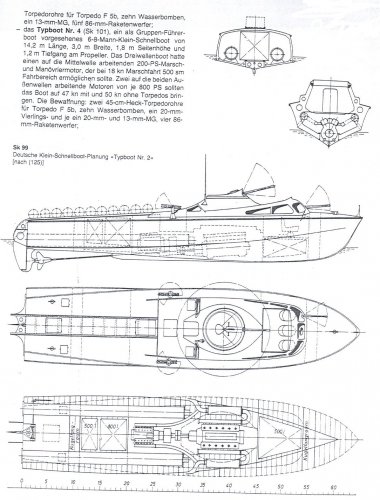

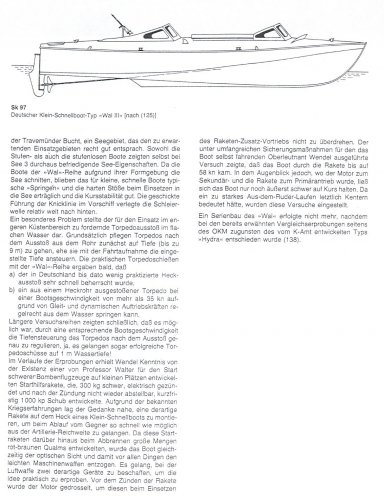

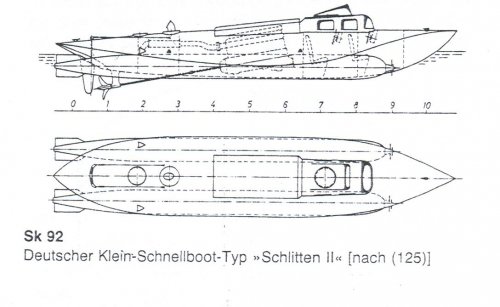

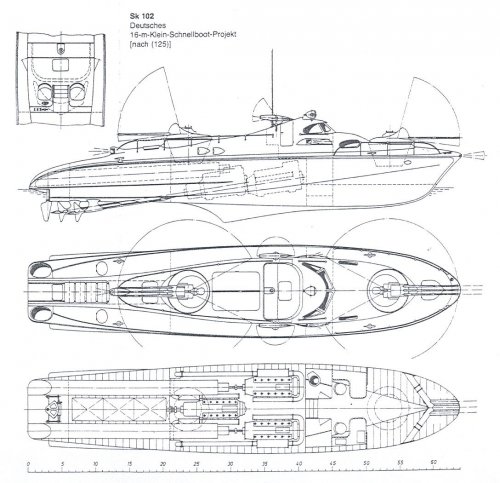

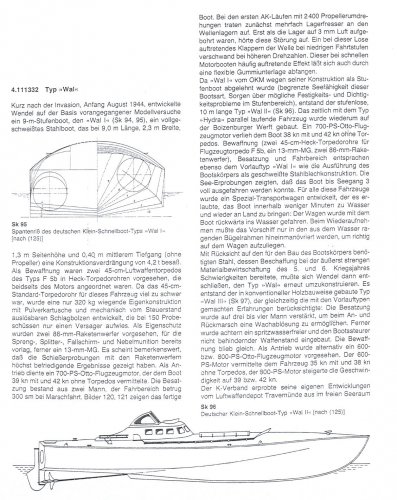

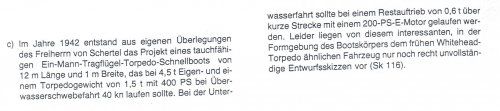

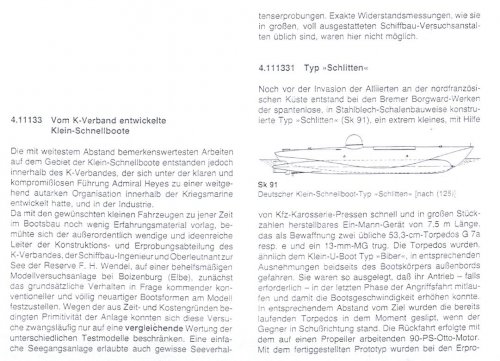

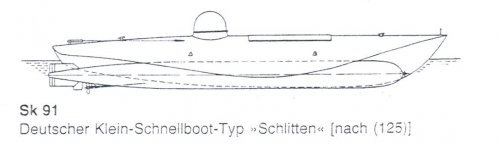

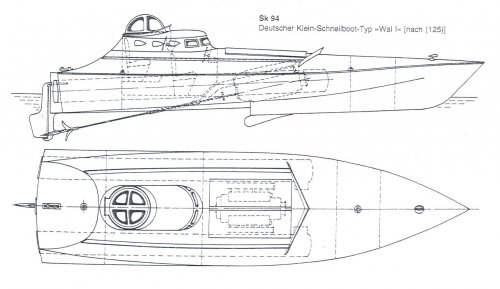

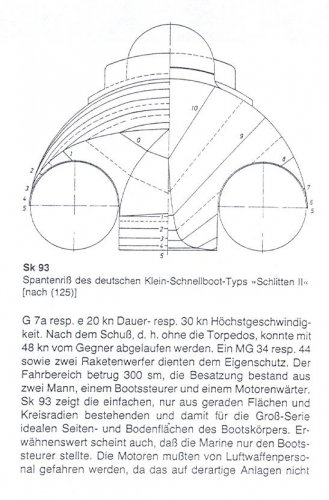

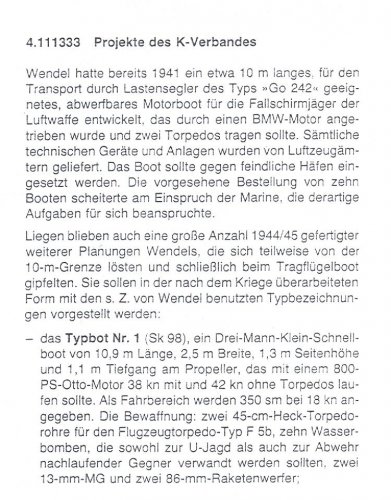

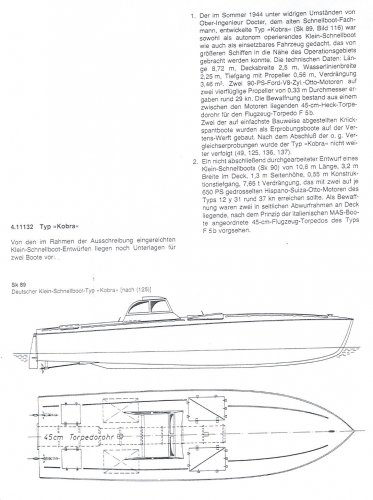

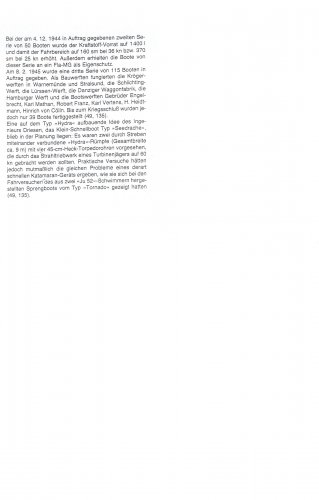

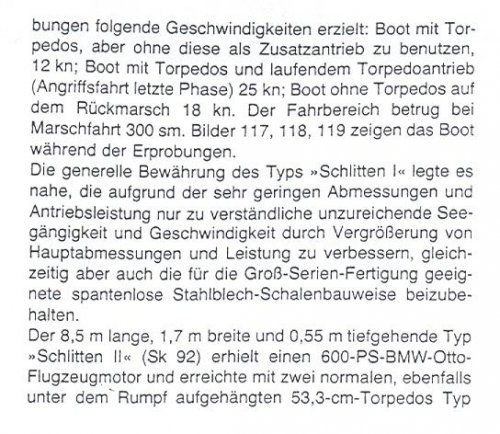

Sk 91 "Schlitten I" and Sk 92 "Schlitten II"
From unknown source


Attachments

  • Escanear0004.jpg
    77.5 KB · Views: 100
  • Escanear0003.jpg
    71 KB · Views: 79
  • Escanear0002.jpg
    146.5 KB · Views: 82
  • Escanear0001.jpg
    28.7 KB · Views: 89
