Hawker Siddeley HS.133 VTOL Airliner

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,296
Reaction score
1,256
Looks like an enlarged HS.145,maybe the HS.147 ? This is described in Paynes "Stuck
On The Drawing Board" as a series of design studies for a fan-lift STOL airliner.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,741
Reaction score
1,197
According to the Flight article, it's Hawker Siddeley's HS.133.

The HS.133 would have 16 lift engines ("possibly the RB.202") and two 10,000 lb.st RR Trent for propulsion (the FH-228 is mentioned so the Trent variant was related to that aircraft's 9,733 lb.st version). High cruise speeds were the reason for the delta wing.

http://www.flightglobal.com/PDFArchive/View/1969/1969%20-%203288.html


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,296
Reaction score
1,256
Ah, shame !

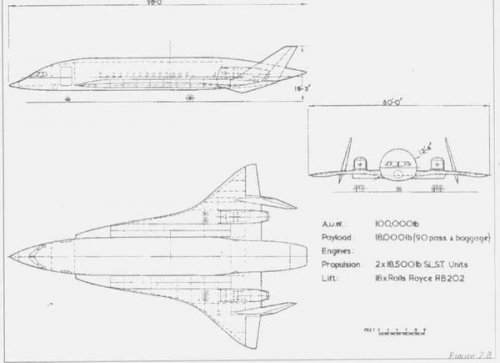

Richard Payne even has it with artist impression AND 3-view. Not in
the projects list, but in the article about VTOL projects .
Of course, he has it !

(from R.Payne "Stuck On The Drawing Board")


Attachments

  • HS-133.JPG
    22.5 KB · Views: 289

Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
14,557
Reaction score
4,288
An artist's impression of the Military version:
hs-vtol-05-jpg.614343

(h/t zebedee)
