Hawker HS.141 VTOL airliner, HS.140 VTOL business jet

GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,195
Reaction score
898
Website
beyondthesprues.com
Hi folks,

Here are a couple of civilian VTOL concepts from Hawker Siddley.

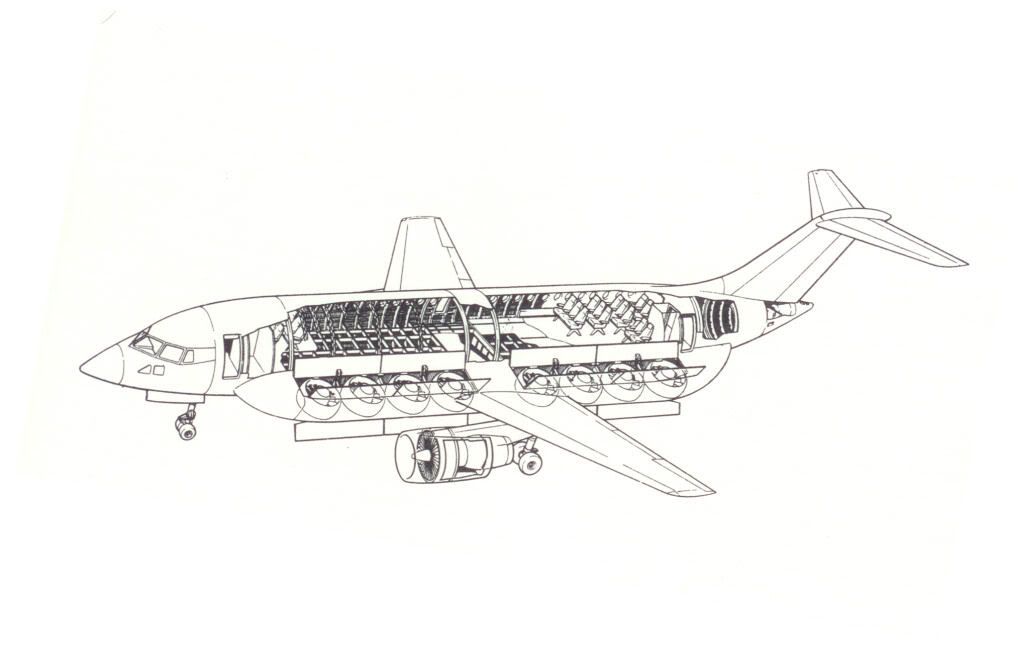

First the nice little HS.140 business jet:


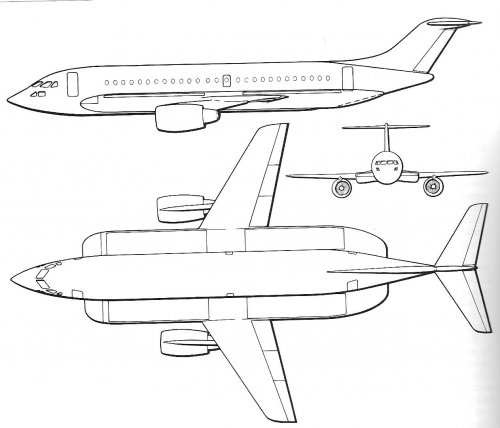

Then the larger HS.141 commuter airliner:


Don't have much information on them I'm afraid.

Regards,

Greg


Attachments

  • HS140.jpg
    74.7 KB · Views: 948
  • HS141.jpg
    55.7 KB · Views: 894

raravia

ACCESS: Confidential
Joined
Jan 29, 2006
Messages
90
Reaction score
5
Hi GTX

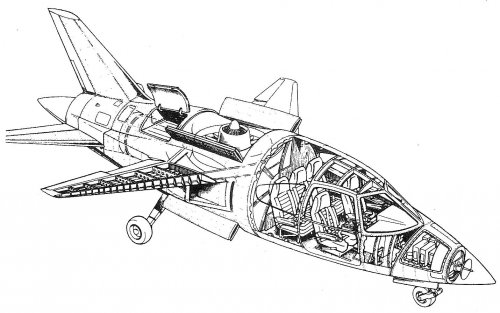

It´s difficult to see the HS.140 cut in two parts, maybe if you reduce the image help us to visualize completely.

Gracias, sorry for my english


Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
596
Reaction score
108
Website
theavgeeks.com
If you look in the book "Stuck on the Drawing Board", there's a prior design incarnation of the HS.141 that had a ogival delta wing and twin fins. Very futuristic looking and in some ways better looking than the final HS.141 iteration.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890

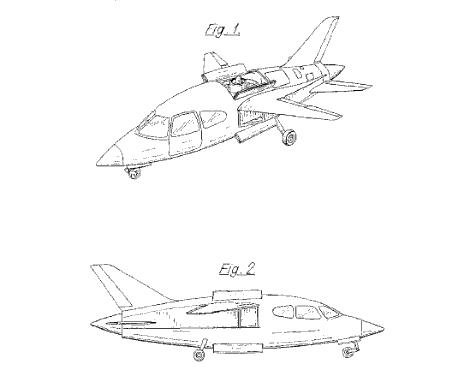

Hi,

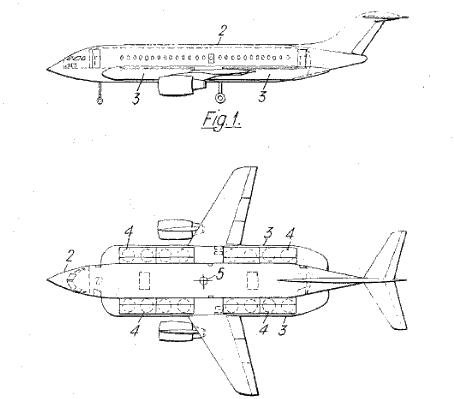

the Hawker Siddeley Aviation Ltd. created that
new concept for VTOL light aircraft.
http://www.google.com/patents?id=BaE8AAAAEBAJ&dq=DOUGLAS+DESIGN+OF+AIRPLANE&num=100&jtp=1#PPP1,M1


Attachments

  • Hawker.JPG
    15.5 KB · Views: 1,005

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
Hi,

a great VTOL aircraft designed by L. Chinchester-Miles
for Hawker in 1972.
http://www.google.com/patents?id=dRU1AAAAEBAJ&printsec=abstract&zoom=4&dq=hawker+aircraft+limited+airplane&as_drrb_ap=q&as_minm_ap=1&as_miny_ap=2007&as_maxm_ap=1&as_maxy_ap=2007&as_drrb_is=q&as_minm_is=1&as_miny_is=2007&as_maxm_is=1&as_maxy_is=2007&num=100#PPA1,M1


Attachments

  • Hawker.JPG
    20.9 KB · Views: 194

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242

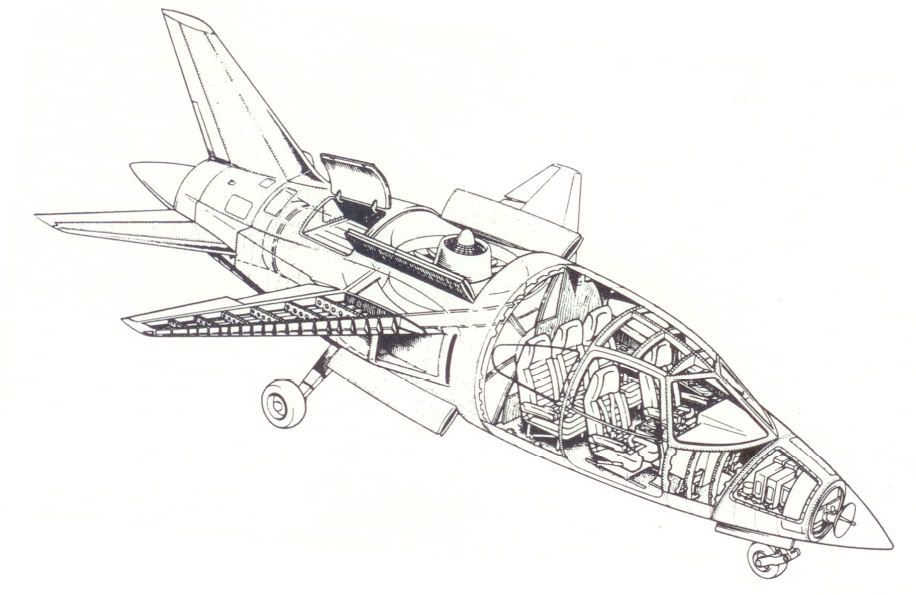

Ah, the HS.140 fan-lift communications aircraft, a really nice aircraft !
There was an issue of Scott's APR featuring this type, I think ...
A 3-view can be found in "Stuck On The Drawing Board".


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,861
Reaction score
4,766

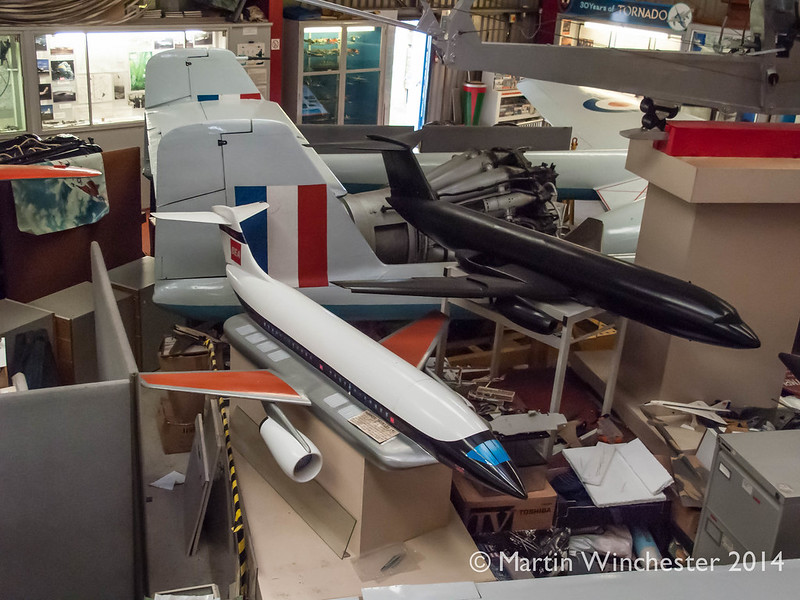

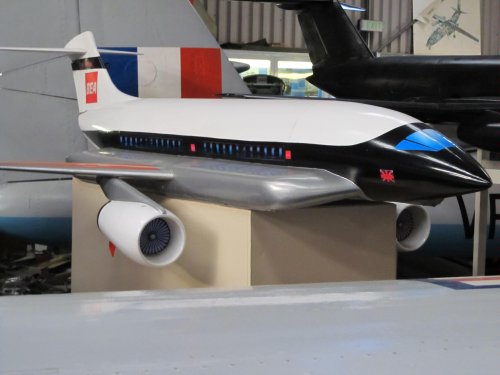

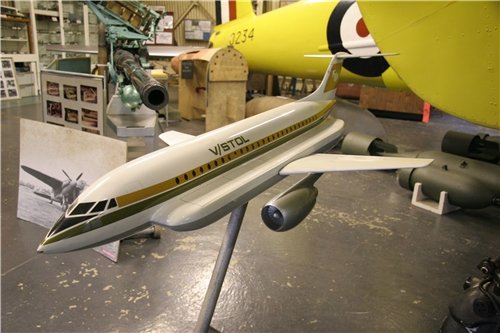

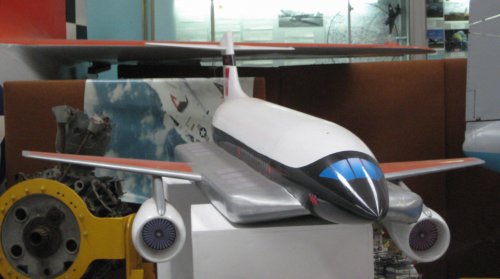

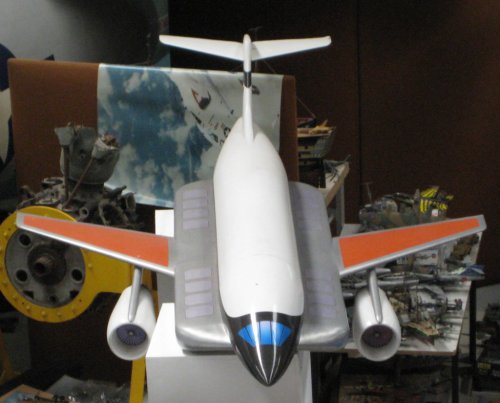

Some photos from the Midland Air Museum. If you're interested in British projects, this museum is a must see.


Attachments

  • HS.141a.jpg
    230.9 KB · Views: 186
  • HS.141b.jpg
    158.4 KB · Views: 198

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,861
Reaction score
4,766

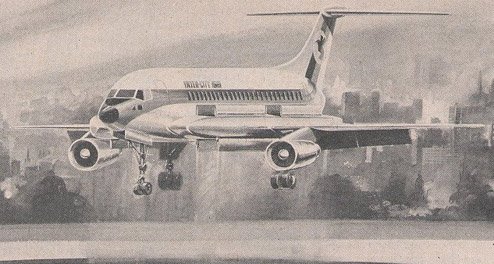

Artist's impression, Aircraft Illustrated June 1970


Attachments

  • hs.141.gif
    65.2 KB · Views: 119

Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
936
Reaction score
142
BBC Tomorrow's World £2.10 or 42 Shillings :D


Attachments

  • scan0057 (2).jpg
    scan0057 (2).jpg
    95 KB · Views: 185
  • scan0057 (3).jpg
    scan0057 (3).jpg
    152.8 KB · Views: 148

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890

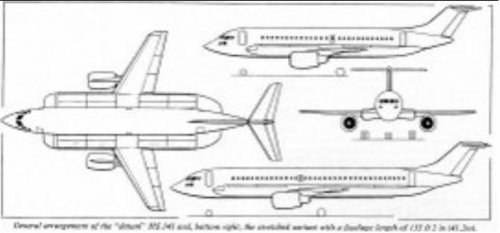

Hi,

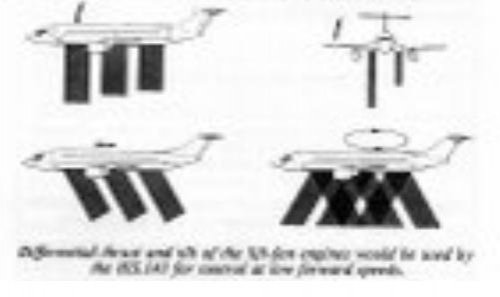

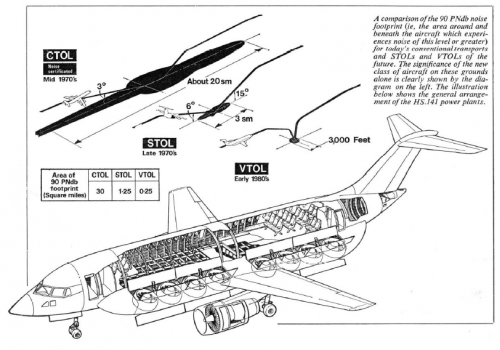

From Air Enthusiasts Vol 1 ,I can't see well,there is many versions to the
Hawker HS.141,may be one of them had a double deck and the other was
AWACS,I can't identify.


Attachments

  • img027.jpg
    39.5 KB · Views: 209
  • 1.JPG
    24.3 KB · Views: 195
  • 2.JPG
    13.4 KB · Views: 184

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
802
Website
deeptowild.blogspot.com
"Latest Civilian V/STOL Aircraft Projects of Hawker Siddeley Aviation, Continuation from FR6/71" by TK Szlenkier, English translation of Flug Review International July 1971, NASA Technical Report, November 1, 1972.

The latest civilian V/STOL aircraft are examined. It is found that such aircraft are more economical and convenient in short air flights, require lower capital investments compared with other systems, and have less influence on the environment.

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19730001307_1973001307.pdf

Unfortunately, the previous article must be ordered and is not available online from the NASA Technical Reports Server:

"Latest V/STOL Aircraft Projects of Hawker Siddeley Aviation" by TK Szlenkier

http://ntrs.nasa.gov/search.jsp?R=248295&id=2&as=false&or=false&qs=Ntt%3DHawker%2BSiddeley%26Ntk%3Dall%26Ntx%3Dmode%2Bmatchall%26Ns%3DHarvestDate%257c1%26N%3D0


Rodimax

ACCESS: Restricted
Joined
Jan 2, 2010
Messages
3
Reaction score
0
The Hs 140 and 141 were schemed in the 'Research & Future Projects Dept' at Hatfield headed by Derek Brown. The model with the ogival wing was the HS 133 I believe. I don't remember the twin fins but a powered wind tunnel model existed using small Dowty fans (about 3").

Charles Bradbury's HS 140 was schemed by David Kent. The wind tunnel model used the same 6" fan that was used in the HS 141 model (x16). David Kent later worked on Ian C-Miles' business jet ('Leopard' I think) post HS.

The large scale HS 141 wind tunnel model was developed by John Holmes-Walker who ran the powerplant group within the office. Major parts of the model were manufactured at HS Brough in the model shop. If you are interested, more later.


Rodimax

ACCESS: Restricted
Joined
Jan 2, 2010
Messages
3
Reaction score
0
As mentioned in Teddy Szlenkier's paper on V/STOL research, several test rigs were used for HS 141 research. Initially, a thrust deflection rig was used to identify nozzle shapes and develop suitable thrust deflectors. A 12" (30cm) fan was developed for noise research and larger scale flow research and a 6" fan was obtained to assess its suitability for the large scale HS 141 wind tunnel model. Other test rigs were run but I am only aware of them and have no details.

The 12" fans were developed by David Budworth Engineering of Harwich. The HS project engineer responsible was Robin Boning. Budworth was absorbed into Noel Penny Turbines which is now defunct. To get some 'real' information on the effects of lift fans it was proposed to use a modified Folland Gnat with the fans mounted at the wing root trailing edge as in the HS 147 STOL scheme. These were to be tip turbine driven Budworth type fans powered by pod mounted gas generators on the wing. Considerable design work was done on this but it did not get the go ahead.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890

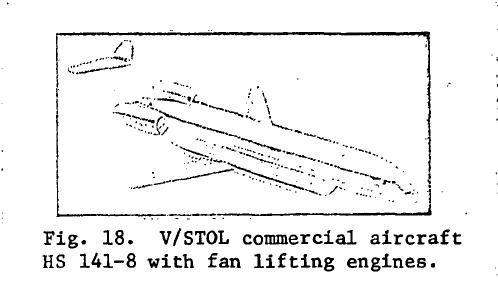

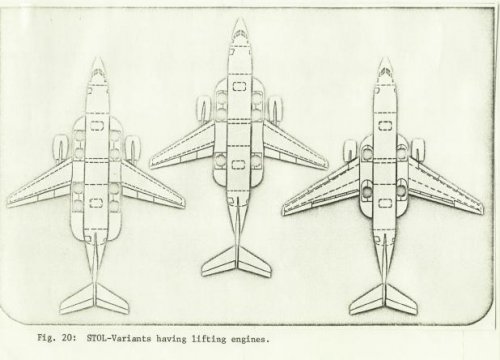

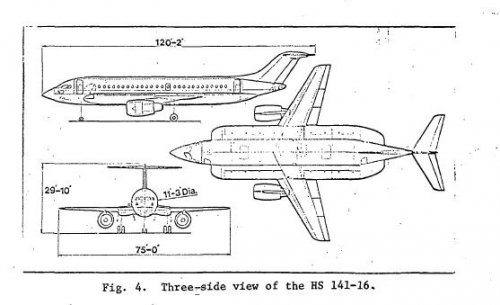

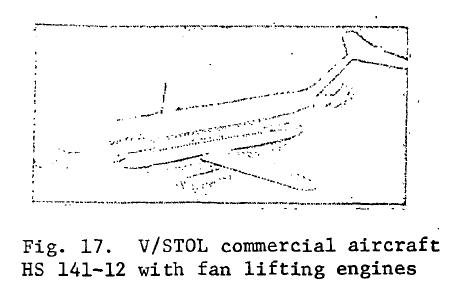

Here is a three variants for Hawker HS.141;

first HS.141-16 with 16 lift fans.
second HS.141-12 with 12 lift fans.
third HS.141-8 with 8 lift fans and two rear mounted engines.

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19730004285_1973004285.pdf


Attachments

  • HS.141-8.JPG
    22.5 KB · Views: 78
  • HS.141-12.JPG
    21 KB · Views: 727
  • HS.141-16.JPG
    31 KB · Views: 780

Rodimax

ACCESS: Restricted
Joined
Jan 2, 2010
Messages
3
Reaction score
0
I don't think the photos are of the Hatfield 15 ft. tunnel. If not Hatfield it is likely to be the NRCC tunnel in Ottawa, Canada.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890

Attachments

  • HS.141-4,HS.141-6 & HS.141-8.JPG
    HS.141-4,HS.141-6 & HS.141-8.JPG
    33.7 KB · Views: 137

Spook

ACCESS: Confidential
Joined
Jul 6, 2012
Messages
148
Reaction score
12
Stargazer2006..

Here is the photo


Attachments

  • 704608_483799275004727_2009923260_o.jpg
    206.5 KB · Views: 215

Spook

ACCESS: Confidential
Joined
Jul 6, 2012
Messages
148
Reaction score
12
Thanks a lot Guyz.... Very informative and great pictures... I just love this forum :))

Thanks to you Stargazer2006 as well :)


~AK


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890
Hi,


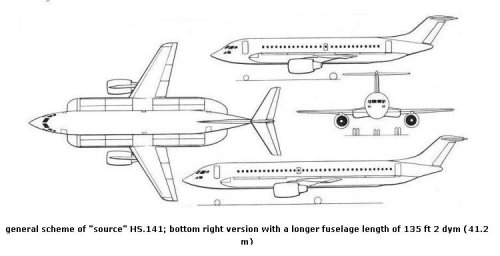

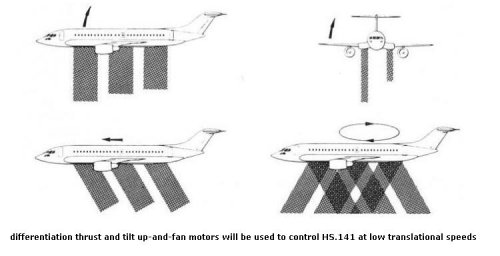

I repeat displaying the drawings in Reply 12,with more clearance.


Attachments

  • 1.JPG
    34.3 KB · Views: 119
  • 2.JPG
    32.2 KB · Views: 129

uk 75

ACCESS: Top Secret
Senior Member
Joined
Sep 27, 2006
Messages
3,147
Reaction score
1,868
Could someone help me with the little HS 140 bus jet? I have the cutaway from this thread and also the line drawings from the patent but cannot find the dimensions anywhere. Could anyone with the Reference Book on British civil projects (I cannot find my copy) post them.

I am thinking of adding to my collection of what-if models with a model of the HS-140 in RAF Air Support Command colours as a Beagle Basset replacement.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,291
Reaction score
1,242
From Richard Payne "Stuck on the drawing board":
HS 140: length 33 ft 3 in, span 22 ft, height 10 ft 1 1 in

Good success for your model ! ;)


uk 75

ACCESS: Top Secret
Senior Member
Joined
Sep 27, 2006
Messages
3,147
Reaction score
1,868
Jemiba

Thanks for this info. I will have to find my copy!

I will post pics of my model, if it gets made, on the Models thread next year (they take 6 months to make in the Philippines). I have a VC 10 Superb (BOAC), an HS 141 (BEA Union Flag) and an HS 134 (BEA Red Square) being made for me from Aviation Retail Direct in Hillingdon. I might post on the models thread when they are done though the moderators dont seem to to like "own fictional" models.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,861
Reaction score
4,766

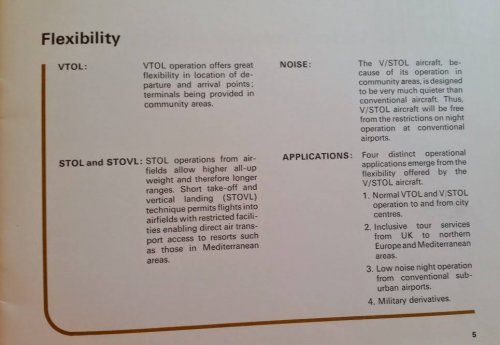

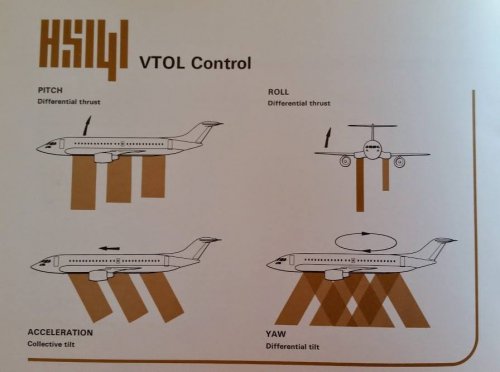

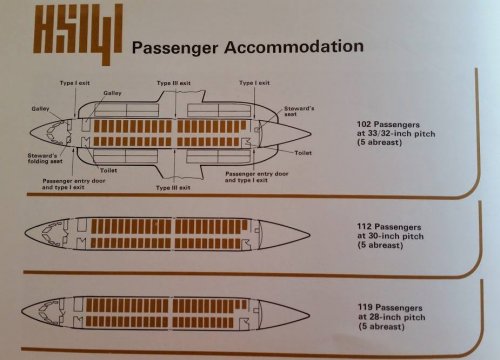

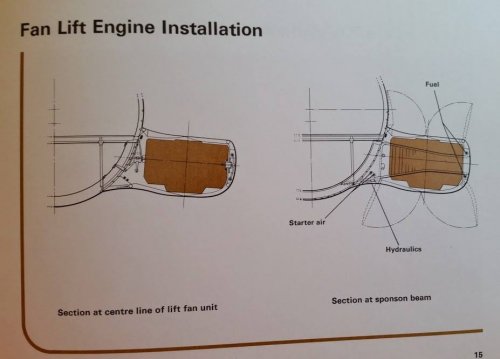

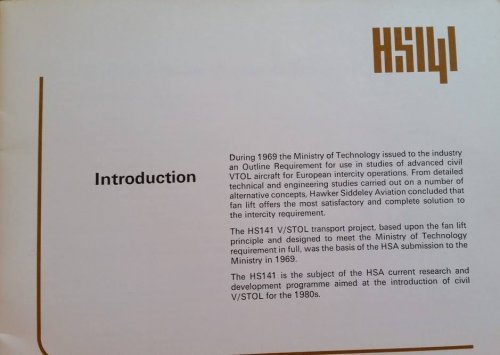

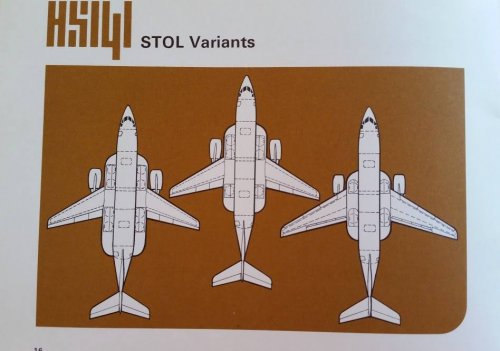

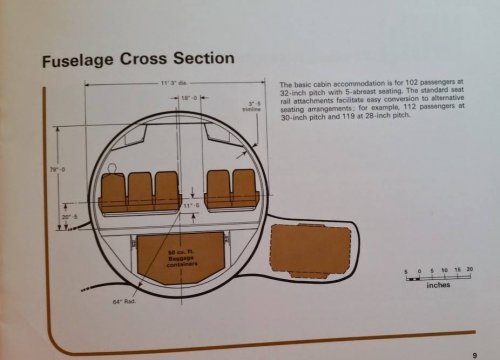

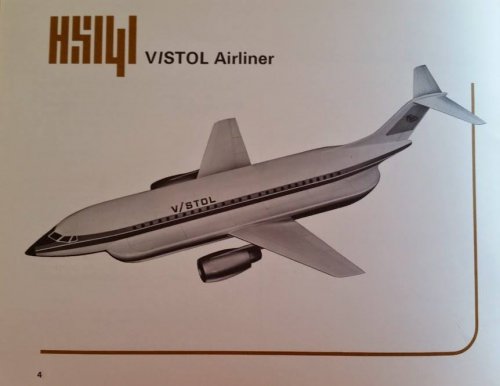

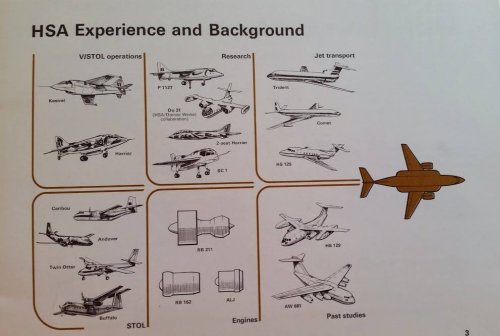

From a Facebook post https://www.facebook.com/photo.php?fbid=10152401391904204&set=oa.10152396340184784&type=1&theater


Attachments

  • 10291364_10152401392119204_6295359855750615410_n.jpg
    29.8 KB · Views: 100
  • 10258663_10152401392034204_4266514877973592562_o.jpg
    61.8 KB · Views: 154
  • 10172732_10152401391984204_2111748027165458429_n.jpg
    46.4 KB · Views: 145
  • 10247282_10152401391904204_1002326338889243172_n.jpg
    74.4 KB · Views: 117
  • 10273352_10152401400209204_5775694055724443985_o.jpg
    53.7 KB · Views: 101
  • 10156087_10152401400279204_2187651416369791546_n.jpg
    58.5 KB · Views: 559
  • 10308749_10152401400394204_7148055043135442481_n.jpg
    44.5 KB · Views: 585
  • 10307214_10152401400459204_4916920046046174984_n.jpg
    38.1 KB · Views: 597
  • 10169287_10152401400599204_4294614326092495095_n.jpg
    38.6 KB · Views: 619
  • 10178041_10152401400659204_1134624002988634125_n.jpg
    54.5 KB · Views: 631

c460

ACCESS: Secret
Joined
Oct 20, 2009
Messages
395
Reaction score
31

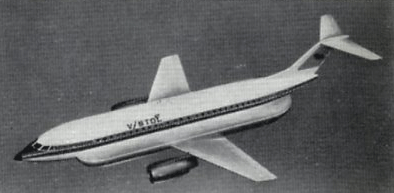

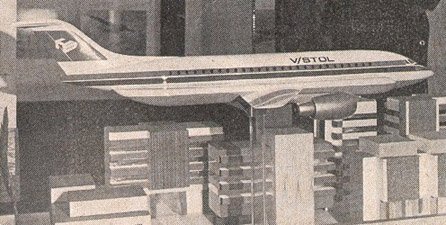

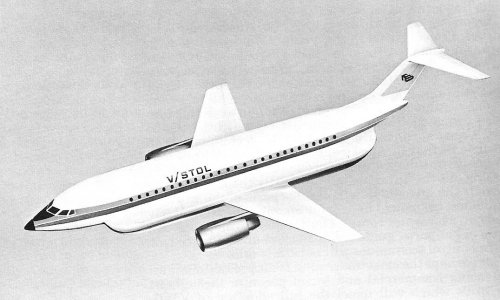

Model of the HS.141 exhibited at Le Bourget 1971, from Aviation Magazine 565.


Attachments

  • HS.141_avimag_565_p50.jpg
    160 KB · Views: 91

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,771
Reaction score
4,890

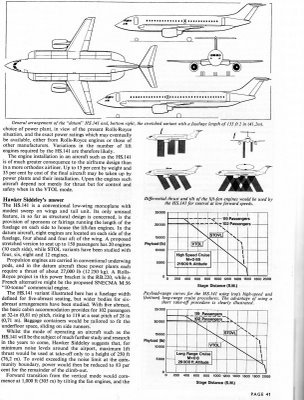

Air Enthusiast.


Attachments

  • 1.png
    228.3 KB · Views: 163

Mike Pryce

BAe P.1216 book: harrier.org.uk/P1216.htm
Senior Member
Joined
Dec 21, 2006
Messages
1,065
Reaction score
176
An interesting paper from https://dspace-erf.nlr.nl/xmlui/bitstream/handle/20.500.11881/2086/ERF%201975-07.pdf?sequence=1&isAllowed=y


Attachments

  • ERF 1975-07.pdf
    601.4 KB · Views: 46

RAP

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jan 29, 2008
Messages
691
Reaction score
448

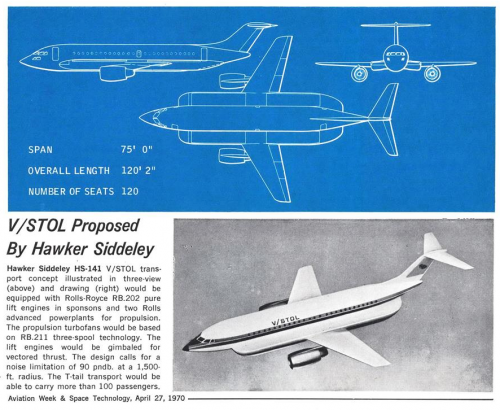

1970 AWST article.


Attachments

  • gcjlfc.png
    810.2 KB · Views: 88
