Hi,

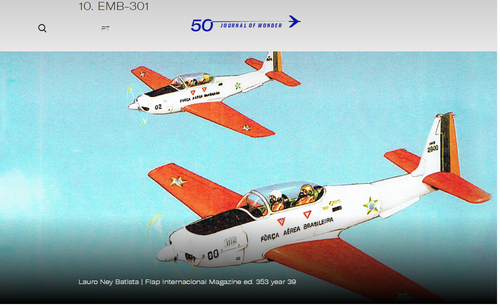

I spoke before about some of Embraer projects,and I want a drawings to EMB-301
basic trainer,which was based on Neiva Universal,and EMB-311 COIN and attack
aircraft,based on Caraja.


Apophenia

CLEARANCE: Top Secret
Joined
Jul 25, 2007
Messages
2,103
Reaction score
36
The name Carajá was applied at least twice by Neiva. The first use was for a 1984 PT6A-powered EMB-821 Navajo variant (whose wing and undercarriage design were originally to be incorporated into what finally became the Tucano turboprop trainer).

The N.721 Caraja was a turboprop N.621 Universal derivative (although there were other modifications - stronger wings, enlarged fin, and changes to landing gear and windscreen.
http://www.aviationsmilitaires.net/display/aircraft/524

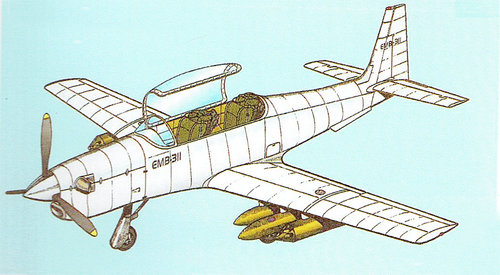

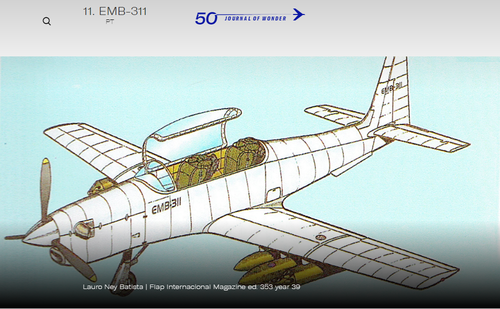

The EMB-311 was simply a turboprop version of the EMB-301. The COIN study you refer to was referred to as COIN-X. As mentioned, this was a straightforward adaptation of the Caraja (but does anyone know if N.721B refers to COIN-X or was just a further Caraja design phase?).


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,493
Reaction score
454
Hi,

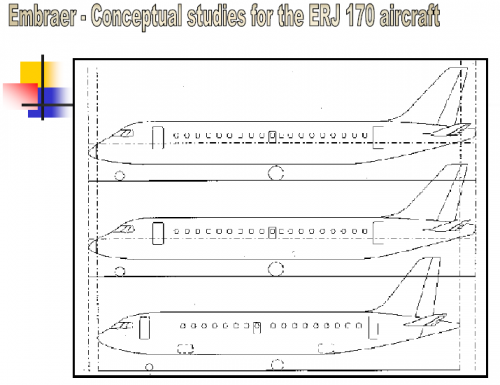

here is the conceptual studies for the fuselage alternatives of Embraer ERJ 170 aircraft.


http://www.aer.ita.br/~bmattos/download/fuselagem-design.pdf


Attachments
