IPT-0 Bichinho was a single seat light monoplane,
IPT-4 Planalto was two seat light monoplane,
IPT-7 Junior was two seat cabin monoplane,
IPT-8 nine seat light transport aircraft,

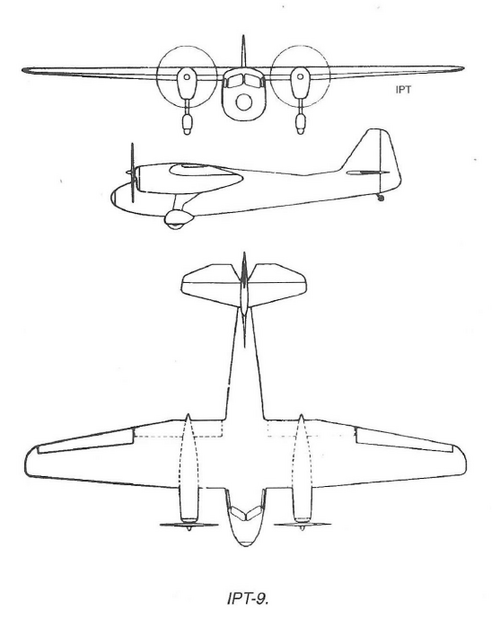

IPT-9 was a twin engined five seat light transport aircraft,
IPT-10 Junior three seat cabin monoplane,
IPT-11 Bichao two seat advanced trainer,

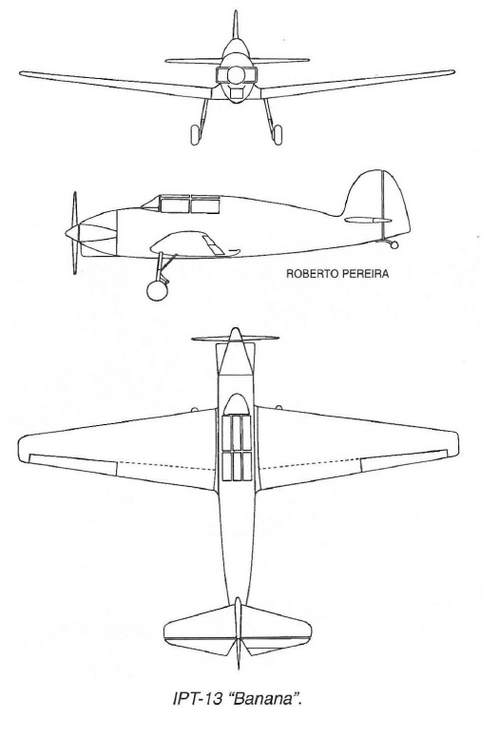

IPT-13 two seat light monoplane
IPT-16 was single seat cantilever low wing light cabin monoplane of wooden construction powered by
one engine.

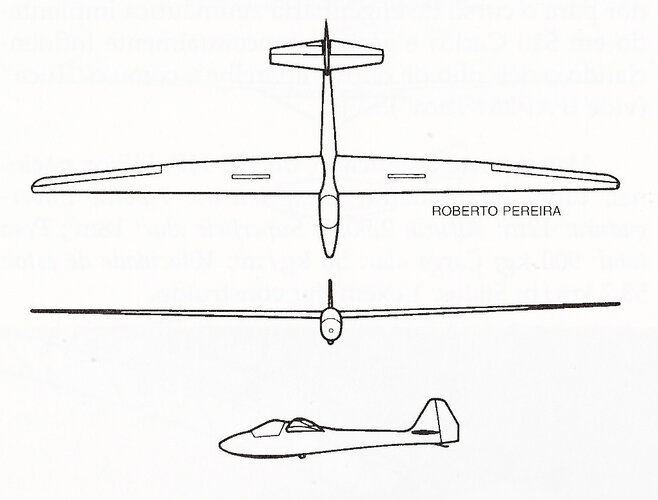

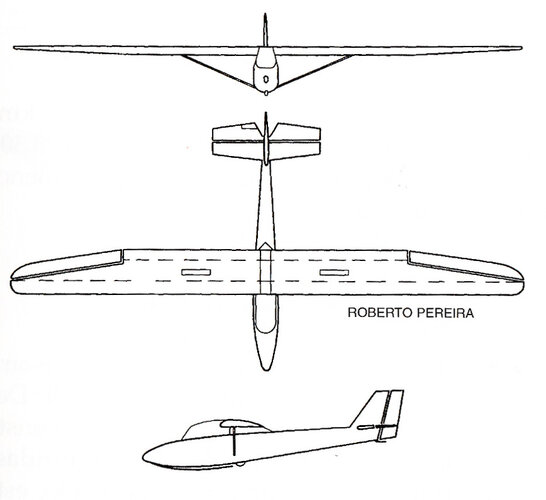

The IPT-1,2,3,5,6,12,14,15 and 17 were sailplanes.


LAW

CLEARANCE: Restricted
Joined
Jan 9, 2011
Messages
39
Reaction score
4
EAY = Empresa Aeronáutica Ypiranga
CAP = Companhia Aeronáutica Paulista
IPT = Instituto de Pesquisas Tecnológicas
BRASIL


EAY-201 Ypiranga - 1935, two-seat, single-engine high-wing monoplane with enclosed cockpit and fixed undercarriage, 5 built, later developed by CAP as CAP-4

CAP-1 Planalto - 1942, two-seat, single-engine low-wing monoplane with open cockpits and fixed undercarriage, 10 built, designed by IPT

CAP-1A - see CAP-1, 1944, experimental, 1 built

CAP-2 - ?

CAP-3 Planalto - 1945, two-seat, single-engine low-wing monoplane with open cockpits and fixed undercarriage, 5 built

CAP-3A - see CAP-3, 3 built

(CAP-1, -1A, -3 and -3A also known as IPT-4 Planalto)

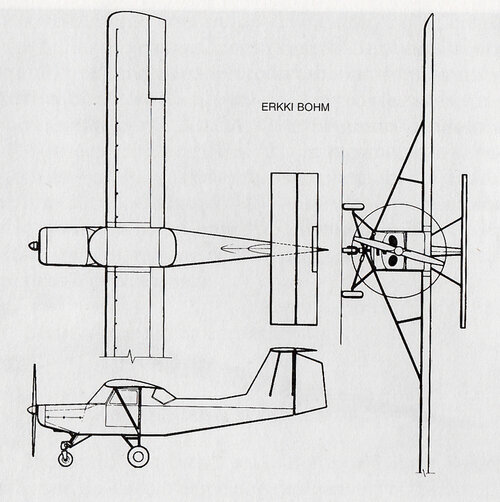

CAP-4 Paulistinha - 1942, two-seat, single-engine high-wing monoplane with enclosed cockpit and fixed undercarriage, built in three variants:

CAP-4A - utility, 777 built, later developed as Neiva N-56C

CAP-4B (Ambulancia) - ambulance, 2 built

CAP-4C - observation, equiped with radio set, 1 built (also known as Paulistinha Rádio or Paulistinha Observação = Paulistinha Observation)

CAP-5 Carioquinha - see CAP-4, 1945, one CAP-4A rebuilt as two-seater with side-by-side seats

CAP-6 Tufão - designed as improved Planalto, two-seat, single-engine low-wing monoplane with enclosed cockpits and retractable undercarriage, only project

CAP-7 - seven-seat (pilot + 6 passengers), twin-engine low-wing monoplane with enclosed cockpit and retractable undercarriage, inspired by Focke-Wulf Fw 58 Weihe, none built

CAP-8 - 1944, four-seat, single-engine low-wing monoplane with enclosed cockpit and fixed (retractable planned in series aircraft) undercarriage, inspired by Messerschmitt Bf 108 Taifun, only 1 built

CAP-9 Carioca - four-seat, single-engine high-wing monoplane with enclosed cockpit and fixed undercarriage, only few built (also as ambulance)


Any comments or additions are welcome.

Regards,

LAW


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
74
Merging of several posts. Feel free to add!


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
74

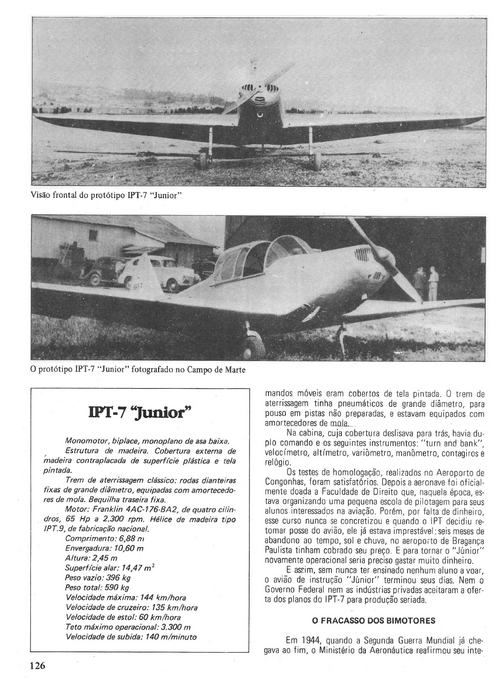

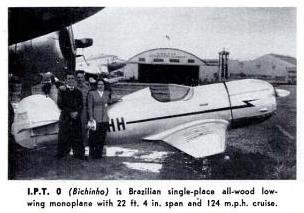

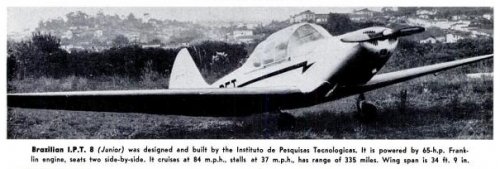

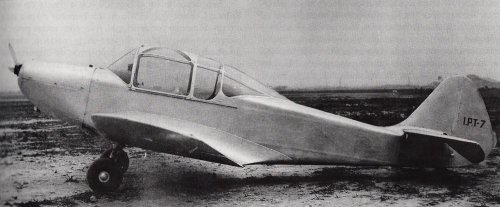

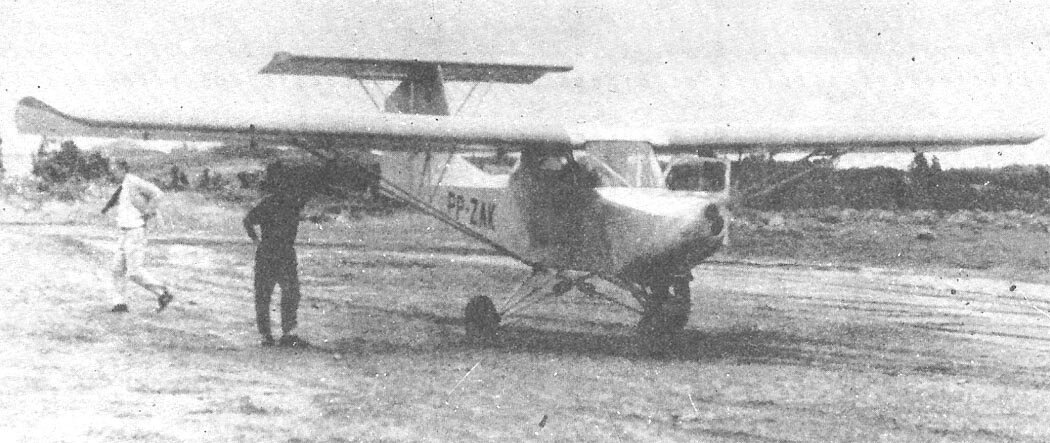

Photos of the IPT. 0 and IPT. 8 from FLYING, January 1950. The aircraft called the IPT. 8 Junior here is designated as the IPT. 7 in the list posted above. Who's right?


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,760
Reaction score
805
Great find Stragazer,

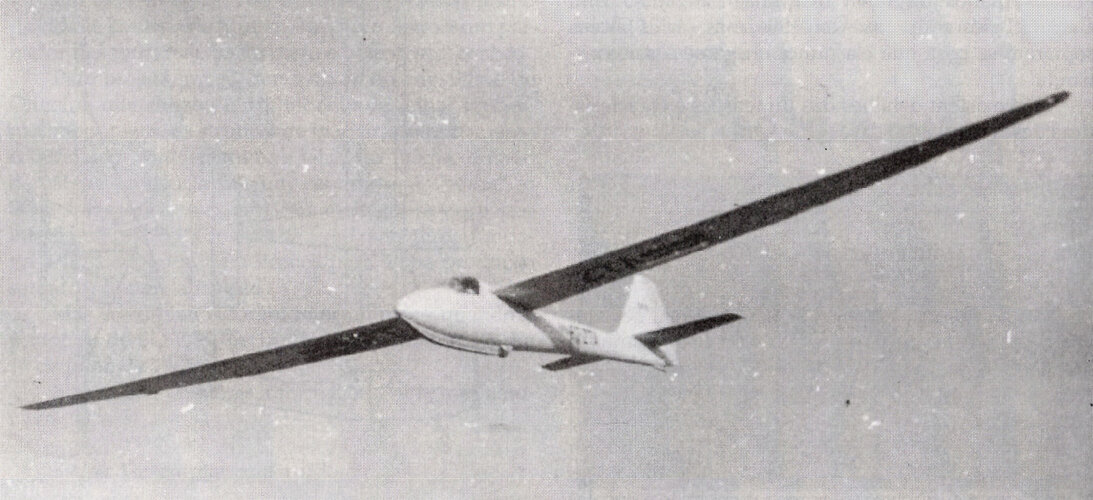

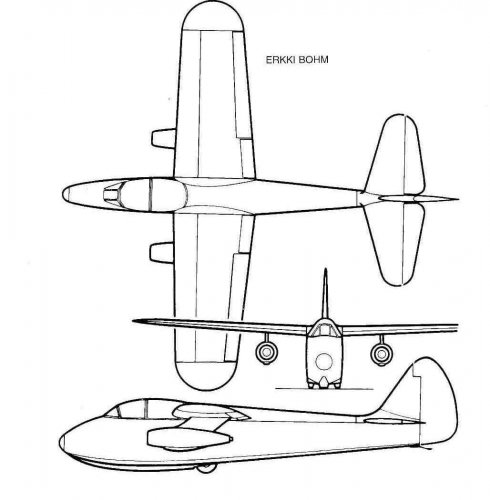

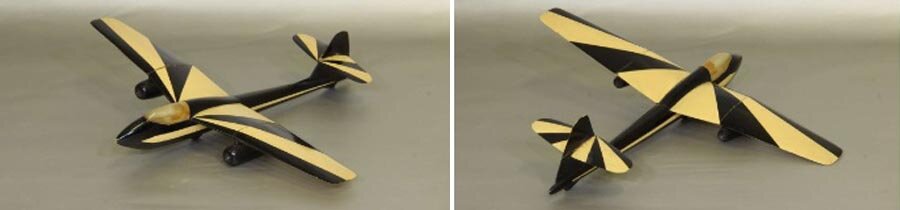

and here is the IPT-15 pulse jet sailplane;


http://www.secretprojects.co.uk/forum/index.php/topic,1451.msg12195.html#msg12195


Attachments

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,747
Reaction score
12

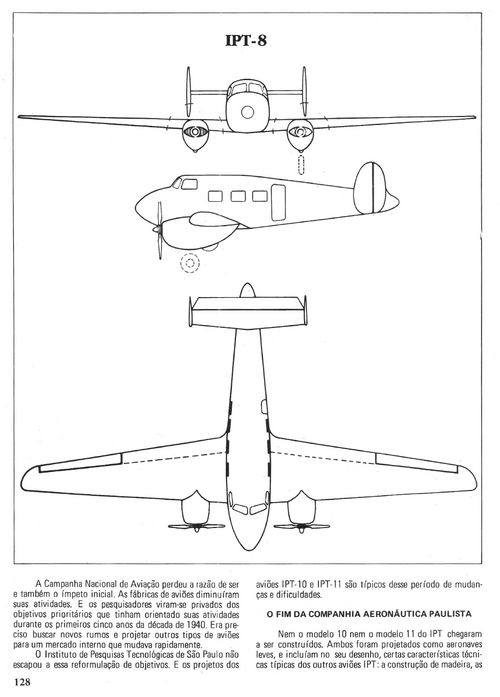

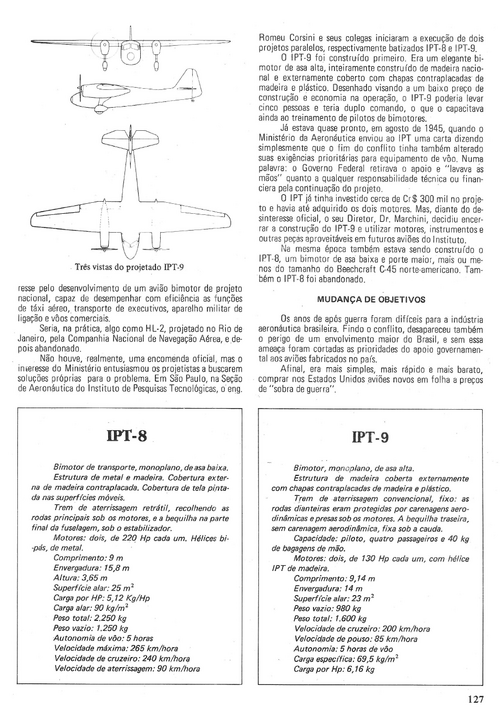

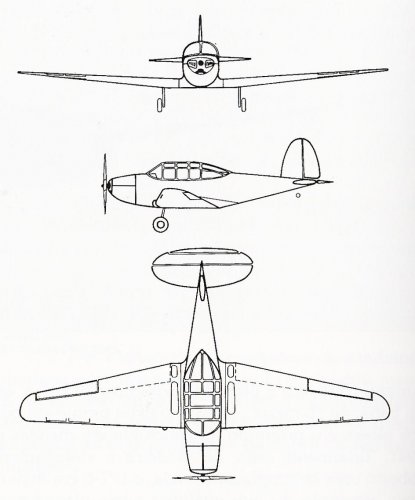

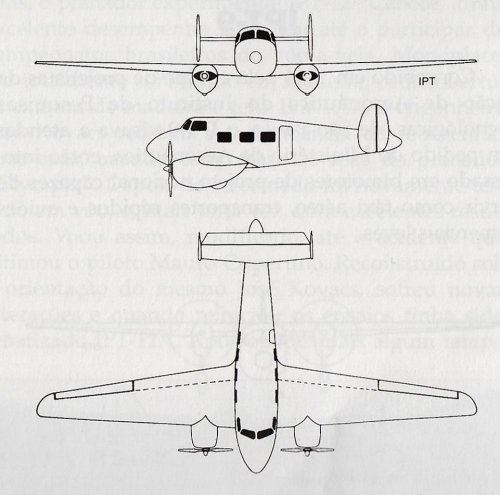

Hi Star, I´m shure your second pic is a misprint. I have this about the IPT.8...


Attachments

Retrofit

CLEARANCE: Top Secret
Joined
Feb 21, 2007
Messages
537
Reaction score
4

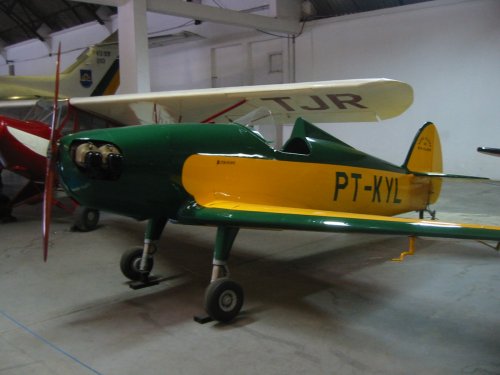

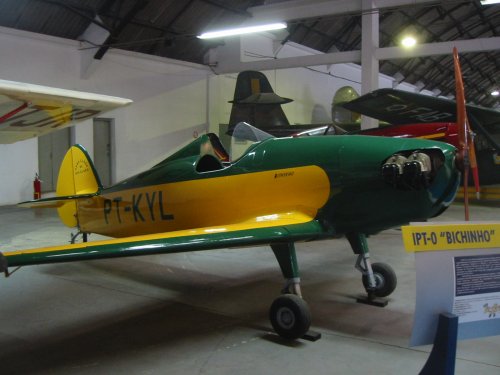

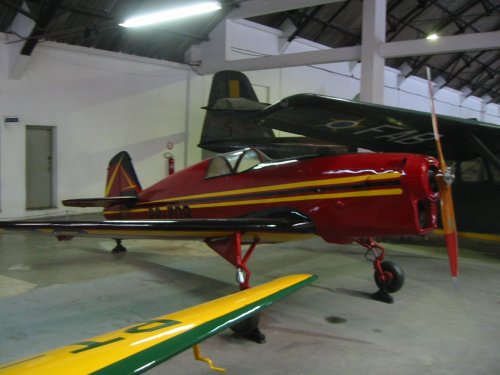

IPT-0 Bichinho II
The IPT-0 is a plane certified for aerobatics, with capacity for a crew member. This model was designed in 1938 by engineer Frederick A. and technician Hoover Horton, of the Polytechnic School of São Paulo, under the supervision of the Institute for Technological Research (IPT). Its construction was completed in the city of Rio Claro (SP), becoming known as Bichinho of Rio Claro. The aircraft on display (registration PT-KYL) is the model IPT-0 "Bichinho II," a total of four prototypes built in 1940 and flew until 1988, when it was deactivated and delivered to the Aerospace Museum.
Technical Specifications
Manufacturer: Technology Research Institute of São Paulo - Brazil.​
Engine: Continental C-85-12F 85 hp, 4 cylinder horizontally opposed.​
Length: 5,60 m​
Span:6,80 m;​
Height:​
1,66 m;​
Weight empty:260 kg;​
Maximum speed:240 km/h;​
Range: 800km​


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,760
Reaction score
805
Thank you my dears Maveric and Retrofit.


Retrofit

CLEARANCE: Top Secret
Joined
Feb 21, 2007
Messages
537
Reaction score
4

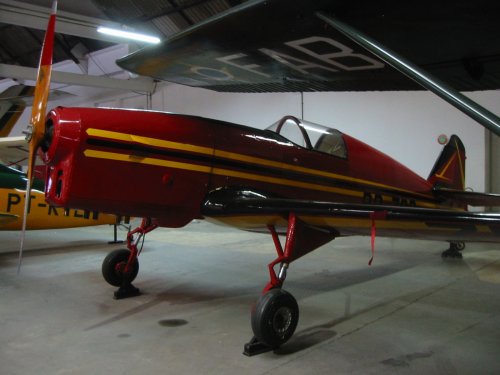

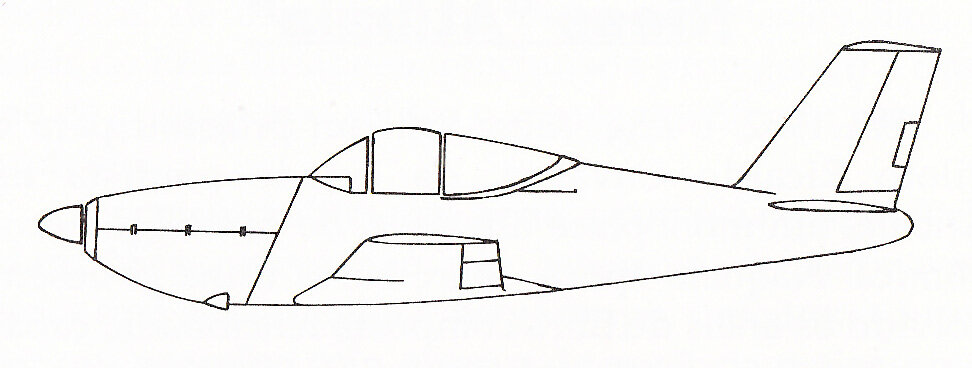

IPT-16 "Surubim"
This experimental aircraft was designed by engineer Joseph Kovacs, with the help of Silvio de Oliveira in 1949. It was first named "Satanàs". In 1953, the works were taking over by IPT who finihed it and named it IPT-16 "Surubim". First flight performed on the 17th of September 1959 by aerobatic pilot Alberto Bertelli.
Only one prototype built ( The one exposed at the Museu Aeroespatial of Rio de Janeiro).
Its original retractable landing gear was replaced by a fixed one in 1979 during an overhaul.
Span: 7.7m; lenght: 7m; Height: 2.1m; Engine: Hirth HM506A of 160hp; Empty weight: 440kg: Max speed: 340km/h; Range: 1050km.


Attachments

Retrofit

CLEARANCE: Top Secret
Joined
Feb 21, 2007
Messages
537
Reaction score
4
Also on show at the Museu Aeroespatial of Rio de Janeiro:

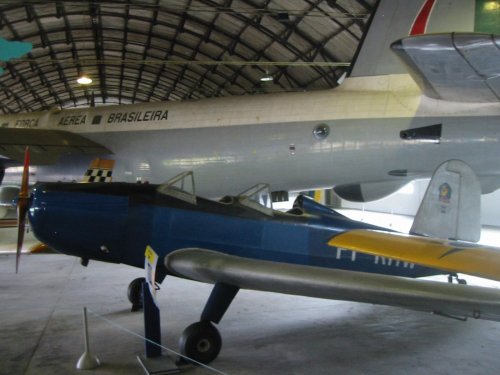

CNNA HL-6B "Cauré": The CNNA HL-6B is a 2 seat airplane, for the primary pilot training. Was first flown in 1943 and was produced in series (39 units) until 1947. Planes provided good services to various Brazilian flying clubs until mid-1950s, when they were disabled.
The one on display (civil registration "PP-RHW"), equipped with a 130 hp Franklin engine, was used by the School of Engineering, Federal University of Paraná (used as an aid to instruction) until 1983, when he was sent to the Aerospace Museum .
Span: 9.8m; Lenght: 7.2m; Height: 2.04m; Engine: Lycoming O-290-C of 125 hp, 4 cylinder horizontally opposed; Empty weight: 545kg; Max speed: 200km/h; Range: 520km.

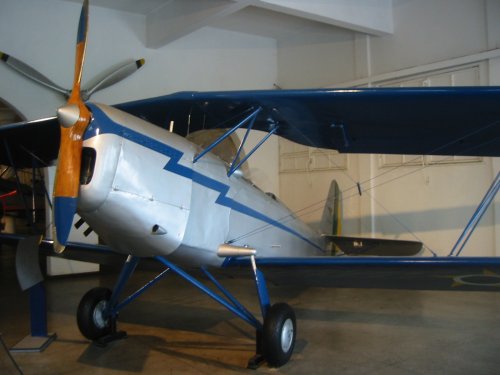

Muniz M-7: First aircraft in Brazil to reach production status (28 units built). First flight: 17th october 1935).

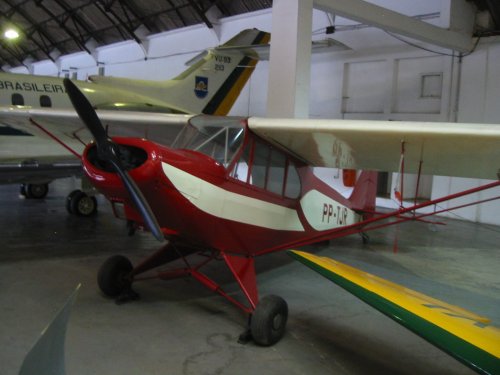

CAP-4A “Paulistinha” : The CAP 4A is a 2 seat plane, used for primary training. It is a development of EAY-201 "Ypiranga" (EAY - Ypiranga Aeronautics Company) that first flew in 1935. In 1943, the prototype and manufacturing rights of EAY-201 were purchased by the Company Aeronautics Paulista, who perfected the design and renamed CAP-4 "Paulistinha." This company produced a total of 777 aircraft model CAP-4A, from 1943 to 1948.
The one on display (registration number "PP-TJR") flew in flying clubs until 1970.


Attachments

Apophenia

CLEARANCE: Top Secret
Joined
Jul 25, 2007
Messages
2,109
Reaction score
45
Yes, that mention of CAP-1 derivatives is repeated in several online references but never with any details about the CAP-2 :(

Possibly off-topic but Empresa Aeronáutica Ypiranga began by building the EAY-101 glider in 1931. The prototype EAY-201 Ypiranga first flew in 1935 with a 40 hp Salmson 9 AD ... but there was no change in designation when the French radial was replaced by a 65 hp Franklin 4AC-176-B.

BTW, does anyone know if the CAP-1A was the modified prototype Planalto fitted with a 130 hp Franklin also known as the 'Tufão' (Typhoon)?


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,760
Reaction score
805
New Info for EAY-101,thank you my dear apophenia,

and for Tufao,I think it was CAP-6,please see reply # 2 .
